Stryker X7000 Operating instructions

Warranty
Stryker Endoscopy warrants the X-7000 Light Source
against defects in both materials and workmanship to the
registered owner at the time of purchase. All components
are covered by the warranty for a period of one year from
the date of purchase.
This warranty does not apply to any unit which has been
the subject of misuse, abuse, neglect, improper installation
or operation or that which has been altered, adjusted, or
tampered with by any person other than Stryker Endos-
copy authorized service personnel.
The customer is responsible for returning the defective
equipment to the factory at his or her own expense.
Stryker Endoscopy or its representative will service the
unit, repair or replace any defective parts thereof, and
return the unit.
If, upon examination, it is determined that the fault has
been caused by misuse or abnormal conditions of opera-
tion, the repairs will be billed to the customer in the same
manner as out-of-warranty repairs.
Products repaired by Stryker Endoscopy will be issued a 30
day repair warranty against defects in both materials and
workmanship, provided the original warranty period has
expired. This warranty applies only to products that have
been repaired by Stryker. Instruments submitted due to
defects in materials and workmanship during the warranty
period will be repaired at no charge to the customer.
The warranty as set forth herein is exclusive and in lieu of
all other warranties, remedies, obligations, and liabilities of
Stryker Endoscopy Inc., expressed or implied, including
the implied warranties of merchantability and fitness for
use and of consequential damages. These products are
being sold only for the purpose described herein, and such
warranty only runs to the original purchaser. In no event
shall Stryker Endoscopy be liable for any breach of war-
ranty in any amount exceeding the purchase price of the
product.
No agent, employee or representative of Stryker Endoscopy
has the authority to bind the Company to any other war-
ranty, affirmation, or representation concerning this
instrument.
This warranty is valid only to the original purchaser of
Stryker Endoscopy products directly from Stryker Endos-
copy or from a Stryker Endoscopy authorized agent. The
warranty cannot be transferred or assigned by the original
purchaser.
The X-7000 Light Source warranty is void if any WARN-
INGS, CAUTIONS, or NOTES are disregarded.
All Stryker products are warranted against defects in mate-
rials and workmanship.
© Stryker and Stryker Endoscopy are registered trade-
marks of Stryker Corporation.

Table of Contents
1.0 INTRODUCTION
1.1 Scope.........................................................................................................................................................................................1
1.2 Responsibility...........................................................................................................................................................................1
1.3 Upgrades...................................................................................................................................................................................1
1.4 Equipment Overview...............................................................................................................................................................1
1.5 Service Options........................................................................................................................................................................1
1.6 Maintenance Precautions........................................................................................................................................................1
1.7 Factory Service Instructions...................................................................................................................................................2
1.8 Required Equipment...............................................................................................................................................................2
1.9 Required Skills.........................................................................................................................................................................2
1.10 Required Replacement Components..................................................................................................................................2
2.0 DIAGNOSTICS AND CORRECTIVE MAINTENANCE
2.1 General Recommendations....................................................................................................................................................3
2.2 Power Requirements...............................................................................................................................................................3
2.3 Ambient Requirements...........................................................................................................................................................3
2.4 Connections and Wiring.........................................................................................................................................................3
2.5 Verify Operation......................................................................................................................................................................3
3.0 REPAIR CHECKLIST AND MATRIX
3.1 Diagnostic Analysis Checklist................................................................................................................................................5
3.2 Repair Matrix ..........................................................................................................................................................................6
4.0 COMPONENT REMOVAL AND REPAIR
4.1 Component Replacement Instructions.................................................................................................................................7
4.1.1 Component Removal Table.................................................................................................................................7
4.1.2 Individual Replacement Instructions.................................................................................................................8
4.2 Console Cover Removal ..........................................................................................................................................................8
4.3 Power Source Components...................................................................................................................................................9
4.3.1 Control Board Replacement...............................................................................................................................9
4.3.2 Lamp Ballast Replacement.................................................................................................................................10

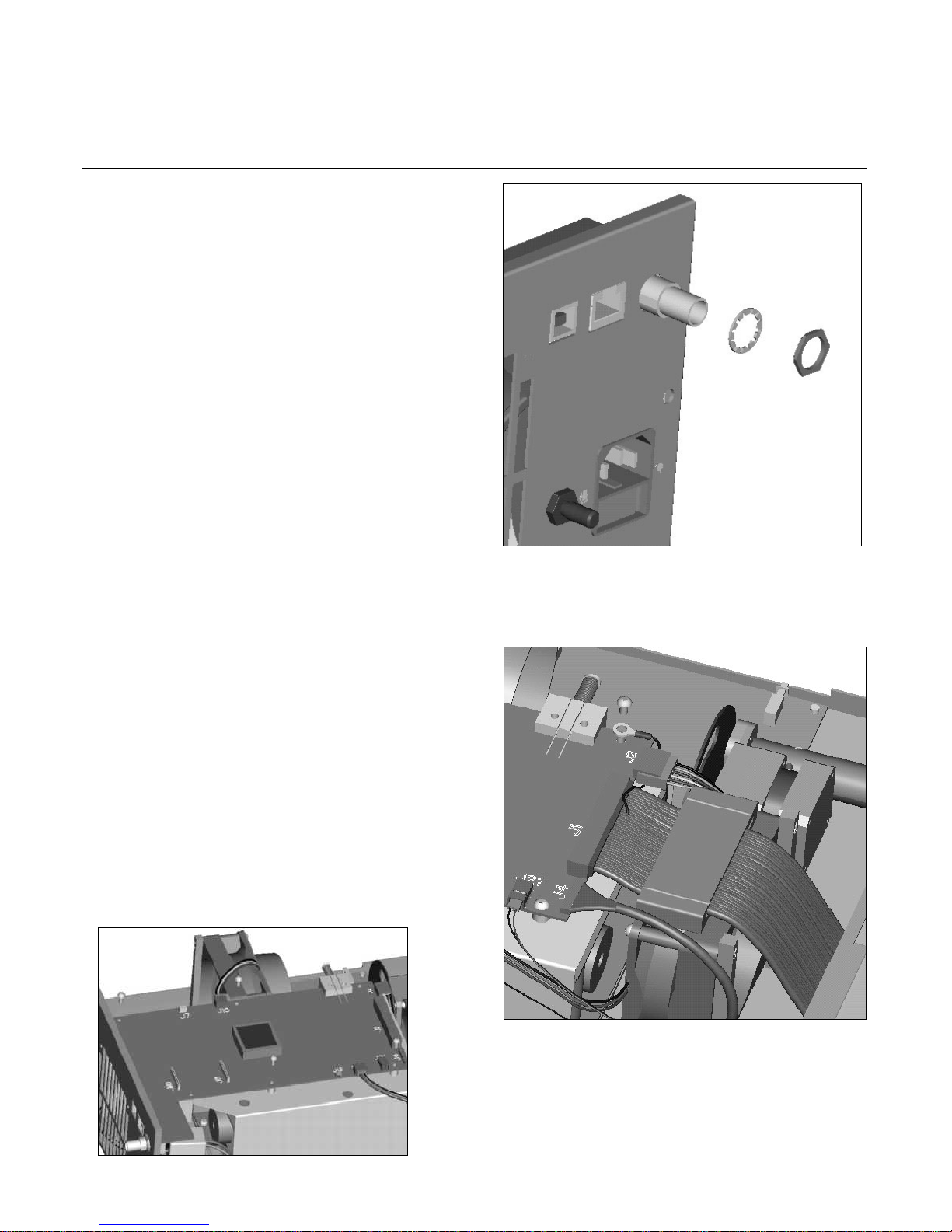

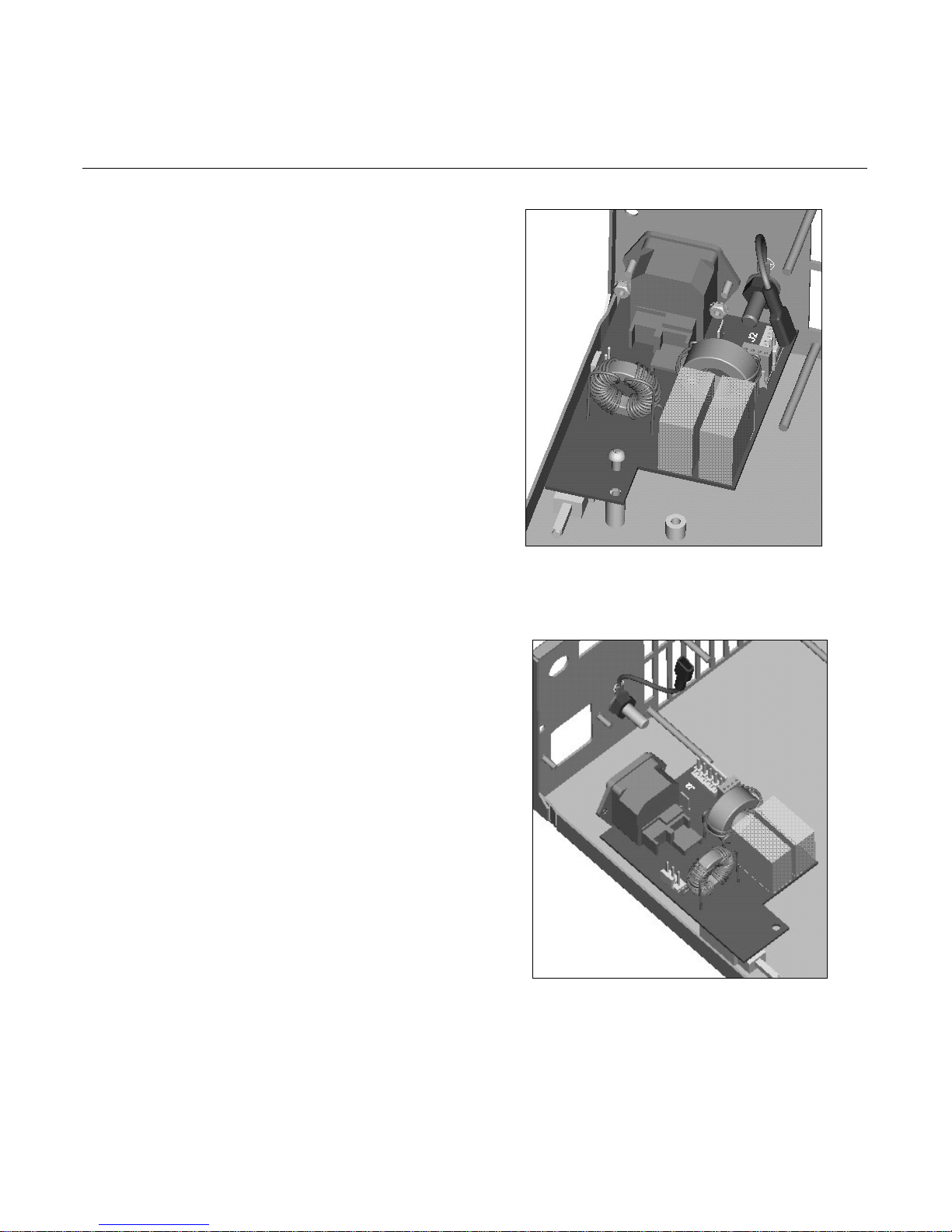

4.3.3 AC Inlet Board Replacement.............................................................................................................................11
4.3.4 Ballast Fan Replacement....................................................................................................................................12
4.4 Light Source Components....................................................................................................................................................12
4.4.1 Bulb Fan Replacement........................................................................................................................................12
4.4.2 Bulb Board Replacement...................................................................................................................................13
4.4.3 Shutter Replacement..........................................................................................................................................13

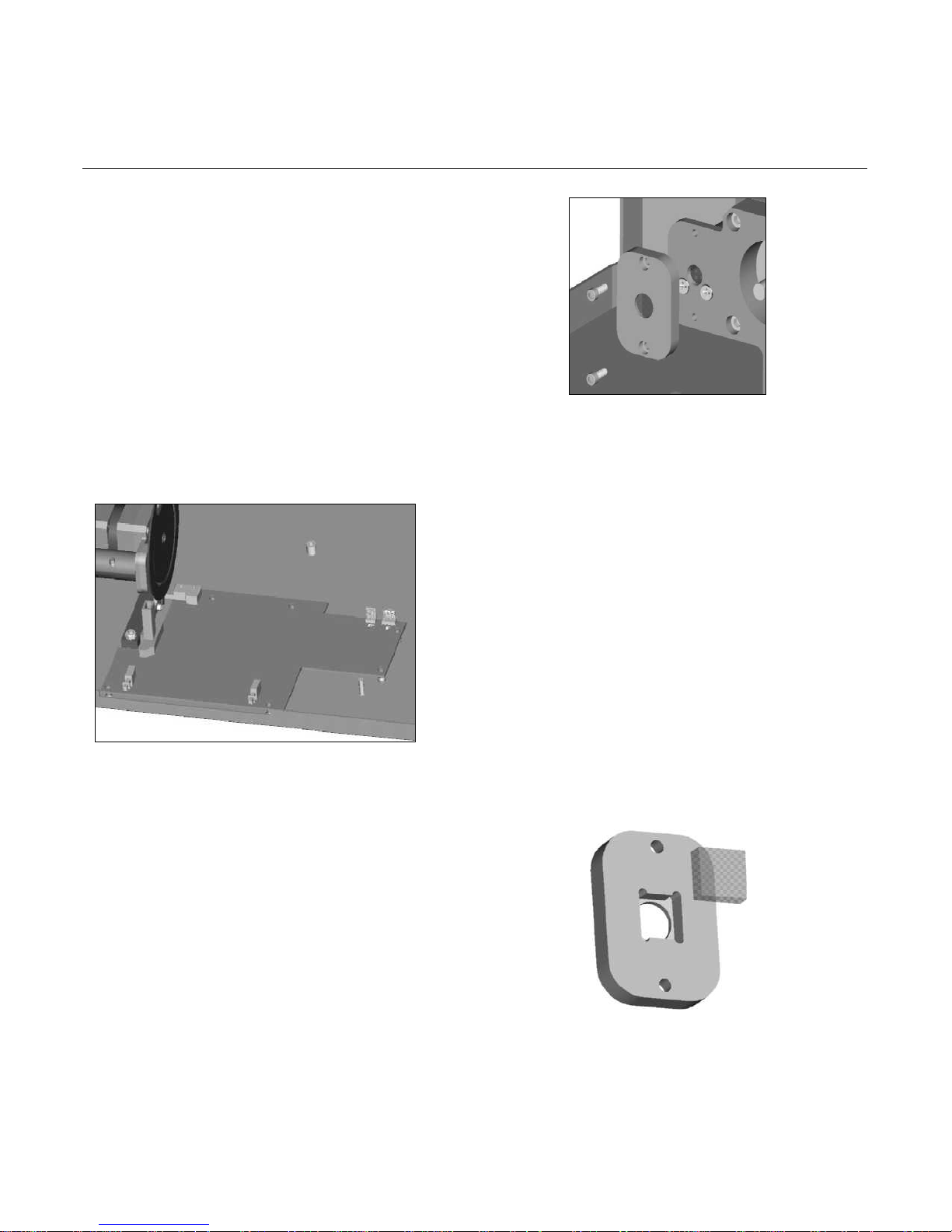

4.4.4 Hot Mirror Replacement...................................................................................................................................13

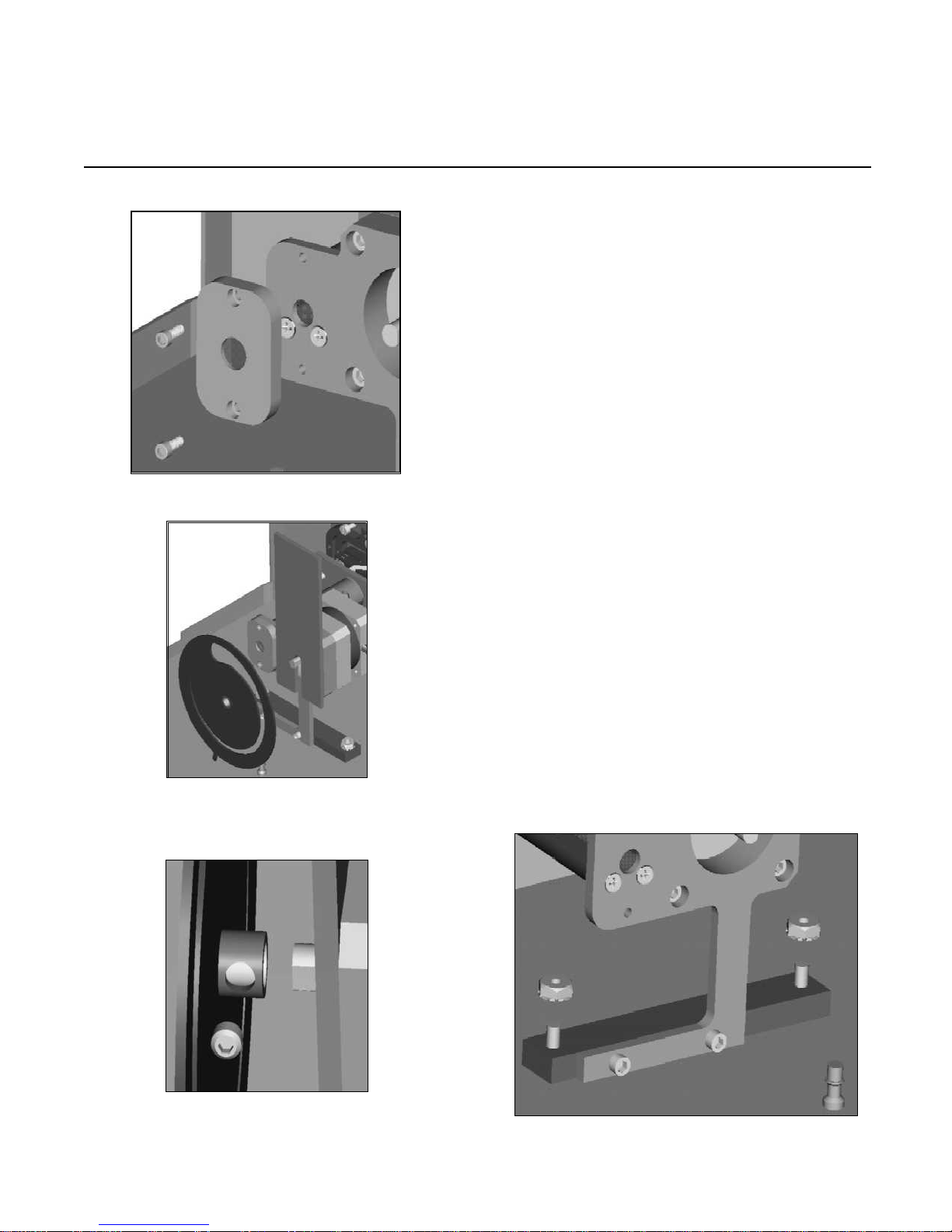

4.4.5 Motor Mount Replacement..............................................................................................................................14
4.4.6.1 Motor Replacement.........................................................................................................................................15
4.4.6.2 Integrating Rod Replacement........................................................................................................................15

4.5 Front Panel Components......................................................................................................................................................16
4.5.1 Jaw Handle Replacement...................................................................................................................................16

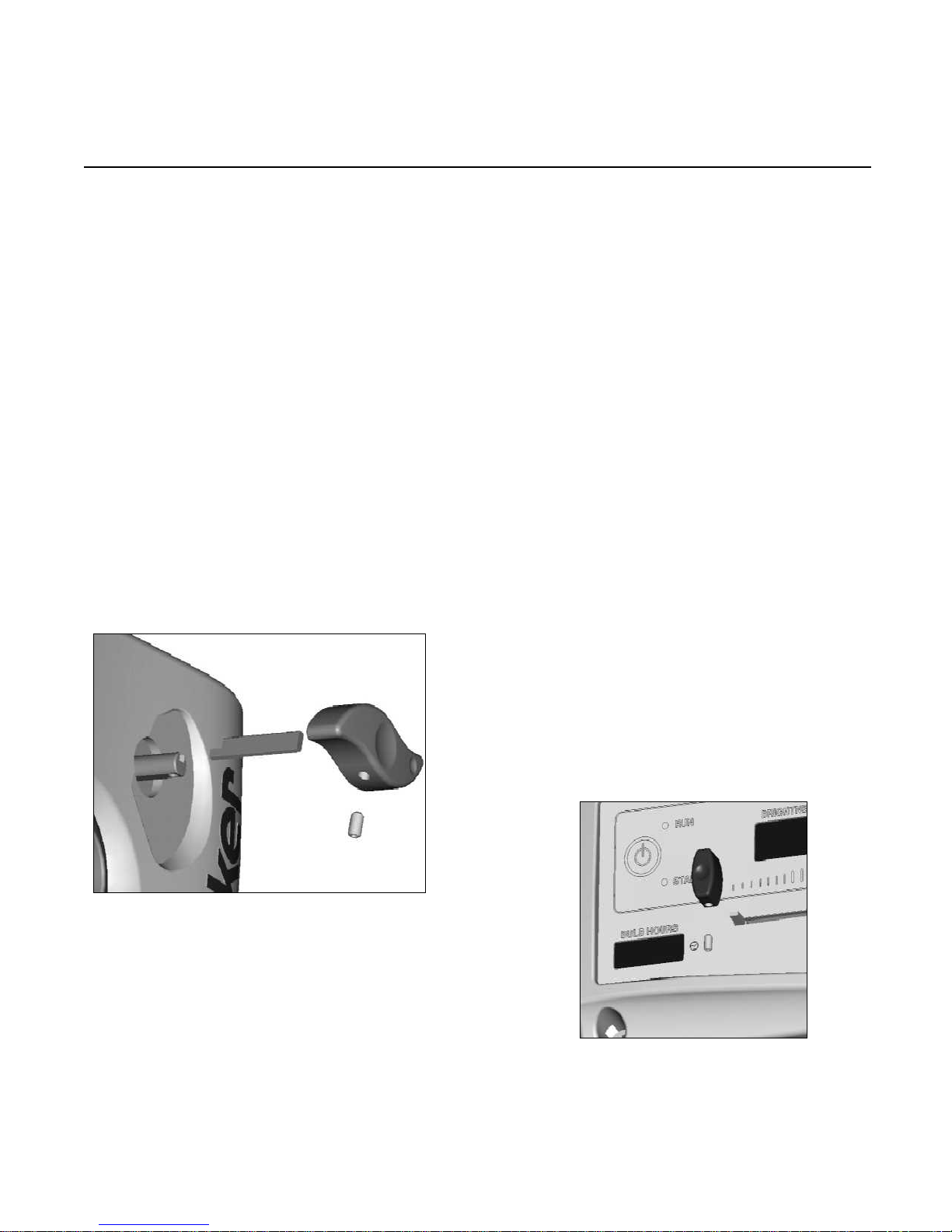

4.5.2 Potentiometer Knob Replacement....................................................................................................................16
4.5.3 Front Panel Replacement...................................................................................................................................17
4.5.4 Jaw Assembly Replacement...............................................................................................................................17
4.5.5 Power Switch Replacement................................................................................................................................18
4.5.6 Display Board Replacement..............................................................................................................................18
4.6 Fuse Replacement..................................................................................................................................................................19
4.6.1 Rear Panel Fuses..................................................................................................................................................19
5.0 ELECTRONIC PROCEDURES
5.1 Required Skills.......................................................................................................................................................................20
5.2 Alignment and Calibration..................................................................................................................................................20
6.0 FINAL ASSEMBLY AND TESTING
6.1 Required Skills.......................................................................................................................................................................21
6.2 Assembly.................................................................................................................................................................................21
6.3 Electrical Current Leakage Test...........................................................................................................................................21
6.4 Hi-Pot Test..............................................................................................................................................................................22
7.0 APPENDIX
7.1 Assembly Diagram................................................................................................................................................................23
7.2 Parts Listing............................................................................................................................................................................23
7.3 Reference Documents...........................................................................................................................................................23
8.0 WARRANTY
..................................................................................................................................................................................................................24
9.0 SERVICE
..................................................................................................................................................................................................................24
10.0 OTHER SERVICE
..................................................................................................................................................................................................................25

1
1.0 Introduction
1.1 SCOPE
This manual is intended to be used as a reference guide for
electronics technicians and the Stryker Repair Team in the
analysis and repair procedures for the X-7000 Light
Source. It is meant to be used in conjuction with the
Stryker X-7000 Universal Light Source Operating and
Maintenance Manual (Stryker P/N 1000-400-651) and
does not replace existing documentation.
Stryker Endoscopy maintains a complete repair depart-
ment for the sole purpose of providing efficient and reli-
able service.
1.2 RESPONSIBILITY
Stryker Endoscopy accepts full responsibility for the effects
on safety, reliability, and performance of the equipment
only if readjustments, modifications and repairs have been
carried out exclusively by a person specifically authorized
by Stryker Endoscopy to do so.
In no event shall Stryker Endoscopy be liable for incidental
or consequential damages in connection with or arising
from the performance or use of its products after unautho-
rized modification or repair performed by individuals
other than Stryker Endoscopy perosnnel.
1.3 UPGRADES
The Stryker Endoscopy X-7000 Light Source is a high per-
formance device designed for use with Stryker Endoscopy
medical video cameras to provide outstanding illumina-
tion of the surgical site across all endoscopic applications.
With the proper light cable and adapters, it can be con-
nected to any flexible or rigid endoscope. Stryker Endos-
copy reserves the right to incorporate improvements
without notice. However, updated parts will be fully inter-
changeable with older versions and will offer at least the
same level of quality and performance.
Stryker Endoscopy will inform customers of significant
upgrades to the product. Contact your Stryker representa-
tive for up-to-date information on available options and
upgrades to equipment as well as updates to this manual.
1.4 EQUIPMENT OVERVIEW
The Stryker Endoscopy X-7000 Light Source consists of
the light source, power cord, and Operation and Mainte-
nance Manual. Replacement or spare lamps can be pur-
chased separately.
1.5 SERVICE OPTIONS
The user is advised to return a malfunctioning unit to
Stryker Endoscopy for repair or replacement, where spe-
cialized equipment and technicians are available to per-
form repairs while maintaining full product quality and
safety.
In the event that the user decides to undertake repair pro-
cedures, Stryker Endoscopy recommends that these be car-
ried out only by qualified technicians with proper test
equipment listed in this manual, so that the safety of oper-
ators and patients may not be compromised.
1.6 MAINTENANCE PRECAUTIONS
WARNING: The incorrect use of any of the required tools
and techniques may risk damage to the
equipment or injury to the person carrying
out the procedure, subsequent operators, or
patient. Repairs should be made ONLY by
those that have been specificallytrained in
the use of all pertinent equipment andtech-
niques. Stryker Endoscopy cannot continue
to guarantee compliance to UL, CSA, TUV,
or other labeled safety standards if service is
performed by anyone other than Stryker
Endoscopy Personnel.

2
1.7 FACTORY SERVICE INSTRUCTIONS
If service is needed either during or after the warranty
period:
Contact Stryker Endoscopy at 1-800-624-4422 or contact
your local Stryker Endoscopy sales representative. If
needed, a loaner unit may be requested during the time of
your unit repair.
Package the X-7000 carefully in the original shipping con-
tainer, if possible.
Ship the Stryker Endoscopy X-7000 Light Source, prepaid
and insured, to:
Stryker Endoscopy Customer Service
Attention: Repair Department
5900 Optical Court
San Jose, CA 95138
1.8 REQUIRED EQUIPMENT
Most of the procedures described in this manual require
the following basic tool kit:
• Small flat blade screwdriver
• Medium Philips screwdriver
• 8” adjustable wrench
• Needlenose pliers
• Small wire cutting pliers
• Wire stripper
• Soldering iron and solder
•Multimeter
• Stryker medical video camera
•StrykerScope
•Fiberopticcable
• Glass fuse puller
•Shortingclip
• Bio Tek Model 170 Analyzer or equivalent current
leakage tester
• Nut drivers 11/32” and 5/16”
• Open end wrenches 7/16” and 1/2”
• Set of standard allen wrenches / hex keys
•Hi-PotTester
1.9 REQUIRED SKILLS
Each diagnostic and repair procedure described in this
manual requires a technician qualified by training or expe-
rience in the following areas:
•Basic electronics techniques
•Multimeter operation
1.10 REQUIRED REPLACEMENT COMPONENTS
If a repair procedure necessitates replacements parts,
please refer to the Appendix (page 22).

3
2.1 GENERAL RECOMMENDATIONS
The Stryker Endoscopy Model X-7000 Light Source is a
precision instrument which has been engineered and man-
ufactured with great care to ensure the safety of operators
and patients. In order to maintain the high level of safety
and reliability required of the X-7000, it is important to
fully understand and comply with all required procedures
set out herein.
If some part of a procedure is omitted or adequate equip-
ment is not used, the safety and performance of the device
may be unknowingly compromised. It is strongly recom-
mended that if any element in these procedures is beyond
the scope of the technician’s training, refer to section 1.7
for information on obtaining fully qualified professional
service at Stryker Endoscopy.
WA R N I N G : As is the case with all AC powered devices,
dangerous voltages are present. If adequate
safety precautions are not taken, results may
include damage to the equipment, injury, or
death. It is imperative that these procedures
be approached only by trained technicians
with proper equipment after fully reading
and understanding the steps involved.
2.2 POWER REQUIREMENTS
• There is one AC power cord for the X-7000 Light Source.
A separate AC power cord is normally required for any
other instrument being used.
• Each instrument is clearly marked for power require-
ments at the AC power cord connection.
• Testing the outlet for proper grounding and polarity is
highly recommended prior to connecting the X-7000
Light Source. If available, a ground-fault-interrupt type
outlet will provide an additional level of safety.
NOTE: A proper electrical installation procedure will
ensure that all associated signal cabling is cor-
rectly installed prior to applying AC power to the
system.
2.3 AMBIENT REQUIREMENTS
Ensure that:
• The distance between the X-7000 Light Source and the
associated devices does not exceed the available cable
length.
• Controls will be easily accessible to operator.
• Ventilation is not obstructed around the unit. Avoid
locations with excessive heat or temperature fluctua-
tions, such as direct sunlight.
2.4 CONNECTIONS AND WIRING
Please refer to the procedures detailed in the X-7000 Uni-
versal Light Source Operating and Maintenance Manual
(Stryker P/N #1000-400-651).
2.5 VERIFY OPERATION
After ensuring that both power and signal connections
have been correctly made, place the power switch in each
unit to the “ON” position. Check that an image is present
on the monitor.
2.0 Diagnostic and Corrective Maintenance

4
3.0 Repair Checklist and Matrix
3.1 INITIAL REPAIR CHECKLIST
The following page is intended for use by qualified Stryker
personnel only. Complete a copy of the checklist and file it
in the DHR.
3.2 REPAIR MATRIX #1
3.3 REPAIR MATRIX #2
The Repair Matrices are intended for use by qualified
Stryker personnel only, in conjuction with section 4.0
(Component Removal and Repair). See page 6 and 7 for
Repair Matrices.

Endoscopy
5900 Optical Court
San Jose, CA 95138
t: 408 754 2000 f: 408 754 2505
www.stryker.com
DIAGNOSTIC ANALYSIS CHECKLIST CHECK DATE: _______________NAME: _____________________
SERIAL #: ___________________
General Assembly Check Points Yes/No Details
System Checks Yes/No Details
Cable in: Cable out:
Door open: Door closed:
Failure Diagnostics Yes/No Details
Boost voltage =
5-V line value =
12-V line value =
What is the software version number?
Does the unit have D53 and D54 chips? (Rev. F and prior
versions only)
Does the unit turn on the bulb when the interlocks are closed?
(door and light cable)
Does warm message appear when the unit is powered on?
Does the unit turn on the front panel LEDs as expected after
warm
message?
Is there any visual damage on the unit?
Are the door switches plastic or metal?
Are there screws on the door switches?
What is the Rev of the control board? (Rev. stamped on
control board)
Does the unit switch between run/standby?
Does the unit switch between auto/manual?
When the cable is pulled out, does the bulb turn OFF?
Is power button flashing when powered on?
Measure the boost voltage.
Measure the 5-V line voltage on the jumper.
Measure the 12-V line voltage on the jumper.
Disconnect the ballast from the control board and
connect the jumper cable, Does the bulb turn ON?
If the bulb does not turn on,
What is the customer complaint?
When the door is opened, does the bulb turn OFF?
How many hours are there on the bulb?
If not, record the voltage between TP20 and GND.
Does the front display board backlight turn on when the device
If not, record the voltage between TP23 and GND.
Does the unit show the brightness properly?
Other Observations:
Staff Recommendation:

6
NLB NCB NLL NMO NPB BBR IRR NSW NFU NFG NSH EPR NDB NJW EBF CHR NC1 BUR BAR RCR DFR NSP NHL NFP
Replace Ballast Replace Control Board Replace Bulb Assembly Replace Motor Replace AC Inlet Board Replace Bulb Board Replace Integrating Rod Replace Power Switch Replace Fuse Replace Hot Mirror Replace Shutter Replace Eprom / Upgrade Software (in-house) Replace Display Board Replace Jaw Assembly Replace Ethernet Board Replace Chassis Replace Cover Replace Bulb Fan Replace Ballast Fan Replace Ribbon Cable Replace Feet Replace Slide Pot Knob Replace Jaw Handle Replace Front Panel
E1F E-1 231
E2F E-2 3 1 4 2
E3F E-3 2 1
E5F E-5 4 3 2 1
E6F E-6 12
PSF Power Switch Failure 4 3 2 1
LPF No Power 2 3 4 1
FBF Flashing Power Button 2 1 3
BUF "Bulb" in Bulb Hours 1 2 3
PFF Power only to Front Panel 1 2 3 4
NLF No Light Output 3 4 1 5 6 2
SBY Unit won't exit Standby Mode 4 2 3 6 7 1 5 8
LLF Low Light Output 5 1 4 3 2
BHF Bulb Hours not Displayed 3 1 2 4
DCF Delayed Ignition, Clicking 2 3 1
DPF Delayed Ignition, Popping 1 3 2
STR StrobingLight 321 54 6
LOF Light Stays On 2 3 1
PSF Permanent Sidne Failure 1 2
ISF Intermittent Sidne Failure 2 1
ECF Ethernet Communication Failure 2 1
VIF Video Failure 1
CBF Control Board Failure 1
LBF Ballast Failure 1
DBF Display Board Failure 1
BJW Jaw Assembly Failure 1
BAF Bulb Assembly Failure 1
BBF Bulb Board Failure 1
EBR Ethernet Board Failure 1
PBF AC Inlet Board Failure 1
FMO Motor Failure 1
IRF Integrating Rod Failure 1
BFG Hot Mirror Failure 1
BSH Shutter Failure 1
PSF Power Switch Failure 1
BSP Slide Pot Knob Failure 1
BHD Jaw Handle Failure 1
EPF Eprom Failure 1
FUF Fuse Failure 1
RBF Ribbon Cable Failue 1
FNF Fan Failure 12
CHF Damaged Chassis 1
COF Damaged Cover 1
DFF Damaged/Missing Feet 1
FPF Damaged Front Panel 1
REPAIR CODES
FAILURE CODES
Error Code Failures
Power Failures
Light Output Failure
Input/Output Ports
Board/Component Failures
Cosmetics
3.2 REPAIR MATRIX
Use the following matrix to identify failure and repair codes. Refer to section 4.0 for repair instructions.

7
4.1 COMPONENT REPLACEMENT INSTRUCTIONS
Required skills:
Basic electronics techniques.
WA R N I N G : The incorrect use of any of the required tools
and techniques may risk damage to the
equipment or injury to the person carrying
out the procedure, subsequent operators, or
patient. Repairs should be made ONLY by
those that have been specifically trained in
the use of all pertinent equipment andtech-
niques.
The following instructions apply to the removal of compo-
nents from the X-7000. To remove a component for
replacement or repair will require the removal of certain
other components. Components must be removed in the
order listed in the following procedures.
The table in section 4.1.1 shows the order in which compo-
nents must be removed according to the basic physical
assembly of the X-7000. To remove a component for
replacement, or repair, begin with section 4.2 and proceed
accordingly to the appropriate section.
4.1.1 Component Removal Table
NOTE: All components in previous columns must be
removed before removing a component.
4.0 Component Removal and Repair
12 3 4 5
Control
Board
Ballast AC Inlet
Board
Ballast
Fan
Bulb,
Bulb Fan
Bulb
Board
Shutter Hot
Mirror
Motor
Mount
Assembly
Motor
Integrat-
ing Rod
Slide
Button,
Jaw Knob
Front
Panel
Power
Switch
Display
Board
Jaw
Assembly

8
4.1.2 Individual Replacement Instructions
NOTE: Before removing any component in the X-7000,
the Console Cover must be removed (refer to sec-
tion 4.2).
To remove and repair any of the following components,
proceed to section 4.3 (Power Source Components):
• Control Board (4.3.1)
• Lamp Ballast (4.3.2)
• AC Inlet Board (4.3.3)
• Ballast Fan (4.3.4)
To remove and repair any of the following components,
proceed to section 4.4 (Light Source Components):
• Bulb (4.4.1)
• Bulb Fan (4.4.2)
• Shutter (4.4.3)
• Hot Mirror (4.4.4)
• Motor Mount (4.4.5)
• Motor (4.4.6.1)
• Integrating Rod (4.4.6.2)
To remove and repair any of the following components,
proceed to section 4.5 (Front Panel Components):
• Jaw Handle (4.5.1)
• Potentiometer Knob (4.5.2)
• Front Panel (4.5.3)
• Jaw Assembly (4.5.4)
• Power Switch (4.5.5)
• Display Board (4.5.6)
To remove and repair any of the following components,
proceed to section 4.6 (Rear Board Components):
• Fuses (4.6.1)
4.2 CONSOLE COVER REMOVAL
Tools Required:
Basic Tool Kit
• Remove power cord.
• On the back of the unit, remove the two screws attaching
the console to the unit.
• Open the lamp door latch on the side of the unit and
open the door.
• Slide the cover back, then lift off.

9
4.3 POWER SOURCE COMPONENTS
4.3.1 Control Board Replacement
Tools Required:
Basic Tool Kit
• Remove power cord and console cover (procedure 4.2).
• Disconnect connectors and attached wires.
• Remove the 5 screws attaching the control board to the
ballast.
• Unscrew the nut and washer on the BNC connector.
• Remove the old control board.
• Install a new control board with 4 screws.
• Reattach the connectors to their original locations,
including attaching the ground for the ribbon cable with
the 5th screw.
•Screw washer and nut onto BNC.
•Perform calibration (procedure 5.2).
• Reinstall the console cover.
• Perform Electrical Current Leakage Test (procedure
6.3).

10
4.3.2 Lamp Ballast Replacement
Tools Required:
Basic Tool Kit
• Remove power cord and console cover (procedure
4.2).
• Remove the control board (procedure 4.3.1).
• Label and disconnect the three power input cables
located at the rear of the ballast.
• Remove the bulb holder assembly.
• Using the X-Long Magnetic Phillips screwdriver, remove
the 4 screws attaching the lamp ballast to the chassis.
• Replace the lamp ballast assembly.
• Install new ballast assembly using an X-Long Magnetic
Phillips screwdriver.
• Reconnect all cables previously disconnected.
• Reattach the control board to the chassis.
• Reinstall the console cover.
• Perform Electrical Current Leakage Test (procedure 6.3).
• Perform Hi-Pot test (procedure 6.4).

11
4.3.3 AC Inlet Board Replacement
Tools Required:
Basic Tool Kit
• Remove power cord and console cover (procedure
4.2).
• Remove the control board (procedure 4.3.1).
• Remove the lamp ballast (procedure 4.3.2).
• Remove the 2 bolts from the 2 nuts.
• Remove the 1-2 screws from the AC inlet board (number
of screws varies by revision).
• Remove the wiring harness from the J2 connector.

12
4.3.4 Ballast Fan Replacement
Tools Required:
Basic Tool Kit
NOTE: BOTH fans must be replaced if one fan malfunc-
tions.
• Remove power cord and console cover (procedure
4.2).
• Remove the black ribbon cable.
• Remove the fan wire harness assembly.
• Note the fan orientation.
• Remove the 2 nuts attaching the fan to the Chassis and
remove the sub-assembly.
• Remove the 4 screws from the fan mounts.
• Remove the malfunctioning fan(s) and replace. Ensure
the correct orientation.
• Reinstall the 2 fan mounts with the 4 screws.
• Reinstall the 2 nuts.
• Reinstall the black ribbon cable, fan wire harness assem-
bly, and console cover.
• Perform Electrical Current Leakage Test (procedure 6.3).
4.4 LIGHT SOURCE COMPONENTS
4.4.1 Bulb Fan Replacement
Tools Required:
Basic Tool Kit
NOTE: BOTH fans must be replaced if one fan malfunc-
tions.
• Remove power cord and console cover (procedure
4.2).
• Remove the bulb module.
• Detach the wire harness from the control board.
• Remove the 2 nuts attaching the bulb fan housing assem-
bly to the chassis.
• Note the fan orientation.
• Remove the 4 nuts attaching the bulb fan to the fan
mounts/fan ducts.
• Reinstall the new fan onto the mounts/duct with 4 bolts,
ensuring the correct orientation.
• Reinstall the fan assembly onto the chassis with 2 nuts.
• Reconnect the wire harness.
• Replace the bulb module and cover.

13
4.4.2 Bulb Board Replacement
• Remove power cord and console cover (procedure 4.2).
• Remove the bulb.
• Remove the bulb fan (procedure 4.4.1).
• Remove the 2 wire harnesses.
• Remove the bulb board and replace.
• Reinstall the 2 wire harnesses, bulb fan, bulb, and cover.
4.4.3 Shutter Replacement
• Remove the power cord and console cover (procedure
4.2).
• Remove the bulb (procedure 4.4.1).
• Remove the Allen screw from the shutter shaft.
• Remove the shutter and replace.
• Reinsert the Allen screw.
• Replace the bulb and cover.
4.4.4 Hot Mirror Replacement
• Remove power cord and console cover (procedure 4.2).
• Remove the bulb (procedure 4.4.1).
• Remove the shutter (procedure 4.4.3).
• Remove the 2 Allen screws.
• Remove the hot mirror mount and replace.
• Reinsert the 2 Allen screws.
• Replace the shutter, bulb, and cover.

14
4.4.5 Motor Mount Replacement
• Remove power cord and console cover (procedure 4.2).
• Remove the bulb (procedure 4.4.1).
• Remove the hot mirror (procedure 4.4.4).
• Remove the 2 Phillips screws from beneath the hot mir-
ror.
• Remove the 2 nuts.
• Remove the motor wire harness from the control board.
• Remove the motor mount assembly with the motor
attached, and replace.
• Replace the wire harness.
• Reinsert the 2 nuts and 2 Phillips screws beneath the hot
mirror.
• Replace the hot mirror, bulb, and cover.

15
4.4.6.1 Motor Replacement
• Remove power cord and console cover (procedure 4.2).
• Remove the motor mount (procedure 4.4.5).
• Remove the 4 Allen screws.
• Remove the motor and replace.
• Reinsert the 4 Allen screws.
• Replace the motor mount and cover.
4.4.6.2 Integrating Rod Replacement
• Remove power cord and console cover (procedure 4.2).
• Remove the motor mount (procedure 4.4.5).
• Remove the 2 screws and the cover.
• Slide the integrating rod out.
• Swab the rod holder with alcohol.
• Insert new integrating rod.
• Reinsert the 2 screws.
• Replace the cover and motor mount.

16
4.5 FRONT PANEL COMPONENTS
4.5.1 Jaw Handle Replacement
• Remove power cord.
• Remove the set screw from the bottom of the jaw handle.
• Remove the jaw handle from the actuator shaft.
• Ensure that the jaw handle key (P/N 105-186-472) stays
in place on the actuator shaft.
• Replace the jaw handle onto the actuator shaft.
• Secure the jaw handle in place using the set screw.
• Reinsert the set screw and reinstall the cover.
4.5.2 Potentiometer Knob Replacement
• Remove power cord.
• If potentiometer knob is damaged or detaches from the
front panel, but the protruding metal tab is still con-
nected, perform the following repair steps:
• Remove the set screw from the bottom of the potentiom-
eter knob.
• Remove the knob from the slide pot of the front panel.
• Loosely screw the set screw into the bottom of the poten-
tiometer knob.
• With the screw hole facing down, insert the potentiome-
ter knob onto the slide pot.
• Secure the knob in place by screwing in the set screw.
• If the potentiometer knob is damaged or detaches from
the front panel, and the protruding metal tab is also
damaged or disconnected, replace the display board and
potentiometer knob.
