CORE 2 console
User
guide
guide

H
Guiding the way
This guide summarizes some of
the common features, functions,
button pushing and menus of the
Consolidated Operating Room
Equipment (CORE) 2 console.
The CORE 2 console powers a
variety of devices, including:
• Small and large bone drills,
saws and drivers
• Small and large joint shavers
• ENT shavers
• Various foot pedals
• Bone mill
• Irrigation
Collectively, the console and
its related accessories are
intended for:
• For use in a variety of
surgical procedures, including
orthopaedic, dental, ENT,
neuro, spine, and endoscopic
applications.
• Cut, drill, ream, decorticate,
shape and smooth bone, bone
cement and teeth
• Place or cut screws, metal,
wires, pins and other xation
devices
Unless specied, use
only with Stryker-approved
equipment and keep console
outside the sterile eld. Among
other safety directives, adhere to
recommended duty cycles, and
carefully select motor settings
and irrigation ow rate for the
attachments and procedure at
hand. This user guide is not
intended to replace Instructions
for Use documents. It is
purely provided to summarize
commonly used features.
For a complete list of
warnings and cautions,
operational details,
troubleshooting tips, cleaning
protocols and duty cycles, please
consult the current Stryker CORE
2 console Instructions for Use
(IFU Ref 5400-052-700-EN), and
IFUs for any Stryker drill motor,
foot/hand switch, attachment or
other accessory you connect to
the CORE 2 console.

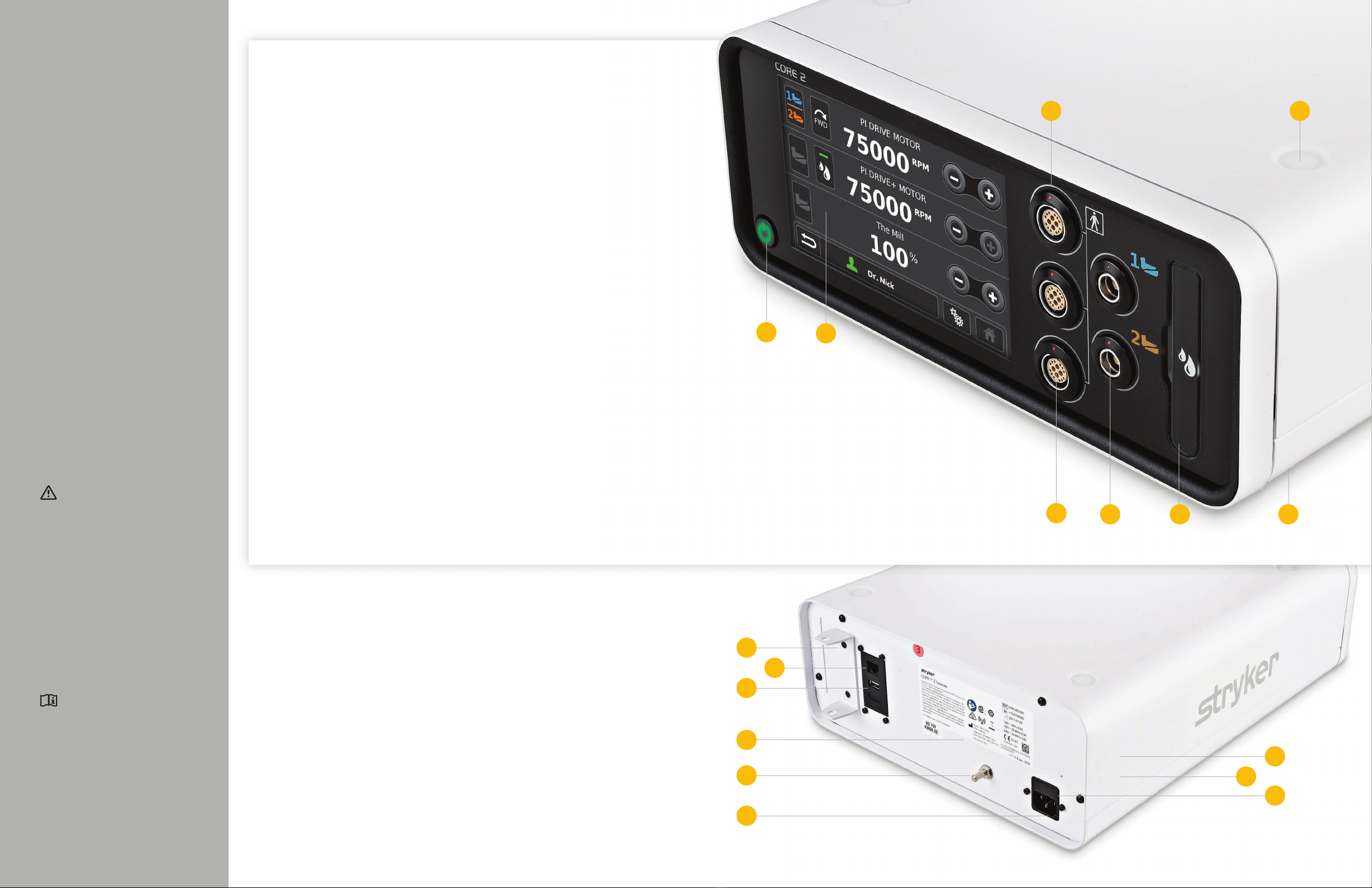

Key
features
APower button
B7” touch screen with
24-bit color and 170°
wide viewing angle
CPort illumination rings
(5) for constant, color-lit
visibility of matched
motors and foot pedals
DStacking inserts (4)
I Pole bracket for irrigation
J Ethernet port
K USB port
L Specication label
M Equipotential lug
N Fuse holder
O Power receptacle
EMotor ports (3); runs
2 non-heavy duty handpieces
simultaneously. Port location
rened to provide more room
around the irrigation cassette.
FFoot pedal ports (2)
GIrrigation cassette port
with simple, one-step
insertion and removal
HStacking feet (4)
P Internal audio with
distinct tones for actuation,
completion, reverse motor,
notications, errors and
prohibited actions
Q Passively cooled;
no fan, no moving parts
or associated noise
G
AB
I
J
P
Q
N
K
L
M
O
D
E
C
F

Settings for
handpieces/
switches and
foot pedals/
switches based
on connected
devices
Select Motor
Console
System Settings
Preset
Home
Language
System Info
Motor List
Motor Settings
General
Irrigation
Motor Options
Control Options
Quick Access
Accelerate
Brake
I.D. Touch/
Torque
Brightness
Volume
Rep Info
Import/Export
Irrigation
Motor 1
Motor 2
Motor 3
Control
Permissions
Import
Export
Quick and easy navigation
Our attened menu structure lets you navigate anywhere in just a few
clicks, or use shortcuts such as User Proles and Forward/Quick Access
to jump to your desired destination. Further simplifying the process
are smart screens which automatically detect and display available
options and settings based on the devices you connect.
Motor List
Quick and easy navigation
Our attened menu structure lets you navigate anywhere in just a few
clicks, or use shortcuts such as User Proles and Forward/Quick Access
to jump to your desired destination. Further simplifying the process
are smart screens which automatically detect and display available
options and settings based on the devices you connect.
Getting
started
u Connect motors and
foot pedals as desired
u Press Power On
u Optional irrigation
• Place irrigation pole in rear
bracket
• Insert irrigation cassette
• Attach irrigation clips to
motor and connect tubing
to irrigation bag
• Press Initial Prime
u Manage Profiles
to your liking
u Manage System Settings
to your liking
CQuick access area – allows
users to set settings such as
direction, irrigation and mode via
the Home screen.
DMotor Settings – displays
connected motors’ name and
value settings by RPM or percent
to power. To adjust, touch the
number onscreen and a slider bar
will appear.
EIncrease/decrease – press to
adjust motor value settings, or
use slider bar described in “D.”
FHome key
GSystem Settings – push to
access options for console,
select motor, rep info, control
permissions, import/export
and irrigation
HProles – contains default
proles and stored user
preferences, plus allows creation
of personal proles which
are permanently saved and
transferable to other Core 2
consoles via USB
The Home Screen is where most
interaction occurs and serves as
your gateway to other screens
and functions.
ANavigation bar – includes
Reset, Proles, System Settings
and Home
BFoot switch assignment –
graphically shows foot switch
assignment; touch to toggle
B C D E
AH G F
Powering up
is simple
To turn on the console, follow
these steps and you’ll have boot
up in less than 20 seconds.
Home is your hub

To set I.D. Touch preferences
u Touch System Settings
u Touch Motor 1, 2 or 3
u Touch Motor Settings
u Touch Motor Options
• Set your preferences
for torque/I.D. Touch,
acceleration and braking
(0-100%)
u Touch Home
Everyone has a preferred way of working, and this can change based on the
procedure or patient at hand. To accommodate virtually any preference or need,
the CORE 2 console gives you unparalleled customization options. Here’s a look
at just some of the ways you can make your system your own.
Profiles/User preference screen
To create a Preset
• Touch Create
• Enter a name for your prole and
touch Next
• A list of motors will appear; touch
the one you want
• Manage Motor Options
to your liking
• Touch Next
• Touch Home
I.D. Touch
software:
Get the
perfect feel
Customize
to your liking
General Irrigation Motor Options Control Options Quick Access
Accelerate
Brake
I.D. Touch
Torque
95%
35%
30%
PI DRIVE MOTOR Settings
Creating, editing, copying and transferring
To edit
• Select the Prole le
• Touch Edit
• Select desired motor and manage
Motor Options
• Touch Conrm
To copy
• Touch the Prole le
• Touch Copy
• Enter a name and touch Next
To transfer via USB
• Insert USB, touch
System Settings
• Touch Import/Export
• Choose Import or Export
• Touch the desired le or Select All
• Touch Conrm. A pop up
conrmation message will appear.
Dr. Nick
DEFAULT
Dr. Nick
Dr. Carly
Dr. Jack
Dr. Danette
Dr. Deirdre
Dr. Ryan
A
B C D
A Navigation bar – shows active
preset in use along with save,
conrm and home tabs
B Proles list – includes default
and existing user presets (stores
up to 100+)
C Vertical scroll bar – scroll to
nd your existing preset
DPreset options – allow you
to create, edit, copy, cancel or
delete a preset
I.D. Touch software brings a
unique level of optimization to
Stryker electric motors such as
πDrive and πDrive+. This software
enables you to adjust torque from
0-100% to customize how your
electric drill responds when pressure
is applied during use — from low
to high sensitivity. Acceleration
and braking can also be regulated
from 0-100%, collectively redening
drill performance to suit your
personal style.

uSelect System Settings
uTouch Control Permissions
u Assign your preferred foot pedal(s)
for each motor
Control Permissions
Footswitch 1
PI DRIVE MOTOR
PI DRIVE + MOTOR
The Mill
Footswitch 1
Not Available
In addition to customization options on the previous page, there are
several other ways to control the functionality and performance of
your system — backed by safety features such as illumination rings
that enable you to work freely and with full condence.
Full control,
from feet
to fingertips
Managing motor settings
uSelect System Settings
uTouch Motor 1, 2 or 3
u(Screen will vary, automatically displaying
options available for each particular motor)
u Adjust General settings to your liking,
including RPMs, direction and xed or
variable mode
uOptional irrigation
• Touch the Irrigation menu tab
• Adjust ow rate to your liking (0-100%)
REMB Micor Drill
PI DRIVE MOTOR
PI DRIVE + MOTOR
REMB Micro Drill
Settings - Select Motor
General Irrigation Motor Options Control Options Quick Access
75000
RPM
Direction
Attachment
Mode
No Attachment
PI DRIVE MOTOR Settings
Adjusting control
permissions
and options
uFor enhanced usability, two foot pedals
can be assigned to a single motor
uPort illumination rings provide constant,
color-lit visibility of matched drills and
foot pedals
uSelect System Settings
uTouch Motor 1, 2 or 3
uTouch Control Options
u Adjust settings to your liking; screen views
and options will automatically vary based
on the device connected
uTouch Home to save settings
General Irrigation Motor Options Control Options Quick Access
PI DRIVE MOTOR Settings
NSE Footswitch
TPS Two-Pedal
TPS Footswitch
TPS Uni-Directional CORE Footswitch

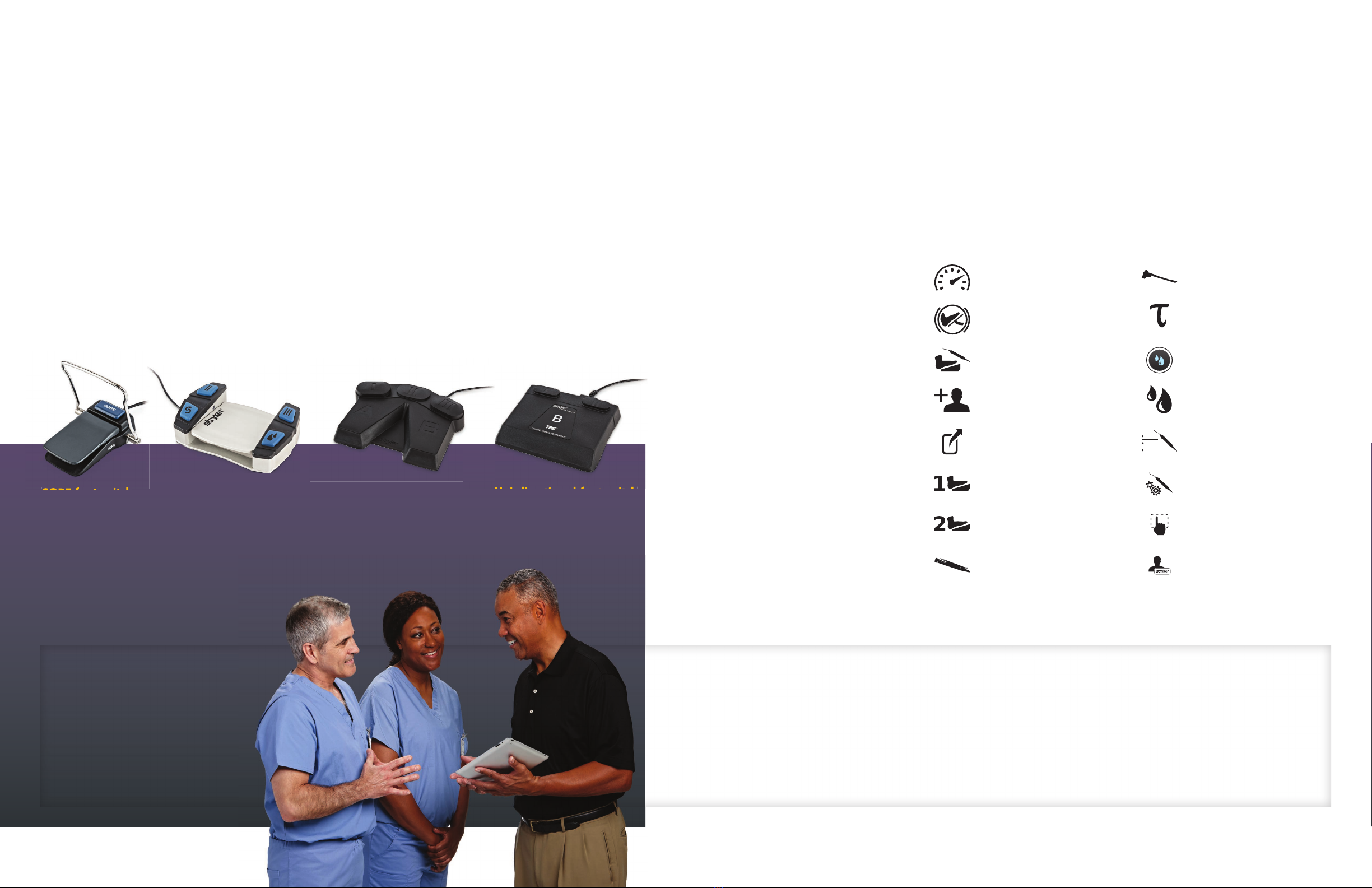

First-rate foot pedals
Just because they’re under the table doesn’t mean we’ve overlooked
their design. Not only do we provide foot pedal choices, but each
pedal has multiple extra feature buttons. Program these to perform
the functions you want, including irrigation on/off, forward/reverse
direction, change drill port assignment, change RPMs and more.
NSE footswitch
with four feature buttons
(two left, two right)
Bi-directional footswitch
Dual pedal with three
feature buttons
Uni-directional footswitch
Single pedal with two
feature buttons
Uni-directional footswitch
CORE footswitch
with raised toe loop,
270° open access
CORE footswitch
Handswitch
I.D. Touch (Torque)
Initial Prime
Irrigation
Motor Options
Motor Settings
Quick Access
Rep Info
In addition to the icons inside,
here are other icons you may
frequently see. For a full listing,
please see the Symbol Denition
Chart (REF 0036-716-000)
supplied with the console upon
purchase.
Accelerate
Brake
Control Options
Create
Export
Footswitch 1
Footswitch 2
Handpiece
Here to help
Your Neurosurgical sales representative is happy to help you get the most from your CORE 2
console, and help set it up with your specic needs and preferences. He/she can also facilitate
corresponding implementation, training and service options. To learn more please call your
Neurosurgical sales representative, 800 253 3210 or visit neurosurgical.stryker.com.
Common
software
icons
Program to
perform

Neurosurgical
This document is intended solely for the use of healthcare professionals. A surgeon must always rely on his or her
own professional clinical judgment when deciding whether to use a particular product when treating a particular
patient. We do not dispense medical advice and recommend that surgeons be trained in the use of any particular
product before using it in surgery.
The information presented is intended to demonstrate Stryker’s products. A surgeon must always refer to the
package insert, product label and/or instructions for use, including the instructions for cleaning and sterilization
(if applicable), before using any of Stryker’s products. Products may not be available in all markets because
product availability is subject to the regulatory and/or medical practices in individual markets. Please contact your
representative if you have questions about the availability of Stryker’s products in your area.
Stryker or its afliated entities own, use, or have applied for the following trademarks or service marks: CORE, I.D.
Touch, πdrive and Stryker. All other trademarks are trademarks of their respective owners or holders.
The absence of a product, feature, or service name, or logo from this list does not constitute a waiver of Stryker’s
trademark or other intellectual property rights concerning that name or logo.
D0000023873 Rev. AA
G55/PS
Copyright © 2020 Stryker
Printed in USA
Stryker
1941 Stryker Way
Portage, MI 49002 USA
t: 269 323 7700
f: 269 323 2742
toll free: 800 253 3210
neurosurgical.stryker.com
Please refer to the current Stryker CORE 2 console
Instructions for Use (IFU Ref 5400-052-700-EN) for a
complete list of cautions, operational details, troubleshooting
tips, cleaning protocols and duty cycles.
