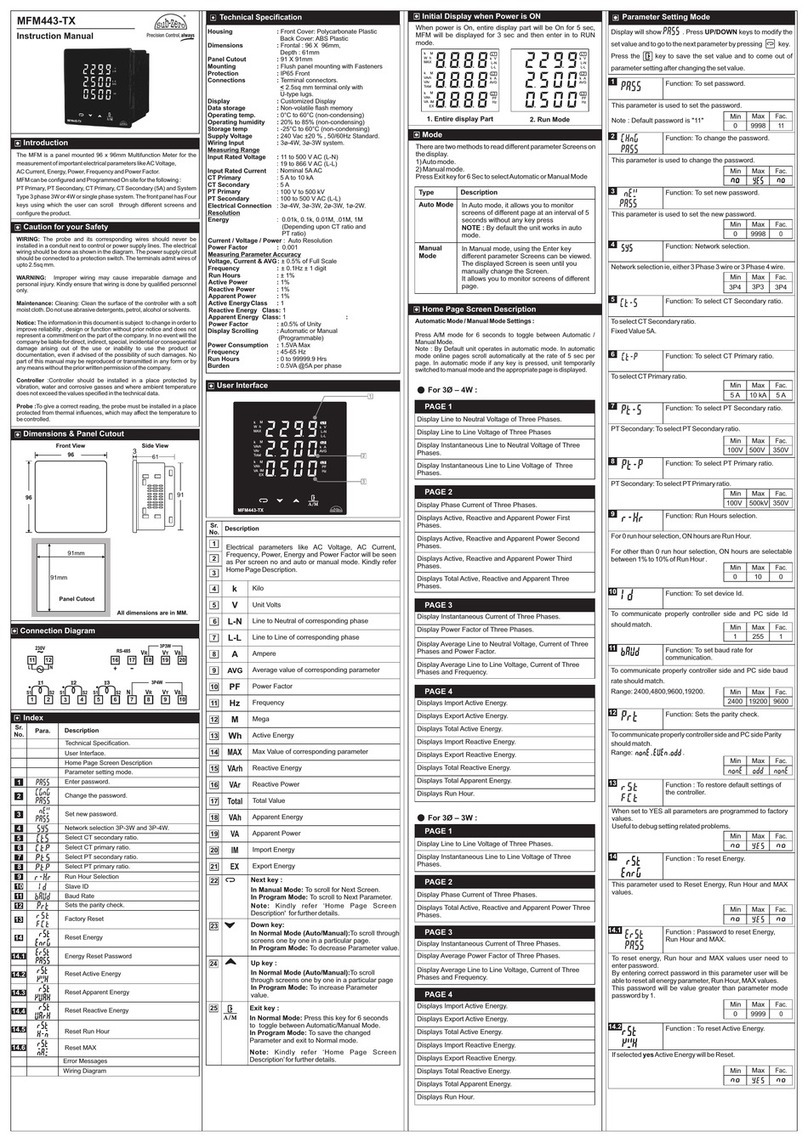

Sub-Zero MFM443-T User manual

Dimensions & Panel Cutout
Front View
96
96
91mm
91mm
91
Side View
Panel Cutout
All dimensions are in MM.
Caution for your Safety
WARNING: Improper wiring may cause irreparable damage and
personal injury. Kindly ensure that wiring is done by qualified personnel
only.
WIRING: The probe and its corresponding wires should never be
installed in a conduit next to control or power supply lines. The electrical
wiring should be done as shown in the diagram. The power supply circuit
should be connected to a protection switch. The terminals admit wires of
upto 2.5sq mm.
Maintenance: Cleaning: Clean the surface of the controller with a soft
moist cloth. Do not use abrasive detergents, petrol, alcohol or solvents.
Probe :To give a correct reading, the probe must be installed in a place
protected from thermal influences, which may affect the temperature to
be controlled.
Controller :Controller should be installed in a place protected by
vibration, water and corrosive gasses and where ambient temperature
does not exceed the values specified in the technical data.
Notice: The information in this document is subject to change in order to
improve reliability , design or function without prior notice and does not
represent a commitment on the part of the company. In no event will the
company be liable for direct, indirect, special, incidental or consequential
damage arising out of the use or inability to use the product or
documentation, even if advised of the possibility of such damages. No
part of this manual may be reproduced or transmitted in any form or by
any means without the prior written permission of the company.
Connection Diagram
11 12
L N
230V
1 2 4 5 6 7 8 9
310
S1 S2 N VRVYVB
I1I2I3
S1 S2 S1 S2
3P4W
18 19 20
VRVBVY
3P3W
Data storage : Non-volatile flash memory
Display : Customized Display
Back Cover: ABS Plastic
Housing : Front Cover: Polycarbonate Plastic
Dimensions : Frontal : 96 X 96mm,
Depth : 61mm
Panel Cutout : 91 X 91mm
Mounting : Flush panel mounting with Fasteners
Protection : IP65 Front
Connections : Terminal connectors.
< 2.5sq mm terminal only with
U-type lugs.
Wiring Input : 3ø-4W, 3ø-3W system.
Storage temp : -25°C to 60°C (non-condensing)
Measuring Range
Operating humidity : 20% to 85% (non-condensing)
Input Rated Voltage : 11 to 500 V AC (L-N)
: 19 to 866 V AC (L-L)
Input Rated Current
: Nominal 5A AC
CT Primary : 5 A to 10 kA
CT Secondary : 5 A
PT Primary : 100 V to 500 kV
PT Secondary
: 100 to 500 V AC (L-L)
Electrical Connection
: 3ø-4W, 3ø-3W, 2ø-3W, 1ø-2W.
Resolution
Supply Voltage : 240 Vac ±20 % , 50/60Hz Standard.
Energy : 0.01k, 0.1k, 0.01M, .01M, 1M
(Depending upon CT ratio and
PT ratio
)
Current / Voltage / Power : Auto Resolution
Power Factor : 0.001
Operating temp. : 0°C to 60°C (non-condensing)
Reactive Power : 1%
Frequency : 45-65 Hz
Power Consumption : 1.5VA Max
Active Energy Class : 1
Frequency : ± 0.1Hz ± 1 digit
Apparent Power : 1%
Display Scrolling : Automatic or Manual
Run Hours : ± 1%
Burden : 0.5VA @5A per phase
Voltage, Current & AVG : ± 0.5% of Full Scale
Active Power : 1%
Power Factor : ±0.5% of Unity
(Programmable)
Apparent Energy Class: 1
Run Hours : 0 to 99999.9 Hrs
Reactive Energy Class: 1
Measuring Parameter Accuracy
User Interface
MFM443-T
AM
1
2
3
k
Wh
MAX
kM
VArh
VAr
Total
kM
VAh
VA IM
EX
kV
L-N
L-L
kA
AVG
PF
Hz
L1
L2
L3
M
Sr.
No. Description
1Electrical parameters like AC Voltage, AC Current,
Frequency, Power, Energy and Power Factor will be seen
as Per screen no and auto or manual mode. Kindly refer
Home Page Description.
2
3
4Kilo
5Unit Volts
6
7
Line to Neutral of corresponding phase
Line to Line of corresponding phase
8Ampere
k
Down key:
In Program Mode: To decrease Parameter value.
In Normal Mode (Auto/Manual):To scroll through
screens one by one in a particular page.
23
Next key :
In Program Mode: To scroll to Next Parameter.
In Manual Mode: To scroll for Next Screen.
Note: Kindly refer ‘Home Page Screen
Description' for further details.
22
24
Up key :
In Program Mode: To increase Parameter
value.
In Normal Mode (Auto/Manual):To scroll
through screens one by one in a particular page
L-N
L-L
A
V
Average value of corresponding parameter
Power Factor
Frequency
Mega
Active Energy
Max Value of corresponding parameter
Reactive Energy
AVG
PF
Hz
M
Wh
MAX
VArh
Reactive Power
VAr
Total Value
Total
Apparent Power
VA
Import Energy
IM
Export Energy
EX
9
10
11
12
13
14
15
16
17
18
19
20
21
Apparent Energy
VAh
Press Exit key for 6 Sec to select Automatic or Manual Mode
There are two methods to read different parameter Screens on
the display.
1) Auto mode.
2) Manual mode.
Type
Auto Mode
NOTE : By default the unit works in auto
mode.
In Auto mode, it allows you to monitor
screens of different page at an interval of 5
seconds without any key press
Home Page Screen Description
Automatic Mode / Manual Mode Settings :
Press A/M mode for 6 seconds to toggle between Automatic /
Manual Mode.
Note : By Default unit operates in automatic mode. In automatic
mode online pages scroll automatically at the rate of 5 sec per
page. In automatic mode if any key is pressed, unit temporarily
switched to manual mode and the appropriate page is displayed.
Description
Manual
Mode
It allows you to monitor screens of different
page.
In Manual mode, using the Enter key
different parameter Screens can be viewed.
The displayed Screen is seen until you
manually change the Screen.
Function: Network selection.
3
Min Max
Fac.
3P3
3P4
Network selection ie, either 3 Phase 3 wire or 3 Phase 4 wire.
3P4
Min Max
Fac.
Function: To set new password.
This parameter is used to set the new password.
Min Max
Fac.
0 9998 0
Function: To select CT Secondary ratio.
4
To select CT Secondary ratio.
Fixed Value 5A.
Function: To select CT Primary ratio.
5
Min Max
Fac.
5 A 5 A
10 kA
To select CT Primary ratio.
Min Max
Fac.
100V 350V 500V
Function: To select PT Secondary ratio.
6
PT Secondary: To select PT Secondary ratio.
Min Max
Fac.
100V 350V 500kV
Function: To select PT Primary ratio.
8
PT Secondary: To select PT Primary ratio.
Min Max
Fac.
00 10
Function: Run Hours selection.
9
For other than 0 run hour selection, ON hours are selectable
between 1% to 10% of Run Hour .
For 0 run hour selection, ON hours are Run Hour.
Function : To restore default settings of
the controller.
10
Min Max
Fac.
Useful to debug setting related problems.
When set to YES all parameters are programmed to factory
values.
Function : To reset Energy.
11
Min Max
Fac.
This parameter used to Reset Energy, Run Hour and MAX
values.
Function : Password to reset Energy,
Run Hour and MAX.
11.1
This password will be value greater than parameter mode
password by 1.
To reset energy, Run hour and MAX values user need to
enter password.
By entering correct password in this parameter user will be
able to reset all energy parameter, Run Hour, MAX values.
Min Max
Fac.
0 9999 0
Function : To reset Active Energy.
11.2
Min Max
Fac.
If selected yes Active Energy will be Reset.
Introduction
MFM443-T
Instruction Manual
Technical Specification
25
Note: Kindly refer ‘Home Page Screen
Description’ for further details.
Exit key :
In Normal Mode: Press this key for 6 seconds
to toggle between Automatic/Manual Mode.
In Program Mode: To save the changed
Parameter and exit to Normal mode.
AM
Initial Display when Power is ON
k
Wh
MAX
kM
VArh
VAr
Total
kM
VAh
VA IM
EX
kV
L-N
L-L
kA
AVG
PF
Hz
L1
L2
L3
M
kV
L-N
L-L
kA
AVG
PF
Hz
L1
L2
L3
When power is On, entire display part will be On for 5 sec,
MFM will be displayed for 3 sec and then enter in to RUN
mode.
1. Entire display Part 2. Run Mode
Mode
Display will show . Press UP/DOWN keys to modify the
set value and to go to the next parameter by pressing key.
Press the key to save the set value and to come out of
parameter setting after changing the set value.
Parameter Setting Mode
Function: To change the password.
This parameter is used to change the password.
2
Function: To set password.
1
This parameter is used to set the password.
Note : Default password is "11" Min Max
Fac.
0 9998
11
Display Line to Neutral Voltage of Three Phases.
Display Line to Line Voltage of Three Phases
Display Instantaneous Line to Neutral Voltage of Three
Phases.
Display Instantaneous Line to Line Voltage of Three
Phases.
PAGE 1
Display Phase Current of Three Phases.
Displays Active, Reactive and Apparent Power First
Phases.
Displays Active, Reactive and Apparent Power Second
Phases.
Displays Active, Reactive and Apparent Power Third
Phases.
Displays Total Active, Reactive and Apparent Three
Phases.
PAGE 2
Display Instantaneous Current of Three Phases.
Display Average Line to Neutral Voltage, Current of Three
Phases and Power Factor.
Display Average Line to Line Voltage, Current of Three
Phases and Frequency.
PAGE 3
Display Power Factor of Three Phases.
Displays Import Active Energy.
PAGE 4
Displays Export Active Energy.
Displays Total Active Energy.
Displays Import Reactive Energy.
Displays Export Reactive Energy.
Displays Total Reactive Energy.
Displays Total Apparent Energy.
Displays Run Hour.
Display Line to Line Voltage of Three Phases.
Display Instantaneous Line to Line Voltage of Three
Phases.
PAGE 1
Display Phase Current of Three Phases.
Displays Total Active, Reactive and Apparent Power Three
Phases.
PAGE 2
Display Instantaneous Current of Three Phases.
Display Average Line to Line Voltage, Current of Three
Phases and Frequency.
PAGE 3
Display Average Power Factor of Three Phases.
Displays Import Active Energy.
PAGE 4
Displays Export Active Energy.
Displays Total Active Energy.
Displays Import Reactive Energy.
Displays Export Reactive Energy.
Displays Total Reactive Energy.
Displays Total Apparent Energy.
Displays Run Hour.
For 3Ø – 4W :
For 3Ø – 3W :
7
1
3
4
5
Network selection 3P-3W and 3P-4W.
Select PT secondary ratio.
2
Select CT primary ratio.
Index
Sr.
No. Description
User Interface.
Technical Specification.
Para.
Home Page Screen Description
Select PT primary ratio.
6
11.1
11
10
9
8
7
Parameter setting mode.
Change the password.
Set new password.
Error Messages
Wiring Diagram
Run Hour Selection
Factory Reset
Reset Energy
Energy Reset Password
Reset Active Energy
Reset Apparent Energy
Reset Reactive Energy
Reset Run Hour
Reset MAX
Enter password.
Select CT secondary ratio.
11.2
11.3
11.4
11.5
11.6
Function : To reset Apparent Energy.
11.3
Min Max
Fac.
If selected yes Apparent Energy will be Reset.
Function : To reset Reactive Energy.
11.4
Min Max
Fac.
If selected yes Reactive Energy will be Reset.
Function : To reset Run Hours.
11.5
Min Max
Fac.
If selected yes Run Hours will be Reset.
The MFM is a panel mounted 96 x 96mm Multifunction Meter for the
measurement of important electrical parameters like AC Voltage,
AC Current, Energy, Power, Frequency and Power Factor
MFM can be configured and Programmed On site for the following :
PT Primary, PT Secondary, CT Primary, CT Secondary (5A or 1A) and
System Type 3 phase 3W or 4W or single phase system. The front panel
has Four keys using which the user can scroll through different screens
and configure the product.

Error Messages
Message Description
Power factor of corresponding phase shows this
error message when input of corresponding is
open.
Typical Wiring Diagram
NOTE : # All fuse types : 0.5A class CC UL type ;
0.5A fast acting 600V
3 Phase - 4 Wire
3 ø- 4 Wire, 3 CT's and 3 PT's
S1 S2 S1 S2 S1 S2
I1I2I3
L N
LINE L1
L2
L3
LOAD
N
1 2 3456 7 8 9 10
11 12
N V1 V2 V3
3P4W
18 19 20
3P3W
V1 V2 V3
3 Phase - 4 Wire
1 2 3456 7 8 9 10
11 12
S1 S2 S1 S2 S1 S2 N V1 V2 V3
I1I2I3
L N
LINE L1
L2
L3
N
LOAD
18 19 20
3P4W
3P3W
V1 V2 V3
3 ø- 4 Wire, 3 CT's
#
#
#
#
3 ø- 3 Wire, 2 CT's and 2 PT's
3P3W
S1 S2 S1 S2 S1 S2
I1I2I3
L N
L1
L2
L3
LOAD
LINE
1 2 3456
11 12 18 19 20
V1 V2 V3
Note : Do not use 7,8 , 9 & 10 connector for 3P 3W.
3 Phase - 3 Wire
##
#
2 ø- 3 Wire, 2 CT's and 2 PT's
S1 S2 S1 S2 S1 S2
I1I2I3
L N
LINE L1
L2
LOAD
N
1 2 3456 7 8 9 10
11 12 18 19 20
N V1 V2 V3
3P4W
3P3W
V1 V2 V3
2 Phase - 3 Wire
1 Phase - 2 Wire
1 ø- 2 Wire, 1 CT's
S1 S2 S1 S2 S1 S2
I1I2I3
L N
L1
N
LOAD
LINE
1 2 3456 7 8 9 10
11 12
N V1 V2 V3
3P4W
18 19 20
3P3W
V1 V2 V3
#
##
#
#
Typical Wiring Diagram
Disclaimer: This manual & its contents remain the sole property
of PVR CONTROLS . India and shall not be reproduced or
distributed without authorization. Although great care has been
taken in the preparation of this document, the company or its
vendors in no event will be liable for direct, indirect, special,
incidental or consequential damage arising out of the use or
inability to use the product or documentation, even if advised of
the possibility of such damages. No part of this manual may be
reproduced or transmitted in any form or by any means without
the prior written permission of the company.
PVR CONTROLS., reserves the right to make and changes or
improvements without prior notice.
Warranty: This product is warranted against defects in materials
and workmanship for a period of one year from the date of
purchase. During the warranty period, product determined by us
to be defective in form or function will be repaired or, at our option,
replaced at no charge. This warranty does not apply if the product
has been damaged by accident, abuse, and misuse or as a result
of service or modification other than by the company. This
warranty is in lieu of any other warranty expressed or implied. In
no event shall the company be held liable for incidental or
consequential damages, including lost revenue or lost business
opportunity arising from the purchase of this product.
TM
OUR OTHER PRODUCTS
ŸPower Analyzer
ŸDigital Panel Meter
ŸTimer
ŸPLC
ŸHMI
ŸData Logger
REV0 - 28.06.2021
Function : To reset Max.
11.6
Min Max
Fac.
If selected YES reset MAX values.
