Sumake SS-1111 User manual

SUMAKE PNEUMATIC TOOLS
HVLP Air Spray Gun (Suction Type)
SS-1111
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
Specification:
Free Type Suction
Standard Nozzle 1.7 mm
Option Nozzle 1.0mm, 1.4mm,
2.0mm, 2.3mm
Capacity Of Cup 1 L
Air Consumption 8 CFM (250 L/min)
Air Inlet (NPS) 1/4” (6.35 mm)
Air Hose (NPS) 3/8” (10 mm)
Air Pressure 15-43psi (0.7-2.8 kg/cm²)
Net Weight 2.64 lbs (1.2 kg)
Noise and Vibration:
Vibration Noise Remark
Sound Pressure Level
: 74 dB(A)
0.195 m/s²
Sound power level
: 85 dB(A)
Uncertainty
K= 1.5 m/s²Uncertainty
K= 3dB
Please always
wear ear
protector at
environment
noise level > 80
dB(A) due to
risk of impaired
hearing!
SS-1111-S-1507A-HWF

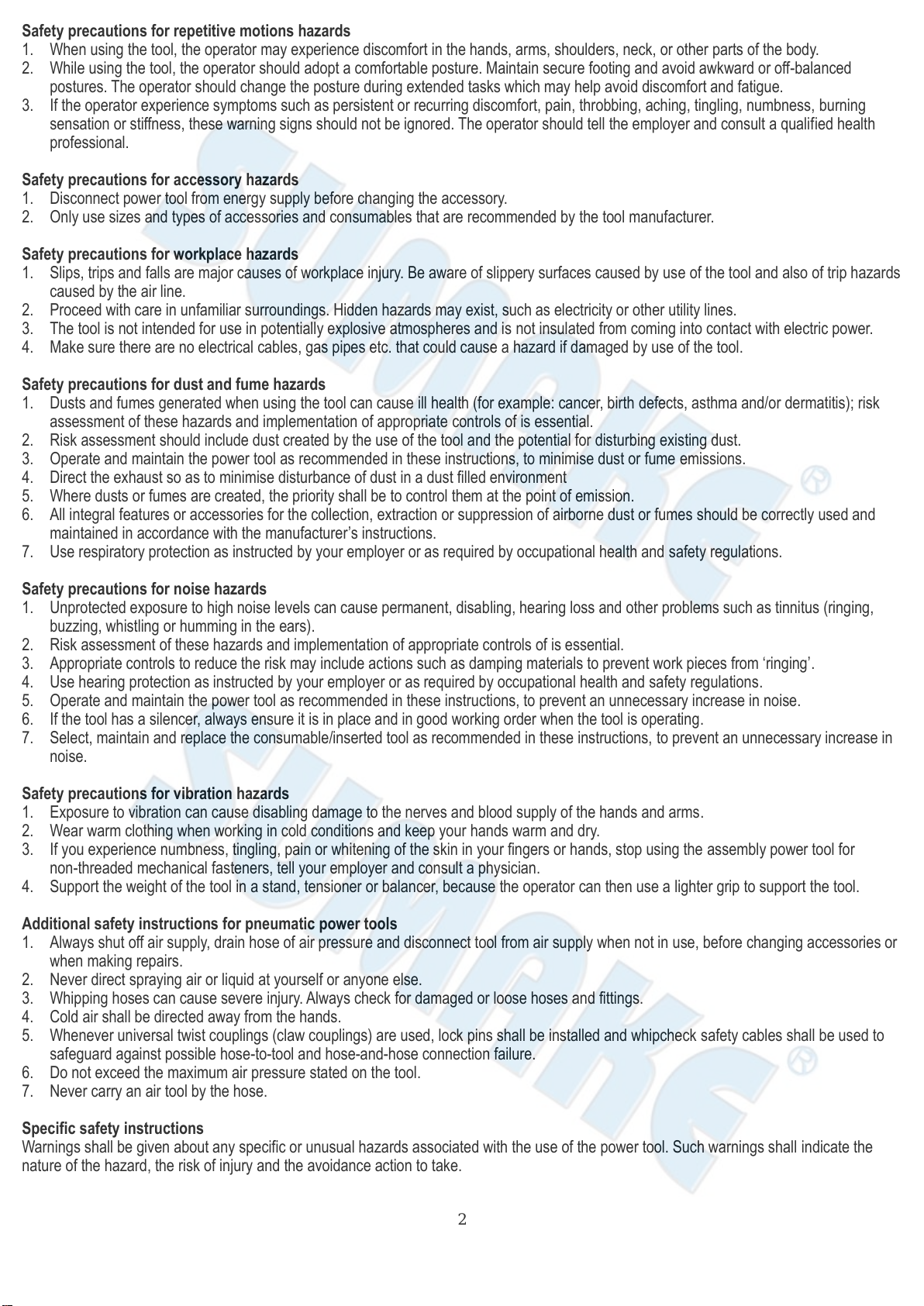

ECDECLARATION OF CONFORMITY
We: SUMAKE INDUSTRIAL CO., LTD.
4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan
declare in sole responsibility that the equipment
Equipment：HVLP AIR SPRAY GUN (SUCTION TYPE)
Model/ Serial No.：SS-1111
to which this declaration applies, complies with these normative documents:
Machinery Directive: 2006/42/EC
and conforms to the following EN standard,
EN ISO 12100: 2010
EN 1953:2013
Name and Signature/Position Date and Place
2014/9/15
MikeSu–ManagingDirector Taipei, Taiwan
SS-1111-D-1507A-HWF

SPECIFICATION:
▉Fluid orifice ….口1.0mm口1.4mm口1.7mm口2.0mm口2.3mm
▉Pressure required….……………………………………. 30 ~ 43psi
▉Compressor required…………………………………..………1HP
▉Air Connection ……………………………………………. 1/4”NPS
▉Approx. wt…………….………………………………………… 1kg
▉Cup……….……………………………………………………….. 1L
Operation
1. Starting
a. Use spanner to tighten the nozzle
b. Check for correct tightening of stuffing box to avoid any air leakage.
c. Air hose should be blow out before fitting with the air connection.
d. Before using this gun, please make sure that it is carefully flushed w/solvent.
2. Adjustment of the jet width
To adjust jet width, rotate the stepless adjuster. The spray pattern can be altered from flat to round spray as required.
3. Air quantity control
To set the air to material ratio, adjust the stepless air micrometer. While gun is in operation, never dismantle hollow screw for removal of micrometer by hexagon socket
screw key.
4. Exchange of nozzle set
When changing to another nozzle size, make sure that the complete nozzle set is exchanged. A set comprises of air cap, paint needle and paint nozzle. Insert paint
nozzle before putting in paint needle.
5. Exchange of the self-tensioning sealings
The needle seal is effected by a Teflon seal and a needle packing with self-tensioning compression spring. To change the packing please use the socket spanner
provided.
6. Cleaning and gun care
a. Flush gun thoroughly with solvent.
b. Clean air nozzle with brush. Do not place the gun into solvent.
c. Clogged holes should never be cleaned with improper objects, as the smallest amount of damage may badly influencen the spray pattern.
d. Slightly oil movable parts.
7. Internal nozzle pressure
a. Au an entrance pressure of 43psi and more at the air inlet, the internal nozzle pressure exceeds 10psi.
Model
Feed Type
Nozzle Set
(mm)
Air pressure
Kg/cm²(psi)
Capacity
Of Cup. L
K W
HP
Weight
(kg)
Air inlet
Fluid
Inlet
Air Cons.
Apporx
Material flow
Remake
SS-1111
Suction
Φ1.0
2 ~ 3.5
(30 ~ 45)
1.0
0.75 ~1.5
1 ~ 2
1.4
1/4 ps
1/4 nps
3/8 ps
3/8 nps
16cfm
457 l/min
100 ~ 190
Max
pressure at
the head 0.7
bar ~ 10psi
Φ 1.4
Φ 1.7
Φ 2.0
Φ 2.3
Service check
Condition
Cause
Correction
-
-
A
Wil not spray
1. No pressure at gun
2. Fluid adjusting screw not properly adjusted
3. Gun or cup material passages blocked
1. Check air lines
2. Adjust see operation
3. Clean
B-C
1. Material build up in air cap
2. Worn or damaged gasket(5)
1. Clean cap/tip
2. Replace gasket
D-E
1. incorrect material flow or viscosity
1. adjust viscosity or flow
Fluttering spray
1. Insufficient material in cup
2. Gun or cup material passage blocked
3. Worn packing or loose packing nut
4. Damaged or loose fluid tip
1. Fill cup
2. Clean
3. Replace or tighten
4. Replace or tighten
G
Fluid leakage from packing
nut.
1. Packing nut loose, packing dry
2. Worn needle
1. Tighten or lubricate
2. Replace
SS-1111-I-2301C-GW

SS-1111 H.V.L.P. SPARY GUN (SUCTION TYPE)
PARTS LIST
No. Parts No. Description Q'ty No. Parts No. Description Q'ty
1 1111-01 Air Nozzle 1 16 1111-16E Fluid Needle 2.3 1
2 1111-02 Ring 1 17 1111-17 Spring For Paint Needle 1
3 1111-03 Brass Cap 1 18 1111-18 Washer 1
1111-04A Fluid Nozzle 1.0 1 19 1111-19 Housing 1
1111-04B Fluid Nozzle 1.4 1 20 1111-20 Fluid Control Knob 1
1111-04C Fluid Nozzle 1.7 1 21 1111-21 Screw 1
1111-04D Fluid Nozzle 2.0 1 22 1111-22 Pin 1
1111-04E Fluid Nozzle 2.3 1 23 1111-23 Trigger 1
5 1111-05 Pacing Screw For Pait Needle 1 24 1111-24 Air Connectoin Piece 1/4" BSP 1
6 1111-06 Taflon Seal 1
7 1111-07 Washer 1
8 1111-08 Spring 1
9 1111-09 Brass Ring 1 31 1111-31 Anti Leaking Gasket 1
10 1111-10 Gasket 1 32 1111-32 Material Sleeve (Filters) 1
40 1111-40 Spanner 1
41 1111-41 Socket Spanner 1
42 1111-42 Brush 1
14 1111-14 Washr 2
1111-16A Fluid Needle 1.0 1
1111-16B Fluid Needle 1.4 1
1111-16C Fluid Needle 1.7 1
1111-16D Fluid Needle 2.0 1
SS-1111-P-2301B-HW
1111-C
16
1L Cup (Complete Set) [Incl. 25, 26, 27, 28,
29, 30, 31, 32 ,33]
4
15B
25~29
1111-28S
1111-15B
Air Valve Assembly [Incl. 13, 13C,
13D, 13E, 13F, 13G, 13H]
13A
1111-13A
1
Repair Kit For Spray Gun Part No: 06, 07, 08,
13C, 13E, 13H, 14(4), 14C, 17, 18(2), 35
1111-R
Cannister Lid Set
[Incl. 25, 26, 27, 28, 29]
1
Gun Body With Connector For Cup
[Incl. 11, 12]
1
11&12
1111-12S
Air Adjusting Valve Assembly
[Incl. 14, 34, 35, 36, 37, 38]
39
1111-39
1
Spray Regulating Assembly
[Incl. 14, 14A, 14B, 14C, 15, 15A]
1

SPRAY GUN
Original instructions
SUMAKE Industrial Co. Ltd.
