Sumake SS-1232 User manual

SUMAKE PNEUMATIC TOOLS
Gravity Type High Pressure Air Spray Gun
SS-1232
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
Specification:
Free Type Gravity
Standard Nozzle 1.5 mm
Capacity Of Cup 0.6 L
Air Consumption 11.7 CFM (331 L/min)
Air Inlet (NPS) 1/4” (6.35 mm)
Air Hose (NPS) 3/8” (10 mm)
Air Pressure 60psi (4.2kg/cm²) (4.2Bar)
Net Weight 1.43 lbs (0.65 kg)
Noise and Vibration:
Vibration Noise Remark
Sound Pressure Level
: 85 dB(A)
0.2 m/s²
Sound power level
: 96 dB(A)
Uncertainty
K= 1.5 m/s²Uncertainty
K= 3dB
Please always
wear ear
protector at
environment
noise level > 80
dB(A) due to
risk of impaired
hearing!
SS-1232-S-1302A-GWF

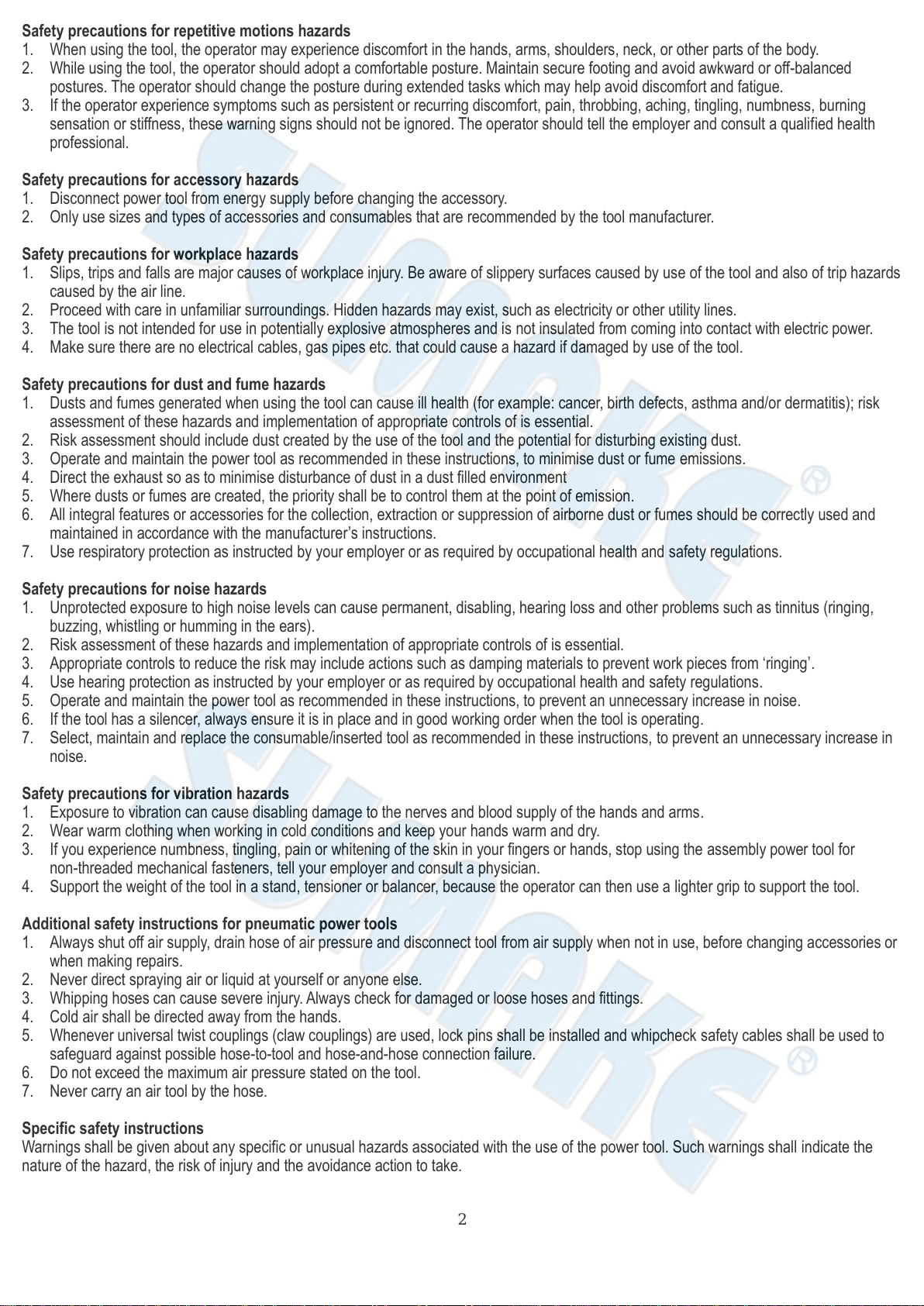

EC DECLARATION OF CONFORMITY
We: SUMAKE INDUSTRIAL CO., LTD.
4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan
declare in sole responsibility that the equipment
Equipment：GRAVITY TYPE HIGH PRESSURE AIR SPARY GUN
Model/ Serial No.：SS-1232
to which this declaration applies, complies with these normative documents:
Machinery Directive: 2006/42/EC
and conforms to the following EN standard,
EN ISO 12100: 2010
EN 1953:2013
Name and Signature/Position Date and Place
2022/12/1
Mike Su –Managing Director Taipei, Taiwan
SS-1232-D-2310B-GWF

SS-1232
(
A
)
PARTS LIST
No. Part No. Description Q'ty No. Part No. Description Q'ty
1 1232-01 Air Cap 1 15 1232-15 Fluid Adj. Guide Set 1
1232-02A Fluid Nozzle 1.3 1 1232-16A Fluid Needle 1.3 1
1232-02B Fluid Nozzle 1.4 1 1232-16B Fluid Needle 1.4 1
1232-02C Fluid Nozzle 1.5 1 1232-16C Fluid Needle 1.5 1
1232-02D Fluid Nozzle 1.8 1 1232-16D Fluid Needle 1.8 1
1232-02E Fluid Nozzle 2.0 1 1232-16E Fluid Needle 2.0 1
1232-02F Fluid Nozzle 2.5 1 1232-16F Fluid Needle 2.5 1
17 1232-17 Needle Spring 1
18 1232-18 Fluid Adj. Knob 1
5 1232-05 Body Set 1 19 1232-19 Air Inlet Nipple 1
6 1232-06 Fluid Nipple 1 20 1232-20 Air Adj. Set 1
7 1232-07 Pattern Adj. Set 1 21 1232-21 Trigger 1
8 1232-08 Air Valve Shaft 1 22 1232-22 Gasket 1
9 1232-09 Packing Holder 1 23 1232-23 Trigger Stud 1
10 1232-10 O-Ring 1 24 1232-24 E-Ring 1
11 1232-11 Gasket 1 25 1232-25 Spanner 1
12 1232-12 Air Valve Seat Set 1 26 1232-26 Plastic Grip Brush 1
12-1 1232-12-1 O-Ring 1 27 1232-27 Filter 1
13 1232-13 Air Valve Seat Set 1 28 1232-28 Plastic Cup 1
13-1 1232-13A O-Ring 1 29 1232-29 Cover 1
14 1232-14 Air Valve Spring 1 30 1232-30 Non-Drip Control Device 1
SS-1232(A)-P-1503E-GW
216
GRAVITY TYPE HIGH PRESSURE AIR SPARY GUN
3S 1232-03S Needle Packing Set [Incl. 3A,
3A-1, 4] 1
