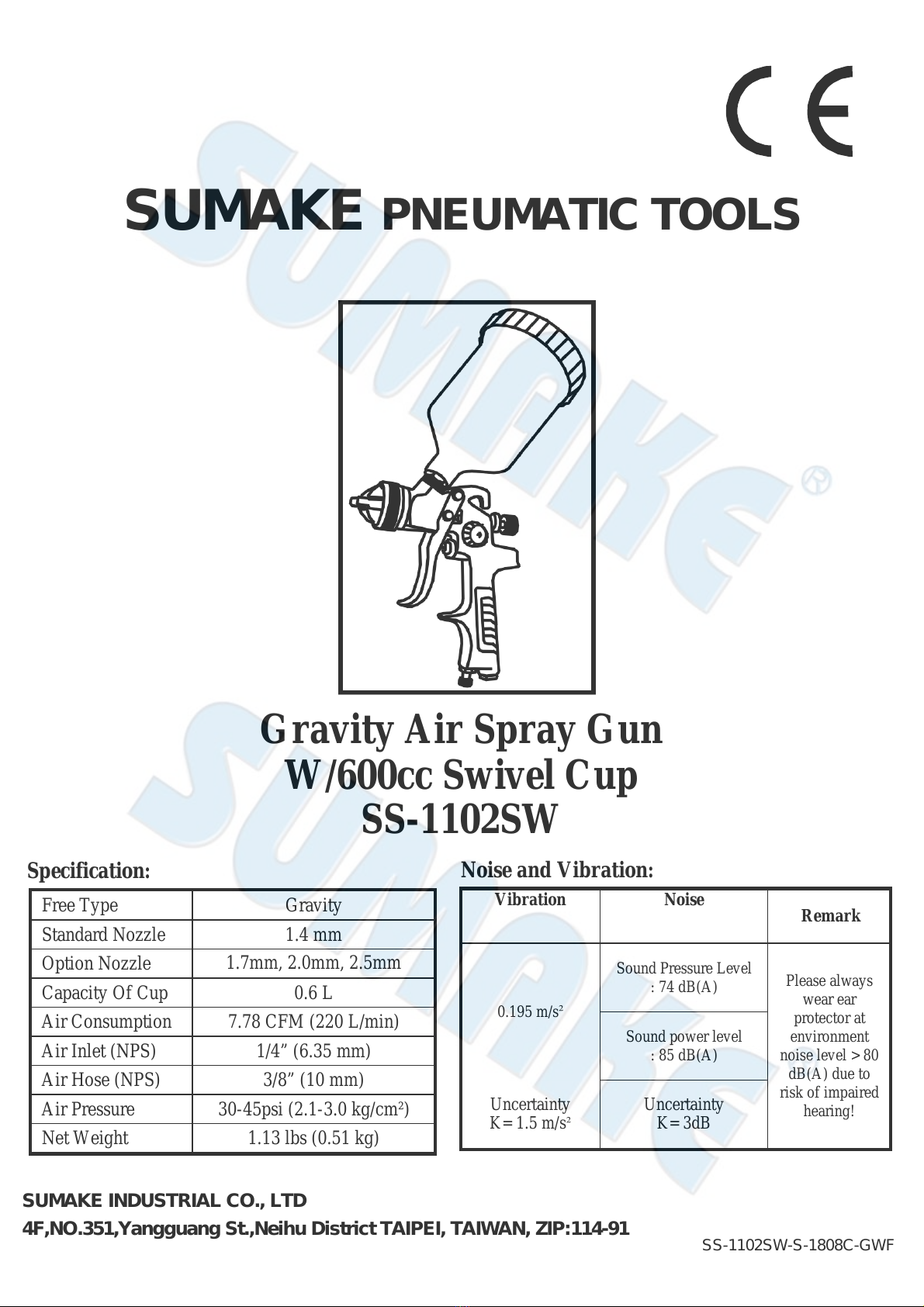

Sumake SS-1102SW User manual

SUMAKE PNEUMATIC TOOLS
Gravity Air Spray Gun
W/600cc Swivel Cup
SS-1102SW
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91

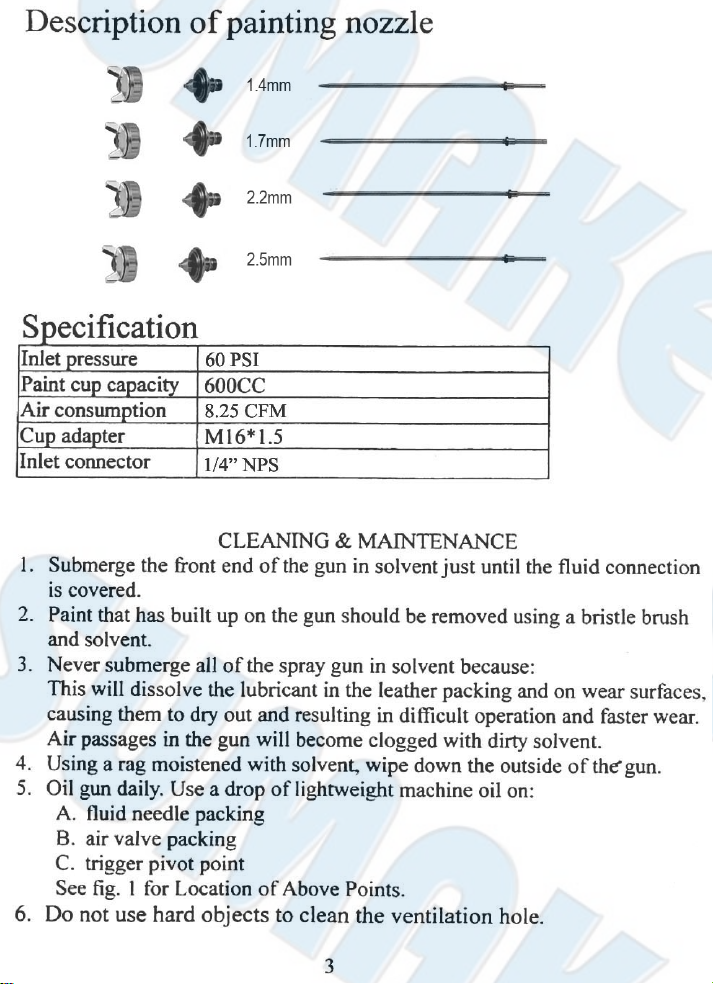

Specification:
Free Type Gravity
Standard Nozzle 1.4 mm
Option Nozzle 1.7mm, 2.0mm, 2.5mm
Capacity Of Cup 0.6 L

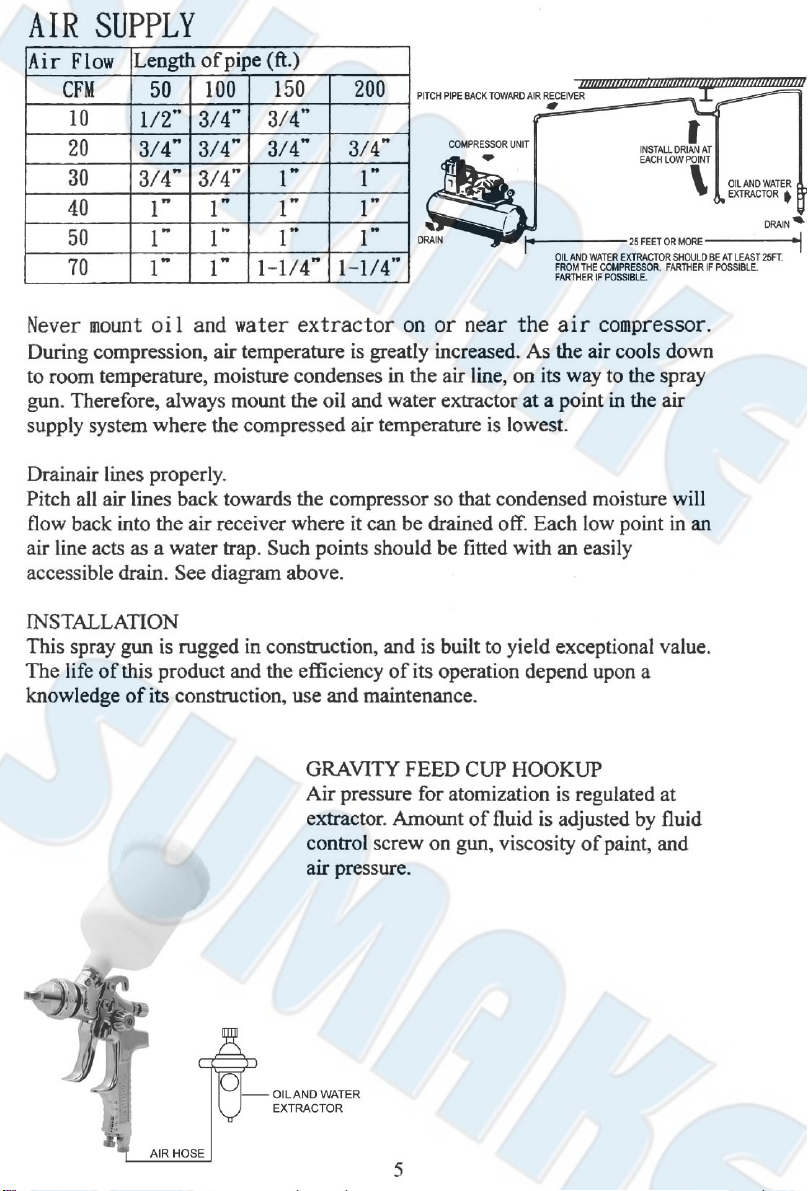

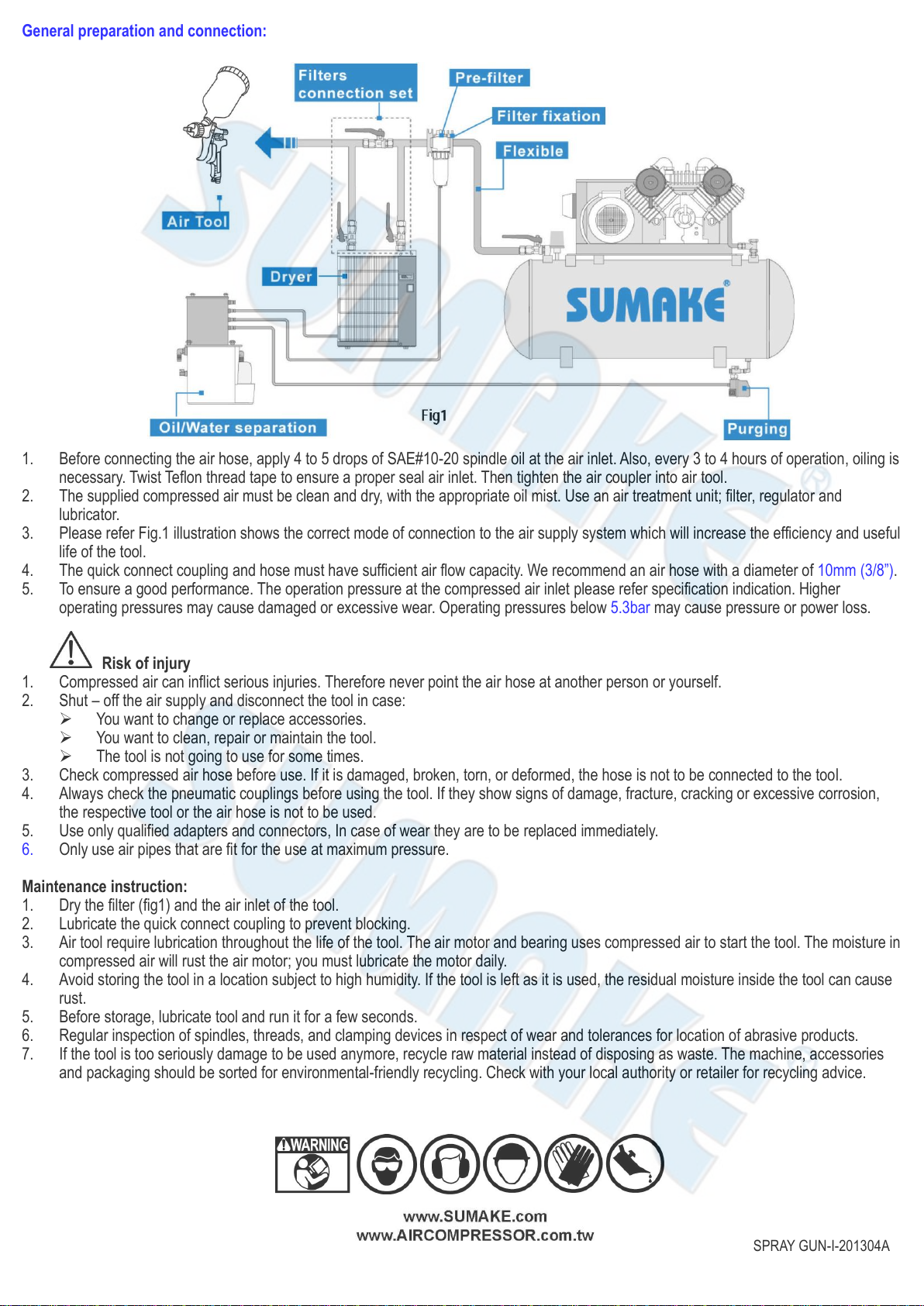

Air Consumption 7.78 CFM (220 L/min)
Air Inlet (NPS) 1/4” (6.35 mm)
Air Hose (NPS) 3/8” (10 mm)
Air Pressure 30-45psi (2.1-3.0 kg/cm²)
Net Weight 1.13 lbs (0.51 kg)
Noise and Vibration:
Vibration Noise Remark
0.195 m/s²
Sound Pressure Level
: 74 dB(A) Please always
wear ear
protector at
environment
noise level > 80
dB(A) due to
risk of impaired
hearing!
Sound power level
: 85 dB(A)
Uncertainty
K= 1.5 m/s²Uncertainty
K= 3dB
SS-1102SW-S-1808C-GWF

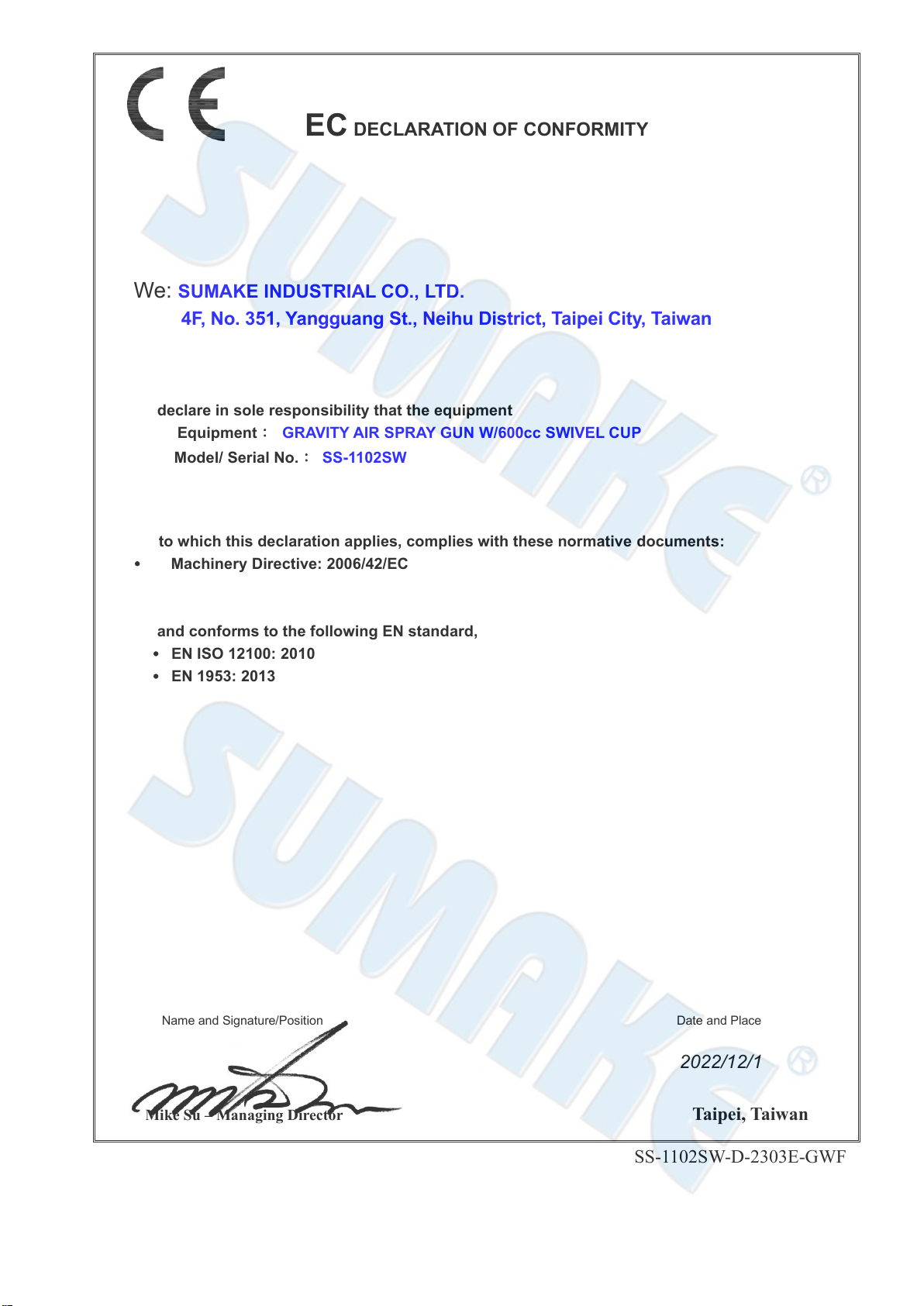

EC DECLARATION OF CONFORMITY
We: SUMAKE INDUSTRIAL CO., LTD.
4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan
declare in sole responsibility that the equipment
Equipment： GRAVITY AIR SPRAY GUN W/600cc SWIVEL CUP
Model/ Serial No.： SS-1102SW
to which this declaration applies, complies with these normative documents:
Machinery Directive: 2006/42/EC
and conforms to the following EN standard,
EN ISO 12100: 2010
EN 1953: 2013
Name and Signature/Position Date and Place
2022/12/1
Mike Su – Managing Director Taipei, Taiwan
SS-1102SW-D-2303E-GWF

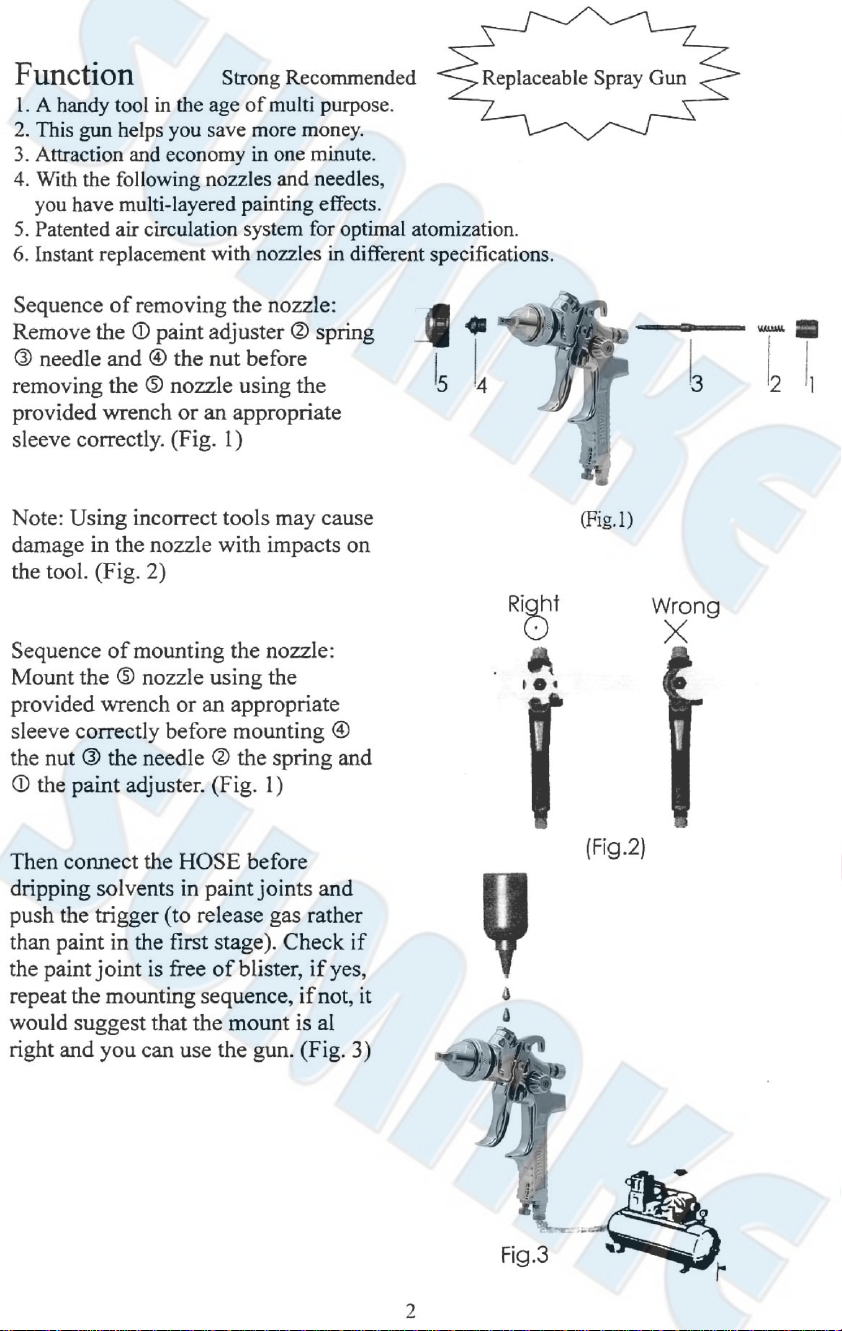

SS-1102 GRAVITY AIR SPRAY GUN
PARTS LIST
No. Parts No. Description Q'ty No. Parts No. Description Q'ty
1102A-01A Air Cap For 1.4 1 15 1102A-15 Air Piston [Incl. 16, 17] 1
1102A-01B Air Cap For 2.0 1 18 1102A-18 Fan Control 1
1102A-01C Air Cap For 2.5 1 18-1 1102A-18-1 Gasket 1
1102A-01D Air Cap For 1.7 1 19 1102A-19 Knob, Fan Control 1
1102A-02A Fluid Nozzle 1.4 1 20 1102A-20 Fan Control Screw 1
1102A
-
02B
Fluid Nozzle 1 7
1
21
1102A
-
21
Air Inlet Fitting
1
1
2
1102A-02B
Fluid Nozzle 1
.
7
1
21
1102A-21
Air Inlet Fitting
1
1102A-02C Fluid Nozzle 2.0 1 22 1102A-22 Air Control 1
1102A-02D Fluid Nozzle 2.5 1 23 1102A-23 Trigger 1
3 1102A-03 Needle Packing Holder 1 24 1102A-24 Gasket 2
4 1102A-04 Needle Packing 1 25 1102A-25 Pin, Upper Trigger 1
5 1102A-05 Packing Washer 1 26 1102A-26 E-Ring 2
6 1102A-06 Needle Packing Spring 1 27 1102A-27 Pin, Lower Trigger 1
7
1102A 07
Brass Ring
1
28
1102A 28
Spanner
1
2
7
1102A
-
07
B
rass
Ri
ng
1
28
1102A
-
28
S
panner
1
8 1102A-08 Air Distribution Ring 1 29 1102A-29 Brush 1
9 1102A-09 Body 1 30 1102A-30 Material Sleeve 1
10 1102A-10 Fluid Nipple 1 31 1102A-31 Socket Spanner 1
1102A-11A Paint Needle 1.4 1
1102A-11B Paint Needle 1.7 1
1102A-11C Paint Needle 2.0 1 1
11 32 1102A-32 Plastic Cup [Incl. 32A(Adaptor),
33(Cover)]
1102A-11D Paint Needle 2.5 1
12 1102A-12 Needle Spring 1
14 1102A-14 Knob, Fluid Control [Incl. 13] 1 SS-1102-P-1908E-GW
1102A-33 1
Cover of 0.6l Plastic Cup & Non-
Drip Control Device
33
