Summit SBC490 User manual

FELIX STORCH, INC.
SUMMIT APPLIANCE DIVISION
770 GARRISON AVENUE
BRONX, NY 10474
SBC490Bi(All Versions)

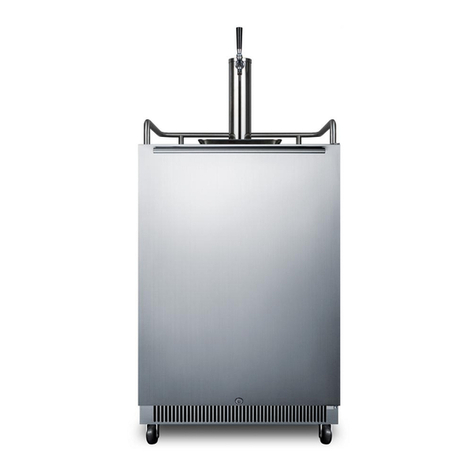

UNDER-COUNTER FULLSIZE
BEER DISPENSER

Write the model and serial
numbers here:
Model#_____________________
Serial #___________________
Find these numbers on the back of the unit
Table of Contents
Before Putting into Use…3&4
IMPORTANT
Disposing of worn out Appliance…..5
Placing and Installation
Choosing the right Place….6
Connection to Power Supply…6
Operation Control……………………7
Temperature Selection…………………7
Installation
Keg Tapper and Beer…..8
Casters…………………………..8
Draft Arm Assembly………….9
Guard Rail…………………….………..9
CO2 Regulator and CO2 Cylinder…..9
Use
Unpack and Inspect the Parts of this Unit…10
Operating your Beer Dispenser
Dispensing Beer…………………………11
Understanding Beer Temperature………11
Beer Serving Tips……………………………………11
Converting the Beer Dispenser
to an All-Refrigerator ......................................................12
Converting the Beer Dispenser
to a Built-In Unit…………….....................................................13
Maintenance and Cleaning
Automatic Defrosting of the Refrigerator….14
Installing the Cleaning Kit………………................14
Cleaning the Appliance……………………………………….15
Troubleshooting…………………………………………………………………..16&17
Noise……………………………………………………………………………………………..17&18
2

BEFORE PUTTING INTO USE
These instructions are important, and we request you read them before using this
beer dispenser. They describe the appliance and the correct and safe way to use it.
The instructions were prepared for various models so you may find descriptions of
some accessories and functions that do not apply to yours. All models of the SBC-
490 can be converted into a beverage refrigerator. These units are designed for beer
and beverages only, and are not recommended for perishable foods such as meats or
dairy products.
Before connecting the appliance to the power supply, leave it standing for at least 8
hours. This allows the lubricants to drain back into the compressor and reduces the risk
of malfunctions in the cooling system caused by shipping.
Clean the appliance thoroughly; especially the interior (See Maintenance and Cleaning).
Proper grounding must be ensured to reduce the risk of shock and fire. Do not cut
or remove the grounding plug! Connect to 120V, 60Hz, and a minimum 15 amp
grounded AC outlet. Do not use an extension cord. Use a three-prong plug with a
three-prong grounded wall outlet. If you do not have one, have a certified electrician
install the proper outlet.
WE CARE ABOUT THE ENVIRONMENT
Our appliances are distributed in packaging made of environmental friendly materials
which can safely be recycled, disposed of or destroyed with minimal environmental
effects. Our instruction manuals are printed on recycled paper or chlorine free bleached
paper.
TIPS FOR ENERGY SAVINGS
Try not to open the door too often, especially when the weather is hot and humid. Once
you open the door try to close it as soon as possible.
If possible, disconnect the power before changing a keg of beer.
While this unit is designed for under-counter use, and the compressor cooling is fan
assisted, a small air gap between the rear of the unit and the wall or counter surface
behind will enhance cooling and reduce energy waste.
Set the thermostat from a higher to lower setting whenever possible, depending on how
full the appliance is or what the ambient temperature is.
Keep the unit out of direct sunlight.
Periodically check that the refrigerator seals well and none of the contents prevent the
door from closing.
3

WARNING!
To reduce the risk of fire, electric shock, or injury when using your appliance,
follow these basic precautions:
*Read all instructions before using the appliance.
*The appliance must be correctly connected to the power supply.
*Immediately replace worn power cords, loose plugs and power outlets.
*Do not operate your appliance in the presence of explosive fumes.
*Disconnect the appliance from the power supply before repairing or cleaning it (only
qualified technician should repair it).
*Do not let children play with this or any other appliance to reduce likelihood of
injury.
*Never stand on top or inside of this appliance, or swing on the door.
*Do not operate valve control unless cylinder is completely installed and connected.
Important Safety
Precautions of CO2
(Carbon Dioxide) Gas
Always connect the CO2cylinder to a regulator! Failure to do so may cause an
explosion resulting in possible death or injury when the cylinder valve is opened.
Never connect the CO2cylinder directly to the product container.
Always keep CO2cylinders away from heat. Store extra cylinders in a cool place
(preferably 70ºF). Securely fasten cylinders with a chain in an upright position
when storing.
Never drop or throw a CO2cylinder
Always check the D.O.T (Department of Transport) test date on the cylinder
neck before installation. If it has been over 5 years, do not use. Return the
cylinder to your gas supplier
Never connect a product container unless there are at least two safety devices in
the pressure system; one on the CO2regulator and the other on the product
container or in the pressure gas line.
SAVE THESE INSTRUCTIONS FOR FUTURE USE
4

DISPOSING OF a
WORN OUT Appliance
-When your appliance finally wears out, dispose of it.
-Before you dispose of your old refrigerator or freezer: Take the door or the
drawers off so that children may not easily climb inside.
-The refrigerating system of the appliance is filled with refrigerant and insulating
substances which should be separately recycled. Either have a licensed
appliance repair company or dealer remove the appliance or call your local
recycling office for the appropriate disposal.
-For the sake of environmental protection be careful not to damage the rear wall
of the appliance (the condenser unit or the tubes when moving the refrigerator) or
any part of the refrigerating system inside the appliance.
-This refrigerator is 100% CFC-Free, but the coolant is under pressure and
puncturing the sealed system could be dangerous. The coolant used in the
sealed system is non-toxic.
-Many older refrigerators may contain refrigerants that are harmful to the
environment, and should be recycled by a lawfully licensed company.
5

PLACING AND INSTALLATION
CHOOSING THE RIGHT PLACE
To ensure that your beer dispenser works at the maximum efficiency it was designed for,
install it in a location where there is proper air circulation and electrical connections.
Choose a location where the beer dispenser will be away from heat and will not be
exposed to direct sunlight.
Models SBC-490-BIFR, SBC-490-BIFR-7(for commercial use), SBC-490BISSTB and
SBC-490BISSTB-7(for commercial use) are designed for indoor use only and should not
be used outdoors. Outdoor model SBC-490-OS and SBC-490-OS-TWIN are
U.L.approved for outdoor use.
CONNECTION TO POWER SUPPLY
Connect this appliance to a 3 prong power supply socket outlet (which has a ground
terminal). If you only have a two prong outlet have it replaced by a qualified
technician with an outlet that meets the local codes.
***DO NOT USE AN EXTENSION CORD***
Required nominal voltage and frequency are indicated on the rating plate. The
connection to the power supply and grounding has to be made according to current
standards and regulations.
The appliance resists temporary voltage tolerance from -15 to 10%. On model SBC-
490-OS only, a GFCI (ground fault circuit interrupter) built into every line cord.In
the event the cooler is not operating, first check to see that the GFCI has not tripped, and
press the reset button.
6

Operation control
How To Adjust The Thermostat
The refrigerator is controlled with a thermostat knob located inside the unit, towards the
right-hand corner. Turn the knob clockwise from the STOP (0) position toward
higher numbers for colder temperatures. Place drip tray under beer faucet.
The recommended pressure for the CO2system is 8 -10 lbs.
TEMPERATURE SELECTION
The settings of the temperature control are from 0 (off) to 7 (max). Initially adjust the
temperature control setting to 4 (norm), then adjust the thermostat to colder or warmer (as
needed).
A higher setting on the knob (towards 7) means colder temperatures in all
compartments of the appliance. On the highest setting, parts of the refrigerator may
become extremelycold, especially in cooler or dry weather. Use the higher thermostat
setting only when required or recommended.
The coolness of the refrigerator depends on how often you open and close the door or
rawer.
To turn the refrigerator off you must turn the thermostat to 0 (off).
7

INSTALLATIOn
KEG TAPPER AND BEER KEG
The Sankey type keg tapper supplied with the beer disperser is the most widely used in
the United States. However, other types of keg tappers can be used. Before installing a
keg taper check with your beer distributor to make sure that the Sankey type keg tapper
can be used.
If you need a keg taper other than a Sankey type, it is recommended that you purchase the
tapper you need from your beer distributor, please keep the Sankey type keg tapper for
future use. The Sankey system is becoming more popular to use.
YOU MAY PURCHASE IT FROM OUR SALES DEPARTMENT AT
718-893-3900
*Make sure the shutoff valve on the CO2 regulator is in a closed position. Connect
pressure tube to the nipple of the keg tapper (use hose clamp). Connect beer tube from
the draft arm to the keg tapper (fasten securely with washer and wing nut).
*Make sure the beer faucet and keg tappers are in a closed position, and then tap the keg
Open keg tapper valve
*Make sure the keg is properly tapped, and then open shutoff valve on CO2regulator.
To install beer keg into cabinet follow the steps below:
-Lean the keg on the front bottom edge of cabinet
-Place the upper part of the keg in an upright position, then slide the keg into the cabinet
(use the stainless steel floor to avoid damages to the unit).
-Make sure the keg and beer tube does not touch the cold plate.
-The keg and keg supports should be properly positioned in order for the door to remain
closed.
-Release the air caught in the draft arm assembly by opening the beer faucet until foam
appears. CASTERS (For use as a freestanding beer cooler)
Empty the cabinet and lay down the beer dispenser sideways so the door hinge side
comes to the top. Be careful not to cause dents or scratches on the cabinet. Placing a soft
cloth or cardboard underneath the cabinet is recommended.
Install casters, and turn the nut clockwise to tighten
Remove all packing materials and parts. Inspect to make sure all parts listed below are
present.
8

Note:allow the beer dispenser to stand in an upright position for 8-10 hours before
turning on. Once all four casters have been tightened evenly, stand the cabinet in an
upright position.
DRAFT ARM ASSEMBLY
*Slide gasket over wing nut on bottom of draft arm assembly beer tubes. Slide gasket
beer tube to draft arm base.
*Push wing nut on beer tube of draft arm assembly through hole in top of cabinet until
the draft arm is resting on cabinet top
*Align holes in draft arm base with holes in gasket and pilot holes in cabinet, then
secure guard rail with eight small screws.
GUARD RAIL
*Place guard rail on top of the cabinet
*Align all holes of the guard rail with the holes of the cabinet
*Secure the guardrail to the cabinet with the eight small Phillips-head screws
CO2REGULATOR AND CO2CYLINDER
Note: Your CO2cylinder is shipped empty to avoid and possible accidents during
transportation. When you purchase the first keg of beer, have your beer distributor
fill the CO2cylinder. You must read and understand the following procedures for
CO2cylinders before installation:
*Install the CO2gas line tube to the regulator by attaching one end of the red tube to the
hose bard connection on the CO2 regulator.
*Secure the tube by using one of the self locking black plastic snap-on clamps.
*Insert a special washer into the regulator to cylinder attachment nut
*Attach the CO2regulator to the CO2 cylinder by screwing the regulator nut onto the
cylinder valve and tightening with an adjustable wrench.
*Remove the bolt with the nut from the cylinder retainer. Using two screws attach it
inside the unit on the left side of the back wall. Holes are pre-drilled and screws are
included.
*Slide the cylinder through the retainer and secure it with the bolt and the nut. Position
the cylinder this way so that you will be able to read the numbers on the gauges and
easy access shut-off valves.
9

USE
UNPACK AND INSPECT THE PARTS OF THIS UNIT
Remove all packing materials and parts. Inspect to make sure all parts listed below
are present.
1 Draft arm assembly (with washer)
1 CO2cylinder
1 CO2regulator
1 Keg tap (American Sankey Type, see next section for other tap options)
1 Cleaning kit
Vinyl tubing
1Stainless steel (removable) floor to protect the from keg insertion
1 Guard rail
1 Drip tray
4 Casters ( for conversion to portable beer cooler)
2 Hose clamps
2 Removable shelves (installed) for conversion to a beverage refrigerator
8 Small Phillips head screws
4 Large Phillips head screws
2Retainer fixing screws
OPERATING
DISPENSING BEER
Follow the steps below to dispense beer:
10

1. Make sure that the beer dispenser is plugged in properly to a 120V, 60Hz, 15 amp
grounded AC outlet.
2. Place the drip tray under the beer faucet
3. Open the beer faucet by pulling the tap towards you quickly and completely to
dispense the beer
4. Increase the pressure if the beer runs too slowly. At the correct pressure and
temperature; a 10oz. glass should be filled in 4 seconds.
5. Hold the glass steady at 45º angle. When it is 2/3 full, start straightening the glass.
Proper foam should be a tight creamy head and the collar on an average glass should
be ¾" to 1” high.
Note:It is normal to see condensation forming in the faucet. It is caused by the
difference in temperature between the cold beer and the inner surfaces of the faucet when
beer is flowing through the line.
UNDERSTANDING BEER TEMPERATURE
The recommended temperature for serving chilled beer is between 43º and 38º F. To
maintain this temperature in average room conditions of 70º F, set the
“Normal”.
Note: During the summertime when temperatures are warmer, we recommend that you
adjust the control to a cooler setting accordingly. Select and maintain the proper
temperatures inside the refrigerator cabinet; this is necessary for maintaining the flavor
freshness of beer. The best temperature for storing a keg is approximately 38º F;
excessively cold or warm temperatures inside the refrigerator cabinet may cause a loss of
flavor.
Note: Sour beer is produced as a result of secondary fermentation above 45º F.
BEER SERVING TIPS
The following tips will help you serve the perfect beer. To serve beer from the tap similar
to the way it left the vat, check the following:
* Cleanliness (see Maintenance
and Cleaning)
* Temperature (see Temperature
Selection)
* Pressure (see Troubleshooting)
* Use CO2gas
CONVERTING THE BEER DISPENSER TO
AN ALL-REFRIGERATOR
For your convenience, this beer dispenser can be converted to an all-refrigerator
application. Simply follow the steps below for a quick and easy conversion.
11

Note:When using as a refrigerator, we do not recommend the use of casters, as stored
items may fall off the shelves when the unit is in motion.
1. Close the main valve on the CO2cylinder
2. Close the connection between the beer keg and the keg tap by pulling and lifting the
handle of the keg into an upright position
3. Disconnect both the beer line and the CO2gas line from the keg tap
4. Remove the beer keg from the cabinet
5. Disconnect the gas line from the CO2regulator
6. Remove the CO2cylinder from the cabinet
7. Remove the beer tower from the workshop unscrewing 4 screws.
8. Pull the beer line through the top pf the cabinet
9. Install the cabinet plug on the worktop
10. Lay the unit down sideways. We recommend that you place a piece of cardboard or
cloth underneath the cabinet to avoid dents or scratches to the cabinet. Remove
the casters and install leveling legs and raise the unit back into upright position
11. Install the two wire shelves.
A. Insert on end of each support pin into the holes on the right side of the
cabinet
B. Place one end of the wire shelf into the left side of the cabinet and rest the
other end onto the exposed support pins on the right side
C. Repeat the same with the second shelf
12. The conversion process is now complete. Store all removed
accessories in a safe place for future use
13. Adjust the temperature of the unit as required for beverage storage
Note: allow the beer dispenser to stand in an upright position for 8 hours before turning
on the power.
CONVERTINGTHE BEER DISPENSER TOA BUILT-IN UNIT
For your convenience, we offer beer dispensers that can be quickly built-in under your
counters. Simply follow the steps below for a quick and easy installation.
12

Note: Not all models have Built-in capabilities; only models with letters BI are built-in
compatible. These units are specially built with additional features for those customers who
wish to install this unit under their counter; we do not advise that other models be built-in
under your counter.
Your dimensions of the unit are:
Height 34 inches
Width 24 inches
Depth 25 inches
Make sure the available space is adequate this unit.
Built-in Instructions:
Find the Midpoint.
From the Left to right and vice versa is 24 inches in width. Also from back to front and vice
versa is 25 inches. Therefore the mid point is located wherever these coordinates cross each
other. Use a pencil or a marker to note this spot.
Note: 12 inches from left to midpoint.
12 inches from right to midpoint
12.5 inches from front to midpoint
Drill a Round Hole
2. Place the drill bit on the midpoint and make a round hole with a
diameter of 17/8 inches.
Installation:
See Installation Instructions.
MAINTENANCE AND CLEANING
AUTOMATIC DEFROSTING OF THE REFRIGERATOR
13

There is usually no need to defrost the refrigerator, because the ice deposited on the inner
back wall is automatically defrosted. Ice deposits on the inner back wall during
compressor operation; later on, when the compressor is not operating, the ice defrosts and
water drains through the outlet in the inner back wall into the drain pan situated above the
compressor where it evaporates. If you see water building up in the rear of the unit,
check that the drain trough is not clogged. Use a pipe cleaner or a piece of flexible wire.
During extremely hot and humid weather some ice may build up. If necessary, remove
contents of the refrigerator, turn the thermostat to 0 and allow defrosting. A hair dryer
may facilitate the process.
INSTALLING THE CLEANING KIT
Read and understand the following instructions before installing the cleaning kit.
1. Mix one gallon of warm water and one ounce (one tablespoon) of cleaner in a bucket.
Note: Do not use lye, soap or hot water.
2. Remove the cleaner cap. Fill the jar and replace the cap. Leave the remaining solution
in the bucket
3. Turn off either the air cock on the regulator or the valve on the CO2tank.
4. Disconnect the tap from the barrel. Then disconnect the beer line from the tap by
turning the nut counterclockwise. Place the tap and end of the hose in the bucket.
5. Remove the faucet form the tower with the wrench and attach the fitting on the
cleaning bottle in its place.
Note: Make sure there is a washer in the back of the fitting.
6. Hold the cleaning jar upside down until the solution runs through the system into the
bucket
7. Fill the jar with cold clean water and repeat the process until the water runs clean.
8. Rinse the tap in the bucket with cold water
9. Remove the fitting from the tower and reinstall the faucet. Make sure the washer is in
the back of the faucet
10. Re-attach the beer hose to the tap and attach the tap to the barrel.
Note: Beer lines should be flushed after each keg is emptied.
CLEANING THE APPLIANCE
Disconnect the power supply before cleaning the appliance.
Do not use coarse or abrasive cleaning agents as you can damage the surface.
14

Periodic cleaning of the beer dispenser is required. A complete cleaning kit is provided
for your convenience.
Every now and then wipe the wall and bottom of the refrigerator. Use a soft nonmetal
brush or vacuum cleaner
To clean the cabinet inside and outside, mix 2 tablespoons baking soda with 1 quarter
warm water, or use mild soap
Do not put drip tray in the dishwasher ( it is not dishwasher safe)
Vacuum the tubing on the outside back twice a year
To provide protective care of painted finish:
Regular applications of wax of polish provide vital protection against rust. Waxing cleans
the surface and seals out moisture and other contaminants.
Use a wax polish that is suitable for appliances
Apply the wax or polish when the refrigerator is new and then at least twice a year
Door Gasket Cleaning
Clean the door gasket with a damp cloth every three months. The gasket must be kept
clean and pliable to ensure a proper seal
Petroleum jelly applied lightly to the hinge side of the gaskets will keep the gasket pliable
and ensure a good seal Cleaning behind the Beer Dispenser
We recommend that you clean the rear of the refrigerator at least twice a year.
Note: Some operating environments may require more frequent cleaning.
Use a vacuum or brush to clean the coils.
The stainless steel doors (on some models) can be cleaned with a commercially
available stainless steel cleaner.
Do not use appliance wax or polish on the stainless steel.
Do not wipe the door with a soiled dish cloth or wet towel. These may leave a residue
Use stainless steel cleaner only on stainless steel surfaces
Dry with a soft cloth
TROUBLESHOOTING
15

BEER CONDITION: CLOUDY BEER:
The beer in the glass appears hazy and not clear.
Cause #1
Excessively low temperatures may cause hazy or cloudy beer, particularly when the beer
lies in the cold coil for long periods of time.
Correction
*Do not wash beer glasses together with glasses that have contained milk or any other
fatty substance. An excessive amount of germicide build-up may also leave a fatty film,
which will cause beer to go flat.
*It is preferable to steam and sterilize glasses where health laws permit.
*Wash glasses thoroughly with a good detergent to remove all fatty
substances(i.e.lipstick)
*Do not use soap
*Do not wipe the glasses dry. Permit glasses to air-dry by placing them on a wire rack or
on a corrugated metal
*Rinse the glasses in fresh cold water just before serving beer. It is best to serve beer in a
wet glass.
Cause #2
Improper drawing of beer into glass
Correction
Open the faucet quickly and completely; proper foam should be a tight creamy head. The
collar on the average glass should be ¾” to 1” high. Beer drawn without head has the
appearance of being flat
Cause #3
Not enough pressure
Correction
Increase the pressure if beer runs too slowly. The correct flow should fill a 10oz glass in
4 seconds. (Approx.8oz of liquid). Check the pressure source to determine whether there
are obstructions in the air line. Replace a sluggish air source or the CO2 regulator and
gauge. The tank pressure must always be higher than the pressure used on the keg.
Always apply pressure to the keg before drawing beer.
BEER CONDITION: OFF TASTE BEER
Often bitter and bity; sometimes completely lacking flavor and zest. It may also have an
oily or foul odor which may carry an unpleasant taste.
16

Cause #1
Improper cleaning of the tap
Correction
Brush and clean the tap properly. It should be scoured using a detergent, the rinsed clean.
Cause #2
Contaminated air line
Correction
Beer tube should be examined. If contaminated, it should be replaced.
BEER CONDITION:
CONDENSATION IS FORMING ON FAUCET
Cause #1
It is normal to see condensation forming in the faucet. It is caused by a difference in
temperature between the cold beer and the inner surfaces of the faucet when beer is
flowing through the line. Beer that is left in the faucet is not cooled by the refrigerator.
Correction
As a result, after a period of non-use, a few ounces should be drained before
drinking
NOISE
Modern refrigerators rely on energy efficient high speed compressors. Cooling is
accomplished through a system where the compressor cycles on and off pressurizing the
refrigerant. This system will produce certain noises which you may not be used to.
How noisy the appliance is depends on where it is placed, how it’s used and how old the
appliance is.
During the operation of the compressor, a liquid noise is heard and when the compressor
is not operating a refrigerant flow is heard. This is a normal condition and it has no
influence whatsoever on the lifetime of the appliance.
After starting the new appliance, the operation of the compressor and the
refrigerant flow may be noticeable this does not mean something is wrong with the
appliance. The noise will reduce gradually, over time and will not affect the lifetime
of the appliance.
17

Many complaints of excessive noise are traced to improper placement or leveling of the
refrigerator. This noise is often a consequence of poor installation. To avoid this
noise make sure the appliance is placed and leveled firmly on a solid base. Make
sure the appliance is not touching the wall or kitchen units standing next to it in a
way that vibrations can occur. And always make sure you check the accessories in
the interior of the appliance; they should be placed correctly in their positions.
Check the bottles, tins and other vessels that might touch each other and rattle.
Summit Outdoor refrigerators contains a rear fan which runs only when the compressor is
on, and some models have an internal air circulation fan which runs continuously. A
small fan hum (similar to a computer fan) is normal.
18
