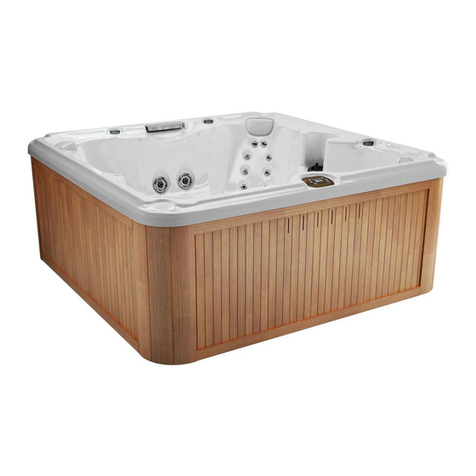

Sundance Spas Camdenl Certa User manual

780
owner’s manual
Camden™ | Certa™ | Chelsee™| Dover™ | Hamilton™
6530-436T Rev. B

Attention New Spa Owner!
Congratulations on the purchase of your new Sundance®780 Series
spa! The following is a list of automated functions and maintenance
recommendations for your new spa. Automated functions have been
listed below in an attempt to suppress any operational concerns you may
have during startup and the rst 24-hours of ownership! Maintenance
recommendations are listed in an attempt to stress their importance in
protecting your new spa.
Automated Operations
Approximately two minutes after power is applied to the spa, the rst ltration/
heating cycle turns on pump 1 (Section 9.0, page 23). In Certa/Chelsee/
Hamilton models, an automatic ve minute “blow-out” function also activates
pump 2 for a period of ve minutes to ush all lines. Then, after ve minutes,
pump 2 turns off and pump 1 continues to operate for the duration of the
cycle. Note: this function only occurs during the rst ltration/heating cycle
each day.
Maintain Healthy Spa Water
Always maintain your hot tub’s water chemistry within the following
parameters as dened by the Association of Pool And Spa Professionals/
USA:
pH 7.4-7.6
Free chlorine 3.0-4.0 ppm
Free bromine 2.0-4.0 ppm
Total Alkalinity 100-120 ppm
Calcium Hardness 150-250 ppm
Always maintain your spa lter as outlined below to ensure healthy spa water.
Refer to pages 35-36 for additional information.
Required Filter Maintenance
Your new hot tub is equipped with an advanced 2-stage MicroClean™water
ltration system that provides unsurpassed water quality! To ensure maximum
water quality at all times, you should clean and reuse the larger pleated lter
cartridge every month and replace (throw away) the smaller MicroClean lter
cartridge every 3 months, or earlier as necessary. The smaller MicroClean
lter cartridge is designed to be thrown away! Attempts to reuse this lter
cartridge may result in the re-release of unwanted particles back into the spa.
See page 29 for detailed lter cartridge replacement instructions.
Required Water Maintenance
You should replace the spa’s water every 3 months. The frequency depends
on a number of variables including frequency of use, number of users, and
attention paid to water quality maintenance. You will know it is time for a
change when you cannot control sudsing and/or you can no longer get
the normal feel or sparkle to the water, even though the key water balance
measurements are all within the proper parameters. See pages 35-36 for
additional information.
© 2008 by Sundance Spas, Inc. All Rights Reserved

Table of Contents
1.0 Important Spa Owner Information............................................ 1
2.0 FCC Notice.................................................................................. 1
3.0 Important Safety Instructions................................................... 2
3.1 Important CSA Safety Instructions (Canada Only)....................... 4
3.2 Hyperthermia ............................................................................... 5
3.3 Cautions....................................................................................... 6
3.4 General Electrical Safety Instructions.......................................... 6
4.0 Choosing A Location ................................................................. 7
4.1 Outdoor Location ......................................................................... 8
4.2 Indoor Location ............................................................................ 8
5.0 Power Requirements ................................................................. 9
5.1 North American 60Hz Power Options ........................................ 10
5.2 Export 50Hz Power Options....................................................... 11
6.0 Electrical Wiring Instructions ................................................. 12
7.0 Spa Fill Up Procedure.............................................................. 15
8.0 Control Functions.................................................................... 21
8.1 Control Panel ............................................................................. 21
8.2 General Spa Features And Controls .......................................... 22
9.0 Operating Instructions ............................................................ 23
9.1 Setting Water Temperature ....................................................... 23
9.2 Activate Jets Pumps .................................................................. 23
9.3 Selecting Desired Massage Action ............................................ 24
9.4 Air Controls ................................................................................ 24
9.5 Multi-Colored LED Light Operation............................................ 24
9.6 Rotating Jets.............................................................................. 25
9.7 Non-Rotating Jets ...................................................................... 26
9.8 Waterfall Operation .................................................................... 26
9.9 Optional Audio System (Certa/Chelsee/Hamilton Only)............. 26
10.0 Automatic Filtration Cycles .................................................... 27
10.1 Standard Filtration/Heating Modes (F0-F3) ............................... 27
10.2 Economy Filtration/Heating Modes (F4-F6)............................... 27
10.3 Lock Modes (L1-L2)................................................................... 27
10.4 Selecting The Filtration/Heating Mode....................................... 28

11.0 Spa Maintenance...................................................................... 29
11.1 Cleaning The Filter..................................................................... 29
11.2 Draining And Relling................................................................. 31
11.3 Pillow Care................................................................................. 33
11.4 Cleaning The Spa Interior.......................................................... 33
11.5 Maintaining the Cover................................................................ 33
11.6 Maintaining The Synthetic Cabinet ............................................ 34
11.7 Winterizing ................................................................................. 34
11.8 Restarting Your Spa in Cold Weather ........................................ 35
12.0 Water Quality Maintenance ..................................................... 35
12.1 pH Control.................................................................................. 35
12.2 Sanitizing ................................................................................... 36
12.3 CD Ozone Water Maintenance System ..................................... 36
13.0 Error Conditions/Error Messages .......................................... 37
13.1 Summer Logic............................................................................ 37
13.2 Overheat Condition.................................................................... 37
13.3 Panel displays SN1.................................................................... 37
13.4 Panel displays SN2.................................................................... 37
13.5 Panel displays FL1 or FL2 ......................................................... 38
13.6 Panel displays COL ................................................................... 38
13.7 Panel displays ICE..................................................................... 38
13.8 Panel displays - - - .................................................................... 38
14.0 Troubleshooting Procedures .................................................. 39
14.1 None of the Components Operate (e.g. Pump, Light) .............. 39
14.2 Pump Does Not Operate but Light Does ................................... 39
14.3 Poor Jet Action........................................................................... 39
14.4 Water is Too Hot......................................................................... 39
14.5 No Heat...................................................................................... 39
15.0 North American Dover Convertible Circuit Diagram ............ 41
16.0 North American Camden Circuit Diagram ............................. 42
17.0 North American Certa/Chelsee/Hamilton Circuit Diagram... 43
19.0 Export Camden Circuit Diagram............................................. 45
20.0 Export Certa/Chelsee/Hamilton Circuit Diagram .................. 46
21.0 Optional SunSound™Stereo Receiver Functions ............... 47
21.1 SunSound Audio Receiver Specications.................................. 53
21.2 Audio System Remote Control................................................... 55
21.3 Optional MP3 Player Connection............................................... 56

Page 1
1.0 Important Spa Owner Information
Your new Sundance®780 Series Spa is constructed to the highest
standards and is capable of providing many years of trouble-free use.
However, because heat retentive materials are utilized to insulate the
spa for efficient operation, an uncovered acrylic spa surface and wall fit-
tings directly exposed to sunlight and high temperatures for an extended
period are subject to permanent damage or discoloration. Damage
caused by exposing the spa to this abuse is not covered under war-
ranty. We recommend that you always keep the spa full of water when
it is exposed to direct sunlight and that you keep the insulating cover in
place at all times when the spa is not in use. Read and carefully follow
the requirements for your spa’s support base found in Section 4.0 titled,
“Choosing a Location” (Page 7).
We constantly strive to offer the finest spas available, therefore
modifications and enhancements may be made which affect the
specifications, illustrations and/or instructions contained herein.
2.0 FCC Notice
This equipment has been tested and found to comply with the limits for
a Class B Digital Device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be deter-
mined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
1. Rearrange or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver
3. Connect the equipment into an outlet on a circuit different from the
circuit connected.
4. Consult the dealer or an experienced radio/TV technician for help.
Changes or modications not expressly approved by the party
responsible for FCC compliance could void the user’s authority to
operate this equipment.

Page 2
3.0 Important Safety Instructions
READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY!
When installing and using this electrical equipment, basic safety precau-
tions should always be followed, including:
1. WARNING: To reduce the risk of injury, do not permit children to use
this product unless they are closely supervised at all times.
2. WARNING: A grounding wire connector is provided on this unit to
connect a minimum No. 8 AWG (8.4mm²) solid copper conductor
between this unit and any metal equipment, metal enclosures of
electrical equipment, metal water pipe, or conduit within 5 feet (1.5m)
of the unit.
3. DANGER: Risk of Accidental Drowning. Extreme caution must be
exercised to prevent unauthorized access by children. To avoid
accidents, ensure that children cannot use this spa unless they are
supervised at all times.
4. WARNING: Risk of Injury. The suction ttings in this spa are sized to
match the specic water ow created by the pump. If it is necessary
to replace the suction ttings or the pump, be sure that the ow rates
are compatible. Because of the risk of injury,
Never operate or use the spa if the lter, lter lid, or skimmer •
assembly are broken or any part of the skimmer assembly is
missing. Please contact your dealer or nearest service center for
service.
Never replace a suction tting with one rated less than the ow •
rate marked on the original suction tting.
5. DANGER: Risk of Injury. The suction ttings in this spa are sized to
match the specic water ow created by the pump. Should the need
arise to replace the suction ttings or the pump, be sure that the ow
rates are compatible. Never operate the spa if the suction ttings are
broken or missing. Never replace a suction tting with one rated less
than the ow rate marked on the original suction tting.
6. DANGER: Risk of Electric Shock. Install at least 5 feet (1.5m) from
all metal surfaces. As an alternative, a spa may be installed within
5 feet (1.5m) of metal surfaces if each metal surface is permanently
connected (bonded) by a minimum No. 8 AWG (8.4mm²) solid cop-
per conductor attached to the wire connector on the grounding lug,
inside the equipment compartment on the equipment box.
7. DANGER: Risk of Electric Shock. Do not permit any electrical
appliance, such as a light, telephone, radio, television, etc. within

Page 3
5 feet (1.5m) of a spa, unless such appliances are built-in by the
manufacturer.
8. ELECTRICAL SUPPLY: The electrical supply for this product
must include a suitably rated switch or circuit breaker to open all
ungrounded supply conductors to comply with Section 422-20 of the
National Electrical Code, ANSI/NFPA 70. The disconnect must be
readily accessible and visible to the spa occupant but installed at
least 5 feet (1.5m) from the spa water.
9. WARNING: To Reduce the Risk of Injury:
10. The water in a spa should never exceed 104°F (40°C). Water
temperatures between 100°F (38°C) and 104°F (40°C) are consid-
ered safe for a healthy adult. Lower water temperatures are recom-
mended for young children and when spa use exceeds 10 minutes.
11. Since excessive water temperatures have a high potential for caus-
ing fetal damage during the early months of pregnancy, pregnant
or possibly pregnant women should limit spa water temperatures
to 100°F (38°C). If pregnant, please consult your physician before
using a spa.
12. Before entering the spa, the user should measure the water tem-
perature with an accurate thermometer since the tolerance of water
temperature-regulating devices may vary as much as +/- 5°F (2°C).
13. The use of alcohol, drugs, or medication before or during spa use
may lead to unconsciousness with the possibility of drowning.
14. Persons suffering from obesity or a medical history of heart disease,
low or high blood pressure, circulatory system problems, diabetes,
infectious diseases or immune deciency syndromes should consult
a physician before using a spa. If you experience breathing difcul-
ties in association with using or operating your spa, discontinue use
and consult your physician.
15. Persons using medication should consult a physician before using
a spa since some medication may induce drowsiness, while other
medication may affect heart rate, blood pressure, and circulation.
16. Always shower before and after using your spa. To reduce the pos-
sibility of contracting a waterborne illness, always maintain water
chemistry within the parameters listed on the inside cover of this
manual. If you or other bathers experience such a condition, discon-
tinue use and seek medical attention.

Page 4
3.1 Important CSA Safety Instructions (Canada Only)
When using this electrical equipment, basic safety precautions should
always be followed, including the following:
1. READ AND FOLLOW ALL INSTRUCTIONS.
2. A green colored terminal or a terminal marked G, Gr, Ground,
Grounding or the symbol*is located inside the supply terminal box
or compartment. To reduce the risk of electric shock, this terminal
must be connected to the grounding means provided in the elec-
tric supply service panel with a continuous copper wire equivalent
in size to the circuit conductors that supply this equipment (*IEC
Publication 417, Symbol 5019).
3. At least two lugs marked “Bonding Lugs” are provided on the exter-
nal surface or on the inside of the supply terminal box/compartment.
To reduce the risk of electric shock, connect the local common bond-
ing grid in the area of the spa to these terminals with an insulated or
bare copper conductor not smaller than No. 6 AWG (10mm²).
4. All eld-installed metal components such as rails, ladders, drains
or other similar hardware within 10 feet (3m) of the spa shall be
bonded to the equipment grounding buss with copper conductors not
smaller than No. 6 AWG (10mm²).
5. SAVE THESE INSTRUCTIONS.
WARNING: Children should not use spas without adult supervision.
WARNING: Do not use spas unless all suction guards are installed to
prevent body and hair entrapment.
WARNING: People with infectious diseases should not use a spa.
WARNING: To avoid injury, exercise care when entering or exiting the
spa.
WARNING: Do not use drugs or alcohol before or during the use of a
spa to avoid unconsciousness and possible drowning.
WARNING: Pregnant or possibly pregnant women should consult a
physician before using a spa.

Page 5
WARNING: Water temperature in excess of 38 °C (104 °F) may be
injurious to your health.
WARNING: Before entering the spa, measure the water temperature
with an accurate thermometer.
WARNING: Do not use a spa immediately following strenuous exercise.
WARNING: Prolonged immersion in a spa may be injurious to your
health.
WARNING: Do not permit electric appliances (such as lights, tele-
phones, radios, televisions, etc.) within 5 feet (1.5m) of this spa unless
factory installed.
CAUTION: Maintain water chemistry in accordance with manufacturer’s
instructions.
WARNING: The use of alcohol or drugs can greatly increase the risk of
fatal hyperthermia in spas.
3.2 Hyperthermia
Prolonged immersion in hot water may induce hyperthermia. A descrip-
tion of the causes, symptoms, and effects of hyperthermia are as
follows:
Hyperthermia occurs when the internal temperature of the body reaches
a level several degrees above the normal body temperature of 98.6°F
(37°C). The symptoms of hyperthermia include drowsiness, lethargy,
and an increase in the internal temperature of the body. The effects of
hyperthermia include:
A Unawareness of impending hazard;
B. Failure to perceive heat;
C. Failure to recognize the need to exit spa;
D. Physical inability to exit spa;
E. Fetal damage in pregnant women; and
F. Unconsciousness and danger of drowning.

Page 6
3.3 Cautions
1. Persons suffering from heart disease, diabetes, high or low blood
pressure, and any condition requiring medical treatment, pregnant
women, the elderly, or infants should consult with a physician before
using a spa.
2. The Consumer Products Safety Commission/USA has stated that
the water temperature in a spa should not exceed 104°F (40°C).
Immersion in water in excess of 104°F (40°C) can be hazardous to
your health.
3. Observe a reasonable time limit when using the spa. Long expo-
sures at higher temperatures can cause high body temperature.
Symptoms may include dizziness, nausea, fainting, drowsiness, and
reduced awareness. These effects could possibly result in drowning.
4. Do not use the spa under the inuence of alcohol, narcotics, or other
drugs. Use of the spa under these conditions may lead to serious
consequences.
5. Always test the spa water temperature before entering the spa.
Enter and exit the spa slowly. Wet surfaces can be very slippery.
6. Never bring any electrical appliances into or near the spa. Never
operate any electrical appliances from inside the spa or when you
are wet unless such appliances are built-in by the manufacturer.
7. Proper chemical maintenance of spa water is necessary to maintain
safe water and prevent possible damage to spa components.
8. Use the straps and clip tie downs to secure the cover when not in
use. This will help to discourage unsupervised children from enter-
ing the spa and keep the spa cover secure in high-wind conditions.
There is no representation that the cover, clip tie-downs, or actual
locks will prevent access to the spa.
3.4 General Electrical Safety Instructions
Your new Sundance® 780 Series Spa is equipped with a "state-of-
the-art" equipment system. It contains the most advanced safety and
self-protective equipment in the industry. Nonetheless, this spa must
be installed properly to ensure dependable usage. Please contact your
local Sundance dealer or local building department should you have any
questions regarding your installation.
Proper grounding is extremely important. Sundance spas are equipped
with a current collector system. A pressure wire connector is provided
on the surface of the control box, located outside the equipment door
(Figure-B, page 14) to permit connection of a bonding wire between
this point and any ground metal equipment, metal water pipe or conduit
within 5 feet (1.5m) of the spa, or copper clad grounding rod buried

Page 7
within 5 feet (1.5m) of the spa. Bonding wire must be at least No. 8 AWG
(8.4mm²) solid copper wire. This is a most important safety assurance
feature.
Before installing your spa, check with your local building department to
ensure installation conforms to local building codes.
120/240 Volt Dover Convertible Model
A spa connected to a 120 VAC electrical service must be located close
enough to a grounded, grounding-type electrical outlet so that the
included 10 foot (3m) power cord can be plugged directly into it. DO
NOT USE AN EXTENSION CORD as this could cause damage to the
spa’s equipment due to insufcient voltage. The power supplied to this
spa must be a dedicated circuit with no other appliances or lights sharing
the power provided by the circuit.
4.0 Choosing A Location
IMPORTANT: Because of the combined weight of the spa, water
and users, it is extremely important that the base upon which the
spa rests be smooth, at, level and capable of uniformly supporting
this weight, without shifting or settling, for the entire time the spa is
in place. If the spa is placed on a surface which does not meet these
requirements, damage to the skirt and/or the spa shell may result.
Damage caused by improper support is not covered under warranty.
It is the responsibility of the spa owner to assure the integrity of the
support over time. We recommend a poured, reinforced concrete
slab with a minimum thickness of 4 inches (10cm). Wood decking
is also acceptable provided it is constructed so that it meets the
requirements outlined above.
The spa must be installed in such a manner as to provide drainage away
from it. Placing the spa in a depression without provisions for proper
drainage could allow rain, overow and other casual water to ood the
equipment and create a wet condition in which it would sit in. For spas
which will be recessed into a oor or deck, install so as to permit access
to the equipment, either from above or below, for servicing. Make certain
that there are no obstructions which would prevent removal of all side
cabinet panels and access to the jets components, especially on the
side with the equipment bay doors.

Page 8
4.1 Outdoor Location
In selecting the ideal outdoor location for your spa, we suggest that you
take into consideration the following:
• The proximity to changing area and shelter (especially in regions
subject to cold weather).
• The pathway to and from your spa (this should be free of debris so
that dirt and leaves are not easily tracked into the spa).
• The closeness to trees and shrubbery (remember that leaves and
birds could create extra work in keeping the spa clean).
• A sheltered environment (less wind and weather exposure can result
in lowered operation and maintenance costs).
• The overall enhancement of your environment. It is preferable not to
place the spa under an unguttered roof overhang since run-off water
will shorten the life expectancy of the spa cover.
4.2 Indoor Location
For indoor installations many factors need to be considered before
installing a spa indoors:
• PROPERFOUNDATION: Consult a Structural Engineer when con-
sidering a foundation that will adequately support the spa the entire
time it is in place. Proper support is critical especially if the spa is to
rest on a second story or higher. For spas that are to rest on balco-
nies, roofs or other platforms not specifically tied into the main struc-
tural support, you should consult a professional Structural Engineer
with experience in this type of application.
• PROPERDRAINAGE: It is extremely important to have in place
measures to sufficiently handle excessive water spillage. Be sure the
flooring in which the spa rests on has adequate drainage and can
handle draining of the entire contents of the spa. Be sure to make
provisions for ceilings or any other structures that may be below the
spas installation. Areas around your spa can become wet or moist so
all flooring and subsequent furniture, walls and adjacent structures
should be able to withstand or resist water and moisture.
• PROPERVENTILATION: Proper ventilation should be discussed
with an Engineer or authority competent enough to understand the
necessary provisions needed to vent moist or heated air and air
associated with chemical odors outdoors. When the spa is in use
considerable amounts of moisture will escape potentially causing

Page 9
mold and mildew, over time this can damage certain surfaces and or
surroundings.
• SUFFICIENTACCESS: In the unlikely event that you should ever
need to access or gain entry to any portion of the spa for servicing,
it is highly recommended that you plan your indoor installation to
provide full access to the entire spa.
• WARRANTY: Damage caused by not following these guidelines
or any improper installation not in accordance with local codes or
authorities is not covered under the spas warranty. Please consult
your local state or city building ordinances.
WARNING: In addition to maintenance of lters and water
chemistry, proper ventilation is recommended to reduce the
risk of exposure to viruses and bacteria that could be pres-
ent in the air or water. Consult a licensed architect or building
contractor to determine your specic needs if installing your
spa indoors.
!
5.0 Power Requirements
Sundance®spas are designed to provide optimum performance and
exibility of use when connected to the maximum electrical service listed
on pages 10-12. If you prefer, your qualified technician can perform a
minor circuit board modication to allow your spa to accept an electrical
service other than the factory setting (turn page for details). Note: Refer
to pages 41-46 for circuit board conguration details or contact your
authorized Sundance dealer.

Page 10
5.1 North American 60Hz Power Options
North American Dover Convertible Models (60Hz)
120V/15A* 240V/30A* 240V/40A**
Voltage: 120 VAC 240 VAC 240 VAC
# of Wires: 3 (15A GFCI
Cord, US Models
Only*)
4 (Hard Wired
Only)
4 (Hard Wired
Only)
Frequency: 60Hz 60Hz 60Hz
Current Draw: 12A 21A 30A
Circuit Breaker: 15A*, 1-Pole 30A*, 2-Pole 40A**, 2-Pole
CAUTION (For 4-wire, 240 VAC Heater Operation): Move the red wire on
the main terminal strip (TB1) from position #1 to position #3. Make certain
wires are connected exactly as shown in Figure D (page 15) before apply-
ing power. Failure to do so will result in damage to the circuit board and/or
related components and void the manufacturer’s warranty.
* In the 15A and 30A conguration, the heater will not operate at the same
time as the high-speed jets pump. The factory setting is 120V/15A.
Note: all Canadian spas must be hard wired (120 VAC or 240 VAC)
per CSA Canadian standards (page 4).
** If the spa is to be operated on 40A service, remove the jumper JP1 #1-2
on the circuit board to allow the heater to operate at the same time as the
high-speed jets pump (page 41)
North American 1-Pump Camden Model (60Hz)
240V/40A* 240V/50A**
Voltage: 240 VAC 240 VAC
# of Wires: 3 3
Frequency: 60Hz 60Hz
Current Draw: 26A 36A
Circuit Breaker: 40A*, 2-Pole 50A**, 2-Pole
* In the 40A configuration, the heater will not operate while the jets pump
is running in high speed.
** In the 50A configuration, the heater will operate while the jets pump is
running in high speed. This is the factory setting.

Page 11
5.2 Export 50Hz Power Options
North American Certa/Chelsee/Hamilton 2-Pump Models (60Hz)
240V/40A* 240V/50A** 240V/60A***
Voltage: 240 VAC 240 VAC 240 VAC
# of Wires: 3 3 3
Frequency: 60Hz 60Hz 60Hz
Current Draw: 26A 36A 45A
Circuit Breaker: 40A*, 2-Pole 50A**, 2-Pole 60A***, 2-Pole
* In 40A conguration, the heater will not operate while either jets pump is
running in high speed. Note: pump 2 runs only in high speed.
** In 50A conguration, the heater will not operate while both jets pumps
are running in high speed. Note: pump 2 runs only in high speed. This
is the factory setting.
*** In 60A conguration, the heater will operate while both jets pumps are
running in high speed. Note: pump 2 runs only in high speed.
Export 1-Pump Camden/Dover Models (50Hz)
230V/20A* 230V/30A**
Voltage: 230 VAC 230 VAC
# of Wires: 3 3
Frequency: 50Hz 50Hz
Current Draw: 15A 21A
Circuit Breaker: 20A* 30A**
* In the 20A conguration, the heater will not operate while the jets pump
is running in high speed. This is the factory setting.
** In the 30A conguration, the heater will operate while the jets pump is
running in high speed.

Page 12
6.0 Electrical Wiring Instructions
IMPORTANT NOTICE: The electrical wiring of this spa must
meet the requirements of the National Electrical Code (NEC) and
any applicable state or local codes. The electrical circuit must be
installed by a qualied electrician and approved by a local building/
electrical inspection authority.
1. Convertible 120/240V Powered Dover Models Only:
•120V “Plug-in” Operation: This spa must operate on the supplied
10 foot (3m)120V GFCI cord at its original length or must be hard-
wired for longer runs. NEVER USE AN EXTENSION CORD FOR
ANY REASON!
• Convertible 120/240V Heater Operation: the included 120V GFCI
cord must be discarded for 240V heater operation. This spa must be
hard-wired. Supplying power to either conguration above which is
not in accordance with these instructions will void both the indepen-
dent testing agency listing and the manufacturer’s warranty.
Export 2-Pump Certa/Chelsee/Hamilton Models (50Hz)
230V/20A* 230V/30A** 230V/40A***
Voltage: 230 VAC 230 VAC 230 VAC
# of Wires: 3 3 3
Frequency: 50Hz 50Hz 50Hz
Current Draw: 15A 23A 29A
Circuit Breaker: 20A* 30A** 40A***
* In 20A conguration, the heater will not operate while either jets pump is
running in high speed. This is the factory setting. Note: pump 2 runs
only in high speed.
** In 30A conguration, the heater will not operate while both jets pumps
are running in high speed. Note: pump 2 runs only in high speed.
*** In 40A conguration, the heater will operate while both jets pump are
running in high speed. Note: pump 2 runs only in high speed.

Page 13
2. Dedicated 240V Power Camden/Certa/Chelsee/Hamilton Models:
These spas must be permanently connected (hard-wired) to the
power supply. No plug-in connections or extension cords are
to be used in conjunction with the operation of these spas.
Supplying power to these spas which is not in accordance with these
instructions will void both the independent testing agency listing and
the manufacturer’s warranty.
3. The power supplied to this spa must be a dedicated circuit with no
other appliances or lights sharing the power provided by the circuit.
4. To determine the current, voltage and wire size required, refer to
Section 5.0 “Power Requirements” (pages 10-12).
• Wire size must be appropriate per NEC and/or local codes.
• We recommend type THHN wire.
• All wiring must be copper to ensure proper connections. Do not use
aluminum wire.
• When using wire larger than #6 (10mm²), add a junction box near the
spa and reduce to short lengths of #8 (8.4mm²) wire to connect to
the spa.
5. The electrical supply for this product must include a suitably rated
switch or circuit breaker to open all ungrounded supply conductors
to comply with Section 422-20 of the National Electrical Code, ANSI/
NFPA 70. The disconnecting means must be readily accessible to
the spa’s occupant but installed at least 5 feet (1.5m) from spa water.
6. The electrical circuit supplied for the spa must include a suitable
ground fault circuit interrupter (GFCI) as required by NEC Article
680-42.
7. To gain access to the spa’s power terminal block, remove the screws
securing the cabinet panel on the side of the spa under the controls.
Then remove the four control box door screws and door (Figure A-B,
page 14).
8. Select the power supply inlet you want to use (Figure A, page 14).
Feed power cable to control box, then install it through the large
opening provided in the bottom side of the box.
9. Connect wires, color to color, on terminal blocks TB1 and TB3
(Figures C-F, page 15). TIGHTEN SECURELY! All wires must be
hooked up securely or damage could result.

Page 14
10. Install control box door and screws and reinstall the cabinet side
panels.
Figure A
Equipment Area
9
10
4
37
1
2 2
Flow
8
6 6
5
11
Circulation pump
behind load box
Pump locations vary by model
1. Control Box
2. Power Supply Entrace(s)
3. 2-Speed Pump #1
4. Heater
5. Spa Drain Valve
6. Pump Drain Plugs
7. 1-Speed Pump #2
8. Circulation Pump
9. Optional CD Ozonator (Purchased
separately on North American models;
standard equipment on export models
10. Ozone Injector
11. Control Panel
1. Terminal Block
2. Bonding Lug
3. Grounding Terminal
TB1
3
2
1
Figure B
Control Box

Page 15
BLUE
BLUE
BROWN
BROWN
1
2
North American Camden/Certa/Chelsee/
Hamilton Models: 240 VAC, 3-Wire
Connection (60Hz)
Figure-F
TB1
All Export Models:
230 VAC, 3-Wire Connection (50Hz)
to Circuit
Board
BLK
RED
Power In
RED
RED
BLK
BLK
1
2
Figure-E
TB1
to Circuit
Board
Power In
Green
TB3
Green
TB3
North American Dover Convertible Models:
120/240 VAC, 4-Wire Connection (60Hz)
North American Dover Convertible Models:
120 VAC, 3-Wire Connection (60Hz)
CAUTION: (For 4-wire, 240 VAC Heater Operation): Move the red wire on the main terminal
strip (TB1) from position #1 to position #3. Make certain wires are connected exactly as
shown in Figure D before applying power. Failure to do so will result in damage to the circuit
board and/or related components and void the manufacturer’s warranty.
GRN
WHT
WHT
BLK
BLK
BLK
RED
1
2
3
Figure-C
TB1
to Circuit
Board
Power In
GRN
WHT
BLK
BLK
BLK
RED RED
1
2
3
Figure-D
TB1
to Circuit
Board
Power In
Move Red
Wire Here
WHT
RED
7.0 Spa Fill Up Procedure
FOR BEST RESULTS, READ EACH STEP IN ITS ENTIRETY BEFORE
PROCEEDING WITH THAT STEP.
1. Prepare The Spa For Filling
• Clear all debris from the spa. (Although the spa shell has been
polished at the factory, you may want to treat it with a specially
formulated spa cleaner. Consult your dealer for additional infor-
mation prior to lling spa.
• Remove lter lid (page 22), then remove lter cartridge from lter
bucket as illustrated in Section 11.1 (pages 29-30).

Page 16
2. Fill Spa
• Place the end of your garden hose into the empty lter bucket.
CAUTION: Never ll with water from a water softener. If your
water is extremely “hard”, it is preferable to ll half-way with
hard water and the rest of the way with softened water. Or,
you may ll entirely with hard water if you use a special water
additive available from your Sundance dealer.
!
• Fill spa with clean tap water from garden hose until water covers all
jets but does not touch the bottom of the lowest headrest (DO NOT
OVERFILL!)
IMPORTANT: Always ll your spa through the lter bucket
after draining. Failure to do so may cause air to be trapped
in either pump, preventing the pump from circulating water.
Remove the hose and replace the lter cartridge as illus-
trated in Section 11.1 (pages 29-30).
!
3. Turn On Power
Turn on power to spa at the home’s circuit breaker to start boot up
sequence (Section 9.0, page 23). The heater and lter/circulation
pump will automatically activate after several seconds. If the control
panel LED ashes water temperature and “COOL” or “ICE” this is
normal. Refer to page 38 for additional information.
4. Activate Jets Pumps
Turn on all jet(s) pumps to ensure proper mixing when
adding start-up chemical in step 5.
5. Add Start-Up Chemicals
Add the spa water chemicals as recommended by your Sundance
dealer. See Section titled “Water Quality Maintenance” (page 35) for
general guidance.
6. Establish A Stable Sanitizer Reading
Establish a stable sanitizer reading between 3.0-4.0 ppm chlorine
or 2.0-4.0 ppm bromine. To ensure healthy water conditions, always
maintain a constant sanitizer reading within the levels recommended
1
2
