Sundance Spas 680 Series User manual

680
OWNER’S MANUAL
Denali™| Edison®| Hartford™| Hawthorne™| Peyton™| Tacoma™
6530-681A Rev. A

Attention New Spa Owner!
Congratulations on the purchase of your new Sundance®680 Series spa! The
following is a list of automated functions and maintenance recommendations
for your new spa. Automated functions have been listed below in an attempt to
suppress any operational concerns you may have during startup and the rst 24
hours of ownership! Maintenance recommendations are listed in an attempt to
stress their importance in protecting your new spa.
Automated Operations
Approximately two minutes after power is applied to the spa, the rst ltration/heating
cycle turns on pump 1. With two pump models, an automatic ve minute “blow-out”
function also activates pump 2 for a period of ve minutes to ush all lines. Then, after
ve minutes, pump 2 turns off and pump 1 continues to operate for the duration of the
cycle.
Note: This function only occurs during the rst ltration/heating cycle each day.
Maintain Healthy Spa Water
Always maintain your spa’s water chemistry within the following parameters:
with CLEARRAY® without CLEARRAY®
pH 7.4-7.6 7.4-7.6
Free chlorine no less than 1.0 ppm 3.0-4.0 ppm
Free Bromine no less than 2.0 ppm 2.0-4.0 ppm
Total Alkalinity 100-120 ppm 100-120 ppm
Calcium Hardness 150-250 ppm 150-250 ppm
IMPORTANT: CLEARRAY® Water Purication System is factory installed. If the
CLEARRAY® system is altered or is not operating efciently then follow the “without
CLEARRAY®” water chemistry parameters as dened by the Association of Pool
and Spa Professionals. CLEARRAY® requires an annual bulb replacement to
properly sanitize your water.
!TO DECREASE RISK OF INFECTION OR DISEASE! Always maintain
your spa lter as outlined below to ensure healthy spa water. Refer to page 34 for
additional information.
Required Filter Maintenance
Your new spa is equipped with an advanced water ltration system that provides
unsurpassed water quality! To ensure maximum water quality at all times, you
should clean and reuse both lter cartridges every month or as needed. See page
34 for detailed lter cleaning/replacement instructions.
Required Water Maintenance
!TO DECREASE RISK OF INFECTION OR DISEASE! You should replace
the spa’s water every 3 months. The frequency depends on a number of variables
including frequency of use, number of users, and attention paid to water quality
maintenance. You will know it is time for a change when you cannot control sudsing
and/or you can no longer get the normal feel or sparkle to the water, even though
the key water balance measurements are all within the proper parameters. See
pages 39-40 for additional information.

680 SERIES
Table of Contents
1.0 Important Spa Owner Information............................................ 1
2.0 FCC Notice.................................................................................. 1
3.0 Important Safety Instructions for all Spa Owners .................. 2
3.1 Entrapment Risk .......................................................................... 6
3.2 Hyperthermia ............................................................................... 7
3.3 Important CSA Safety Instructions (Canada only) ....................... 8
3.4 General Electrical Safety Instructions.......................................... 8
4.0 Choosing A Location ................................................................. 9
4.1 Outdoor Location ....................................................................... 10
4.2 Indoor Location...........................................................................11
5.0 Power Requirements ............................................................... 12
5.1 North American 60 Hz Power Options....................................... 12
5.2 Export 50 Hz Power Options ..................................................... 13
6.0 Electrical Wiring Instructions ................................................. 14
7.0 Spa Fill Up Procedure.............................................................. 18
8.0 Control Functions.................................................................... 23
8.1 Control Panel............................................................................. 23
8.2 General Spa Features And Controls.......................................... 24
8.3 General Spa Features And Controls (Edison®
and Peyton Models)................................................................... 25
9.0 Operating Instructions ............................................................ 26
9.1 Setting Water Temperature........................................................ 26
9.2 Activate Pumps.......................................................................... 27
9.3 SunGlow™ Light Operation (Denali and Tacoma Models) ........ 27
9.4 Multi-Colored LED Light System Operation
(Edison®, Hartford, Hawthorne, and Peyton Models) ............... 28
9.5 Adjusting Individual Jet Flow ..................................................... 29
9.6 Selecting Desired Massage Action ............................................ 29
9.7 Air Controls................................................................................ 29
9.8 Optional BLUEWAVE™ Spa Stereo System ............................. 29
© Sundance Spas, Inc. All Rights Reserved

680 SERIES
10.0 Automatic Filtration Cycles .................................................... 30
10.1 Standard Filtration/Heating Modes (F1-F3) ............................... 30
10.2 Economy Filtration/Heating Modes (F4-F6)............................... 30
10.3 Lock Modes (L1-L3)................................................................... 30
10.4 Selecting The Filtration/Heating Mode ...................................... 30
10.5 Filtration Modes ......................................................................... 31
10.6 Programming the CLEARRAY (Ultraviolet)
Water Purication System ......................................................... 32
11.0 Spa Maintenance...................................................................... 34
11.1 Cleaning The Filter .................................................................... 34
11.2 Draining and Relling ................................................................ 35
11.3 Pillow Care (All Models Except Denali) ..................................... 36
11.4 Cleaning The Spa Interior.......................................................... 37
11.5 Maintaining The Cover .............................................................. 37
11.6 Maintaining The Synthetic Cabinet............................................ 38
11.7 Winterizing................................................................................. 38
11.8 Restarting Your Spa in Cold Weather........................................ 39
12.0 Water Quality Maintenance ..................................................... 39
12.1 pH Control ................................................................................. 40
12.2 Sanitizing ................................................................................... 40
12.3 CLEARRAY® Water Purication System .................................. 41
12.4 CLEARRAY® Bulb Replacement and
Quartz Tube Maintenance ......................................................... 41
13.0 Error Conditions/Error Messages .......................................... 44
13.1 Panel Displays SN1................................................................... 44
13.2 Panel Displays SN2................................................................... 44
13.3 Panel Flashes FL1 or FL2 ......................................................... 44
13.4 Panel Displays COL................................................................... 45
13.5 Panel Displays ICE.................................................................... 45
13.6 Panel Displays OH .................................................................... 45
13.7 Panel Displays - - - .................................................................... 45
13.8 Panel Displays BLB ................................................................... 45
14.0 Troubleshooting Procedures .................................................. 46
14.1 None of the Components Operate (e.g. Pump, Light)............... 46
14.2 Pump Does Not Operate but Light Does ................................... 46
14.3 Poor Jet Action .......................................................................... 46
14.4 Water is Too Hot ........................................................................ 46
14.5 No Heat ..................................................................................... 46

680 SERIES
15.0 North American Denali/Tacoma Convertible
Circuit Diagram (60 Hz) ........................................................... 48
16.0 North American Edison®, Hartford, Hawthorne
and Peyton Circuit Diagram (60 Hz)....................................... 49
17.0 Export Denali/Tacoma Circuit Diagram (50 Hz)..................... 50
18.0 Export Edison®, Hartford, Hawthorne and
Peyton Circuit Diagram (50 Hz) .............................................. 51
19.0 Optional BLUEWAVE™ Spa Stereo System .......................... 52
19.1 Pairing the Remote and Stereo ................................................. 53
19.2 Audio Settings ........................................................................... 53
19.3 Wireless Remote Control Functions .......................................... 55
19.4 Electronic Device Connections and Functions .......................... 56
19.5 Wireless Remote Battery Replacement Procedure ................... 59
19.6 BLUEWAVE Spa Stereo System Specications........................ 60
19.7 Stereo Cautions......................................................................... 60

......

Page 1
680 SERIES
1.0 Important Spa Owner Information
Your Sundance®680 Series spa is constructed to the highest standards
and is capable of providing many years of trouble-free use. However,
because heat retentive materials are utilized to insulate the spa for
efcient operation, an uncovered spa surface and wall ttings directly
exposed to sunlight and high temperatures for an extended period
are subject to permanent damage or discoloration. Damage caused
by exposing the spa to this abuse is not covered under warranty.
We recommend that you always keep the spa full of water when it is
exposed to direct sunlight and that you keep the Sundance premium
insulating cover in place at all times when the spa is not in use. Read
and carefully follow the requirements for your spa’s support base found
in Section 4.0 titled, “Choosing a Location” (page 9).
Sundance constantly strives to offer the finest spas available,
therefore modifications and enhancements may be made which
affect the specifications, illustrations and/or instructions contained
herein.
2.0 FCC Notice
This equipment has been tested and found to comply with the limits for
a Class B Digital Device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following
measures:
1. Rearrange or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver
3. Connect the equipment into an outlet on a circuit different from the
circuit connected.
4. Consult the dealer or an experienced radio/TV technician for help.
Changes or modications not expressly approved by the party
responsible for FCC compliance could void the user’s authority to
operate this equipment.

Page 2
680 SERIES
3.0 Important Safety Instructions for all Spa Owners
READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY!
This spa was manufactured to meet the standards and specications
outlined in the “Virginia Graeme Baker Pool and Spa Safety Act” (VGB
Safety Act). When installing and using this spa, basic safety precautions
should always be followed, including:
1. !DANGER: RISK OF SEVERE INJURY OR DROWNING!
• Extreme caution must be exercised to prevent unauthorized access
by children.
• To avoid accidents, ensure that children do not use this spa unless
supervised at all times. Adult supervision is a critical safety factor in
preventing children from drowning.
• Use the straps and clip tie downs to secure the spa cover when not
in use. This will help discourage unsupervised children from entering
the spa. Keep the spa cover secure in high-wind conditions.
• There is no representation that the cover, clip tie-downs, or actual
locks will prevent access to the spa.
2. !DANGER: RISK OF SEVERE INJURY OR DROWNING!
• Keep hair, loose articles of clothing or hanging jewelry away from suction
ttings, rotating jets or other moving components to avoid entrapment
that could lead to drowning or severe injury.
• Never use the spa unless all suction guards, lter, lter lid, or skimmer
assembly are installed to prevent body and/or hair entrapment.
• Never operate or use the spa if the lter, lter lid, or skimmer assembly
are broken or any part of the skimmer assembly is missing. Please
contact your dealer or nearest service center for service.
• The suction ttings and suction covers in this spa are sized to match the
specic water ow created by the pump(s). If it is necessary to replace
the suction ttings, suction covers or pump(s), be sure that the ow rates
are compatible and are in compliance with the VGB Safety Act.
• Never replace a suction tting or suction cover with one rated less
than the ow rate marked on the original suction tting. Using improper
suction ttings or suction covers can create a body or hair suction
entrapment hazard that may lead to drowning or severe injury.
3. !DANGER: RISK OF SEVERE INJURY FROM ELECTRIC
SHOCK OR DEATH FROM ELECTROCUTION!
• Install the spa at least 5 feet (1.5m), from all metal surfaces. As an
alternative, a spa may be installed within 5 feet of metal surfaces
if each metal surface is permanently connected (bonded) by a
minimum No. 8 AWG (8.4 mm²) solid copper conductor attached
to the wire connector on the grounding lug, inside the equipment
compartment on the equipment box.

Page 3
680 SERIES
• A grounding wire connector is provided on this unit to connect a
minimum No. 8 AWG (8.4 mm²) solid copper conductor between
this unit and any metal equipment, metal enclosures of electrical
equipment, metal water pipe, or conduit within 5 feet (1.5m) of the
unit.
• Never permit any electrical appliance, such as a light, telephone,
radio, television, etc. within 5 feet (1.5m) of a spa unless such
appliances are built-in by the manufacturer.
• Never bring any electrical appliances into or near the spa.
• Never operate any electrical appliances from inside the spa or when
you are wet.
• The electrical supply for this product must include a suitably rated
switch or circuit breaker to open all ungrounded supply conductors
to comply with section 422-20 of the National Electrical Code/USA,
ANSI/NFPA 70. The disconnecting means must be readily accessible
and visible to the spa occupant but installed at least 5 feet (1.5m),
from the spa.
• The electrical circuit supplied for the hot tub must include a suitable
ground fault circuit interrupter (GFCI) as required by NEC Article
680-42.
4. !WARNING: RISK OF SEVERE INJURY OR DEATH!
• Extreme caution must be exercised to prevent diving or jumping
into the spa or slipping and falling, which could result in
unconsciousness, drowning, or serious injury. Remember that wet
surfaces can be very slippery.
• Never stand, walk or sit on the top railing of the spa.
5. !WARNING: RISK OF HYPERTHERMIA (OVER-HEATING)
CAUSING SEVERE INJURY, BURNS, WELTS OR DEATH!
• Water temperature in excess of 104°F (40°C) may be injurious to
your health.
• Refer to Section 3.2 Hyperthermia for specic causes and symptoms
of this condition.
• The water in the spa should never exceed 104°F (40°C). Water
temperatures between 100°F (38°C) and 104°F (40°C) are
considered safe for a healthy adult.
• Lower water temperatures are recommended for young children
(children are especially sensitive to hot water) and when spa use
may exceed 10 minutes.
• The Consumer Products Safety Commission/USA has stated that the
water temperature in a spa should not exceed 104°F (40°C).
• Always test the spa water temperature before entering the spa.
The user should measure the water temperature with an accurate
thermometer since the tolerance of water temperature-regulating
devices may vary as much as +/- 5°F (2°C).

Page 4
680 SERIES
6. !WARNING: RISK OF SEVERE INJURY OR DEATH!
• Since excessive water temperatures have a high potential for
causing fetal damage during the early months of pregnancy, if
pregnant or possibly pregnant, consult your physician before using a
spa.
• Pregnant or possibly pregnant women should limit spa water
temperatures to 100°F (38°C).
• Persons suffering from obesity or a medical history of heart disease,
low or high blood pressure, circulatory system problems, diabetes,
infectious diseases or immune deciency syndromes should consult
a physician before using a spa.
• If you experience breathing difculties in association with using or
operating your spa, discontinue use and consult your physician.
• Persons using medication should consult a physician before using
a spa since some medication may induce drowsiness, while other
medication may affect heart rate, blood pressure, and circulation.
• Persons suffering from any condition requiring medical treatment, the
elderly, or infants should consult with a physician before using a spa.
• The use of alcohol, drugs, or medication before or during spa use
may lead to unconsciousness with the possibility of drowning.
7. !WARNING: RISK OF SEVERE INJURY OR DEATH!
• Prolonged immersion in a spa may be injurious to your health.
• Observe a reasonable time limit when using the spa. Exposures
at higher temperatures can cause high body temperature (over-
heating). Symptoms may include dizziness, nausea, fainting,
drowsiness, and reduced awareness. These effects could possibly
result in drowning or serious injury.
• Never use a spa immediately following strenuous exercise. Enter
and exit the spa slowly. Wet surfaces can be slippery.
8. !WARNING: TO DECREASE RISK OF INFECTION OR
DISEASE!
• To reduce the risk of contracting a waterborne illness (e.g. an infec-
tion, bacteria or virus) and/or respiratory ailments , maintain water
chemistry within the parameters listed on the inside cover of this
manual and consult with a licensed engineer regarding proper venti-
lation if installed indoors or in an enclosed area.
• People with infectious diseases should not use a spa to avoid water
contamination, which could result in spreading infections to others.
• Always shower before and after using your spa. Maintain water
chemistry in accordance with manufacturer’s instructions. Failure
to do so may result in contracting a waterborne illness (e.g. an
infection, bacteria or virus).

Page 5
680 SERIES
9. !WARNING: In addition to maintenance of lters and water
chemistry, proper ventilation is recommended to reduce the risk of
contracting a waterborne illness (e.g. an infection, bacteria or virus)
and/or respiratory ailments that could be present in the air or water.
Consult a licensed architect or building contractor to determine your
specic needs if installing your hot tub indoors.
10. CAUTION: TO DECREASE RISK OF PRODUCT DAMAGE.
• Maintain water chemistry in accordance with manufacturer’s
instructions.
• Proper chemical maintenance of spa water is necessary to maintain
safe water and prevent possible damage to spa components.
11. !WARNING: RISK OF SEVERE INJURY OR DEATH!
The appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience or knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person
responsible for their safety.
12. NOTE: This spa is not intended nor designed to be used in a
commercial or public application. The spa buyer shall determine
whether there are any code restrictions on the use or installation
of this spa since local code requirements vary from one locality to
another.
Hot Tub Safety Literature
To ensure you have a safe and enjoyable hot tub experience,
learn all you can about hot tub safety and emergency procedures.
Especially useful are the brochures listed below:
• Children Aren’t Waterproof
• Pool and Spa Emergency Procedures For Infants and Children
• Layers of Protection
• The Sensible Way to Enjoy Your Spa or Hot Tub
The Association of Pool and Spa Professionals publishes these
brochures. To acquire a brochure:
• Ask your hot tub dealer (they may have copies)
• Go to http://apsp.org
• Conduct your own search on the internet
• Write to the following address:
The Association of Pool and Spa Professionals
2111 Eisenhower Avenue
Alexandria VA 22314
703.838.0083

Page 6
680 SERIES

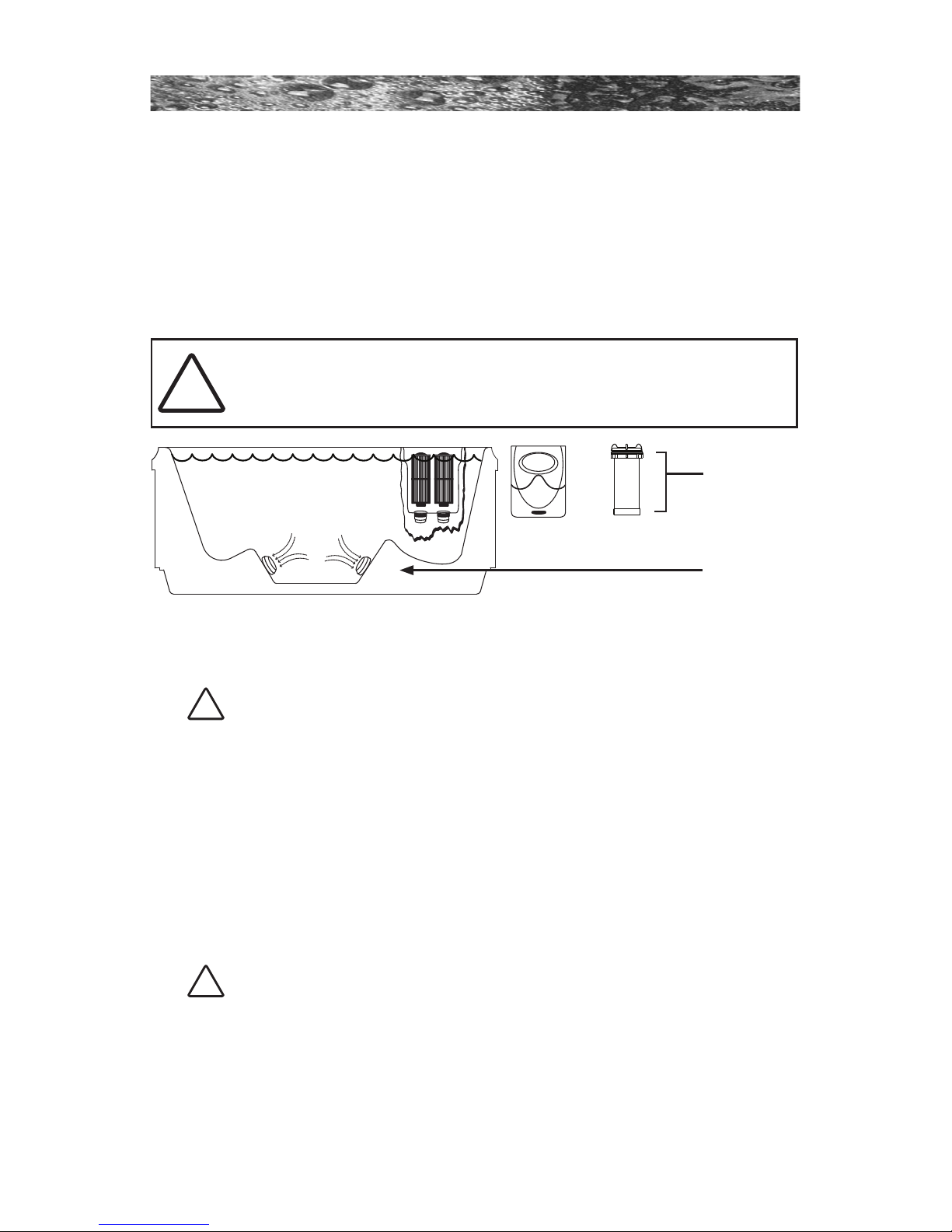

3.1 Entrapment Risk
The Consumer Products Safety Commission/USA has reported that
users of pools and spas have become entrapped (stuck) to drain and/or
suction ttings causing death, drowning, or serious injury (see diagram
below). This spa was manufactured to meet the standards and specica-
tions outlined in the “Virginia Graeme Baker Pool and Spa Safety Act”
(VGB Safety Act). Entrapment risk can be minimized if proper precau-
tions are taken.
DANGER: RISK OF PERSONAL INJURY OR DEATH!
Never operate the spa if a suction tting, suction cover, lter,
lter lid or skimmer assembly are broken, damaged or missing.
!
NOTE: Suction covers must be replaced every ve years.
1. !DANGER: RISK OF SEVERE INJURY OR DROWNING!
Hair entrapment: May occur if hair is entangled, knotted or snagged
in a drain suction or skimmer assembly. This has been reported in
persons who when submerge themselves underwater, allowing hair
to come close and/or within the reach of the suction ttings, suction
covers or skimmer assembly.
• Keep hair away from suction ttings, suction covers, lter, lter lid or
skimmer assembly.
• Children are at risk for hair entrapment if swimming under water.
• Never allow children to play or get near the suction ttings, suction
covers, lter, lter lid or skimmer assembly.
2. !DANGER: RISK OF SEVERE INJURY OR DROWNING!
Limb entrapment: May occur when a limb becomes entrapped,
inserted or sucked into a suction or outlet opening.
• Always keep suction ttings, suction covers, lter, lter lid
or skimmer assembly in place when operating to avoid limb
entrapment.
• Never allow children to play or get near the suction ttings, suction
covers, lter, lter lid or skimmer assembly.
Suction Fittings,
Suction Covers
(locations vary
by models)
Filter, Filter
Lid, Skimmer
Assembly
(location and
style vary by
models)
Models Hartford
and Hawthorne
Models Denali,
Edison, Peyton,
Tacoma

Page 7
680 SERIES
3. !DANGER: RISK OF SEVERE INJURY OR DROWNING!
Body entrapment: May occur when part of the torso becomes
entrapped, inserted or sucked into a suction or outlet opening.
• Never allow children to play or get near the suction ttings, suction
covers, lter, lter lid or skimmer assembly.
4. !DANGER: RISK OF SEVERE INJURY OR DROWNING!
Evisceration (disembowelment) entrapment: May occur when the
buttocks becomes entrapped, inserted or sucked into a suction or
outlet opening.
• Never sit on suction ttings, suction covers, lter, lter lid or skimmer
assembly.
• Never allow children to play or get near the suction ttings, suction
covers, lter, lter lid or skimmer assembly.
5. !DANGER: RISK OF SEVERE INJURY OR DROWNING!
Mechanical entrapment: May occur when jewelry, swimsuit, or
hair accessories become entangled, knotted or snagged in a drain
suction or skimmer assembly.
• Never allow your jewelry, swimsuit, or hair accessories to come
close to the suction ttings, suction covers or skimmer assembly.
• Never allow children to play or get near the suction ttings, suction
covers, lter, lter lid or skimmer assembly.
3.2 Hyperthermia
Prolonged immersion in hot water may induce hyperthermia (over-
heating). The use of alcohol or drugs can greatly increase the risk of
fatal hyperthermia in spas. A description of the causes, symptoms, and
effects of hyperthermia are as follows:
Hyperthermia occurs when the internal temperature of the body reaches
a level several degrees above the normal body temperature of 98.6°F
(37°C). The symptoms of hyperthermia include drowsiness, lethargy
(fatigue), and an increase in the internal temperature of the body (feeling
of being too hot). The effects of hyperthermia include:
• Unawareness of impending hazard;
• Failure to perceive heat;
• Failure to recognize the need to exit spa;
• Physical inability to exit spa;
• Fetal damage in pregnant women; and
• Unconsciousness and danger of drowning.

Page 8
680 SERIES
A Warning Sign is provided in your warranty packet. Please install at
a location near your spa, where it is visible to users of the spa. For
additional or replacement Warning Signs please contact your local
Sundance spas dealer and reference item number #6530-082.
3.3 Important CSA Safety Instructions (Canada only)
When using this electrical equipment, basic safety precautions should
always be followed, including the following:
1. READ AND FOLLOW ALL INSTRUCTIONS.
2. A green colored terminal or a terminal marked G, Gr, Ground,
Grounding or the symbol* is located inside the supply terminal
box or compartment. To reduce the risk of electric shock, this
terminal must be connected to the grounding means provided in
the electric supply service panel with a continuous copper wire
equivalent in size to the circuit conductors that supply this equipment
(*IEC Publication 417, Symbol 5019).
3. At least two lugs marked “Bonding Lugs” are provided on the
external surface or on the inside of the supply terminal box/
compartment. To reduce the risk of electric shock, connect the local
common bonding grid in the area of the spa to these terminals with
an insulated or bare copper conductor not smaller than No. 6 AWG
(10 mm²).
4. All eld-installed metal components such as rails, ladders, drains or
other similar hardware within 10 feet (3m) of the spa shall be bonded
to the equipment grounding buss with copper conductors not smaller
than No. 6 AWG (10 mm²).
5. SAVE THESE INSTRUCTIONS.
3.4 General Electrical Safety Instructions
Your new Sundance® spa is equipped with a “state-of-the-art” equipment
system. It contains the most advanced safety and self-protective
equipment in the industry. Nonetheless, this spa must be installed
properly to ensure dependable usage. Please contact your local
Sundance dealer or local building department should you have any
questions regarding your installation.
Proper grounding is extremely important. Sundance spas are equipped
with a current collector system. A pressure wire connector is provided
on the surface of the control box, located outside the equipment door
(Figure B, page 16) to permit connection of a bonding wire between
this point and any ground metal equipment, metal water pipe or conduit
within 5 feet (1.5m) of the spa, or copper clad grounding rod buried

Page 9
680 SERIES
within 5 feet (1.5m) of the spa. Bonding wire must be at least No. 8 AWG
(8.4 mm²) solid copper wire. This is a most important safety assurance
feature.
Before installing your spa, check with your local building department to
insure installation conforms to local building codes.
120/240 Volt Denali And Tacoma Convertible Models
A spa connected to a 120 VAC electrical service must be located close
enough to a grounded, grounding-type electrical outlet so that the
included 10 foot (3m) power cord can be plugged directly into it. DO NOT
USE AN EXTENSION CORD as this could cause damage to the spa’s
equipment due to insufcient voltage. The power supplied to this spa
must be a dedicated circuit with no other appliances or lights sharing the
power provided by the circuit.
4.0 Choosing A Location
IMPORTANT: Because of the combined weight of the spa, water
and users, it is extremely important that the base upon which the
spa rests be smooth, at, level and capable of uniformly supporting
this weight, without shifting or settling, for the entire time the spa
is in place. If the spa is placed on a surface which does not meet
these requirements, damage to the skirt and/or the spa shell
may result. Damage caused by improper support is not covered
under warranty. It is the responsibility of the spa owner to assure
the integrity of the support over time. We recommend a poured,
reinforced concrete slab with a minimum thickness of 4 inches
(10 cm). Wood decking is also acceptable provided it is
constructed so that it meets the requirements outlined above.
WARNING: For spas that are to rest on balconies,
roofs or other platforms not specically tied into main
structural support, consult a professional Structural
Engineer with experience in this type of application.
!
The spa must be installed in such a manner as to provide drainage away
from it. Placing the spa in a depression without provisions for proper
drainage could allow rain, overow and other casual water to ood the
equipment and create a wet condition in which it would sit in. For spas

Page 10
680 SERIES
which will be recessed into a oor or deck, install so as to permit access
to the equipment, either from above or below, for servicing. Make certain
that there are no obstructions which would prevent removal of all side
cabinet panels and access to the jets components, especially on the side
with the equipment bay.
CAUTION: If the spa is indoors or located in an enclosed area,
proper ventilation should be discussed with an Engineer or authority
competent enough to understand the necessary provisions needed
to vent moist or heated air and air associated with chemical odors
outdoors. When the spa is in use considerable amounts of
moisture will escape potentially causing mold and mildew. This
can cause health risk. Over time, this can damage certain surfaces,
surroundings, and equipment.
4.1 Outdoor Location
In selecting the ideal outdoor location for your spa, we suggest that you
take into consideration the following:
• The proximity to changing area and shelter (especially in regions
subject to cold weather).
• The pathway to and from your spa (this should be free of debris so
that dirt and leaves are not easily tracked into the spa).
• The closeness to trees and shrubbery (remember that leaves and
birds could create extra work in keeping the spa clean).
• A sheltered environment (less wind and weather exposure can result
in lowered operation and maintenance costs).
• The overall enhancement of your environment. It is preferable not to
place the spa under an unguttered roof overhang since run-off water
will shorten the life expectancy of the spa cover.
• For spas that are to rest on balconies, roofs or other platforms not
specically tied into main structural support, consult a professional
Structural Engineer with experience in this type of application.
• In the unlikely event that you should ever need to access or gain
entry to any portion of the spa for servicing, it is highly recommended
that you plan your outdoor installation to provide full access to the
entire spa. Please take this into consideration when placing the spa
in a deck or enclosed by a surrounding.
• Consider locating your spa away from any reective surface or glass
to prevent any damage to the synthetic skirt.
• Do not shim the spa. To ensure proper support the spa must sit at
on the intended foundation.
!

Page 11
680 SERIES
4.2 Indoor Location
For indoor installations many factors need to be considered before
installing a spa indoors:
WARNING: In addition to maintenance of lters and water
chemistry, proper ventilation is recommended to reduce the
risk of contracting a waterborne illness (e.g. an infection,
bacteria or virus) and/or respiratory ailments that could be
present in the air or water. Consult a licensed architect
or building contractor to determine your specic needs if
installing your hot tub indoors.
!
• PROPER FOUNDATION: Consult a Structural Engineer when
considering a foundation that will adequately support the spa
the entire time it is in place. Proper support is critical especially if
the spa is to rest on a second story or higher. For spas that are to
rest on balconies, roofs or other platforms not specically tied into the
main structural support, you should consult a professional Structural
Engineer with experience in this type of application.
• PROPER DRAINAGE: It is extremely important to have in place
measures to sufciently handle excessive water spillage. Be
sure the ooring in which the spa rests on has adequate drainage
and can handle draining of the entire contents of the spa. Be sure
to make provisions for ceilings or any other structures that may be
below the spas installation. Areas around your spa can become wet
or moist so all ooring and subsequent furniture, walls and adjacent
structures should be able to withstand or resist water and moisture.
• PROPER VENTILATION:Proper ventilation should be discussed
with an Engineer or authority competent enough to understand
the necessary provisions needed to vent moist or heated air and
air associated with chemical odors outdoors. When the spa is in
use considerable amounts of moisture will escape potentially causing
mold and mildew, over time this can damage certain surfaces and or
surroundings.
• SUFFICIENT ACCESS: In the unlikely event that you should ever
need to access or gain entry to any portion of the spa for servicing,
it is highly recommended that you plan your indoor installation to
provide full access to the entire spa.
• WARRANTY: Damage caused by not following these guidelines
or any improper installation not in accordance with local codes or
authorities is not covered under the spas warranty. Please consult
your local state or city building ordinances.
• DO NOT SHIM THE SPA: To ensure proper support the spa must sit
at on the intended foundation.

Page 12
680 SERIES
5.0 Power Requirements
Sundance®spas are designed to provide optimum
performance and exibility of use when connected to the
maximum electrical service listed on pages 12-14. If
you prefer, your dealer can perform a minor circuit board
modication to allow your spa to accept an electrical service
other than the factory setting.
Note: Refer to pages 48-51 for circuit board conguration details or
contact your authorized Sundance dealer.
5.1 North American 60 Hz Power Options
North American Denali/Tacoma 1-Pump Convertible Models (60 Hz)
120V/15A* 240V/30A* 240V/40A**
Voltage: 120 VAC 240 VAC 240 VAC
# of Wires: 3 (15A GFCI Cord - 4 (Hard 4 (Hard
US Models Only*) Wired Only) Wired Only)
Frequency: 60 Hz 60 Hz 60 Hz
Current Draw: 12A 21A 30A
Circuit Breaker: 15A, 1-Pole 30A, 2-Pole 40A, 2-Pole
CAUTION (For 4-wire, 240 VAC Heater Operation): Move the red wire on the
main terminal strip (TB1) from position #1 to position #3. Make certain wires are
connected exactly as shown in Figure D (page 17) before applying power.
Failure to do so will result in damage to the circuit board and/or related compo-
nents and void the manufacturer’s warranty.
* In the 15A/30A configuration, the heater will not operate at the same
time as the high-speed jets pump. The factory setting is 120V/15A.
** If the spa is to be operated on 40A service, remove the jumper JP1 #1-2
on the circuit board to allow the heater to operate at the same time as the
high-speed jets pump (page 48).

Page 13
680 SERIES
North American Edison/Hartford/Hawthorne/Peyton
2-Pump Models (60 Hz)
240V/40A* 240V/50A** 240V/60A***
Voltage: 240 VAC 240 VAC 240 VAC
# of Wires: 3 3 3
Frequency: 60 Hz 60 Hz 60 Hz
Current Draw: 26A 36A 45A
Circuit Breaker: 40A, 2-Pole 50A, 2-Pole 60A, 2-Pole
* In 40A configuration, the heater will not operate while either jets pump is
running in high speed. Note: pump 2 runs only in high speed.
** In 50A configuration, the heater will not operate while both jets pumps are
running in high speed. Note: pump 2 runs only in high speed. This is
the factory setting.
*** In 60A configuration, the heater will operate while both jets pumps are
running in high speed. Note: pump 2 runs only in high speed.
5.2 Export 50 Hz Power Options
Export Denali/Tacoma 1-Pump Models (50 Hz)
230V/20A* 230V/30A**
Voltage: 230 VAC 230 VAC
# of Wires: 3 3
Frequency: 50 Hz 50 Hz
Current Draw: 15A 21A
Circuit Breaker: 20A 30A
* In the 20A configuration, the heater will not operate while the jets pump
is running in high speed. This is the factory setting.
** In the 30A configuration, the heater will operate while the jets pump is
running in high speed.

Page 14
680 SERIES
Export Edison/Hartford/Hawthorne/Peyton 2-Pump Models (50 Hz)
230V/20A* 230V/30A** 230V/40A***
Voltage: 230 VAC 230 VAC 230 VAC
# of Wires: 3 3 3
Frequency: 50 Hz 50 Hz 50 Hz
Current Draw: 15A 23A 29A
Circuit Breaker: 20A 30A 40A
* In the 20A configuration, the heater will not operate while either jets pump
is running in high speed. This is the factory setting.
** In the 30A configuration, the heater will not operate while both jets pumps
are running in high speed.
*** In the 40A configuration, the heater will operate while both jets pumps are
running in high speed.
6.0 Electrical Wiring Instructions
IMPORTANT NOTICE: The electrical wiring of this spa
must meet the requirements of the National Electrical Code/
USA (NEC) and any applicable state or local codes. The
electrical circuit must be installed by a qualied electrician
and approved by a local building/electrical inspection authority.
1. Convertible 120/240V Denali/Tacoma Models Only:
• !DANGER: TO DECREASE THE RISK OF SHOCK,
PRODUCT DAMAGE OR ELECTRICAL FIRE.
120V “Plug-in” Operation: This spa must operate on the supplied 10
feet (3m) 120V GFCI cord at its original length or must be hard-wired
for longer runs. NEVER USE AN EXTENSION CORD FOR ANY
REASON!
• Convertible 120/240V Heater Operation: The included 120V GFCI
cord must be discarded for 240V heater operation. This spa must
be hard-wired. Supplying power to either conguration above
which is not in accordance with these instructions will void both the
independent testing agency listing and the manufacturer’s warranty.
