SunEyes V Series User manual

Page 1 ON page 40
SunEyes V Series IP Camera P2P CMS user manual
Version: 2.0
Date: July. 2015
This document is applicable to all series devices in our company.

SunEyes V Series P2P CMS
Page 2 ON page 40
foreword
The HiP2P client of IP Camera is used to realize all front-end network video
monitoring devices(including network video server, IP camera) centralized
monitoring, storage, management and control. The management software can
manage Max 96 front-end network monitoring devices; can set and control any
device, and other functions; can support 1/4/6/8/9/16/25/36 pictures display
on one screen, and two-way voice talk back, logs retrieval, and other functions.
With powerful function, friendly interface, and simple operation, it is convenient
for users to realize networking applications for large-scale remote network
monitoring system.
Statement
1. The contents described in this manual may exits some difference with the
vesion you are using. If you have some questions can not be solved, please contact
our technical support department or products supplier.
2. The contents in this manual will update irregularly, our company reserves the
rights without prior notice.

SunEyes V Series P2P CMS
Page 3 ON page 40
content
1. Installtion instructions ................................................................................................................. 5
1.1. Installation requirements ................................................................................................... 5
1.2. Installation step .................................................................................................................. 5
2. CMS detailed instruction............................................................................................................... 6
2.1. log in and instruction ......................................................................................................... 6
2.2. software interface instruction ............................................................................................ 7
2.3. Device management ........................................................................................................ 10
2.3.1. Add device ............................................................................................................. 10
2.3.2. Group management ............................................................................................. 12
2.4. Image preview ................................................................................................................ 14
2.4.1. non cycle switching preview.................................................................................. 15
2.4.2. cycle switching preview ......................................................................................... 17
2.5. PTZ Control...................................................................................................................... 18
2.5.1. PTZ Control ............................................................................................................ 18
2.5.2. Preset setting......................................................................................................... 19
2.5.3. Cruise setting ......................................................................................................... 20
2.5.4. Image Color setting .............................................................................................. 21
2.6. Record management....................................................................................................... 21
2.6.1. plan of record ....................................................................................................... 21
2.6.2. Alarm record.......................................................................................................... 23
2.6.3. Manual record ....................................................................................................... 23
2.7. Linkage alarm ................................................................................................................... 24
2.7.1. Enable the linkage alarm ....................................................................................... 24
2.7.2. Alarm type ............................................................................................................. 24
2.7.3. Linkage Alarm ........................................................................................................ 25
2.8. Local playback .................................................................................................................. 25
2.8.1. playback by time searching ................................................................................... 25

SunEyes V Series P2P CMS
Page 4 ON page 40
2.8.2. Playback by searching file .................................................................................... 27
2.9. Remote playback .............................................................................................................. 27
2.9.1. Remote playback plan of record............................................................................ 27
2.9.2. SD card record playback ........................................................................................ 29
2.10. Electronic Map ............................................................................................................... 30
2.10.1. Add Map .............................................................................................................. 30
2.10.2. Edit Map .............................................................................................................. 30
2.10.3. Delete Map.......................................................................................................... 30
2.11. Parameter settings ......................................................................................................... 31
2.11.1. Color .................................................................................................................... 31
2.11.2. Video ................................................................................................................... 32
2.11.3. Audio ................................................................................................................... 32
2.11.4. OSD...................................................................................................................... 32
2.11.5. Network .............................................................................................................. 33
2.11.6. Motion Detection ................................................................................................ 33
2.11.7. PTZ....................................................................................................................... 34
2.11.8. System ................................................................................................................. 34
2.11.9. WIFI ..................................................................................................................... 35
2.12. User management ....................................................................................................... 35
2.12.1. Add User .............................................................................................................. 36
2.12.2. Delete User .......................................................................................................... 36
2.12.3. Modify user permissions ..................................................................................... 36
2.12.4. Modify user password ......................................................................................... 37
2.13. Logs................................................................................................................................ 37
2.13.1. Log retention time............................................................................................... 37
2.13.2. Log query............................................................................................................. 37
2.13.3. Log backup .......................................................................................................... 37
2.14. Other settings................................................................................................................. 38
2.15. Split screen .................................................................................................................... 40

SunEyes V Series P2P CMS
Page 5 ON page 40
1. Installtion instructions
1.1. Installation requirements
Hardware enviroment:
1、Pentium IV series, CPU basic frenquency more than 2.0G
2、more than 2G memory
3、Hard disk 120G or higher
4、display resolution 1024 x 768 or higher
Software environment:
Windows2000/Windows XP/Windows2003/Windows Vista/Windows
7,Windows2000/WindowsXP/Windows2003/Windows Vista/Windows
7/Windows8
1.2. Installation step
Double-click the installation package, it will pop up below interface:
Select the installation path, click “Next”, then installation finished.

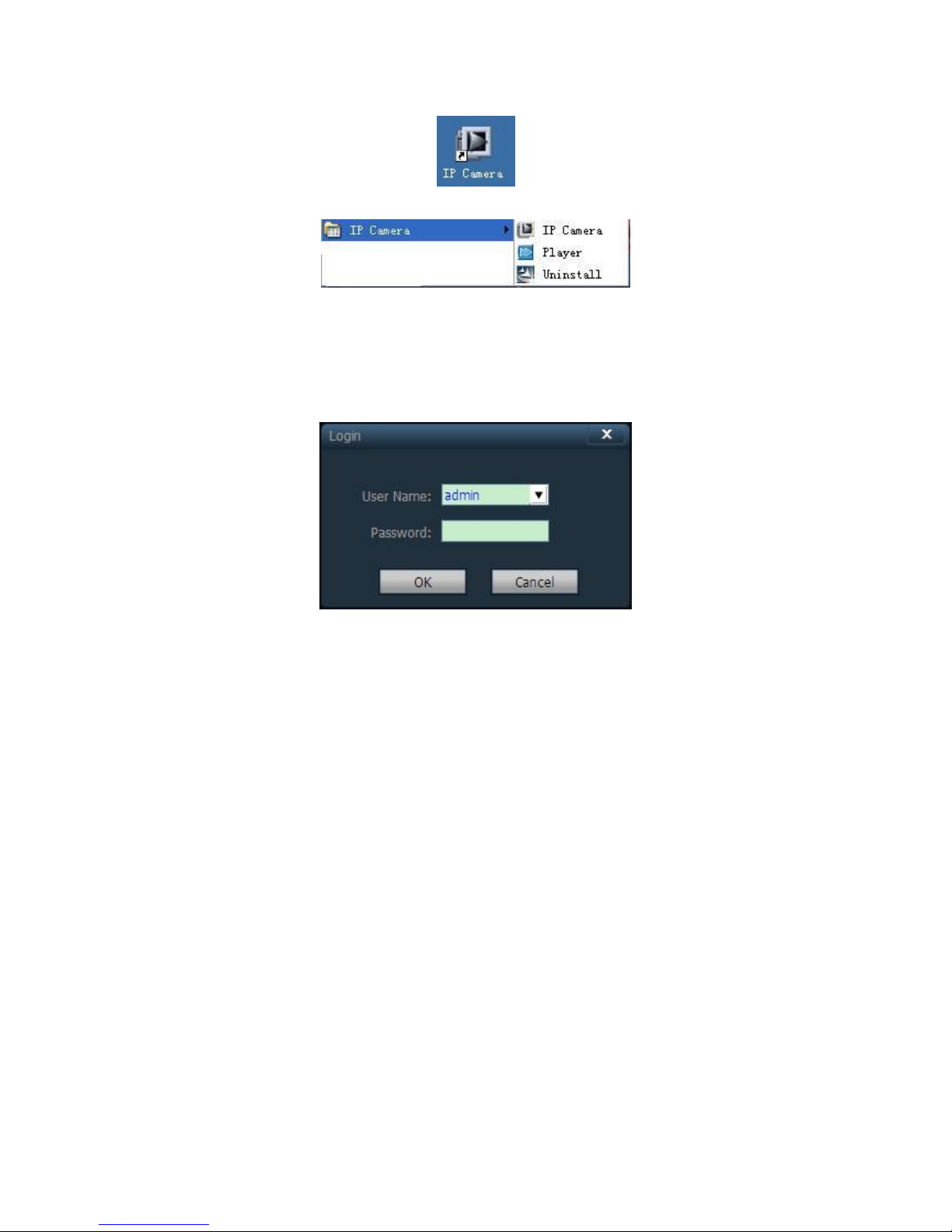

After installation, it will show below icon on desktop:

SunEyes V Series P2P CMS
Page 6 ON page 40
In the program bar will show following interface:
2. CMS detailed instruction
2.1. log in and instruction
【Log in】 When log in, the default user name is admin and password is empty ,
click “OK”to enter into CMS Main interface.
【Exit】 Only the users with admin permissions can exit from CMS, user and
guest can not exit from CMS.
When exit from CMS, you need to input the admin permissions’s user name
and password.

SunEyes V Series P2P CMS
Page 7 ON page 40

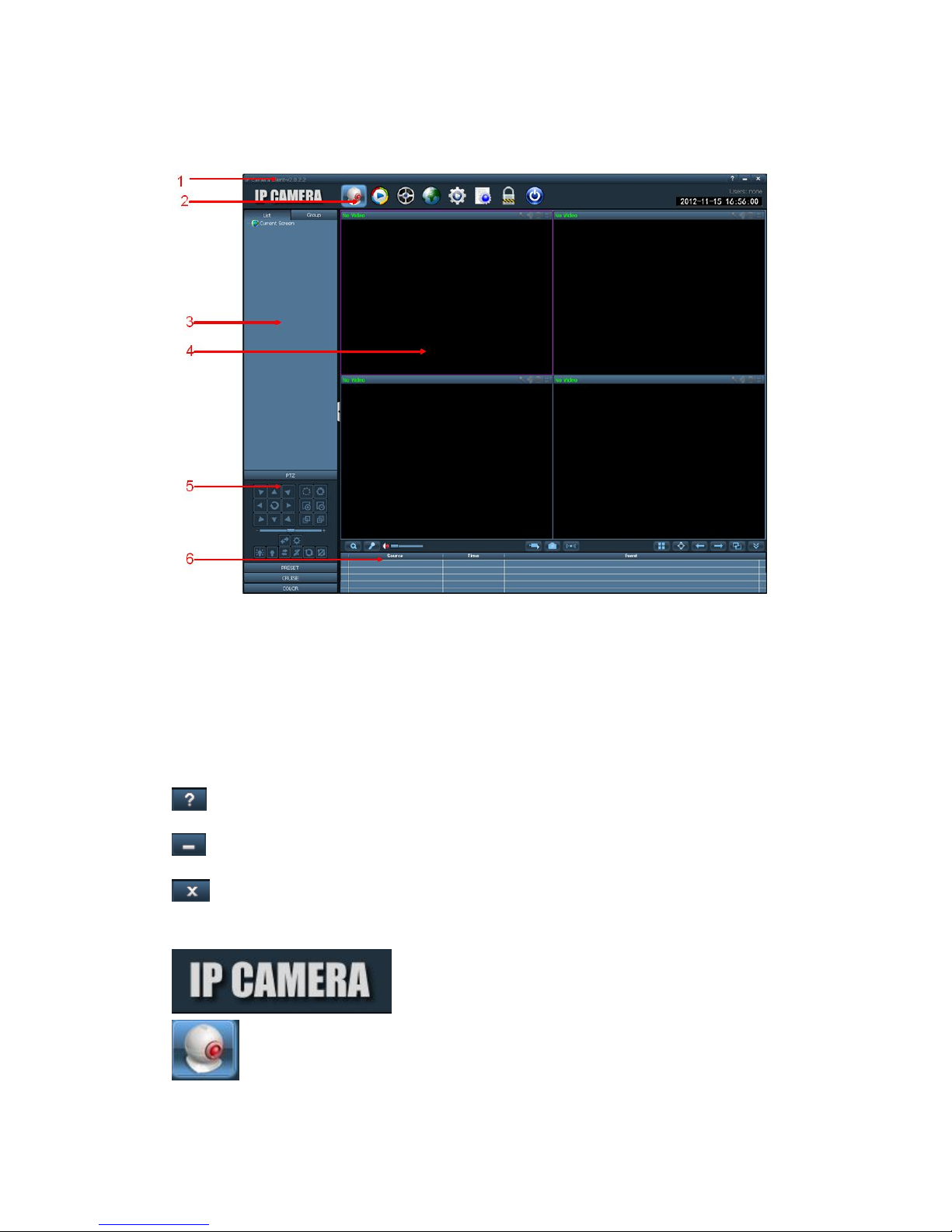

2.2. software interface instruction
The software interface as shown in above, mainly divided to 6 sections:
1 System button bar 2 tab bar 3 device tree
4 real-time preview 5 PTZ control 6 Alarm information list
◆System button bar
Help button, click it to open CMS instruction
Hidden button, click it then software hide into system tray
Exit button, click it then software pop up Exit reminder
◆Tab bar
Logo information
Click it then switch to image preview interface

SunEyes V Series P2P CMS
Page 8 ON page 40
Click it then switch to recording playback interface
Click it then switch to remote recording playback interface
Click it then switch to map operation interface
Click it then switch to setting interface
Click it then switch to logo operation interface
logout user and switch user
Click it then exit CMS
◆Device tree:
【List mode】 According to user configuration listing level to show area,setting,and
channel
【Group mode】 According to user configuration grouping level to show group and
channel
【Current screen】 show current connected device on screen, only shows in list
mode
◆Real-time preview
electronic zoom button, click it and use mouse to draw a area on the screen,
then area magnification can be realized

SunEyes V Series P2P CMS
Page 9 ON page 40
Voice talkback button, choose the window need to open talkback, then click
talkback button, window statu bar will show , talkback can be realized,
only can open talkback of one device at the same time.
voice monitoring button, click it to open voice monitoring, window statu bar
will show , click it again to close voice monitoring, it can open voice
monitoring of multiple devices at the same time.
recording button, choose the window need to recording, click recording
button to open recording manually, window statu bar will show , click it
again to close recording manually.
picture capture button, choose the window need to capture picture, click
capture button to realize picture capture, if click capture button continuously,
1 second can capture 2 pictures at most.
Multi-image choosing button, click it to choose multi-image display,
1,4,6,8,9,16 image options.
Full screen display button, click it then real-time preview area will be full
screen displaying.
Last group button, in Grouping cycle switching,click it then back to window
display of last group
Next group button, in Grouping cycle switching, click it then skip to window
display of next group
cycle switching button, click it to open grouping cycle switching, click again to
stop grouping cycle switching.
voice broadcast button

SunEyes V Series P2P CMS
Page 10 ON page 40
Device tree shrink or extend button, click it that device tree shrink, click again
then device tree extend
Alarm message list shrink or extend button, click it that alarm message list
shrink, click again then alarm message list extend.
2.3. Device management
2.3.1. Add device
Before using the CMS, you need to add device and configuration. Click
“setting” button in tab bar, enter into device management page.
【Add list tree】
◆ When run software initially, default list tree is empty. Click “add area”button,
pop-up “add area”dialog box. After filling in name in area name column, click
ok to add a area in list tree. Because of the added area is the first area, so this
area do not exist belongs area, the area is empty.
Note: List tree can add Max 128 areas at present.
Add area into device tree
Modify the name of selected area
Delete the selected area
Add device manually, click it to pop up dialog
box of add device
click it, then pop-up
dialog box of editing device
Delete the selected device
add the searched devices to selected area
click it to search the devices in LAN

SunEyes V Series P2P CMS
Page 11 ON page 40
choose all devices in searching list
【Add device】
◆Search to add device in LAN:
Clicking search button, the CMS will search out all devices in LAN,then select
the device needed to add in search list, and select area, click button to
add device, thus you can add selected device to this area.

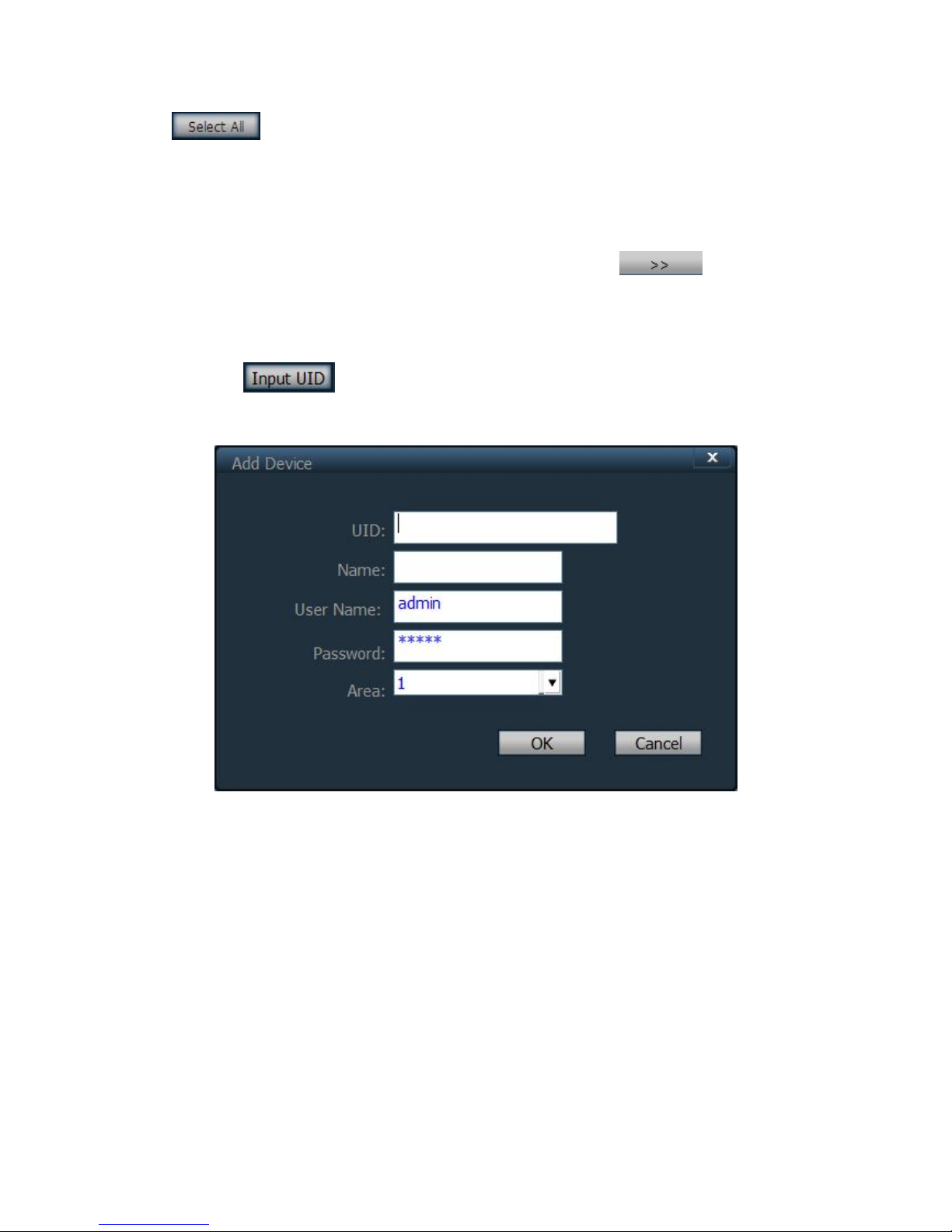

◆ add device manually
Click button , it will pop-up below dialog box of add device, as
shown in below:
【Name】 name of the device, it is user-defined. Max 15 chinese
characters. (Note: After enter name, the device tree in preview
window only display device name, don’t display device IP
Address. )
【UID】 P2P UID of the device
【User name】 login user name of the device, default is admin
【password】 login password of the device, default is admin
【Area】 displaying area of the device
After filling in all required information, click ok to finish device adding.

SunEyes V Series P2P CMS
Page 12 ON page 40
Note: If using manufacturer’s DDNS, just input manufacturer’s DDNS in IP or
domain text box, using default port 80. You don’t need to modify port number.

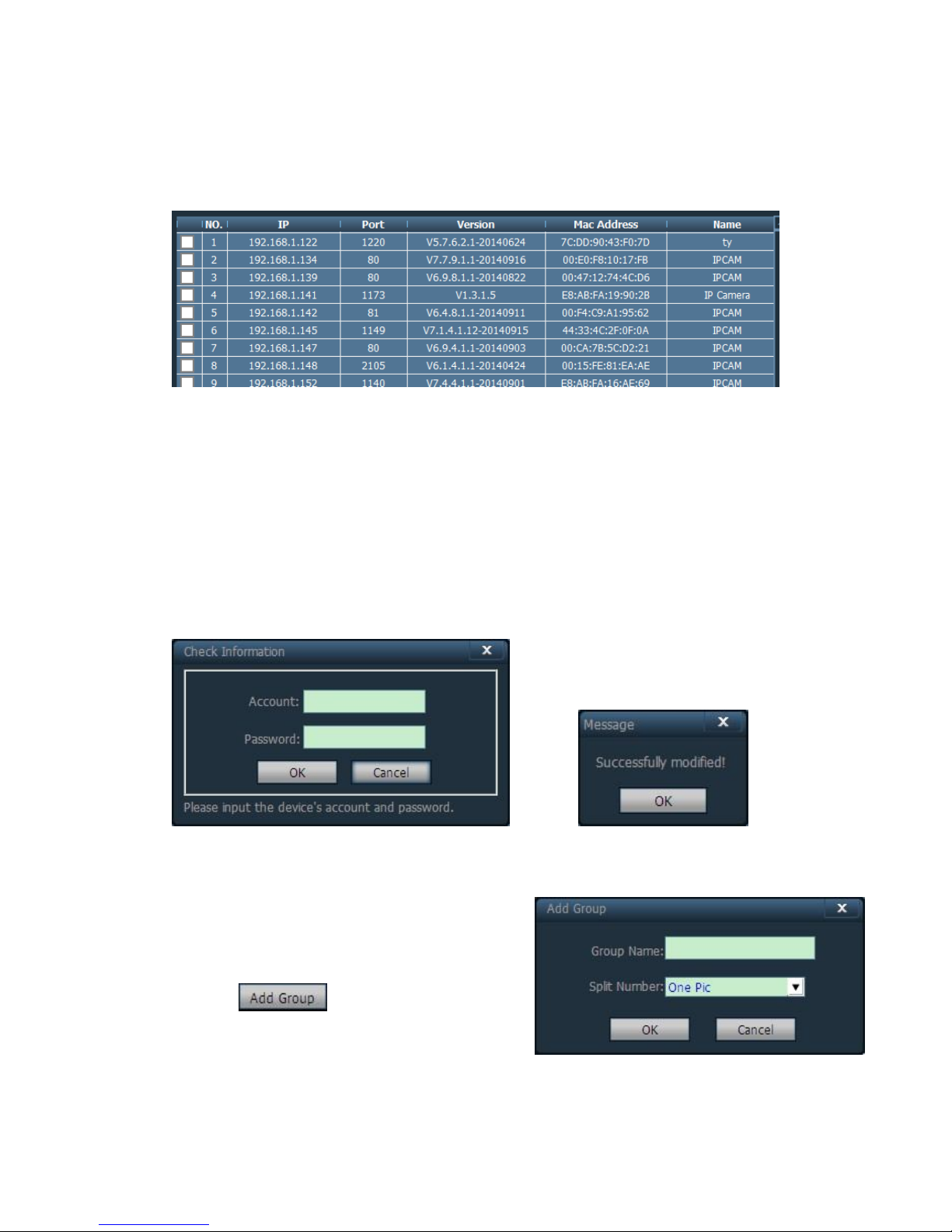

Modify IP Address of the device:
Clicking the "search" button, the CMS will search all devices in LAN
automatically. Then select the corresponding device (the IP and other information
of this device will in highlight status), and enter the new IP address, subnet mask,
gateway, HTTP port and other information in corresponding text box, clicking
"Setting" button, it will pop-up "check information” dialog box. Then input the
user name and Password, and click "OK", it will prompt "success"
Note: The camera will restart after modified HTTP port.
2.3.2. Group management
◆add group:
Select button,
it will pop-up dialog box of add group,
then input name in grouping name, and click OK
Note: It can add Max 20 names in grouping name.

SunEyes V Series P2P CMS
Page 13 ON page 40
◆configuration group:
After adding group, you can do group setting.
Group setting methods: select group, click UID of the device, then click
button to add device channel into group.
Note: Each group can set Max 16 pictures displaying.
Add device into grouping channel
Remove device from grouping device channel
Adjust device diaplaying sequence in grouping, the selected device
and front device change position.
Adjust device diaplaying sequence in grouping, the selected device
and behind device change position.
Modify the name of grouping and division, then the group will be
empty, you need to reset group.
Delete group and devices in group

SunEyes V Series P2P CMS
Page 14 ON page 40
2.4. Image preview
After configured device, clicking “preview”button in Tab bar,then back to main
interface of monitoring, the default display way of device tree is list tree. You can
switch displaying group and list information by clicking “group” and “list” in device
tree. The default display images is 4 image segmentation, support Max 36 pictures.
When maximum image segmentation, it has 16/25/36 image mode optional. The
higher the picture, the performance of host also need to be promoted. If 25 or 36
images displaying, we suggest use more than i3 CPU and independent video card.
Display image instruction:
：indicates this channel do not connect any device. If connected, OSD
information will be displayed on device.

SunEyes V Series P2P CMS
Page 15 ON page 40
：talk back stutus, when the icon becomes , it means this channel is talk
back, otherwise the channel do not open talk back.
：Listening status, when the icon becomes , it means this channel is
listening, otherwise it does not open listening.
：Alarm status, when the icon becomes , it means this channel is alarm,
otherwise it does not alarm.
：Recording status, when the icon becomes , it means it is recording,
otherwise without record.
2.4.1. non cycle switching preview
In list mode, clicking the IP of
the device or “+” in front of the name, double
click Channel 01 or drag Channel 01 to windows,
then it can display image.
After device connected, it will show a blue triangle
on Channel 01; if shows , means device
do not connnect. If shows , means it will have alarm message.
Right-click any area, it will pop-up the picture as shown
on the right:
【Connected all】 Connect devices in selected area
【start manual record of area】 Open manual record in
selected area
【Stop manual record of area】Stop manual record in
selected area
【Auto adjust all】 The device adjust image display ratio automatically in select
area
【Full display all】The device display images in select area as the size of
segmentation picture

SunEyes V Series P2P CMS
Page 16 ON page 40
【Check time all】 The time of all device in selected area synchronize to PC time
Note: After connected device, it’s not certain to display image on the
window. If needed, please double click Channel 01 or drag Channel 01 to
window.
Right-click
any device, it will pop-up the picture as shown
on the right:
【connected device】
all channel connected to selected device
【Disconnected device】 all channel disconnected to
selected device
【start manual record of device】 Open manual record for selected device
【Stop manual record of device】 Stop manual record for selected area
【main stream device】 Using main stream to connect selected device
【Sub stream device】 Using sub stream to connect selected device
【third stream device】 Using third stream to connect selected device
【Auto adjust device 】The selected device adjust image display ratio
automatically
【Full display device 】The selected device display image as the size of
segmentation picture
【check time device】 The time of selected device synchronize to PC time
Choose any device, click Channel 1,
it will pop-up the picture on the right:
【Disconnect】 Connect one channel of the
device, the device only have Channel 01 at present
【start manual record】Start manual record for
selected channel, after selected, the tag will
turn to stop manual record automatically

SunEyes V Series P2P CMS
Page 17 ON page 40
【Full display】The selected device display image as the size of segmentation
【check time】 the time of selected channel synchronize to PC time
Click the window of Image preview, then pop-up the picture
as shown on the right:
【Full screen】 After choosing full screen, the CMS will
display full screen, if need a single window to display
full sreen, double click the corresponding window again.
【auto adjust】 Tick means the selected window display as image ratio, cancel
the tick means display image as the size of picture segmentation
【photo】 Capture pictures from selected window and save to hard disk, the
default picture format is JPG.
【Record】 Start manual record for selected window, after started record, the
record tag will tick automatically
【Stop display】 Stop the image display in selected window
【Display status bar】display the status of window, including: listening, talk back,
alarm, record and so on.
Note: When images stop displaying, the device is still in connection status. If the
device has started record function, it still keep recording after stop
displaying.
2.4.2. cycle switching preview
When switching to group
list, you can only use cycle switching
way to display image. Before open
cycle switching, you must set group

SunEyes V Series P2P CMS
Page 18 ON page 40
first. Please check “device group” for
specific settings. Click button to open
cycle switching, click again to suspend it.
When using group cycle switching, if need to set cycle time, please modify in
“setting”—“record management”, default is 10 seconds. The scope is 5s to 60s
adjustable.
2.5. PTZ Control
2.5.1. PTZ Control
You can control PTZ of eight directions rotation by direction key, and
choose PTZ rotate speed by drag slider, “-” means PTZ rotate speed slow down,
“+” means PTZ rotate speed up.
Iris ehlarge button, need the lens of camera support
Iris shrink button, need the lens of camera support
Zoom in button, need the lens of camera support
Zoom out button, need the lens of camera support
Focus in button, need the lens of camera support
Focus out button, need the lens of camera support
Light on button, click it to open the light of camera, need camera support
Light off button, click it to close the light of camera, need camera support
Wiper on button, click it to open wiper function of camera, need camera
support
Wiper off button, click it to close wiper function of camera, need camera
support

SunEyes V Series P2P CMS
Page 19 ON page 40
start cruise button,click it to start camera’s cruise function, only part of
camera can support. It can adjust rotation speed (drag speed adjustment to
corresponding positon, then click )
stop cruise button, click it to stop camera’s cruise function, only part of
camera can support.
start horizontal scan range, drag speed strip to adjust rotation speed, need
camera support
Call out PTZ control panel, click the image you previewing, click ,
then it can call out control panel. Please refer to chapter 2.5.5 of scan range.
2.5.2. Preset setting
The CMS can support Max 256 preset. Please refer to the preset quantity
instruction that camera supported of how many preset can be used in the
concrete.
【Preset setting】Choose the window that need to
set preset, then select preset number, click
“preset” button, preset point set successfully.
【call preset】 Choose the window that need to call
preset, then select the preset number, click
“call” button, before select call you must set
preset firstly.
【delete preset】Choose the window that need
to delete preset, then select the preset, click
“delete”button, thus preset deleted successfully.

SunEyes V Series P2P CMS
Page 20 ON page 40
2.5.3. Cruise setting
Note: Cruise function need PTZ supporting.
It can set maximum 4 groups preset cruise
(Setting as the PTZ instruction. Please
refer to the protocal in PTZ user manual
for detailed information)
Click “cruise” button,it display cruise control panel. Different PTZ calls different
preset cruise. For example: PTZ call preset 101 to start cruise group 1. You can
save the corresponding preset position of 【cruise 1】button. If need to start the
cruise, click 【cruise 1】. Cruise button setting as below:
Cruise button setting:
Enter into “setting” -- “other settings”-- “cruise set”. As shown in below:
After setting cruise button, the system will save the PTZ parameter of this
channel.
Note: Preset 101 call cruise 1; preset 102 call cruise 2; and so on.
