Sunfar E300 Series User manual

SUNFAR E300 SERIES
E300 Series Mini-type Integrated Universal Inverter Manual
1
E300 Series Mini-type Integrated
Universal Inverter Manual
Manual
SHENZHEN SUNFAR ELECTRIC TECHNOLOGIES CO.,LTD

SUNFAR E300 SERIES
E300 Series Mini-type Integrated Universal Inverter Manual
2
PREFACE
Thanks very much for choosing E300 series mini-type integrated universal inverter.
This manual provides guidance of using inverter safely and carefully, containing
introduction of installation, wiring, parameters list, routine maintenance, operating rules
and cautions, etc.
In order to make good use of inverter properly and safely, please read this manual
thoroughly before using. It may lead to abnormal operation or failure, reduce using life,
even damage equipment and cause personal injury if you it wrongly.
This manual is attachment together with the inverter. Please keep it well and it would be
available to engineering and installation personnel, repairing and maintaining during
product functioning period. SUNFAR has the right to modify and ameliorate products, data
and dimensions without notice, so this manual is updated and all the contents in this
manual are subject to change without any notice.
SHENZHEN SUNFAR ELECTRIC TECHNOLOGIES CO., Ltd.
E300 Series Mini-type Integrated Universal Inverter Manual
Version: v1.0
Time: Feb. 2009

SUNFAR E300 SERIES
E300 Series Mini-type Integrated Universal Inverter Manual
3
CONTENT
1. INTRODUCTION……………………………………………………
1.1. Model Explanation…………………………………………
1.2. Inverter Model………………………………………………
1.3. Appearance………………………………………………
1.4. Specification Data…………………………………………
2. INSTALLATION……………………………………………………
2.1. Environmental Requirements ………………………………
2.2. Installation Dimension……………………………………
3. WIRING………………………………………………………………
3.1. Precautions……………………………………………………
3.2. Wiring of External Components……………………………
3.3. Basic Wiring………………………………………………
3.4. Wiring of Main Loop Terminal ………………………………
3.5. Wiring of Control Loop Terminal…………………………
3.6. Wiring of RS485 Interface and External Keyboard ………
4. PANEL OPERATION………………………………………………
4.1. Key Function Description……………………………………
4.2. Panel Operational Method……………………………………
4.3. State Monitor Parameter List………………………………
7
7
7
7
8
10
10
10
12
12
12
13
14
14
15
17
17
18
18

SUNFAR E300 SERIES
E300 Series Mini-type Integrated Universal Inverter Manual
4
4.4. Inverter Simple Operation……………………………………
5. PARAMETER LIST…………………………………………………
6. FAULT DIAGNOSIS AND COUNTERMEASURES……………
6.1. Protective Function and Countermeasures…………………
6.2. Fault Record Inquiry……………………………………………
6.3. Reset……………………………………………………………
AppendixⅠRS485 COMMUNICATION PROTOCOL……………
1.1. Summary………………………………………………………
1.2. BUS Structure and Protocol Description……………………
1.3. Frame Format Description……………………………………
1.4. Example…………………………………………………………
Appendix ⅡMODBUS PROTOCOL………………………………
1.1. Protocol Format Explanation………………………………
1.2. Example…………………………………………………………
Appendix ⅢBRAKING RESISTOR………………………………
19
21
23
23
24
24
25
25
25
29
32
36
36
39
41

SUNFAR E300 SERIES
E300 Series Mini-type Integrated Universal Inverter Manual
5
PRECAUTIONS
In order to use inverter properly and safely, please read this manual carefully before using.
You should follow the requirements of this manual to move, install, run, operate and repair
etc.
1. Opening
Please check any damage that may have occurred during transportation.Ⅰ
Please check whether the nameplate data of iⅡnverter is in accordance with your
order, if anything wrong, please contact supplier immediately.
Our product is manufactured, packed and transported in the strict quality system. But in
case there is any error, please contact with our company or local agent, we will solve the
problem as quickly as possible.
Inverter’s nameplate data
Package data
Dimension
Mode
l
Net Wei
g
ht Gross Wei
g
ht Dimension
E300-2S0002/E300-2S0002(B) 0.78 0.97 195×115×175
E300-2S0004/E300-2S0004(B) 0.82 1.00 195×115×175
E300-2S0007/E300-2S0007(B) 1.43 1.66 203×135×180
E300-2S0015/E300-2S0015(B) 1.52 1.82 203×135×180
2. Safety Regulations
There are four kinds of symbols being related with cautions as following:

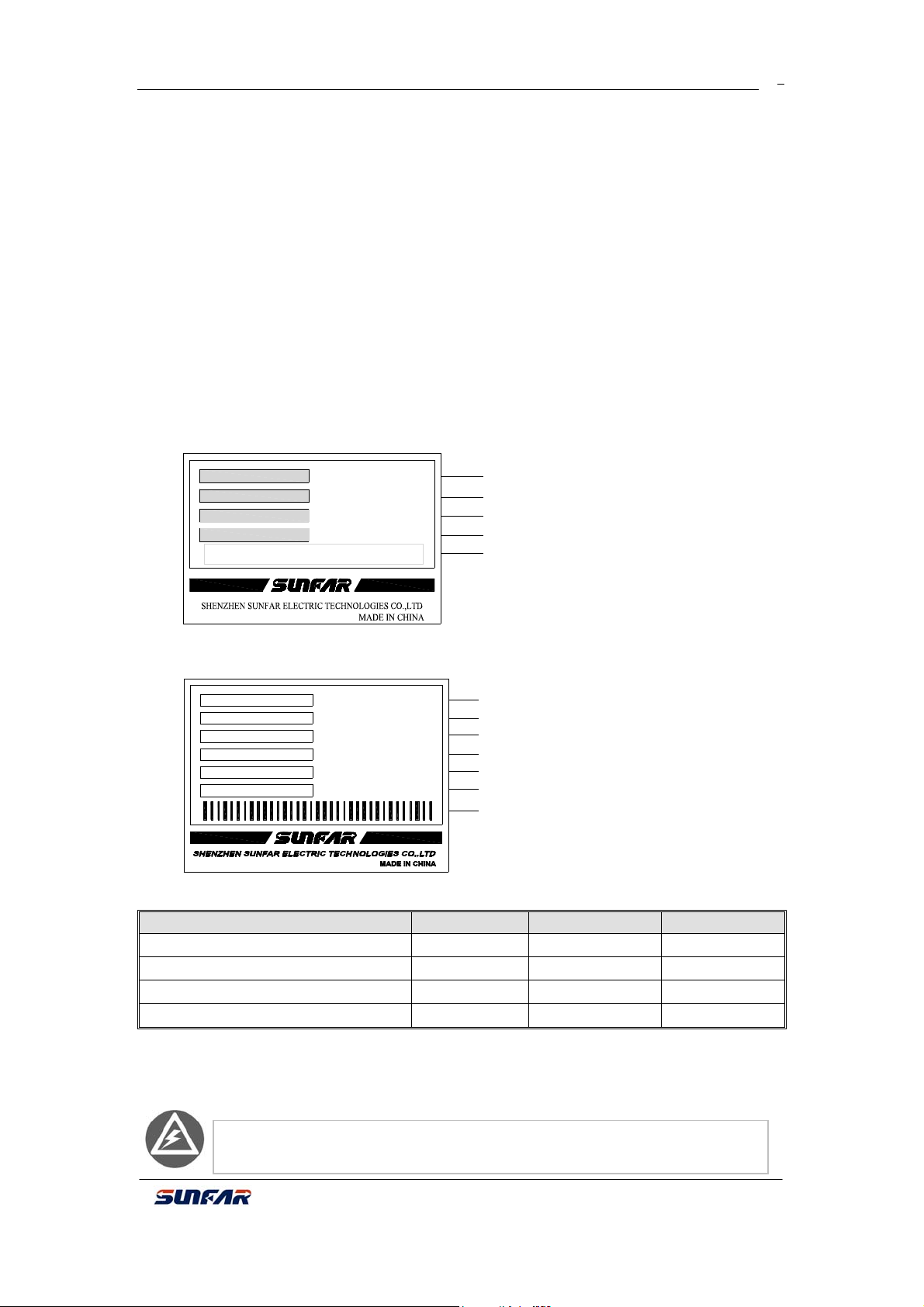

Fig-1 Nameplate
Danger: If user does not operate according to requirements, it will lead to
death, grievous bodily harm or severe property loss.
SOURCE:
OUTPUT:
SERIAL No.:
TYPE:
Rated Parameters
Rated output capacity and current
Bar code
E300-2S0007
1PH 220V 50/60Hz
1.7KVA 4.5A
XXXXXXXXXX Product serial No.
Model
E300-2S0007
1PH 220V 50/60Hz
KG
KG
XXXXXXXXXX
(mm)
SERIAL No.:
VOLUME:
NET WEIGHT:
GROSS WEIGHT:
SOURCE:
TYPE:
SOURCE:
TYPE: Model
Rated Parameters
Net Weight
Gross Weight
Volume
Serial No.
Bar Code

SUNFAR E300 SERIES
E300 Series Mini-type Integrated Universal Inverter Manual
6
Warning: If user does not operate according to requirements, it will lead to
inverter injury or damage.
This symbol will hint some useful information.
This symbol will hint some items that need to be noticed in operation.
2.1 Installing
Do not install inverter on combustible material.
Do not install in the explosive ambient.
Do not drop other material into the inverter.
It is forbidden to disassemble and refit inverter.
2.2 Wiring
2.2.1. It must be operated by professional worker when wiring.
2.2.2. Please be sure to turn off the power supply at least 10 min before wiring.
2.2.3. Inverter and motor must be grounded correctly.
2.2.4. Be sure to wire and inspect after power-off at least10 minutes.
2.2.5. Electron components are sensitive about static electricity, so do not drop other
material in inverter or touch the main circuit.
It is forbidden to connect AC power supply with the U, V
and W out
p
ut terminals directl
y
.
2.3 Maintenance
1
.
D
o no
t
t
ouc
h
th
e ra
di
a
t
or a
ft
er powe
r
-o
ff
a
t
l
eas
t
10
m
i
nu
t
es.
2. The earth terminal of inverter must be connected to ground reliably.
3. Attention Notes:
3.1. Be sure to install inverter in a well-ventilated ambient.
3.2. Motor temperature at inverter control will be higher than at main supply control,
which is normal phenomenon.
3.3. Ordinary motor cannot run at low speed for a long time, so user should select
special motor for inverter or reduce motor load under low speed.
3.4. When the altitude is over 1000m, inverter will be valid to decrease rated current,
and rated current will decrease 10% when attitude is increased 1500m.
B
e sure no
t
t
o connec
t
i
nver
t
e
r
ou
t
pu
t
t
erm
i
na
l
sw
ith
filt
er capac
it
ors an
d
other sur
g
e absorbers.
4 Dispose:
When you dispose inverter and its parts, please pay attention to:
Capacitor: The capacitors in inverter may explode when they are burned.
Plastic: Poisonous gas may be generated when front panel is burned, please pay
attention to waste gas when plastic parts are burned.
Method: Please dispose inverter as industry rubbish.

SUNFAR E300 SERIES
E300
7
Series Mini-type Integrated Universal Inverter Manual
1 INTRODUCTION
1.1 Model Explanation
Product
E300
Mini-type
integrated
universal
inverter
Volt Class
4
2
380V
220V Applied Motor Power
（KW）
0002
0004
0007
0015
0.2
0.4
0.7
1.5
Power Phase
T
S
3 PH
1 PH
E300- 4 T 0007 (B)
Derivative Model
B
Built-in braking
unit and RS485
communication
1.2 Inverter Model
Model
Rated Capacity
(KVA)
Rated Output
Current (A)
Applied Motor
Power (KW)
E300-2S0002 0.69 1.8 0.25
E300-2S0004 0.95 2.5 0.4
E300-2S0007 1.7 4.5 0.75
E300-2S0015 2.9 7.5 1.5
E300-4T0007 1.6 2.5 0.75
E300-4T0015 2.8 4.2 1.5
1.3 Appearance
Operation
panel
Cover
RS485
interface
Control loop
cable input
M ain loop
cable input
Bottom
installation hole
Bottom side-
by-side button
1.3.1 Type One
Suitable model：E300-2S0002
/
E300-2S0004
Fig 1-1 Type Ⅰ

SUNFAR E300 SERIES
E300 Series Mini-type Integrated Universal Inverter Manual
8
Operation
panel
Cover
RS485 interface
Control loop
cable input
Main loop
cable input
Bottom
installation hole
Bottom side-by-
side buttome
Suitable model：E300-2S0007～
E300-2S0015/
Fig 1-2 TypeⅡ
1.3.2 Type Two
1.4 Specification Data
E300 series power range：2S0002 ~2S0015 and 4T0007 ~4T0015。
E300 series specification data and typical function：
Rated volt and
freq
3 PH（4T****）380V
50/60 Hz
1 PH（2S****）220V
50/60 Hz
Input Permissible
volt range 320V ~ 460V 170V ~ 270V
Volt 0 ~ 380V 0~220V
Freq 0~1000 Hz
Output Overload
Endurance 110% for long-term；150% for 1m；180% for 2s
Control Mode V/F control
Analog
Input 0.4% of maximum output freq
Freq
setting
Resoluti
on
Digital
Input 0.1 Hz
Analog
Input Within 0.4% of maximum output freq
Freq
Precisio
n Digital
Input Within 0.1% of setting freq
Torque
boost Manual set: 0.0~20.0% of rated output
Control
Characte
ristics
V/F
control
A
uto
current
/volt
limit
It will check motor stator current and volt automatically based
on special arithmetic to control within allowable range to
ensure minimum failure during acc/ dec or stable running.

SUNFAR E300 SERIES
E300 Series Mini-type Integrated Universal Inverter Manual
9
Multi-speed
control
Seven programmable multi-speed control, three multi-speed
control terminal
RS485
communication
(E300B series)
Standard built-in RS485 interface, RS485 communication
protocol and MODBUS for choice
Analog
input
Panel potentiometer setting, DC volt 0～10V，DC current 0～
20mA
Freq
setting Digital
input
Operation panel setting，RS485 interface setting, UP/DW
terminal control
Relay
and
OC
output
One OC output and one relay output (TA, TB, TC) as many
as 9 types of choice
Output
Signal
Analog
output One 0~10V volt signal
Acc /dec time
setting
0.1～600s continuous setting, S curve and linear mode for
choice
DC braking Action freq 0~500.0 Hz, action time 0~20.0 S
Low noise
running
Carrier wave freq 1.5 KHz ~ 12.0 KHz continuous
adjustments to ensure the lowest motor noise.
Typical
Function
Running
function
Upper and Lower freq setting, reversal operating restriction,
RS485 communication,, freq increasing/decreasing control
etc.
Runnin
g state
Output freq, current and volt，motor rotate speed，freq
setting, module temperature，analog I/O
Display
Operati
on
panel
display
Warnin
g
Last four times failure record, output freq, current, volt and
DC volt of last fault trip for running parameter record
Protection / warning
function
Over current，over volt, under volt, overheating, short circuit
etc.

SUNFAR E300 SERIES
E300 Series Mini-type Integrated Universal Inverter Manual
10
2 WIRING
2.1 Environmental Requirements:
¾Ambient temperature should be in range of-10 ºC－40 ºC.
¾Please avoid putting inverter in a high temperature and moist location.
The humidity is less than 90% and non-condensing.
¾Avoid sunshine directly.
¾Keep away from combustible, explosive material and caustic gas or
liquid.
¾No dust, floating fiber and metal particles.
¾It must be installed in a firm and no vibration location.
¾Keep away from electromagnetic disturbance.
If users demand any special installation, please contract us firstly.
Installation space and distance of single inverter shows as fig 2-1-A that ambience should
be enough space. For several inverter installations, it should adopt guide clapboard to
ensure better cooling between each inverter shown as fig 2-1-B.
WARNING
1.Refer t o the inst ruction manual before inst allation
3.Donot remo ve any cover while applying power
andat least 10mi n. after disconnecting power.
4.Securelyground(earth)the equipment.
2.Donot co nnect AC power to output terminals UVW.
and op era t io n.
!
Fan
ventilation
Above 50mm
Above 50mm
Above 120mm
Above 120mm
Fig 2-1-A Installation space distance Fig 2-1-B Installation for several inverters
2.2 Installation Dimension
2.2.1 Dimension
Suitable model：E300-2S0002/ E300-2S0004 as fig
Fig 2-2-A Inverter installation
W1
W
H1
H
D

SUNFAR E300 SERIES
E300 Series Mini-type Integrated Universal Inverter Manual
11
E300 series installation dimension：
Model
(3PH 380V)
Model
(1PH 220V) W1 W H1 HD Screw
spec
E300-2S0002
E300-2S0004
67.5 81.5 132.5 148 134.5 M4
E300-4T0007 E300-2S0007
E300-4T0015 E300-2S0015 86.5 101.5 147.5 165 154.5 M4
2.2.2 Options Installation Size
Note: When using screw M3, please pay attention to hole place in broken line and hole
size.
Fig 2-2-C Small keypad installation size
Suitable model：E300-2S0007~2S0015
/
E300-4T0007~4T00015 as fig 2-2-B.
60.7
68.7
28.8
41.1
17.6
Fig 2-2-D Small keypad base installation size
62.2
58.7
20.7
16.425.5
17.6
36.7
Fig 2-2-B Inverter installation
W1
W
D
H1
H

SUNFAR E300 SERIES
E300 Series Mini-type Integrated Universal Inverter Manual
12
3 WIRING
3.1 Precautions
（1）Install a middle breaker between inverter and power supply avoiding enlarging
accident.
（2）For reducing electromagnetic interface (EMI), please connect surge absorber to
coil of electromagnetic contactors, relays etc.
（3）Freq setting terminal AI, instrument circuit（AO）etc., these analog signals wire
should be over 0.3mm² shield wire. Shield layer is connected with ground terminal CM
less than 30m.
（4）Wiring of relay input and output loop (X1 ~ X3) should choose over 0.75mm²
intertwist or shield wire. Shield layer should be connected to control terminal CM less than
50m.
（5）Separate control wire from main loop wire, parallel wiring should be part over
10cm, and across wiring should be vertical.
（6）Wire of Inverter and motor should be less than 30m. When it is over 30m, it
should decrease inverter carrier wave freq properly.
（7）All down-lead should be tightened with terminals to ensure well-contact.
（8）Compressive resistance of all down-lead should match with inverter volt.
¾Inverter output terminal U
、
V
、
W should not add absorber capacitor or other
RC absorber shown as fig.3-1.
Inverter
U
V
W
M
Motor
RC absorber
3.2 Wiring of External Components
Fig 3-2 Inverter wiring
Motor
R/L1
S/L2
T
U
V
W
AC re a cto r
E300
AC power
PP PB
Air-breaker switch
Contactor
Braking resistor
Fig 3-1 Output terminal does not allow connecting RC absorber
!WARNING
1.R e fe r to th e ins tr u c t io n m anu a l b efore i n s ta lla ti on
and operation.
2.Do no t conn ect A C pow er toou tput term inals U VW.
3.Do not remo ve any cover wh ile appl ying p owe r
and at least 10min.a fter disconn ecting power .
4.Securely ground( earth) th e e quipm ent.

SUNFAR E300 SERIES
E300 Series Mini-type Integrated Universal Inverter Manual
13
Power
Please follow this manual for appointed input power specification.
Air-breaker switch
1. When inverter is in maintenance or long-time nonuse, air-breaker switch isolates
inverter and power supply.
2. When inverter input side has failure of short circuit or power low-volt, air-breaker
switch can take protection.
Contactor
Control power-on and power-off of inverter and load motor.
AC reactor
1. Increase power factor；
2. Reduce power network harmonic wave input from inverter；
3. Weaken imbalance effect on three phase power volt.
Breaking resistor
In the situation of regenerative braking, avoiding bringing volt too high.
Recommended specification for the devices as following:
Model
A
pplied motor
(KW)
Wire spec
（main circuit）
(mm2)
Air-breaker
(A)
Magnetic
contactor (A)
E300-2S0002 0.25 1.5 10 6
E300-2S0004 0.4 1.5 16 6
E300-2S0007 0.75 2.5 20 12
E300-2S0015 1.5 2.5 32 18
E300-4T0007 0.75 1.0 10 6
E300-4T0015 1.5 1.5 16 12

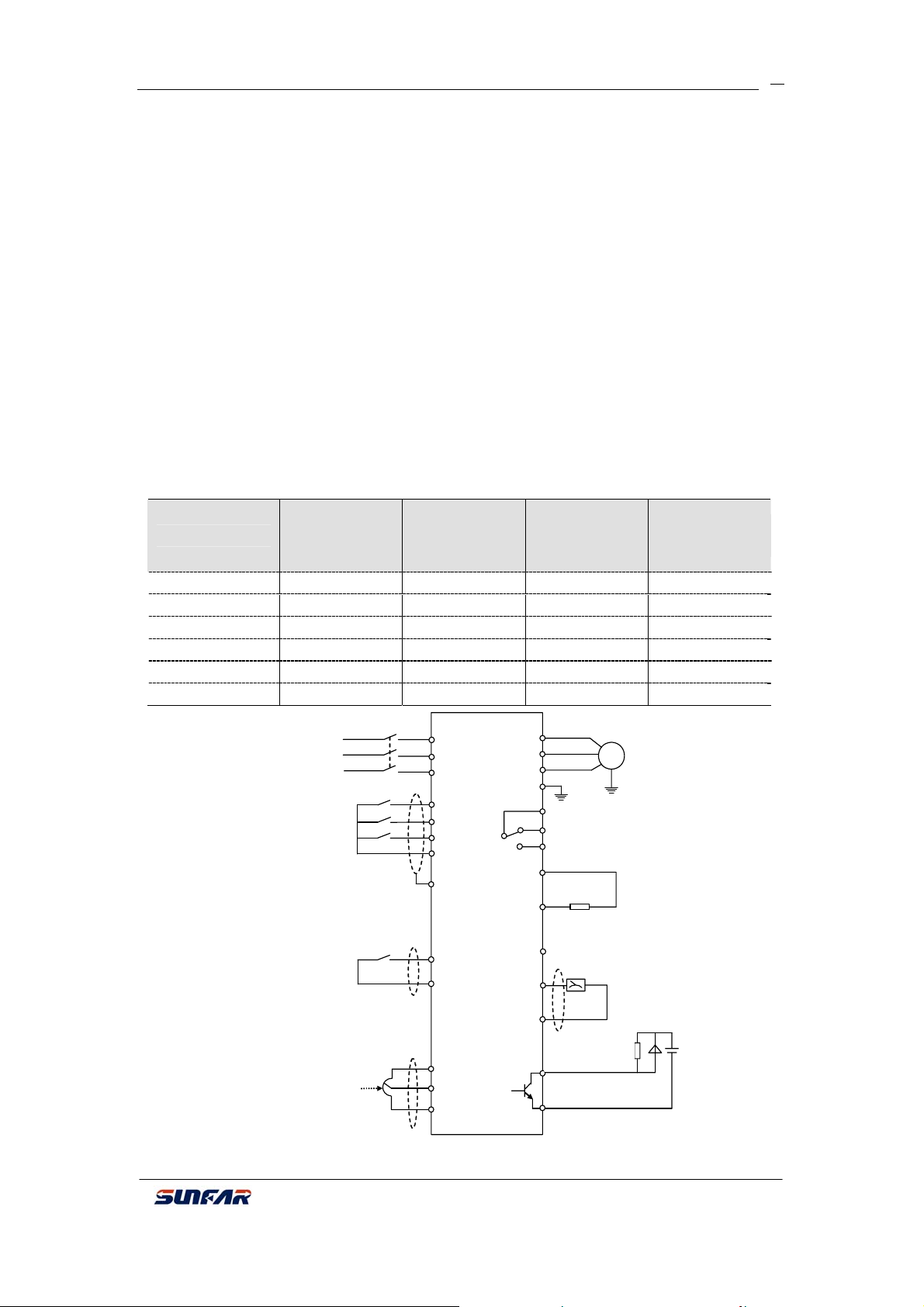

3.3 Basic Wiring
Fig 3-3 Inverter basic wiring
M
~
Motor
T
a
T
b
T
c
U
W
V
R
S
T
CM
A
O
CM
Failure alarm output
Voltmete
r
（0~10V）
3PH power
supply
E
X1
X2
X3
CM
Programmable
input terminal
10V
A
I
×
×
×
3PH breaker
PB
External brakin
g
resistor
GND
PP
24V Auxiliary DC power
E
FWD
0~10V（0~20mA）
Freq setting
CM
FWD
CM
Open-circuit
collector output
OC

SUNFAR E300 SERIES
E300 Series Mini-type Integrated Universal Inverter Manual
14

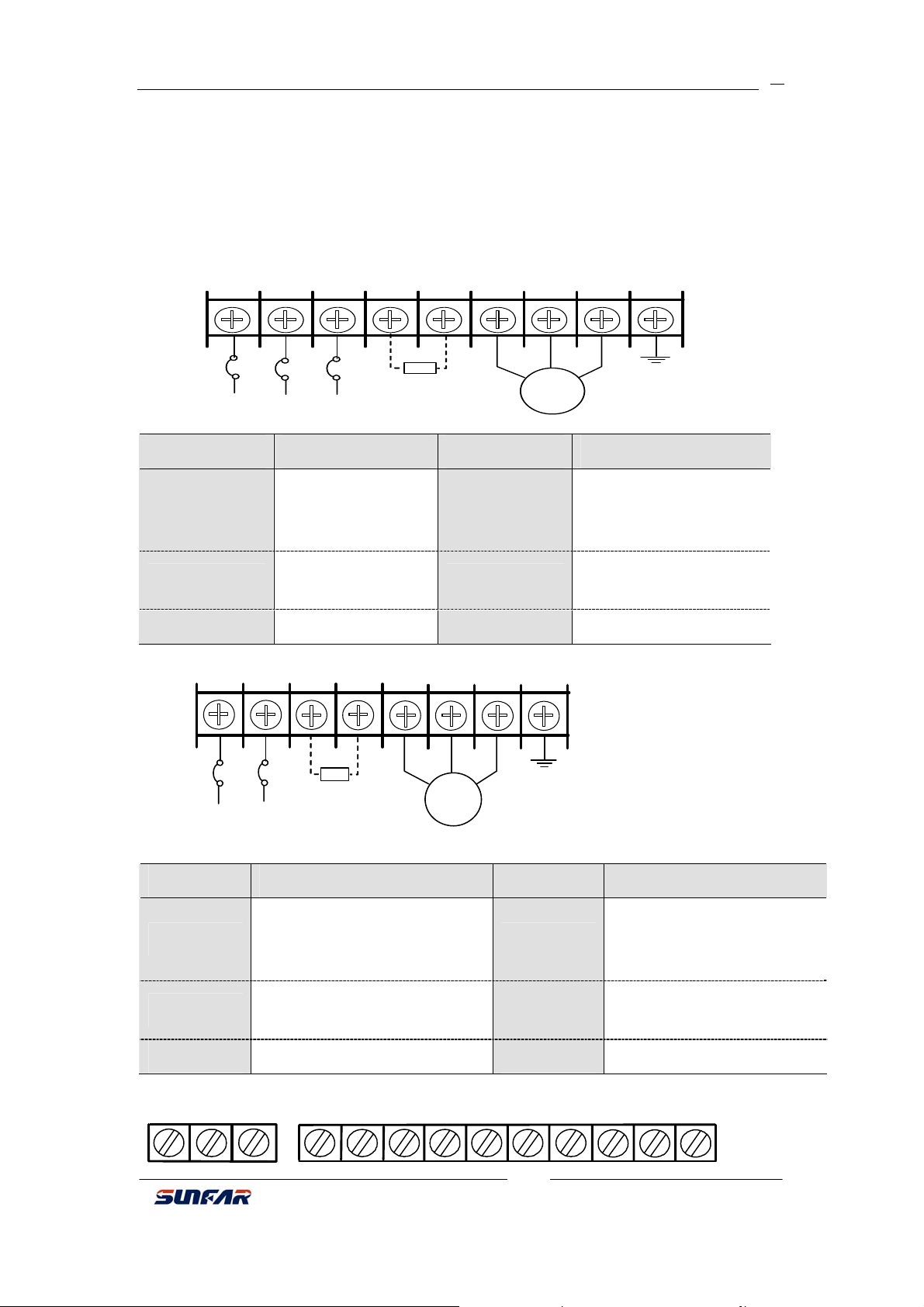

3.4 Wiring of Main Loop Terminal
（1）TypeⅠ（Suitable model: E300-4T0007～E300-4T0015）
Terminal description：
Motor
3PH power input Braking resistor
GND
R S T PB PP U V W E
Terminal Function Terminal Function
PP Positive terminal of
DC negative PB
Braking resistor can be
connected between PP
and PB.
R、S、T Connect 3PH AC
380V power supply U、V、W Connect 3PH AC 380V motor
E GND
（2）Type Ⅱ（Suitable model: E300-2S0002～E300-2S0015）
Motor
A
C 220V power
supply input
Braking
resistor
GND
L1 L2 PB PP U EW
V
：
Terminal description：
Terminal Function Terminal Function
PP Positive terminal of DC
negative PB
Braking resistor can be
connected between PP and
PB.
L1、L2 Connect 1PH AC 220V power
supply
U、V、
W
Connect 3PH AC 220V
motor
E GND
3.5 Wiring of Control Loop Terminal
（1）Control loop terminal:
I10V
24V
FWDTA TB X3 CM
A
A
OX2
TC OC
X1

SUNFAR E300 SERIES
E300 Series Mini-type Integrated Universal Inverter Manual
15
（2）Function description of control loop terminal:
Type Terminal Function Note
10V Provide +10V(0~20mA)
power
Power supply 24V
Provide +24V(0~50mA)
power（CM terminal as
this power grounding）
AI Volt（current）signal input
terminal 0~10V（0~20mA）
Analog input
CM
Public terminal of input
（output）signal（10V
and 24V power
grounding）
X1 Multi-function input
terminal 1
X2 Multi-function input
terminal 2
X3 Multi-function input
terminal 3
Specific function for
multi-function input
terminals, please
refer to parameter
[F1.7] ~ [F1.9] for
setting. Terminal
and CM terminal
close that is valid.
Control terminal
FWD FWD order input
terminal
FWD-CM decides
running direction
when panel control
mode. It’s valid when
close with CM
terminal.
Analog output AO
Programmable volt
signal output terminal
and external voltmeter
（set by [F1.4]）
Volt signal output 0～
10V
OC
output OC
Programmable
open-circuit collector
output set by [F1.11]
Max load current
150mA, max
endurable volt 24V
Programmable output
TA
TB
TC
Normal TA-TB close and
TA-TC open appointed
function is valid; TA-TB
open and TA-TC close.
Parameter [F1.12]
selects output function.
Contactor capacity:
AC 250V, 1A resistive
load.
3.6 Wiring of RS485 Interface and External Keyboard
（1）Wiring mode of RS485 interface：
+(A)
－(B)
（2）RS485 interface adopts 8P“ crystal pin”
phone line and external keyboard interface
adopts 8P“crystal pin” net line.
Suitable model：E300-2S0002～E300-2S0015/E300-4T0007/E300-4T0015

SUNFAR E300 SERIES
E300 Series Mini-type Integrated Universal Inverter Manual
16
RS485 interface
Fig 3-4-A Wiring mode Ⅰ
!
and ope rati on.
2.Do not connect AC power to output terminals UVW.
4.Secur ely ground( earth ) the equi pment.
and at least 10min. after disconnecting power.
3.Do not remove any cover while applying power
1.Refer to the instruction manual before installation
WARNING
E
x
t
erna
l
k
ey
b
oar
d
i
n
t
er
f
ace
Fig 3-4-B Wiring mode Ⅱ
¾E300B series has communication function. For this using, please refer to
appendix explanation.
¾When inverter failure, RUN/STOP light on cover will display.
E
x
t
erna
l
k
ey
b
oar
d
i
n
t
er
f
ace

SUNFAR E300 SERIES
E300 Series Mini-type Integrated Universal Inverter Manual
17
4 PANEL OPERATION
V
A
RUN
Hz
MIN MAX
ESC
SET RUN
STOP
rmp
%
sec
Running indicate light
LED display
Return
Up
Set
Down
LED display data un
i
Panel potentiometer
Switch
Run, stop, reset
Fig 4-1 Operation panel layout
Note：E300 series keyboard interface can not be compatible with other Sunfar series keyboard. Please do
not use confusedly.
4.1 Key Function Description
Key Function
LED display Display inverter current running state parameter and set parameter.
A、Hz、V Corresponding unit of main LED display data
RUN Operation indicator light means there is output volt from output terminal
U, V, W during inverter running.
Data modification key for modifying function code or parameter.
During monitor mode, if freq order channel is digital set mode [F0.0]=0),
press this key directly to modify freq setting value.
Return key. During normal monitor mode, press this key and enter
non-normal monitor mode/ monitor parameter check mode which can
check inverter running state parameter. During any operation state,
only press this key that can return to last state.
Set key ensures current state or parameter（parameter stores in inner
storage）and enters next function menu.
Run and stop order key. When order channel chooses panel control
[F0.2] =###0), this key is valid. It is trigger key. During inverter stop
state, press this key and start inverter running. During inverter running
state, press this key to input stop order for running. During inverter
failure state, this key as failure reset key.
ESC
Switch key. During any state for modifying data by data, press this key
to choose modified data which may display.
Panel potentiometer. When inverter running freq is set by potentiometer
（F0.0=3）, you may decrease and increase running freq by rotating
potentiometer knob.
MAXMIN
SET
STOP
RUN

SUNFAR E300 SERIES
E300 Series Mini-type Integrated Universal Inverter Manual
18
4.2 Panel Operational Method
（1）State parameter check (eg.)
State parameter
check Display：d.0 Monitor code
State parameter
check Display: d.2 Function code
Parameter check Di s pl a y：383 Output volt
Parameter check
mode Display：F0.0 Function code
Select checked
stateparameter
Enter parametermodify
mode(refer tonext chapter)
Return
to
normal
control
Confirm checked
state parameter
N
orma
l
mon
it
or
Di
sp
l
ay：
45
.
0
O
u
t
pu
t
f
req
control
ESC
ESC
ESC
ESC
SET
SET
（2）Parameter check and modify (eg.)
Normal
monitor mode Display：45.0 Output freq
Parameter
check Display：F0.0 Function code
Parameter
check Display：F0.1 Function code
Parameter
check Display：45.0 Parameter data
Parameter
modify Display：50.0 Parameter data
Parameter
store Display：F 0.1 Function code
4.3 State Monitor Parameter List
Monitor code Content Unit
G
i
v
e
u
p
m
o
d
i
f
i
c
a
t
i
o
n
C
o
n
t
i
n
u
e
m
o
d
i
f
y
o
r
r
e
t
u
r
n
Select checked/
modified parameter
Modify
parameter for
requirement
S
tore modified
parameter
SET
SET
SET
ESC
ESC
ESC
ESC

SUNFAR E300 SERIES
E300 Series Mini-type Integrated Universal Inverter Manual
19
d-0 Inverter current output freq Hz
d-1 Inverter current output current（virtual value）A
d-2 Inverter current output volt（virtual value）V
d-3 Motor rotate speed rpm
d-4 Inverter inner DC volt V
d-5 Inverter input AC volt（virtual value）V
d-6 Set freq Hz
d-7 Analog input AI V
d-8 Running linear speed
d-9 Set linear speed
d-10 Input terminal state
d-11 Module temperature ºC
d-12 Analog output AO V
d-13 Reserved
d-14 1st failure record
d-15 2nd failure record
d-16 3rd failure record
d-17 4th failure record
d-18 Output freq of last failure Hz
d-19 Output current of last failure A
d-20 Output volt of last failure V
d-21 DC volt of last failure V
4.4 Inverter Simple Operation
4.4．1 Inverter initialization set
（1）Freq input channel selection（[F0.0]）
Inverter initialization set is different based on each model. Set this parameter as 0, inverter
freq is set by panel number.
（2）Operation input channel selection（[F0.2]）
Inverter initialization set is different based on each model. Set this parameter as [F0.2]
=###0, inverter stop and startup is controlled by the key of operation panel STOP
RUN
4.4.2 Simple Operation
Forbid connect power supply to inverter output terminals U/V/W.
M
Motor
U
W
V
R
S
T
3
PH power
s
upply
×
×
×
3PH breaker
GND
E
Fig 4-2 Wiring of simple running

SUNFAR E300 SERIES
E300 Series Mini-type Integrated Universal Inverter Manual
20
①Please wire as fig 4-2；
②Be sure correct wiring then power on. Inverter displays “P.oFF”, then “0”；
Be sure [F0.0] = 0③；
④Based on inverter nameplate data for applied motor, please set parameter [F0.12] and
[F0.13]；
⑤Press key to start inverter, and inverter outputs freq 0 and displays “0.0”；
⑥Press key for UP function to increase set freq. Inverter output freq increases and
motor rotate speed increases；
⑦Check motor running is normal or not. If any abnormal, please stop running immediately
and power-off. Then, check the reasons and run again；
Press key for DOWN function to decrease set freq⑧；
⑨Press key again to stop running and power-off.
Manufacture setting value of carrier wave freq is fixed between 1.5-12KHz. If
motor without load and under high carrier wave freq running, it may cause
slight shock. So, please decrease carrier wave freq value (parameter [F0.8]）.
STOP
RUN
STOP
RUN
