Mitsubishi Electric 800 Series User manual

FR-A8TP INSTRUCTION MANUAL
D
INVERTER
PRE-OPERATION INSTRUCTIONS 1
INSTALLATION 2
WIRING 3
PARAMETER 4
ORIENTATION CONTROL 5
ENCODER FEEDBACK CONTROL 6
VECTOR CONTROL 7
ENCODER PULSE DIVIDING
OUTPUT 8
INVERTER
Control terminal option
INSTRUCTION MANUAL
INVERTER
HEAD OFFICE: TOKYO BUILDING 2-7-3, MARUNOUCHI, CHIYODA-KU, TOKYO 100-8310, JAPAN
FR-A8TP
Vector control terminal block
IB(NA)-0600574ENG-D(2308) MEE Printed in Japan Specifications subject to change without notice.

1
Safety instructions
Thank you for choosing this Mitsubishi Electric inverter control terminal option.
This Instruction Manual provides handling information and precautions for use of the equipment. Incorrect handling might cause an unexpected fault. Before
using this product, always read this Instruction Manual carefully to use this product correctly.
Please forward this Instruction Manual to the end user.
Electric Shock Prevention
WARNING
Do not remove the front cover or the wiring cover while the power of the inverter is ON, and do not run the inverter with the front cover or the
wiring cover removed as the exposed high voltage terminals or the charging part of the circuitry can be touched. Doing so may cause an
electric shock.
Even if power is OFF, do not remove the front cover of the inverter except for wiring or periodic inspection as the inside of this product is
charged. Doing so may cause an electric shock.
Before wiring or inspection, check that the display of the inverter operation panel is OFF. Any person who is involved in wiring or inspection
shall wait for 10 minutes or longer after the power supply has been cut off, and check that there are no residual voltage using a tester or the
like.
Any person who is involved in wiring or inspection of this equipment shall be fully competent to do the work.
The control terminal option must be installed before wiring. Otherwise you may get an electric shock or be injured.
Do not touch the control terminal option or handle the cables with wet hands. Doing so may cause an electric shock.
Do not subject the cables to scratches, excessive stress, heavy loads or pinching. Doing so may cause an electric shock.
Do not attempt to install, operate, maintain or inspect the product until you have read through this Instruction Manual and supplementary
documents carefully to use the equipment correctly. Do not use this product until you have a full knowledge of the equipment, safety
carefully. Do not use this product until you have a full knowledge of this product mechanism, safety information and instructions. In this
Instruction Manual, the safety instruction levels are classified into "WARNING" and "CAUTION".
Incorrect handling may cause hazardous conditions, resulting in death or severe injury.
Incorrect handling may cause hazardous conditions, resulting in medium or slight injury, or may cause only material
damage.
Note that even the level may lead to a serious consequence depending on conditions. Be sure to follow the instructions
of both levels as they are critical to personnel safety.
WARNING
CAUTION
CAUTION

2
Injury Prevention
Additional instructions
The following instructions must be also followed. If the product is handled incorrectly, it may cause unexpected fault, an injury, or an electric shock.
CAUTION
The voltage applied to each terminal must be as specified in the Instruction Manual. Otherwise an explosion or damage may occur.
The cables must be connected to the correct terminals. Otherwise an explosion or damage may occur.
The polarity (+ and -) must be correct. Otherwise an explosion or damage may occur.
While power is ON or for some time after power OFF, do not touch the inverter as it will be extremely hot. Doing so may cause burns.
CAUTION
Transportation and installation
Do not install or operate the control terminal option if it is damaged or has parts missing.
Do not stand or place heavy objects on the product.
Ensure the mounting orientation of this product is correct.
Foreign conductive objects must be prevented from entering the inverter. That includes screws and metal fragments or flammable substance
such as oil.
If halogens (including fluorine, chlorine, bromine, and iodine) contained in fumigants for wood packages enter this product, the product may
be damaged. Prevent the entry of fumigant residuals or use an alternative method such as heat disinfection. Note that sterilization or
disinfection of wood packages should be performed before packing the product.
Test operation
Before starting the test operation, confirm or adjust the parameter settings. Failure to do so may cause some machines to make unexpected
motions.
WARNING
Usage
Do not modify this product.
Do not remove any part which is not instructed to be removed in the Instruction Manuals. Doing so may lead to a failure or damage of the
product.

3
CAUTION
Usage
As all parameters return to their initial values after the Parameter clear or All parameter clear is performed, the parameters must be set again
as required before the operation is started.
To avoid damage due to static electricity, static electricity in your body must be discharged before you touch this product.
Maintenance, inspection and parts replacement
Do not carry out a megger (insulation resistance) test.
Disposal
The product must be treated as industrial waste.
General instruction
For clarity, illustrations in this Instruction Manual may be drawn with covers or safety guards removed. Ensure all covers and safety guards
are properly installed prior to starting operation.

4
— CONTENTS —
Safety instructions 1
1 PRE-OPERATION INSTRUCTIONS 7
1.1 Unpacking and product confirmation............................................................................................................................7
1.1.1 Product confirmation ............................................................................................................................................................. 7
1.1.2 SERIAL number check.......................................................................................................................................................... 8
1.1.3 Component names................................................................................................................................................................ 9
1.1.4 Terminal layout ................................................................................................................................................................... 10
1.1.5 Control logic switchover ...................................................................................................................................................... 11
1.1.6 Terminal OH control logic switchover.................................................................................................................................. 12
1.2 Terminal connection diagrams.....................................................................................................................................13
1.3 Control terminal specification ......................................................................................................................................14
2 INSTALLATION 24
2.1 Pre-installation instructions .........................................................................................................................................24
2.2 Installation procedure ...................................................................................................................................................24
2.3 Precautions for removal and reinstallation of the control circuit terminal block....................................................26
3WIRING 28
3.1 Encoder specification / terminating resistor switch setting......................................................................................28
3.2 Encoder ..........................................................................................................................................................................31
3.3 Wiring of control circuit ................................................................................................................................................33
3.3.1 Wiring method..................................................................................................................................................................... 33
3.3.2 Wire treatment .................................................................................................................................................................... 35
3.3.3 Wiring of terminals related to the encoder .......................................................................................................................... 37
3.4 Encoder cables dedicated to Mitsubishi Electric motors ..........................................................................................39

5
4 PARAMETER 42
4.1 Extended parameter list ................................................................................................................................................42
4.2 Thermal protector input ................................................................................................................................................45
4.3 Encoder input selection ................................................................................................................................................46
4.4 Function differences between induction motors and PM motors.............................................................................48
5 ORIENTATION CONTROL 50
5.1 Connection diagram ......................................................................................................................................................50
5.2 Terminals........................................................................................................................................................................52
5.3 Specifications ................................................................................................................................................................53
5.4 Parameter related to orientation control .....................................................................................................................54
5.4.1 Encoder orientation gear ratio setting ................................................................................................................................. 54
6 ENCODER FEEDBACK CONTROL 56
6.1 Connection diagram ......................................................................................................................................................56
6.2 Specifications ................................................................................................................................................................57
7 VECTOR CONTROL 58
7.1 Connection diagram ......................................................................................................................................................59
7.2 Setting procedure of Vector control for motor with encoder ....................................................................................63
7.3 Specifications ................................................................................................................................................................65
8 ENCODER PULSE DIVIDING OUTPUT 66
8.1 Connection diagram ......................................................................................................................................................66
8.2 Parameter related to encoder pulse dividing output..................................................................................................68
APPENDIX 69

6
Appendix 1 Restricted Use of Hazardous Substances in Electronic and Electrical Products .....................................69
Appendix 2 Regarding Directive on Waste Electrical and Electronic Equipment .........................................................70
REVISIONS 72

PRE-OPERATION INSTRUCTIONS 7
1
1PRE-OPERATION INSTRUCTIONS
1.1 Unpacking and product confirmation
Take the control terminal option out of the package, check the product name, and confirm that the product is as you ordered
and intact.
The product is a control terminal option made for the FR-A800 series.
1.1.1 Product confirmation
Check the enclosed items.
NOTE
• Connection diagrams in this Instruction Manual appear with the control logic of the input terminals as sink logic, unless
otherwise specified. (For the control logic, refer to the Instruction Manual of the inverter.)
Control terminal option...................................1

8PRE-OPERATION INSTRUCTIONS
1.1.2 SERIAL number check
The FR-A8TP can be used for the inverter models listed below with the following SERIAL number or later. Check the SERIAL
number indicated on the inverter rating plate or package. For the location of the rating plate, refer to the Instruction Manual
(Detailed) of the inverter.
Rating plate example
• FR-A800 series
The SERIAL consists of one symbol, two characters indicating the
production year and month, and six characters indicating the control
number.
The last digit of the production year is indicated as the Year, and the
Month is indicated by 1 to 9, X (October), Y (November), or Z
(December).
Model Country of
origin indication SERIAL number
FR-A820-00046(0.4K) to 04750(90K)
FR-A840-00023(0.4K) to 06830(280K)
FR-A842-07700(315K) to 12120(500K)
FR-A846-00023(0.4K) to 00470(18.5K)
MADE in Japan 51 or later
MADE in China 53 or later
SERIAL
number
Country
of origin
 { { {{{{{{
Symbol Year Month Control number
SERIAL

PRE-OPERATION INSTRUCTIONS 9
1
1.1.3 Component names
Symbol Name Description Refer
to page
a Mounting screw Fixes the option to the inverter. 24
b Terminal block Connect signal cables. 28
c Connector Connects to the control circuit connection connector of the inverter. 24
d Control logic switchover jumper connector Switches the control logic (sink logic/source logic). 11
e External thermal relay switch (SW5A) Switches the control logic of terminal OH (sink logic/source logic). 45
f Terminating resistor selection switch (SW1) Switches ON or OFF the internal terminating resistor. 29
g Encoder type selection switch (SW3) Switches the encoder type (differential line driver/complementary). 28
SW3
SW5A
(a)
(c)
(d)
(e)
(g)
(f) (a)
(b)
(b)
1
2
3
4
O
N
SW1

10 PRE-OPERATION INSTRUCTIONS
1.1.4 Terminal layout
PZR3
PZ3
C
B
A
PBR3
PAR3
PB3
PA3
SD
PG PG
PC
PG24
S2 S1
SIC
SD
SOC
SO
DO3 DO2 DO1
SE
1
10E
5
5 2
AM
PC
DI1 DI2 DI3 DI4
OH
RES
STR
STF
SD
+24
FPA4
PAR4
FPB4
PBR4
FPZ4
PZR4
FPA5
FPB5
FPZ5

PRE-OPERATION INSTRUCTIONS 11
1
1.1.5 Control logic switchover
Switch the control logic of input signals as necessary.
To change the control logic, change the jumper connector position on the control circuit board.
Connect the jumper connector to the connector pin of the desired control logic using a pair of needle-nose pliers etc. The
control logic of input signals is initially set to the sink logic (SINK).
For details on the control logic, refer to the Instruction Manual of the inverter
For sink logic
Jumper connector
SOURCE
SINK

12 PRE-OPERATION INSTRUCTIONS
1.1.6 Terminal OH control logic switchover
Change the external thermal relay switch (SW5A) position to switch the terminal OH control logic (sink logic or source logic) as
necessary. The control logic of input signals is initially set to the sink logic (SINK).
NOTE
• The terminal OH control logic cannot be switched by page 11.
SINK SOURCE

PRE-OPERATION INSTRUCTIONS 13
1

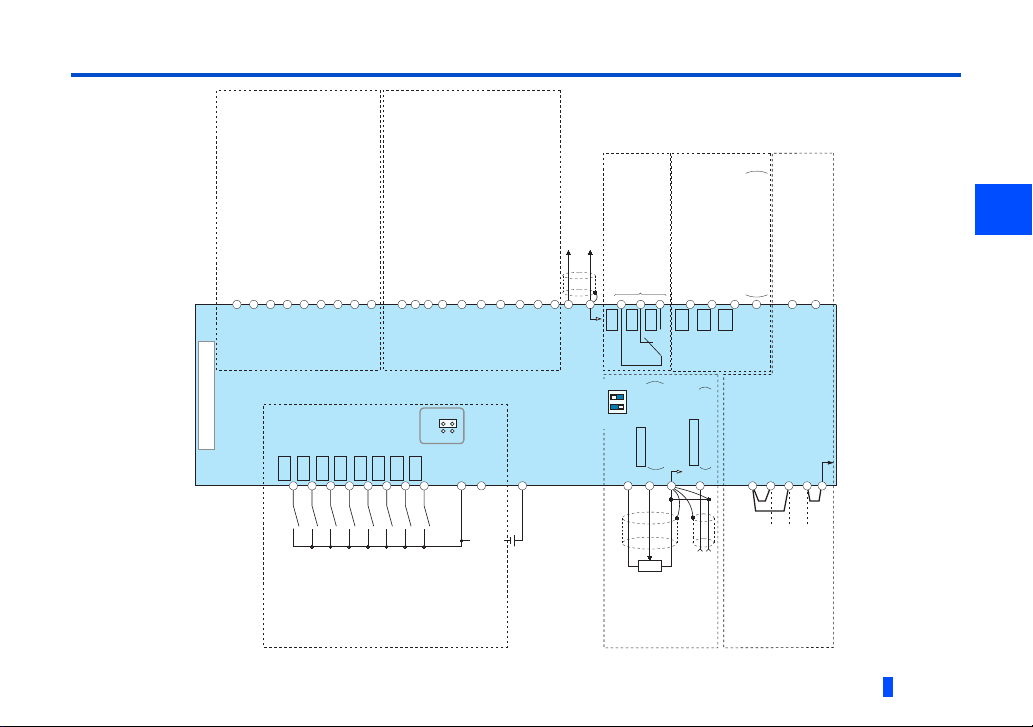

1.2 Terminal connection diagrams
PC
Forward rotation start
Reverse rotation start
Digital input terminal 1 Digital input terminal 3 Digital input terminal 2 Digital input terminal 4
Thermal protector input
Reset
Frequency setting signal (Analog)
10E(+10V)
2
(Analog common)
2
3 1
Auxiliary input 1
Frequency
setting
potentiometer
1/2W1kΩ
Open collector output 1 Open collector output 2 Open collector output 3
Open collector output common
Sink/Source common
Control input signals (No voltage input allowed)
Relay output (fault output)
C1
B1 A1
(-) (+) Analog signal output
(0 to ±10VDC)
AM
5
0 to ±5VDC selectable
0 to ±10VDC
Open collector output
Contact input common
0 to 5VDC
0 to 10VDC selectable
Relay output
Encoder signal
0 to 20mADC
SINK
SOURCE
STF
STR
DI1
DI2 DI3 DI4
OH
RES
SD
DO1 DO2 DO3
SE
5
(+) (-)
Initial value
Initial value
ON
OFF
42
Voltage/current input switch
Safety stop signal
Safety monitor output Safety monitor output common
So (SO)
SOC
Safety stop input (Channel 1)
Shorting wire
Safety stop input common
Safety stop input (Channel 2)
S1 S2
PC SD SIC
+24
24V external power
supply input
PA3
PAR3
PB3
PBR3
PZ3
PZR3
PG
PG
PG24
Control terminal option / A-phase signal input terminal
Control terminal option / A-phase inverse signal input terminal
Control terminal option / B-phase signal input terminal Control terminal option / Z-phase signal input terminal
Control terminal option / Z-phase inverse signal input terminal
Encoder power supply input terminal (positive side) Encoder power supply input terminal (positive side) Encoder power supply output terminal (positive side) Control terminal option / B-phase inverse signal input terminal
Encoder pulse dividing output signal
FPA5
Control terminal option / Encoder A-phase output terminal
FPB5
Control terminal option / Encoder B-phase output terminal
FPZ5
Control terminal option / Encoder Z-phase output terminal
FPAR4 Control terminal option / Encoder differential
A-phase inverse signal output terminal
FPB4 Control terminal option / Encoder differential
B-phase output terminal
FPBR4 Control terminal option / Encoder differential
B-phase inverse signal output terminal
FPZ4 Control terminal option / Encoder differential
Z-phase output terminal
FPZR4 Control terminal option / Encoder differential
Z-phase inverse signal output terminal
FPA4 Control terminal option / Encoder differential
A-phase output terminal
SD Common terminal
24VDC power supply
(Common for external power
supply transistor output)
Control circuit

14 PRE-OPERATION INSTRUCTIONS
1.3 Control terminal specification
Input signal
Function Terminal
symbol Common Terminal name Terminal function description Rated specification
Contact
input
STF
SD (sink
(negative
common))
PC (source
(positive
common))
Forward rotation
start
Turn ON the STF signal to start
forward rotation and turn it OFF
to stop.
The function of terminal can be
changed with Pr.178 (Input
terminal function selection).
When the STF
and STR
signals are
turned ON
simultaneously,
the stop
command is
given.
Input resistance:
4.7 kΩ
Voltage when
contacts are open:
21 to 27 VDC
Current when
contacts are short-
circuited: 4 to 6
mADC
*When terminal DI4
is used as a pulse
train input terminal:
Input resistance: 2
kΩ
When contacts are
short-circuited: 8 to
13 mADC
STR Reverse rotation
start
Turn ON the STR signal to start
reverse rotation and turn it OFF
to stop.
The function of terminal can be
changed with Pr.179 (Input
terminal function selection).
DI1 to DI4
Digital input
terminal
1 to 4
Functions can be assigned to terminals by the
input terminal function selection (Pr.180 to
Pr.182, Pr.185).
OH Thermal protector
input
Temperature detector input terminal for overheat
protection of a motor.
When the OH signal turns OFF, the external
thermal relay (E.OHT) protective function is
activated
Use Pr.876 to switch valid/invalid status of
terminal function.
Switches the control logic (sink logic or source
logic) independently by the external thermal relay
switch (SW5A).
Input resistance:
940 Ω
Voltage when
contacts are open:
21 to 27 VDC
Current when
contacts are short-
circuited: 140 to
180 mADC

PRE-OPERATION INSTRUCTIONS 15
1
Contact
input RES
SD (sink
(negative
common))
PC (source
(positive
common))
Reset
Use this signal to reset a fault output provided
when a protective function is activated. Turn ON
the RES signal for 0.1 s or longer, then turn it
OFF.
In the initial setting, reset is always enabled. By
setting Pr.75 , reset can be enabled only at an
inverter fault occurrence. The inverter recovers
about 1 s after the reset is released.
The function of terminal can be changed with
Pr.189 (Input terminal function selection).
Input resistance:
4.7 kΩ
Voltage when
contacts are open:
21 to 27 VDC
When contacts are
short-circuited: 4 to
6 mADC
Function Terminal
symbol Common Terminal name Terminal function description Rated specification

16 PRE-OPERATION INSTRUCTIONS
Frequency
setting
10E
5
Frequency setting
power supply
Change the input specification of the terminal 2
using Pr.73 when connecting it to the terminal
10E.
10 VDC ±0.4 V
Permissible load
current: 10 mA
2Frequency setting
(voltage)
Inputting 0 to 5 VDC (or 0 to 10 V, 0 to 20 mA)
provides the maximum output frequency at 5 V
(10 V, 20 mA) and makes input and output
proportional. Use Pr.73 to switch among input 0 to
5 VDC (initial setting), 0 to 10 VDC, and 0 to 20
mA. Set the voltage/current input switch in the ON
position to select current input (0 to 20 mA).*1
When voltage is
input:
Input resistance: 10
to 11 kΩ
Maximum
permissible
voltage: 20 VDC
When current is
input: Input
resistance: 245 Ω
±5 Ω
Permissible
maximum current:
30 mA
1Frequency setting
auxiliary
Inputting 0 to ±5 VDC or 0 to ±10 VDC adds this
signal to terminal 2 frequency setting signal. Use
Pr.73 to switch between input 0 to ±5 VDC and 0
to ±10 VDC (initial setting). Use Pr.868 to switch
terminal functions.
Input resistance: 10
to 11 kΩ
Permissible
maximum: voltage
±20 VDC
Function Terminal
symbol Common Terminal name Terminal function description Rated specification
Voltage/Current
input switch
2 4
switch1
switch2

PRE-OPERATION INSTRUCTIONS 17
1
Encoder
signal
PA3
Differential line
driver: ―
Complementary:
SD
Control terminal
option / A-phase
signal input
terminal
A-, B- and Z-phase signals are input from the
encoder.
Differential line
driver/
Complementary
PAR3
Control terminal
option / A-phase
inverse signal
input terminal
Differential line
driver
PB3
Control terminal
option / B-phase
signal input
terminal
Differential line
driver/
Complementary
PBR3
Control terminal
option / B-phase
inverse signal
input terminal
Differential line
driver
PZ3
Control terminal
option / Z-phase
signal input
terminal
Differential line
driver/
Complementary
PZR3
Control terminal
option / Z-phase
inverse signal
input terminal
Differential line
driver
Function Terminal
symbol Common Terminal name Terminal function description Rated specification

18 PRE-OPERATION INSTRUCTIONS
*1 Set Pr.73, Pr.267, and the voltage/current input switch correctly, then input an analog signal in accordance with the setting. (Refer to the
Instruction Manual (Detailed) of the inverter.)
Applying a voltage with the voltage/current input switch ON (current input is selected) or a current with the switch OFF (voltage input is
selected) could cause component damage of the inverter or analog circuits of output devices.
Encoder
signal PG
SD
Encoder power
supply terminal
(positive side)
Input power for the encoder power supply.
Connect the external power supply (5 V, 12 V, 15
V) and the encoder power cable. When the
encoder output is the differential line driver type,
only 5 V can be input. Make sure the voltage of
the external power supply the same as the
encoder output voltage. (Check the encoder
specification.)
Short terminals PG24 and PG for using the 24
VDC power supply of the FR-A8TP.
―
External
power
supply input
+24 24 V external
power supply input
For connecting a 24 V external power supply.
If a 24 V external power supply is connected,
power is supplied to the control circuit while the
main power circuit is OFF.
Input voltage: 23 to
25.5 VDC
Input current: 1.4 A
or less
Function Terminal
symbol Common Terminal name Terminal function description Rated specification

PRE-OPERATION INSTRUCTIONS 19
1
Output signal
Type Terminal
symbol Common Terminal name Terminal function description Rated specification
Relay A, B, C ―Relay output
(fault output)
1 changeover contact output that indicates that an
inverter's protective function has been activated
and the outputs are stopped.
Fault: discontinuity across B and C (continuity
across A and C), Normal: continuity across Band C
(discontinuity across A and C)
The function of terminals can be changed with the
output terminal function selection (Pr.195).
Contact capacity: 230
VAC
0.3 A (power factor =
0.4)
30 VDC 0.3 A
Open
collector
DO1 to
DO3 SE Digital output terminal 1 to 3
The function can be assigned to an output terminal
by the output terminal function selection (Pr.190 to
Pr.192).
Open collector output
Permissible load: 24 to
27 VDC, 0.1 A
Analog AM 5 Analog voltage output
Outputs a selected monitored item (such as output
frequency) among several monitored items
according to the Pr.158 setting. The signal is not
output during an inverter reset.
The output signal is proportional to the magnitude
of the corresponding monitoring item.
Use Pr.55, Pr.56, and Pr.866 to set full scales for
the monitored output frequency, output current, and
torque.
Output signal: 0 to ±10
VDC
Permissible load
current: 1 mA
(load impedance: 10
kΩor more)
Resolution: 13 bits
Encoder
pulse
dividing
output
FPA5
SD
Control terminal
option / Encoder A-
phase output terminal
Outputs A-, B- and Z-phase (home position and
mark pulse) signals from the encoder. The A- and
B-phase signals can be divided by the ratio (1/n)
and output.
n=1 to 32767 (an integer)
Use Pr.863 Encoder pulse division ratio for
division.
Common terminal is terminal SD.
Open collector output
Permissible load: 24 to
27 VDC,
maximum 50 mA
FPB5
Control terminal
option / Encoder B-
phase output terminal
FPZ5
Control terminal
option / Encoder Z-
phase output terminal
