3-Phase PV Inverters (5-20kW)
Commissioning with Logger1000 Quick Guide
Disclaimer
The material in this document has been prepared by Sungrow Australia Group Pty. Ltd. ABN 76 168
258 679 and is intended as a guideline to assist solar installers for troubleshooting. It is not a statement
or advice on any of the Electrical or Solar Industry standards or guidelines. Please observe all OH&S
regulations when working on Sungrow equipment.
Version
Revision History
Created by
Date
1.2
Issued for Approval
AU Service Team
29th Jan 2021
This document only applies to Sungrow Power three-phase inverters (including
SG5KTL-MT, SG10 KTL-MT, SG15KTL-M, SG20KTL-M) with Logger1000. The
information in this document may contain predictive statements including, without
limitation, statements regarding the future financial and operating results, future
product portfolio, new technology, etc. There are several factors that could cause
actual results and developments to differ materially from those expressed or implied in
the predictive statements. Therefore, such information is provided for reference
purpose only and constitutes neither an offer nor an acceptance. Sungrow Power may
change the information at any time without notice.

TD_202101_Logger1000_Quick Guide for 3-Phase PV Inverters (5-20kW)_V1.2 Page 2 of 16
© Sungrow Power Supply Co., Ltd. All rights reserved.
As we continuously improving our services, changes to this document may occur without notice.
Contents
1. Introduction ......................................................................................................... 3
2. RS485 Connections............................................................................................ 4
2.1 Inverter Connection (Daisy Chain)................................................................ 4
2.2 Energy Meter Connection ............................................................................. 6
2.3 Connection to Logger1000............................................................................ 7
3. Web Portal Setup................................................................................................ 8
3.1 Access Web Portal ......................................................................................... 8
3.2 Set Local Time.............................................................................................. 9
3.3 Scan for Inverters.........................................................................................10
3.4 Add Energy Meter........................................................................................11
3.5 Enable Remote Control................................................................................12
3.6 Internet Connection......................................................................................13
3.6.1 Connect via Ethernet Cable ......................................................................13
3.6.2 Connect via WiFi.......................................................................................13
3.7 Add CT Transformation Ratio.......................................................................14
3.8 Setup Export Control if required...................................................................15
4. Create Plant on iSolarCloud...............................................................................16

TD_202101_Logger1000_Quick Guide for 3-Phase PV Inverters (5-20kW)_V1.2 Page 3 of 16
© Sungrow Power Supply Co., Ltd. All rights reserved.
As we continuously improving our services, changes to this document may occur without notice.
1. Introduction
This quick guide is to be read in conjunction with the Sungrow’s User Manuals and 3-
phase KTL series inverters as example for demonstration.
When more than one inverter is installed, all the commissioning is done via a
Logger1000. All the components are connected via daisy-chain RS485 asper standard
RS485 topology.
For export control and load consumption, a 3-phase energy meter needs to be
connected. Default baud rate is 9600 of the energy meter and this can be changed if
necessary, by entering “System/Interface/RS485” in the Logger1000.
Shielded twisted pair with a minimum CSA of 0.75mm should be used, and the
maximum total length of the cable is 1,200m (120 Ohm resistor should be terminated).
Schematic layout of equipment to the logger1000 through RS485 wiring.
Logger 1000
3-Phase meter
Inverter 1
Inverter 2

TD_202101_Logger1000_Quick Guide for 3-Phase PV Inverters (5-20kW)_V1.2 Page 4 of 16
© Sungrow Power Supply Co., Ltd. All rights reserved.
As we continuously improving our services, changes to this document may occur without notice.
2. RS485 Connections
2.1 Inverter Connection (Daisy Chain)
The RS485 is connected by RJ45 connector at the inverter end and terminated cable
at the logger end.
Connect the RJ45 plug to the front COM port on the inverter via the supplied shroud.
Note: Make sure to plug into the COM port on the inverter (Terminal 2). DO NOT
plug into the RS485 port (Terminal 5)
As the Sungrow KTL series inverter only has one port for COM connection, if the daisy-
chain RS485 connection is required, this can be accomplished by using a third party
RJ45 splitter.

TD_202101_Logger1000_Quick Guide for 3-Phase PV Inverters (5-20kW)_V1.2 Page 5 of 16
© Sungrow Power Supply Co., Ltd. All rights reserved.
As we continuously improving our services, changes to this document may occur without notice.

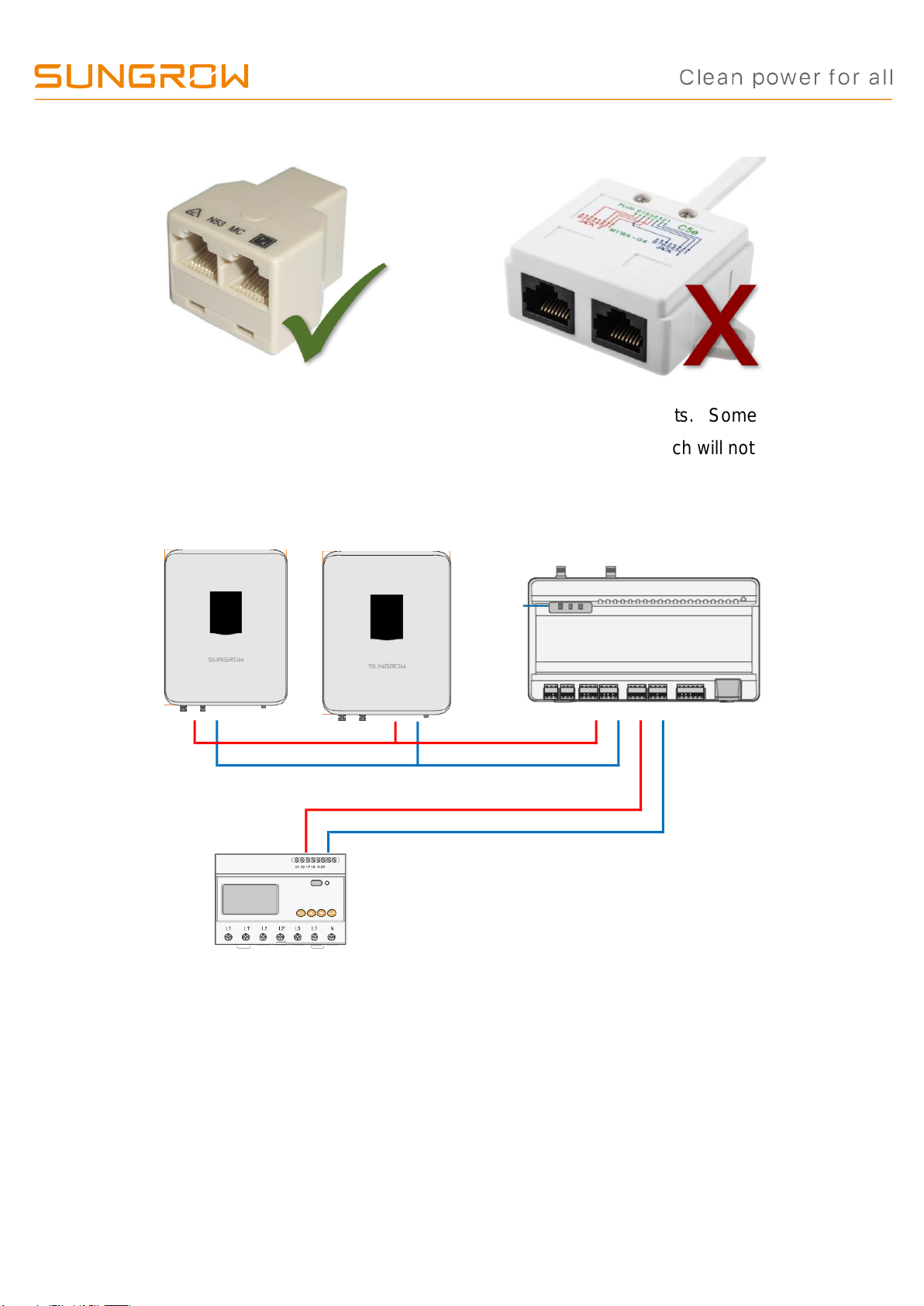

Note: Make sure the splitter splits 8-pin cable into two 8-pin outputs. Some of the
splitters only divide 8-pin cables into two groups of 4-pin outputs which will not work.
Note: Never connect the meter to the same RS485 terminals as the inverters.
Logger 1000
RS485 A
RS485 B
RS485 A
RS485 B
3-Phase meter
Inverter 1
Inverter 2

TD_202101_Logger1000_Quick Guide for 3-Phase PV Inverters (5-20kW)_V1.2 Page 6 of 16
© Sungrow Power Supply Co., Ltd. All rights reserved.
As we continuously improving our services, changes to this document may occur without notice.
2.2 Energy Meter Connection
For supplies smaller than 80 Amps, use the DTSU666 with inbuilt CTs.
For installations where the supply is larger than 80 Amps, the electrician need to select
appropriate CT ratings. The secondary current of CT should be 5A. The CT ratios can
be set on Logger1000. Please refer Meter Selection Guide for reference.

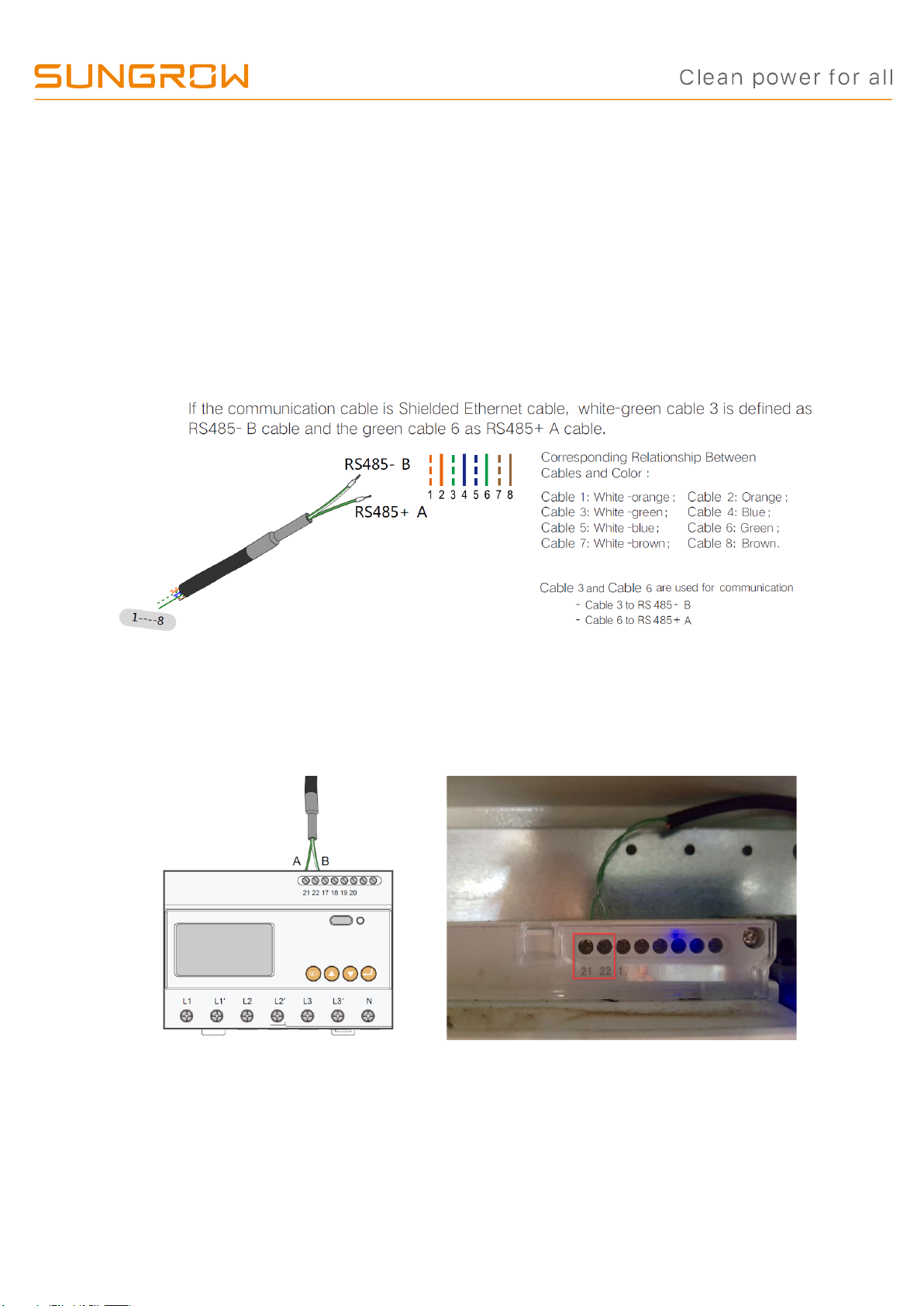

The corresponding pinouts to RJ45 are Pin 3 (White-green) to RS485- B and Pin 6
(Green) to RS485+ A:
On the DTSD1352 energy meter side, terminal 21 to Green cable (RS485+ A) and
terminal 22 to White / Green cable (RS485- B).
The following figures shows the meter cable connection on the energy meter.
Connect to Logger1000 via the RS485 cable from the energy meter on RS485 port A2
and B2.

TD_202101_Logger1000_Quick Guide for 3-Phase PV Inverters (5-20kW)_V1.2 Page 7 of 16
© Sungrow Power Supply Co., Ltd. All rights reserved.
As we continuously improving our services, changes to this document may occur without notice.
2.3 Connection to Logger1000
Connect the RS485 comms from the inverter(s) via A1/B1 and the energy meter via
A2/B2 (can be connect to A3/B3 if A2/B2 is occupied by inverters) to the Logger1000
as an example.
On the logger1000 side, A1 and B1 are terminals to connect with the inverter which
display as COM1 on the Logger1000 web portal; A2 and B2 are the terminals to
connect with the energy meter, they are shown as COM2 on the portal.

TD_202101_Logger1000_Quick Guide for 3-Phase PV Inverters (5-20kW)_V1.2 Page 8 of 16
© Sungrow Power Supply Co., Ltd. All rights reserved.
As we continuously improving our services, changes to this document may occur without notice.
3. Web Portal Setup
3.1 Access Web Portal

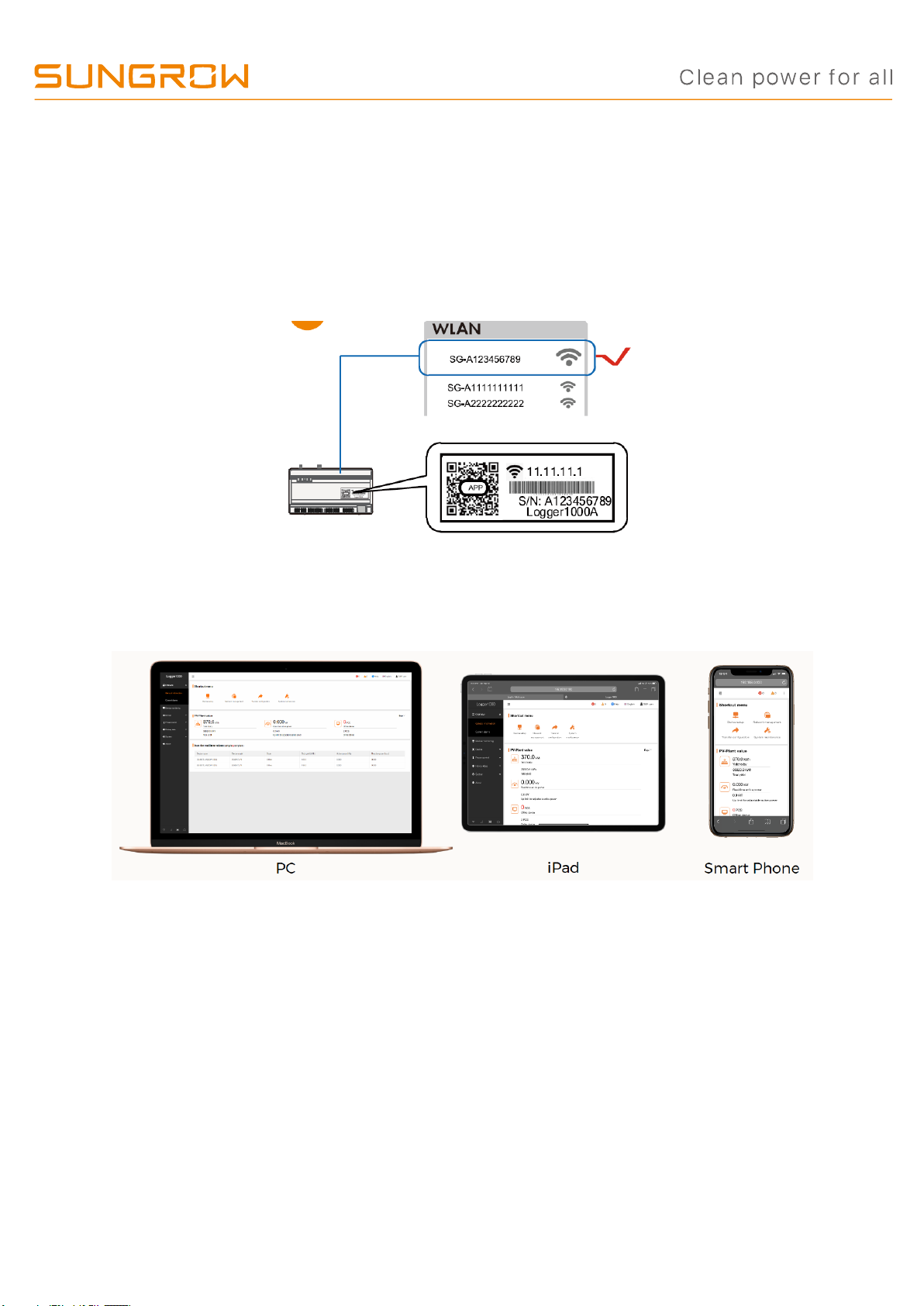

Use a smart device or laptop under Wi-Fi function to search for the SG********** (10
digits number) network that corresponds to the Logger1000 serial number. Connect to
the network, if a password required, use the serial number.
Open a web browser and enter IP address (11.11.11.1) to access below Logger1000
web page.
Then log in the account with the password “pw1111” via the top right corner login
button. When you log in for the first time, a help window will pop up for instruction.

TD_202101_Logger1000_Quick Guide for 3-Phase PV Inverters (5-20kW)_V1.2 Page 9 of 16
© Sungrow Power Supply Co., Ltd. All rights reserved.
As we continuously improving our services, changes to this document may occur without notice.
3.2 Set Local Time
Navigate to ‘System Time’ under System and select Clock Source to ‘NTP’ and Time
Zone to ‘UTC+10:00’ and make sure to Save

TD_202101_Logger1000_Quick Guide for 3-Phase PV Inverters (5-20kW)_V1.2 Page 10 of 16
© Sungrow Power Supply Co., Ltd. All rights reserved.
As we continuously improving our services, changes to this document may occur without notice.

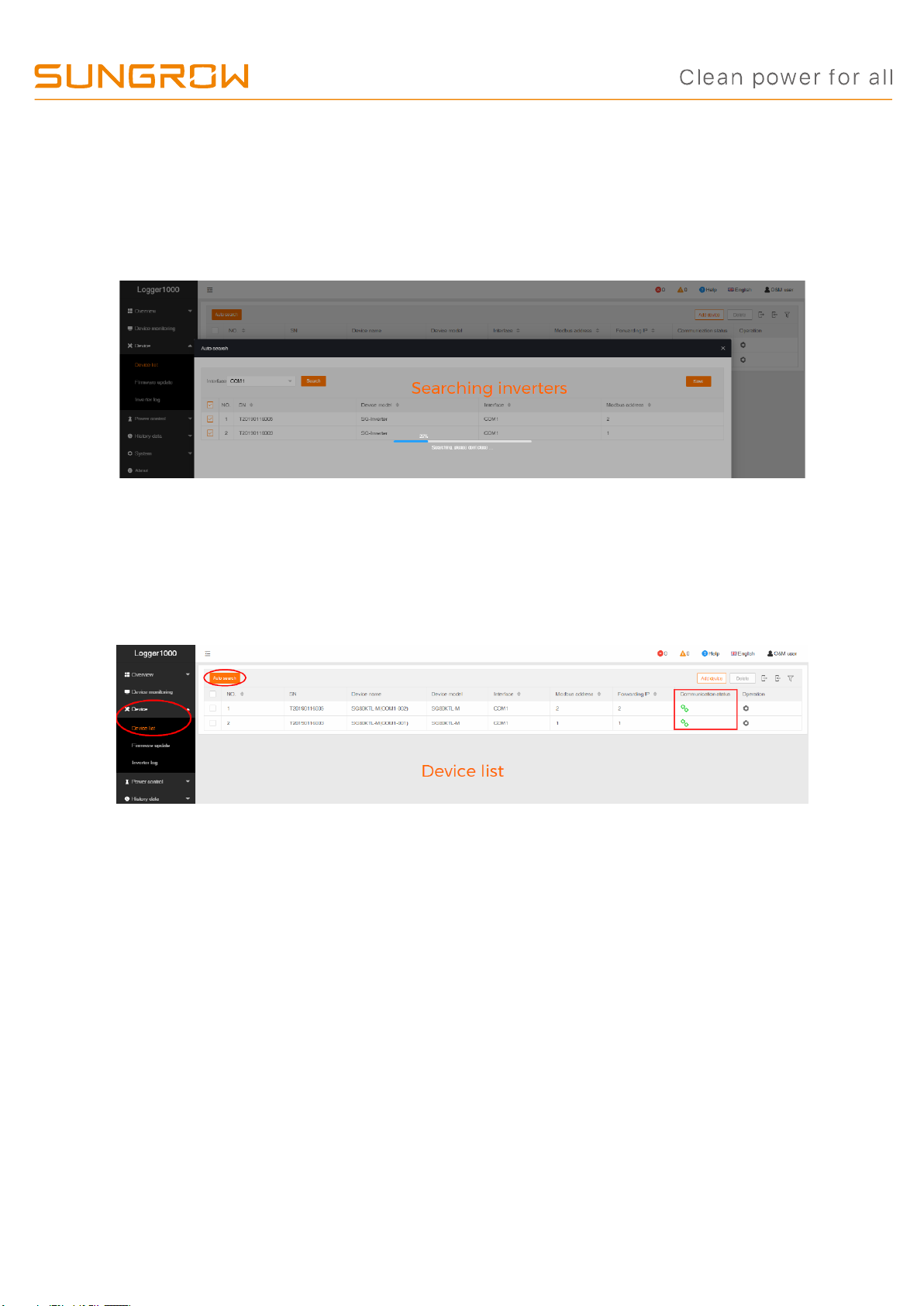

3.3 Scan for Inverters
Navigate to ‘Device’ and click ‘Device List’ section and click ‘Auto search’. Sungrow
inverters will be automatically detected as long as they are correctly connected and
energized.
Confirm the communication status for each device under Communication status
section. Green icon indicates the connection works and red icon means no connection
between Logger1000 and the device.

TD_202101_Logger1000_Quick Guide for 3-Phase PV Inverters (5-20kW)_V1.2 Page 11 of 16
© Sungrow Power Supply Co., Ltd. All rights reserved.
As we continuously improving our services, changes to this document may occur without notice.
3.4 Add Energy Meter
The energy meter needs to be manually added which is same as any other 3rd party
equipment.
To add the energy meter, click ‘Add device’ and select a device type in the pop-up
window and fill in the required information (Add device for DTSD1352 energy meter
and device address: 254)
If the meter connected with A2 and B2 on the Logger1000, the port number on the
portal is COM2. If the meter connected with A3 and B3 on the Logger1000, the port
number on the portal is COM3.

TD_202101_Logger1000_Quick Guide for 3-Phase PV Inverters (5-20kW)_V1.2 Page 12 of 16
© Sungrow Power Supply Co., Ltd. All rights reserved.
As we continuously improving our services, changes to this document may occur without notice.
3.5 Enable Remote Control
Select System-> Remote maintenance, enable the function and make sure
the Remote Service Address is selected as International Server.
Then go to System-> Transfer Configuration, click the Setting gearwheel
highlighted in red to change the Server Domain. Please make sure the domain
address is api.isolarcloud.com.hk

TD_202101_Logger1000_Quick Guide for 3-Phase PV Inverters (5-20kW)_V1.2 Page 13 of 16
© Sungrow Power Supply Co., Ltd. All rights reserved.
As we continuously improving our services, changes to this document may occur without notice.
3.6 Internet Connection
3.6.1 Connect via Ethernet Cable
Select System -> Port Parameter -> Ethernet.
Select ON for the DHCP setting and the home router could allocate a random
IP address to Logger1000. When Logger1000 is successfully connected to internet
via Ethernet cable and communicate with iSolarCloud, the Ethernet port icon
and the cloud icon on the left column (at the bottom) will be on.
3.6.2 Connect via WiFi
Select System -> Port Parameter -> WiFi.
Turn on the WiFi switch. Choose the customer network and enter the password, it will
display as Available WLAN Networks when it is connected successfully. When The
Logger1000 is successfully connected to internet via WiFi and communicate with
iSolarCloud, the WiFi icon and the cloud icon on the left column (at the
bottom) will be on.

TD_202101_Logger1000_Quick Guide for 3-Phase PV Inverters (5-20kW)_V1.2 Page 14 of 16
© Sungrow Power Supply Co., Ltd. All rights reserved.
As we continuously improving our services, changes to this document may occur without notice.
3.7 Add CT Transformation Ratio.
Navigate to ‘Device Monitoring’ and select the meter DTSD1352. Click “Initial
Parameter”. If the ratio is 200/5, then enter value 40 in the CT Transformer Ratio.

TD_202101_Logger1000_Quick Guide for 3-Phase PV Inverters (5-20kW)_V1.2 Page 15 of 16
© Sungrow Power Supply Co., Ltd. All rights reserved.
As we continuously improving our services, changes to this document may occur without notice.

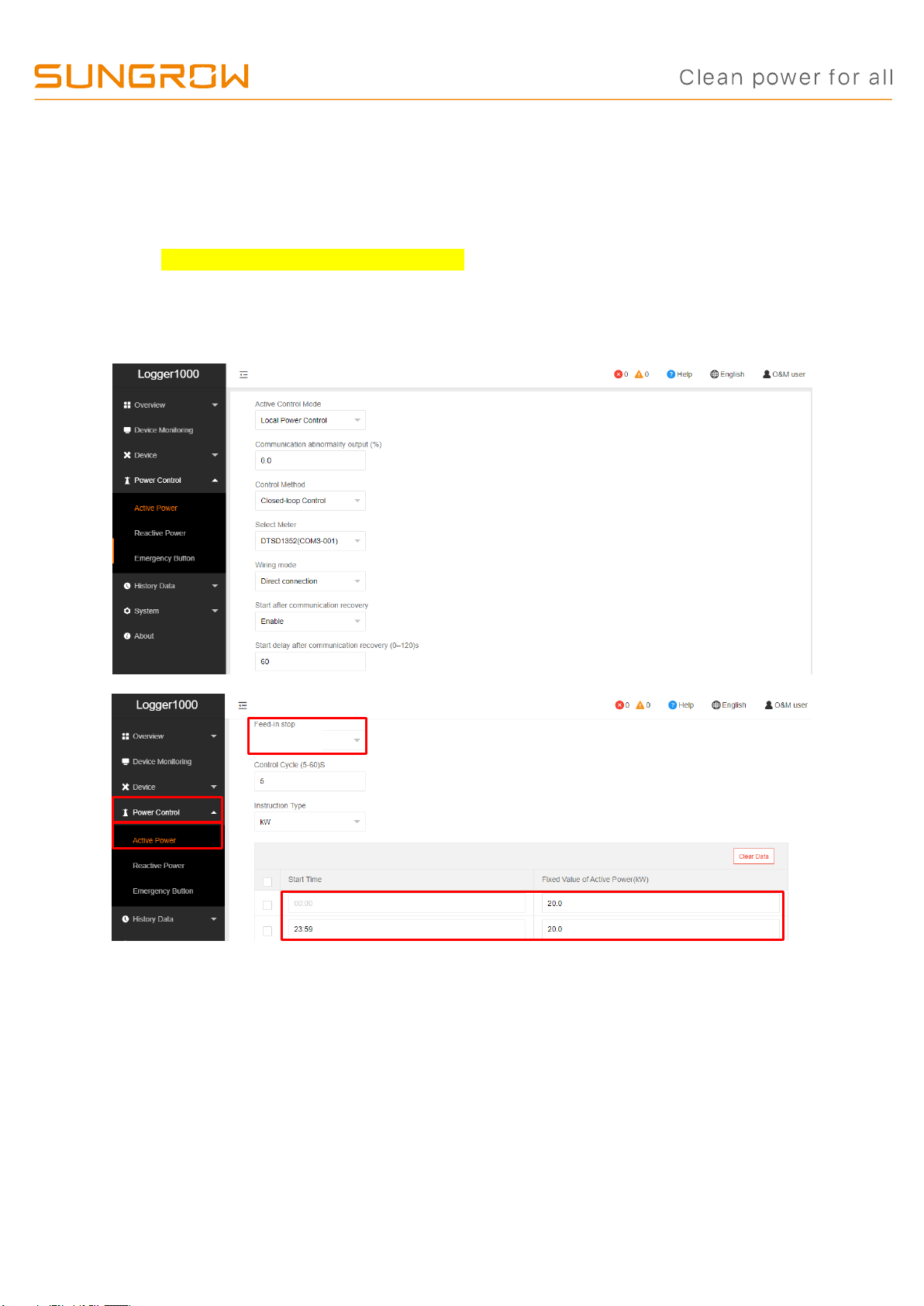

3.8 Setup Export Control if required
Select Power Control -> Active Power. Then you can set all the parameters as
following figures. The Fixed Value of Active Power is the part to set the power limit.
Note: make sure to disable ‘Feed-in stop’
Example: A 50 kW inverter and need export limit to 20 kW, then enter ‘Fixed Value of
Active Power’ to 20 kW.
Disable

TD_202101_Logger1000_Quick Guide for 3-Phase PV Inverters (5-20kW)_V1.2 Page 16 of 16
© Sungrow Power Supply Co., Ltd. All rights reserved.
As we continuously improving our services, changes to this document may occur without notice.

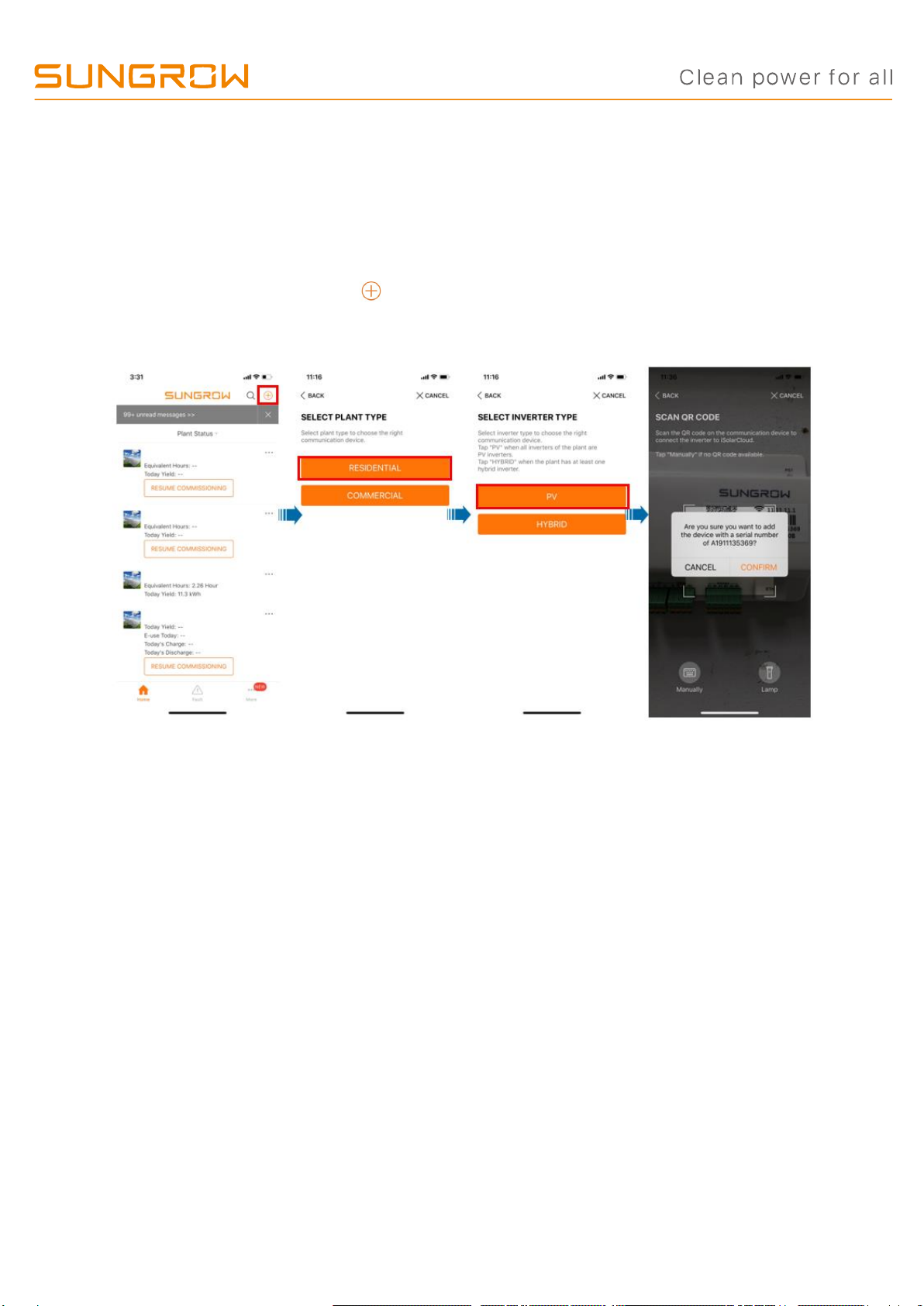

4. Create Plant on iSolarCloud
The iSolarCloud portal is available for the Logger1000 online monitoring. You need to
create an iSolarCloud installer account if you do not have one, then you can create a
plant to link with Logger1000 via the iSolarCoud APP.
Login your account and click “ ” on top right corner to create a new plant.
Create Plant -> Commercial -> PV ->Scan the QR Code of Logger1000.
Then you only need to enter the customer’s basic information, and the plant will be
created in a few minutes.
If you have any questions, please contact Sungrow Service Department on 1800 786
476 or email to [email protected].
