Sunjoy A208001002 User manual

1 of 17
This a
pp
liance com
p
lies with “ANSI Z21.97-2017
/
CSA 2.41-2017
,
Outdoor Decorative Gas A
pp
liances.
WARNING: For Outdoor Use Only.
Installation and service must be performed by a
qualified installer, service agency, or the gas
supplier.
DANGER
FIRE OR EXPLOSION HAZARD
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, leave the area immediately
4. After leaving the area, call your gas supplier or fire
department.
Failure to follow these instructions could result in
fire or explosion, which could cause property
damage, personal injury, or death.
INSTALLER: Leave this manual with the
appliance.
CONSUMER: Retain this manual for
future reference.
WARNING: If the information in this manual is not
followed exactly, a fire or explosion may result causing
p
ro
p
ert
y
dama
g
e
,
p
ersonal in
j
ur
y,
or loss of life.
WARNING
Do not store or use gasoline, or other flammable vapors and liquids, in the vicinity of this or
any other appliance.
An LP-cylinder not connected for use shall not be stored in the vicinity of this or any other
appliance.
DANGER CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space such as a camper, tent,
car or home.
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY
For Outdoor Use only. Not for Commercial Use.
Propane cylinder required (not included)
ITEM No.: A208001002

2 of 17
TABLE OF CONTENTS
General information …………….…….………………….………………..………….…… 2
Specification……….……………………………………….……………….……….……… 3
Important safety information and precaution……………….….….….….…….…… 3-4
Expanded view……………………………………………………….……….……..……… 5
Parts list……………………….………………………….………………………………6-7
Installation………………………….………………………..………………….………8-12
Location……………………………………………………………………….…….…….. 13
Set up……………………………………………………………….…………….……...… 14
Gas connection ………………………………….……………….…………………… 14
Operation……………………………………………………………….……….…….. 15
Leak check………………………………………………………….……………...…… 15
Ignite lighting………………………………………………………….………………. 15
Storage and Maintenance………………………………………….……...............…..…16
Trouble shooting ………………………………………………...….………………..… 17
Limited warranty……………………………………………………………….….…… 17
WARNING: Failure to position the parts in accordance with these diagrams or use only parts specifically
approved with this appliance may result in property damage or personal injury.
WARNING: This product can expose you to Carbon Monoxide, which is known to the State of
California to cause birth defects or other reproductive harm. For more information go to
www.P65Warnings.ca.gov
GENERAL INFORMATION
IMPORTANT
Please take time to read these instructions thoroughly and follow each step carefully for
safe and easy operation. Keep this manual to consumer for installer and consumer future
reference/use.
We would like to hear from you with any comments or suggestions. In the continental
U.S., you can call Sunjoy Toll Free number: 1-866-578-6569 at any time.

3 of 17
SPECIFICATION
IMPROTANT SAFETY INFORMATION AND PRECAUTION
 The installation must conform with local codes, or in the absences of local codes with the National
Fuel Gas Code, ANSI Z223.1/NFPA54; International Fuel Gas Code, Natural Gas and Propane
Installation Code, CSA B149.1; or Propane Storage and Handling Code, B149.2, as applicable.
 The LP gas supply cylinder to be used must be:
1- Constructed and marked in accordance with the U.S. Department of Transportation (D.O.T.)
Specifications for LP-Gas Cylinders, or the Standard for Cylinders, Spheres and Tubes for
transportation of Dangerous Goods and Commission, CAN/CSA-B339 as applicable;
2- Provided with a listed overfilling prevention device;
3- Provided with a cylinder connection device compatible with the connection for the appliance.
 Always place the appliance on a firm and level surface.
 Solid fuels shall not be burned in this gas appliance. When using decorative Lava Rocks, use only
Lava Rocks (INCLUDED).
 The appliance shall be used only outdoors in a well-ventilated space and shall not be used in a
building, garage or any other enclosed area.
 When in use, keep the appliance area clear and at least 40 in / 101.6 cm side, back and top
clearance from combustible materials, gasoline and other flammable liquid and vapors. Do not use
the appliance under overhead combustible surfaces. Certain items or materials, when stored under
the appliance or nearby, will be subjected to radiant heat and could be damaged.
 Open the door and inspect the hose assembly and burner prior to each use. If there is evidence of
excessive abrasion or wear or if the hose or burner is damaged, it must be replaced by appropriate
part from the manufacturer.
 Inspect the gas connections of the appliance prior to each use. Do not to operate the unit if there is a
Product name Dining
Model NO. A208001002
Rated Heat Output 38,000BTU/HR
Fuel Propane-LP
Gas Supply 20 lb. LP-Gas cylinder
Manifold Pressure 11 Inches W.C.
Orifice Size (diameter) 1.9mm
Gas Supply Pressure Max.250 PSI Min.25 PSI

4 of 17
gas leak. Have the appliance inspected annually by a qualified service person.
 The pressure regulator and hose assembly provided with the appliance must be used. The
replacement part must be the same as the part specified by manufacturer.
 The assembly of LP-gas and leak checking please refer to the “Gas connection” on page 14 and
“leak Test” on page 15.
 Children and adults should be alerted to the hazards of high surface temperatures and should
stay away to avoid burns or prevent clothing ignition.
 Young children and pets should be carefully supervised when they are in the area of the
appliance.
 Any guard or other protective device removed for servicing the appliance must be replaced
prior to operation.
 Clothing or other flammable materials should not be hung from the appliance or placed on or
near the appliance.
 Do not use the appliance if any part has been under water. Immediately call a qualified technician to
inspect the appliance and to replace any part of the control system and any gas control which has been
under water.

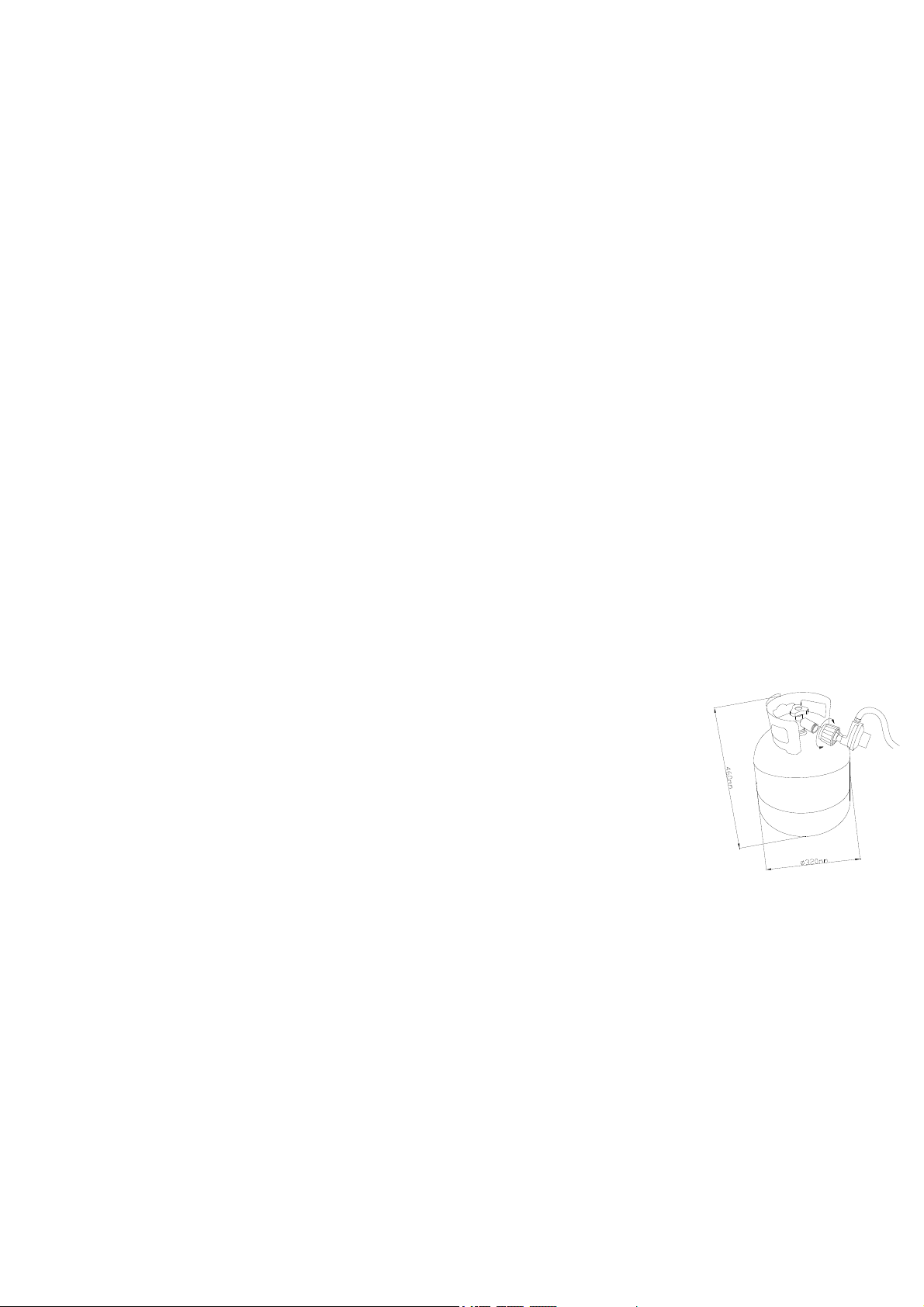

 LP-gas supply cylinder to be used must be constructed and marked in accordance with the
specifications for LP-gas cylinders of the U.S. Department of Transportation (DOT).
 The cylinder supplies system must be arranged for vapor withdrawal and the cylinder must include a
collar to protect the cylinder valve.
 Use only 20 lb / 9 kg LP-Gas cylinders.
 Do not burn wood or any other materials in this appliance.
 The appliance must be isolated from the gas supply piping system by closing
its individual manual shutoff valve during any pressure testing of the gas supply
piping system at test pressure equal to or less than 1/2psi (3.5kPa).
 That other cylinder may be acceptable for use with the appliance provided
they are compatible with the appliance retention means and accompanied by illustration(s) depicting
the cylinder mounted to the appliance utilizing the cylinder retention means and the point of contact
between the cylinder and the retention means.
 Properly place the hose out of pathways where people may trip over it or in areas where there may
be subject to accidental damage.
 The burner must be replaced prior to the appliance being put into operation if it is evident that the
burner is damaged. The replacement burner must be the same as the part specified by manufacturer.
 The cleaning of the appliance including the burner, please refer to “Storage and Maintenance” on
page 16.

5 of 17
EXPANDED VIEW

6 of 17

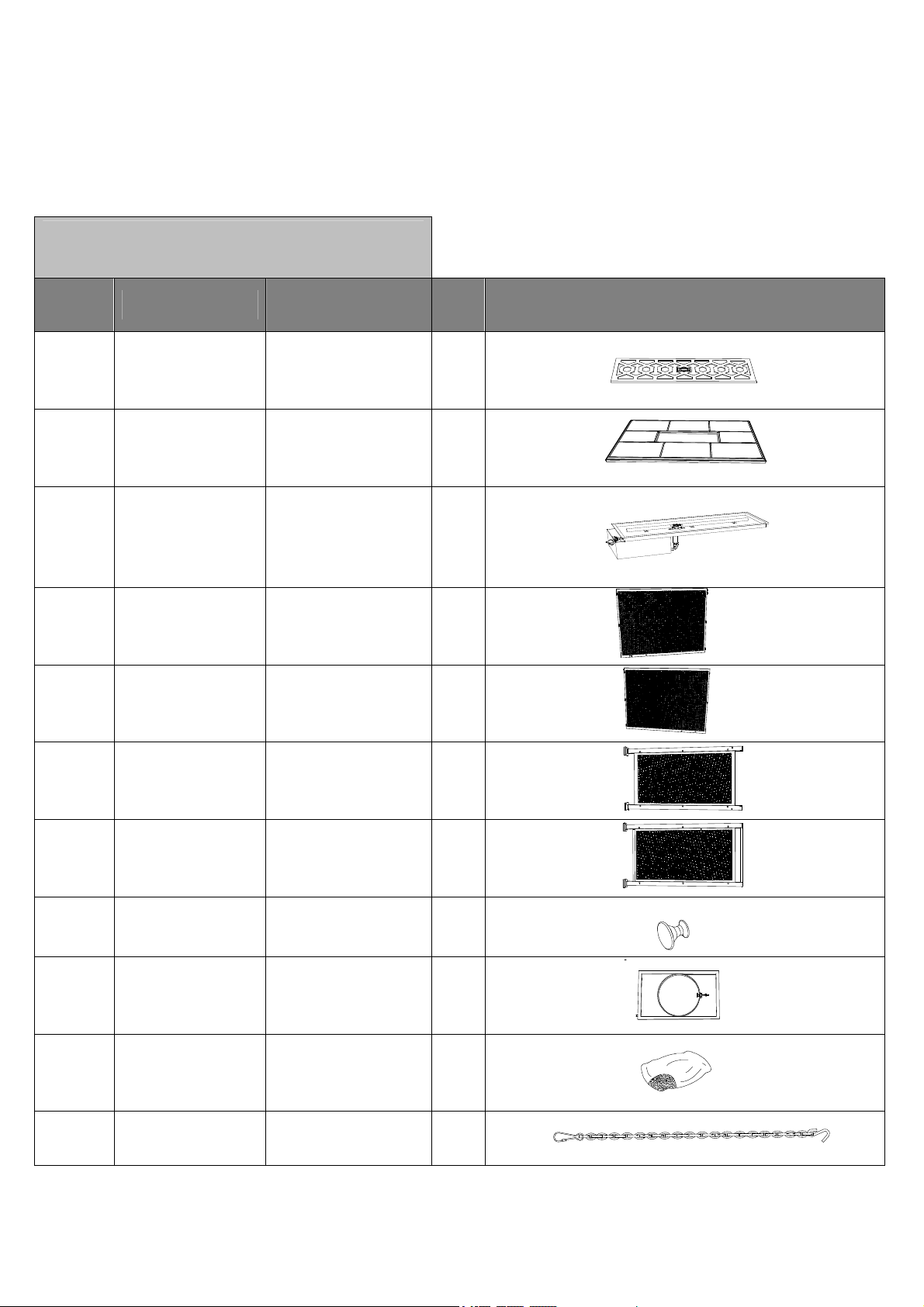

Parts List
Label Part Number Description Qty Part Image
A P003100091 Lid 1
B P002100356 Table top 1
C P002500069 Fire bowl 1
D1 P002400046 Back panel 1
D2 P002400047 Front panel 1
E P002400048 Side panel 1
F P004100115 Panel 1
F1 P005100075 Handle/door knob 1
G P006700038 Cylinder rack 1
H P006600020 Lava rock(1 KG) 4
I P005100076 Chain 2

7 of 17
Hardware Pack
Label Part Number Description Qty Add Part Image
AA H010020011 Bolt M6*15 16 2
BB H050010020 Flat washer
M6 24 3
CC H010020023 Bolt M6*30 4 1
DD H030040007 Bolt M4*25 1 1
EE H010110016 Bolt M6*15 4 1
FF H090010017 Wrench M6 1 0 
If you want to replace the parts listed, please contact Customer Service Center: 1(866) 578-6569.


8 of 17
INSTALLATION
1
1x
1x
4x 4x
1x

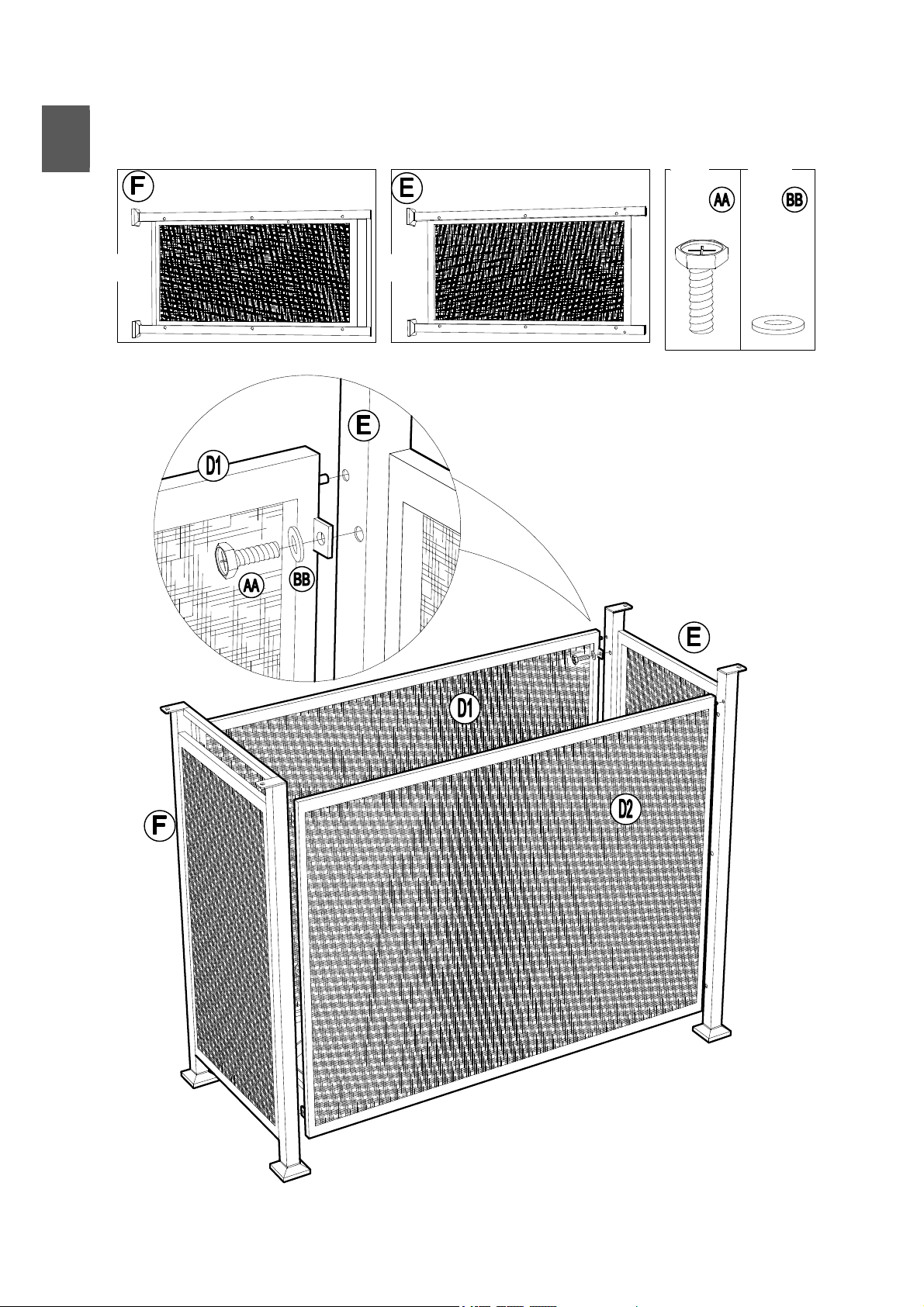

9 of 17
2
12x 12x
1x1x

10 of 17
3
4x 4x
1x
1x

11 of 17
4
1x 4x
1x
4x

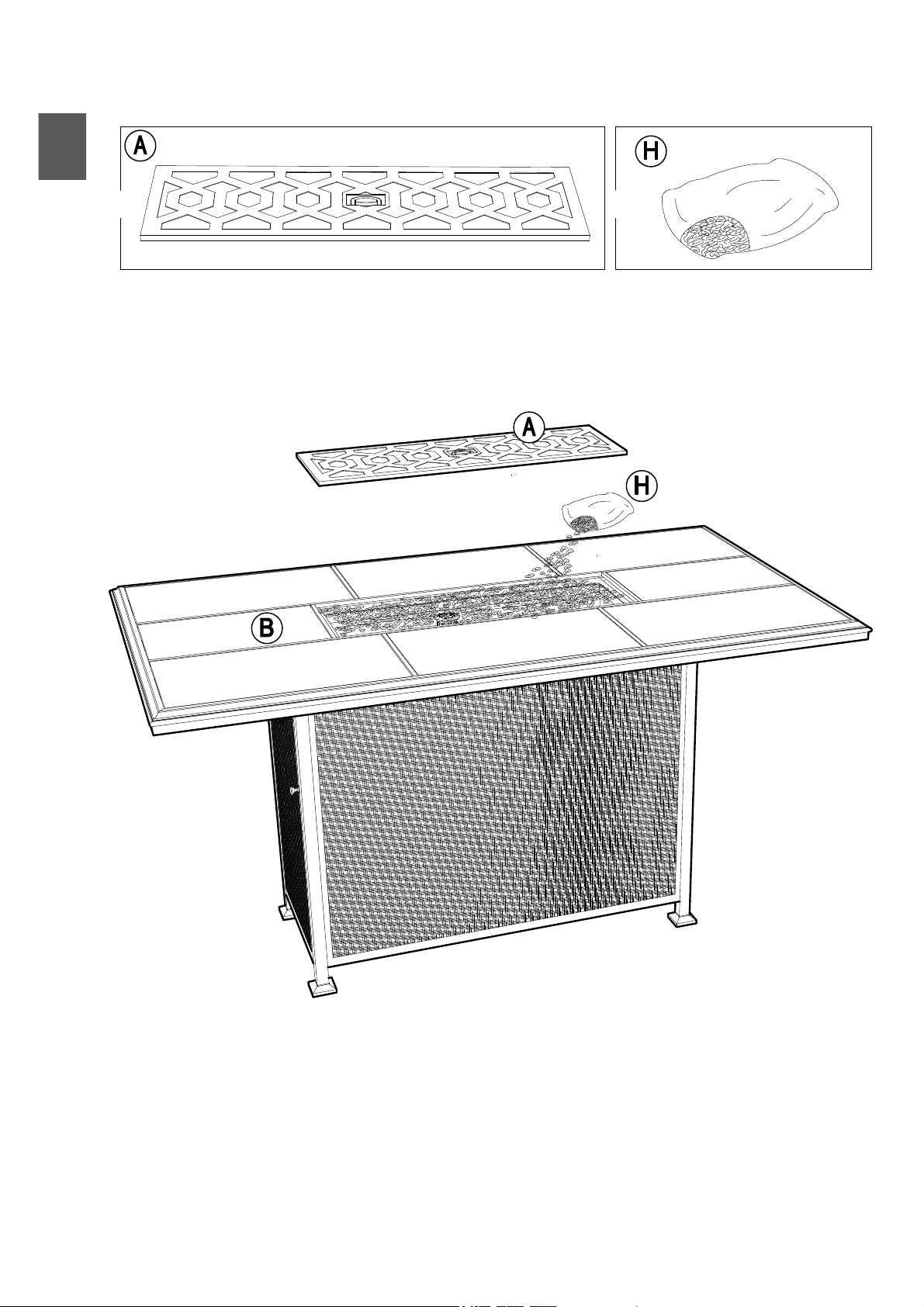

12 of 17
5
1x
1x

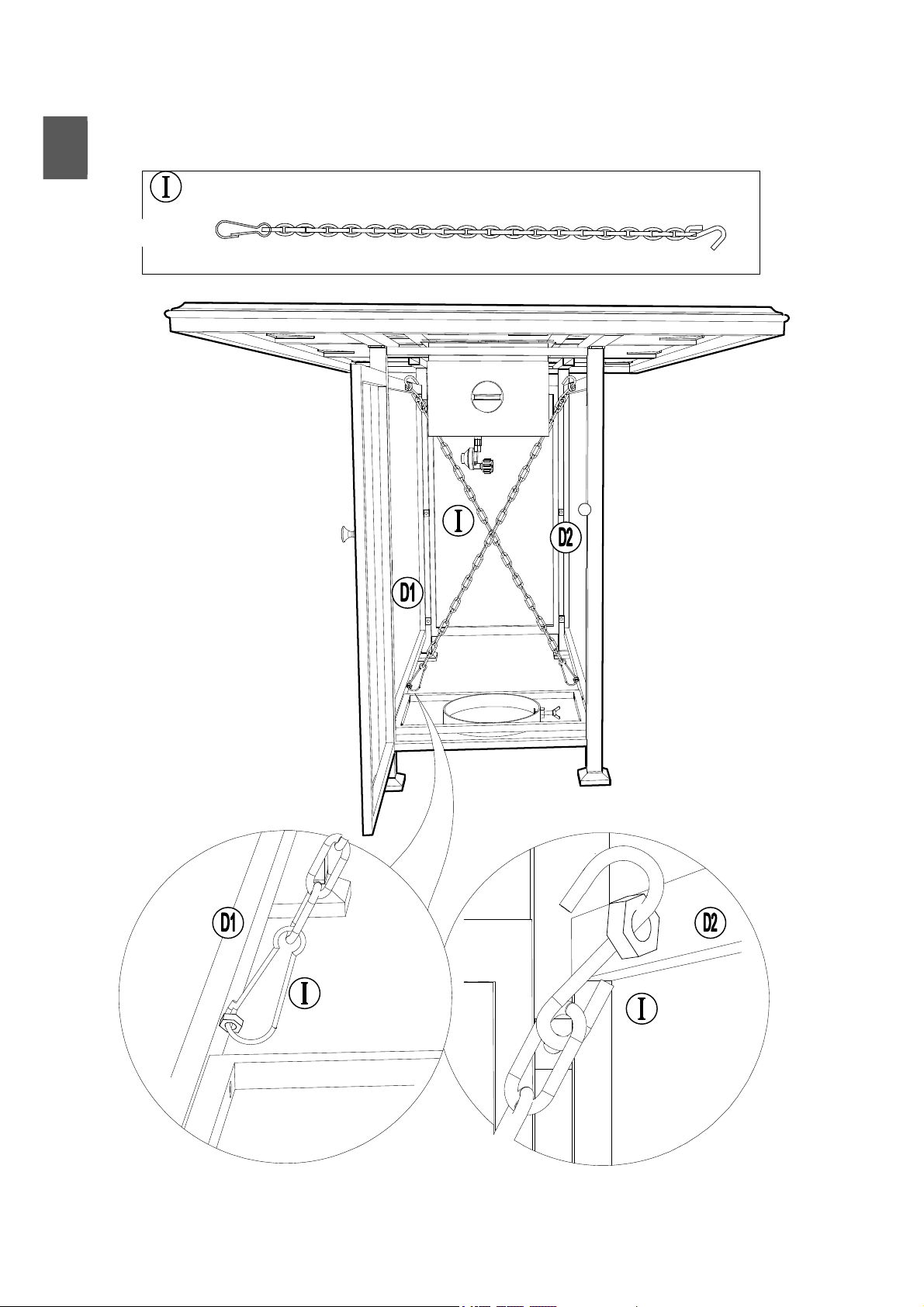

13 of 17
6
2x

14 of 17
LOCATION
Your Gas appliance must be installed on a flat, stable surface, away from any combustible materials or
construction.
SET-UP
Your Gas appliance comes assembled, ready for a Gas connection.
1- Remove the appliance from container box and place it on any level, outdoor, non-combustible
surface.
NOTE: Do not place this appliance on grass or dirt area. This may prevent proper safety venting.
2- Open the gas door and put the cylinder inside.

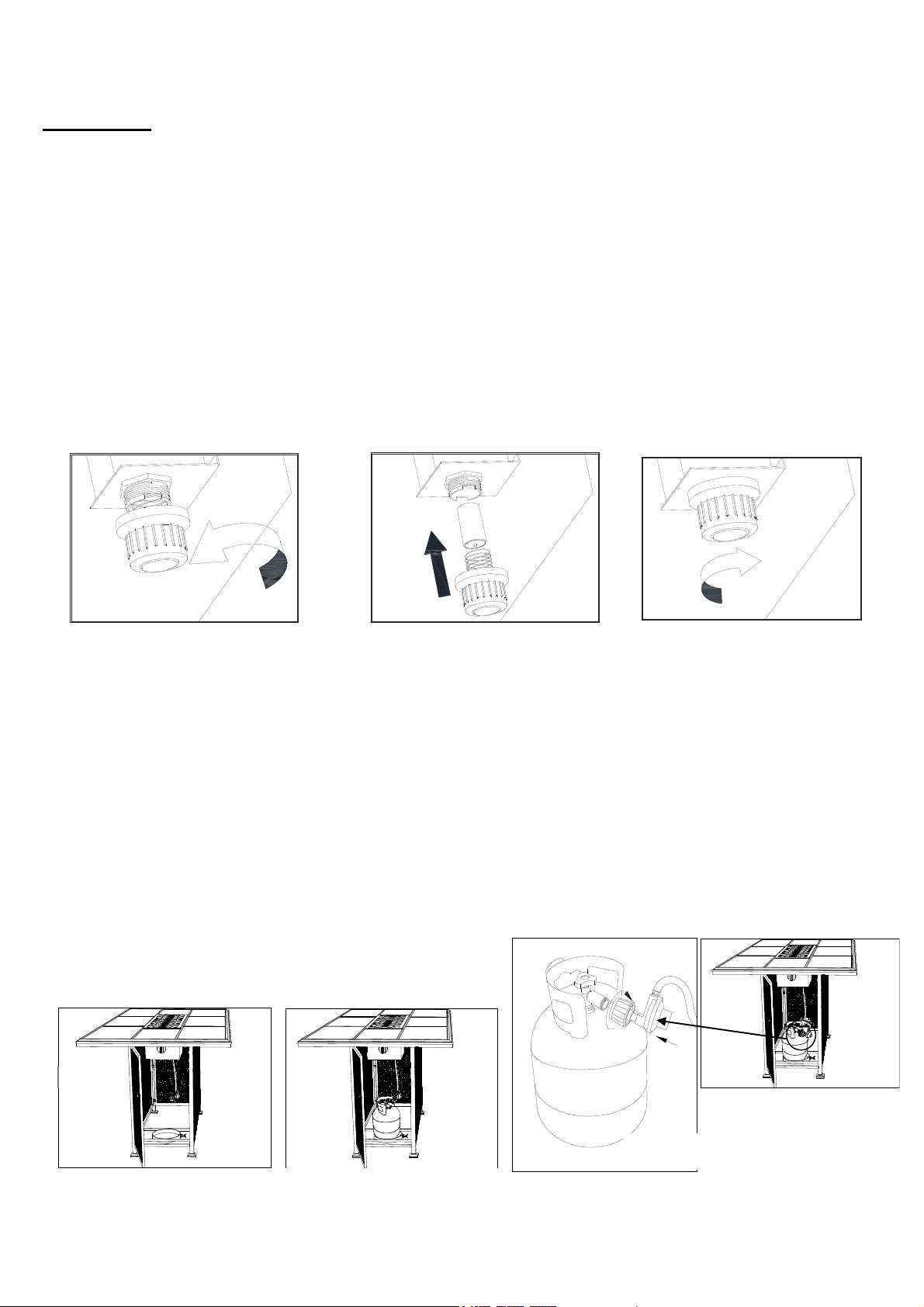

3- Unscrew the battery box as shown in Fig 1.Insert the negative electrode side of the battery into the
bottom of battery box as shown in Fig 2. Then screw the battery box as shown in Fig 3.
Fig 1 Fig 2 Fig 3
Note: If the battery of the pulse electronic igniter runs out of power, please replace the new battery as
above.
Gas Connection
1- Open the door and control valve outside. See Fig 4.
2- Put the cylinder into the cylinder rack. See Fig 5.
3- Connect the regulator and the cylinder as per Fig.6. Make sure there is no leakage or damage
(please refer to “Leak Test” on page 15 and the damage checking on page 4).

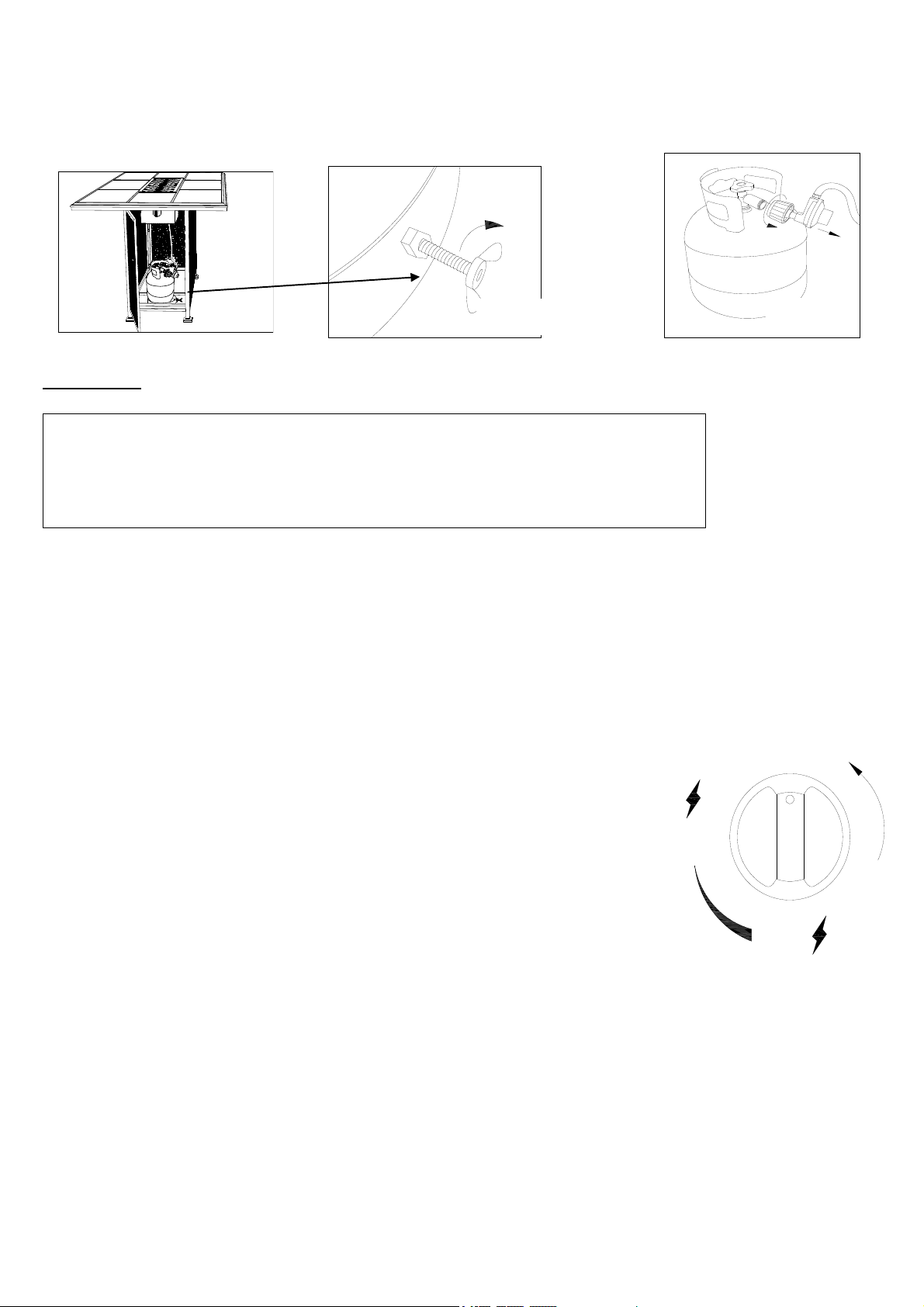

4- Turn the butterfly nut on the cylinder frame, so that the nut is held against the bottom of the cylinder,
to make sure the cylinder can be fixed. See Fig 7.
5- Disconnect the regulator and the cylinder as per Fig.8
Fig 6
Fig. 4
Fig. 5

15 of 17
OPERATION:
LEAK TEST
!!!WARNING!!!
 Do not use an open flame to check for leaks.
 Do not smoke during testing.
 Do not test indoors.
 A leak check must be performed whenever the gas cylinder is replaced.
1. Make sure the control knob is in the “OFF” position.
2. Make sure the gas cylinder is correctly and securely connected to the pressure regulator, without over
tightening.
3. Turn on the gas cylinder valve. Apply 50% soap and 50% water solution to the gas hose and
connections between the control knob and gas cylinder.
4. If something is leaking, you will see bubbles form. In case of leaks, turn off the gas supply, undo the
leaking connection, re-connect it and try again. If the leak persists, consult Customer Service Center for
assistance (
1(866) 578-6569 ).
5. If the connection does not leak, continue to the next step.
LIGHTING THE BURNERS
1. Push in and turn control knob to LOW.
2. If the burner is not lit, turn the knob back to "OFF" .Wait 5 minutes and
repeat step 1.
3. If burner is lit,Continue to depress control knob for 1-2 minutes until the
thermocouple is hot.
4. Release control knob and the burner should stay lit.
5. Turn control knob to desired heat setting,LOW-HIGH.
6. Turn control knob to OFF to shutdown. Turn off gas supply at
cylinder.Allow a 5-minutes complete shut off period before relighting the
appliance.
Fig 8
Fig 7
OFF
HIGH
MAX
BAS
ARRET
LOW

16 of 17

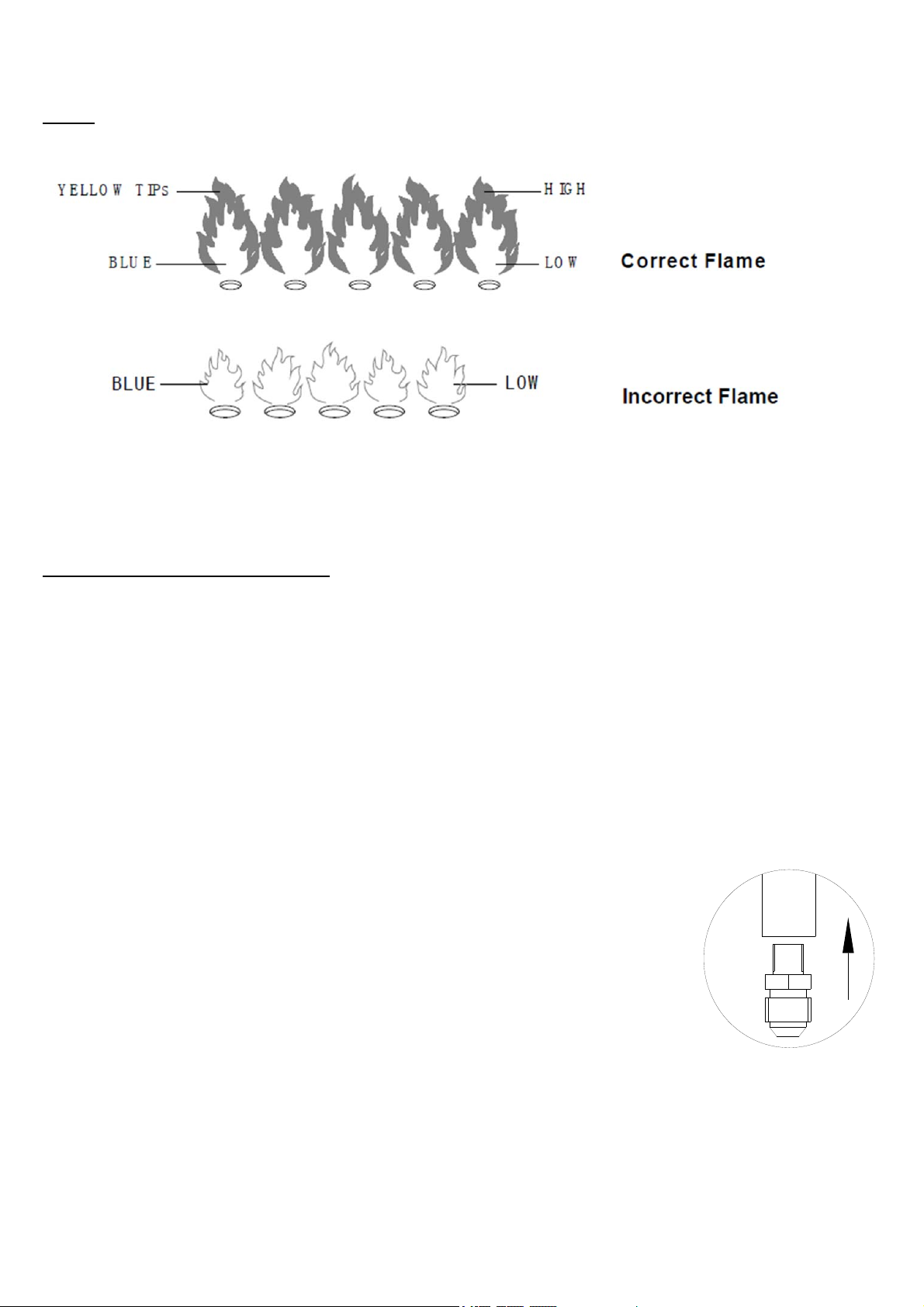

NOTE: While in use, the burner flame should be mainly blue in appearance with a small amount of yellow.
The flame can be identified by the following figure.
Warning: Lighting the Fire Pit improperly could lead to an unsafe condition.
7. Press in and turn the control valve knob clockwise to OFF to shut down fireplace. Close the gas
cylinder valve when the fireplace is not in use.
(
CAUTION: Do not kink flexible gas hose. If it is kinked, a gas leak could occur.)
STORAGE AND MAINTENANCE:
To obtain the best performance from your fireplace, you must perform the following storage and
maintenance activities on a regular basis:
 Allow at least 35 minutes for the fireplace to cool down after use, before disconnecting and removing
the gas cylinder.
 Store the gas cylinder in a dry, well-ventilated and sheltered area protected from inclement weather
and dust, out of the reach of children, and not in a building, garage or any other closed area.
 The fireplace may be stored indoors only if the cylinder is disconnected and removed.
 Keep the fireplace area clear and free from combustible materials, gasoline and other flammable
vapors and liquids.

Installation and repair should be done by a qualified service person. The fireplace should be
inspected before use and at least annually by a qualified service person. More frequent cleaning
may be required as necessary. It is imperative that the control compartment, burner, and
circulating air passageways of the fireplace be kept clean
.
 If you disassemble the burner when cleaning the fireplace, please
reassemble it according to the picture on the right to make sure the burner
induction tunnel is on and exactly cover the orifice base. It is imperative that
the control compartment, burner, and circulating air passageways of the
fireplace be kept clean. It is recommended not to disassemble the burner.
 Permanent installation and repair should be done by a qualified service
person. The fireplace should be inspected annually by a qualified service
person.

17 of 17
TROUBLE SHOOTING:
PROBLEM OBSERVED POSSIBLE CAUSE CORRECTIVE MEASURES
Gas odor Gas leak See “If you smell gas:” on front
cover of manual
Check all gas connections
Delayed ignition Low gas pressure
Clogged or dirty burner
ports Blocked orifice
Spent battery
Check gas supply pressure
Clean burner ports-see manual
section
Check orifice opening
Change new battery
Incorrect burner flame Incorrect gas supply or
pressure Blocked orifice
Clogged or dirty burner
ports
Check gas supply pressure
Check and clean orifice opening
Clean burner ports
If you want to replace the parts listed, please contact SUNJOY Customer Service Center (1(866)
578-6569).
LIMITED WARRANTY:
Subject to the conditions set out below, this product is warranted to the original purchaser to be free from
defects in workmanship and materials for 6 months from the date of purchase.
 Satisfactory proof of the purchase date must be furnished at the time of notification of the defect for
any claim under the warranty to be enforceable.
 This warranty covers all parts found defective in workmanship and/or materials during the warranty
period and can be repaired or replaced at the discretion of the manufacturer at no cost to the original
purchaser.
 This warranty will be void if the product has not been assembled, installed or operated according to
the instructions, or subjected to abuse, improperly treated, neglected, rusted by exposure to the
elements, misused and/or if any repairs, maintenance, or service has been done by an unauthorized
person.
 Returns must be properly packaged and returned to the dealer from whom the product was acquired.
 The manufacturer, distributor and retailer will not be liable for any incidental or consequential loss or
damage arising from the installation or operation of the product and/or the failure of any part for any
reason.
 There are no other express or implied warranties, except for those stipulated herein. This warranty
gives specific rights and the original purchaser may have additional rights and remedies in law.
 This warranty does not cover commercial use.
Please do not return this product to the store. For technical assistance on assembly or
replacement parts call Sunjoy Group at 1(866) 578-6569 at any time or visit
www.sunjoyonline.com to place your order or fax your parts replacement order form together
with your purchase receipt to 1 [phone] for assistance.
Made in China


Country of Origin: China Production Number: xxxxxxxxxx
































 



ITEM No.:A211001201
WE HAVE YOU IN MIND, LET US SERVE YOU!
Questions? Issues?
CONTACT US
24 hours / 7 days a week
www.sunjoyonline.com 
1-(866)-578-6569
[email protected]


Country of Origin: China
2/12





































Safety Information
One people are required for this assembly.
Some parts may contain sharp edges. Wear
protective gloves.
When assembling and using this product,
basic safety precautions should always be
followed to reduce the risk of personal
injury and damage to equipment. Please read
all instructions before assembly and usage.

Thelimitedwarrantyisextendedtotheoriginalpurchaserandappliestomaterialandmanufacturer’sdefectprovided
theitemismaintainedwithcareandusedonlyforpersonal,residentialpurposes.
Warranty: 6 Months
WHAT IS COVER?
KEEPTHISINSTRUCTIONMANUALFORFUTUREREFERENCE.
CAUTION: Chair is for setting
purpose only. Standing on or misuse of
chair may result in damage or injury.
Not intended for commercial use.
WEIGHT LIMIT 225LBS (102KG)
NOTICE: For both outdoor and indoor use
WARING:
Keep all children and pets away from assembly area.
Children and pets should be supervised when they are
in the area of the Chair construction.
Keep assembly area at least 6 feet from any obstruction
such as a fence, garage, house, overhanging branches,
laundry line or electrical wires.
Check all bolts for tightness before use. IMPORTANT -
check and tighten bolts often to keep them secure!
IMPORTANT


Country of Origin: China
3/12


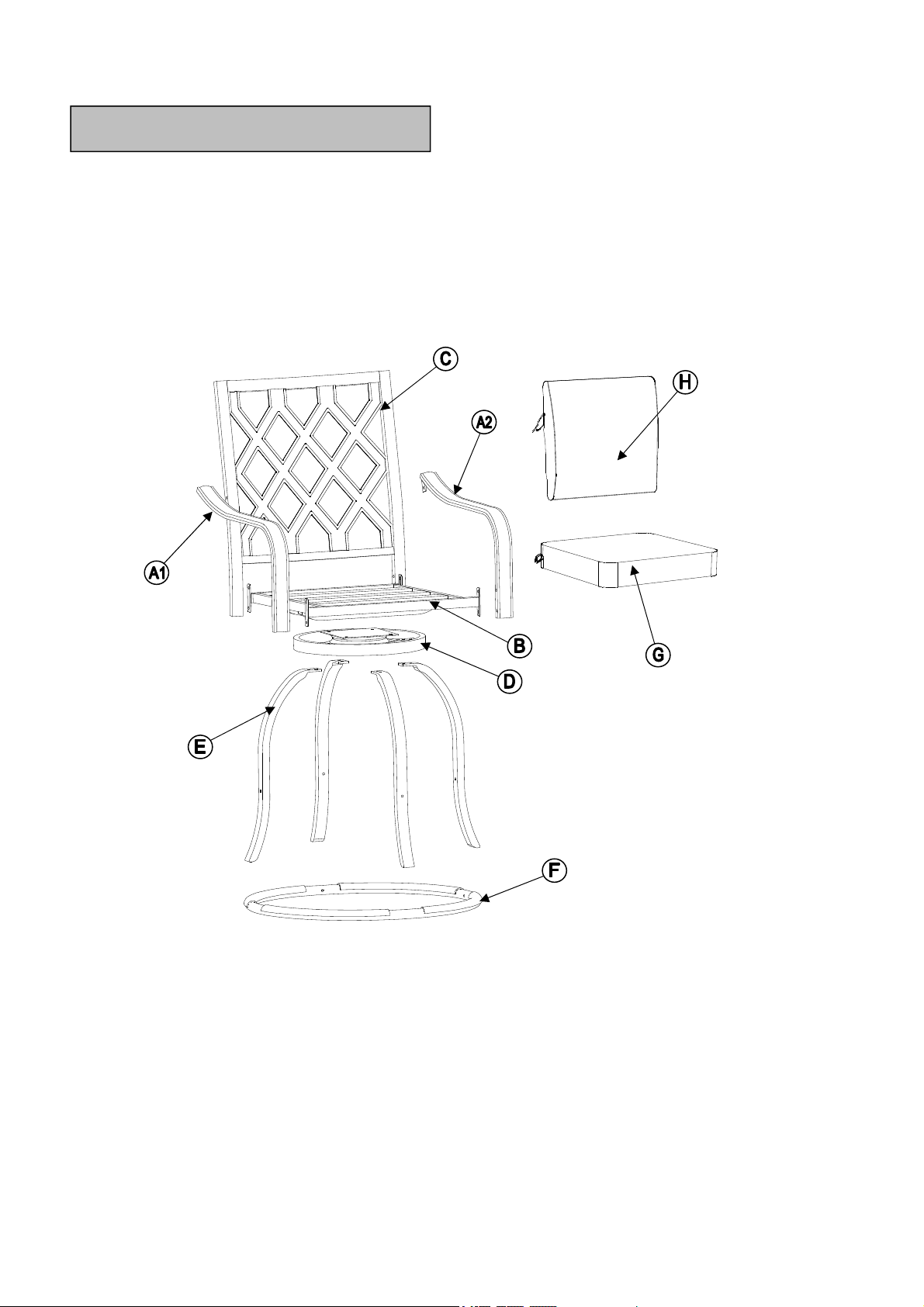

EXPLODED DRAWING
