Sunjoy Stoneridge L-DN1773SST-D-T User manual

1 of 13
Item# L-DN1773SST-D-T
This appliance complies with “ANSI Z21.97-2014/CSA 2.41-2014, Outdoor Decorative Gas Appliances.
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from the
appliance and immediately call your gas
supplier or fire department.
WARNING: For Outdoor Use Only.
WARNING:
Improper installation, adjustment, alteration,
service or maintenance can cause injury or
property damage. Read the installation,
operating and maintenance instructions
thoroughly before installing or servicing this
equipment.
WARNING
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance.
An LP-cylinder not connected for use should not be stored in the vicinity of this or any other
appliance.
DANGER CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space such as a camper, tent,
car or home.
Propane tank not included
AA battery needed, not included
Stoneridge Fire Pit High Dining Table
Assembly Instruction

2 of 13
TABLE OF CONTENTS
General information …………….…….………………….………………..………….…… 2
Specification……….……………………………………….……………….……….……… 3
Important safety information and precaution……………….….….….….…….…… 3-4
Expanded view……………………………………………………….……….……..……… 5
Parts list……………………….………………………….…………………………….……6
Installation………………………….………………………..………………….…….…7-9
Location……………………………………………………………………….…….…….….10
Set up……………………………………………………………….…………….……...…10
Gas connection ………………………………….……………….……………….……… 10
Operation……………………………………………………………….……………...…11
Leak check………………………………………………………….…………………...…11
Ignite lighting………………………………………………………….…………………. 11
Storage and Maintenance………………………………………….……...............…12
Trouble shooting ………………………………………………...….………………...… 13
Limited warranty……………………………………………………………….….…… 13
GENERAL INFORMATION
IMPORTANT
Please take time to read these instructions thoroughly and follow each step carefully for
safe and easy operation. Keep this manual to consumer for installer and consumer
future reference/use.
We would like to hear from you with any comments or suggestions. In the continental
U.S., you can call Sunjoy Toll Free number: 1-866-578-6569 from 8:00 am EST to 8:00
pm PST Monday to Friday.
You can also send us an email to [email protected]

3 of 13
SPECIFICATION
IMPROTANT SAFETY INFORMATION AND PRECAUTION
 When the appliance is for connection to a fixed piping system, the installation must conform with
local codes, or in the absences of local codes with the National Fuel Gas Code, ANSI Z223.1/NFPA54;
International Fuel Gas Code, Natural Gas and Propane Installation Code, CSA B149.1; or Propane
Storage and Handling Code, B149.2, as applicable.
 The LP gas supply cylinder to be used must be:
1- Constructed and marked in accordance with the U.S. Department of Transportation (D.O.T.)
Specifications for LP-Gas Cylinders, or the Standard for Cylinders, Spheres and Tubes for
transportation of Dangerous Goods and Commission, CAN/CSA-B339 as applicable;
2- Provided with a listed overfilling prevention device;
3- Provided with a cylinder connection device compatible with the connection for the appliance.
 Always place the appliance on a firm and level surface.
 Solid fuels shall not be burned in this gas appliance. When using decorative Lava Rocks, use only
Lava rocks (INCLUDED).
 The appliance shall be used only outdoors in a well-ventilated space and shall not be used in a
building, garage or any other enclosed area.
 When in use, keep the appliance area clear and at least 40 in / 101.6 cm side clearance from
combustible materials, gasoline and other flammable liquid and vapors. Do not use the appliance
under overhead combustible surfaces. Certain items or materials, when stored under the appliance or
nearby, will be subjected to radiant heat and could be damaged.
 Open the door and inspect the hose assembly and burner prior to each use. If there is evidence of
excessive abrasion or wear or if the hose or burner is damaged, it must be replaced by appropriate
part from the manufacturer.
 Inspect the gas connections of the appliance prior to each use. Do not operate the unit if there is a
Product name
Stoneridge Fire Pit High Dining Table
Model NO.
L-DN1773SST-D-T
Rated Heat Output
38,000BTU/HR
Fuel
Propane-LP
Gas Supply
20 lb. LP-Gas cylinder
Manifold Pressure
11 Inches W.C.
Orifice Size (diameter)
1.9mm
Gas Supply Pressure
Max.250 PSI

4 of 13
gas leak. Have the appliance inspected annually by a qualified service person.
 The pressure regulator and hose assembly provided with the appliance must be used. The
replacement part must be the same as the part specified by manufacturer.
 The assembly of LP-gas and leak checking please refer to the “Gas connection” on page 10 and
“Leak Test” on page 11.
 Children and adults should be alerted to the hazards of high surface temperatures and should stay
away to avoid burns or prevent clothing ignition.
 Young children and pets should be carefully supervised when they are in the area of the appliance.
 Any guard or other protective device removed for servicing the appliance must be replaced prior to
operation.
 Clothing or other flammable materials should not be hung from the appliance or placed on or near the
appliance.
 Do not use the appliance if any part has been under water. Immediately call a qualified technician to inspect
the appliance and to replace any part of the control system and any gas control which has been under water.
 LP-gas supply cylinder to be used must be constructed and marked in accordance with the specifications for
LP-gas cylinders of the U.S. Department of Transportation (DOT).
 The cylinder supplies system must be arranged for vapor withdrawal and the cylinder must include a collar to
protect the cylinder valve.
 Use only 20 lb / 9 kg LP-Gas cylinders.
 Do not burn wood or any other materials in this appliance.
 The appliance must be isolated from the gas supply piping system by closing
its individual manual shutoff valve during any pressure testing of the gas supply
piping system at test pressure equal to or less than 1/2psi (3.5kPa).
 That other cylinder may be acceptable for use with the appliance provided
they are compatible with the appliance retention means and accompanied by illustration(s) depicting the cylinder
mounted to the appliance utilizing the cylinder retention means and the point of contact between the cylinder and
the retention means.
 Properly place the hose out of pathways where people may trip over it or in areas where there may be subject
to accidental damage.
 The burner must be replaced prior to the appliance being put into operation if it is evident that the burner is
damaged. The replacement burner must be the same as the part specified by manufacturer.
 The cleaning of the appliance including the burner, please refer to “Storage and Maintenance” on page 12.

5 of 13
EXPANDED VIEW

6 of 13
NO.
Description
Qty
NO.
Description
Qty
A
Lid
1
I
Armor Plate Screen
1
B
Table top
1
J
Ignition Wire
1
C
Fire Bowl
1
K
Battery Box
1
D1
Table panel 1
1
L
Pressure Regulator
1
D2
Table panel 2
1
M
Thermocouple
1
E
Side panel
1
N
Control Valve
1
F
Door
1
O
Control Knob
1
F1
Door handle
1
P
Corrugated pipe
1
G
Gas-jar frame
1
Q
Burner
1
H
Lava rock
1 (4KG)
R
Windshield
1
No.
Description
Qty
AA
M6*15 Bolt
16
BB
M6 Flat Washer
25
CC
M6*25 Bolt
5
DD
M6 Wrench
1
EE
M6*15 Bolt
4
Parts List
Hardware Pack
If you want to replace the parts listed, please contact Customer Service Center: 1(866) 578-6569

7 of 13
INSTALLATION
Installation will be much easier by two or more people.

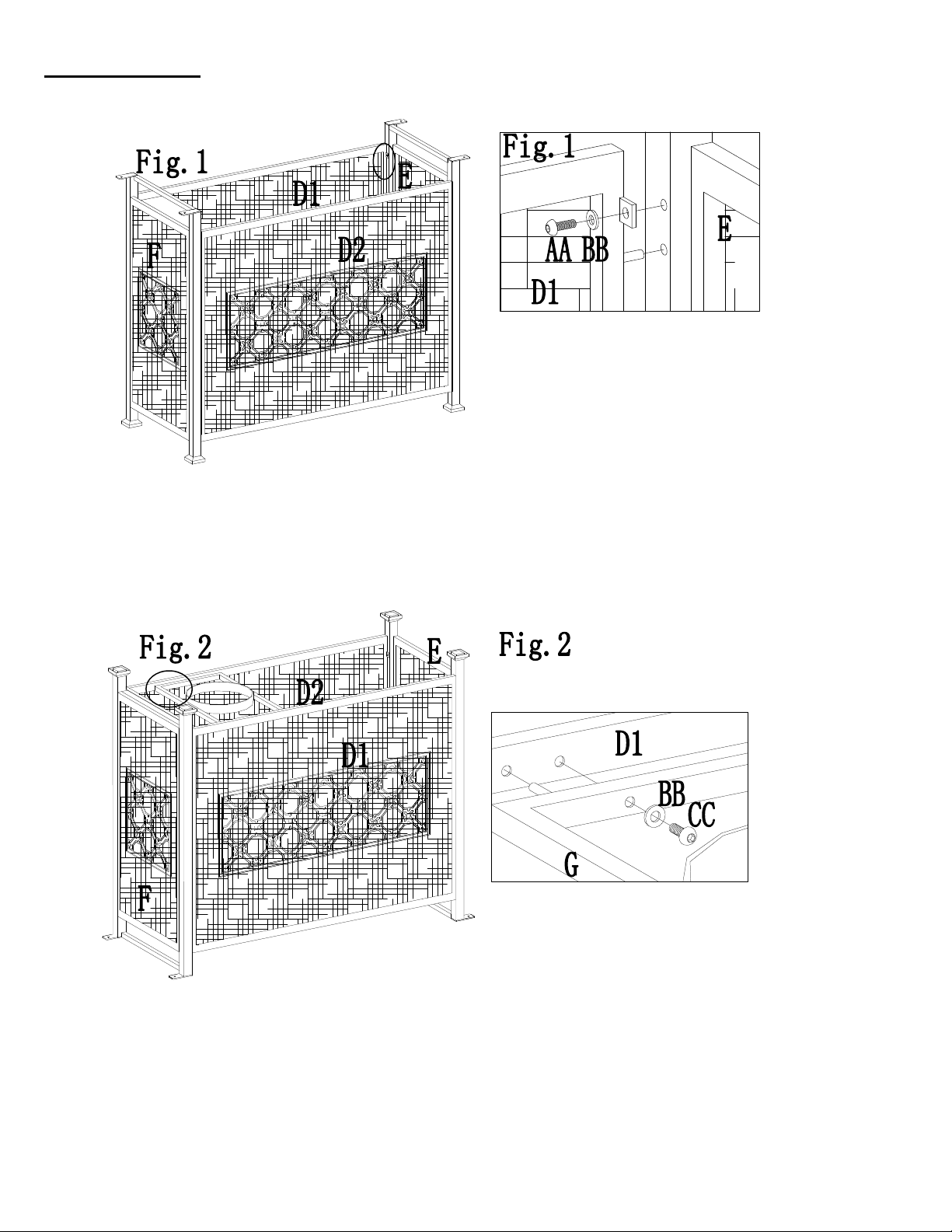

Step 2: Insert the round column of gas-jar frame (G) into the hole of table panel 1
(D1). Then attach gas-jar frame (G) to table panel 1 (D1) by bolt (CC) and washer
(BB) as Fig 2 showed. Use the same way to attach gas-jar frame (G) to table
panel 2(D2).
Step 1: Insert the round column of the table panel 1(D1) into the hole of the side panel (E)，
then attach table panel 1 (D1) to side panel (E) by bolt (AA) and flat washer (BB) as
showed in Fig 1. Use the same way to attach the table panel 1(D1) and side panel (E);
table panel 1(D2) and Door (F).

8 of 13

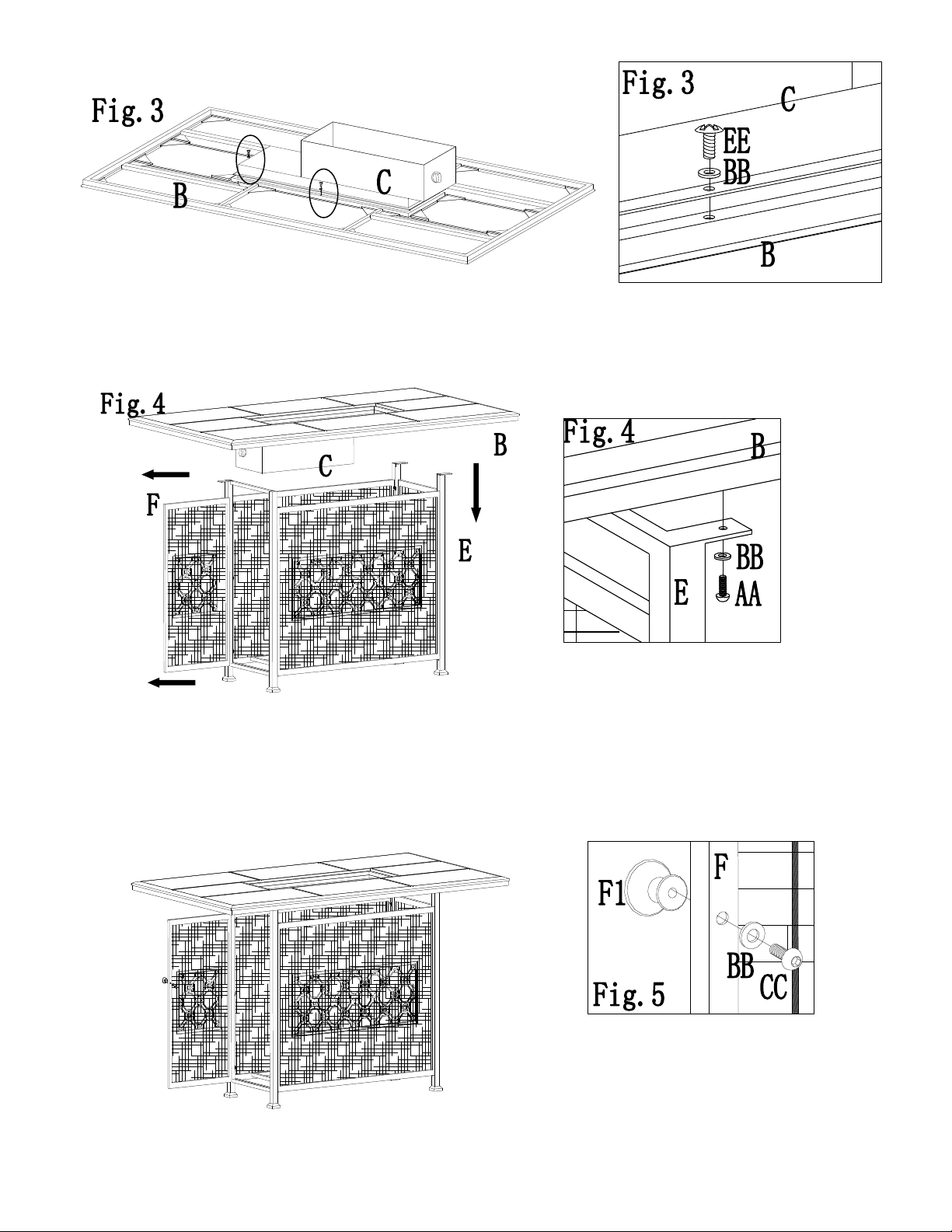

Step 3: Put the Table Top (B) and Bowl (C) upside down, connect them with bolt (EE) and flat
washer (BB).
Step 4: Attach the door (F) and side panel (E) to the table top (B) by bolt (AA) and flat washer (BB).
(Note: When installing the fire bowl, please make sure the bowl (C) with control panel should face
the door (F)).
Step 5: Attach the door handle (F1) to door (F) by bolt (CC) and flat washer (BB).

9 of 13
Step 6: Put the Lid (A) on the Table Top (B)
Step 7: The lava rock (H) should be put in the bottom of the Fire Bowl (C) and come up just
as high as the fire ring.

10 of 13
LOCATION
Your Gas appliance must be installed on a flat, stable surface, away from any combustible materials or
construction.
SET-UP
Your Gas appliance comes assembled, ready for a Gas connection.
1- Remove the appliance from container box and place it on any level, outdoor, non-combustible
surface.
NOTE: Do not place this appliance on grass or dirt area. This may prevent proper safety venting.
2- Open the gas door and put the cylinder inside.
3- Unscrew the battery box as shown in Fig 1.Insert the negative electrode side of the battery into the
bottom of battery box as shown in Fig 2. Then screw the battery box as shown in Fig 3.
Fig 1 Fig 2 Fig 3
Note: If the battery of the pulse electronic igniter runs out of power, please replace the new battery as
above.
Gas Connection

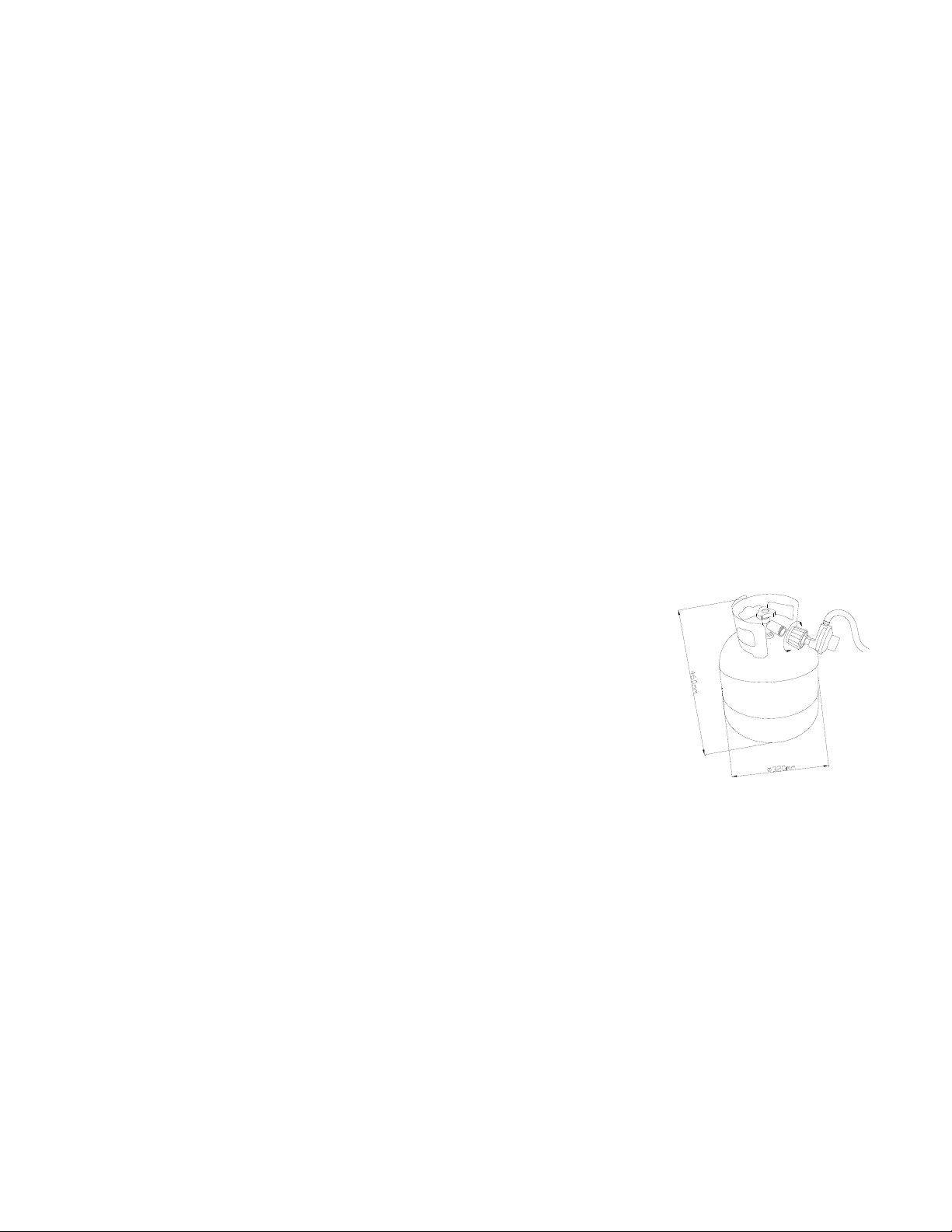

1- Open the door and control valve outside. See Fig 4.
2- Put the cylinder into the cylinder rack. See Fig 5.
3- Connect the regulator and the cylinder as per Fig.6. Make sure there is no leakage or damage
(please refer to “Leak Test” on page 11 and the damage checking on page 11).

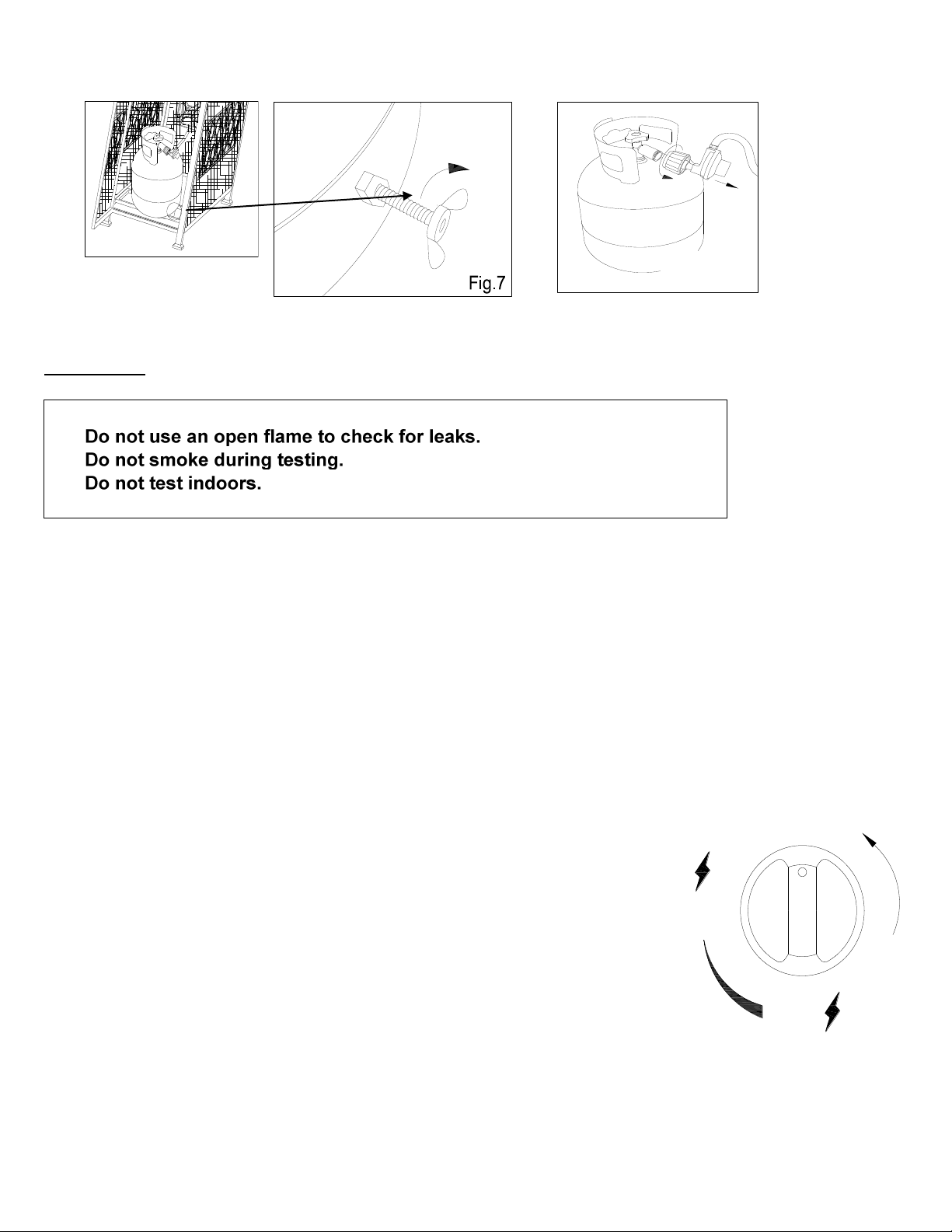

4- Turn the butterfly nut on the cylinder frame, so that the nut is held against the bottom of the cylinder,
to make sure the cylinder can be fixed. See Fig 7.
5- Disconnect the regulator and the cylinder as per Fig.8
Fig.6
Fig 6

11 of 13
OPERATION:
LEAK TEST
!!!WARNING!!!



 A leak check must be performed whenever the gas cylinder is replaced.
1. Make sure the control knob is in the “OFF” position.
2. Make sure the gas cylinder is correctly and securely connected to the pressure regulator, without over
tightening.
3. Turn on the gas cylinder valve. Apply 50% soap and 50% water solution to the gas hose and
connections between the control knob and gas cylinder.
4. If something is leaking, you will see bubbles form. In case of leaks, turn off the gas supply, undo the
leaking connection, re-connect it and try again. If the leak persists, consult Customer Service Center for
assistance (1(866) 578-6569).
5. If the connection does not leak, continue to the next step.
LIGHTING THE BURNERS
1. Make sure control valve is OFF.
2. Turn on gas tank valve.
3. Press in and turn control valve knob counterclockwise to LOW to light.
See the figure to the right.
4. If burner is lit, continue pressing in the control valve knob for a minute to
heat the thermocouple.
5. When control valve knob is released, the burner should be lit. If not, turn
control valve knob clockwise to OFF. Wait for 5 minutes then start with
step 3 above.
6. Press in and turn control valve knob to desired heat output, LOW ~
HIGH.
`
Fig.7
Fig 8
OFF
HIGH
MAX
BAS
ARRET
LOW

12 of 13
NOTE: While in use, the burner flame should be mainly blue in appearance with a small amount of yellow.
The flame can be identified by the following figure.
Warning: Lighting the Fire Pit improperly could lead to an unsafe condition.
7. Press in and turn the control valve knob clockwise to OFF to shut down fireplace. Close the gas
cylinder valve when the fireplace is not in use.
(CAUTION: Do not kink flexible gas hose. If it is kinked, a gas leak could occur.)
STORAGE AND MAINTENANCE:
To obtain the best performance from your fireplace, you must perform the following storage and
mai
 Allow at least 35 minutes for the fireplace to cool down after use, before disconnecting and removing
 Store the gas cylinder in a dry, well-ventilated and sheltered area protected from inclement weather

 Keep the fireplace area clear and free from combustible materials, gasoline and other flammable
 Installation and repair should be done by a qualified service person. The fireplace should be
inspected before use and at least annually by a qualified service person. More frequent cleaning
may be required as necessary. It is imperative that the control compartment, burner, and
circulating air passageways of the fireplace be kept clean.
 If you disassemble the burner when cleaning the fireplace, please
reassemble it according to the picture on the right to make sure the burner
induction tunnel is on and exactly cover the orifice base. It is imperative that
the control compartment, burner, and circulating air passageways of the
fireplace be kept clean. It is recommended not to disassemble the burn
 Permanent installation and repair should be done by a qualified service
person. The fireplace should be inspected annually by a qualified service
person.

13 of 13
TROUBLE SHOOTING:
PROBLEM OBSERVED
POSSIBLE CAUSE
CORRECTIVE MEASURES
Gas odor
Gas leak
See “If you smell gas:” on front
cover of manual
Check all gas connections
Delayed ignition
Low gas pressure
Clogged or dirty burner
ports Blocked orifice
Spent battery
Check gas supply pressure
Clean burner ports-see manual
section
Check orifice opening
Change new battery
Incorrect burner flame
Incorrect gas supply or
pressure Blocked orifice
Clogged or dirty burner
ports
Check gas supply pressure
Check and clean orifice opening
Clean burner ports
If you want to replace the parts listed, please contact SUNJOY Customer Service Center (1(866)
578-6569.
LIMITED WARRANTY:
Subject to the conditions set out below, this product is warranted to the original purchaser to be free from
defects in workmanship and materials for one (1) year from the date of purchase.
 Satisfactory proof of the purchase date must be furnished at the time of notification of the defect for
any claim under t
 This warranty covers all parts found defective in workmanship and/or materials during the warranty
period and can be repaired or replaced at the discretion of the manufacturer at no cost to the original
 This warranty will be void if the product has not been assembled, installed or operated according to
the instructions, or subjected to abuse, improperly treated, neglected, rusted by exposure to the
elements, misused and/or if any repairs, maintenance, or service has been done by an unauthorized
 Returns must be properly packaged and returned to the dealer from whom the product was acquired.
 The manufacturer, distributor and retailer will not be liable for any incidental or consequential loss or
damage arising from the installation or operation of the product and/or the failure of any part for any
 There are no other express or implied warranties, except for those stipulated herein. This warranty
gives specific rights and the original purchas
 This warranty does not cover commercial use.
Please do not return this product to the store. For technical assistance on assembly or
replacement parts call Sunjoy Group at 1(866) 578-6569 from 8:00 AM EST to 8:00 PM PST
Monday to Friday or Email biglot[email protected] or visit www.sunjoyonline.com to place
your order or fax your parts replacement order form together with your purchase receipt to 1 (740)
283-3549 for assistance.
Made in China
