Sunjoy L-FT1097PST-A Operating instructions

Production Number: XXXXXXXX Made In China 1/ 13
ASSEMBLY INTRUCTIONS
ITEM#：L-FT1097PST-A
This appliance complies with “ANSI Z21.97-2014/CSA 2.41-2014, Outdoor Decorative Gas Appliances.
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from the
appliance and immediately call your gas
supplier or fire department.
WARNING: For Outdoor Use Only.
WARNING:
Improper installation, adjustment, alteration,
service or maintenance can cause injury or
property damage. Read the installation,
operating and maintenance instructions
thoroughly before installing or servicing this
equipment.
WARNING
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of
this or any other appliance.
An LP-cylinder not connected for use should not be stored in the vicinity of this or any
other appliance.
DANGER CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space such as a camper,
tent
,
car o
r
home.
Propane tank not included
AA battery needed, not included

Production Number: XXXXXXXX Made In China 2/ 13
TABLE OF CONTENTS
General information …………………………………………………………………………… 2
Specification ………………………………………………………………………………… 3
Important safety information and precaution ……………………………………………… 3-4
Expanded view ………………………………………………………………………………… 5
Parts list ……………………………………………………………………………………… 6
Installation ……………………………………………………………………………………… 7-9
Location ……………………………………………………………………………………… 10
Set up …………………………………………………………………………………………… 10
Gas connection ………………………………………………………………………………… 10
Operation ……………………………………………………………………………………… 11
Leak check ……………………………………………………………………………………… 11
Ignite lighting ………………………………………………………………………………… 11
Storage and Maintenance ……………………………………………………………………… 12
Trouble shooting ……………………………………………………………………………… 13
Limited warranty ……………………………………………………………………………… 13
GENERAL INFORMATION
Important: For technical assistance on assembly or replacement parts, please call Sunjoy Industries at 1(866) 578-6569
from 8:00 AM EST to 8:00 PM PST. You may email to [email protected] or visit www.sunjoyonline.com to
place your order or fax your parts replacement order form (which is included in the packaging) together with your purchase
receipt to 1 [phone] for assistance.

Production Number: XXXXXXXX Made In China 3/ 13
SPECIFICATION
IMPROTANT SAFETY INFORMATION AND PRECAUTION
When the appliance is for connection to a fixed piping system, the installation must conform with local codes, or in
the absences of local codes with the National Fuel Gas Code, ANSI Z223.1/NFPA54; International Fuel Gas Code,
Natural Gas and Propane Installation Code, CSA B149.1; or Propane Storage and Handling Code, B149.2, as
applicable.
The LP gas supply cylinder to be used must be:
1- Constructed and marked in accordance with the U.S. Department of Transportation (D.O.T.) Specifications
for LP-Gas Cylinders, or the Standard for Cylinders, Spheres and Tubes for transportation of Dangerous Goods
and Commission, CAN/CSA-B339 as applicable;
2- Provided with a listed overfilling prevention device;
3- Provided with a cylinder connection device compatible with the connection for the appliance.
Always place the appliance on a firm and level surface.
Solid fuels shall not be burned in this gas appliance. When using decorative Lava Rocks, use only Lava rocks.
(INCLUDED).
The appliance shall be used only outdoors in a well-ventilated space and shall not be used in a building, garage or
any other enclosed area.
When in use, keep the appliance area clear and at least 40 in / 101.6 cm side clearance from combustible materials,
gasoline and other flammable liquid and vapors. Do not use the appliance under overhead combustible surfaces. Certain
items or materials, when stored under the appliance or nearby, will be subjected to radiant heat and could be damaged.
Open the door and inspect the hose assembly and burner prior to each use. If there is evidence of excessive abrasion
or wear or if the hose or burner is damaged, it must be replaced by appropriate part from the manufacturer.
Inspect the gas connections of the appliance prior to each use. Do not to operate the unit if there is a gas leak. Have the
appliance inspected annually by a qualified service person.
Product name Hartnell rectangular LPfire pit table
Model NO. L-FT1097PST-A
Rated Heat Output 30,000BTU/HR
Fuel Propane-LP
Gas Supply 20 lb. LP-Gas cylinder
Manifold Pressure 11 Inches W.C.
Orifice Size (diameter) 1.74mm
Gas Supply Pressure Max.250 PSI

Production Number: XXXXXXXX Made In China 4/ 13
The pressure regulator and hose assembly provided with the appliance must be used. The replacement part must be the
same as the part specified by manufacturer.
The assembly of LP-gas and leak checking please refer to the “Gas connection” on page 12 and “leak Test” on page
13.
Children and adults should be alerted to the hazards of high surface temperatures and should stay away to avoid burns
or prevent clothing ignition.
Young children and pets should be carefully supervised when they are in the area of the appliance.
Any guard or other protective device removed for servicing the appliance must be replaced prior to operation.
Clothing or other flammable materials should not be hung from the appliance or placed on or near the appliance.
Do not use the appliance if any part has been under water. Immediately call a qualified technician to inspect the
appliance and to replace any part of the control system and any gas control which has been under water.
LP-gas supply cylinder to be used must be constructed and marked in accordance with the specifications for LP-gas
cylinders of the U.S. Department of Transportation (DOT).
The cylinder supplies system must be arranged for vapor withdrawal and the cylinder must include a collar to protect
the cylinder valve.
Use only 20 lb / 9 kg LP-Gas cylinders.
Do not burn wood or any other materials in this appliance.
The appliance must be isolated from the gas supply piping system by closing its
individual manual shutoff valve during any pressure testing of the gas supply piping
system at test pressure equal to or less than 1/2psi (3.5kPa).
That other cylinder may be acceptable for use with the appliance provided they are
compatible with the appliance retention means and accompanied by illustration(s) depicting the cylinder mounted to the
appliance utilizing the cylinder retention means and the point of contact between the cylinder and the retention means.
Properly place the hose out of pathways where people may trip over it or in areas where there may be subject to
accidental damage.
The burner must be replaced prior to the appliance being put into operation if it is evident that the burner is damaged.
The replacement burner must be the same as the part specified by manufacturer.
The cleaning of the appliance including the burner, please refer to “Storage and maintenance” on page 14.

Production Number: XXXXXXXX Made In China 5/ 13

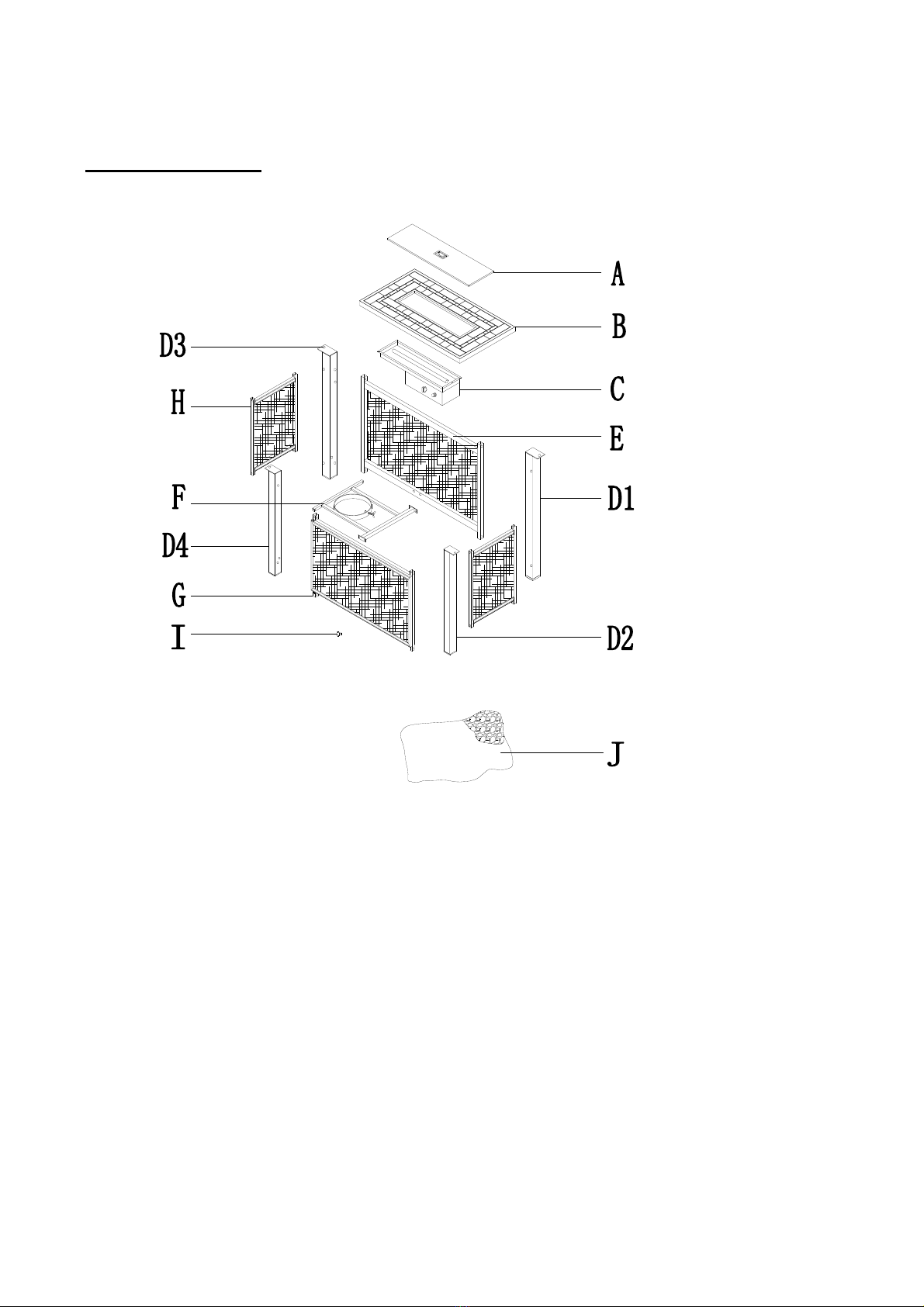

EXPANDED VIEW

Production Number: XXXXXXXX Made In China 6/ 13
PARTS LIST
Label Part Number Description QTY
A P20707A01142 Lid 1
B P12325A01142 Table Top 1
C P20211A01098 Fire Bowl 1
D1 P31413A01142 Leg 1 1
D2 P31414A01142 Leg 2 1
D3 P31415A01142 Leg 3 1
D4 P31416A01142 Leg 4 1
E P21221A01142 Rear Panel 1
F P20806A01142 Shelf 1
G P20919A01142 Door 1
H P21135A01142 Side panel 2
I P90007A01142 Handle 1
J P99923C01002 Lava Rock 1 (2.3 KG)
HARDWARE PACK
Label Part Number Description QTY Image of Part
AA H01015C11 Bolt M6x15 8
BB H01030C11 Bolt M6x30 18
CC H09015C11 Screw M6x15 4
DD H12001C11 Flat Washer M6 30
EE H00001L12 Wrench 1
If you want to replace the parts listed, please contact Customer Service Center: 1(866) 578-6569.

Production Number: XXXXXXXX Made In China 7/ 13
INSTALLATION
Installation will be much easier by two or more people.

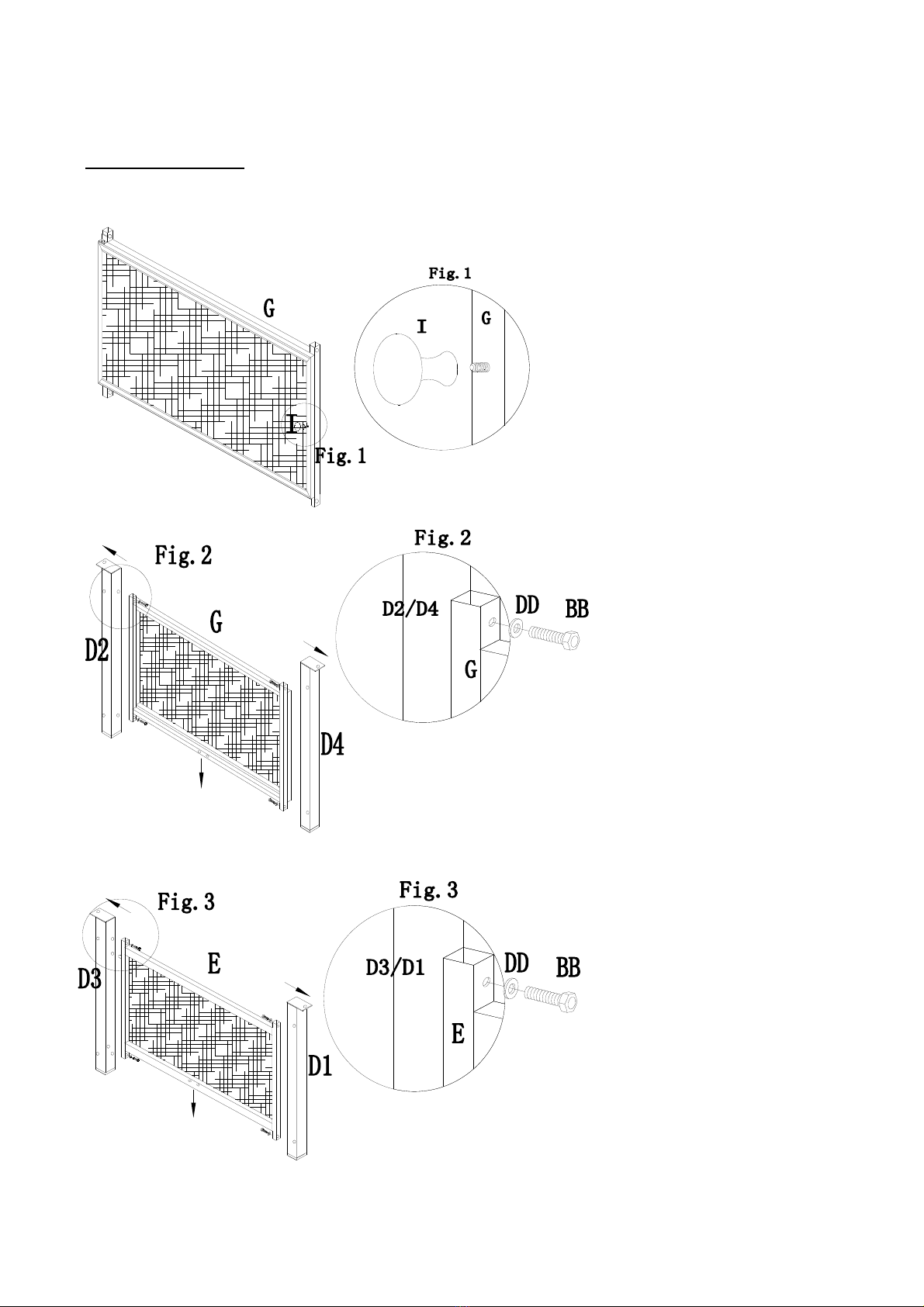

Step 3：
Attach Leg 1 (D1), Leg 3 (D3)
and Rear panel (E) together with
Bolt (BB) and Flat washer (DD).
(Note: the two holes at the
middle of the rear panel face
down).
Step1：
Screw Handle (I) on Door (G) .
Step 2：
Attach Leg 2 (D2), Leg 4 (D4)
and Door (G) together with Bolt
(BB) and Flat washer (DD).
(Note: the two holes at the
middle of the door face down).

Production Number: XXXXXXXX Made In China 8/ 13
Step 4：
Attach Shelf (F) to Leg 3/4 (D3, D4) by Bolt (BB) and Flat washer (DD) through the holes on the shelf as Fig 4-1
shows. DO NOTE tighten at this step.
Attach Shelf (F) to Rear panel (E) and Door (G) by Bolt (AA) and Flat washer (DD) through the holes on the shelf as
Fig 4-2 shows. DO NOT tighten at this stage.
Step 5：
Attach Side panel (H) to Leg 1/2/3/4 (D1/D2/D3/D4) by Bolt (BB) and Flat washer (DD) through the holes on the
side panel as Fig 5 shows.

Production Number: XXXXXXXX Made In China 9/ 13
Step 6：
Put Table top (B) and Bowl
(C) upside down. Attach
Fire bowl (C) to Table top
(B) by Bolt (CC) and Flat
washer (DD) as Fig. 6
shows.
Step 7:
Attach Table top (B) to the
assembled frame. Attach Table
top (B) to Leg 1/2/3/4
(D1/D2/D3/D4) by Bolt (AA)
and flat washer (DD). (Note:
When assembling fire bowl (C)
and door (G), please follow the
arrow direction as shown in
Fig.7).
Step 9:Put Lid (A) onto Table top (B). Then the
assembly is finished.
Step 8: Lava Rock（H1）should be put in the
bottom of the Fire Bowl (C) and piles up no higher
than the fire ring.

Production Number: XXXXXXXX Made In China 10 / 13
LOCATION
Your Gas appliance must be installed on a flat, stable surface, away from any combustible materials or construction.
SET-UP
Your Gas appliance comes assembled, ready for a Gas connection.
1- Remove the appliance from container box and place it on any level, outdoor, non-combustible surface.
NOTE: Do not place this appliance on grass or dirt area. This may prevent proper safety venting.
2- Open the gas door and put the cylinder inside.
3- Unscrew the battery box as shown in Fig 1.Insert the negative electrode side of the battery into the bottom of battery
box as shown in Fig 2. Then screw the battery box as shown in Fig 3.
Fig1 Fig2 Fig3
Note: If the battery of the pulse electronic igniter runs out of power, please replace the new battery as above.
Gas Connection
1- Open the door and control valve outside. See Fig 4.
2- Put the cylinder into the cylinder rack. See Fig 5.
3- Connect the regulator and the cylinder as per Fig.6. Make sure there is no leakage or damage (please refer to “Leak Test”
on page 13 and the damage checking on page 4).
4- Turn the butterfly nut on the cylinder frame, so that the nut is held against the bottom of the cylinder, to make sure the
cylinder can be fixed. See Fig 7.
5- Disconnect the regulator and the cylinder as per Fig.8.
Fig.5
Fig.4
Fig.6
Fig 6

Production Number: XXXXXXXX Made In China 11 / 13
OPERATION:
LEAK TEST
!!!WARNING!!!
Do not use an open flame to check for leaks.
Do not smoke during testing.
Do not test indoors.
Aleak check must be performed whenever the gas cylinder is replaced.
1. Make sure the control knob is in the “OFF” position.
2. Make sure the gas cylinder is correctly and securely connected to the pressure regulator, without over tightening.
3. Turn on the gas cylinder valve. Apply 50% soap and 50% water solution to the gas hose and connections between the
control knob and gas cylinder.
4. If something is leaking, you will see bubbles form. In case of leaks, turn off the gas supply, undo the leaking connection,
re-connect it and try again. If the leak persists, consult Customer Service Center for assistance.
5. If the connection does not leak, continue to the next step.
LIGHTING THE BURNERS
1. Make sure control valve is OFF.
2. Turn on gas tank valve.
3. Press in and turn control valve knob counterclockwise to LOW to light. See
the figure to the right.
4. If burner is lit, continue pressing in the control valve knob for a minute to
heat the thermocouple.
5. When control valve knob is released, the burner should be lit. If not, turn
control valve knob clockwise to OFF. Wait for 5 minutes then start with step 3
above.
6. Press in and turn control valve knob to desired heat output, LOW ~ HIGH.
Fig 8
OFF
HIGH
MAX
BAS
ARRET
LOW
Fig 7
Fig.7

Production Number: XXXXXXXX Made In China 12 / 13

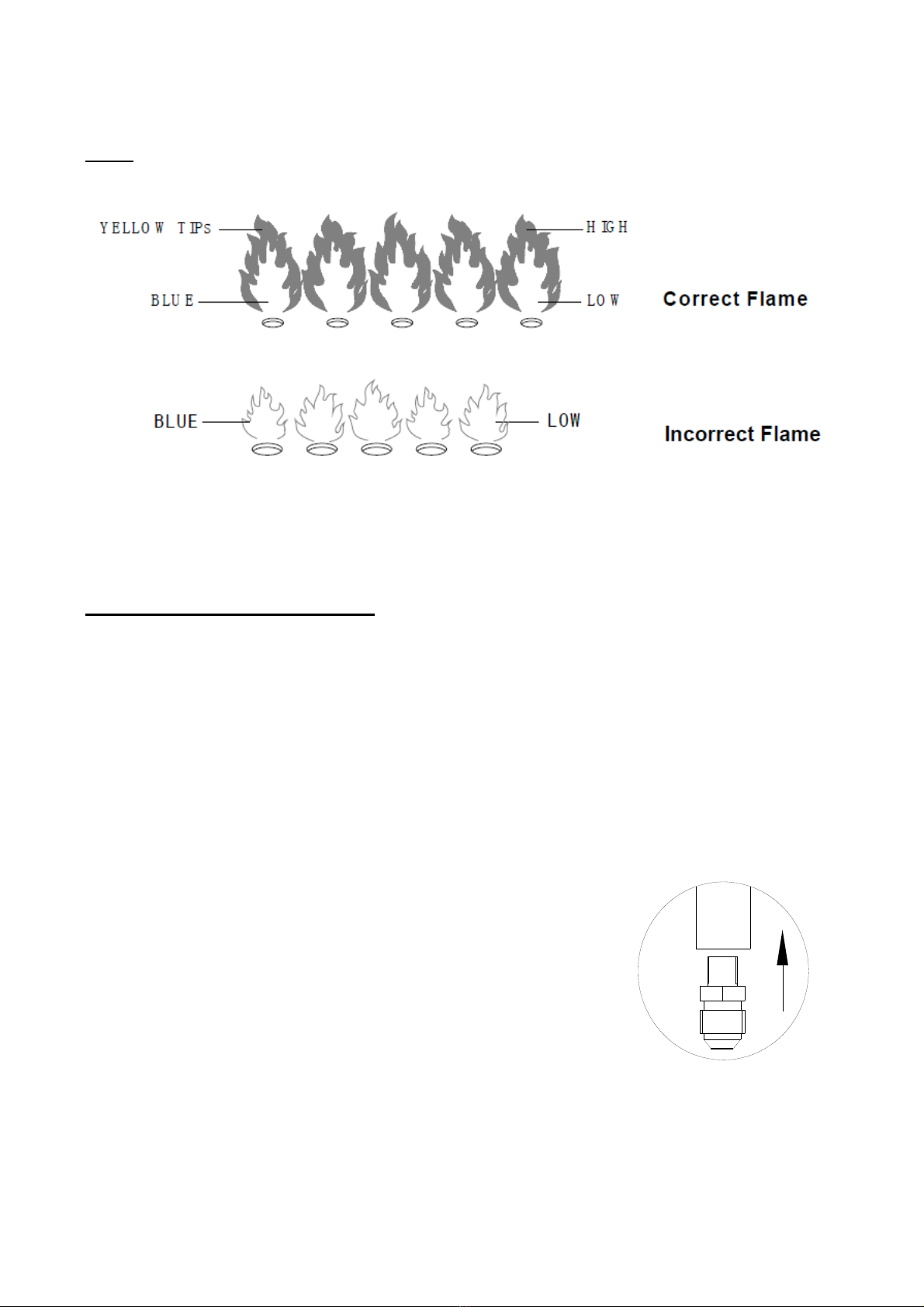

NOTE: While in use, the burner flame should be mainly blue in appearance with a small amount of yellow. The flame can
be identified by the following figure.
Warning: Lighting the Fire Pit improperly could lead to an unsafe condition.
7. Press in and turn the control valve knob clockwise to OFF to shut down fireplace. Close the gas cylinder valve when the
fireplace is not in use.
(CAUTION: Do not kink flexible gas hose. If it is kinked, a gas leak could occur.)
STORAGEAND MAINTENANCE:
To obtain the best performance from your fireplace, you must perform the following storage and maintenance activities on a
regular basis:
Allow at least 35 minutes for the fireplace to cool down after use, before disconnecting and removing the gas cylinder.
Store the gas cylinder in a dry, well-ventilated and sheltered area protected from inclement weather and dust, out of the
reach of children, and not in a building, garage or any other closed area.
The fireplace may be stored indoors only if the cylinder is disconnected and removed.
Keep the fireplace area clear and free from combustible materials, gasoline and other flammable vapors and liquids.
Installation and repair should be done by a qualified service person. The fireplace should be inspected before
use and at least annually by a qualified service person. More frequent cleaning may be required as necessary. It is
imperative that the control compartment, burner, and circulating air passageways of the fireplace be kept clean.
If you disassemble the burner when cleaning the fireplace, please reassemble it
according to the picture on the right to make sure the burner induction tunnel is on
and exactly cover the orifice base. It is imperative that the control compartment,
burner, and circulating air passageways of the fireplace be kept clean. It is
recommended not to disassemble the burner.
Permanent installation and repair should be done by a qualified service person.
The fireplace should be inspected annually by a qualified service person.

Production Number: XXXXXXXX Made In China 13 / 13
TROUBLE SHOOTING:
PROBLEM OBSERVED POSSIBLE CAUSE CORRECTIVE MEASURES
Gas odor Gas leak See “If you smell gas:” on front cover of
manual
Check all gas connections
Delayed ignition Low gas pressure
Clogged or dirty burner ports
Blocked orifice
Spent battery
Check gas supply pressure
Clean burner ports-see manual section
Check orifice opening
Change new battery
Incorrect burner flame Incorrect gas supply or pressure
Blocked orifice
Clogged or dirty burner ports
Check gas supply pressure
Check and clean orifice opening
Clean burner ports
If you want to replace the parts listed, please contact SUNJOY Customer Service Center.
LIMITED WARRANTY:
Subject to the conditions set out below, this product is warranted to the original purchaser to be free from defects in
workmanship and materials for one (1) year from the date of purchase.
Satisfactory proof of the purchase date must be furnished at the time of notification of the defect for any claim under
the warranty to be enforceable.
This warranty covers all parts found defective in workmanship and/or materials during the warranty period and can be
repaired or replaced at the discretion of the manufacturer at no cost to the original purchaser.
This warranty will be void if the product has not been assembled, installed or operated according to the instructions, or
subjected to abuse, improperly treated, neglected, rusted by exposure to the elements, misused and/or if any repairs,
maintenance, or service has been done by an unauthorized person.
Returns must be properly packaged and returned to the dealer from whom the product was acquired.
The manufacturer, distributor and retailer will not be liable for any incidental or consequential loss or damage arising
from the installation or operation of the product and/or the failure of any part for any reason.
There are no other express or implied warranties, except for those stipulated herein. This warranty gives specific rights
and the original purchaser may have additional rights and remedies in law.
This warranty does not cover commercial use.
WARNING: Fuels used in wood or charcoal burning appliances, and the products of combustion of such fuels, contain
chemicals known to cause cancer, birth defects or other reproductive harm.
