Augusta Tile Top Fire Pit Table
Assembly Instruction
Item# L-FT1101PST-B
SKU# 810367905
This appliance complies with “ANSI Z21.97-2014/CSA 2.41-2014, Outdoor Decorative Gas Appliances.
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from the
appliance and immediately call your gas
supplier or fire department.
WARNING: For Outdoor Use Only.
WARNING:
Improper installation, adjustment, alteration,
service or maintenance can cause injury or
property damage. Read the installation,
operating and maintenance instructions
thoroughly before installing or servicing this
equipment.
WARNING
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance.
An LP-cylinder not connected for use should not be stored in the vicinity of this or any other
appliance.
DANGER CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space such as a camper, tent,
car or home.
Propane tank not included
AA battery needed, not included

2 of 15
TABLE OF CONTENTS
General information …………….…….………………….………………..………….…… 2
Specification……….……………………………………….……………….……….……… 3
Important safety information and precaution……………….….….….….…….…… 3-4
Expanded view……………………………………………………….……….……..……… 5
Parts list……………………….………………………….…………………………….……6
Installation………………………….………………………..………………….…….…7-10
Location……………………………………………………………………….…….…….….11
Set up……………………………………………………………….…………….……... 11
Gas connection ………………………………….……………….……………….……… 11
Operation……………………………………………………………….……………...…….12
Leak check………………………………………………………….…………………...…12
Ignite lighting………………………………………………………….…………… 12-13
Storage and Maintenance………………………………………….……...............… 13
Trouble shooting ………………………………………………...….………………..… 14
Limited warranty……………………………………………………………….….……… 14
GENERAL INFORMATION
IMPORTANT
Please take time to read these instructions thoroughly and follow each step carefully for
safe and easy operation. Keep this manual to consumer for installer and consumer
future reference/use.
We would like to hear from you with any comments or suggestions. In the continental
U.S., you can call Sunjoy Toll Free number: 1-866-578-6569 from 8:00 am EST to 8:00
pm PST Monday to Friday.
You can also send us an email to [email protected]

3 of 15
SPECIFICATION
IMPORTANT SAFETY INFORMATION AND PRECAUTION
When the appliance is for connection to a fixed piping system, the installation must conform with
local codes, or in the absences of local codes with the National Fuel Gas Code, ANSI Z223.1/NFPA54;
International Fuel Gas Code, Natural Gas and Propane Installation Code, CSA B149.1; or Propane
Storage and Handling Code, B149.2, as applicable.
The LP gas supply cylinder to be used must be:
1- Constructed and marked in accordance with the U.S. Department of Transportation (D.O.T.)
Specifications for LP-Gas Cylinders, or the Standard for Cylinders, Spheres and Tubes for
transportation of Dangerous Goods and Commission, CAN/CSA-B339 as applicable;
2- Provided with a listed overfilling prevention device;
3- Provided with a cylinder connection device compatible with the connection for the appliance.
Always place the appliance on a firm and level surface.
Solid fuels shall not be burned in this gas appliance. When using decorative Lava Rocks, use only
the lava rocks we provided (INCLUDED).
The appliance shall be used only outdoors in a well-ventilated space and shall not be used in a
building, garage or any other enclosed area.
When in use, keep the appliance area clear and at least 40 inches / 101.6 cm side and top clearance
from combustible materials, gasoline and other flammable liquid and vapors.. Do not use the appliance
under overhead combustible surfaces. Certain items or materials, when stored under the appliance or
nearby, will be subjected to radiant heat and could be damaged.
Open the door and inspect the hose assembly and burner prior to each use. If there is evidence of
excessive abrasion or wear or if the hose or burner is damaged, it must be replaced by appropriate
part from the manufacturer.
Inspect the gas connections of the appliance prior to each use. Do not to operate the unit if there is a
Product name SONOMA TILE TOP FIRE PIT TABLE
Model NO. L-FT1101PST-B
Rated Heat Output 35,000BTU/HR
Fuel Propane-LP
Gas Supply 20 lb. LP-Gas cylinder
Manifold Pressure 11 Inches W.C.
Orifice Size (diameter) 1.9mm
Gas Supply Pressure Max.250PSI

4 of 15
gas leak. Have the appliance inspected annually by a qualified service person.
The pressure regulator and hose assembly provided with the appliance must be used. The
replacement part must be the same as the part specified by manufacturer.
The assembly of LP-gas and leak checking please refer to the “Gas connection”on page 11 and
“Leak Test”on page 12.
Children and adults should be alerted to the hazards of high surface temperatures and should stay
away to avoid burns or prevent clothing ignition.
Young children and pets should be carefully supervised when they are in the area of the appliance.
Any guard or other protective device removed for servicing the appliance must be replaced prior to
operation.
Clothing or other flammable materials should not be hung from the appliance or placed on or near
the appliance.
Do not use the appliance if any part has been under water. Immediately call a qualified technician to
inspect the appliance and to replace any part of the control system and any gas control which has been
under water.
LP-gas supply cylinder to be used must be constructed and marked in accordance with the
specifications for LP-gas cylinders of the U.S. Department of Transportation (DOT).
The cylinder supplies system must be arranged for vapor withdrawal and the
cylinder must include a collar to protect the cylinder valve.
Use only 20 lb / 9 kg LP-Gas cylinders.
Do not burn wood or any other materials in this appliance.
The appliance must be isolated from the gas supply piping system by closing
its individual manual shutoff valve during any pressure testing of the gas supply
piping system at test pressure equal to or less than 1/2psi (3.5kPa).

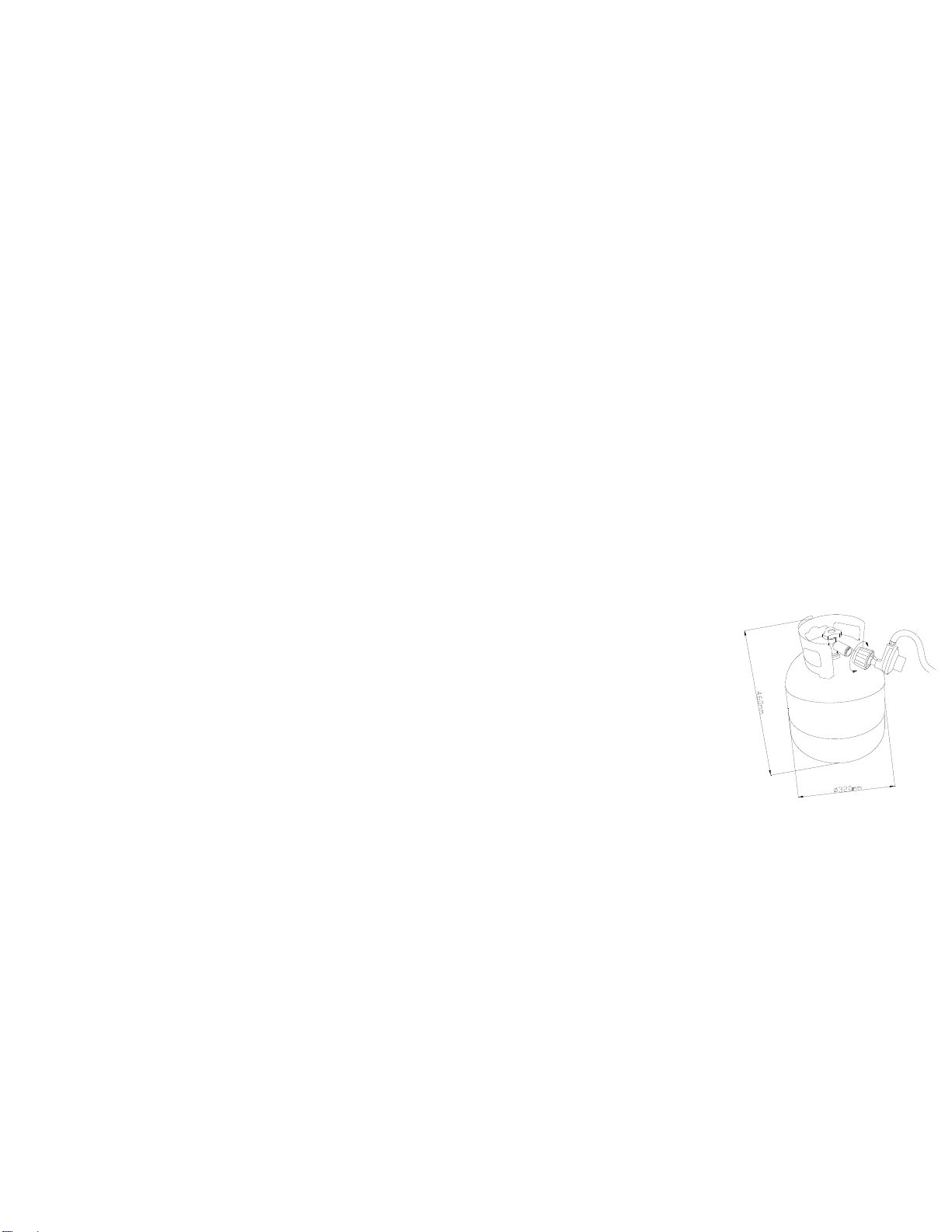

That other cylinder may be acceptable for use with the appliance provided they
are compatible with the appliance retention means and accompanied by illustration(s) depicting the
cylinder mounted to the appliance utilizing the cylinder retention means and the point of contact
between the cylinder and the retention means.
Properly place the hose out of pathways where people may trip over it or in areas where there may
be subject to accidental damage.
The burner must be replaced prior to the appliance being put into operation if it is evident that the
burner is damaged. The replacement burner must be the same as the part specified by manufacturer.
The cleaning of the appliance including the burner, please refer to “STORAGE AND
MAINTENANCE”on page 13.

5 of 15

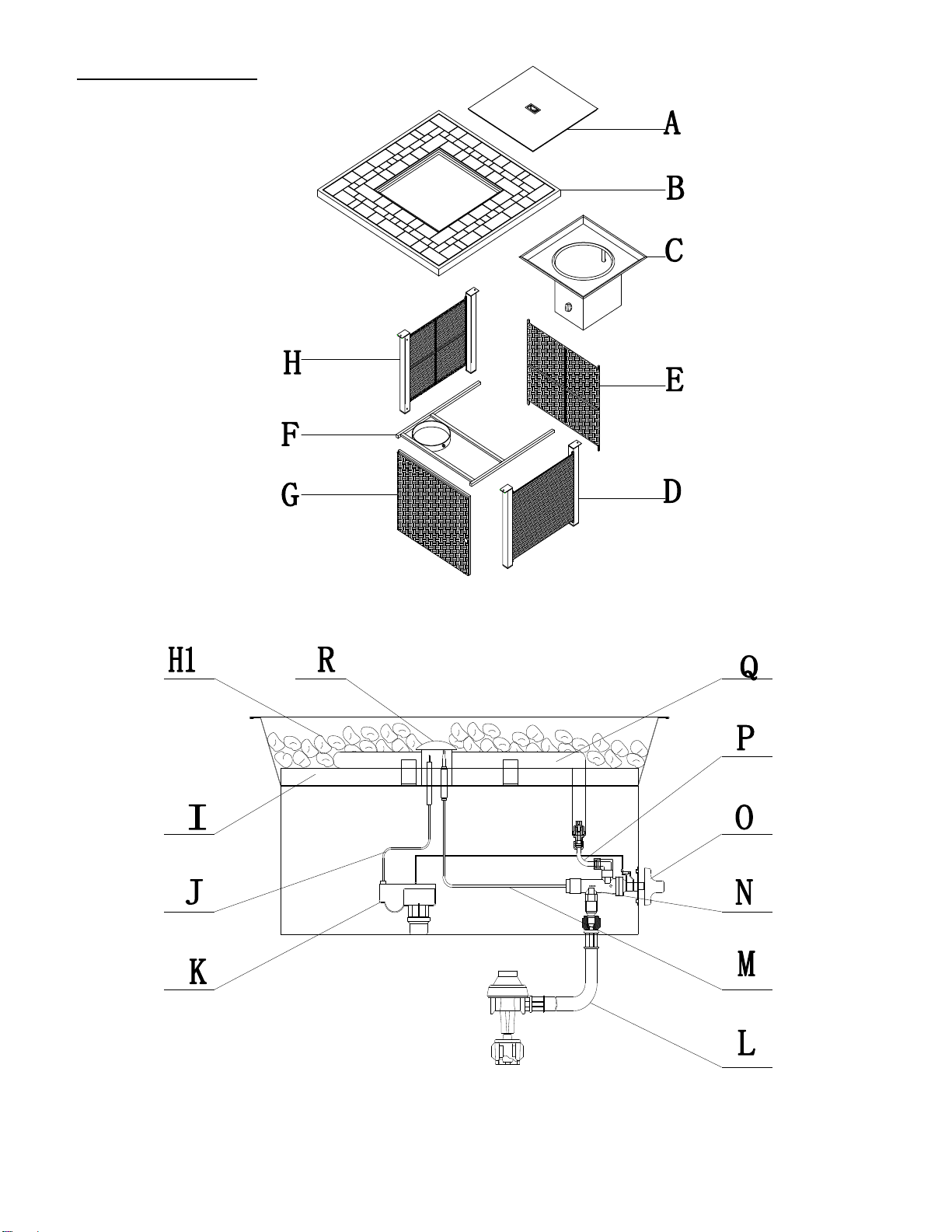

EXPANDED VIEW

6 of 15
NO.
Description
Qty
NO.
Description
Qty
A
Lid
P20708A01142
1
J
Ignition Wire
P99002B07002
1
B
Table Top
P12313A01142
1
K
Battery Box
P99001C07001
1
C
Fire Bowl
P20212A01098
1
L
Pressure Regulator
P99001D07001
1
D
Side Panel 1
P21122A01142
1
M
Thermocouple
P99002E04000
1
E
Rear Panel
P21215A01142
1
N
Control Valve
P99001F04000
1
F
Shelf
P20804A01142
1
O
Control Knob
P99001G07001
1
G
Door
P20915A01142
1
P
Corrugated pipe
P99002H02000
1
H
Side Panel 2
P21123A01142
1
Q
Burner
P99002J02000
1
H1
Lava Rock
P99940C01002
1 (4 KG)
R
Windshield
P99001K02000
1
I
Armor Plate Screen
P99002A02000
1
Parts List

7 of 15
INSTALLATION
Installation will be much easier with two or more people.
No.
Description
Qty
AA
M6x15 Bolt
H01015C11
4
BB
M6x30 Bolt
H01030C11
12
CC
M6x15 Screw
H09015C11
4
DD
M6 Washer
H12001C11
20
EE
Wrench
H00001C12
1
Hardware Bag
If you want to replace the parts listed, please contact Customer Service Center: 1-866-578-6569
Step 1: Attach side panel 1 (D) and side panel 2 (H) to shelf (F) by bolt (BB) and flat washer (DD)
as Fig 1-1 and Fig 1-2 showed. (Note: Please make sure the upper surface of shelf (F) is as flat as
the tube of the panel and the shelf (F) should be close to side panel 2 (H).)

8 of 15
Step 2: Attach side panel 1(D) and side panel 2 (H) to door (G) by bolt (BB) and flat washer (DD)
as Fig 2 showed. (Note: Please make sure door should be assembled close to shelf (F).)
Step 3: Attach side panel 1(D) and side panel 2 (H) to rear panel (E) by bolt (BB) and flat washer
(DD) as Fig 3 showed.

9 of 15

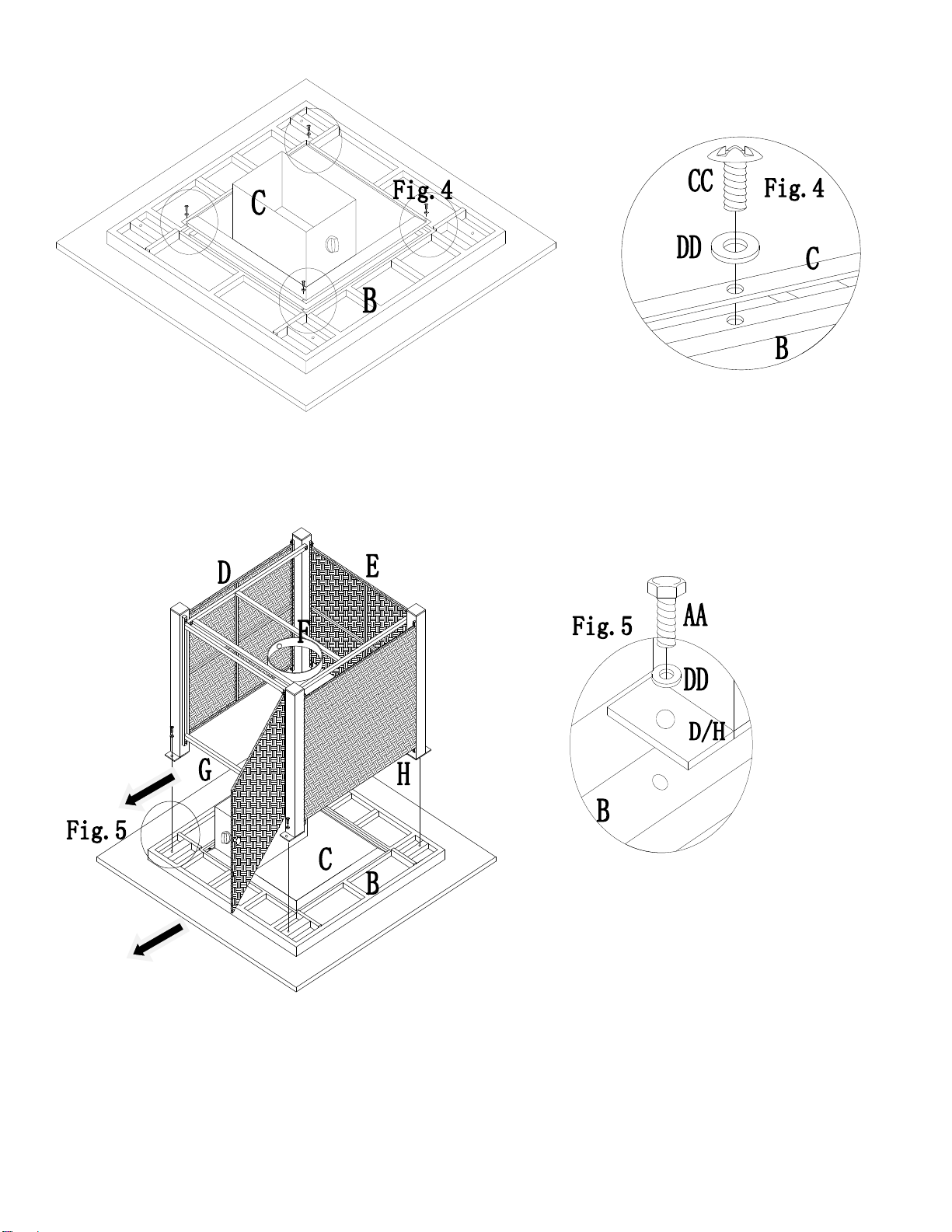

Step 4: Put the Table Top (B) and fire bowl (C) upside down, connect them with Bolt (CC) and
Washer (DD). (Note: Before this step, please take out the foam in the carton and put it
underneath the table top to avoid surface abrasion.)
Step 5: Attach the assembled frame to table top (B) by bolt (AA) and washer (DD). (Note: When
assembling fire bowl (C) to shelf (F), please follow the direction as the arrow showed.

10 of 15
Step 7: Put the lid (A) on the Table Top (B)
Step 6: The Lava Rock (H1) should be put in the bottom of the fire bowl (C) and come up
just as high as the fire ring.
