Sunny Health & Fitness SF-B1004 Manual

Assembly & User Manual
FOLDING RECUMBENT AND UPRIGHT BIKE
SF-B1004
Please read this manual carefully before attempting to assemble or
use your new prodct, and retain for future use.
For Customer Service, please contact: [email protected]

Before You Start
Tools
If required, most of our products are supplied with basic tools,
will enable you to successfully assemble your product. However,
you may find it beneficial to have a soft-headed hammer and perhaps
adjustable spanner handy as these may help.
Prepare the Work Area
It is important that you assemble your product in a clean, clear,
uncluttered area. This will enable you to move around the product
while you are fitting components and will reduce the possibility of
injury during assembly.
Work with a Friend
You may find it quicker, safer and easier to assemble this product with
the help of a friend as some of the components may be large, heavy
or awkward to handle alone.
Open the Carton
Carefully open the carton that contains your product, taking note of
the warnings printed on the carton to ensure that the risk of injury is
reduced. Be aware of sharp staples that may be used to fasten the
flaps as these may cause injury. Be sure to open the carton the right
way up, as this will be the easiest and safest way to remove all the
components.
Unpack the Components
Carefully unpack each component, checking against the parts list that
you have all the necessary parts to complete the assembly of your
product.
Please note that some of the parts may be pre-fitted to major
components, so please check carefully before contacting our
customer support team.
Page 1
which
an

Safety
Before you undertake any program of exercise that will increase
cardiovascular activity please be sure to consult with your physician.
Frequent strenuous exercise should be approved by your phydician.
Proper use of your product is essential. Please read this manual
carefully before commencing assembly of your product or starting to
exercise.
*Please keep all children away from exercise equipment when in
use. Do not allow children to climb or play on them when they
are not in use.
*For your own safety, always ensure that there is at least 3 feet
of free space in all directions around your product while you are
exercising.
*Regularly check to see that all nuts, bolts, and fittings are
securely tightened. Periodically check all moving parts for
obvious signs of wear or damage.
*Clean only with damp cloth, do not use solvent cleaners. If you
are in any doubt, do not use your product.
*Before use, always ensure that your product is positioned
on a solid, flat surface. If necessary, use a rubber mat
underneath to reduce the possibility of slipping during use.
*Always wear appropriate clothing and footwear such as training
shoes when exercising. Do not wear loose clothing that could
become caught or entangled during exercise.
Storage and Use
Your product is intended for use in clean dry conditions. You
should avoid storage in excessively cold or damp places as this may
lead to corrosion and other related problems that are outside our
control.
Weight Limit
Your product is suitable for users weighing:
220 LBS or Less.
Page 2

Exercising Information
Beginning
How you begin to exercise will vary from person to person. If you
have not exercised for a long period of time, have been inactive for a
while, or are severely overweight you must start slowly, increasing
your exercise time gradually, by perhaps only a few minutes for each
session per week.
Combine a carefully structured nutritious diet with a simple but
effective exercise routine and this can help make you feel better, look
better and will almost certainly enable you to enjoy life more.
Aerobic Fitness
Aerobic exercise is simply defined as any sustained activity that
increases the supply of oxygen to your muscles via the blood pumped
by your heart. With regular exercise, your cardiovascular system will
become stronger and more efficient. Your recovery rate i.e. the time
taken for your heart to reach its normal resting level, will also
decrease.
Initially you may only be able to exercise for a few minutes each day.
Do not hesitate to breathe through your mouth should you need more
oxygen. Use the "talk test". If you cannot carry on a conversation
while exercising, you are working too hard! However, aerobic fitness
will be gradually built up with regular exercise, over the next six to
eight weeks.
Do not be discouraged if it takes longer than this to begin to feel less
lethargic, everyone is different and some will achieve their targets
quicker than others. Work at your own, comfortable pace and the
result will come. The better your aerobic fitness the harder you will
have to work to stay in your target zone.
Page 3

Exercising Information
Warm Up
A successful exercise program consists of three parts, Warm Up,
Aerobic Exercise and Cool Down. Never start a training session
without warming up. Never finish one without cooling down correctly.
Perform between five and ten minutes of stretching before starting
your workout to prevent muscle strains, pulls and cramps.
Aerobic Exercise Session
Those new to exercise should exercise no more than every other day
to start with.
As your fitness level increases, increase this to 2 in every 3 days.
When you are comfortable with your routine, exercise for 6 days per
week. Always take at least one day off per week.
Exercising in Y our Target Zone
To ensure that your heart is working in its exercise target zone, you
you will need to locate the pulse in your carotid artery. This is
situated in the side of the neck and can be felt by using the index and
middle fingers. Simply count the number of beats you feel in 10
seconds and then multiply by six to get your pulse rate. This should
be taken before you start to exercise for easy reference.
People who have a greater aerobic fitness, have a lower resting pulse
level and will also be able to exercise with a higher pulse level.
Page 4
need to be able to take your pulse. If you do not have a pulse monitor,

Exercising Information
Cool Down
To decrease fatigue and muscle soreness, you should also cool down
by walking at a slow relaxed pace for a minute or so, to allow your
heart rate to return to normal.

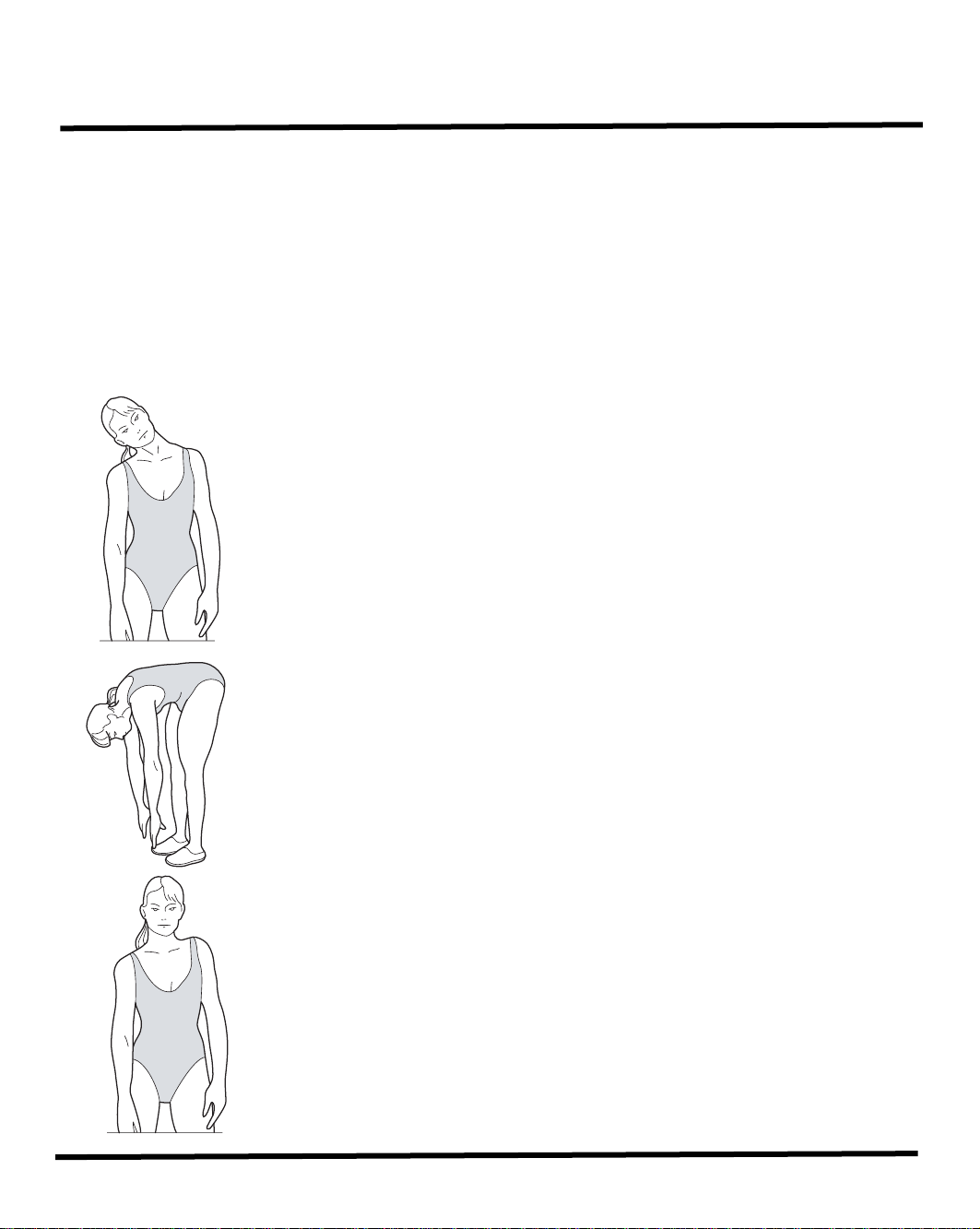

Warm Up and Cool Down Exercises
Hold each stretch for a minimum of ten seconds and then relax.
Repeat each stretch two or three times. Do this before your Aerobic
Exercise session and also after you have finished.
Head Roll
Rotate your head to the right for one count, feeling a slight pull on the
left side of your neck. Next, rotate your head back for one count,
stretching your chin. Then rotate your head to the left for one count,
feeling a slight pull on the right side of your neck. Lastly, drop your
head to your chest for one count. Repeat 2 to 3 times.
Toe Touch
Slowly bend forward from your waist, letting your back and shoulders
relax as you lower your trunk. Gently stretch down as far as is
comfortable and hold for 10 seconds.
Shoulder Lift
Rotate and lift your right shoulder up towards your ear for one count.
Relax then repeat for the left shoulder.
Repeat 3 - 4 times.
Page 5

Exercising Information
Side Stretch
Open both arms to the side and gently lift them above your head.
Reach your right arm as high as you can for one count, gently
stretching the muscles of the stomach and lower back. Repeat the
action with your left arm.
Repeat 3 - 4 times.
Inner Thigh Stretch
Sit on the floor and pull your legs toward your groin, the soles of your
feet together. Hold your back straight and lean forward over your feet.
Tighten the thigh muscles and hold for 5 seconds. Release and repeat
3 - 4 times.
Hamstring Stretch
Sit on the floor with your right leg extended and place your left foot
flat against the right inner thigh. Stretch forward toward the right foot
and hold for 10 seconds. Relax and then repeat with the left leg
extended.
Repeat 2 -3 times.
Calf / Achilles Stretch
Turn towards the wall and place both hands on it. Support yourself
with one leg while the other is placed behind you with the sole flat on
the floor. Bend the front leg and lean towards the wall, keeping the
rear leg straight so that the calf and Achilles tendon are stretched
hold for 5 seconds. Repeat with the other leg.
Repeat 2 - 3 times.
Page 6

Exercising Information
RESISTANCE ADJUSTMENT
To ensure smooth efficient cycling action, the tension belt braking
system on your Exercise Cycle has been correctly adjusted by
our factory during production.
To adjust the brake resistance during use, start by turning the
Tension Control (30 ) fully COUNTER-CLOCKWISE at the start of
your workout. Gradually increase the pedalling resistance by turning
the Tension Controller Knob CLOCKWISE as required.

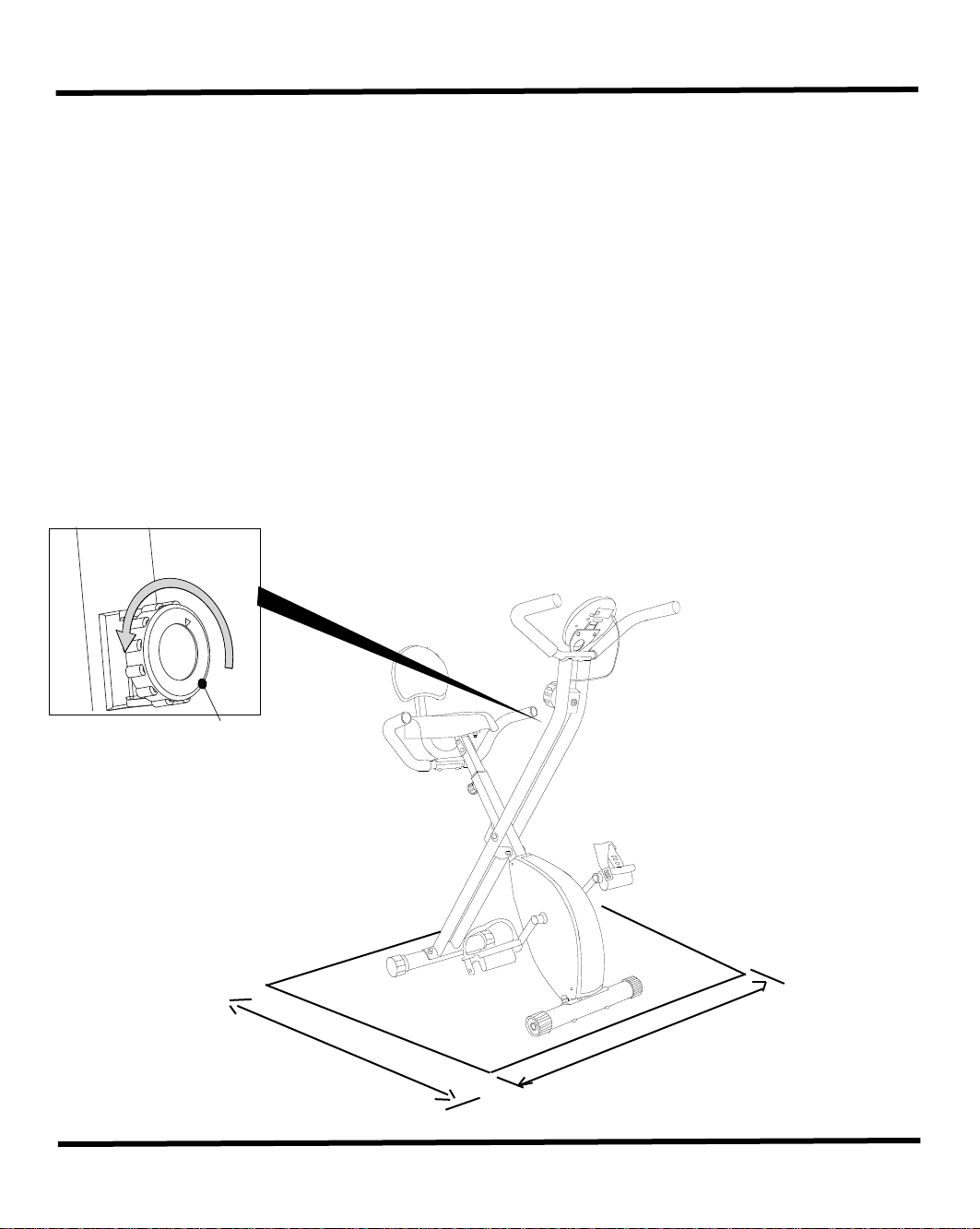

LEVELING THE CYCLE
For security and stablity, your Cycle has a factory
and once fully assembled correctly, should not need
alignment. However, in the interest of safety, please always
ensure that your Cycle is positioned on a solid, flat
necessary, use a rubber mat underneath to reduce the
of slipping while in use. If you need to make a fine adjustment
simply twist the end of either Rear Frame Stabiliz er Adjustable Hex
End Cap (28 ) to compensate for uneven floors.
30
Page 7
19 in
29.5 in
surface. If
possibility
welded frame
further
30

P age 8
4
7
10
13
1
5
6
8
14
15
16
14
13
16
17
18
19
21
22
23
24
25
26
26
20L
20R
27
28
29
30
31
35
34 36
Exploded Diagram
3
9
9
2
10
11
12
10
11
12
12
11
10

Page 9
PARTS LIST
PART NO. QTY
1 1
2 1
3 1
4 1
5 1
6 1
7 1
8 1
9 4
10 6
11 4
12 M8 Dome Nut 4
13 M8 x 40 MM Allen Bolt 4
14 M8 x 25 x 1.5 MM Flat Washer 4
15 M8 x 40 MM Carriage Bolt 2
16 M8 Nylon Nut 5
17 M8 x 20 x 1.5 MM Flat Washer 3
18 Seat Adjustment Knob 1
19 Backrest 1
20 Pedal ( L & R) 1
21 M5 x 10mm Screws 2
22 Exercise Monitor 1
23 M8 x 35 MM Allen Bolt 2
24 Front Handlebar Foam 2
25 Rear Handlebar Foam 2
26 Handlebar End Cap 4
27 25 x 25 Square End Cap 1
28 Adjutable Hex End Cap 2
29 Front End Cap 2
30 Tension Control Knob 1
31 Sensor Wire 1
32 Multi- Function Wrench 1
33 Allen Bolt Wrench 1
34 Locking Pin 1
35 Rear Frame 1
36 Crank (L & R) 1
M8 Spring Washer
Saddle Support
Backrest Stem Support
Rear Handlebar
Saddle
M8x65 MM Carriage Bolt
M8 Curved Washer
DESCRIPTION
Main Frame
Front Stabilizer
Rear Stabilizer
Front Handlebar

Assembly & Adjustments
EXERCISE MONITOR FUNCTIONS
The 6 function Exercise Monitor is
begin to pedal. However, it is
pressing the Mode Button at the
consumption, the monitor will
approximately four minutes.
Please refer to the leaflet supplied with the Exercise Monitor for all
operational functions.
LUBRICATION AND MAINTENANCE
The moving parts in your Cycle are all pre-lubricated at assembly and
should not require further attention. We recommend however that the
cycle is used inside and stored in a dry condition. To clean the metal
and plastic components, a general household cleaner can be used, but
please be sure to dry the cycle and any attachments before use.
Page 1 0
In the interest of safety, do NOT use polish or any lubricant on the saddle,
foam handgrips or pedals.
set to start automatically
possible to switch
when you
on the monitor by
bottom of the monitor. To save battery
also switch off after it has been idle for

Assembly & Adjustments
HOW TO FOLD
HOW TO ADJUST
Page
eht,gnisunehW.ekiBehtdlofnudnadlofot)43(niPgnikcoLgnisU
)43(niPgnikcoLeht,dedlofnehW.Anoitisopnisi)43( is in position B.
Locking Pin
B
A
34
The Saddle Support has "Max" Sigh to show the maximum height of Saddle.
You should not exceed this height. Unscrew the Seat Adjustment Knob (18)
firs, then pull the knob outward to release the Seat Support Tube (7). Position
the Seat Support Tube to the desired height allowing for a slight bend in the knee
at the lowest pedal position and retighten the Seat Adjustment Knob (18).
11

Assembly
These are all the accessories you will need to complete the assembly of your
product. The following accessories are supplied in a pack and should be
checked before attempting assembly.
Page 12
ltem 9
Qty 4
ltem 32
Qty 1
ltem 33
Qty 1
ltem 15
Qty 2
ltem 18
Qty 1
ltem 13
Qty 4
ltem 23
Qty 2
ltem 16
Qty 2
ltem 14
Qty 4
ltem 10
Qty 6
ltem 11
Qty 4
ltem 12
Qty 4
HARDWARE LIST

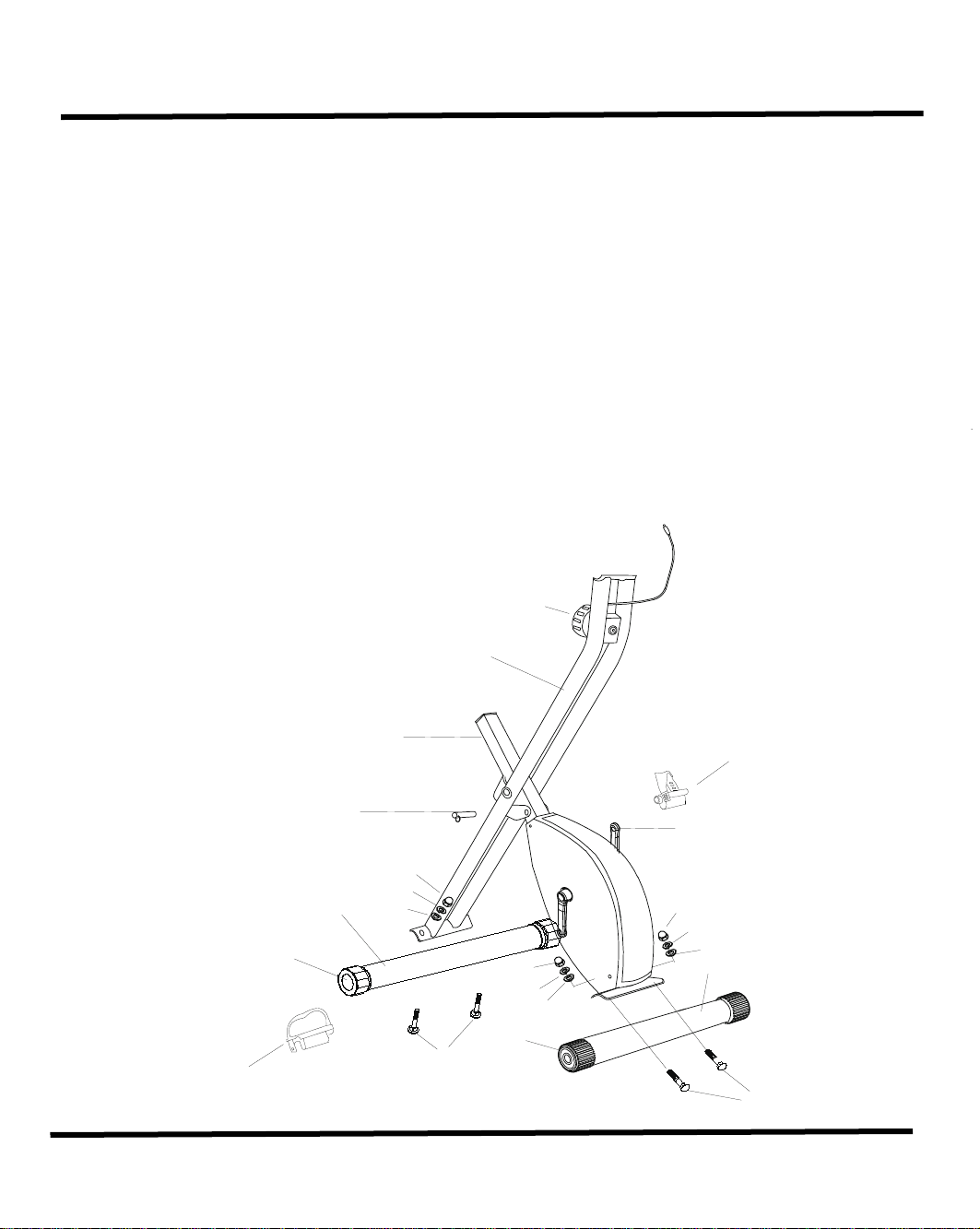

Unfold the Main Frame (1) and Rear Frame (35). Lock into position using
1 x Locking Pin (34). Connect the Rear Stabilizer (3) to the Rear Frame
,
)
10
(
sr
e
hsaWdevruC8Mx2
,)
9
(
stloBe
g
airraCmm56*8Mx2htiw
2 x M8 Spring Washers (11) and 2 x M8 Dome Nuts (12). Repeat for the
Front Stabilizer and tighten all Nuts and Bolts securely.
Assemble the Pedals (Left and Right)(20 ) to the Pedal Crank (36)
Both pedals must be tightened securely, otherwise damage may occur to the Crank.
Fasten the Pedal Straps
Page 13
1.
Assembly & Adjustments
marked with an " L" for the LEFT SIDE of the cycle (If you are sitting on the bike)
; ;and must be fitted by turning COUNTER-CLOCKWISE.
The right pedal is marked with an " R" for the RIGHT
sitting on the bike); and must be fitted by turning CLOCKWISE.
*
2.
SIDE of the cycle
NOTE *
(See note below).
(if you'' are
The left [pedal is
ensuring a snug fit.
;
1
2
3
9
9
10
11
12
10
11
12
12
11
10
30
28
29
35
34
(35)
36
20L
20R
* NOTE *
;

Assembly & Adjustments

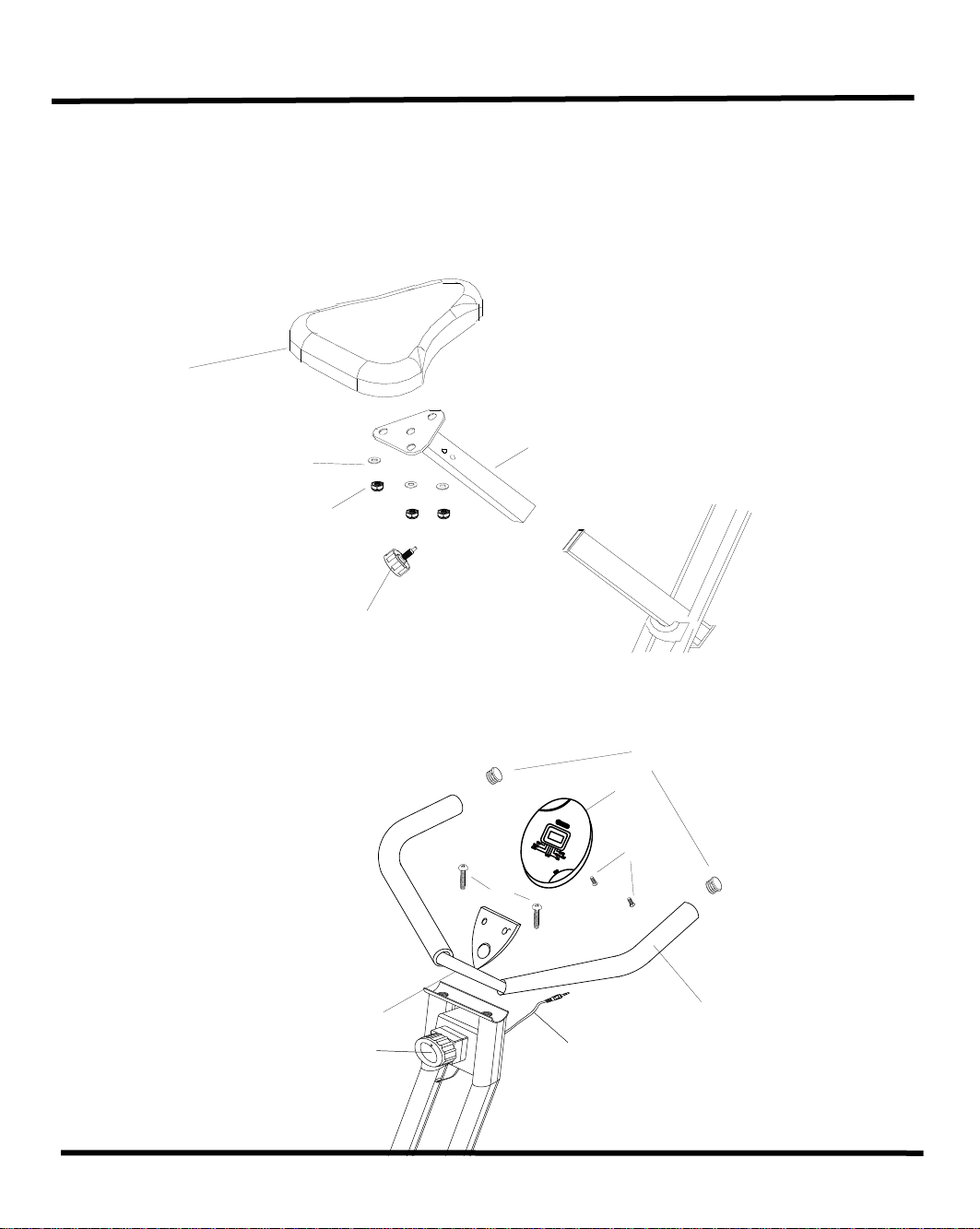

Remove the 3 x M8 Flat Washers (17) and 3 x M8 Nylon Locknuts (16 ) from
Saddle (8). Fix the Saddle to the Saddle Support (5) by refitting the washers
and nuts previously removed. Unlock the Seat Adjustment Knob (18) and slide
the Saddle Support into the Main Frame. Set the Saddle to the desired height,
allowing for a slight bend in the knee at the bottom of the cycle rotation. Re-tighten
the Seat Adjustment Knob (18).
3.
Connect the Handlebar (4 ) to the Handlebar Support using 2 x M8 * 35mm
Allen Bolts (23). Attach the Exercise Monitor (22) onto mounting tab on
Handlebar (4 ) with 2 x M5* 10 mm Screws (21). Connect the Sensor Wire (31)
Page 14
4 .
the
16
17
18
8
5
4
21
22
23
24
26
30 31
the
and Exercise Monitor (22) together.

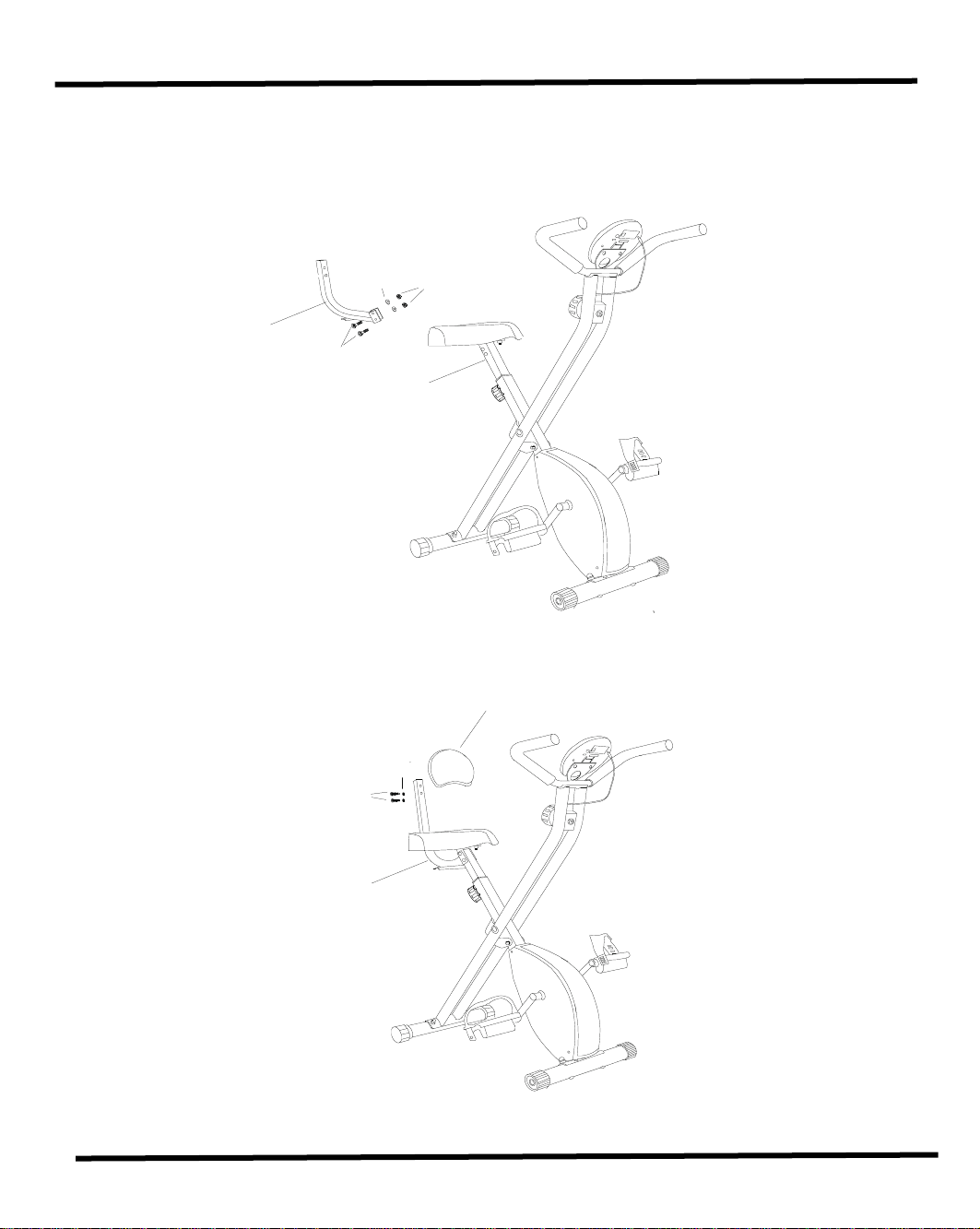

Connect the Backrest Stem Support (6) to the Saddle support (5) with
2 x M8 Flat Washers (14), 2 x M8 x 50 MM Carriage Bolt (15) and
5.
Fix the Backrest (19 ) to the Backrest Stem Support (6) with 2 x M8 x 40 MM (13)
6.
Page 15
Assembly & Adjustments
and 2 x M8 Flat Washer (14).
6
14
15
16
5
14
13
19
6
2 x M8 Nylon Nut (16).

Connect the Handlebar (7 ) to the Backrest Stem Support (6) by f astening
2 x M8* 40 mm Allen Bolts (13) and 2 x M8 Curv ed W ashers (10 ).
7 .
Assembly & Adjustments
Page 16
7
10
13
6

4) This monitor requires 2 AA batteries.
Exercise Monitor Manual
SPECIFICATIONS
TIME………………………………0:00~99:59MIN
CALORIE………………………..0.0~999.9KCAL
SPEED…………………………….0.0~999.9ML/H (KM/H)
DISTANCE……………………….0.0~999.9ML (KM)
KEY FUNCTIONS:
MODE: This key lets you select and lock on to a particular function you want. (Press
and hold the MODE key for 3 seconds to reset the values to zero)
FUNCTIONS:
1. TIME: Press the MODE key until pointer locks on to TIME. The total time of workout
will be shown.
2. SPEED: Press the MODE key until pointer locks on to SPEED. The speed of your
workout will be shown.
3. DISTANCE: Press the MODE key until pointer locks on to DISTANCE. The distance
of your workout will be shown.
4. CALORIE: Press the MODE key until pointer locks on to CALORIE. The calories
burned during your workout will be shown.
TIME---SPEED---DISTANCE---CALORIE
NOTE:
1) If the monitor display appears abnormal; please re-install the batteries or install new
batteries.
2) The batteries must be removed from the appliance before it is scrapped and
disposed of safely.
3) The display will show the workout value automatically when you start workout. Once
exercise has stopped for over 4 minutes, the display will turn off.
4) This monitor requires 2 AA batteries.
Page 17
