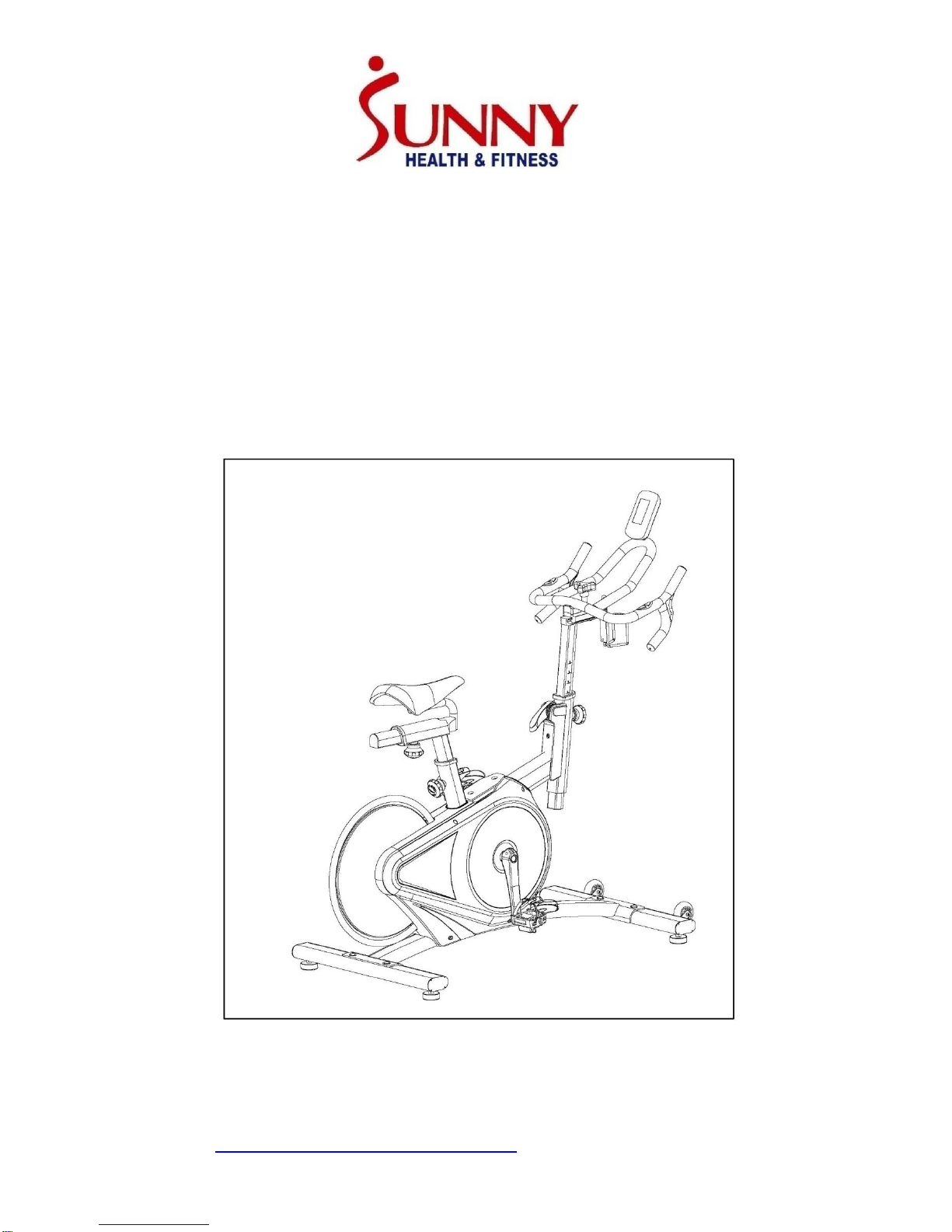

Sunny Health & Fitness SF-B1709 User manual

BELT DRIVE MAGNETIC INDOOR
CYCLING BIKE
SF-B1709
USER MANUAL
IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions.
Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE
CONTACTED US: [email protected] or 1-877-90SUNNY (877-907-8669).

2
IMPORTANT SAFETY INFORMATION
We thank you for choosing our product. To ensure your safety and health, please use this equipment
correctly. It is important to read this entire manual before assembling and using the equipment. Safe
and effective use can only be achieved if the equipment is assembled, maintained and used properly.
It is your responsibility to ensure that all users of the equipment are informed of all warnings and
precautions.
1. Before starting any exercise program, you should consult your physician to determine if you have
any medical or physical conditions that could put your health and safety at risk, or prevent you
from using the equipment properly. Your physician’s advice is essential if you are taking
medication that affects your heart rate, blood pressure or cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop
exercising if you experience any of the following symptoms: pain, tightness in your chest, irregular
heartbeat, shortness of breath, lightheadedness, dizziness or feelings of nausea. If you do
experience any of these conditions, you should consult your physician before continuing with your
exercise program.
3. Keep children and pets away from the equipment. The equipment is designed for adult use only.
4. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet. To
ensure safety, the equipment should have at least 4 feet (1.2 M) of free space all around it.
5. Ensure that all nuts and bolts are securely tightened before using the equipment. The safety of the
equipment can only be maintained if it is regularly examined for damage and/or wear and tear.
6. Always use the equipment as indicated. If you find any defective components while assembling or
checking the equipment, or if you hear any unusual noises coming from the equipment during
exercise, discontinue use of the equipment immediately and do not use until the problem has
been rectified.
7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may become
entangled in the equipment.
8. Do not place fingers or objects into the moving parts of the equipment.
9. The maximum weight capacity of this unit is 300 pounds (135 KG).
10.The equipment is not suitable for therapeutic use.
11.To avoid bodily injury and/or damage to the product or property, proper lifting and moving is
required.
12.Your product is intended for use in cool, dry conditions. You should avoid storage in extreme cold,
hot or damp areas as this may lead to corrosion and other related problems.
13.This equipment is designed for indoor and home use only, it is not intended for commercial use!

3

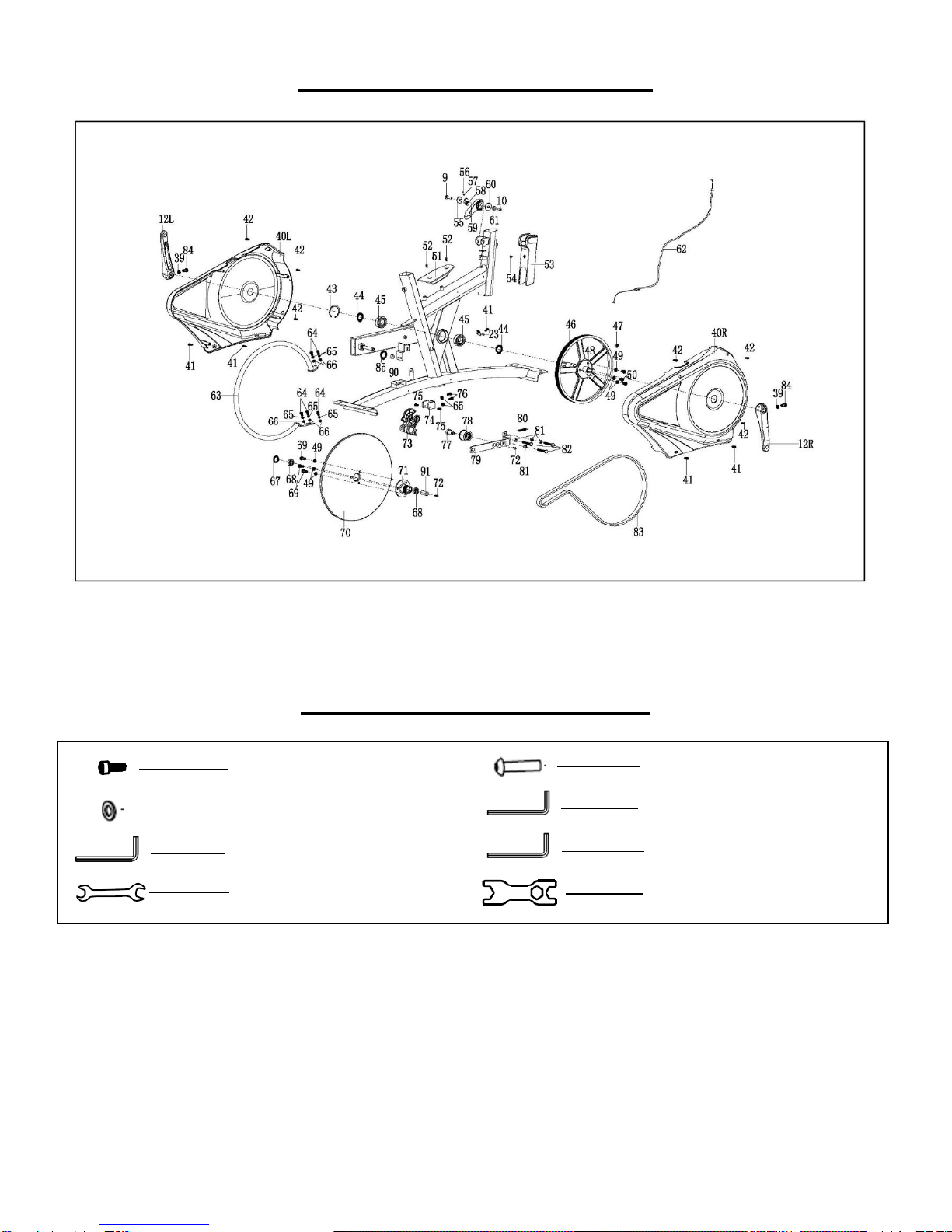

EXPLODED DIAGRAM 1

4
EXPLODED DIAGRAM 2
HARDWARE PACKAGE
#29 M5X12 2PCS
#7 D10XΦ20X2 4PCS
#8 M10X25 4PCS
#87 S6 1PC
#86 S5 1PC
#94 S4 1PC
#89 S13,15 1PC
#88 S17,19 1PC

5
PARTS LIST
No.
Description
Spec.
Qty
No.
Description
Spec.
Qty
1
Main Frame
1
33
Water Bottle Holder
1
2
Front Stabilizer
1
34
Meter
1
3
Rear Stabilizer
1
35
Shipping Tube
2
4
Handlebar Post
1
36
Hexagon Socket Cap
Screw
M8X16
2
5
Adjusting Pad
4
37
Extension Wire 2
1
6
Hex Nut
M10
4
38
Hexagon Socket Cap
Screws
M6X10
1
7
Flat Washer
d10XΦ20X2
4
39
Flat Washer
Φ8XΦ12X1
2
8
Hexagon Socket
Head Screw
M10X25
4
40L/R
Chain Cover
1 pr.
9
Hexagon Socket
Head Screw
M8X30
3
41
Cross Head Self
Tapping Screw
5
10
Hexagon Socket
Head Screw
M6X12
3
42
Screw
6
11
Wheel
2
43
Closing Ring
d52
1
12L/R
Crank
1 pr.
44
Axle Ring
d25
2
13
Spring Knob
M16*1.5*18
3
45
Bearing
2
14
Sleeve
3
46
Belt Pulley
1
15L/R
Pedal
1 pr.
47
Round Magnet
1
16
Brake Handle
1
48
Center Axle
1
17
D Shape Plug
1
49
Spring Washer
D8
6
18
Seat Post
1
50
Hexagon Socket
Head Screw
M8X12
3
19
D Shape Plug
1
51
Foot Plate
1
20
Seat Horizontal
Tube
1
52
Inner Hexagon
Countersunk Head
Screw
M8X12
2
21
Seat
1
53
Brake Cover
1
22
Handlebar
1
54
Screw
M5X10
1
23
Sensor Wire
1
55
Stop Block
1
24
Extension Wire 1
1
56
Ball
1
25
Pulse Wire
1
57
Compressed Spring
1
26
Triangle Knob
1
58
Stop Block
1
27
Sliding Block
1
59
Brake Handle
1
28
Bolt
1
60
Block
1
29
Hexagon Socket
Cap Screw
M5X12
2
61
Spacer
1
30
Bracket
1
62
Tension Wire
1
31
Cross Head Screw
M5X8
2
63
Steel Ring
1
32
Flat Washer
Φ5XΦ10X1
2
64
Hex Bolt
M6X16
5

6
65
Spring Washer
D6
7
80
Spring
1
66
Washer
D6XΦ12X1.2
5
81
Hex Screw
M8
3
67
Wave Washer
D12XΦ18X0.3
1
82
Hex Bolt
M8X50
3
68
Bearing
2
83
Belt
1
69
Hexagon Socket
Head Screw
M8X20
3
84
Bolt
4
70
Flywheel
1
85
Stop Ring
D12
1
71
Sleeve
1
86
Allen Wrench
S5
1
72
Inner Hexagon
Countersunk Head
Screw
M8X25
2
87
Allen Wrench
S6
1
73
Brake Block
1
88
Wrench
S=17-19
1
74
U Shape Block
1
89
Wrench
S=13-15
1
75
Cross Countersunk
Head Screw
M6X16
2
90
Spacer
1
76
Hex Bolt
M6X12
2
91
Flywheel Spacer
1
77
Axle
1
92
Square Plug
4
78
Idler Wheel
1
93
Washer
D8XΦ20X2
1
79
Supporting Board
1
94
Allen Wrench
S4
1
Ordering Replacement Parts (U.S. and Canadian Customers only)
Please provide the following information in order for us to accurately identify the part(s) needed:
The model number (found on cover of manual)
The product name (found on cover of manual)
The part number found on the “EXPLODED DIAGRAM” and “PARTS LIST” (found near the front of
the manual)
Please contact us at [email protected] or 1- 877 –90SUNNY (877-907-8669).

7

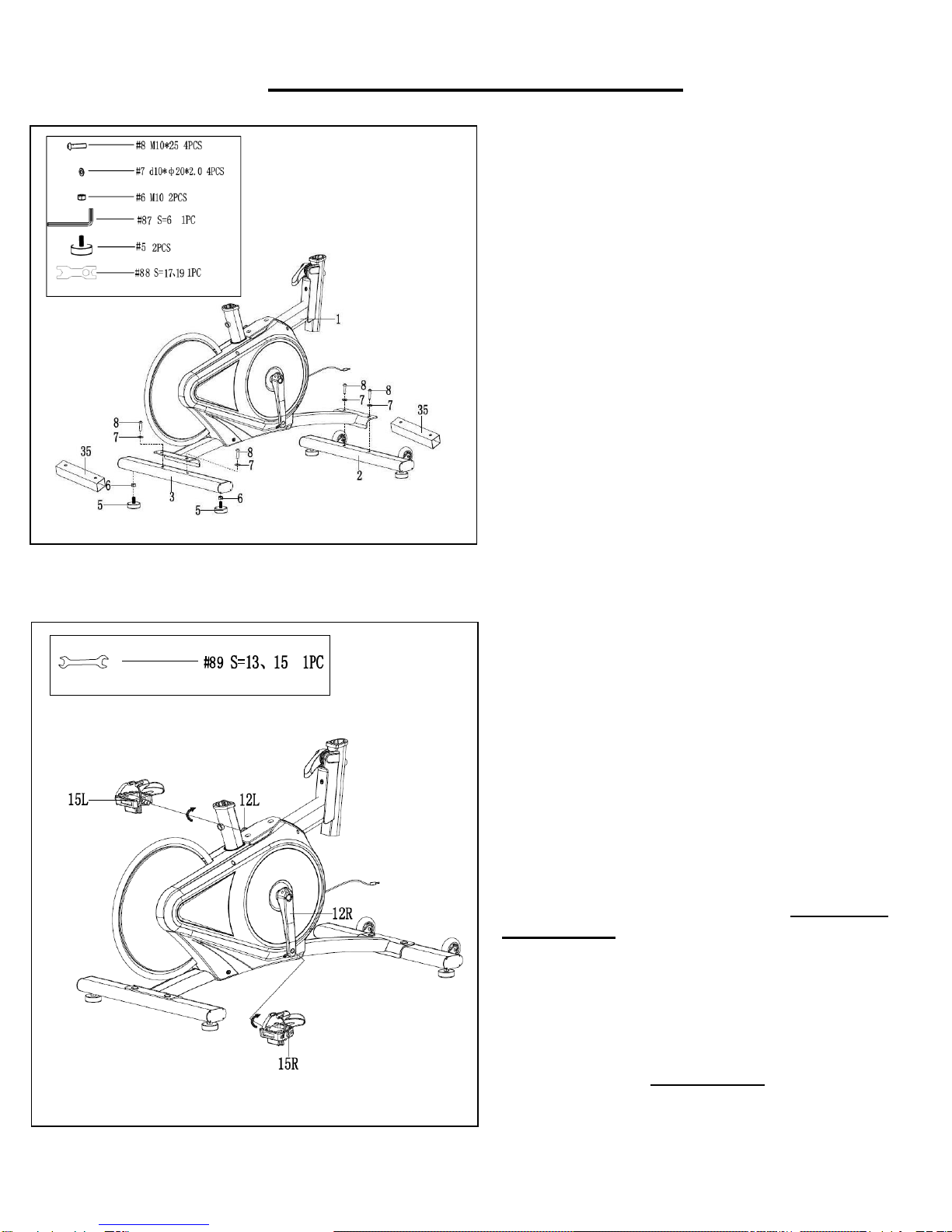

ASSEMBLY INSTRUCTIONS
STEP 1:
Attach 2 Adjusting Pads (No. 5) and 2 Hex
Nuts (No. 6) to the Rear Stabilizer (No. 3) by
using Wrench (No. 88).
Unscrew the 4 Hexagon Socket Head
Screws (No. 8) with Allen Wrench (No. 87),
remove the 4 Flat Washers (No. 7), 2
Shipping Tubes (No. 35) from the Main
Frame (No. 1).
Attach the Front & Rear Stabilizer (No. 2&
No. 3) to the Main Frame (No. 1) using 4
Hexagon Socket Head Screws (No. 8), 4
Flat Washers (No. 7). Tighten and secure
with the Allen Wrench (No. 87).
NOTE: You may discard the Shipping Tubes
(No. 35) or save them for future packaging or
transportation.
STEP 2:
IMPORTANT! Read instructions carefully,
failure to do so may cause permanent
damage to your bike.
Before installation, please make sure you have
the Left Pedal (No. 15L) in hand. Align the
Left Pedal (No. 15L) with the Left Crank (No.
12L)at 90°and gently insert the Left Pedal
(No. 15L) into the Left Crank (No. 12L).
Screw the Left Pedal (No. 15L) COUNTER-
CLOCKWISE into the Left Crank (No. 12L).
Tighten and secure with Wrench (No. 89).
Align the Right Pedal (No. 15R) with the
Right Crank (No. 12R) at 90°and gently
insert the Right Pedal (No. 15R) into the
Right Crank (No. 12R). Screw the Right
Pedal (No. 15R) CLOCKWISE into the Right
Crank (No. 12R). Tighten and secure with
Wrench (No. 89).

8
STEP 3:
Insert the Seat Post (No. 18) into the Main
Frame (No. 1). Set Seat Post (No. 18) at
desired height. Insert Spring Knob (No. 13)
and tighten to secure.
Insert the Seat Horizontal Tube (No. 20) into
the Seat Post (No. 18). Insert Spring Knob
(No. 13) and tighten to secure.
Attach the Seat (No. 21) to the Seat
Horizontal Tube (No. 20) using the Wrench
(No. 89).
STEP 4:
Thread Extension Wire 1 (No. 24) into Main
Frame (No. 1). Insert Handlebar Post (No. 4)
into Main Frame (No. 1) at suitable height,
then insert Spring Knob (No. 13) and tighten
to secure. Finally connect Extension Wire 1
(No. 24) to Sensor Wire (No. 23).

9
STEP 5:
Remove Hexagon Socket Cap Screw (No.
38) from Handlebar Post (No. 4) using Allen
Wrench (No. 86). Unscrew preassembled
Bolt (No. 28) and Washer (No. 93) from
Triangle Knob (No. 26). Place Handlebar
(No. 22) on Handlebar Post (No. 4). Do not
slide all the way on yet.
Insert Bolt (No. 28) into the hole in the
Handlebar (No. 22) from the bottom. Hold
Bolt (No. 28) on the threaded end to keep it in
place while you slide the Handlebar (No. 22)
onto the Handlebar Post (No. 4). Make sure
the head of Bolt (No. 28) fits into the groove in
the Handlebar Post (No. 4). Now slide the
Handlebar (No. 22) all the way on.
Put Washer (No. 93) and Triangle Knob (No.
26) on Bolt (No. 28). Then turn the Triangle
Knob (No. 26) to tighten. Put Hexagon
Socket Cap Screw (No. 38) into the hole in
the Handlebar Post (No. 4), and tighten using
Allen Wrench (No. 86).
Finally connect the Extension Wire 1 (No. 24)
and Extension Wire 2 (No. 37).
STEP 6:
Attach the Bracket (No. 30) to the Handlebar
Post (No. 4) with 2 Hexagon Socket Cap
Screws (No. 29) using Allen Wrench (No.
94).
Connect the Extension Wire 2 (No. 37) and
Pulse Wire (No. 25) with wires out of the
Meter (No. 34), then attach the Meter (No. 34)
to the Handlebar (No. 22).
Assembly is complete!

10
ADJUSTMENTS GUIDE
ADJUSTING THE BALANCE
In order to achieve a smooth and comfortable ride, you must
ensure that the stability of the bike is secured. If you notice that
the bike is unbalanced during use, you should adjust the foot
levelers located beneath the front and rear stabilizers. To do
so, use the Wrench (No. 88) to loosen Hex Nut (No. 6) by
turning it clockwise (direction A). With the screw loosened,
rotate Adjusting Pad (No. 5) until it sits level with the surface
that the bike is on. When you have finished adjusting the foot
leveler, use the Wrench (No. 88) to re-tighten the Hex Nut
(No. 6) by turning it counter-clockwise (direction B). If required,
repeat this process to adjust the remaining feet.
ADJUSTING THE SEAT
An appropriate seat height helps to ensure your exercise
efficiency and reduce the risk of injury. Adjusting the seat
forward or backward can help you work out different body
muscle groups.
With one pedal in the upward position, place your foot in the
toe clip and get on the bike. If your leg is bent too much, you
should move the seat up. If your foot cannot touch the pedal
or your leg is too straight, you should move the seat down.
Dismount the bike before adjusting the seat.
Loosen the [seat adjustment] Spring Knob (No. 13)to raise or
lower Seat Post (No. 18) to the desired position. Make sure
Spring Knob (No. 13)secures into the desired hole.
Loosen Spring Knob (No. 13) to move the seat forward or
backward to the desired position. Once the position is located,
firmly secure Spring Knob (No. 13)by turning clockwise.
Figure A
ADJUSTING THE RESISTANCE
Adjust the resistance of the bike using the Brake Handle (No.
16). Increase the level of resistance by pressing the Brake
Handle (No. 16) downward, decrease the level of resistance
by pressing the Brake Handle (No. 16) upward. Push down on
the Brake Handle (No. 16)for emergency brake.

11
DISMOUNTING THE BIKE
WARNING! Do not dismount the bike or remove your feet from
the pedals until the pedals have stopped completely. You can
stop the flywheel at anytime by pushing down on Brake Handle
(No. 16).
Figure B
ADJUSTING THE HANDLEBAR
Loosen the [handlebar adjustment] Spring Knob (No. 13)to
raise or lower the handlebar to the desired position. Make sure
the Spring Knob (No. 13) settles into the desired hole and
secure it firmly by turning clockwise.
Loosen Triangle Knob (No. 26) to move the handlebar forward
or backward to desired position. Tighten the Triangle Knob
(No. 26) to secure.
ADJUSTING THE PEDAL STRAP
Place the ball of each foot in the toe clips so the front of your
shoe fits snugly in the toe clip cage. Rotate one foot to within
arm’s reach and pull the strap until the top clip cage fits your
shoe snugly. Insert the strap back into the hoop of the toe clip.
Repeat this for the other foot.
MOVING THE BIKE
To move the bike, first ensure that the handlebar is properly
secured. If the handlebar is loose, tighten the Knob to secure it.
Next, stand at the front of the bike so that you’re directly in front
of the handlebar. Firmly grasp and hold each side of the
handlebar, place one foot on the front stabilizer and tilt the bike
towards you until the transportation wheels on the front
stabilizer touch the ground. With the wheels on the ground, you
can transport the bike to the desired location with ease.
26

12
MAINTENANCE INSTRUCTIONS
This is general information for daily, weekly and monthly maintenance to be performed on your bike.
DAILY MAINTENANCE
After each exercise session, wipe down all
the equipment: seat, frame, handlebars. Pay
special attention to the seat post, handlebar
post and belt/chain guard. Sweat is very
corrosive and may cause problems that
require parts replacement later.
1. Get on the bike and engage the drive
train.
2. Pay attention to any vibrations felt
through the pedals. If you feel any
vibrations, you may need to tighten the
pedals, bottom bracket, or adjust the drive
belt/chain tension.
3. Use a wrench to tighten the pedals until
they are secure.
MONTHLY MAINTENANCE
1. Check all hardware is secure, such as: water
bottle holder, flywheel nuts, belt/chain guard
bolts, brake caliper lock nuts and brake
caliper tension rod nuts.
2. Inspect the brake tension rod for signs of
wear such as missing threads. Clean and
lubricate the brake tension rod.
3. Clean and lubricate the seat post, handlebar
post and seat slider. Remove any build up of
foreign material.
WEEKLY MAINTENANCE
1. Inspect moving parts and tighten the
hardware.
2. Inspect pull pin frame fittings, making
sure the fittings are snug. Loose frame
fittings may strip out threads over time
and cause extensive damage.
3. Clean and lubricate pop pin assemblies.
Pull on the pin and spray a small amount
of lubricant onto the shaft.
4. Tighten the seat hardware, making sure
the seat is level and centered.
5. Brush and treat the resistance pads.
Remove any foreign material that may
have collected on the pads. Spray the
pads with silicone lubricant. This helps to
reduce noise from friction between the
pads and the flywheel.
6. Visually inspect the bottom bracket, toe
clips and toe straps. If any of them are
loose or disconnected, attach and tighten.
LEATHER BRAKE PAD CARE (If Applicable)
1. Perform this maintenance when the brake
pad is first installed and for the life of the
brake pad. Following these simple guidelines
can increase the life of your brake pads.
2. Some brake pad assemblies are pre-
lubricated. Squeeze the brake pad. If
lubricant is released, then the pad has been
pre-lubricated.
3. If the brake pad is dry, then coat the brake
pad with 3-n-1 oil. Brush the leather with a
clean, wire bristle brush, and then apply the
oil. The oil should be allowed to soak in to
the pad. Repeat 4-5 times until the pad is
saturated, but not dripping with oil. When the
pad is saturated, it will no longer absorb oil.
4. Inspect the brake pad weekly and lubricate if
needed. The pad should not have a glazed
appearance. If the pad appears glazed, then
brush it with wire brush and apply lubricant
as needed. If any of the sponge padding is
showing through the leather pad, the brake
pad should be replaced.

13

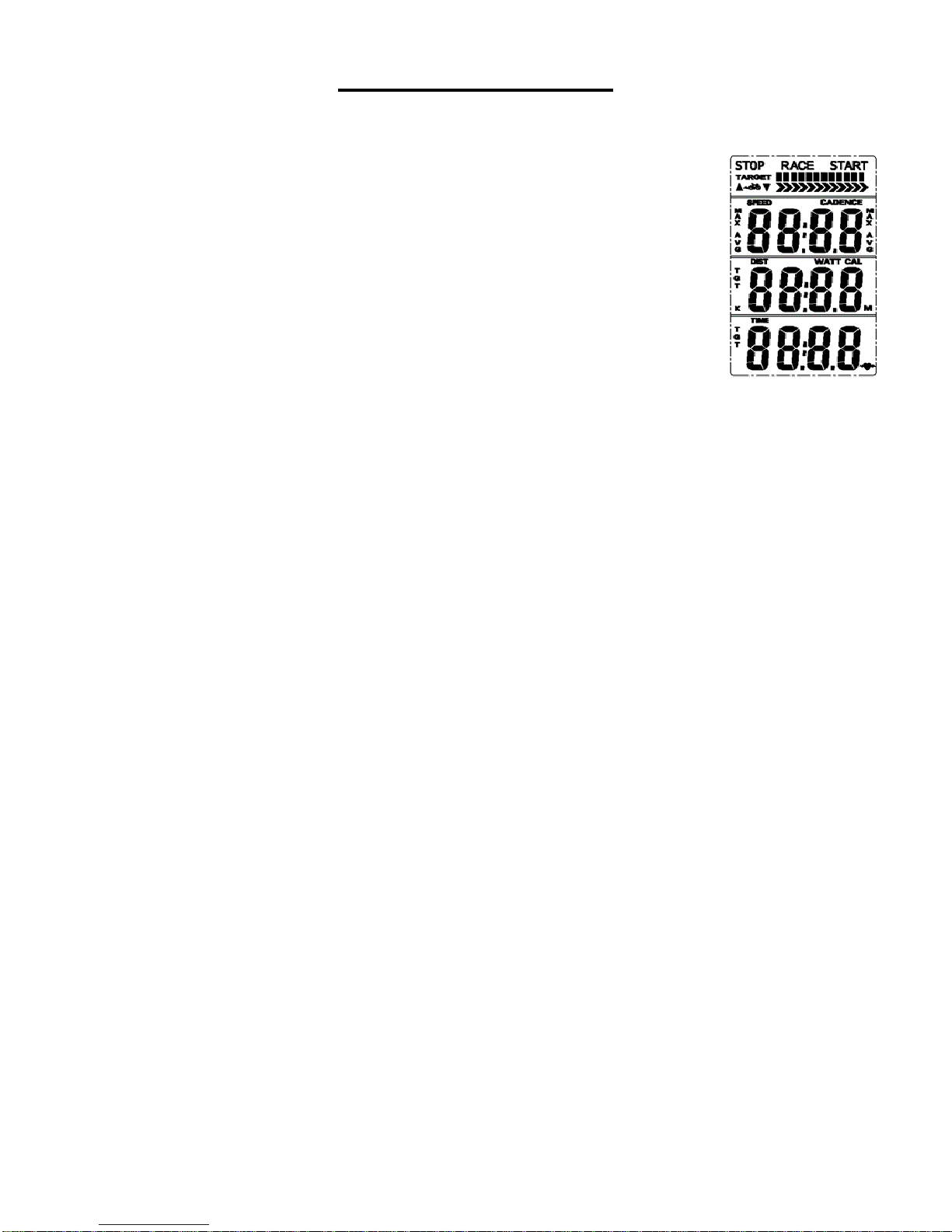

EXERCISE METER
FUNCTION BUTTONS
MODE
Press to select the function displayed or enter value after setting.
Press and hold for 2 seconds to enter the RACE interface in STOP mode.
SET
To set up the target value of TARGET, TIME, DIST, CAL.
Press the button and hold for 2 seconds to speed up the increment during stop mode.
RESET
Press the button to reset function value during setting mode.
Press the button and hold for 2 seconds to reset all value except Odometer to zero.
(When the user replaces the batteries, all values will reset to zero.)
FUNCTIONS:
SPEED: Displays the speed from 0 to 99.9 mph.
AVG SPEED: Displays the average speed only in STOP mode.
MAX SPEED: Displays the Maximum speed only in STOP mode.
CADENCE: Displays the frequency per minute from 15 to 120.
AVGCADENCE: Displays the average cadence.
MAX CADENCE: Displays the maximum cadence.
DISTANCE (DIST): Accumulates total distance from 0.00 to 999.9 miles. User can preset TARGET
DISTANCE by pressing MODE & SET.
TARGET DISTANCE (TGT DIST): Users can preset the Distance in the TARGET mode.
CALORIES (CAL): Accumulate total Calories from 0 to 9999. User can preset target calories.
RACE: Exercise in the TARGET MODE.
TIME: Accumulates total time from 00:00 to 99:59. User can preset target Time.
TARGET TIME: Users can preset the Time in the TARGET MODE.
MILE OR KILOMETER SETTING:
The default setting is miles. Press and hold SET and MODE together for 2 seconds to change to kilometers.
SET TARGET VALUES
1. Press SET to select a target value. CADENCE will start to flash.
2. Press and hold SET and the value will increase continuously.
3. Press MODE to enter.

14
4. TIME will flash.
5. Press SET to select a value.
6. Press MODE to enter.
7. Repeat to select values for DIST and CAL.
RACE MODE
Press and hold MODE for 2 seconds to enter RACE mode.
1. TARGET: the preset CADENCE.
2. In STOP mode, press SET key to enter the TARGET setting in stop mode Press SET to increase the
CADENCE five at a time. The setting change is 15………110→115→120→15→
↑←←←←←←←←←←←↓
3. The setting range of 15 -120 (Preset value is 60 CADENCES. It equals six bars)
4. Each bar equals 10 CADENCE. Total is 12 bars.
Each arrow equals 10 CADENCES (1-10 CADENCESdisplays one arrow, 11-20 displays two). The
maximum arrows displayed is 12.
This down arrow next to the bicycle icon will be displayed when the current CADENCE is more than the
TARGET CADENCE. The bicycle icon will be displayed during exercise mode.
CURRENT CADENCE TARGET CADENCE
When Current CADENCE less than Target CADENCE,
the up arrow next to the bicycle will be displayed.

15
PULSE
To measure the pulse, press MODE until meter is on the PULSE function. Hold the contact pads for at least 5
seconds to measure your pulse. This value is for reference only. It cannot be used as the basis for medical
treatment.
BATTERY: This monitor uses two AAA batteries. If the display appears incorrectly or becomes difficult to
read, please install new batteries. Always change both batteries at the same time. Do not mix battery types
and do not mix old and new batteries. Dispose batteries according to your state and regional guidelines.
Version 1.2
