Sunny Health & Fitness SF-T7632 User manual

SPACE SAVING FOLDING TREADMILL
SF-T7632
USER MANUAL
IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED
US: [e-mail] or 1- 877 - 90SUNNY (877-907-8669).

1
IMPORTANT SAFETY INSTRUCTION
When usingan electricalappliance,basic precautionsshouldalways be followed, includingthefollowing:
Read all instructions before using this treadmill.
DANGER– To reduce the risk of electrical shock:
1. Always unplug this appliance from the electrical outlet immediately after using and before cleaning.
WARNING – To reduce the risk of burns, fire, electric shock, or injury to persons:
1. The treadmill should never be left unattended when plugged in. Unplug from outlet when not in use
and before putting on or taking off parts.
2. Use this treadmill only for its intended use as described in this manual. Do not use attachments not
recommended by the manufacturer.
3. Never operate this treadmill if it has a damaged cord or plug, if it is not working properly, if it has
been dropped or damaged, or dropped into water. Return this treadmill to a service center for
examination and repair.
4. Keep the cord away from heated surfaces.
5. Never operate the treadmill with the air openings blocked. Keep the air openings free of lint, hair,
and alike items.
6. Never drop or insert any object into any opening.
7. Do not use outdoors.
8. Do not operate where aerosol (spray) products are being used or where oxygen is being
administered.
9. To disconnect, turn the treadmill off, then remove plug from outlet.

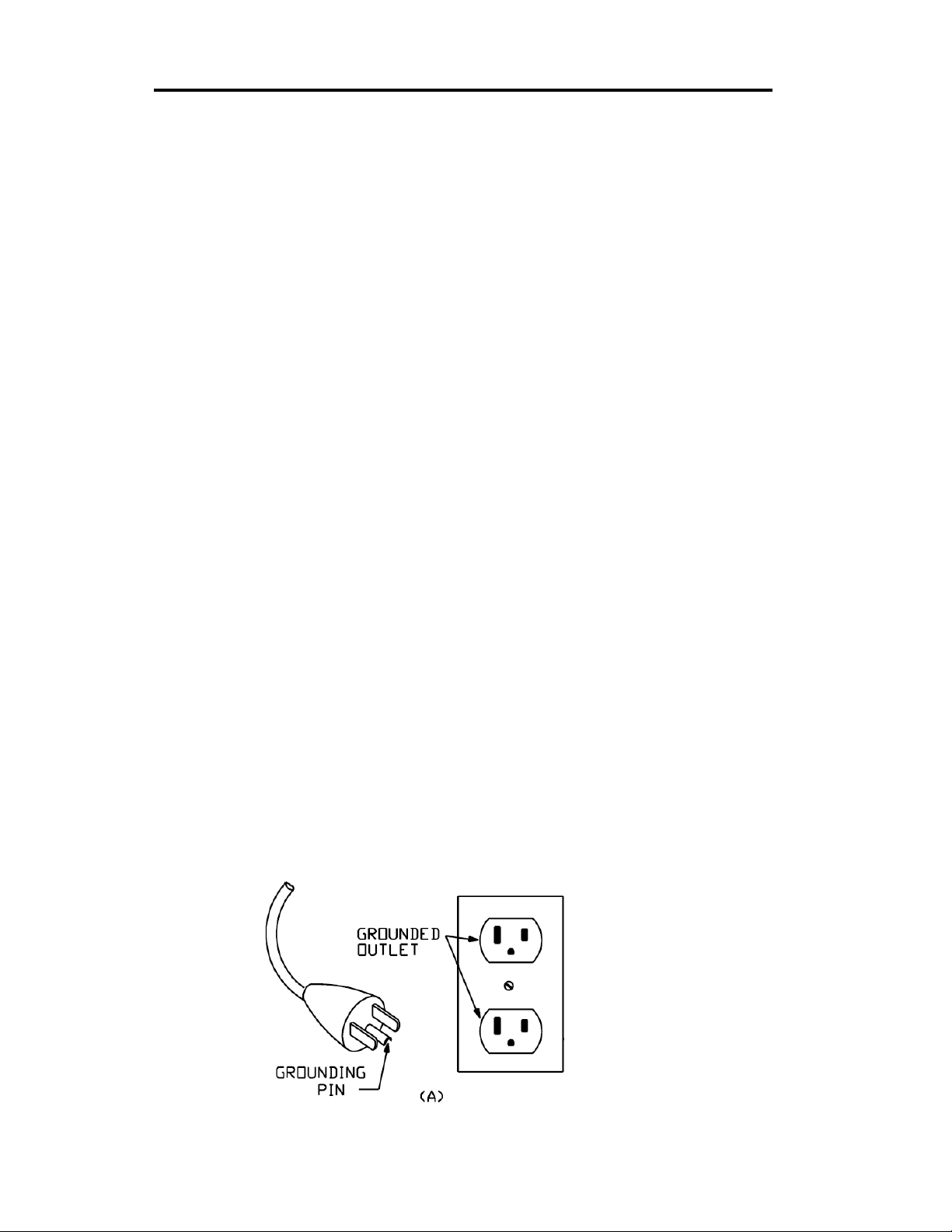

10.Connect this treadmill to a properly grounded outlet only. See grounding instructions.
CAUTION:
To avoid injury, use extreme caution when stepping onto or off of a moving belt. Read instruction manual
before using.
SAVE THESE INSTRUCTIONS

2
IMPORTANT SAFETY INFORMATION
We thank you for choosingour product.To ensure your safetyand health, please use this equipment
correctly. It is important to read this entire manual before assembling and using the equipment. Safe
and effective use can only be achieved if the equipment isassembled, maintained,andusedproperly.
It is your responsibility to ensure that all users of the equipment are informed of all warnings and
precautions.
1. Before startingany exercise program, youshould consult your physician to determine if you have
any medical or physical conditions that could put your health and safety at risk or prevent you
from using the equipment properly. Your physician’s advice is essential if you are taking
medication that affects your heart rate, blood pressure or cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop
exercising if you experience any of the following symptoms: pain, tightness in your chest,
irregular heartbeat, shortness of breath,lightheadedness, dizziness, or feelings of nausea. If you
do experience any of these conditions, you should consult your physician before continuing with
your exercise program.
3. Keep children and pets away from the equipment. The equipment is designed for adult use only.
4. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet.
To ensure safety, the equipment should have at least 2 feet (60CM) of free space all around it.
5. Ensure that all nuts and bolts are securely tightened before using the equipment. The safety of
the equipment can only be maintained if it is regularly examined for damage and/or wear and
tear.
6. Always use the equipment as indicated. If you find any defective components while assembling
or checking the equipment, or if you hear any unusual noises coming from the equipment during
exercise, discontinue use of the equipment immediately and do not use until the problem has
been rectified.
7. Wear suitable clothing while using the equipment.Avoid wearing loose clothing thatmay become
entangled in the equipment.
8. Do not place fingers or objects into the moving parts of the equipment.
9. The maximum weight capacity of this unit is 220 pounds (100 KG).
10.The equipment is not suitable for therapeutic use.
11.To avoid bodily injury and/or damage to the product or property, proper lifting and moving is
required.
12.Your product is intendedfor use in cool,dry conditions. You shouldavoid storage inextremecold,
hot or damp areas as this may lead to corrosion and other related problems.
13.This equipment is designed for indoor and home use only, it is not intended for commercial use!

3
IMPORTANT OPERATING INSTRUCTIONS
1. Insert the power plug directly into the socket.
2. Read the manual before operating the treadmill.
3. Changes in speed do not occur immediately. Set your desired speed using the adjustment
keys on the main console. The speed will increase gradually.
4. While on the treadmill, move with caution as distractions may cause you to lose balance and
stray from walking in the center of the running belt. This may result in serious injury.
5. This unit starts at a very low speed. To begin use, hold onto the handrails and stand on the
side rails while it starts up, then step onto the running belt it’s in motion.
6. Always hold the handrails when making changes in the settings.
7. A safety key is provided for emergency use. The treadmill will function only if the safety key
is inserted into the computer console. In case of emergency, remove the safety key to
immediately stop the running belt and shut off the treadmill. The displayscreen will resetonce
the safety key is reinserted.
8. The console control keys are precisely set and require very little finger pressure to use. To
avoid damaging these keys, do not use excessive pressure when operating these controls.
9. This treadmill is designed for adult use only! Children should not be allowed to use or play
near this treadmill. When present, children should always be supervised by an adult.
10.Women who are pregnant or nursing should consult a physician before attempting to begin
any exercise program.
11.Always stay hydrated during and after exercise.
IMPORTANT NOTE:
The running belt must be lubricated before the first use! Please see Page 12 for instructions
on how to properly apply lubricant.

4
EXPLODED DIAGRAM

5
PARTS LIST
No. Description Spec. Qty No. Description Spec. Qty
A01 Base Frame 1 C25 Locking Pin 1
A02
Main Frame
1
C26
Rubber Cushion
1
A03
Console Bracket
1
C27
Safety Key
1
A04 Motor Frame 1 C28
Handlebar
Decoration Ring
2
A05
Adjustable Frame
1
D01
Console Display
1
A06
L/R
Base Support Tube L/R 2 D02 Control Board 1
A07
Running Board Strengthen
Tube
1 D03 Keyboard 1
B01
Front Roller
1
D04
Top Signal Wire
1
B02 Rear Roller 1 D05 Middle Signal Wire 1150mm 1
B03
Spanner with Screw Driver
S=13,14,15
1
D06
Lower Signal Wire
1600mm
1
B04
Allen Wrench
S5
1
D07
Speed Sensor
200mm
1
B05
Locking Pin Iron
1
D08
DC Motor
1
B06
Pressure Spring
1
D09
AC Single Line
Blue 350mm
1
B07
Safety Key Plate
1
D10
AC Single Line
Blown 350mm
1
B08
Transportation Wheel
Bushing
4 D11 Power Switch 1
B09
Lock Knob
1
D12
Running Board
1
C01
Console Top Cover
1
D13
Magnetic Ring
1
C02 Console Bottom Cover 1 D14 Magnetic Core 1
C03
Left Upright Tube Cover
1
D15
Power Wire
2150mm
1
C04
Right Upright Tube Cover
1
D16
Filter
1
C05
Left Upright Tube Inner
Cover
1 D17 AC Single Line 350mm 1
C06
Right Upright Tube Inner
Cover
1 D18 AC Single Line 350mm 1
C07
Motor Top Cover
1
E01
Nut
M6
6
C08
Motor Bottom Cover
1
E02
Nut
M8
6
C09
Left Rear Cover
1
E03
Bolt
M10*60
2
C10
Right Rear Cover
1
E04
Bolt
M8*50
2
C11 Motor Cover Buckle 1 E05 Bolt M8*15 4
C12
Side Rail
2
E06
Bolt
M10*90
1
C13
Running Belt
1
E07
Bolt
M6*45
1
C14 Rubber Cushion 6 E08 Bolt M6*55 2
C15 Blue Cushion 2 E09 Flat Washer C Φ10 2
C16
Motor Belt
1
E10
Bolt
M6*28
4
C17 Transportation Wheel 2 E11 Bolt
M5*12
(including washer)
2
C18 C Shape Foot Pad 1 2 E12 Bolt
M5*8
(including washer)
16
C19
C Shape Foot Pad 2
2
E13
Screw
ST4.2*12
27
C20
Ring Protecting Wire Plug
2
E14
Screw
ST2.9*8
2
C21 Power Wire Buckle 1 E15 Screw ST2.9*6 9
C22
Cushion
1
E16
Screw
ST4.2*12
6
C23
Inner Cap
2
E17
Washer
Φ6
3
C24 Fixed Block 1 E18 Washer Φ8 2

6
No. Description Spec. Qty No. Description Spec. Qty
E19
Bolt
M6*25
2
E25
Nut
M10
1
E20
Arc Washer
Φ8
6
E26
Bolt
M8*60
1
E21
Spring Washer
Φ8
2
E27
Bolt
M6*46
2
E22
Flat Washer C
Φ8
2
E23
Bolt
M8*48
2
E24
Bolt
M8*48
2
HARDWARE PACKAGE
Ordering Replacement Parts (U.S. and Canadian Customers only)
Please provide the following information in order for us to accurately identify the part(s) needed:
The model number (found on cover of manual)
The product name (found on cover of manual)
The part number found on the “EXPLODED DIAGRAM” and “PARTS LIST” (found near the front
of the manual)
Please contact us at [e-mail] or 1- 877 - 90SUNNY (877-907-8669).
#B03 S=13, 14, 15 1PC
#B04 S5 1PC
#E02 M8 2PCS
#E04 M8*50 2PCS
#E05 M8*15 2PCS
#E13 ST4.2*12 8PCS
#E20 Φ8 6PCS
#E24 M8*48 2PCS

7
ASSEMBLY INSTRUCTIONS
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at [e-mail] or 1-877-90SUNNY (877-
907- 8669).
STEP 1:
NOTE:We recommend having two people
do the assembly.
Open the carton box and remove contents.
Place the Main Frame (No. A02) on level
ground. Ensure that you have a work area
that is clean and has adequate space.
STEP 2:
NOTE:Support Main Frame (No. A02) at
position “F”
with one hand to prevent it
from falling down during assembly.
Attach the Left Base Support Tube (No.
A06L) to Base Frame (No. A01).Use
Allen Wrench (No. B04) and Spanner
with Screw Driver (No. B03) to screw
Bolt (No. E04),2 Arc Washers (No. E20),
and Nut (No. E02) into the Base Frame
(No. A01).
Then, screw the Bolt (No. E05) and Arc
Washer (No. E20) into the Base Frame
(No. A01).
Repeat the step above to assemble the
Right Base Support Tube (No. A06R)to
the Base Frame (No. A01).

8
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at [e-mail] or 1-877-90SUNNY (877-
907- 8669).
STEP 3:
NOTE:
To avoid any possible injury, please
hold on the Main Frame (No. A02) at
position “F” before you pull the Locking Pin
(No. C25) and ensure that the space directly
underneath it is clear of any objects. Once
the Main Frame (No. A02)
is released,
please continue to hold on until it reaches
the floor.

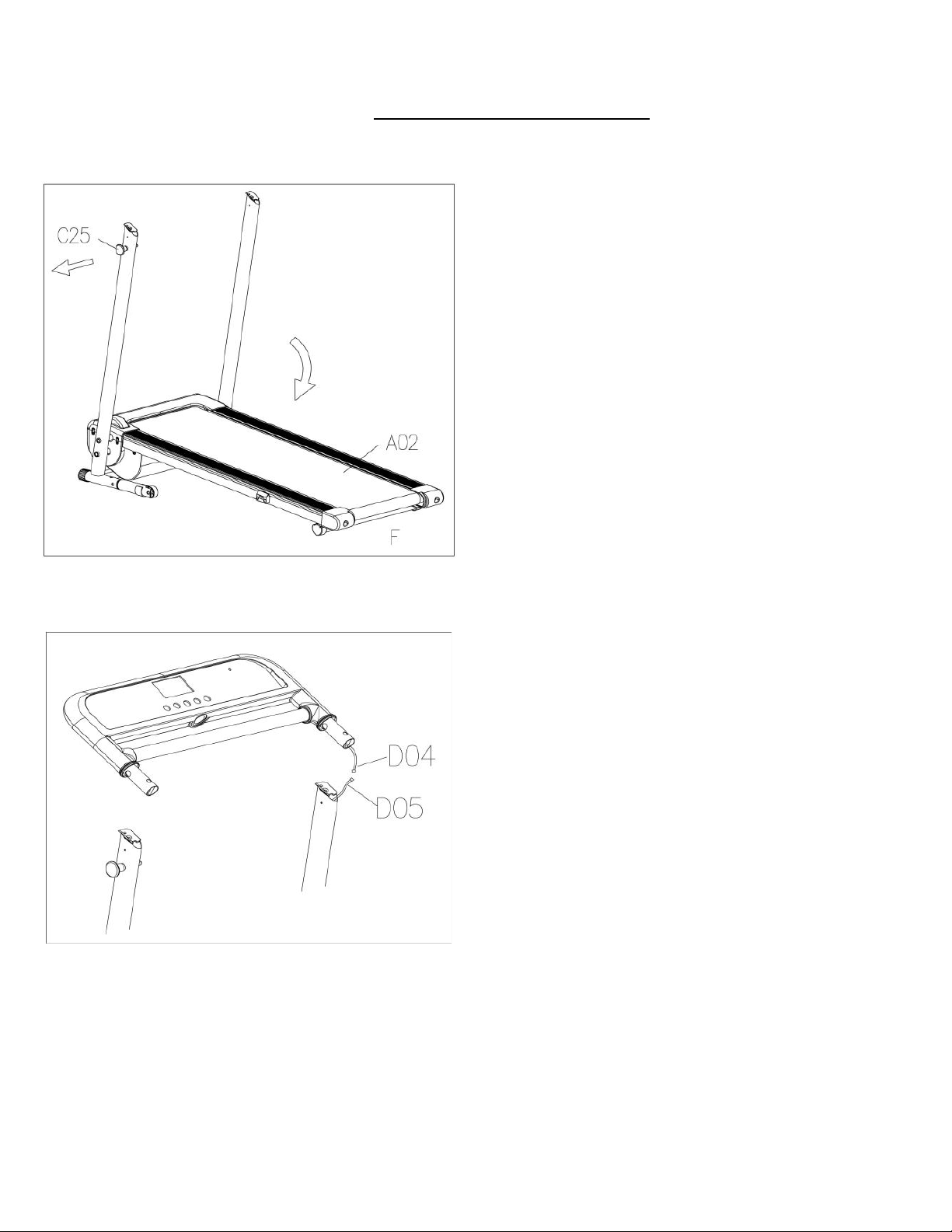

Pull the Locking Pin (No. C25) and lower
the Main Frame (No. A02) to the floor.
NOTE:The Locking Pin (No. C25) will snap
back into the treadmill. It does not detach
from the treadmill.
STEP 4:
Connect the Top Signal Wire (No. D04)
to
the Middle Signal Wire (No. D05).

9
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at [e-mail] or 1-877-90SUNNY (877-
907- 8669).
STEP 5:

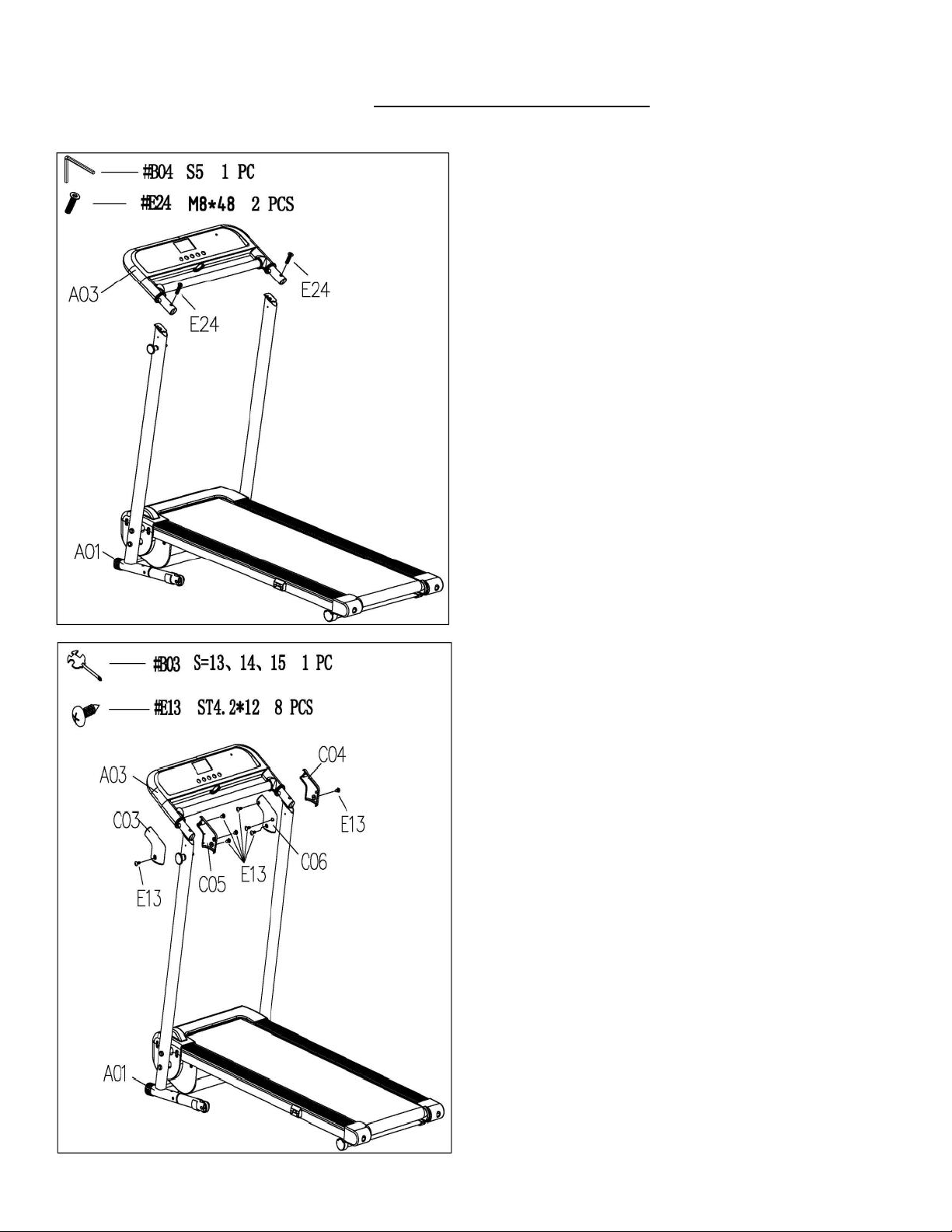

Attach the Console Bracket (No. A03) to the
Base Frame (No. A01) with 2Bolts (No.
E24). Tighten using Allen Wrench (No.
B04).
STEP 6:
Attach the Left &Right Upright Tube Covers
(No. C03 &No. C04) and Left &Right
Upright Tube Inner Covers (No. C05 &No.
C06) to the Base Frame (No. A01) and
Console Bracket (No. A03) with 8 Screws
(No. E13).Tighten using Spanner with
Screw Driver (No. B03).

10
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at [e-mail] or 1-877-90SUNNY (877-
907- 8669).
IMPORTANT NOTE!
You will need to lubricate
your treadmill before the first
use. See Page 12.
STEP 7:

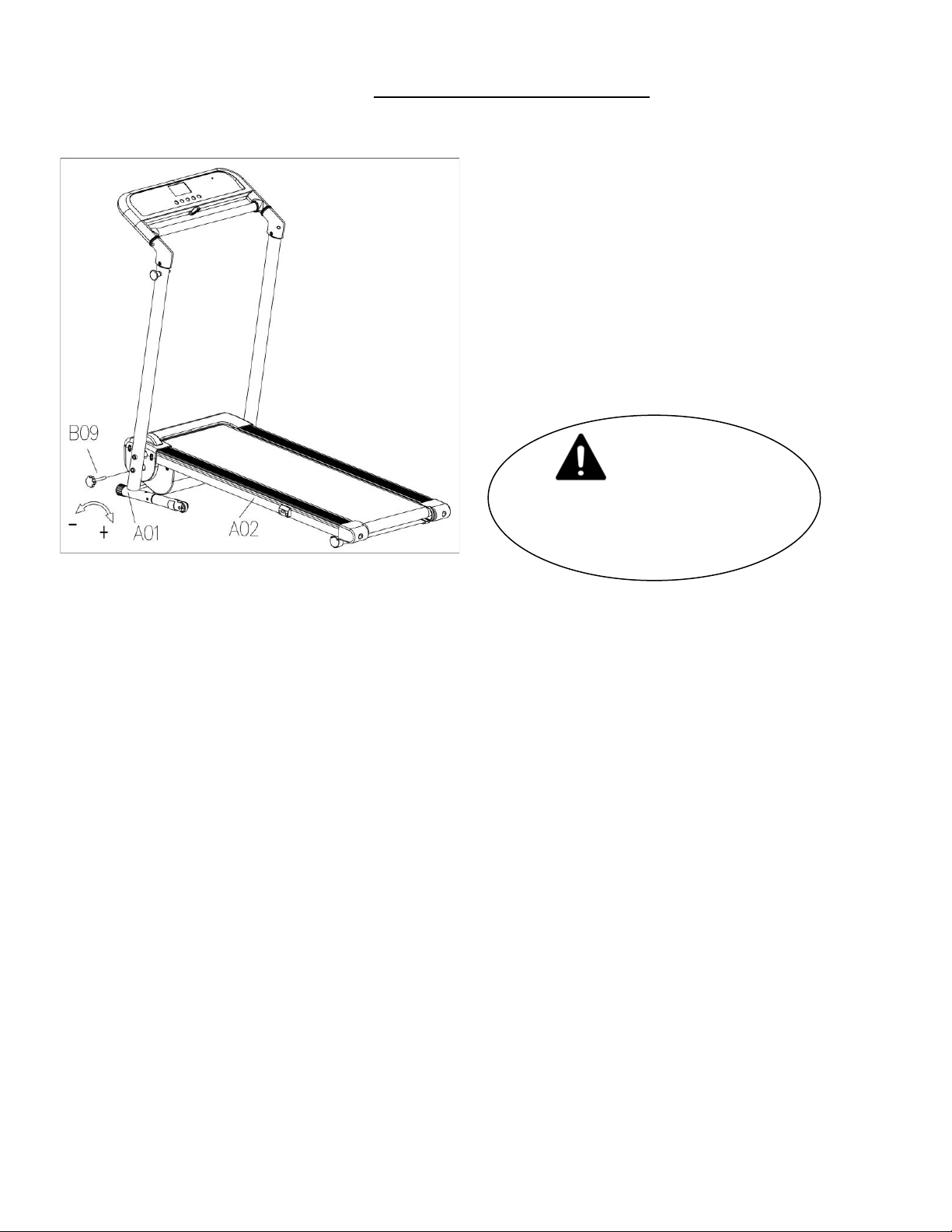

Insert Lock Knob (No. B09). Secure the
Base Frame (No. A01) to Main Frame (No.
A02)by turning
Lock Knob (No. B09)
clockwise until tight.
The assembly is complete!

11
MAINTENANCE & CARE
General cleaning will help prolong the life and performance of your treadmill. Keep the unit clean
and maintained by dusting the components on a regular basis. Clean both sides of the Running
Belt (No. C13) to prevent dust from accumulating underneath. Keep your running shoes clean so
that dirt from your shoes does not wear the Running Board (No. D12) and Running Belt (No. C13).
Clean the surface of the Running Belt (No. C13) with a clean damp cloth.
To better maintain the treadmill and prolong its life it is suggested that the treadmill be powered off
for 10 minutes every 2 hours and fully powered off whenever not in use.
CENTERING THE RUNNING BELT:
Place the treadmill on level ground and set it at 3-5 MPH to check if the Running Belt (No. C13)
drifts from the center.
1. If the Running Belt (No. C13) drifts to
the right, turn the right adjusting bolt ¼
turn clockwise, then turn the left adjusting
bolt ¼ turn counter-clockwise
. If the
Running Belt (No. C13) does not move,
repeat this step until it centers. Refer to
Figure A.
2. If the Running Belt (No. C13) drifts to
the left, turn the left adjusting bolt side ¼
turn clockwise, then turn the right adjusting
bolt ¼ turn counter-clockwise. If the
Running Belt (No. C13) does not move,
repeat this step until it centers. Refer to
Figure B.
3. Over time, the Running Belt (No. C13)
will loosen. To tighten the Running Belt
(No. C13) turn the Left & Right adjusting
bolts one full turn clockwise
, check the
tension of the Running Belt (No. C13).
Continue this process until Running Belt
(No. C13) is at the correct tension. Make
sure to adjust both sides equally to ensure
correct belt alignment. Refer to Figure C.

12
LUBRICATING THE TREADMILL
*IMPORTANT NOTE:
You will need to lubricate your treadmill before the first use.
RUNNING BELT & TREADMILL LUBRICANT:
Lubricating the Running Board (No. D12) and Running Belt (No. C13) is essential as the friction
affects the life span and operations of the treadmill. Inspect the Running Board (No. D12) and
Running Belt (No. C13) regularly. If you find any wear on the Running Board (No. D12), please
contact us at: [e-mail].
WARNING: Always unplug the treadmill from the electrical outlet before cleaning, lubricating,
or repairing the unit.
HOW TO LUBRICATE:
1. Raise the Running Belt (No. C13) up on one side and applylubricant to the Running Board (No.
D12). Use a rag to thoroughly wipe the lubricant over the Running Board (No. D12). Repeat this
process for the other side.
2. The moving parts should turn freely and quietly. Abnormal moving parts will affect the safety of
the treadmill. Inspect and tighten bolts regularly.
3. To better maintain the treadmill and prolong its lifespan, it is suggested that maintenance be done
on a regular basis.
4. DO NOTLOOSEN OR MAKEANYADJUSTMENTS TO THE RUNNING BELTWHILEAPPLYING
LUBRICANT. A loose Running Belt (No. C13) will result in the runner sliding off during use, while
too tight of a Running Belt (No. C13) will negatively affect the motor’s performance and create more
friction between the roller and Running Belt (No. C13). The most suitable tightness for the Running
Belt (No. C13) is when it is pulled out 50-75mm from the Running Board (No. D12).

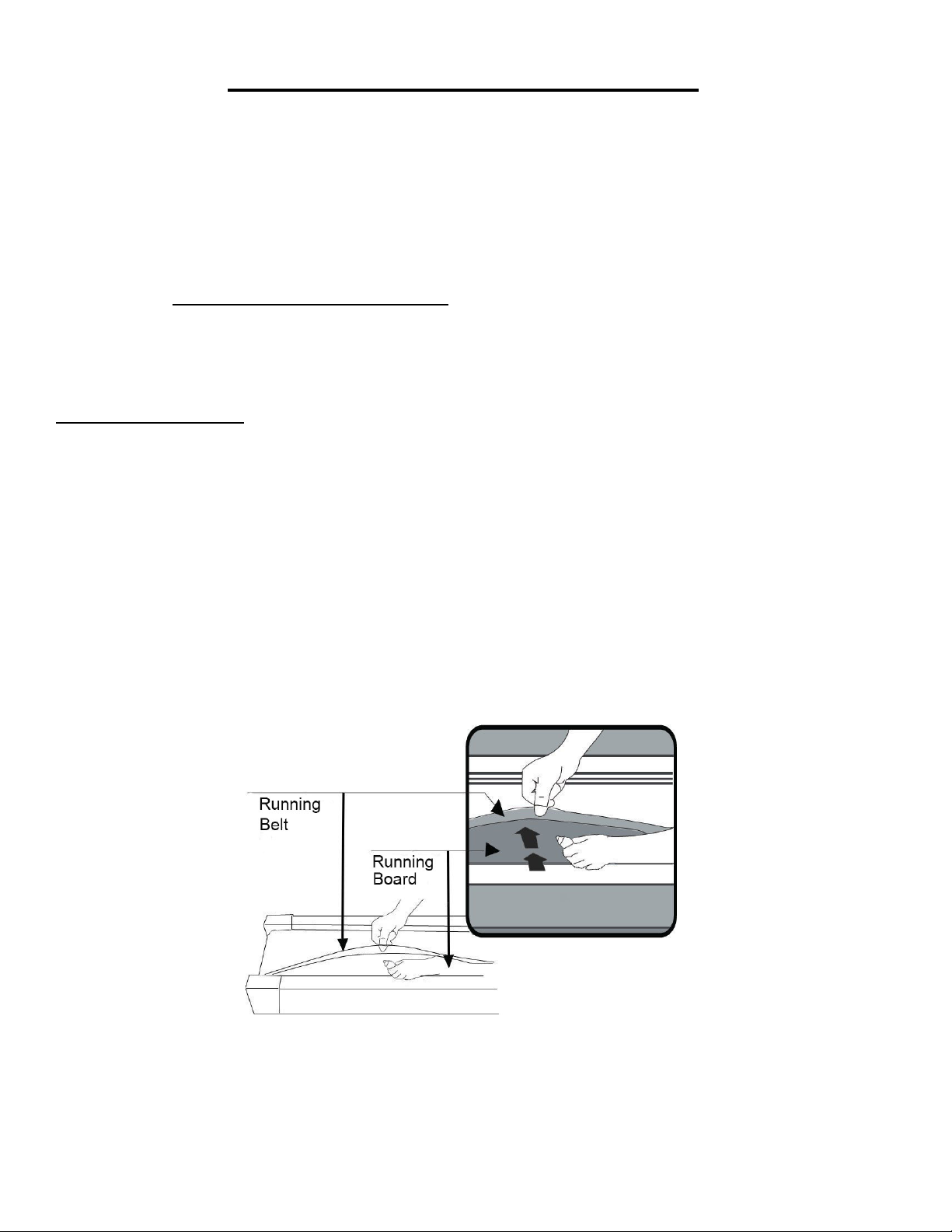

Recommended Time Table:
Light user (less than 3 hours/ week) every six months
Medium user (3-5 hours/ week) every three months
Heavy user (more than 5 hours/ week) every two months

13
FOLDING INSTRUCTIONS
FOLDING:
Loosen the Lock Knob (No.
B09) counter-clockwise and pull
it out. Fold up the Main Frame
(No. A02).
NOTE:
Remember where you
keep the Lock Knob (No. B09)
after you pull it out. You will need
it when you unfold the treadmill.
Pull out the Locking Pin (No.
C25) with one hand, then lift up
the Main Frame (No. A02) at
position “F” with the other hand
until the Locking Pin (No. C25)
snaps into the hole of Fixed
Block (No. C24).

14
UNFOLDING:
NOTE: Before lowering the Main
Frame (No. A02), ensure that the
space directly underneath is clear
of any objects.
To avoid any possible injury,
please hold on the Main Frame
(No. A02) at position “F” before
you pull the
Locking Pin (No.
C25).Once the Main Frame (No.
A02)is released, continue to hold
on at position “F” until it reaches
the floor.
Secure Base Frame (No. A01)
into Main Frame (No. A02)by
inserting Lock Knob (No. B09)
and turning clockwise until tight.

15
HOW TO MOVE THE TREADMILL
To transport, hold the treadmill
from position “P” and tilt until the
wheel’s “K” are able to move on
the ground.
Before attempting to move the
treadmill, please make sure that
it has been properly folded.
Unplug the power cord.
To tilt, start by placing one hand
at position “P” to support the top
end of the treadmill. Next, place
one foot at position “K” to hold
the bottom end of the treadmill
steady. With your foot at “K”,
slowly tilt the top of the treadmill
downward towards the ground.
Once the Main Frame “P”
reaches a low enough point, the
wheels of the treadmill touch the
ground.

16
HOW TO USE SAFETY KEY
Secure Base Frame (No. A01) into Main Frame (No. A02) by inserting Lock Knob (No.
B09) and turning clockwise until tight.
Insert the Safety Key (No. C27) into the magnetic area of the Console Display (No.
D01)and clip to your clothes.
Note: In an emergency, pull out the Safety Key (No. C27), and the treadmill will stop.

17
IMPORTANT ELECTRICAL INFORMATION
WARNING: This treadmill requires a power source of 8 amps (100-120 V) in order to properly
operate.For your safety, as well as the safety of others, verify that the power source is correct before
plugging in the equipment. Any power source above or below this level could cause significant
damage to the equipment and/or user.
GROUNDING METHODS:
This product must be grounded. Should the treadmill malfunction or breakdown, grounding provides
a path of least resistance for electric current to reduce the risk of electric shock. This product is
equipped with a plug that has an equipment-grounding conductor and a grounding plug. The plug
must be plugged into an appropriate outlet that is properly installed and grounded in accordance
with all local codes and ordinances. Ensure that the product is connected to an outlet with the same
configuration as the plug. Do not use an adaptor for this product.
This product is for use on a nominal 100-120V circuit and has a grounding plug that looks like the
plug illustrated in sketch A.
DANGER:
Improper connection of the equipment-grounding conductor can result in risk of electric shock.
Check with a qualified electrician or serviceman if you are unsure whether the product has been
properly grounded. Do not modify the plug provided with the product. If it will not fit the outlet, have
a proper outlet installed by a qualified electrician.
WARNING!
1. NEVER use a ground fault circuit interrupt (GFCI) wall outlet with this treadmill. Route the power
cord away from all moving parts of the treadmill including the elevation mechanism and
transportation wheels.
2. NEVER operate the treadmill using a generator or UPS power supply.
3. NEVER remove any cover on this treadmill without first disconnecting power cord.
4. NEVER expose the treadmill to rain or moisture. This treadmill is not designed for outdoor use or
use in any other high humidity environment.
GROUNDING METHOD

18
THE DISPLAY CONSOLE
DISPLAY
SPEED: Displays current speed (range 0.5-7.0 MPH). When in setting mode, the window displays
H-1, H-2, H-3.
TIME: Displays the running time. Displays the exercise time from 0:00-99:59 MINS. If the time
reaches 99:59, the treadmill will stop smoothly and display “End” and will enter standby mode after
5 seconds. When in countdown mode, it will countfrom the settingtime to 0:00.Whenthe countdown
reaches to 0:00, the treadmill will stop smoothly and show “End” and will enter into standby mode
after 5 seconds.
DISTANCE:Displays the distance traveled (range 0.0-99.9 MILES). When the distance reaches
99.9 MILES, it will reset to 0.00 and begin counting again from 0.0. When in countdown mode, it will
count down from the distance you set to 0.00. When it reaches 0.00, the treadmill will stop smoothly
and display “End”, then enter standby mode after 5 seconds.
CALORIES: Displays the user’s calories burned (range 0-999 KCAL). When it reaches 999 KCAL,
it will start again from 0. In countdown mode, it will count from the number of calories you set to 0.
When it reaches 0, the treadmill will stop smoothly and show “End”, and then enter standby mode
after 5 seconds.
PROGRAMS Initial Default Value Set Range Display Range
TIME (MIN:SECOND) 0:00 15:00 5:00-99:00 0:00－99:59
SPEED (MPH) 0.5 0.5 0.5-7.0 0.5-7.0
DISTANCES (MILE) 0 1.0 0.5-99.9 0.0－99.9
CALORIE (KCAL) 0 50 10-999 0－999

19
FUNCTION KEYS
START: To start the treadmill, insert the magnetic end of the Safety Key (No. C27)into the computer
console then press the START button. This treadmill requires the Safety Key (No. C27)in order to
start at default setting speed 0.5 MPH.
STOP: This button can PAUSE and STOP the treadmill. When in use, press this button once to
PAUSE: your workout and the current workout data will still be shown. Press STOP again to end
your workout session and all data from this session will be deleted.
MODE: Press this button to select a MODE. Pressing once will enter H1, the TIME countdown mode
starting from 15:00 MINS. H2 is the DISTANCE countdown mode starting from 1.0 MILE and H3 is
the CALORIES countdown mode which starts from 50 KCAL. When setting each mode, you can
press +/- to increase or decrease the preset H1, H2, H3 settings then press START to start the
treadmill.
SPEED +/ SPEED –: Press the SPEED +/- buttons to increase or decrease the speed in increments
of 0.1 MPH. Pressing and holding either of these buttons for a duration of over 0.5 second will
increase or decrease the speed continually.
LUBRICATION REMINDER
Your treadmill needs lubrication maintenance every 188 miles. When it is time for maintenance, the
treadmill beeps every 10 seconds and displays an “OIL” icon on your LCD display. Please read the
LUBRICATING THE TREADMILL on Page 12 to learn the proper steps to lubricating your treadmill.
Apply the lubricating oil to the middle of the running board on both sides. After application, press
and hold the STOP button for 3 seconds to clear the “OIL” reminder.
