Sunny Health & Fitness SF-T7610 User manual

EASY ASSEMBLY FOLDING
TREADMILL
SF-T7610
USER MANUAL
IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions.Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US:
[email protected] or 1- 877 - 90SUNNY (877-907-8669).

1
IMPORTANT SAFETY INSTRUCTION
When using an electrical appliance, basic precautions should always be followed, including the following:
Read all instructions before using this treadmill.
DANGER–To reduce the risk of electrical shock:
1. Always unplug this appliance from the electrical outlet immediately after using and before cleaning.
WARNING–To reduce the risk of burns, fire, electric shock, or injury to persons:
1. The treadmill should never be left unattended when plugged in. Unplug from outlet when not in use
and before putting on or taking off parts.
2. Use this treadmill only for its intended use as described in this manual. Do not use attachments not
recommended by the manufacturer.
3. Never operate this treadmill if it has a damaged cord or plug, is not working properly, or has been
dropped or damaged.
4. Keep the cord away from heated surfaces.
5. Never operate the treadmill with the air openings blocked. Keep the air openings free of lint, hair, and
alike items.
6. Never drop or insert any object into any opening.
7. Do not use outdoors.
8. Do not operate where aerosol (spray) products are being used or where oxygen is being administered.
9. To disconnect, turn the treadmill off, then remove plug from outlet.

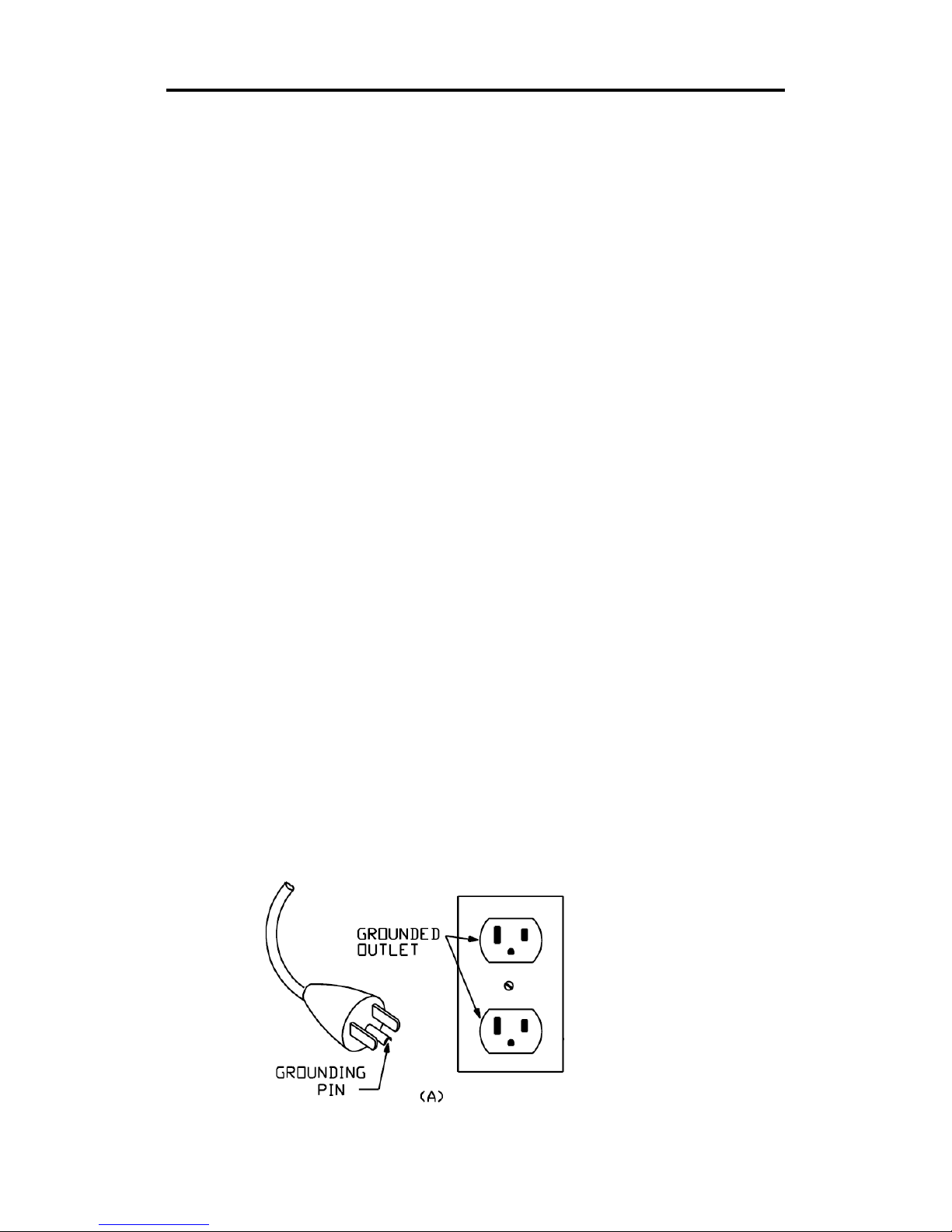

10. Connect this treadmill to a properly grounded outlet only. See grounding instructions.
CAUTION:
To avoid Injury, use extreme caution when stepping onto or off the moving belt. Read instruction manual
before using.
SAVE THESE INSTRUCTIONS

2
IMPORTANT SAFETY INFORMATION
We thank you for choosing our product. To ensure your safety and health, please use this equipment
correctly. It is important to read this entire manual before assembling and using the equipment. Safe
and effective use can only be achieved if the equipment is assembled, maintained, and used properly.
It is your responsibility to ensure that all users of the equipment are informed of all warnings and
precautions.
1. Before starting any exercise program, you should consult your physician to determine if you have
any medical or physical conditions that could put your health and safety at risk or prevent you from
using the equipment properly. Your physician’s advice is essential if you are taking medication that
affects your heart rate, blood pressure, or cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop
exercising if you experience any of the following symptoms: pain, tightness in your chest, irregular
heartbeat, shortness of breath, lightheadedness, dizziness, or feelings of nausea. If you do
experience any of these conditions, you should consult your physician before continuing with your
exercise program.
3. Keep children and pets away from the equipment. The equipment is designed for adult use only.
4. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet. To
ensure safety, the equipment should have at least 8 feet (240CM) of free space behind it and 2
feet (60CM) on each side. Do not place the treadmill on any surface that blocks air openings. To
protect the floor or carpet from damage, place a mat under the treadmill.
5. Ensure that all nuts and bolts are securely tightened before using the equipment. The safety of the
equipment can only be maintained if it is regularly examined for damage and/or wear and tear.
6. Always use the equipment as indicated. If you find any defective components while assembling or
checking the equipment, or if you hear any unusual noises coming from the equipment during
exercise, discontinue use of the equipment immediately and do not use until the problem has
been rectified.
7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may become
entangled in the equipment.
8. Do not place fingers or objects into the moving parts of the equipment.
9. The maximum weight capacity of this unit is 220 pounds (100 KG).
10.The equipment is not suitable for therapeutic use.
11.To avoid bodily injury and/or damage to the product or property, proper lifting and moving are
required.
12.Your product is intended for use in cool and dry conditions. You should avoid storage in extreme
cold, hot or damp areas as this may lead to corrosion and other related problems.
13.This equipment is designed for indoor and home use only; it is not intended for commercial use!

3
IMPORTANT OPERATING INSTRUCTION
1. Insert the power plug directly into the socket.
2. Read the manual before operating the equipment.
3. Changes in speed do not occur immediately. Set your desired speed using the adjustment
keys on the main console. The speed will increase gradually.
4. While on the treadmill, move with caution as distractions may cause you to lose balance and
stray from walking in the center of the belt. This may result in serious injury.
5. This unit starts at a very low speed. To begin use, hold onto the handrails and stand on the
side rails while it starts up, then step onto the belt once it’s in motion.
6. Always hold the handrail when making changes in the settings.
7. A safety key is provided for emergency use. The machine will function only if the safety key is
inserted into the computer console. In case of emergency, remove the safety key to
immediately stop the belt and shut off the treadmill. The display screen will reset once the
safety key is reinserted.
8. The console control keys are precisely set and require very little finger pressure to use. To
avoid damaging these keys, do not use excessive pressure when operating these controls.
9. This equipment is designed for adult use only! Children should not be allowed to use or play
near this equipment. When present, children should always be supervised by an adult.
10.Women who are pregnant or nursing should consult a physician before attempting to begin any
exercise program.
11.Always stay hydrated during and after exercise.
IMPORTANT NOTE:
The belt must be lubricated before the first use! Please see Page 11 for instructions on how
to properly apply lubricant.

4
EXPLODED DIAGRAM

5
PARTS LIST
No.
Description
Specification
Qty.
No.
Description
Specification
Qty.
A01
Base Frame
1
C26
Rubber Cushion
1
A02
Base Support Tube
2
C27
EVA Cushion 2
2
A03
Main Frame
1
C28
Tube Plug
2
A04
Handrail Connecting
Bracket
1
C29
Fixed Block
1
A05
Handrail Bracket
2
C30
Cushion
1
A06
Running Board Support
Tube
1
C31
Inner Cap
2
B01
Front Roller
1
C32
Safety Key
1
B02
Rear Roller
1
C33
Rubber Cushion
2
B03
Spanner w/ Screw Driver
S=13, 14, 15
1
D01
Console Display
1
B04
Allen Wrench
S5
1
D02
Control Board
1
B05
Locking Pin Iron
1
D03
Keyboard
1
B06
Pressure Spring
φ10.5*30
1
D04
Connection Line
100mm
1
B07
Safety Key Plate
φ20*0.3
1
D05
Console Upper Wire
650mm
1
B08
Transport Wheel Bushing
φ11*φ8.5*7
4
D06
Console Lower Wire
1600mm
1
B09
Lock Knob
φ45*62*M10
1
D07
Speed Sensor
200mm
1
C01
Console Top Cover
1
D08
DC Motor
1
C02
Console Bottom Cover
1
D09
AC Single Line
Blue 200mm
1
C03
Console Rotate Cover
1
D10
AC Single Line
Blown 200mm
1
C04
Left Upright Tube Cover
1
D11
Power Switch
1
C05
Right Upright Tube Cover
1
D12
Running Board
1
C06
Left Upright Tube Inside
Cover
1
D13
Magnetic Ring
1
C07
Right Upright Tube Inside
Cover
1
D14
Magnetic Core
1
C08
Motor Top Cover
1
D15
Power Wire
2150mm
1
C09
Motor Bottom Cover
1
D16
Filter
1
C10
Left Rear Cover
1
D17
AC Single Line
350mm
1
C11
Right Rear Cover
1
D18
AC Single Line
350mm
1
C12
Side Rail
2
D19
Filter Connecting
Board
1
C13
Running Belt
1
E01
Nut
M6
4
C14
Rubber Cushion
4
E02
Nut
M8
4
C15
Blue Cushion
2
E03
Bolt
M10*60
2
C16
Foam
2
E04
Bolt
M8*50
2
C17
Foam
2
E05
Bolt
M8*15
2
C18
Motor Belt
1
E06
Bolt
M8*15
2
C19
Transportation Wheel
2
E07
Bolt
M6*45
1
C20
C Shape Foot Pad
2
E08
Bolt
M6*55
2
C21
C Shape Foot Pad
2
E09
Bolt
ST2.6*8
3
C22
Ring Protecting Wire Plug
2
E10
Bolt
M6*28
4
C23
Power Wire Buckle
1
E11
Bolt
M5*12(including
washer)
3
C24
Plastic Holder
1
E12
Bolt
M5*8(including washer)
12
C25
Locking Pin
1
E13
Screw
ST4.2*12
17

6
No.
Description
Specification
Qty.
No.
Description
Specification
Qty.
E14
Screw
ST2.9*8
2
E21
Spring Washer
Φ8
2
E15
Screw
ST2.9*6
11
E22
Flat Washer C
Φ8
2
E16
Screw
ST4.2*12
5
E23
Bolt
M8*48
2
E17
Screw
ST3.5*10
6
E24
Bolt
M6*15
1
E18
Big Washer C
ö26*ö10*2.0
2
E25
Bolt
M6*25
2
E19
Washer
Φ6
3
E26
Washer
Φ8
2
E20
Washer
Φ8
6
E27
Bolt
M8*48
2
HARDWARE PACKAGE
Ordering Replacement Parts (U.S. and Canadian Customers only)
Please provide the following information in order for us to accurately identify the part(s) needed:
✓The model number (found on cover of manual)
✓The product name (found on cover of manual)
✓The part number found on the “EXPLODED DIAGRAM” and “PARTS LIST” (found near the front of
the manual
Please contact us at [email protected] or 1- 877 - 90SUNNY (877-907-8669).
S5

7
ASSEMBLY INSTRUCTIONS
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at [email protected] or 1-877-90SUNNY (877-907-
8669).

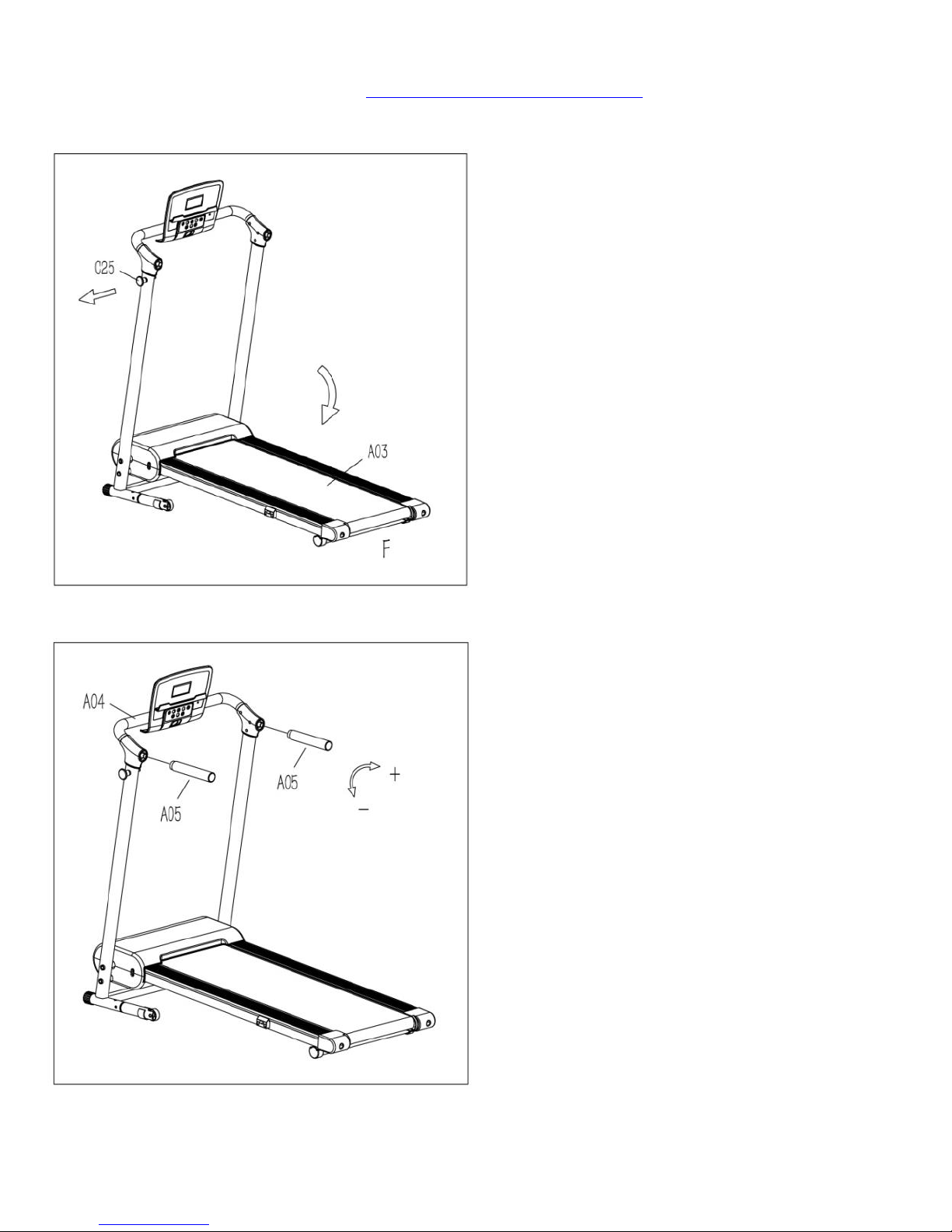

STEP 1:
Note: We recommend having two
people to do the assembly.
Open the carton box, take out the
contents, and place the Main Frame
(No. A03) on leveled ground.

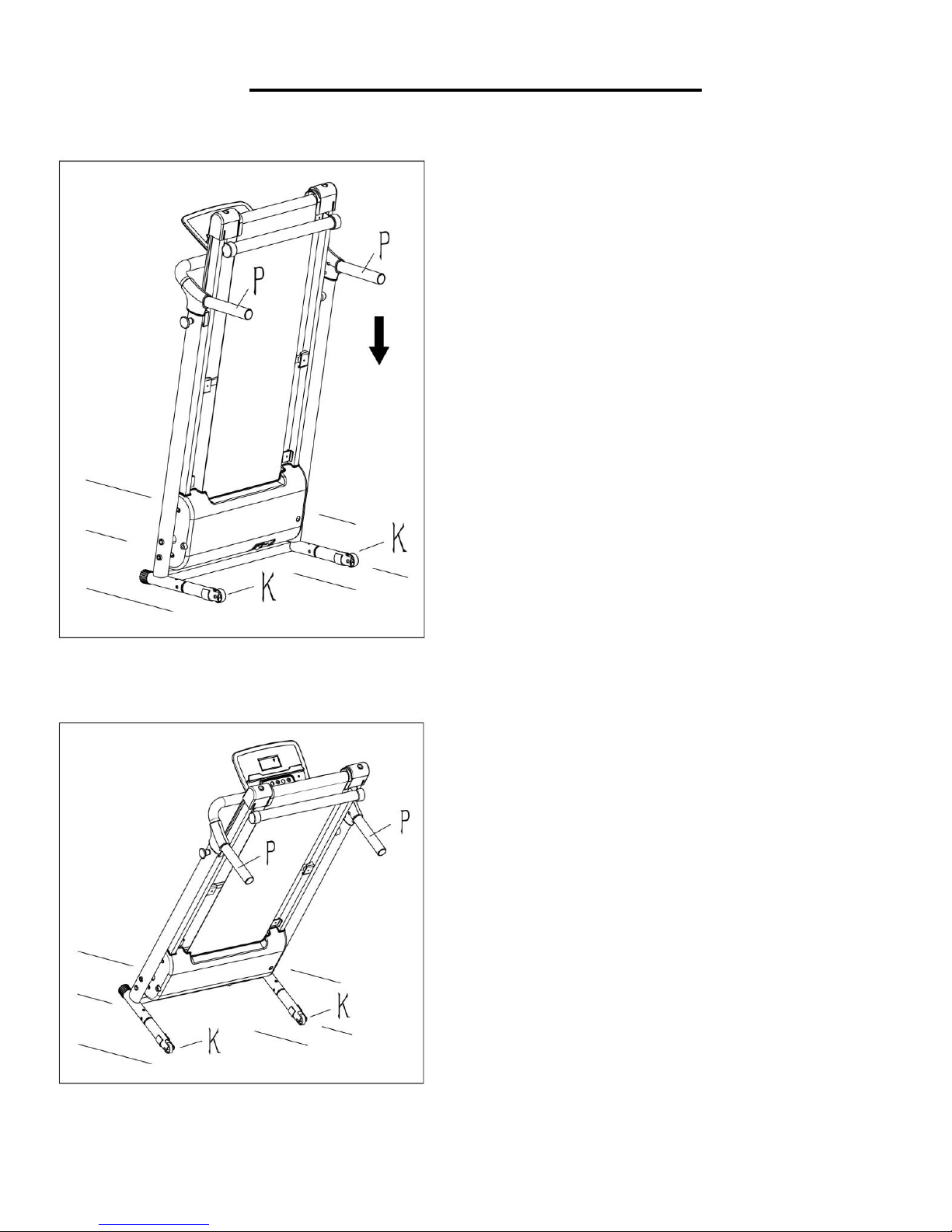

STEP 2:
Note: Support Main Frame (No. A03)
at position “F” with one hand to
prevent it from falling during
assembly.
Attach the 2 Base Support Tubes
(No. A02) to Base Frame (No. A01).
Use Allen Wrench (No. B04) to
screw the 2 Bolt (No. E04), 4 Arc
Washer (No. E20), and 2 Nut (No.
E02) into the Base Frame (No. A01).
Screw the 2 Bolt (No. E05) and 2 Arc
Washer (No. E20) into both sides of
the Base Frame (No. A01).
S5
A03

8
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at [email protected] or 1-877-90SUNNY (877-907-
8669).

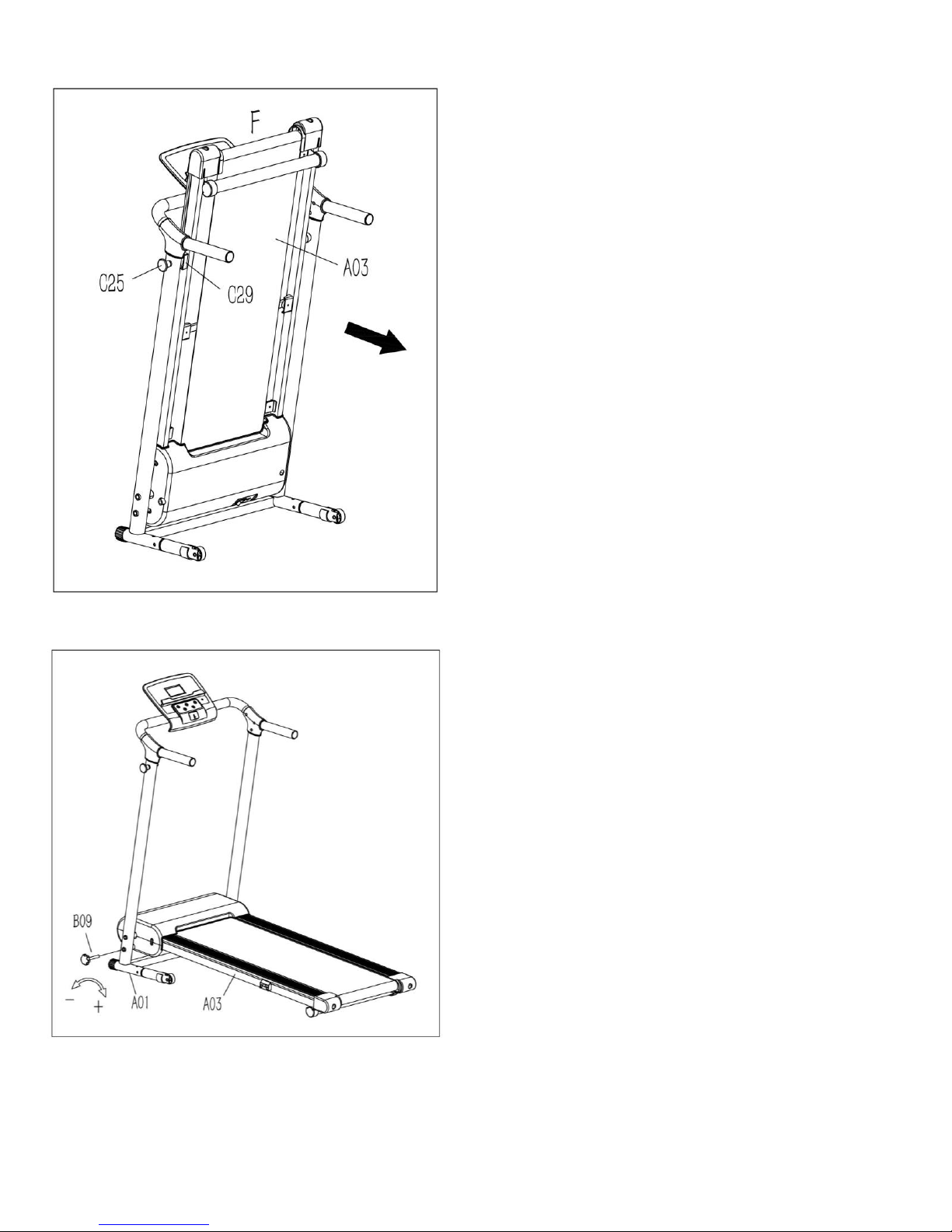

STEP 3:
To avoid any possible injury, please
hold on to the Main Frame (No. A03)
at position “F” before you pull the
Locking Pin (No. C25) and ensure
that the space directly underneath it
is clear of any objects. Once the
Main Frame (No. A03) is released,
please continue to hold on until it
reaches the floor.
Pull the Locking Pin (No. C25) and
lower the Main Frame (No. A03) to
the floor.
Note: The Locking Pin (No. C25)
will snap back into the treadmill. It
does not detach from the treadmill.
STEP 4:
Attach the Handrail Brackets (No.
A05) into Handrail Connecting
Bracket (No. A04) by turning
clockwise.

9
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at [email protected] or 1-877-90SUNNY (877-907-
8669).
STEP 5:
Insert Lock Knob (No. B09). Secure
the Base Frame (No. A01) to Main
Frame (No. A03) by turning Lock
Knob (No. B09) clockwise until tight.

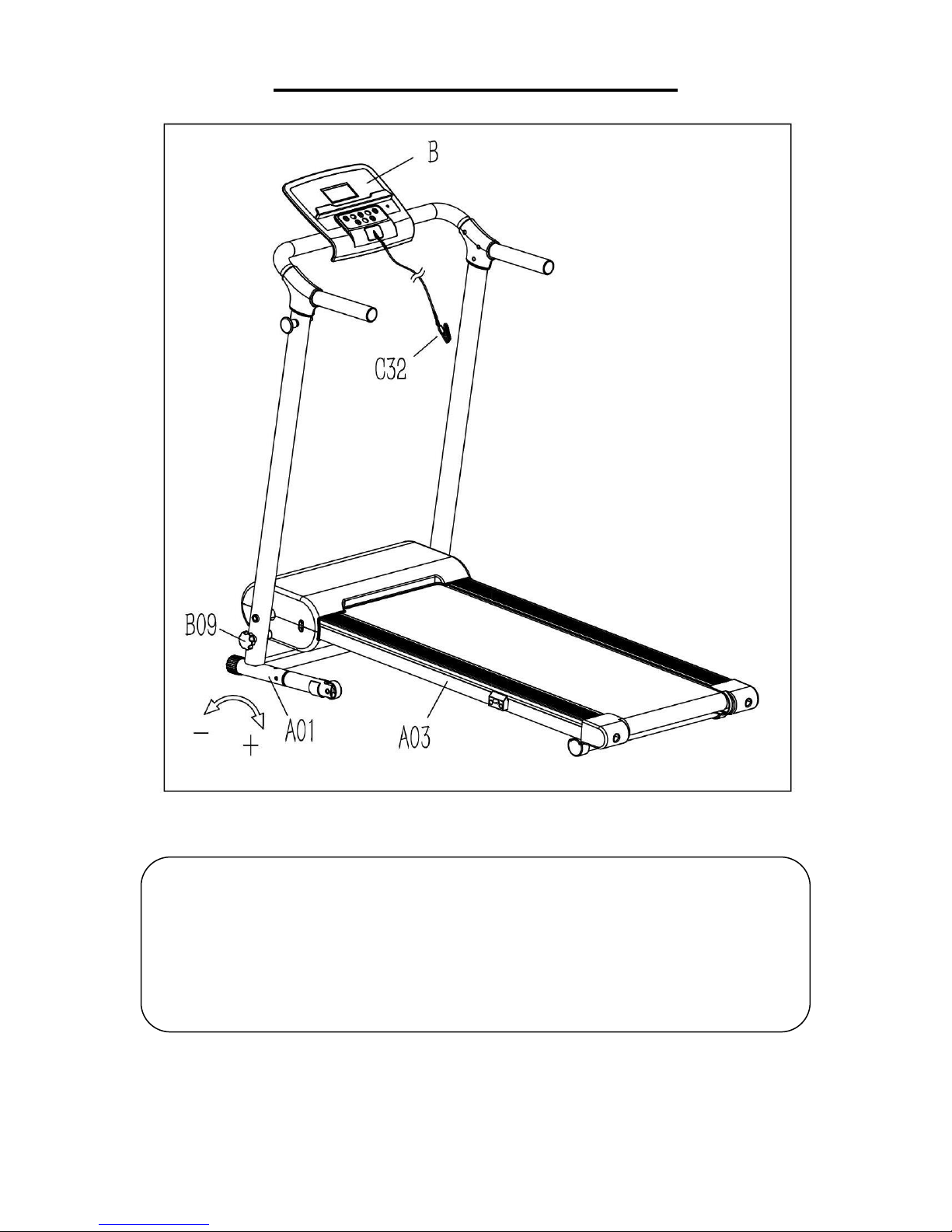

STEP 6:
Turn the Console Display (No. B) to a
right angle.
The assembly is complete!
IMPORTANT NOTE!
You will need to lubricate
your treadmill before the first
use. See Page 11.

10
MAINTENANCE & CARE
General cleaning will help prolong the life and performance of your treadmill. Keep the unit clean and
maintained by dusting the components on a regular basis. Clean both sides of the Running Belt (No.
C13) to prevent dust from accumulating underneath. Keep your running shoes clean so that dirt from
your shoes does not wear out the Running Board (No. D12) and Running Belt (No. C13). Clean the
surface of the Running Belt (No. C13) with a clean, damp cloth.
To better maintain the treadmill and prolong its life, it is suggested that the treadmill be powered off
for 10 minutes every 2 hours and fully powered off whenever not in use.
A loose Running Belt (No. C13) will result in the runner sliding off when running, while too tight of a
Running Belt (No. C13) will negatively affect the motor’s performance and create more friction
between the roller and Running Belt (No. C13). The most suitable tightness for the Running Belt
(No. C13) is pulled out 50-75mm from the Running Board (No. D12).
CENTERING THE RUNNING BELT:
Place the treadmill on level ground and set it at 3-5mph to check if the Running Belt (No. C13) drifts.
1. If the Running Belt (No. C13) moves to
the right, turn the adjusting bolt on the right
side ¼turn clockwise, then turn the left
adjustment bolt ¼ turn counter-clockwise. If
the Running Belt (No. C13) does not move,
repeat this step until it centers. Refer to
Figure A.
2. If the Running Belt (No. C13) moves to
the left, turn the adjusting bolts on the left
side ¼turn clockwise, then turn the right
adjustment bolt ¼ turn counter-clockwise. If
the Running Belt (No. C13) does not move,
repeat this step until it centers. Refer to
Figure B.
3. Over time, the Running Belt (No. C13)
will loosen. To tighten the Running Belt
(No. C13) turn the Left & Right side
adjustment bolts one full turn clockwise,
check the tension of the Running Belt (No.
C13). Continue this process until Running
Belt (No. C13) is at the correct tension.
Make sure to adjust both sides equally to
ensure correct belt alignment. Refer to
Figure C.

11
LUBRICATING THE TREADMILL
IMPORTANT NOTE:
You will need to lubricate your treadmill before the first use.
RUNNING BELTS & TREADMILL LUBRICANT:
Lubricating the Running Board (No. D12) and Running Belt (No. C13) is essential as the friction
between the two affects the life span and function of the treadmill. It is suggested that the Running
Board (No. D12) and Running Belt (No. C13) be inspected regularly. Should you find any wear on
the Running Board (No. D12), please contact us at:[email protected].
WARNING: Always unplug the treadmill from the electrical outlet before cleaning, lubricating, or
repairing the unit.
HOW TO LUBRICATE:
1. Raise the Running Belt (No. C13) up on one side and apply lubricant to the Running Board (No.
D12). Use a rag to thoroughly wipe the lubricant over the Running Board (No. D12). Repeat this
process for the other side.
2.The moving parts should turn freely and quietly. Abnormal moving parts will affect the safety of the
equipment. Inspect and tighten bolts regularly.
3.To better maintain the treadmill and prolong its lifespan, it is suggested that maintenance be done
on a regular basis.
4. A loose Running Belt (No. C13) will result in the runner sliding off during use, while too tight of a
Running Belt (No. C13) will negatively affect the motor’s peformance and create more friction
between the roller and Running Belt (No. C13). The most suitable tightness for the Running Belt
(No. C13) is pulled out 50-75mm from the Running Board (No. D12).
The following time table is recommended:
Light user (less than 3 hours/ week)
Medium user (3-5 hours/ week)
Heavy user (more than 5 hours/ week)
every three months
every two months
every six months

12
FOLDING INSTRUCTIONS
FOLD UP:
Loosen the Lock Knob (No.
B09) counterclockwise and pull
it out. Fold up the Main Frame
(No. A03).
Note: Remember where you
keep the Lock Knob (No. B09)
after you pull it out. You will
need it when you unfold the
treadmill.
Pull out the Locking Pin (No.
C25) with one hand, then lift up
the Main Frame (No. A03) at
position “F” with the other hand
until the Locking Pin (No. C25)
snaps into the hole of
Fixed Block (No. C29).

13
UNFOLD:
Note: Before lowering the Main
Frame (No. A03), ensure that the
space directly underneath is clear
of any objects.
To avoid any possible injury,
please hold the Main Frame (No.
A03) at position “F” before you
pull the Locking Pin (No. C25).
Once the Main Frame (No. A03)
is released, continue to hold on at
position “F” until it reaches the
floor.
Secure Base Frame (No. A01) into
Main Frame (No. A03) by inserting
Lock Knob (No. B09) and turning
clockwise until tight.

14
HOW TO MOVE THE MACHINE
Before attempting to move the
treadmill, make sure that it has
been properly folded. Unplug the
power cord.
To tilt, start by placing one hand at
position “P”to support the top end
of the treadmill. Next, place one
foot at position “K”to hold the
bottom end of the treadmill
steady. With your foot at “K”,
slowly tilt the top of the treadmill
downward towards the ground.
Once the Main Frame “P”reaches
a low enough point, the wheels of
the treadmill touch the ground.
To transport, hold the treadmill from
position “P” and tilt until the wheel’s
“K” are able to move on the ground.

15
HOW TO USE SAFETY KEY
Insert the Safety Key (No. C32) into the magnetic area of the Console
Display (No. B) and clip to your clothes.
Note: In an emergency, pull out the Safety Key (No. C32), and the treadmill
will stop.

16
IMPORTANT ELECTRICAL INFORMATION
WARNING: This treadmill requires a power source of 8 amps (100-120 V) in order to properly
operate. For your safety, as well as the safety of others, please verify that the power source is correct
before plugging the equipment. Any power source above or below this level could cause significant
damage to the equipment and or user.
GROUNDING METHODS:
This product must be grounded. Grounding provides the least resistance for electrical current and will
reduce the risk of electric shock. The plug must be plugged into an appropriate outlet that is properly
installed and grounded in accordance with all local codes and ordinances. Ensure that the product is
connected to an outlet which contains the same configuration as the plug. Do not use an adaptor for
this product.
This product is for use on a nominal 100-120V circuit and has a grounding plug that looks like the
plug illustrated in sketch A. Make sure that the product is connected to an outlet having the same
configuration as the plug. No adapter should be used with this product.
DANGER:
Improper connection of the equipment-grounding conductor can result in risk of electric shock. Check
with a certified electrician if you are in doubt as to whether the product is properly grounded. Do not
modify the plug provided with the product. If it will not fit the outlet, have a proper outlet installed by
an electrician.
WARNING!
1. NEVER use a ground fault circuit interrupt (GFCI) wall outlet with this treadmill. Route the power
cord away from any moving part of the treadmill including the elevation mechanism and
transportation wheels.
2. NEVER operate the treadmill using a generator or UPS power supply.
3. NEVER remove any cover without first disconnecting AC power.
4. NEVER expose the treadmill to rain or moisture. This treadmill is not designed for use outdoors,
near pools, or in any other high humidity environment.
GROUNDING METHOD

17
THE DISPLAY CONSOLE
DISPLAY
SPEED:Displays current speed (range 0.5-6.5MPH). When in setting mode, the window displays H-1,
H-2, H-3.
TIME: Displays running time. If the time reaches 99:59, the treadmill will stop smoothly and display
“End” and will enter standby mode after 5 seconds. When in countdown mode, it will count from the
setting time to 0:00. When down to 0:00, the treadmill will stop smoothly and show “End”, and will
enter standby mode after 5 seconds.
DISTANCE: Displays the distance traveled (range 0.0-99.9 MILES). When the clock reaches 99.9, it
will reset to 0.00 and begin counting again from 0.0. When in countdown mode, it will count down
from the distance you set to 0.00. When it reaches 0.00, the treadmill will stop smoothly and display
“End”, then enter standby mode after 5 seconds.
CALORIES: Displays user’s calories burned (range 0-999 calories). When it reaches 999, it will start
again from 0. In countdown mode, it will count from the number of calories you set to 0. When it
reaches 0, the treadmill will stop smoothly and show “End”, and then enter standby mode after 5
seconds.

18
FUNCTION KEYS
START: To start the treadmill, insert the magnet end of the safety key into the computer console then
press the START button. This treadmill requires the Safety Key in order to start. 0.5 MPH is the
default start speed.
STOP: This button can PAUSE and STOP. When in use, press this button once to PAUSE your
workout and the current workout data will still be shown. Press STOP again to end your workout
session and all data from this session will be deleted.
MODE: When the treadmill is stopped, press this button to select a MODE. Pressing once will enter
H1, the TIME countdown mode starting from 15:00 MINS. H2 is the DISTANCE countdown mode
starting from 1.00 MILE and H3 is the CALORIES countdown mode which starts from 50 KCAL.
When setting each mode, you can press +/- to increase or decrease the preset H1, H2, H3 settings
then press START to start the treadmill. You cannot set the mode when the treadmill is moving or
when it is paused.
SPEED +/ SPEED –: Press the SPEED +/- buttons to increase or decrease the speed in increments
of 0.1 MPH. Pressing and holding either of these buttons for a duration of over 0.5 second will
increase or decrease the speed continually.
LUBRICATION REMINDER
Your treadmill needs lubrication maintenance every 188 miles. The treadmill beeps every 10 seconds
and displays an “OIL” icon on your LCD display to remind you when it’s time. Please read the
LUBRICATING THE TREADMILL on Page 11 to learn the proper steps to lubricating your treadmill.
Apply the lubricating oil to the middle of the running board on both sides. After application, press and
hold the STOP button for 3 seconds to clear the reminder.
PROGRAMS
Initial
Default Value
Set Range
Display Range
TIME(MIN:SECOND)
0:00
15:00
5:00-99:00
0:00－99:59
SPEED(MPH)
0.5
0.5
0.5-6.5
0.5－6.5
DISTANCE(MILE)
0
1.0
0.5-99.9
0.0－99.9
CALORIE(KCAL)
0
50
10-999
0－999

19
TREADMILL FUNCTIONS
SAFETY LOCK FUNCTION:
Remove the Safety Key (No. C32) from the computer console while the treadmill is running, and the
treadmill will stop immediately. Once the treadmill reaches a full stop, the display will show “- - -”and
the buzzer will beep 3 times. To start the treadmill again, insert the magnet end of the Safety Key (No.
C32) into the computer console and press the START button.
POWER SAVING FUNCTION:
When the treadmill has been idle for 10 minutes, it will enter Power Saving Mode. While the treadmill
is in this mode, the display will be turned off. To turn it back on, press any button.
POWER ON:
Flick the power switch to this symbol to turn on the treadmill.
POWER OFF:
Flick the power switch to this symbol to turn the treadmill off at anytime, including while the treadmill
is in use.
SAFETY NOTE:
We recommend that you maintain a slow speed at the beginning of a session and hold the handrails
until you become familiar with the treadmill.
Insert the magnet end of the Safety Key (No. C32) into the computer console and clip the safety clip
to your clothing before starting your workout. To end your workout, press the STOP button or remove
the Safety Key (No. C32) and the treadmill will stop immediately.
