Sunny Health & Fitness SF-T7643 User manual

HEAVY DUTY WALKING
TREADMILL
SF-T7643
USER MANUAL
IMPORTANT: Read all instructions carefully before using this product.
Retain owner’s manual for future reference. For customer service, please
contact: [e-mail]

1
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions should always be followed, including
the following:
Read all instructions before using this treadmill.
DANGER –To reduce the risk of electrical shock:
1. Always unplug this appliance from the electrical outlet immediately after using and before
cleaning.
WARNING–To reduce the risk of burns, fire, electric shock, or injury to persons:
1. The treadmill should never be left unattended when plugged in. Unplug from outlet when
not in use and before putting on or taking off parts.
2. Use this treadmill only for its intended use as described in this manual. Do not use
attachments not recommended by the manufacturer.
3. Never operate this treadmill if it has a damaged cord or plug, is not working properly, has
been dropped or damaged.
4. Keep the cord away from heated surfaces.
5. Never operate the treadmill with the air openings blocked. Keep the air openings free of
lint, hair, and the like.
6. Never drop or insert any object into any opening.
7. Do not use outdoors.
8. Do not operate where aerosol (spray) products are being used or where oxygen is being
administered.
9. To disconnect, turn the treadmill off, then remove plug from outlet.

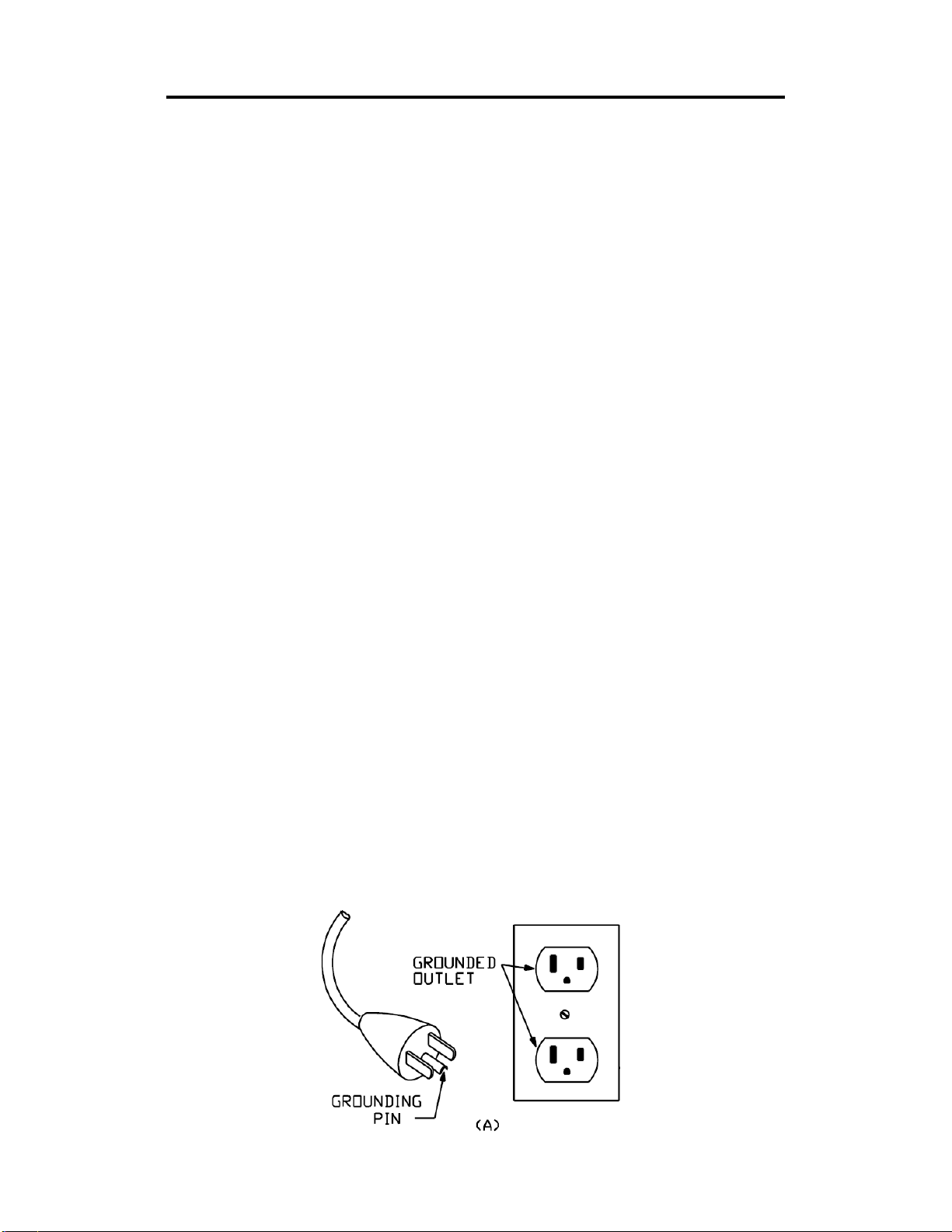

10.Connect this treadmill to a properly grounded outlet only. See grounding instructions.
CAUTION:Risk of Injury to Persons:
To avoid injury, use extreme caution when stepping onto or off of a moving belt. Read
Instruction Manual Before Using.
SAVE THESE INSTRUCTIONS
WARNING: This product can expose you to one or more chemicals known to the
State of California to cause cancer and birth defects or reproductive harm. For
more information go to www.P65Warnings.ca.gov.

2
IMPORTANT SAFETY INFORMATION
We thank you for choosing our product. It is important to read this entire manual before
assembling and using the equipment. It is your responsibility to ensure that all users of the
equipment are informed of all warnings and precautions.
1. Before starting any exercise program you should consult your physician to determine if
you have any medical or physical conditions that could put your health and safety at risk or
prevent you from using the equipment properly. Your physician’s advice is essential if you
are taking any medication that may affect your heart rate, blood pressure, or cholesterol
level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health.
Stop exercising if you experience any of the following symptoms: pain, tightness in your
chest, irregular heartbeat, shortness of breath, lightheadedness, dizziness, or nausea. If
you do experience any of these conditions, consult your physician before continuing with
your exercise program.
3. Keep children and pets away from the equipment. The equipment is designed for adult use
only.
4. Use the equipment on a solid, flat level surface with a protective cover for your floor or
carpet. To ensure safety, the equipment should have at least 4 feet of free space all around
it.
5. Ensure that all nuts and bolts are securely tightened before using the equipment. Check
equipment regularly for damage and/or wear and tear.
6. We recommend that you lubricate all moving parts monthly.
7. Always use the equipment as indicated. If you find any defective components while
assembling or checking the equipment, or if you hear any unusual noises coming from the
equipment during exercise, stop using the equipment immediately and don’t use the
equipment until the problem has been rectified.
8. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may
become entangled in the equipment.
9. Do not place fingers or objects into the moving parts of the equipment.
10.The maximum weight capacity of this unit is 350 pounds.
11.This equipment is not suitable for therapeutic use.
12.Move with caution when lifting and moving the equipment. Always use proper lifting
technique and seek assistance if necessary.
13.Your product is intended for use in cool, dry conditions. You should avoid storage in
extreme cold, hot, or damp areas as this may lead to corrosion and other related
problems.
14.This equipment is designed for indoor household use only! It is not intended for
commercial use!

3
IMPORTANT OPERATING INSTRUCTIONS
1. Insert the power plug directly into the socket.
2. Read the manual before operating the equipment.
3. Changes in speed do not occur immediately. Set your desired speed using the
adjustment keys on the main console. The speed will increase gradually.
4. While on the treadmill, move with caution as distractions may cause you to lose
balance and stray from walking in the center of the belt which may result in serious
injury.
5. This unit starts at a very low speed. To begin use, hold onto the handrails and stand
on the side rails while it starts up, then step onto the belt once it’s in motion.
6. Always hold the handrail when making changing settings.
7. A safety key is provided for emergency use. The machine will function only if the
safety key is inserted into the computer console. In case of emergency, remove the
safety key to immediately stop the belt and shut off the treadmill. The display screen
will reset once the safety key is reinserted.
8. The console control keys are precisely set and require very little finger pressure to use.
To avoid damaging these keys, do not use excessive pressure when operating these
controls.
9. This equipment is designed for adult use only! Children should not be allowed to use
or play near this equipment. When present, children should be supervised at all
times by an adult.
10. Women who are pregnant or nursing should consult a physician before attempting to
begin any exercise program.
11.Always stay hydrated during and after exercise.
IMPORTANT NOTE:
The belt must be lubricated before the first use! Please see Page 13 for
instructions on how to properly apply lubricant.

4

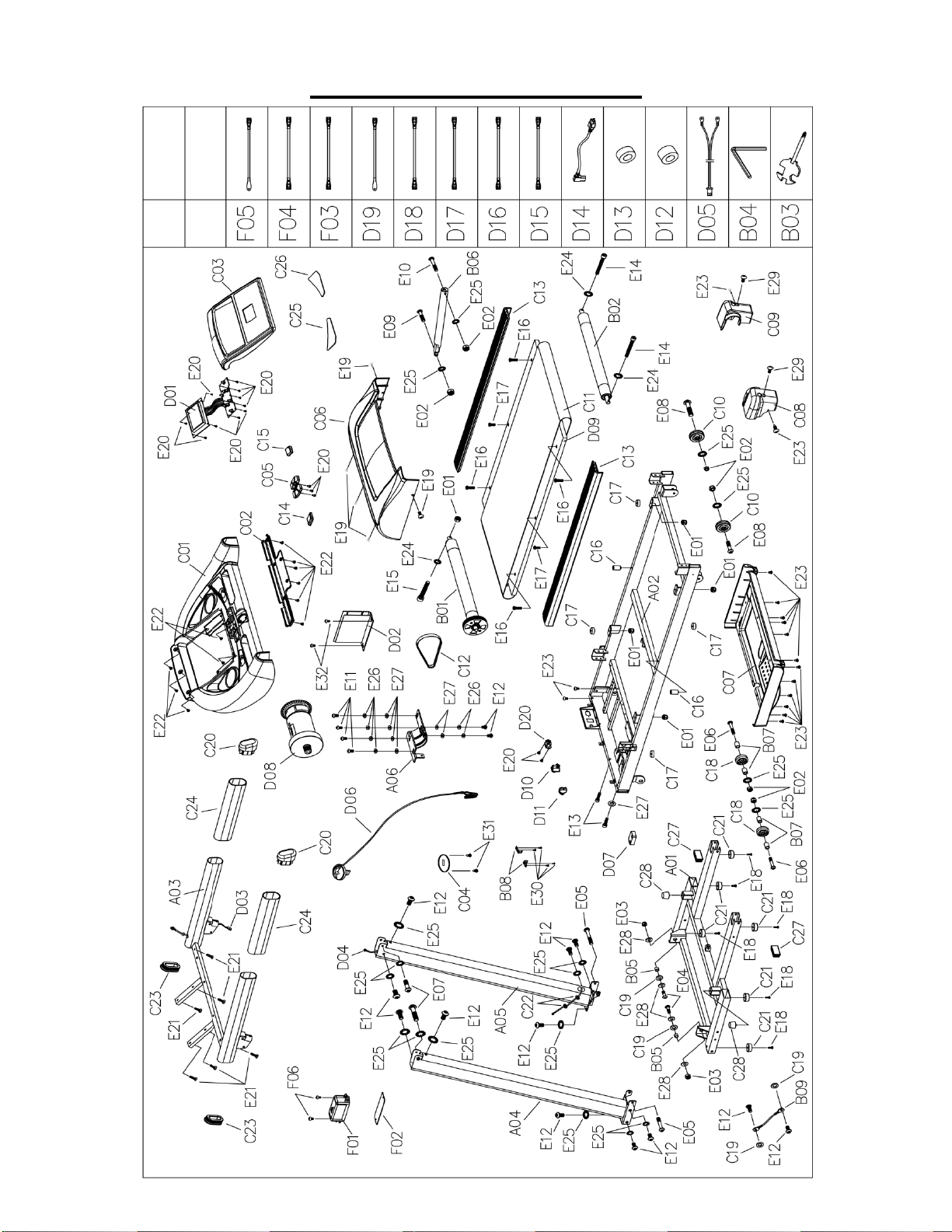

EXPLODED DRAWING

5
PARTS LIST
No.
Description
Specification
Qty
No.
Description
Specification
Qty
A01
Base Frame
1
D09
Running Board
1
A02
Main Frame
1
D10
Square Switch
1
A03
Computer Bracket
1
D11
Overload Protector
1
A04
Left Upright Tube
1
D12
Magnetic Ring
1
A05
Right Upright Tube
1
D13
Magnetic Core
1
A06
Motor Bracket
1
D14
Power Wire
1
B01
Front Roller
1
D15
AC Signal Wire
200mm Blue
1
B02
Rear Roller
1
D16
AC Signal Wire
200mm Brown
2
B03
Spanner w/ Screw Driver
S=13,14,15
1
D17
AC Signal Wire
350mm Brown
1
B04
Allen Wrench
5mm
1
D18
AC Signal Wire
350mm Blue
1
B05
Turning Bushing
2
D19
Grounding Wire
1
B06
Air Pressure Cylinder
1
D20
Power Outlet
1
B07
Transport Wheel Plug
4
E01
Nut
M6
5
B08
Metal Sheet
2
E02
Nut
M8
6
B09
Safety Block
1
E03
Nut
M10
2
C01
Console Top Cover
1
E04
Bolt
M10*30
2
C02
Console Bottom Cover
1
E05
Bolt
M8*80
2
C03
Console Panel
1
E06
Bolt
M8*70
2
C04
Safety Key Socket
1
E07
Bolt
M8*48
2
C05
Function Button
1
E08
Bolt
M8*40
2
C06
Motor Top Cover
1
E09
Bolt
M8*30
1
C07
Motor Bottom Cover
1
E10
Bolt
M8*42
1
C08
Left Rear Cover
1
E11
Bolt
M8*20
4
C09
Right Rear Cover
1
E12
Bolt
M8*15
14
C10
Adjustable Wheel
2
E13
Bolt
M8*35
2
C11
Running Belt
1
E14
Bolt
M6*55
2
C12
Motor Belt
1
E15
Bolt
M6*60
1
C13
Side Rail
2
E16
Bolt
M6*40
4
C14
Start Button
1
E17
Bolt
M6*25
2
C15
Stop Button
1
E18
Bolt
M5*16
6
C16
Black Cushion
φ20*φ6.5*30
2
E19
Bolt
M5*8
5
C17
Black Cushion
φ30*φ6.2*10
4
E20
Screw
ST2.9*8.0
15
C18
Moving Wheel
2
E21
Screw
ST4.2*25
6
C19
Plastic Pad
4
E22
Screw
ST4.2*12
11
C20
Round Inner Plug
2
E23
Screw
ST4.2*12
16
C21
Flat Foot Pad
6
E24
Washer
6
3
C22
Ring Protecting Wire Plug
2
E25
Washer
8
18
C23
Inner Plug
2
E26
Washer
8
6
C24
Foam
2
E27
Flat Washer
8
7
C25
Left Speaker Net Acrylic
1
E28
Big Washer
φ10*φ26*2.0
4
C26
Right Speaker Net Acrylic
1
E29
Bolt
M5*12
2
C27
Square Inner Plug
2
E30
Screw
ST2.9*4
4

6
C28
Cone-shape Cushion
2
E31
Screw
ST3.5*8
2
D01
Console
1
E32
Screw
ST4.2*20
2
D02
Control Board
1
F01
Filter
1
D03
Upper Signal Wire
1
F02
Filter Strengthen Board
1
D04
Lower Signal Wire
1
F03
AC Single Wire
350mm Brown
1
D05
Safety Key Connecting Wire
1
F04
AC Single Wire
350mm Blue
1
D06
Safety Key
1
F05
Grounding Wire
350mm
1
D07
Sensor
1
F06
Screw
ST4.2*12
2
D08
DC Motor
1

7

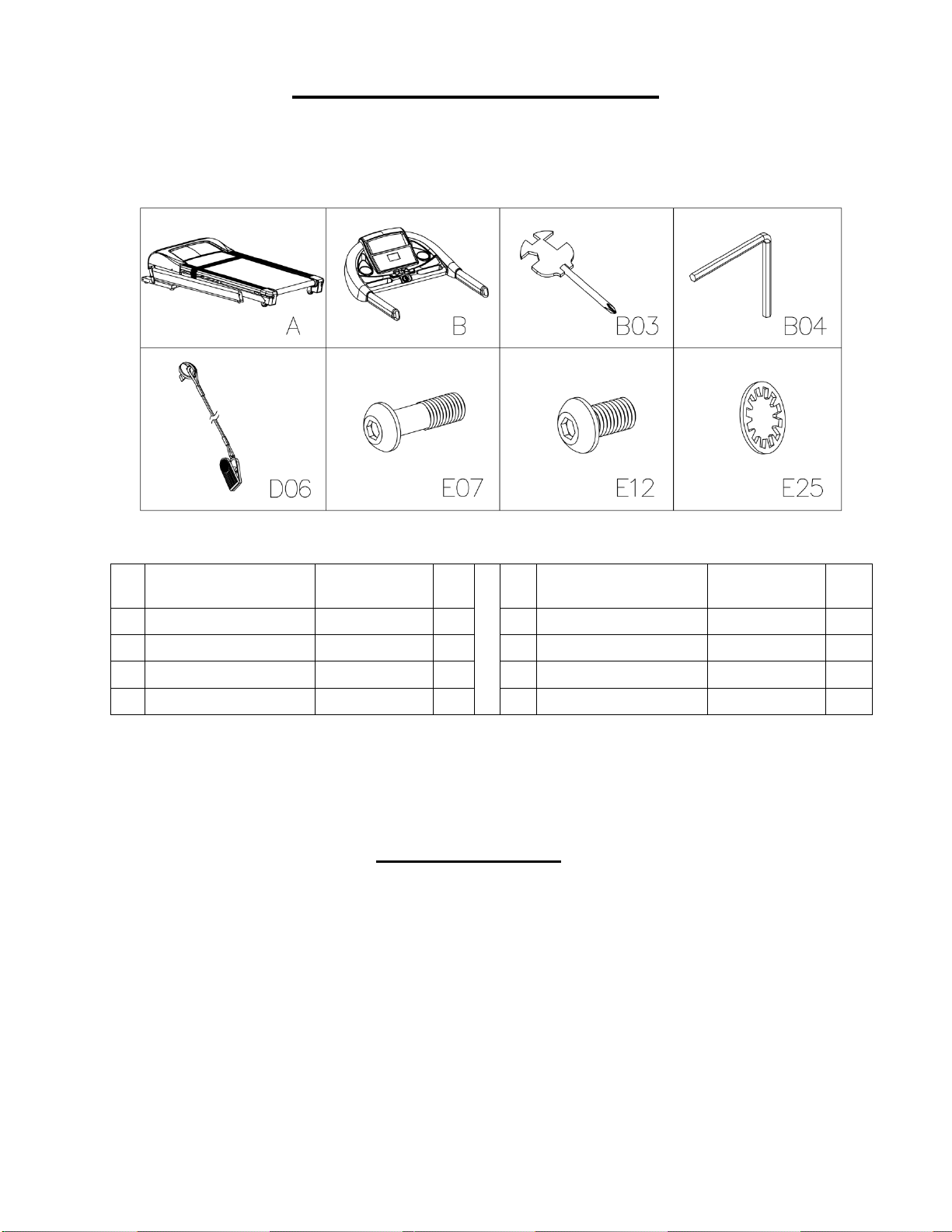

ASSEMBLY HARDWARE
CARTON CONTENTS:
ASSEMBLY TOOLS
Allen Wrench (5mm) –1PC
Spanner with Screw Driver (S=13, 14, 15) –1PC
We recommend having two people do the assembly.
Description
Specification
Qty
No.
Description
Specification
Qty
A
Main Frame
1
D06
Safety Key
1
B
Console
1
E07
Bolt
M8*48
2
B03
Spanner W/ Screw Driver
S=13,14,15
1
E12
Bolt
M8*15
10
B04
Allen Wrench
5mm
1
E25
Washer
8
12

8
ASSEMBLY INSTRUCTIONS
STEP 1:
STEP 2:
Open the carton and remove
contents. Place the Main Frame (A)
on the ground and ensure you have
a work area that is clean and has
adequate space. Do not cut the
Packing Belt (F) until the
assembly is complete!
Lift up the Left Upright Tube (No.
A04) upwards. See Figure 1.
During assembly, support the
Upright Tubes (No. A04 and A05)
with your hand to prevent them
from falling down.
Fix the Left Upright Tube (No.
A04) to the Base Frame (No.
A01), using 2 Bolts (No. E12) and
2 Lock Washers (No. E25) on the
side, and 1 Bolt (No. E12) and
Lock Washer (No. E25) on the
front. Secure using Allen Wrench
(No. B04).
Repeat the step above to
assemble the Right Upright Tube
(No. A05)to the Base Frame (No.
A01). See Figure 2.
Figure 2
Figure 1

9

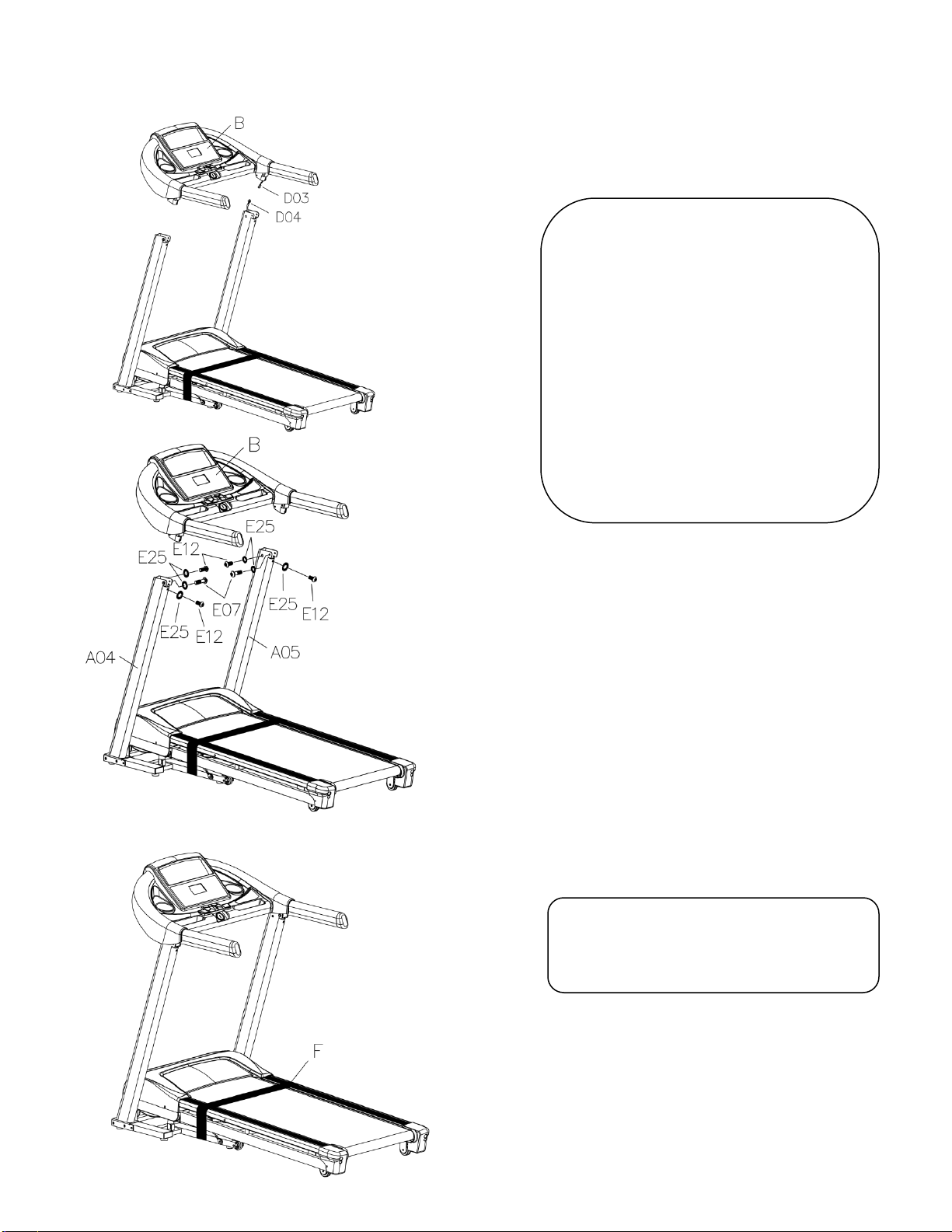

STEP 3:
STEP 4:
Connect the Upper Signal Wire
(No. D03)to the Lower Signal
Wire (No. D04).
Fix the Console (No. B) to the
Left and Right Upright Tubes
(No. A04 & A05) with 2 Bolts (No.
E07), 4Bolts (No. E12) and 6
Lock Washers (No. E25). Tighten
using Allen Wrench (No. B04).
Cut the Packing Belt (F).

10
ASSEMBLY INSTRUCTIONS
STEP 5:
STEP 6:
Loosen the Bolt (No. E12) in Base
Frame (No. A01) by using Allen
Wrench (No. B04).

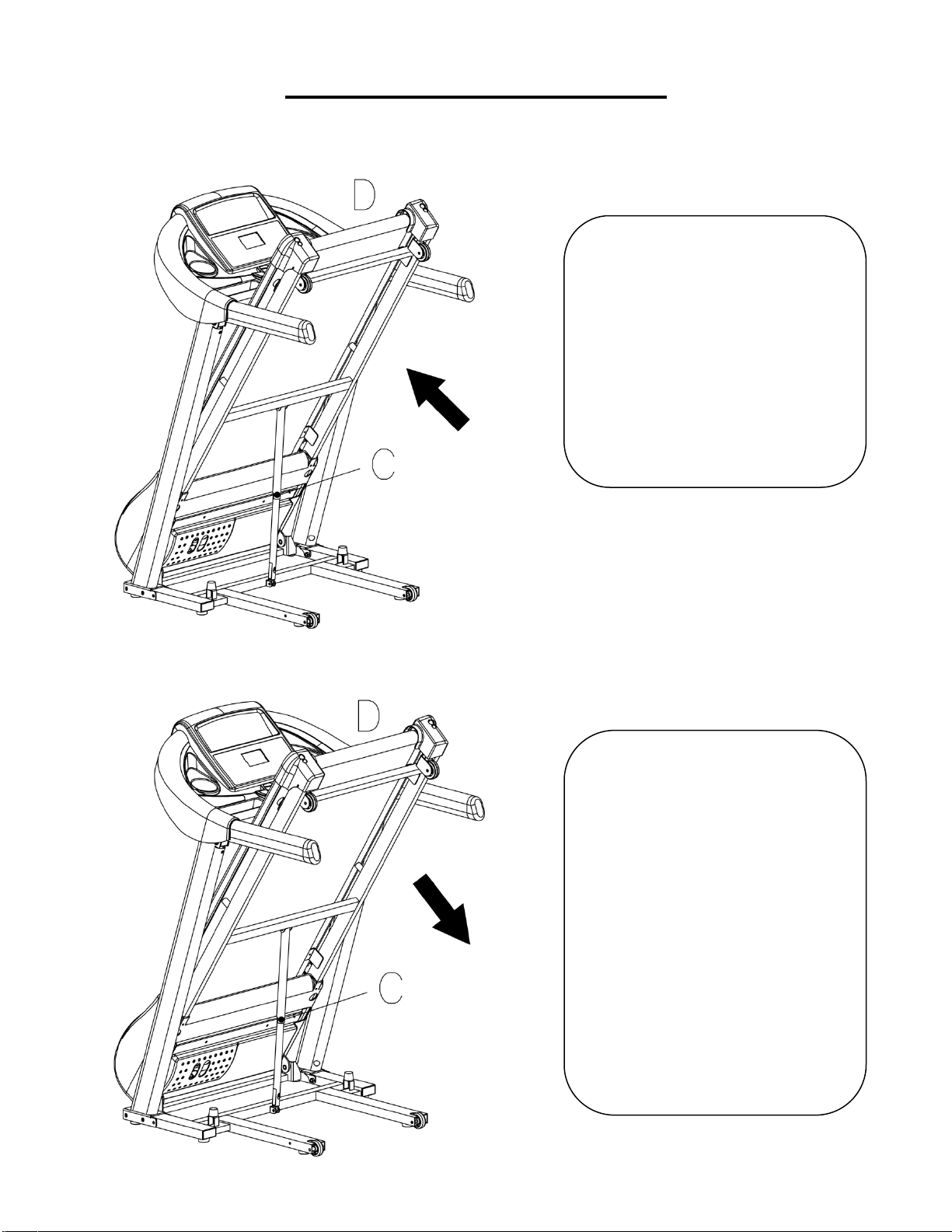

See Page 14 for instructions on
how to fold the machine.
Fold the machine and loosen the
Bolt (No. E12) in Main Frame
(No. A02) by using Allen Wrench
(No. B04) then remove Safety
Block (No. B09).
Please keep Plastic Pad (No.
C19), Bolt (No. E12) and Safety
Block (No. B09) for spare parts
after dismantling the safety block.

11
ASSEMBLY INSTRUCTIONS
STEP 7:
IMPORTANT NOTE!
You will need to lubricate
your treadmill before the first
use. See Page 13.
The assembly is now complete! You
may now insert the Safety Key (No.
D06) into the magnetic area on the
Console (B).

12
MAINTENANCE & CARE
General cleaning will help prolong the life and performance of your treadmill. Keep the
unit clean and maintained by dusting the components on a regular basis. Clean both
sides of the running belt to prevent dust from accumulating underneath the belt. Keep
your running shoes clean so that dirt from your shoes do not wear out the running board
and belt. Clean the surface of the running belt with a clean damp cloth.
To better maintain the treadmill and prolong its life it is suggested that the machine be
powered off for 10 minutes every 2 hours and fully powered off whenever not in use.
A loose Running Belt will result in the runner sliding off when running, while too tight of
a Running Belt will result in decrease to the motors performance and also create more
friction between the roller and running belts. The most suitable tightness for the belts is
pulled out 50-75mm from the Running Board.

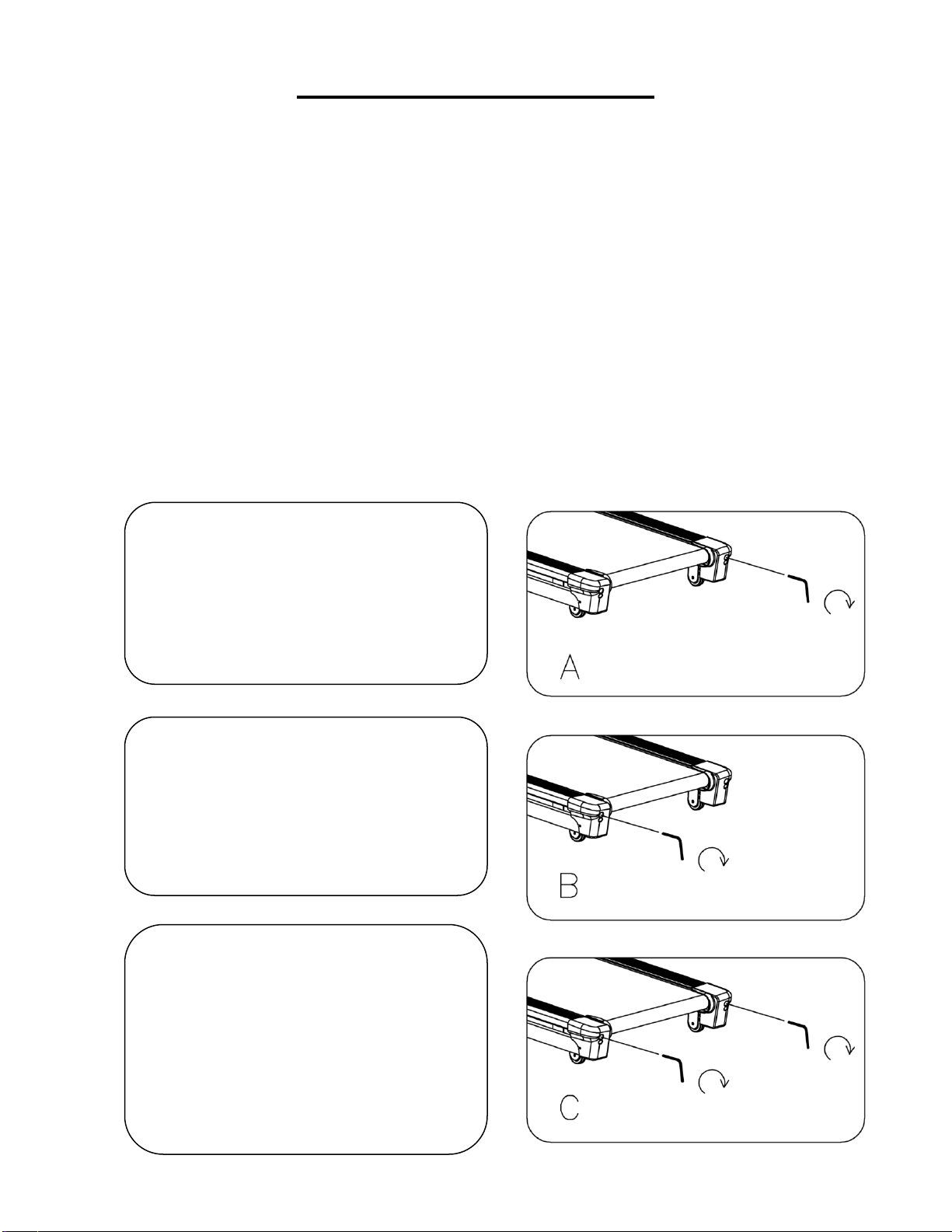

CENTERING THE RUNNING BELT:
Place the treadmill on level ground and set it at 3-5mph to check if the Running Belt
(C11) drifts.
1. If the Running Belt (C11) moves to
the right, turn the adjusting bolt on the
right side ¼turn clockwise, then turn
the left adjustment bolt ¼ turn
counter-clockwise. If the belt does not
move, repeat this step until it centers.
Refer to Figure A.
2. If the Running Belt (C11) moves to
the left, turn the adjusting bolts on the
left side ¼of a turn clockwise, then
turn the right adjustment bolt ¼ turn
counter-clockwise. If the belt does not
move, repeat this step until it centers.
Refer to Figure B.
3. Over time the Running Belt (C11)
will loosen. To tighten the belt turn the
Left & Right side adjustment bolts one
full turn clockwise, check the tension
of the belt. Continue this process until
belt is at the correct tension. Make
sure to adjust both sides equally to
ensure correct belt alignment. Refer to
diagram “C”.

13
LUBRICATING THE TREADMILL
*IMPORTANT NOTE:
You will need to lubricate your treadmill before the first use.
RUNNING BELTS & TREADMILL LUBRICANT:
Lubricating the running board and running belt is essential as the friction between the
two affects the life span and function of the treadmill, therefore it is suggested that the
running board and belt be inspected regularly. Should you find any wear on the Running
Board, please contact us at: [email protected].
WARNING: Always unplug the treadmill from the electrical outlet before cleaning,
lubricating or repairing the unit.
HOW TO LUBRICATE:
1. Raise the belt up on one side and apply lubricant to the running deck. Use a rag to
thoroughly wipe the lubricant over the running deck. Repeat this process for the other
side.
2. The moving parts should turn freely and quietly. Abnormality of moving parts will
affect the safety of the equipment. Inspect and tighten bolts regularly.
3. To better maintain the treadmill and prolong its lifespan, it is suggested that
maintenance be done on a regular basis.
4. A loose running belt will result in the runner sliding off during use, while too tight of a
running belt will decrease the motor performance and also create more friction between
the roller and running belts. The most suitable tightness for the belt is pulled out
50-75mm from the Running Board.
The following time table is recommended:
Light user (less than 3 hours/ week) every six months
Medium user (3-5 hours/ week) every three months
Heavy user (more than 5 hours/ week) every two months

14
FOLDING INSTRUCTIONS
FOLDING:
UNFOLDING:
Place your hand at position
“D” and lift the Main Frame
(A02) up until the Air
Pressure Cylinder (B06) “C”
locks into the tube.
When the Air Pressure
Cylinder (B06) successfully
locks into the tube, you will
hear a clicking sound.
Before lowering the Main
Frame (A02), ensure that the
space directly underneath it is
clear of any objects.
Grasp the Main Frame (A02)
at position “D” with one hand.
Next, using your foot, firmly
push against the Air Pressure
Cylinder (B06) “C” and press
down on the Main Frame
(A02). Once the Main Frame
(A02) has been pushed down,
it will automatically continue to
steadily lower itself until it
reaches the ground.

15

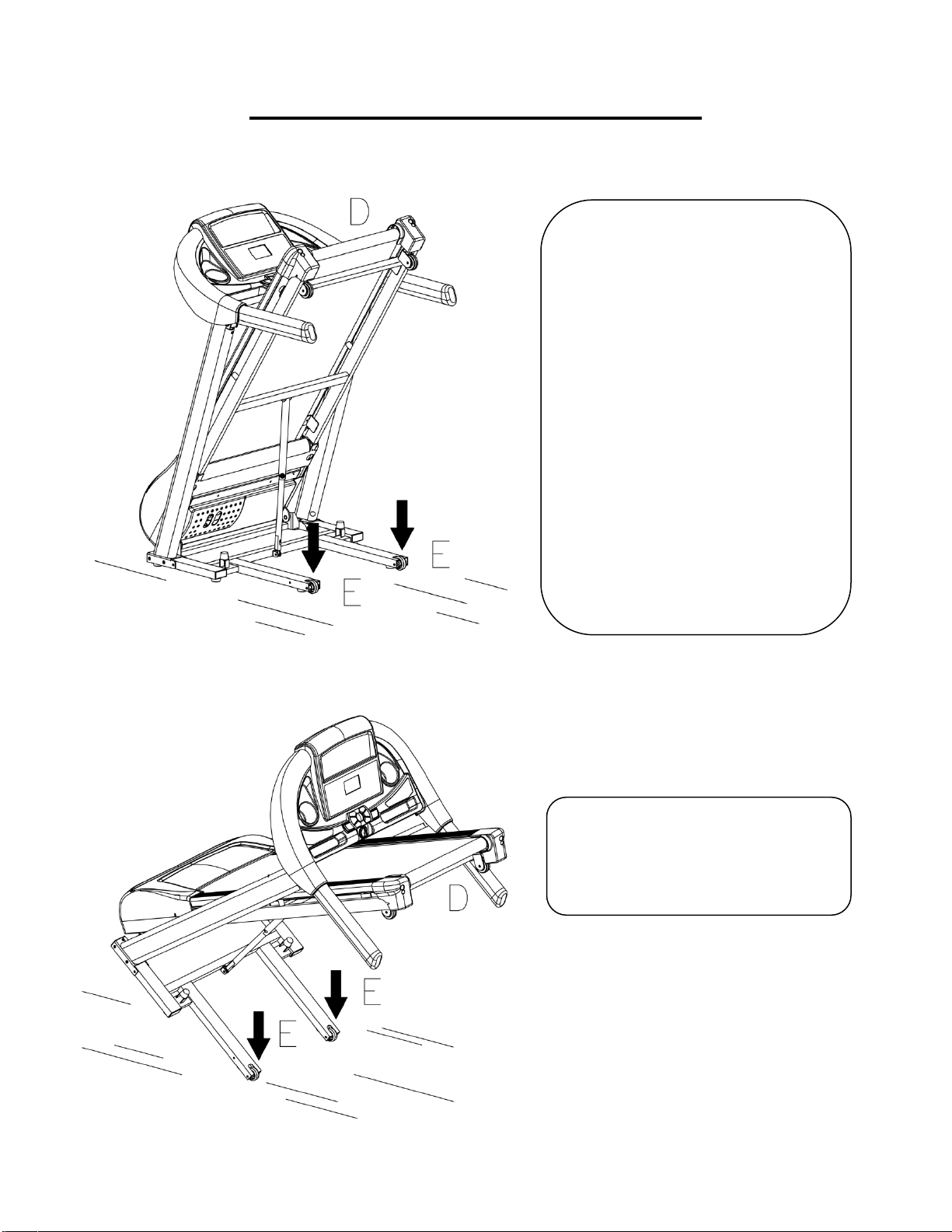

HOW TO MOVE THE MACHINE
Before attempting to move the
treadmill, please make sure
that it has been properly
folded. Unplug power cord.
Start by placing one hand at
position “D”to support the top
end of the treadmill. Next,
place one foot at position “E”to
hold the bottom end of the
treadmill steady. With your
foot at “E”, slowly tilt the top of
the treadmill downward
towards the ground. Once the
Main Frame (A02) reaches a
low enough point, the wheels
of the treadmill will touch the
ground.
To transport, hold the treadmill
from position “D”and tilt until the
wheels “E”are able to move on
the ground.

16
IMPORTANT ELECTRICAL INFORMATION
WARNING: This treadmill requires a power source of 10 amps (100-120V) in
order to properly operate. For your safety, as well as the safety of others, please verify
that the power source is correct before plugging the equipment. Any power source above
or below this level could cause significant damage to the equipment and or user.
GROUNDING METHODS:
This product must be grounded. Grounding provides the least resistance for electrical
current and will reduce the risk of electric shock. The plug must be plugged into an
appropriate outlet that is properly installed and grounded in accordance with all local
codes and ordinances. Ensure that the product is connected to an outlet which contains
the same configuration as the plug. Do not use an adaptor for this product.
This product is for use on a nominal 100-120V circuit and has a grounding plug that
looks like the plug illustrated in sketch A. Make sure that the product is connected to an
outlet having the same configuration as the plug. No adapter should be used with this
product.
DANGER:
Improper connection of the equipment-grounding conductor can result in risk of electric
shock. Check with a certified electrician if you are in doubt as to whether the product is
properly grounded. Do not modify the plug provided with the product. If it will not fit the
outlet, have a proper outlet installed by an electrician.
WARNING!
1. NEVER use a ground fault circuit interrupt (GFCI) wall outlet with this treadmill. Route
the power cord away from any moving part of the treadmill including the elevation
mechanism and transport wheels.
2. NEVER operate the treadmill using a generator or UPS power supply.
3. NEVER remove any cover without first disconnecting AC power.
4. NEVER expose the treadmill to rain or moisture. This treadmill is not designed for use
outdoors, near pools or in any other high humidity environment.
GROUNDING METHOD

17
THE DISPLAY CONSOLE
QUICK START
1. Insert the magnet end of the safety key into the computer console.
2. Press the START button, and the system will automatically display a 3 second
countdown. Once the countdown reaches zero, the running belt will start at the initial
default speed of 0.5 MPH.
3. To adjust the speed, you can use the SPEED +/- BUTTONS or QUICK SPEED
BUTTONS 1, 3, 5 MPH.
*NOTE: The maximum speed on this treadmill is 6.0 MPH.
CONTROL FUNCTIONS
1. Press the –Speed Button to reduce the running speed.
2. Press the +Speed Button to increase the running speed.
3. Pressing a Quick Speed Button will adjust the speed to the corresponding speed
indicated (1, 3, 5 MPH).
4. Pressing the STOP Button will PAUSE the running belt and current workout data.
Pressing the STOP button again will terminate current workout session completely.

18
THE DISPLAY CONSOLE
WINDOW DISPLAY
1. SPEED: Displays current speed (range 0.5-6.0 MPH). When in setting mode, the window
displays H-1, H-2, H-3.
2. TIME: Displays the exercise time from 0:00-99:59 MINS. If the time reaches 99:59, the
machine will stop smoothly and display “End” and will enter into standby mode after 5
seconds. When in Countdown Mode, it will count from the setting time to 0:00. When down
to 0:00, the machine will stop smoothly and show ‘End ’, and will enter into standby mode
after 5 seconds.
3. DISTANCE: Displays the distance traveled (0.0-99.9 MILES). When the clock reaches
99.9, it will reset to 0.00 and begin counting again from 0.0. When in Countdown Mode, it will
count down from the setting data to 0.00. When it reaches 0.00, the machine will stop
smoothly and display “End” and automatically reset to the initial setting after 5 seconds.
4. CALORIES: Displays the amount of calories burned (0 to 999). When the count reaches
999, it will reset and start back from 0 again. When in Countdown Mode, it will count down
from the setting data to 0. When it reaches 0, the machine will stop smoothly and display
“END” and automatically reset to the initial setting after 5 seconds.
FUNCTION KEYS
1. START: To start the machine, insert the magnet end of the safety key into the computer
console then press the START button. This machine requires the Safety Key in order to
start. 0.5 MPH is the default start speed.
2. STOP: This button can PAUSE and STOP. When in use, press this button once to
PAUSE your workout and the current workout data will still be shown. Press STOP again
to end your workout session and all data from this session will be deleted.
3. MODE: When the treadmill is stopped, press this button to select a MODE. Pressing
once will enter H1, the TIME Countdown Mode starting from 15:00 MINS. H2 is the
DISTANCE Countdown Mode starting from 1.00 MILE and H3 is the CALORIES
Countdown Mode which starts from 50 KCAL. When setting each mode, you can press +/-
to increase or decrease the preset H1, H2, H3 settings then press START to start the
machine. You can set the mode only when the treadmill is stopped. You cannot set the
mode while it is moving or when it is paused.
4. SPEED +/ SPEED –: Press the SPEED +/- buttons to increase or decrease the speed
in increments of 0.1 MPH. Pressing and holding either of these buttons for a duration of
over 0.5 second will increase or decrease the speed continually.
PROGRAMS
Initial
Default Value
Set Range
Display Range
TIME(MIN:SECOND)
0:00
15:00
5:00-99:00
0:00－99:59
SPEED(MPH)
0.5
0.5
0.5-6.0
0.5-6.0
DISTANCE(MILE)
0.00
1.00
0.50-99.9
0.00－99.9
CALORIE(KCAL)
0
50
10-999
0－999

19
5. 1, 3, 5 MPH (QUICK SPEED BUTTONS): These buttons are preset to the speeds of 1,
3, 5 MPH for convenience.
LUBRICATION REMINDER
Your treadmill needs lubrication maintenance every 188 miles. The system will release a
beeping sound every 10 seconds and display an “OIL” icon on your LCD display to
remind you when it’s time. Please read the LUBRICATING THE TREADMILL on Page
13 to learn the proper steps to lubricating your machine. Apply the lubricating oil to the
middle of the running deck on both sides. After application, press and hold the STOP
button for 3 seconds to clear the reminder.
TREADMILL FUNCTIONS
SAFETY LOCK FUNCTION:
Removing the Safety Key (D06) from the computer console while the treadmill is running
will cause it to stop immediately. Once the treadmill reaches a full stop, the window
display of the computer will show “- - -“ and the buzzer will beep 3 times. To start the
treadmill again, insert the magnet end of the Safety Key (D06) into the computer
console and press the START button.
POWER SAVE FUNCTION:
When the treadmill has been idle for 10 minutes, it will enter Power Saving Mode. While
the treadmill is in this mode, the window display of the computer will be turned off. To turn
it back on, press any button.
POWER ON:
Flick the power switch to this symbol to turn on the treadmill.
POWER OFF:
Flick the power switch to this symbol to turn the treadmill off at anytime. This includes
during exercise.
SAFETY NOTE:
1. We recommend that you maintain a slow speed at the beginning of a session and hold
the handrails until you have become familiar with the treadmill.
2. Insert the magnet end of the Safety Key (D06) into the computer console and attach the
opposite end (containing the safety clip on it) to your clothing before starting your
workout. To end your workout, press the STOP button or remove the Safety Key (D06)
and the treadmill will stop immediately.
