Sunrise Medical Quickie Q50R Operating instructions

1Q50R REV.A
3
、
Quickie
Q50R
Service Instructions

2Q50R REV.A
If you have any questions about the use,
maintenance or safety of your seating
system, please contact your local
approved Sunrise Medical service agent.
If you do not know of an approved dealer
in your area or have any other questions
please write or telephone your local
Sunrise Medical office (Contact
information can be found on the back
page of this document or on the
website).
Contents
1.0 Introduction ......................................... 3
1.1 This user manual ................................. 3
1.2 Identification of the product .................... 4
1.3 Symbols used in this manual ...................... 4
2.0 Safety ............................................... 5
2.1 Personnel qualification .......................... 5
2.2 Cautions and warning statements .................. 5
2.3 Decals used on the wheelchair .................... 5
3.0 Tools, parts and components .......................... 6
3.1 Tools ............................................ 6
4.0 Spare parts .......................................... 7
5.0 Maintenance＆Cleaning ................................ 7
5.1 Maintenance ...................................... 7
5.2 Tyre maintenance ................................. 9
5.3 Cleaning and disinfection ........................ 9
6.0 Service Instructions ................................ 10
6.1 Assembly, replacement and adjustment instructions 10
6.2 Assembling and replacement instructions - Q50R ... 12
Removal of castor wheel from castor fork......... 12
Removal of castor fork from castor arm........... 13
Removal of front support plate from wheelchair
base ............................................ 14

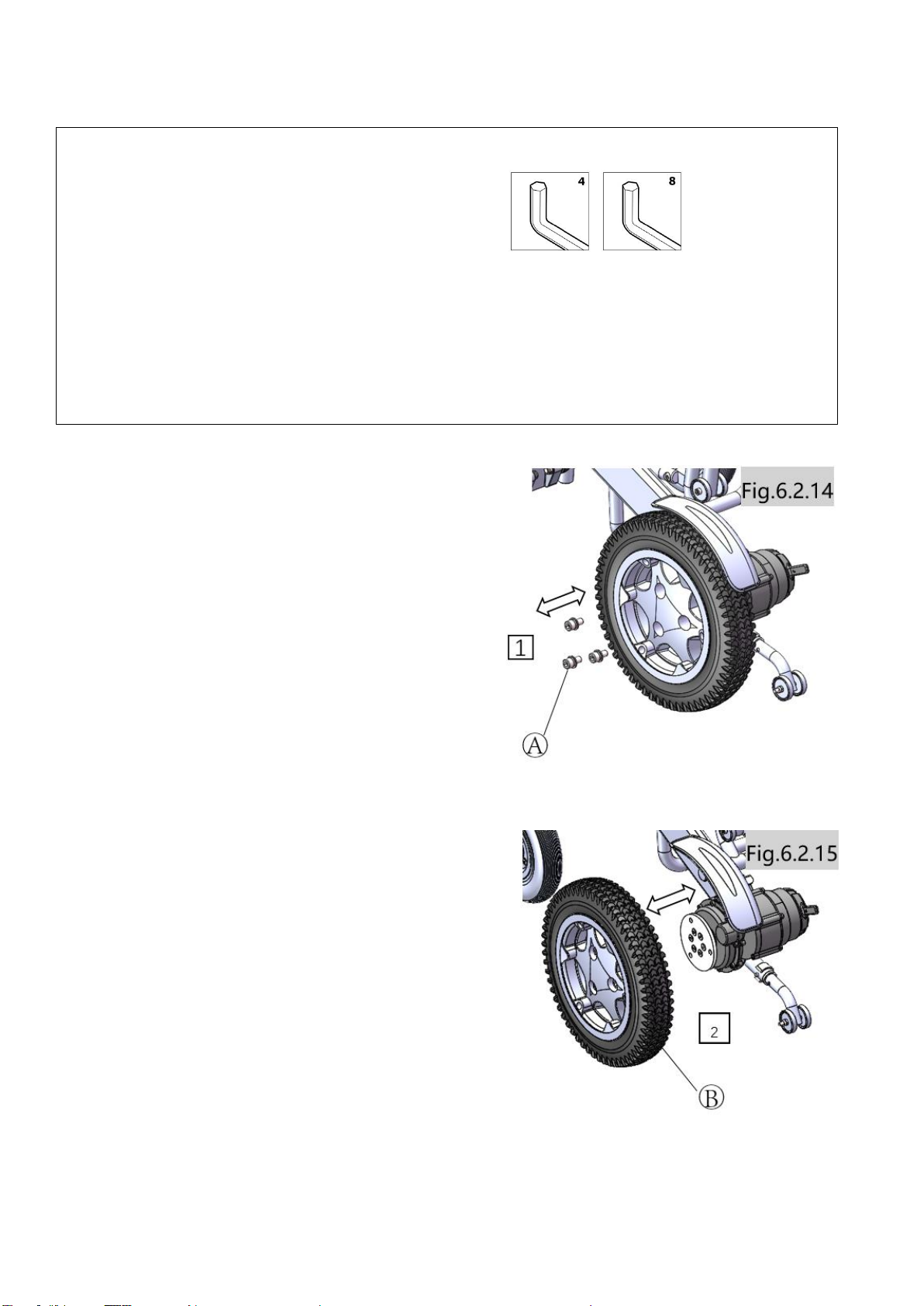

Removal of drive wheel from wheelchair base ...... 17
Removal of motor and mudguard ................... 19
Removal of brake lever from motors............... 20
Removal of brake from motor assembly............. 21
Removal of controller ........................... 23
Removal of armrest .............................. 24
Removal of backrest upholstery .................. 25
7.0 Trouble shooting .................................... 26

3Q50R REV.A
1.0 Introduction
1.1 This user manual
This manual contains the instructions for repairs and general maintenance of the Q50R.
Mechanics who do repairs on this wheelchair must be well trained and familiar with the repair methods.
Always make sure that the work is carried out safely, particularly with respect to procedures requiring the wheelchair to be lifted
up. We advise that you contact our service department before doing repair work on a wheelchair that has been involved in an
accident.
The following specifications are important when ordering parts:
• Model
• Year of manufacture
• Identification number
• Part number
• Name of the part concerned
This information is provided on the identification plate. See ‘Identification of the product’.
If you have any questions about the use, maintenance or safety of your wheelchair, please contact your local approved Sunrise
Medical service agent. If you do not know of an approved dealer in your area or have any other questions please write or telephone:
Available documentation
The following technical documentation is available / required to service this wheelchair:
• User manual
• Service manual
Service and technical support
For information concerning specific settings, maintenance or repair works please contact your supplier. They are always prepared
to help you.
Ensure you have at hand:
• Model
• Year of manufacture
• Identification number
This information is provided on the identification plate. See ‘Identification of the product’.

4Q50R REV.A

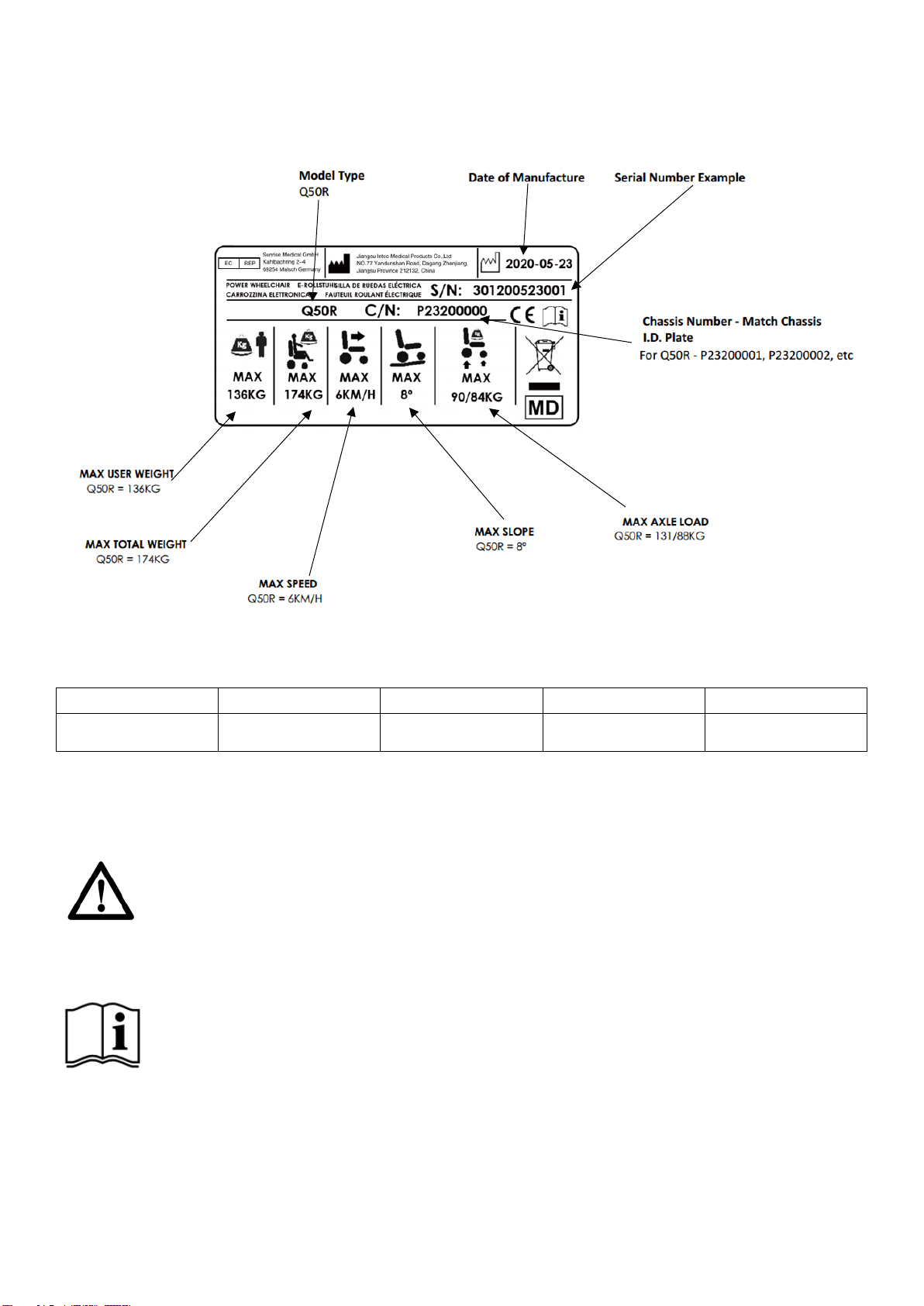

1.2 Identification of the product
The identification plate contains the following data：
Serial Number Example
301
20
05
23
001
Intco Code
Year
Month
Day
Product on Day
1.3 Symbols used in this manual
Warning symbol
Follow the instructions next to this symbol closely. Not paying careful attention to these instructions could result in physical injury
or damage to the wheelchair base or the environment.
Reference symbol
The symbol refers to a separate user manual. This reference will indicate the specific user manual and the section to which is being
referred.

5Q50R REV.A
2.0 Safety
2.1 Personnel qualification
Service technicians:
• Repairs may only be carried out by trained and authorized service technicians.
• During the execution of their work, they are at all ties fully responsible for the fulfilment of locally applicable safety guidelines
and standards.
• Temporary employees and persons in training may only carry out repair and replacement work under the supervision of an
authorized service technician.
2.2 Cautions and warning statements
Safety
Safety information is indicated with the warning symbol.
Follow the instructions carefully next to these warning symbols! Not paying careful attention to these instructions could result in
physical injury or damage to the wheelchair base or the environment. Where ever possible, safety information is provided in the
relevant chapter.
Temperature
• Avoid physical contact with the wheelchair base’s motors at all ties times. Motors are continuously in motion during use and can
reach high temperatures. After use, the motors will cool down slowly. Physical contact could cause burns.
If you do not use the wheelchair, ensure that it is not exposed to direct sunlight for lengthy periods of time. Certain parts of the
wheelchair, such as the seat, the back and the armrests can become hot if they have been exposed to full sunlight for too long.
This may cause burns or allergic reactions to the skin.
•Avoid using it for a long time in a low temperature environment. The low temperature environment will cause the battery capacity
to decrease and the power consumption will increase. Long-time use may result the decrease of travel mileage
Decals and instructions on the wheelchair
The signs, symbols and instructions affixed to the wheelchair comprise part of the safety facilities. They must never be covered
or removed. They must remain present and clearly legible throughout the entire lifespan of the wheelchair.
Replace or repair all illegible legible or damaged signs, symbols and instructions immediately. Please contact your supplier for
assistance.
2.3 Decals used on the wheelchair
The signs, symbols and instructions affixed to the wheelchair base comprise part of the safety facilities. They must never be covered
or removed. They must remain present and clearly legible throughout the entire lifespan of the seating system.
Replace or repair all illegible or damaged signs, symbols and instructions immediately. Please contact your supplier for assistance.

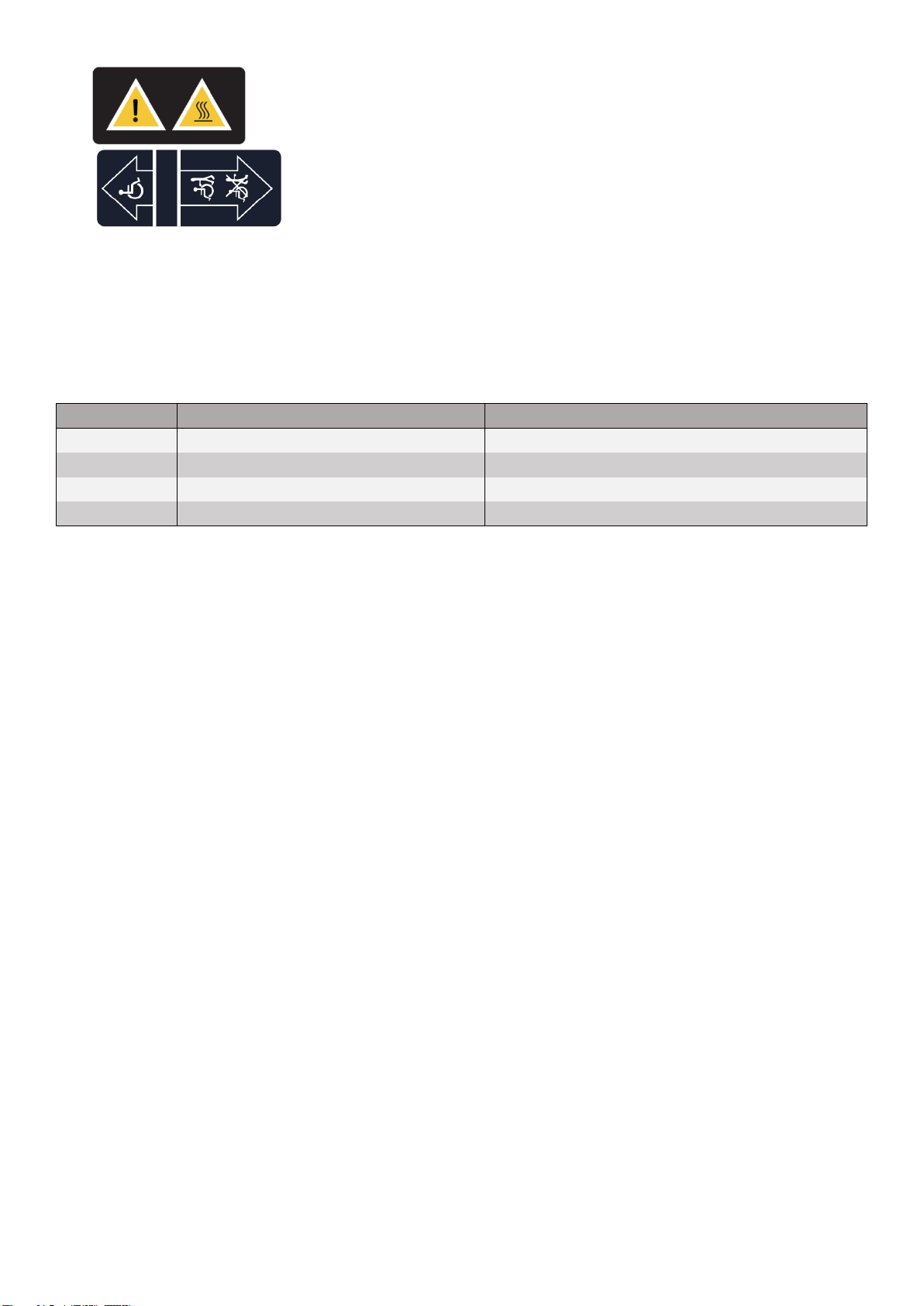

This decal indicates that you should read the manual for undertaking any operation.

6Q50R REV.A
Warning: hot surface (located on motor)
Freewheel operation label
3.0 Tools, parts and components
3.1 Tools
The tools below are needed for various mechanical settings and maintenance:
Quantity
Description
Size(mm)
1
Screwdriver, flatheaded
-
2
Ring spanner
13, 22
5
Hex Key
2.5,3,4,5,8
1
Screwdriver, crosshead
-
Use only high-quality tools for the adjustment(s) described.
Make sure that the hexagon of the spanner is attached securely to the hexagon of the fastening article. This prevents the 'rotation'
of hexagons of fastening articles and spanners that may affect proper adjustment

7Q50R REV.A
4.0 Spare parts
For spare parts please refer to separate manuals.
Please only use genuine spare parts supplied by Sunrise Medical, failure to do so may result in the invalidation of your warranty.
Service technicians:
Repairs may only be carried out by trained and authorized service technicians.
During the execution of their work they are at all times fully responsible for the fulfilment of locally applicable safety guidelines
and standards.
Temporary employees and persons in training may only carry out repair and replacement work under the supervision of an
authorized service technician.
5.0 Maintenance＆Cleaning
The wheelchair’s lifespan is dependent on it being well maintained.
For information concerning specific settings, maintenance or repair work, please contact your authorized Sunrise dealer. Always
be sure to mention the model, year of manufacture and identification number provided on the identification plate of the
wheelchair when contacting your dealer.
The wheelchair should be serviced by your authorized Sunrise dealer twice a year or, in the case of intensive use, every year.
For a list of approved authorized dealers in your area please contact Sunrise Medical Service Centre.
The contact details of your local Sunrise medical service Centre can be found on the back cover of this booklet.
National and International Website addresses are on the back cover.
5.1 Maintenance
• Loose fasteners should be re-tightened according to the installation instructions. Please refer (unless otherwise specified) to the
general table below for needed Torques.
Note: it will be necessary to use a torque wrench.
• Safety belt should be replaced at the first indication of damage and/or excessive wear.
• If a broken or loose component is found, discontinue use immediately and contact your authorized Sunrise Medical supplier for
replacement.
• Check all Velcro fastening straps for correct adhesion when pressed together.
• Ensure that any contamination, such as fluff hair etc is removed from the Velcro straps. Such contamination may affect adhesion

8Q50R REV.A
• If you are in any doubt about the performance requirements of your wheelchair contact your Sunrise Medical authorized dealer.
• After performing any maintenance or repairs on the wheelchair you must make sure that it is functioning correctly before it is
used.
• All fasteners must be replaced like for like using the correct length, tensile strength and materials.
• When replacing self-locking nuts, or nuts/studs secured with a thread locking solution, ensure that a suitable thread locking
solution is reapplied to the fastener.
Daily checks
Perform the daily check routine before driving:
Checking batteries
• Before using your vehicle for the first time, please charge your batteries for a period of 6 hours.
• Are the batteries sufficiently charged? The green lights on the battery indicator must be on.
Checking remote controller
• With the control system switched off check that the joystick is not bent or damaged and that it returns to the centre when you
push and release it.
Checking free wheel lever
• Ensure that the free wheel lever has been set to ‘drive’. (Chapter 3.0 of the owner’s manual).
Checking seating
• Ensure that all the cushions are in place.
• Make sure that the backrest is correctly fitted and adjusted.
• Visually inspect the wheelchair to make sure the leg rests, armrests etc. are correctly positioned and attached to the wheelchair
and all fasteners are sufficiently tightened.
Checking clothing on potential entrapment
• When operating the wheelchair, ensure that your clothing does not hamper the wheelchair (i.e. too long). Before use, always
check if your clothing or accessories do not come into contact with the wheels or and other moving and/or rotating parts in which
they could become entangled.
Checking weather conditions
• In winter, batteries have a reduced capacity. During a period of light frost, the capacity is roughly 75% of the normal capacity. At
temperatures below -5˚C this will be roughly 50%. This will reduce your range of action.
Weekly checks
Perform the weekly check routine before driving as described below.
Checking Parking brake:
This test should be carried out on a level floor with at least one meter clearance all around the chair.
• Switch on the control system.
• Check that the battery gauge remains on, or flashes slowly, after one second.
• Push the joystick slowly forwards until you hear the parking brakes operate.
• The chair may start to move.
• Immediately release the joystick. You must be able to hear each parking brake operate, (click), within a few seconds.

9Q50R REV.A
• Repeat the test a further 3 times, pushing the joystick slowly backwards, left and right.
Checking connectors & cables:
• Make sure that all connectors are securely mated.
• Check the condition of all cables and connectors for damage.
Checking controller:
• Check the thin rubber gaiter or boot around the base of the joystick shaft for damage or splitting. Check visually only, do not
handle the gaiter.
• Make sure that all components of the control system are securely mounted. Do not over-tighten any securing screws.
• If you are in any doubt about the performance requirements of your wheelchair contact your Sunrise Medical authorized dealer.
• After performing any maintenance or repairs on the wheelchair you must make sure that it is functioning correctly before it is
used.
• A complete inspection, safety check and service should be made by a Sunrise Medical authorized dealer at least once every two
years.
• All fasteners must be replaced like for like using the correct length, tensile strength and materials.
• When replacing self-locking nuts, or nuts/studs secured with a thread locking solution, ensure that a suitable thread locking
solution is reapplied to the fastener.
• Check all Velcro fastening straps for correct adhesion when pressed together.
• Ensure that any contamination, such as fluff hair , etc is removed from the Velcro straps. Such contamination may affect adhesion.
Monthly checks
Perform the monthly check routine before driving as described below.
• All fasteners should be checked monthly for wear, such as loose bolts or broken components.
• Check all straps monthly for fraying, ripped seams or other indications of excessive wear damage. Discontinue use if damage is
found.
5.2 Tyre maintenance
5.2.1 Tyre wear
When inspecting the tyres for signs of wear, look for significant scuff marks, cuts and a diminished tyre tread. Tyres will need to be
changed when the tread cannot be seen over the complete surface of the tyre.
Maintenance ＆Inspection Schedule
Daily
Weekly
Monthly
Annually
Daily check routine as described in chapter 5.0 of the service
manual
*
Weekly check routine as described in chapter 5.0 of the service
manual
*
Clean wheelchair upholstery
*
Complete inspection, safety check and service should be made
by a Sunrise Medical authorized dealer.
*
5.3 Cleaning and disinfection
The wheelchair should be wiped over once per week with a slightly damp, not wet, cloth and any fluff or dust that has accumulated
around the motors should be blown or dusted away.

10 Q50R REV.A
Make sure that you dry all parts of your wheelchair if it becomes wet or damp after cleaning or if it is used in a wet or damp
atmosphere.
It is important that should the wheelchair be used by more than one person it is cleaned thoroughly to ensure there is no cross
infection.
Hygiene measures when being re-used:
Prior to the wheelchair being re-used, it must be carefully prepared. All surfaces which come into contact with the user must be
treated with a disinfection spray.
To do this, you must use a suitable disinfectant for rapid alcohol-based disinfection of medical products and medical devices.
Please take into account the manufacturer’s instructions for the disinfectant you are using.
• Do not use solvents, bleaches, abrasives, synthetic detergents, wax polishes or aerosols.
• Disinfectants may be used in dilution as specified by their manufacturer.
• Ensure surfaces are rinsed with clean water and dried thoroughly.
• Always read the label on any commercial or domestic cleaning substances.
• Always follow the instructions carefully.
6.0 Service Instructions
6.1 Assembly, replacement and adjustment instructions
Assembly, replacement and adjustment instructions

11 Q50R REV.A
The paragraphs 6.2 (Q50R) cover illustrated assembly and replacement instructions.
Every separate visual instruction is prefaced with:
• Preparation remarks
• Instructions
• Tools used
• Notice (if applicable): extra notes covering information you need when executing the specific task)

12 Q50R REV.A
6.2 Assembling and replacement instructions - Q50R
Removal of castor wheel from castor fork
Fig. 6.2.1
1. Remove bolt (A) using 13mm spanner and 5mm hex key
Tightening torque for (A) bolt is 10 Nm.
Fig. 6.2.2
2. Wheel assembly (B) will fall from the castor fork when bolt is
removed
Preparation Tools used
Note! Switch off the wheelchair via remote control
Instructions
Note! Suitable work area required!
• Follow the illustrated instruction for removing the castor
wheel from the castor fork.
• Rebuild the wheelchair in reverse order once completed.

13 Q50R REV.A
Removal of castor fork from castor arm
Fig. 6.2.3
1. Using the screwdriver, remove the plastic coloured cap from the
castor arm
2. Unscrew and remove nut (B) using the 22mm spanner from
inside the castor assembly
Tightening torque for (B) bolt is 10Nm - 15Nm.
Fig. 6.2.4
3. Remove the (C)castor fork from the castor arm
Preparation Tools used
Note! Switch off the wheelchair via remote control
Instructions
Note! Suitable work area required!
• Follow the illustrated instruction for removing the castor
fork from the front or rear castor arm.
• Rebuild the wheelchair in reverse order once completed.

14 Q50R REV.A
Removal of front support plate from wheelchair base
Fig. 6.2.5
1. Remove bolts (A) using 5mm hex key
Tightening torque for (A) bolt is 20 Nm.
Fig. 6.2.6
2. wheel casing (B) will fall from the front support plate when bolt is
removed
Fig. 6.2.7
3. Remove bolt (C) using 5mm hex key
Preparation Tools used
Note! Switch off the wheelchair via remote control
Instructions
Note! Suitable work area required!
• Follow the illustrated instruction for removing the front support plate
from the wheelchair base.
• Rebuild the wheelchair in reverse order once completed.

15 Q50R REV.A

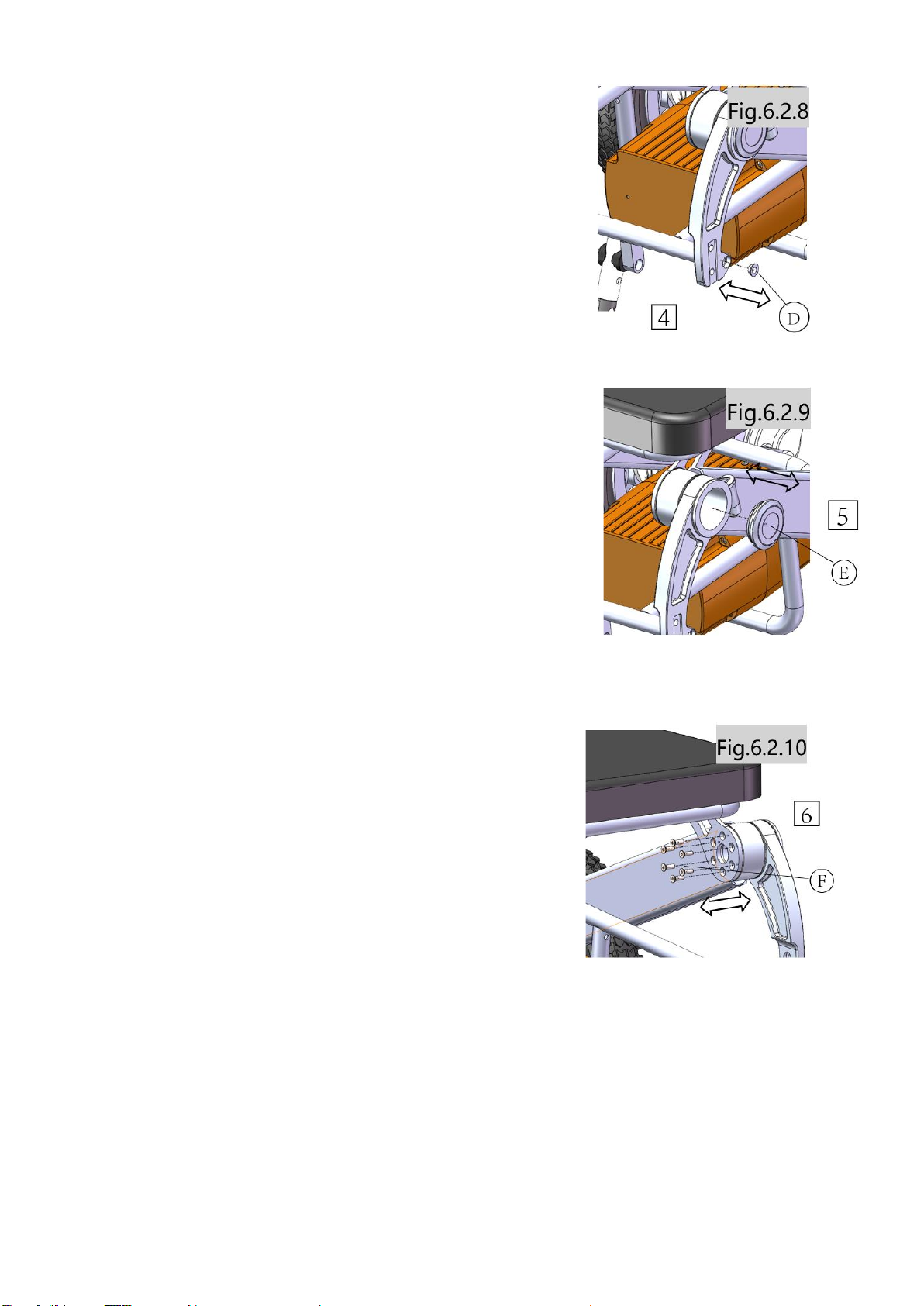

Fig. 6.2.8
1. Using the screwdriver, remove the (D)Self-lubricating bearing from the
front support plate
Fig. 6.2.9
2. Using the screwdriver, remove the (E)plastic cap from the
front support plate
Fig. 6.2.10
3. Remove bolts (F) using 3mm hex key

16 Q50R REV.A

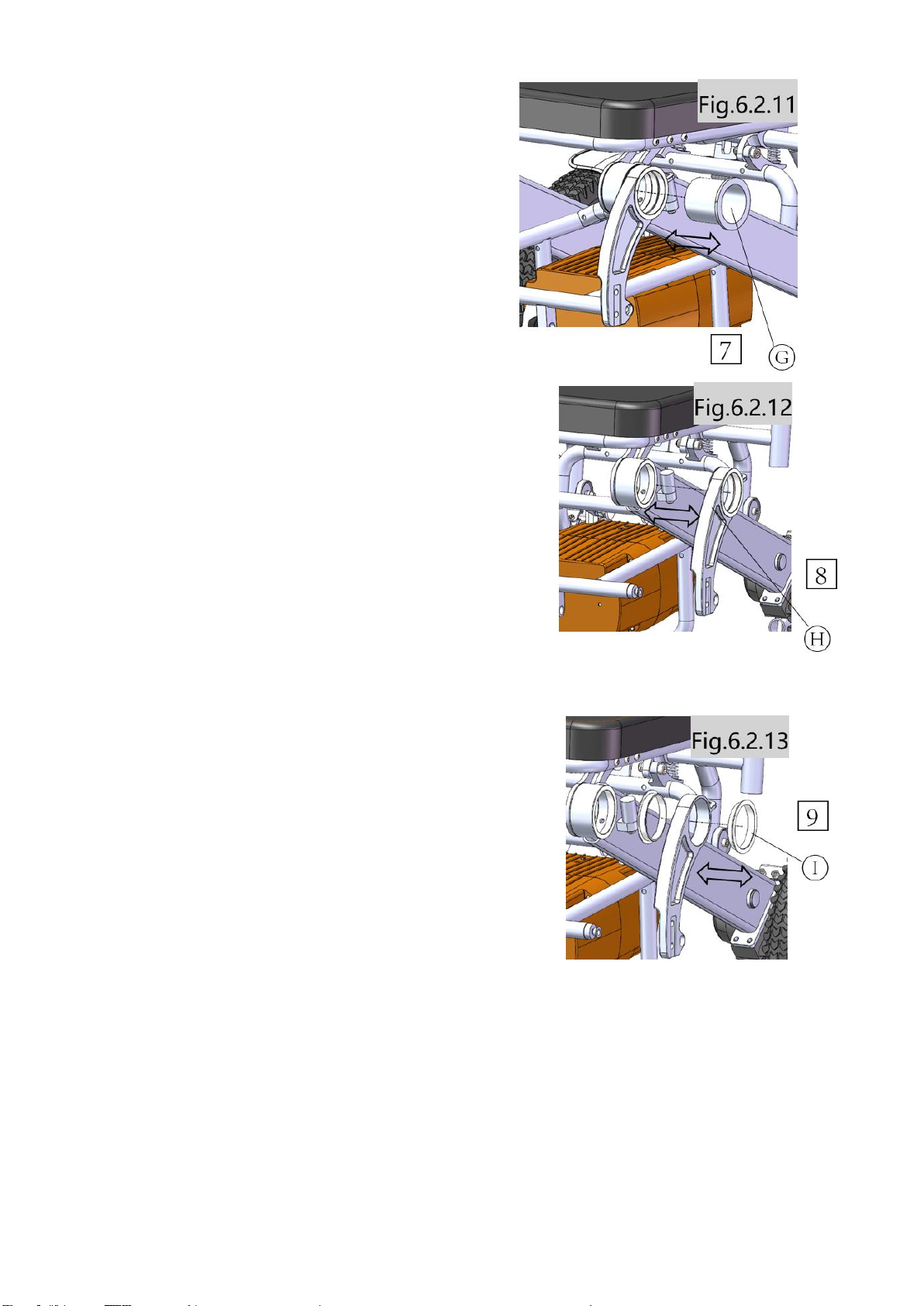

Fig. 6.2.11
1. The (G)Shaft sleeve can be taken out when bolts are removed
Fig. 6.2.12
2. The front support plate(H) will fall when Shaft sleeve is removed
Fig. 6.2.13
3. Remove the (I)Shaft ring from the front support

17 Q50R REV.A
Removal of drive wheel from wheelchair base
Fig. 6.2.14
1. Remove the 3 (A) screws from the centre of the drive wheel
Tightening torque for (A) bolt is 30Nm.
Fig. 6.2.15
2. Remove drive wheel (B) from base
Preparation Tools used
Note! Switch off the wheelchair via remote control
Instructions
Note! Suitable work area required!
• Follow the illustrated instruction for removing the drive
wheel from the wheelchair base
• Rebuild the wheelchair in reverse order once completed.

18 Q50R REV.A
Fig. 6.2.16
1. Remove the 6 (C) screws from the centre of the drive wheel
Tightening torque for (C) bolt is 10 Nm.
Fig. 6.2.17
2. Remove motor plate (D) from motor

19 Q50R REV.A
Removal of motor and mudguard
Before following these instructions you should, unclip cables from
the power module and disconnect left-hand or right-hand motors
accordingly from the power module.
Fig. 6.2.18
1. Remove screws (A) from the top of the motor
Fig. 6.2.19
Remove mudguard (B) from motor
Fig. 6.2.20
Remove motor (C) from base
Preparation Tools used
Note! Switch off the wheelchair via remote control
Instructions
Note! Suitable work area required!
• Follow the illustrated instruction for removing the motor
and motor mudguard from the base.
• Rebuild the wheelchair in reverse order once completed.

20 Q50R REV.A
Removal of brake lever from motors
Fig. 6.2.21
1. Unscrew and remove (A) from the brake lever using 2.5mm hex key
Fig. 6.2.22
2. Remove brake lever cover (B)
Preparation Tools used
Note! Switch off the wheelchair via remote control
Instructions
Note! Suitable work area required!
• Follow the illustrated instruction for removing the brake
lever from the motor.
• Rebuild the wheelchair in reverse order once completed.
