SunSumSolar SPM45-P User manual

SunSumSolar
旭和光電股份有限公司
旭和光電股份有限公司旭和光電股份有限公司
旭和光電股份有限公司
Solar Generator System
Add: 9F, 568, Jungjeng Road, Sindi an C i t y Taipei Coun ty, Tai an
Contact Person: Jack
E-mail:[e-mail]
Tel: [phone], Fax: [phone]
50W solar home system
The solar home system is specialized to design for the village domestic
expenses of the without electric region. It is a set of solar power the equipments,
having to sweep free from pollution, safety credibility, the service life is long and
circulates the expenses low, do not need maintenance of advantage and so on .
1、
、、

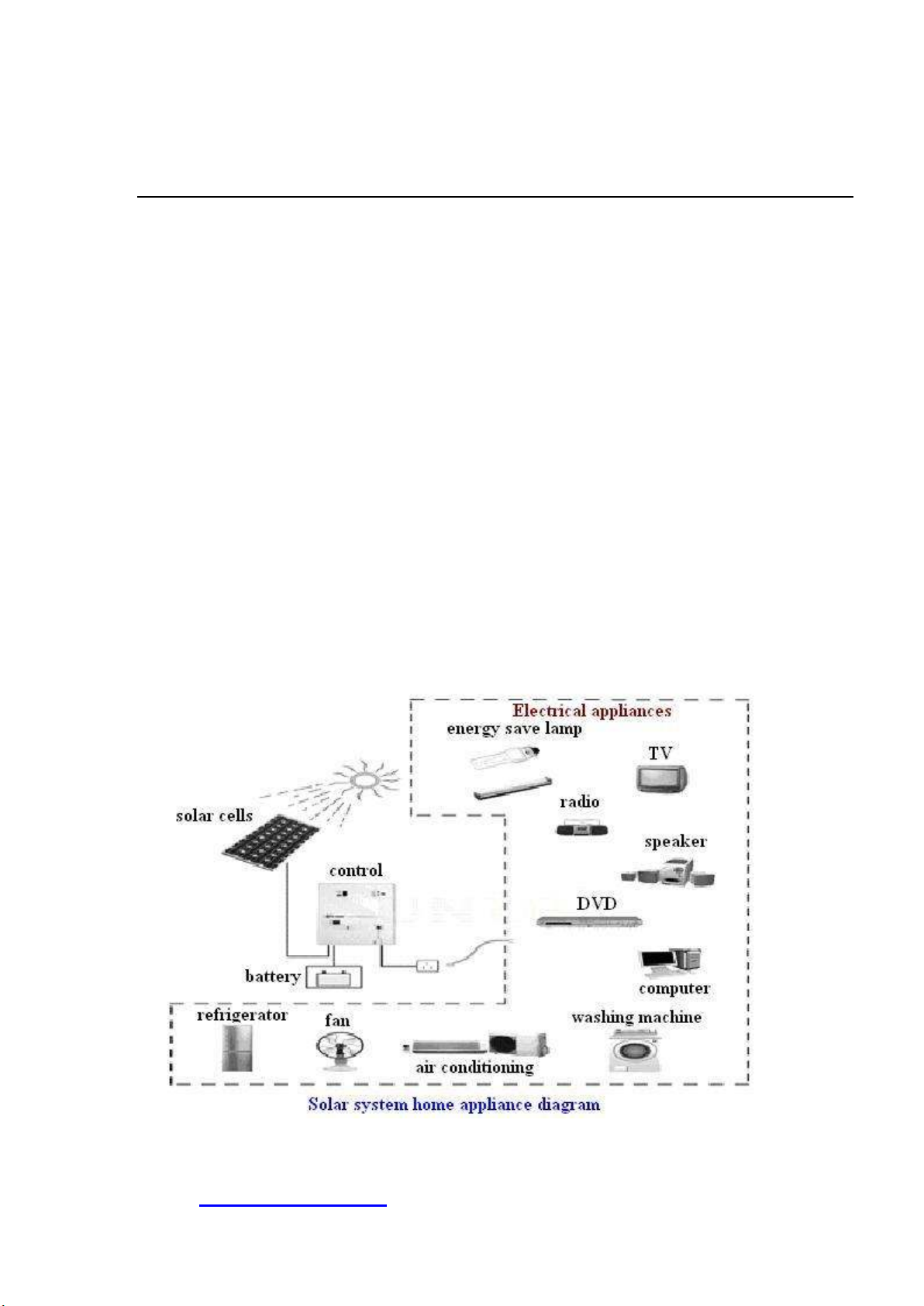

、Solar home system operating principle
The solar home system include: solar panel, solar panel bracket, battery, solar charge
controller, inverter and so on.

SunSumSolar
旭和光電股份有限公司
旭和光電股份有限公司旭和光電股份有限公司
旭和光電股份有限公司
Solar Generator System
Add: 9F, 5 68, Jungjeng Road, Sindi an C i t y Taipei Coun ty, Tai an
Contact Person: Jack
E-mail:[e-mail]
Tel: [phone], Fax: [phone]
tore light can convert into the electric power, through power box (refresh the control and
go against to change the device) electric power in the storage battery through the solar cell
module, pass the power box toward the load power supply.
Key Features ：
：：
：
1. ystem structural is very simple, easy to operate
2. Very suitable for living in scattered villages.
3. A set of solar power the equipments, having to sweep free from pollution, safety credibility,
the service life is long and circulates the expenses low, do not need maintenance of
advantage and so on .
2、
、、
、The design of solar home system :
1) Solar panel specification：
：：
：50w/12v
2) Solar panel quantity：
：：
：1pcs
3) The kin of battery：
：：
：Gel battery (free maintenance)
4) Battery specification：
：：
：12V/75Ah
5) Battery quantity：
：：
：1pcs
6) Continuous work with no sun：
：：
：3 ays
7) The controller：
：：
：10A/12V
8) Controller quantity：
：：
：1pcs

SunSumSolar
旭和光電股份有限公司
旭和光電股份有限公司旭和光電股份有限公司
旭和光電股份有限公司
Solar Generator System
Add: 9F, 5 68, Jungjeng Road, Sindi an C i t y Taipei Coun ty, Tai an
Contact Person: Jack
E-mail:[e-mail]
Tel: [phone], Fax: [phone]
Po er box : include the controller and battery.
\

SunSumSolar
旭和光電股份有限公司
旭和光電股份有限公司旭和光電股份有限公司
旭和光電股份有限公司
Solar Generator System
Add: 9F, 5 68, Jungjeng Road, Sindi an C i t y Taipei Coun ty, Tai an
Contact Person: Jack
E-mail:[e-mail]
Tel: [phone], Fax: [phone]
3、
、、
、The component of solar system
1. olar panel

SunSumSolar
旭和光電股份有限公司
旭和光電股份有限公司旭和光電股份有限公司
旭和光電股份有限公司
Solar Generator System
Add: 9F, 5 68, Jungjeng Road, Sindi an C i t y Taipei Coun ty, Tai an
Contact Person: Jack
E-mail:[e-mail]
Tel: [phone], Fax: [phone]

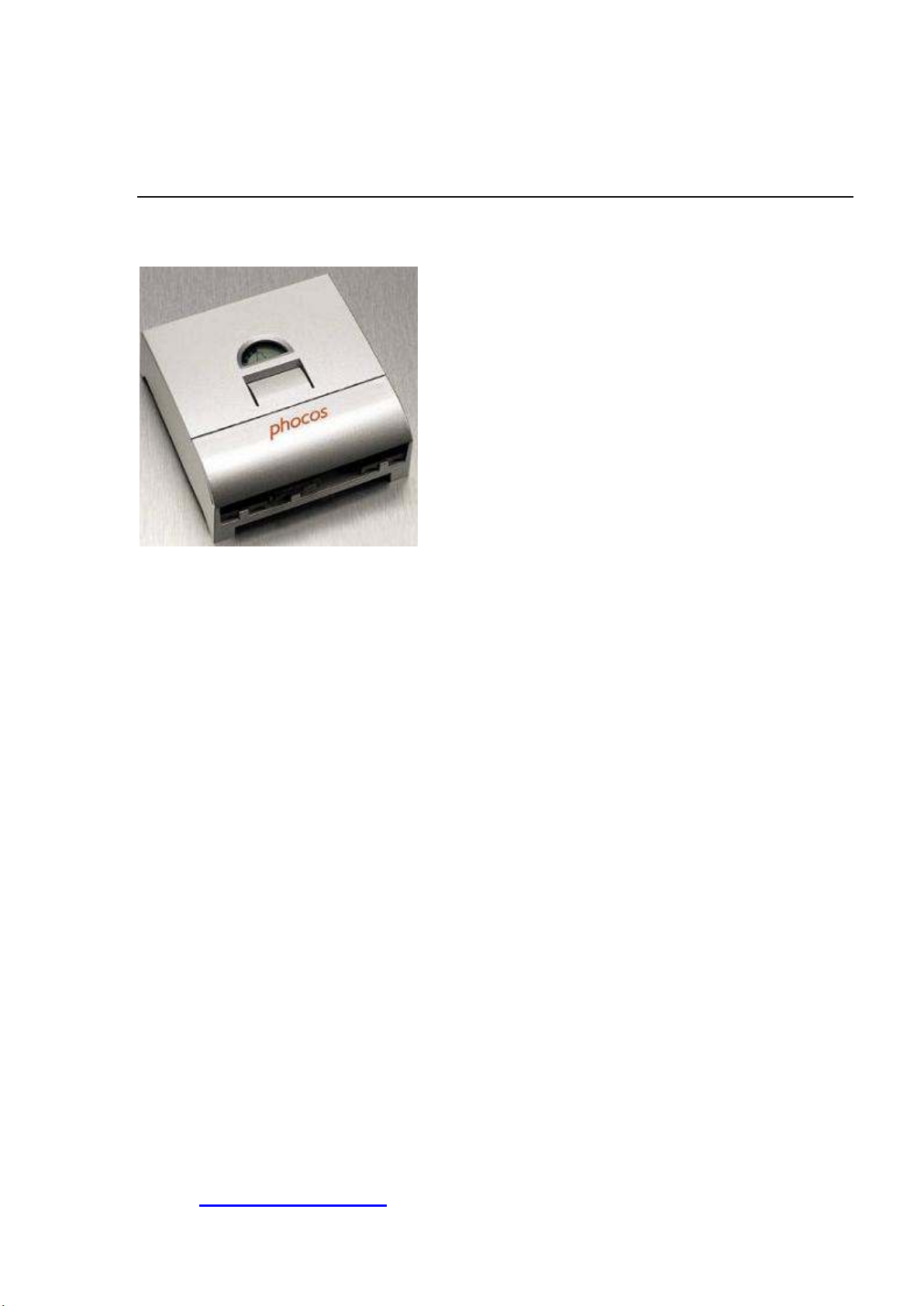

2. Controller
 Battery tate-of-Charge display LCD
 Charge and discharge status display
 Acoustic load disconnect pre-warning
 Acoustic load disconnect pre-warning
 Choose between 5 load disconnect algorithms
 boost/absorption/float PWM-regulation (series type)
 Integrated temperature compensation
 Integrated temperature compensation
 Full solid-state protection

SunSumSolar
旭和光電股份有限公司
旭和光電股份有限公司旭和光電股份有限公司
旭和光電股份有限公司
Solar Generator System
Add: 9F, 5 68, Jungjeng Road, Sindi an C i t y Taipei Coun ty, Tai an
Contact Person: Jack
E-mail:[e-mail]
Tel: [phone], Fax: [phone]
The CX series is a sophisticated solar charge controller family with exceptional features for its
price range. Beside a perfect PWM regulation with integrated temperature compensation the
controllers provide extraordinary display, programming and safety functions.
The battery state of charge is clearly displayed with a bar chart, as well as energy flows from
and to the battery and the load status (e.g. overload, load short circuit). The deep discharge
protection function can be set up to three different modes: voltage controlled, OC controlled
or adaptive (fuzzy logic).
Acoustic warnings are built in, and also a programmable nightlight function.
As an accessory we can provide an Excess Energy Management output to control special
Phocos appliances like the F solar refrigerators/coolers.
The compact case design is prepared for DIN rail mounting (mounting device available as an
accessory).
TYPE CX10 CX20 CX40
Charge current max.
10A 20A 40A
Load current max.
10A 20A 40A
System voltage
12/24V 12/24V 12/24V
Self po er consumption
<4mA <4mA <4mA
Dimensions( *h*d)
<4mA <4mA <4mA
Type of protection
IP22 IP22 IP22

SunSumSolar
旭和光電股份有限公司
旭和光電股份有限公司旭和光電股份有限公司
旭和光電股份有限公司
Solar Generator System
Add: 9F, 5 68, Jungjeng Road, Sindi an C i t y Taipei Coun ty, Tai an
Contact Person: Jack
E-mail:[e-mail]
Tel: [phone], Fax: [phone]
3. Battery
1. SIZES:
Dimension mm
Length 261mm ± 2
Width 168mm ± 2
Height 203mm ± 2
Total Height 220mm ± 2
2. CHARATERISTIC:
Properties Data
Voltage 12 V
Capacity 75AH
Weight ca.22.3 Kg
1 month
98 % ↑
3 month
90 % ↑
helf Life at
25℃
6 month
80 % ↑
rate
charge
Current
cutoff
Voltage
discharge
time
capacity
20 HR
3.75A 10.50 V 21hrs 78AH
10 HR
7.5A 10.50V 10hrs 75AH
5 HR
12.75A 10.50 V 5hrs 63AH
30 min
75A 9.60V 35mins 43AH
15 min
150A 9.60V 16mins 40AH
Rated
Capacity
at 20℃
7 min
225A 9.60V 7mins 26AH
internal
resistance ca.4.60mΩ terminal
Discharge -40℃(-40℉) ~ 65℃ (149℉)
Charge -40℃(-40℉) ~45 (113℉)
Use
temperature
tandby -15℃(5℉) ~ 40℃ (104℉)
Maximum
discharge current 1500A Maximum short current 2000A
tandby use 13.5~13.8V (-20mV/℃)
Charging
voltage Cyclic use
14.4~16.0V (-30mV/℃)
Recommend* 15.6~16.0V
Maximum charging current 150A

SunSumSolar
旭和光電股份有限公司
旭和光電股份有限公司旭和光電股份有限公司
旭和光電股份有限公司
Solar Generator System
Add: 9F, 5 68, Jungjeng Road, Sindi an C i t y Taipei Coun ty, Tai an
Contact Person: Jack
E-mail:[e-mail]
Tel: [phone], Fax: [phone]

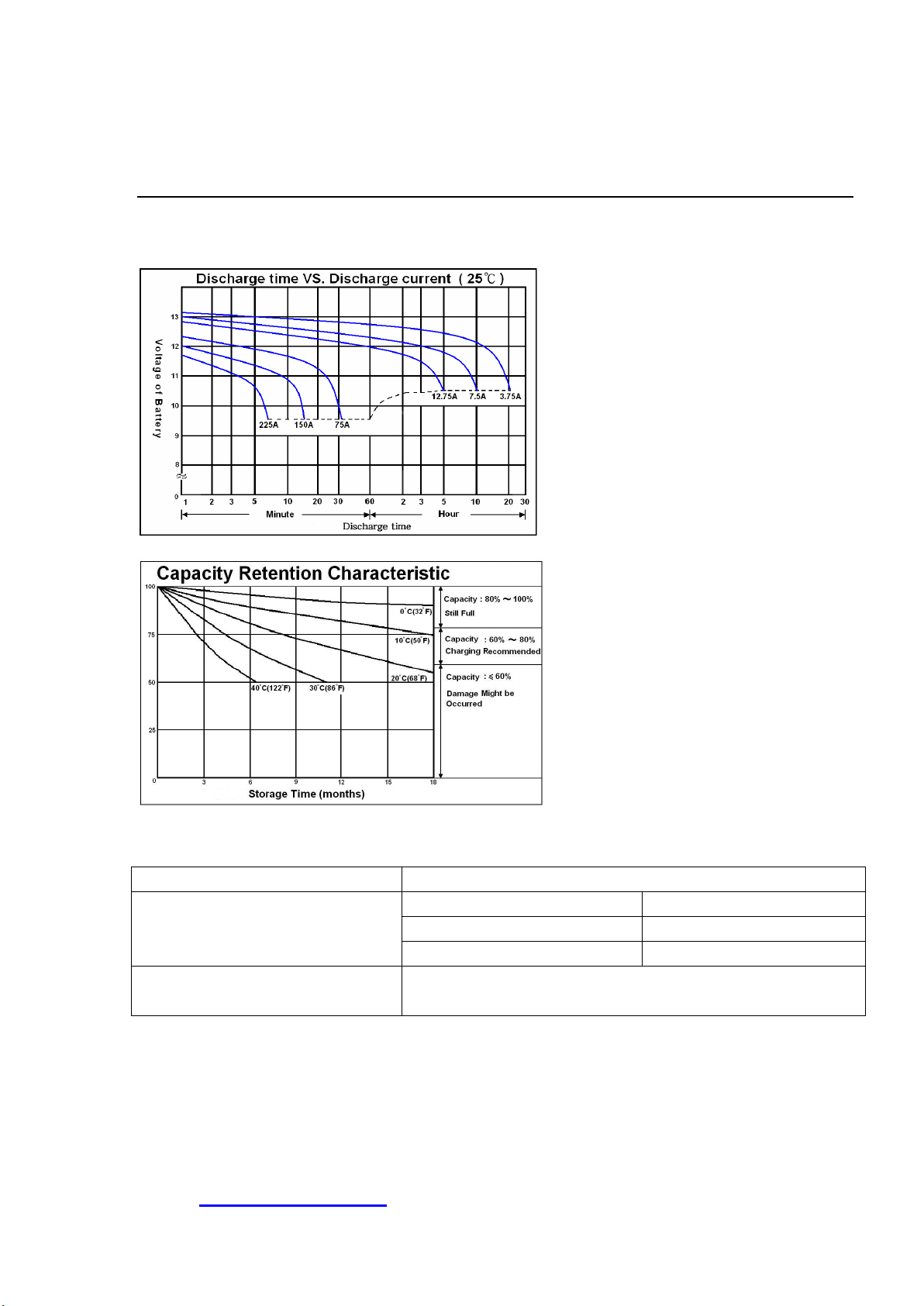

3. DISCHARGE CURVES：
：：
：
LIFE:
type life
depth of discharge: 100% > 500 cycles
depth of discharge: 50% > 1200 cycles
cycle life
depth of discharge: 30% > 2000 cycles
UP (20℃) 3 ~ 5 Years

SunSumSolar
旭和光電股份有限公司
旭和光電股份有限公司旭和光電股份有限公司
旭和光電股份有限公司
Solar Generator System
Add: 9F, 5 68, Jungjeng Road, Sindi an C i t y Taipei Coun ty, Tai an
Contact Person: Jack
E-mail:[e-mail]
Tel: [phone], Fax: [phone]

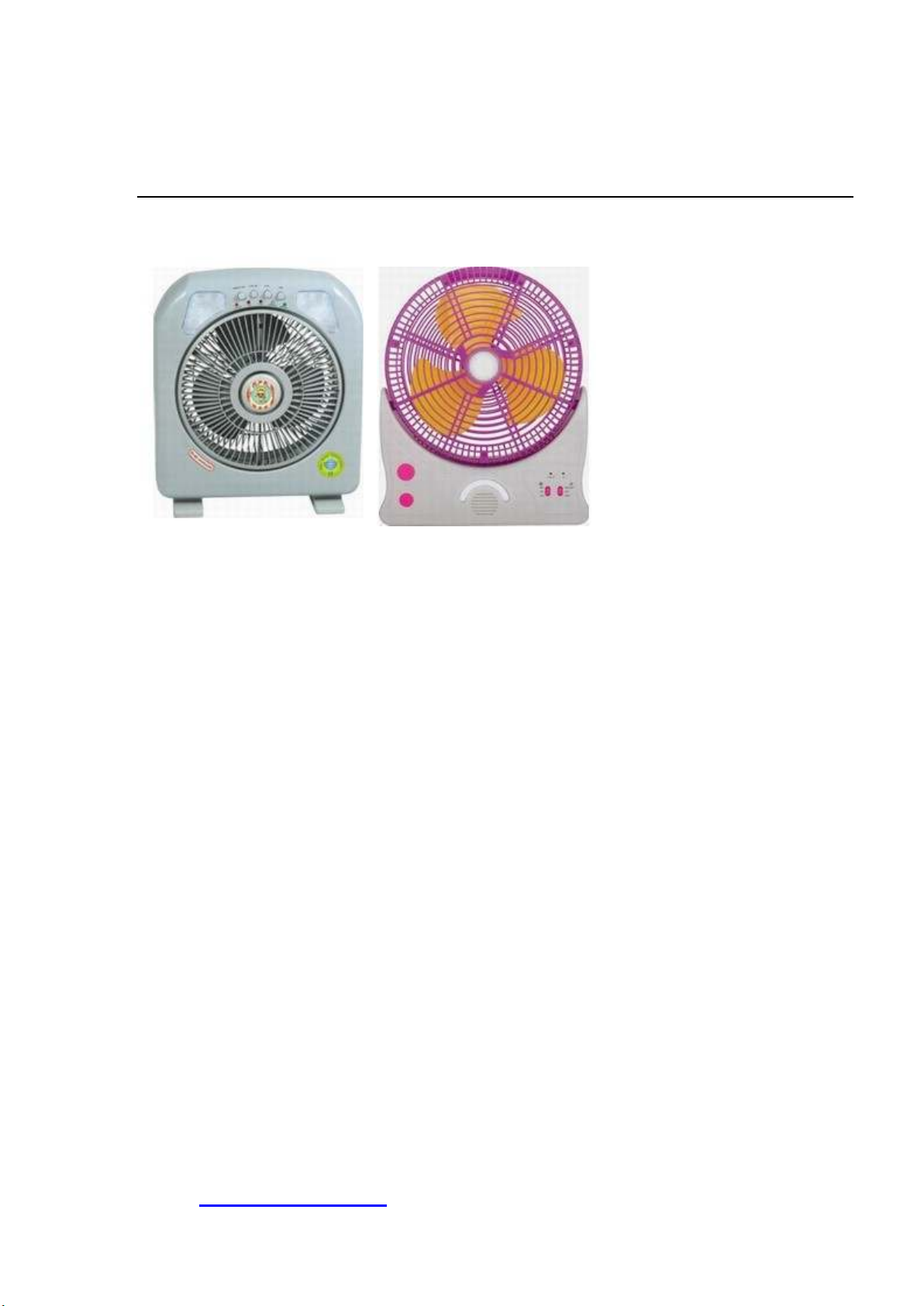

4. Fan
1. If need perfect wind orientation, please hand adjust orientation by adjusting the wind cover,
to be sure the fan is closed before adjustment. If it couldn’t be turned during adjustment, it
should be on the biggest point of orientation.
2. When you need to deposit the fan for long time, please charge up the electricity up, please be
sure too keep all the switch off.
II．How to use the emergency light
There’s a slide switch with light ico on the right side the fan, slide the button to upside
“LIGHT”, it’s lighting, slide the button to down side “ POT LIGHT” for night working
purpose, slide the button to the middle side “OFF” to close the light.
III．Technical parameter
1. Fan working voltage: DC12V
2. Light working voltage: DC3.3V
3. Charging time: 10-15H
4. Biggest output power: 16W
IV. The maintenance of the batteries
1. When the fan should be deposited for long time, please turn off all the switches, and
charge it for 10-15hours, and pull out the power cord before deposit.
2. During deposit, please charge up the fan for every two months.

SunSumSolar
旭和光電股份有限公司
旭和光電股份有限公司旭和光電股份有限公司
旭和光電股份有限公司
Solar Generator System
Add: 9F, 5 68, Jungjeng Road, Sindi an C i t y Taipei Coun ty, Tai an
Contact Person: Jack
E-mail:[e-mail]
Tel: [phone], Fax: [phone]
V. Caution
Please don’t assemble or restructure the circuit board configuration, and strictly prohibit to put
the fan in dank place or beside the causticity substance, or it probably will cause an electric
shock, meanwhile, it’ break the batteries, charger and short the batteries’ life.

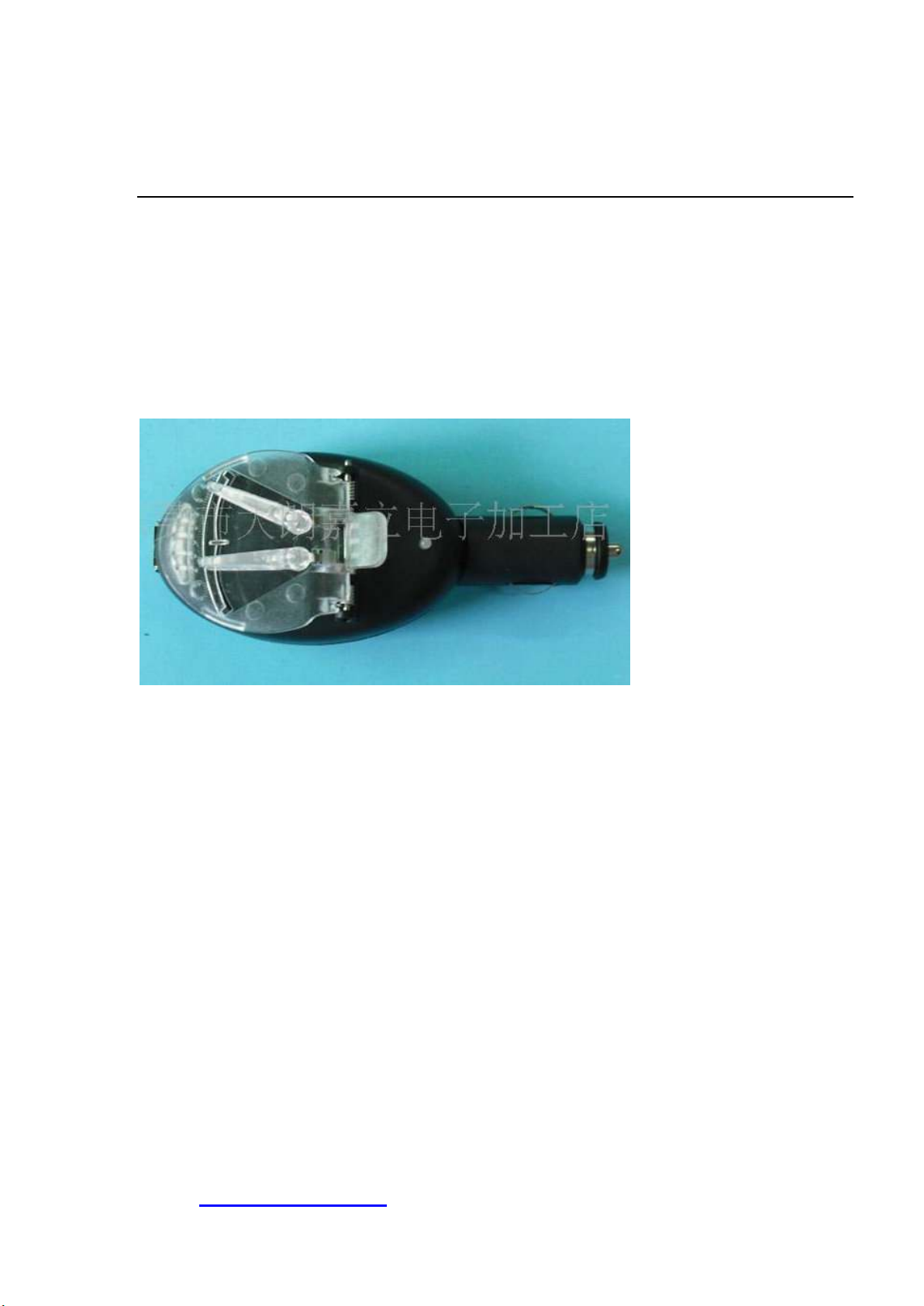

5. Car charge

SunSumSolar
旭和光電股份有限公司
旭和光電股份有限公司旭和光電股份有限公司
旭和光電股份有限公司
Solar Generator System
Add: 9F, 5 68, Jungjeng Road, Sindi an C i t y Taipei Coun ty, Tai an
Contact Person: Jack
E-mail:[e-mail]
Tel: [phone], Fax: [phone]

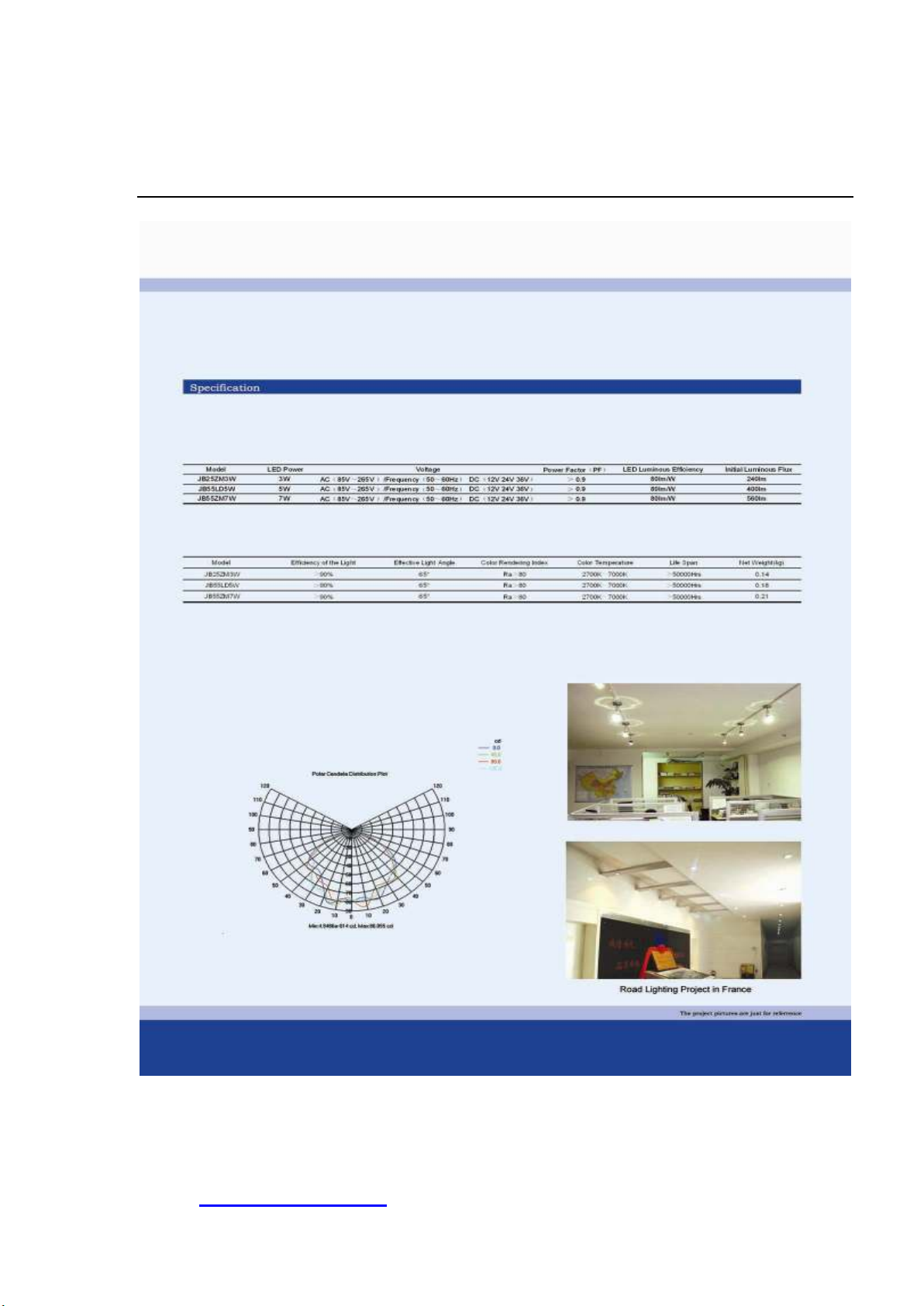

6. Led
