SunVote M52Plus-2.4G User manual

M52Plus-2.4G
Keypad User Manual
2016/04/15
Easy Use Quick Innovative

Content
1- Appearance Description
2-Preparation Work
3-System Connection
4-System Settings: Keypad Match, Set ID, Management
5- Voting Functions: Sign in, Vote, Choice, Sequence, Numeric, Rush Answer
6-FAQ & Notes

1- Appearance Description
Model M52Plus
Power On Press any key to power on
Power Off Long press 【C】till “------” appears on the screen, then
release your hand to turn it off
Sign In Press 【OK】to sign in, LCD will show “OK ” after successful
registration
Vote Press【1】【2】【3】for yes/no/abstain, and LCD will
show“OK”if successfully submit.
Judge Press【1】/【2】for yes/no (true/false), and LCD will
show“OK”if successfully submit.
Single Choice Press alphanumeric keys to submit your answer directly
Multiple Choice
Sequence
Press alphanumeric keys to select your answer and press 【OK
】
to submit
Rush Answer Press 【OK】for the fastest response
LCD Display
Cancel
Minus/Channel
Decimal Point
Submit
Signal Strength
Alphanumeric
Keys

2-Preparation Work

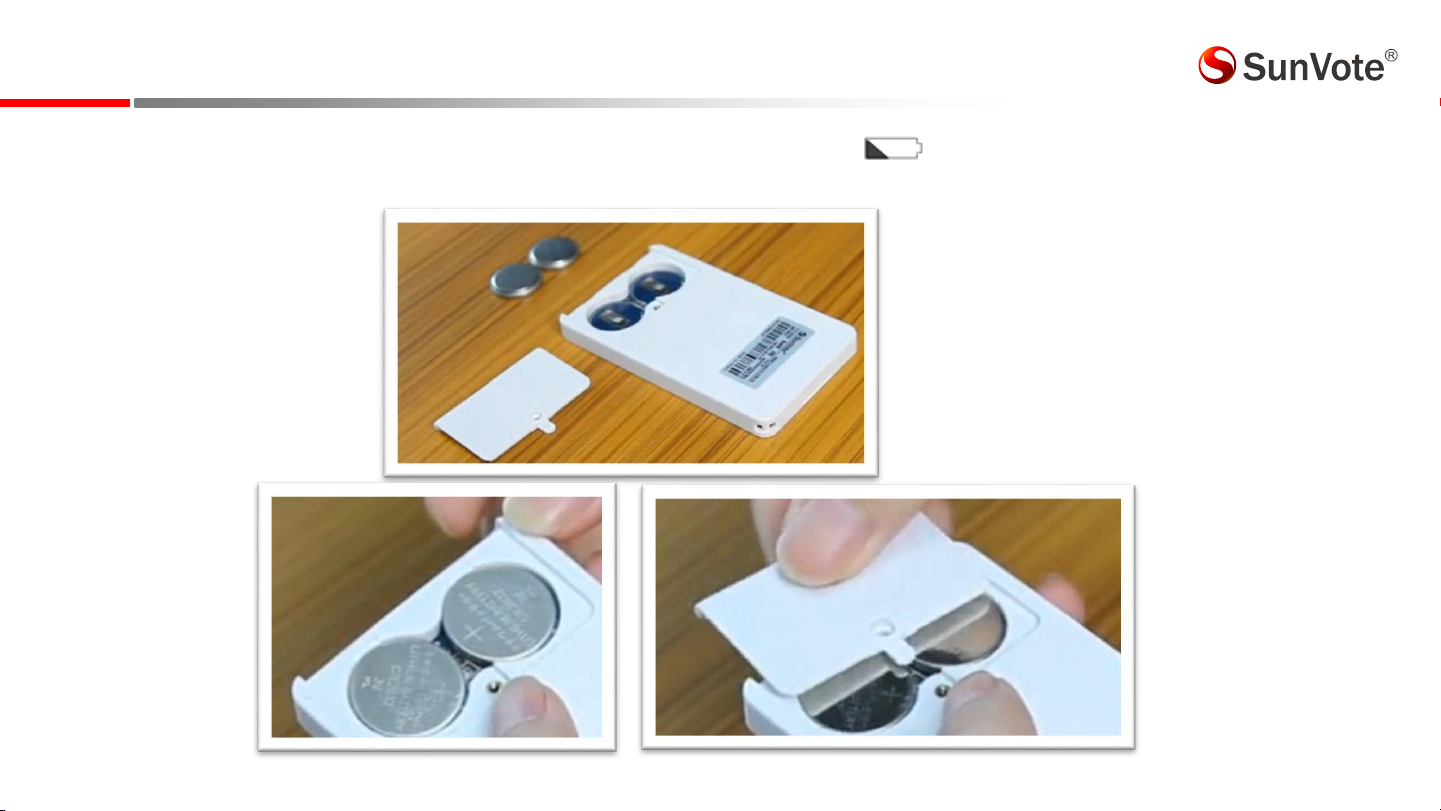

Please check the keypad batteries before use. If icon shows on LCD, it indicates
the battery is low. Please change new CR2032 batteries.

Class 5, Grade I
English Test
3-System Connection
1-Install
software
2-Connect base
station
4-Power on
keypads for
testing
3- Set up the
projector &
screen
No network connection is required in the
conference hall;
The projector and screen are prepared by
users.

4.1.1-System Settings ：Keypad Match-Match Mode
【Why to Match】Keypad match is to create communication between keypads and base station, and make sure your system is
isolated from other similar systems. Match mode is set by default from factory.
【How to Match】Please run SunVote ARS Tool Kit，go to Keypad Match and click “Start” after the base is connected.
Press 【.】and 【-】at the
same time for 3 seconds
Keypad shows“-Channel-”and
“OK”, the buzzer beeps 3 times
shortly, to indicate successful
match
If failed, keypad will return to the
last matched channel.
For end-user, the keypads and
base station are matched before
delivery.
List the information of matched keypads

4.1.2-System Settings ：Keypad Match-Free Mode
【Free Mode】Keypad is able to communicate with any base station freely by inputting the appropriate channel of the base.
【How to Set】Free mode is controlled by base station. However the base is set as match mode from factory, we may change it
to free mode in SunVote ARS Tool Kit as shown on the bottom left.
When the free mode base is connected,
follow the steps as below :
Long press 【-】for 3 seconds, and input
the correct channel when “CH” appears on
the screen , press OK to connect.
Keypad shows“Channel”and “OK”, the
buzzer beeps 3 times shortly, to indicate
successful match
If failed, keypad will return to the last
matched channel.
For end-user, the keypads and base station
are matched before delivery.

4.2- System Settings: Set Keypad ID
【Why to Set ID】Keypad ID is convenient for device management, test and troubleshooting. ID should be unique.
【How to Set ID 】Run SunVote ARS Tool Kit ，go to Keypad and click Start Setting. Now press and hold 【OK】button on keypad, and
release your hand after a new ID showing on keypad and toolkit. New ID in ARS Tool kit will add 1 automatically, so please press another
keypad to set its ID in ascending order.
For end-user, ID is set before delivery.

4.3-System Settings: Management
1. Modification Mode：Use software to allow or not allow to modify the answer. Press 【C】
to modify after submitting under modifiable mode. Press the appropriate functional buttons to
resubmit directly for single choice/judge and vote;
2. Confidential Mode：Use software to enable or disable the confidential mode . Once enabled,
LCD will only show “OK” without the exact voting value (i.e.. A/B/C) for confidence.
3. Submitting Mode：Use software to allow or not allow to submit less than the selectable
options. E.g.: if the answer of a multiple choice is ABC, you may submit AC if it’s allowed;
otherwise, only the answer with 3 options like BCD is acceptable.
4. Identification Mode: Each keypad has a unique and inalterable 12-digit serial number. Set it in
software or SunVote ARS Tool Kit to identify keypad by SN/ID. If set as SN mode, the keypad SN
will show in software when polling.

5.1- Voting functions：Sign in
When start Sign in, press 【OK】to sign in according to the indication on keypad and “OK” will be displayed
after successfully submitting.
请按OK键签到 请按OK键签到

5.2- Voting functions：User-ID
When start Sign in, input numbers according to the indication on keypad and press 【OK】to sign in. “OK” will be
displayed after successfully submitting. Max support 16 numeric characters;
User-ID is a group of specific numbers to bond the randomly distributed keypad with the user, such as student ID or Staff ID.
请按OK键签到 请按OK键签到

5.3- Voting functions：Back-Stage Signin
Start Signin by software, then input numbers while keypad shows “CHEC ”and press 【OK】to sign in. LCD says “OK” after
successfully submitting and goes to response interface. If input a wrong code, keypad will say “Err”, and now input a new code.
Max support 16 numbers for ID mode and 12 numbers for SN mode;
Back-Stage Signin means “Signin” mode is no need to close during polling, and latecomer may join the response and bond the
randomly distributed keypad with him/or her by inputting a group of specific numbers , such as student ID or Staff ID.
请按OK键签到 请按OK键签到

5.4- Voting functions: Single Choice
When start response, press alphanumeric keys to submit according to the indication on keypad, and “OK” will
be displayed after successfully submitting.
Set the confidential mode in software, and support 1 out of 10 options.
请按OK键签到 请按OK键签到

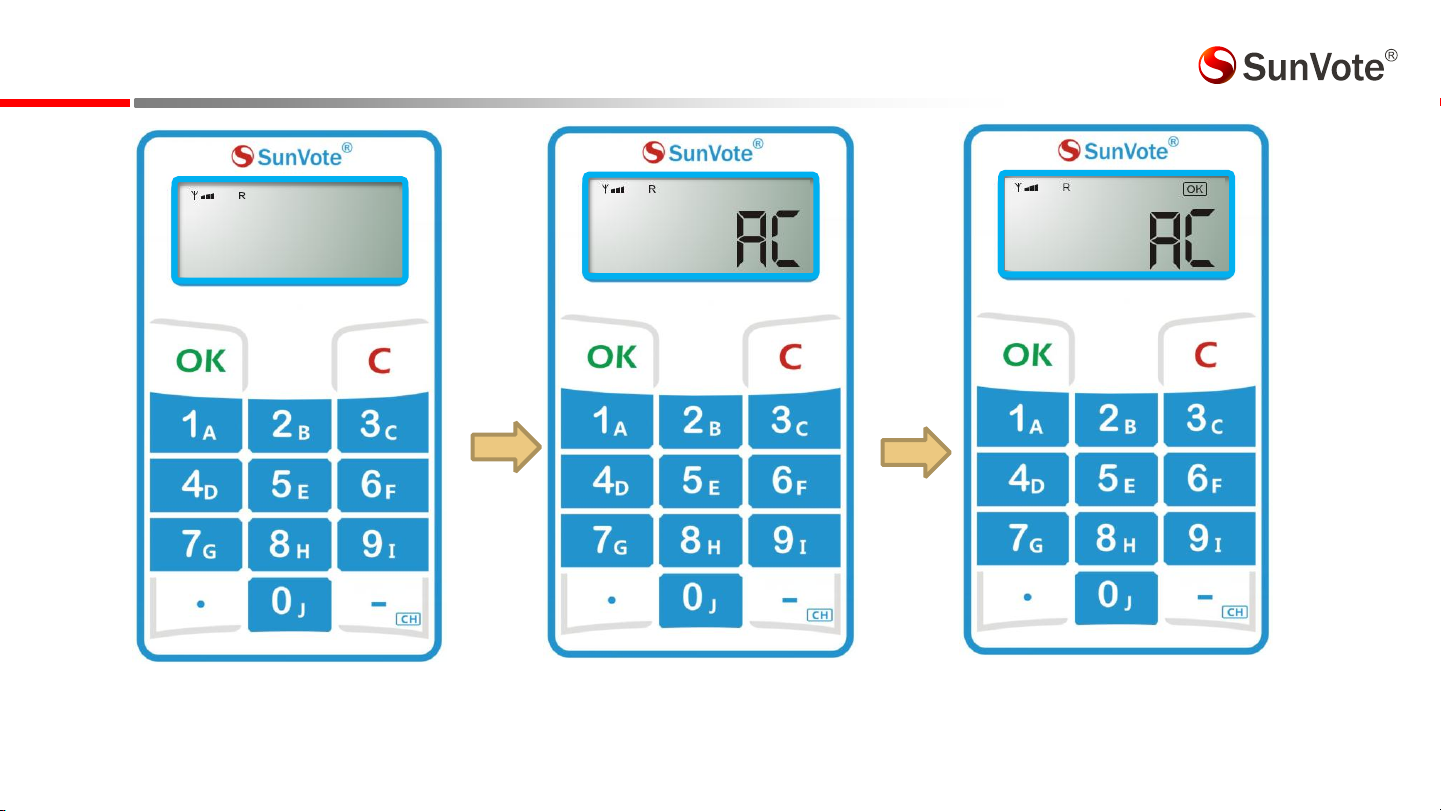

5.5- Voting functions: Multiple Choice
When start response, press alphanumeric keys to input your answer and press 【OK】to submit according to the
indication on keypad, and “OK” will be displayed after successfully submitting.
Set the confidential mode in software, and support maximum 10 out of 10 options, and display the last 6 letters only.
请按OK键签到 请按OK键签到

5.6- Voting functions: Sequence
When start response, press alphanumeric keys to input your answer and press 【OK】to submit according to the
indication on keypad, and “OK” will be displayed after successfully submitting.
Set the confidential mode in software, and support maximum 10 out of 10 ranking options, and display the last 6
letters only.
Set submitting mode in software , such as repeated selection ( i.e. AABC).
请按OK键签到 请按OK键签到

5.7- Voting functions：Judge
When start Vote, press 【1】/【2】for Yes/No (True/False) to vote according to the indication on keypad, and “OK”
will be displayed after successfully submitting.
Set the confidential mode in software, and support two modes: True/False & Yes/No
请按OK键签到 请按OK键签到

5.8- Voting functions：Vote
When start Vote, press 【1】【2】【3】(Yes/No/Abstain) to vote according to the indication on keypad, and “OK”
will be displayed after successfully submitting.
Set the confidential mode in software.
请按OK键签到 请按OK键签到

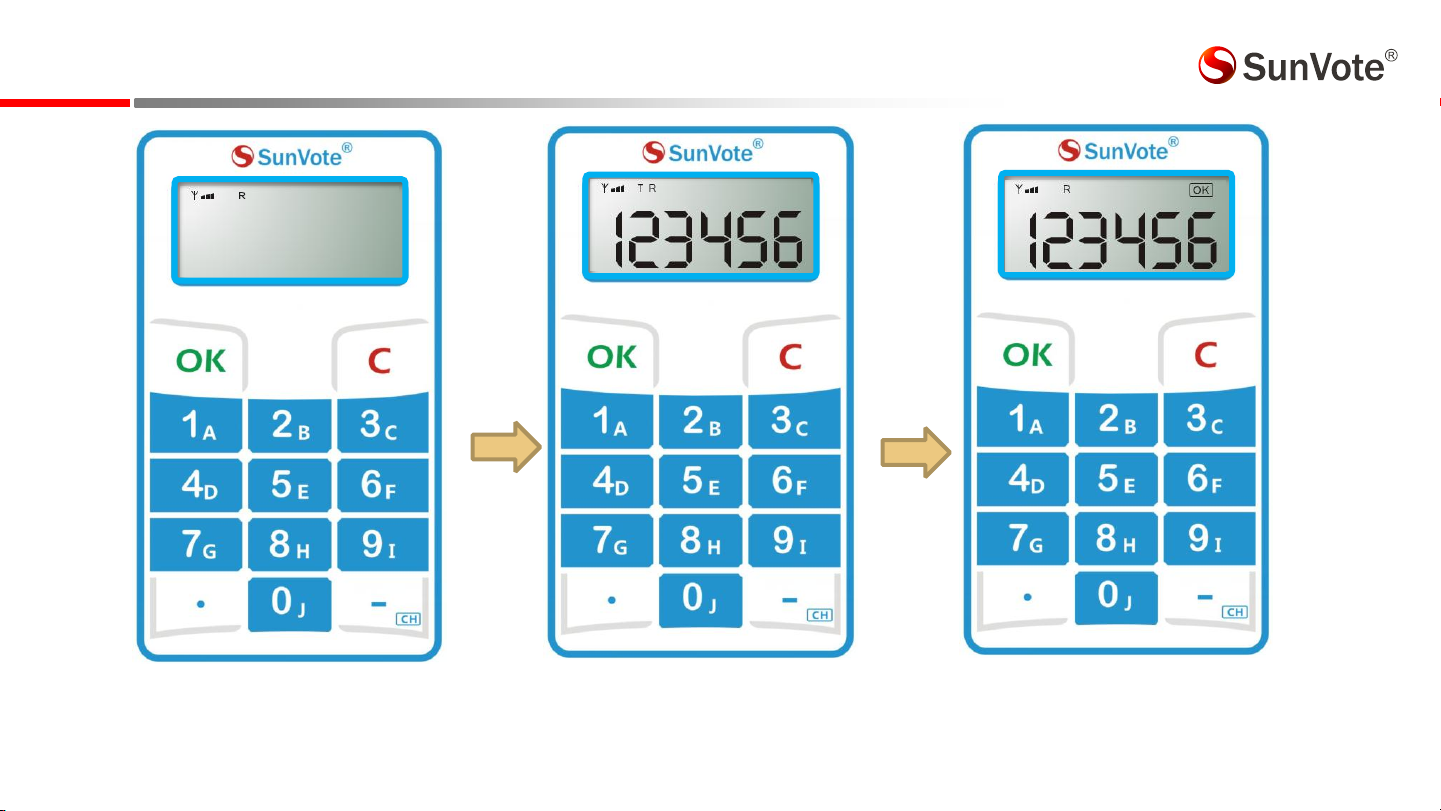

5.9- Voting functions: Numeric
When start response, press alphanumeric keys to input your answer and press 【OK】to submit according to the
indication on keypad, and “OK” will be displayed after successfully submitting.
Set the confidential mode in software, and support maximum 16 characters including decimal point and minus, and display
the last 6 digits only.
请按OK键签到 请按OK键签到

5.10- Voting functions: Rush Answer
When start response, press 【OK】for fastest response, and “OK” will be displayed after successfully submitting.
请按OK键签到 请按OK键签到

Any Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
