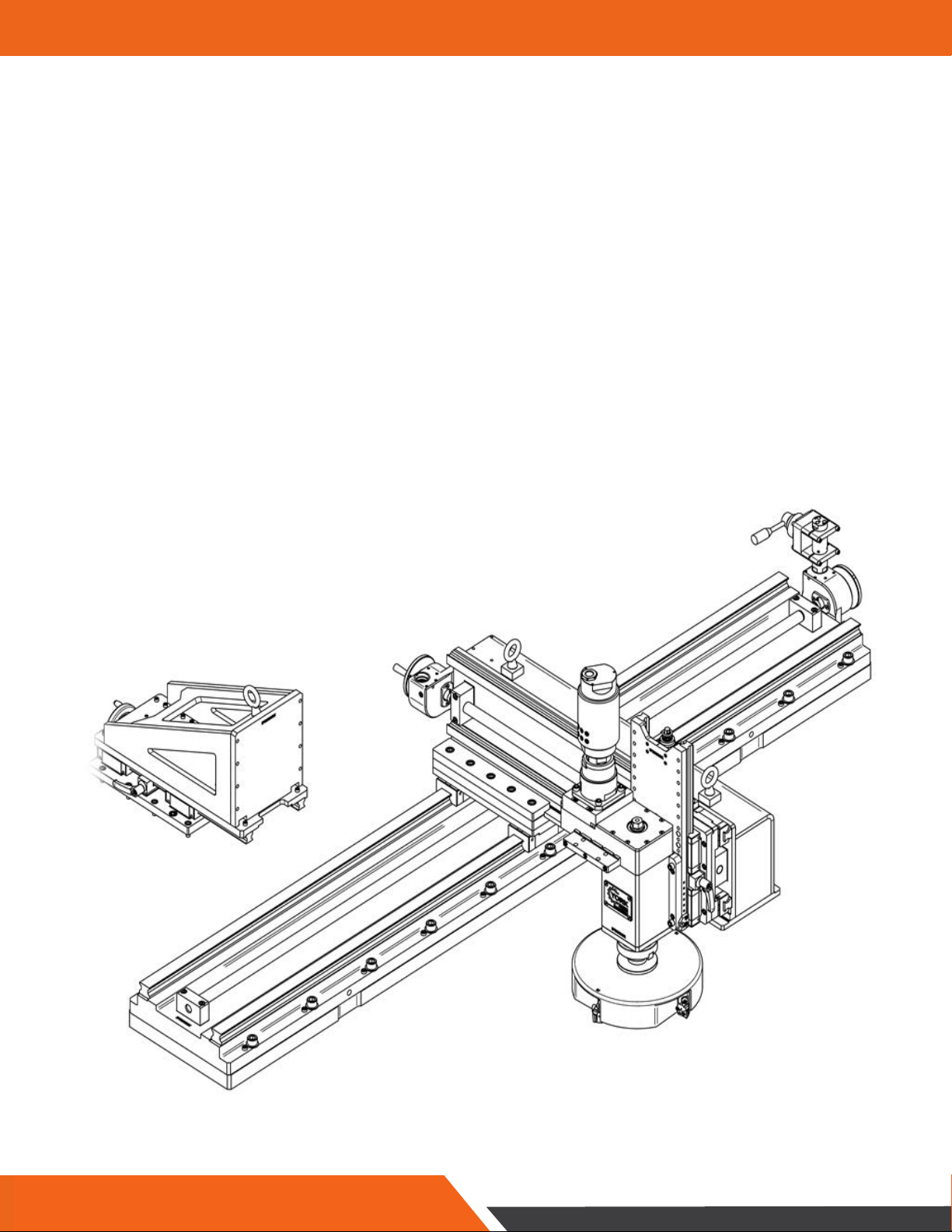

APPLICATIONS
SPR’s precision linear mills are versale, ecient, and designed with the end user in mind. The mills are
designed with ball screws and rails in all three axis, X-Y-Z, to replace older dove tail models. Mulple
spindle posions allow for a greater range of milling adjustments whether it is horizontal, vercal and/or
angular. This allows the machine to produce CNC quality work in eld/shop condions depending on the
job scope.
When you receive the Linear Mill:
The Linear Mill is generally shipped in one crate. Inspect the machine for shipping damage. Verify
that all of the parts listed below, or on the Bill of Materials, are present. If any parts are missing, or
if you have quesons regarding the Linear Mill, please contact a Superior Plant Rentals or SPR York
locaon nearest you immediately.
INTRODUCTION

SPR-MAN-LM
sprtool.com
PAGE 2 OF 16
SPECIFICATIONS CHART
Linear Mill Travel
Length (in)
Length of Base
(in)
Overall
Length (in)
Width of
Base (in)
Overall Width (in)
E
Gearbox
Width (in) Base Height (in)
A B C D Bracket
Assy.
Bridge
Assy. F G
LM-800-4 48 59.75 65 8 27.000 N/A 9 4.375 LM-1000-6 72 84.50 89 10 27.875 33.625 9 4.375 LM-1400-6 72 86.375 91.375 14 31.625 37.375 9 4.625 LM-1000-8 96 108.5 113.375 10 27.875 33.625 9 4.375 LM-1400-8 96 110.375 115.375 14 31.625 37.375 9 4.625 LM-1400-10 120 134.375 139.375 14 31.625 37.375 9 4.625
Linear Mill Gearbox
Height (in)
Overall Height
(in)
Vercal Tool
Travel (in)
Horizontal Tool Travel (in)
K
Machine
Weight
Shipping
Weight
Shipping
Dimensions
H I J Angle Bracket
Assy.
Y-Bridge
Assy. (lbs) (lbs) (in)
LM-800-4 10.375 31.625 9 6 N/A 765 1165 26 x 41 x 76 LM-1000-6 10.375 31.625 9 6 16 1150 1520 27 x 42 x 101 LM-1400-6 10.625 32.250 9 6 16 1620 2050 22 x 39 x 99 LM-1000-8 10.375 31.625 9 6 16 1445 1690 22 x 39 x 123 LM-1400-8 10.625 32.250 9 6 16 1755 2500 22 x 39 x 123 LM-1400-10 10.625 32.250 9 6 16 1890 2750 32 x 43 x 156

SPR-MAN-LM
sprtool.com
PAGE 3 OF 16
Operational Dimensions
with Y-Bridge
Y-Travel
Z-Travel
Operational Dimensions
with Y-Bracket
Linear Mill Gearbox
Height (in)
Overall Height
(in)
Vercal Tool
Travel (in)
Horizontal Tool Travel (in)
K
Machine
Weight
Shipping
Weight
Shipping
Dimensions
H I J Angle Bracket
Assy.
Y-Bridge
Assy. (lbs) (lbs) (in)
LM-800-4 10.375 31.625 9 6 N/A 765 1165 26 x 41 x 76 LM-1000-6 10.375 31.625 9 6 16 1150 1520 27 x 42 x 101 LM-1400-6 10.625 32.250 9 6 16 1620 2050 22 x 39 x 99 LM-1000-8 10.375 31.625 9 6 16 1445 1690 22 x 39 x 123 LM-1400-8 10.625 32.250 9 6 16 1755 2500 22 x 39 x 123 LM-1400-10 10.625 32.250 9 6 16 1890 2750 32 x 43 x 156

SPR-MAN-LM
sprtool.com
PAGE 4 OF 16
The customer shall ensure that only people thoroughly trained in safe work procedures operate this
machine. Safe working procedures are required when operang rotang machine tools. The misuse of this
machine could result in severe injury or death.
Proper training and safety precauons can help avoid accidents.
Please observe all company and Government work safety pracces.
• Keep others clear from the machine when it is running.
• Keep clear of the cung head and other moving parts. Never try to remove chips while the machine is
running.
• Disconnect the power when inserng or adjusng the cung tool.
• Wear protecve goggles, footwear and ear plugs. Please observe all Company and Government work-
safe pracces
• Do not wear loose ng clothing that could get caught up or wrapped in the machine.
• Flying chips can cut or burn you. Do not remove cungs with bare hands.
• Do not operate in water. Watch for electrical hazards.
MACHINE SAFETY
• Do Not leave machine unaended while in operaon.
• Do not replace brass shear pin (1/8” brazing rod) with steel.
• Beware of pinch points. Keep all body parts clear of the machine while it is running.
Rotang machine parts can cause serious injuries, even death!
Running the X-Axis feed into End-Stops may damage machine.
For maximum safety and performance, read the enre instrucon manual before operang this machine.
SAFETY PRECAUTIONS

SPR-MAN-LM
sprtool.com
PAGE 5 OF 16
WARNING!
MOVING PARTS.
Keep hands, loose clothing, and hair away from rotang or moving parts. Disconnect the air
supply from the machine and unplug all equipment prior to adjusng or servicing. If electric,
remove power from the machine prior to adjusng or servicing.
WARNING!
ELECTRICAL SHOCK.
Possible shock if not handled properly.
WARNING!
KEEP DRY.
Keep all equipment and components away from any water source.
WARNING!
EYE PROTECTION.
Eye protecon must be worn while operang or working near powered equipment.
WARNING!
EAR PROTECTION.
Ear protecon should be worn while operang or working near loud equipment.

SPR-MAN-LM
sprtool.com
PAGE 6 OF 16
TOOL REQUIREMENTS
• Dial gauge and magnec dial gauge stand
• Imperial Hex Keys
• 15/16 Box Wrench
• Welder
• CAT40 Taper Insert
• CAT40 Cung Head
LINEAR MILL SETUP
1. Carefully remove all components from crate, liing heavy items with a crane using the eye-bolts
provided.

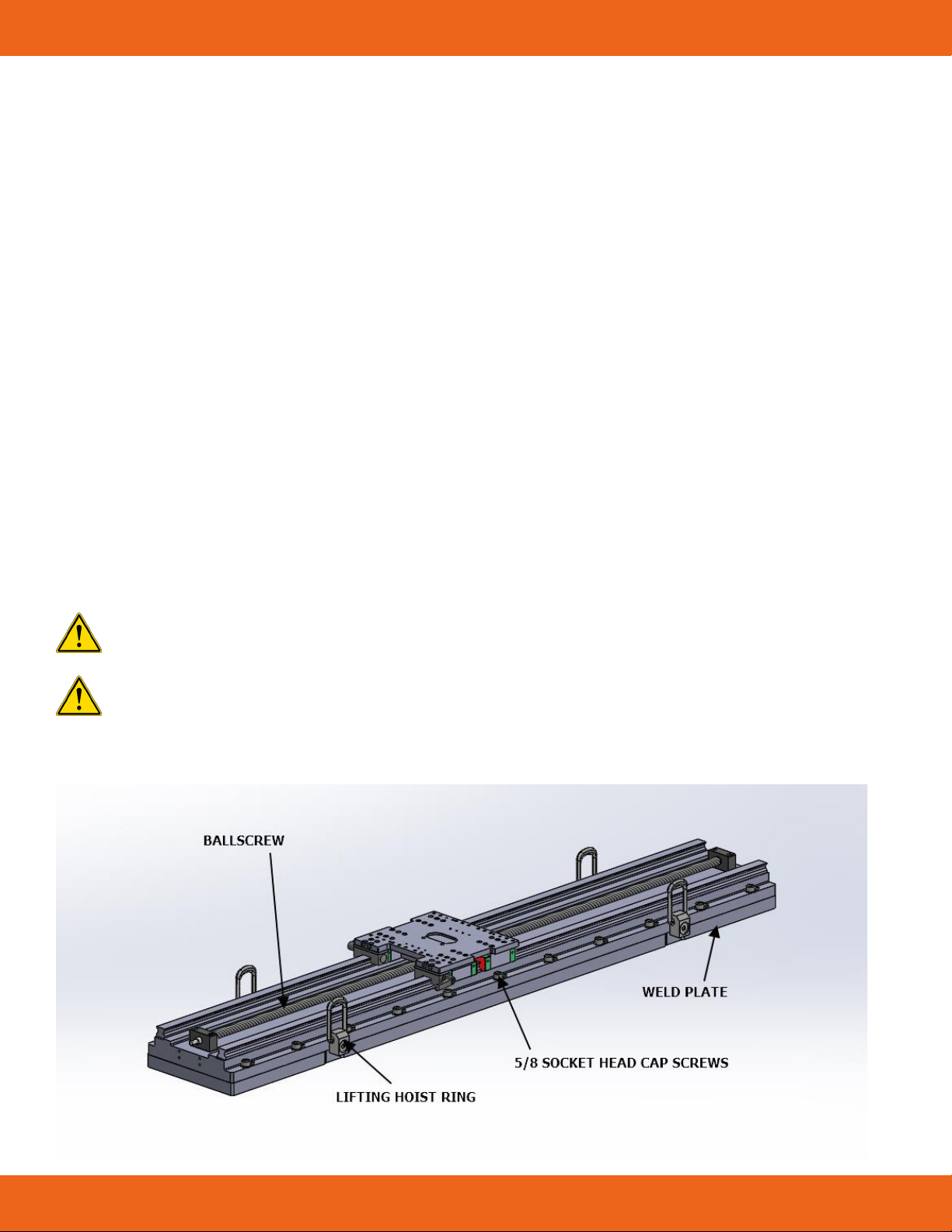

Li X-BASE using all four EYE-BOLTS keeping X-BASE in a horizontal posion (Figure 1).
DO NOT allow liing straps to push down on BALL-SCREW (Figure 1).
2. Li X-BASE by the four provided LIFTING HOIST RINGS with WELD PLATE aached with 5/8X1.75in CAP-
SCREWS (Figure 1) and set X-BASE into nal milling posion.
TOOL REQUIREMENTS AND SETUP
FIGURE 1

SPR-MAN-LM
sprtool.com
PAGE 7 OF 16
3. Remove ARM-CLAMPS from X-CARRIAGE. Using the provided EYE-BOLTS, place Y-ARM on X-CARRIAGE
and reaach the ARM-CLAMPS, ensuring that the end of Y-ARM is ush or overhanging with the edge
of X-CARRIAGE. Tighten the ½-13X1 SOCKET HEAD CAP SCREWS on both ARM-CLAMPS ( Figure 2).
Do not extend Y-ARM inwards past the edge of the X-CARRIAGE to obtain more travel.
4. Take measurements with a scale or tape measure to ensure the base mill is straight or parallel to the
pad or surface to be machined.
5. Place a series of sch welds about 1” long around the outside of the boom of the weld plate to
securely aach the mill and weld plate into posion.
6. Loosen all 5/8-11 SOCKET HEAD CAP SCREWS in WELD-PLATE to allow adequate room for levelling.
Do not weld directly on any parts of the machine other than the WELD-PLATES.
While welding, cover/protect machine to prevent weld splaer from damaging rails, runner-blocks,
ball-screw and other crical components.
FIGURE 2

SPR-MAN-LM
sprtool.com
PAGE 8 OF 16
FIGURE 3
7. There are two dierent methods that can be used to level to mill for machining. One is to use an
indicator as described below, and the other is to use either a machinist level or transit level to level the
rails to the world.
8. Place a DIAL-INDICATOR on the Y-CARRIAGE (Figure 3) and level the machine by adjusng the JACKING
SCREWS while running the DIAL-INDICATOR along both X and Y-axis.
9. Once level, aach the dial indicator next to one set of JACKING SCREWS with the dial indicator
referencing the ground (Figure 4).
10. Carefully ghten the 5/8-11 CAP-SCREWS and the JACKING-SCREWS ensuring that the DIAL-INDICATOR
doesn’t change the posion. Repeat for the other sets of JACKING SCREWS.
11. Lightly “Finger Tighten” JACKING-SCREWS into the remaining 8 posions and repeat the ghtening
procedure of both JACKING-SCREWS and 5/8-11 CAP-SCREWS using the DIAL-INDICATOR at each new
posion (Figure 4) to maintain level posion.
Tightening the screws without the DIAL-INDICATOR can cause the X-BASE to bend, reducing atness
and potenally damaging the machine.

SPR-MAN-LM
sprtool.com
PAGE 9 OF 16
FIGURE 4
12. Align the top reference surface of the Z-ASSEMBLY onto the Y-CARRIAGE and align edges prior to
inserng and ghtening the 1/4-20 SOCKET HEAD CAP SCREWS on either side of the Z-ASSEMBLY
(Figure 5).
FIGURE 5

SPR-MAN-LM
sprtool.com
PAGE 10 OF 16
13. Note: There are dierent opons for the SPINDLE posion depending on desired height and if milling
downwards, upwards or sideways. Addionally, the BELT-HOUSING can be dissembled and rotated
to the le, right or center if clearance is required. This will require loosening and removal of ming
pulleys.
14. Place the user-provided CAT40 TAPER inside SPINDLE and draw up by ghtening the DRAWBOLT. Aach
the user-provided TOOL-HEAD to CAT40 TAPER.
FIGURE 6

SPR-MAN-LM
sprtool.com
PAGE 11 OF 16
7. To feed the Y-Axis or Z-Axis, loosen RAIL-CLAMPS and turn HAND-WHEEL.
NOTE: Z-AXIS will drop when loosening RAIL-CLAMPS

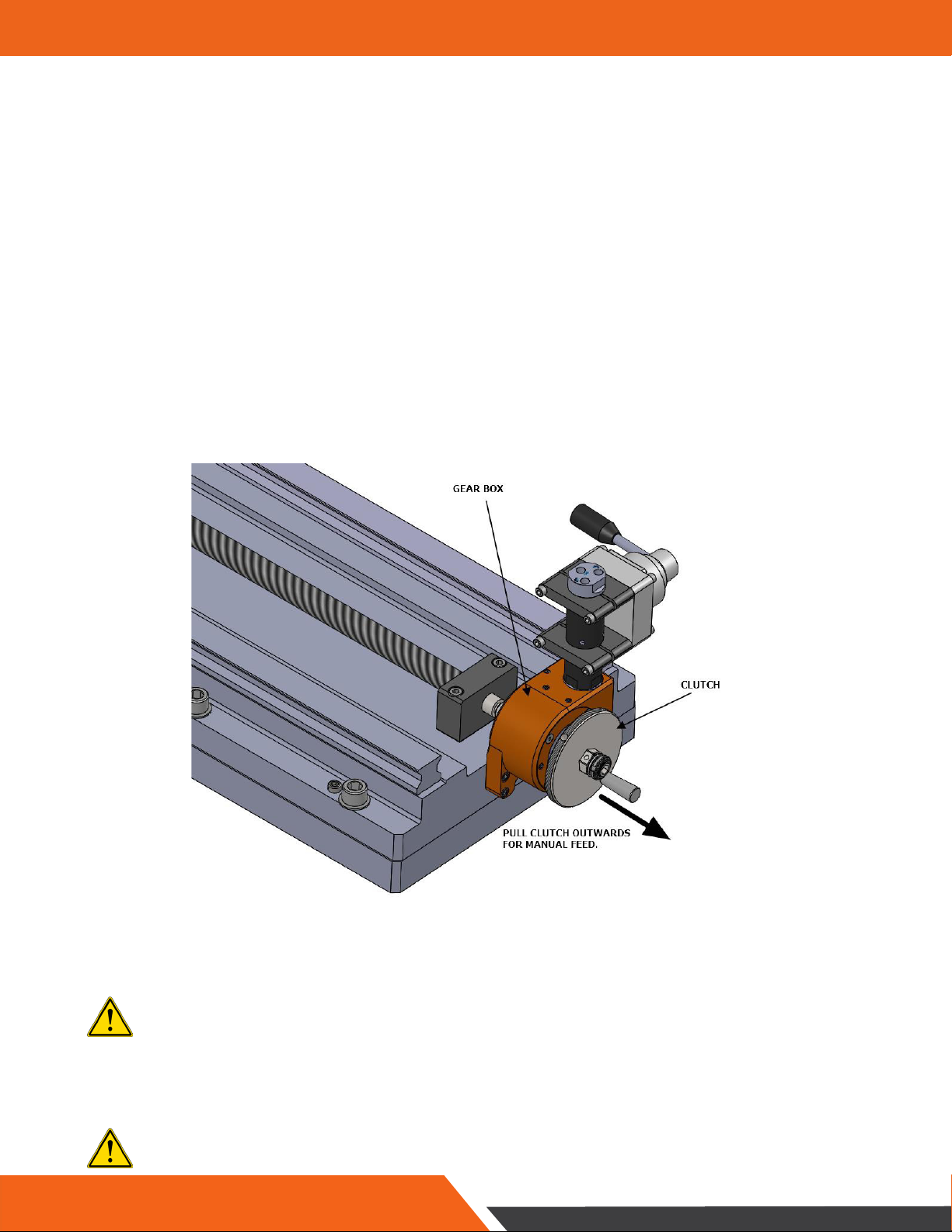

8. To power feed the X-Axis, ensure CLUTCH is engaged by snapping it inwards towards the GEAR-BOX.
9. Lock out all the RAIL-CLAMPS in non-feeding axes when cung material.
Vibraons from cuts which are too deep or too fast can cause the RAIL-CLAMPS to slip.
1. The Linear Mill is similar in operaon to any 3-Axis Milling Machine.
2. Before operang ensure all mounng fasteners are secure.
3. Ensure all pneumac lines are connected correctly.
4. Start-up milling spindle away from job to check for correct rotaon.
5. Adjust speed and feed to suit tooling and material.
6. To feed the X-Axis manually, loosen both X-RAIL-CLAMPS (Figure 6) and pull the CLUTCH outwards to
disengage from the GEAR-BOX (Figure 7).
OPERATION
FIGURE 7

SPR-MAN-LM
sprtool.com
PAGE 12 OF 16
TIPS FOR BEST RESULTS
1. Slower feed on cuts will produce less vibraons and a beer surface nish.
2. Convenonal milling will produce less vibraons and a beer surface nish.
3. Narrower cuts will produce beer atness by minimizing misalignment of cuer tool
4. It is recommended that with the pneumac mill, a max depth of cut of 0.020” or less will achieve the
best results.
5. Posioning the Linear Mill as close as possible to the material to be cut will produce beer surface
nish.
6. Hand-wheels can be placed on either end of the Y and Z-axis feeds.
7. Clear chips while machining (Do Not use your hands to clear chips)

SPR-MAN-LM
sprtool.com
PAGE 13 OF 16
MAINTENANCE
Ensure during setup and operaon that the X-BASE
(Figure 1) is in an unstressed state. Failure to do so
may result in damage to the machine components
and undesired results to the work.
Timing belts will stretch over me and should be
checked occasionally to ensure proper tension is
maintained.
Ensure all machined surfaces are cleaned and lightly
lubricated as assembled. Wipe o excess oil as oil
will aract dirt and debris.
DO NOT weld directly to any part of the
machine other than the WELD-PLATE
(Figure 1).
While welding, cover exposed parts of the machine
to prevent damage from weld splaer.
DO NOT use air to clear debris as debris
may be forced into running components
resulng in damage.
When not in use, machine should be stored in its
crate and kept in a clean and dry environment.
TROUBLESHOOTING
SPINDLE NOT ROTATING
• Check pneumac hose connecons.
• Check air source
X-AXIS NOT FEEDING
• Check clutch is engaged
• Check shear pin hasn’t sheared
• Check pneumac hose connecon
• Check air source
MACHINE DOESN’T HOLD POSITION
• Tighten RAIL-CLAMPS
• Reduce cut depth, cut width or feed speed to
reduce vibraons
MACHINE AXIS HARD TO MOVE
• Disengage RAIL-CLAMPS
MAINTENANCE & TROUBLESHOOTING

SPR-MAN-LM
sprtool.com
PAGE 14 OF 16
Superior Plant Rentals, LLC (SPR) warrants that the equipment manufactured by it will: (i) conform to SPR’s
wrien specicaons and descripons, and (ii) be free from substanal defects in design, materials, and
workmanship for a period of one year from date of shipment to the original buyer, or six months from date
of placing in service by buyer, whichever date is earlier.
During this period, if any equipment is proved to SPR’s sasfacon to be defecve, SPR will, at our sole and
absolute discreon, and as SPR’s sole warranty liability and buyer’s sole remedy, repair, replace, or credit
buyer’s account for any equipment that fails to conform to the warranes, provided that: (i) SPR is noed
in wring within 10 days following discovery of such failure with a detailed explanaon of any alleged
deciencies; (ii) SPR is given a reasonable opportunity to invesgate all claims; and (iii) SPR’s examinaon
of such equipment conrms the alleged deciencies and that the deciencies were not caused by accident,
misuse, neglect, improper use, unauthorized alteraon, repair, or improper tesng.
Shipping cost of the alleged defecve equipment to SPR is to buyer’s account. However, if SPR agrees that
the equipment is defecve, then pursuant to this warranty, SPR will reimburse buyer its shipping cost to
return the equipment to SPR.
The warranty against defects does not apply to: (1) consumable components or ordinary wear items,
and (2) use of the equipment with equipment, components, or parts not specied or supplied by SPR or
contemplated under the equipment documentaon.
The following acons will void the one-year warranty:
1. Repairs or aempted repairs have been made by persons other than SPR personnel, or authorized
service repair personnel;
2. Repairs are required because of normal wear;
3. The tool has been abused or involved in an accident;
4. There is evidence of misuse such as overloading of the tool beyond its rated capacity, use aer paral
failure, or use with improper accessories.
5. Damage to the motor due to lack of oiler/mister while tool was in use (pending motor type).
NO OTHER WARRANTY IS VALID
WARRANTY
