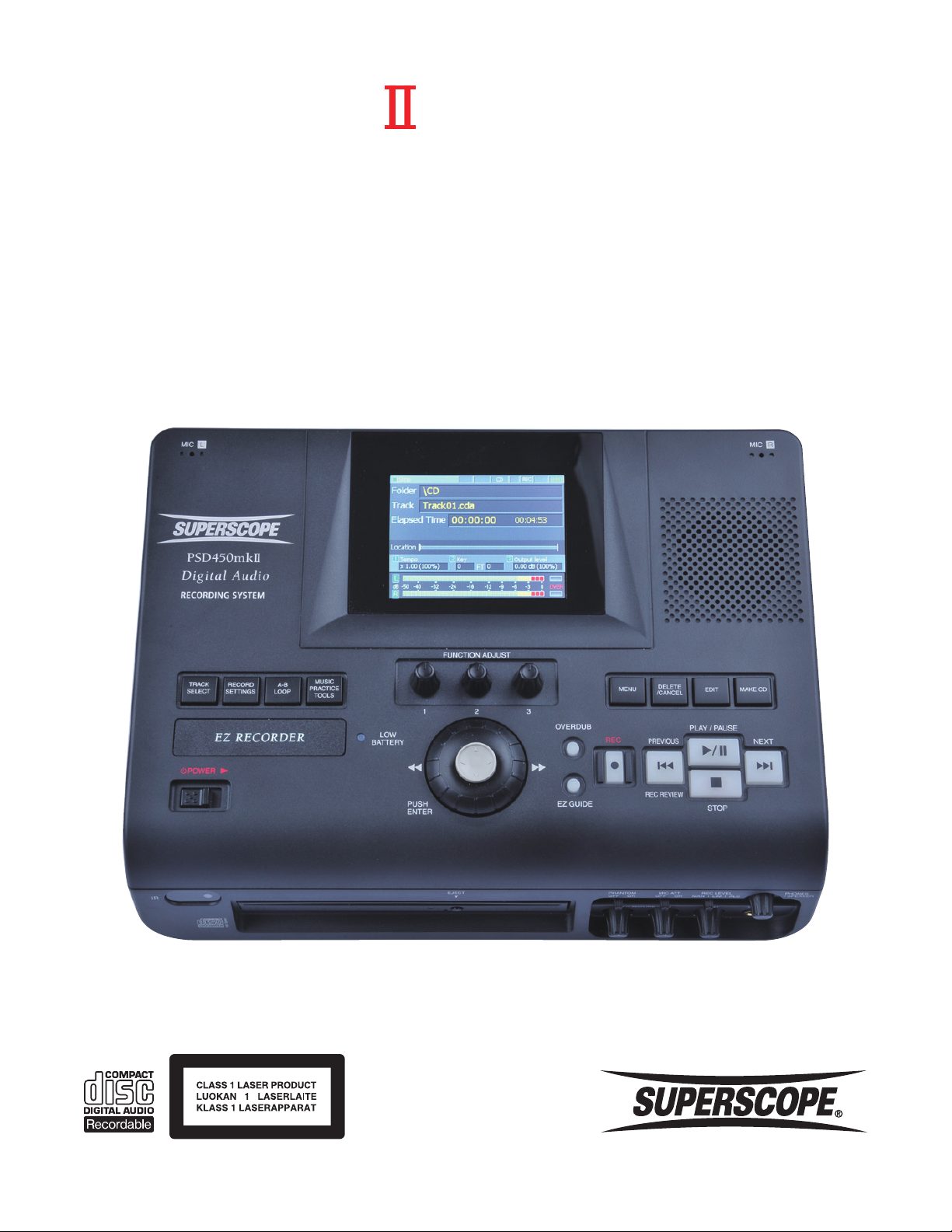

Superscope PSD450mk II User manual

User Manual
© Copyright 2013, Superscope Technologies, Inc.
PSD450mk
Digital Audio Recording System

- ii - Superscope PSD450mkII User Manual
Contents
The lightning flash with arrowhead symbol within
an equilateral triangle is intended to alert the
user to the presence of uninsulated "dangerous
voltage" within the product's enclosure that may
be of sufficient magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an equilateral
triangle is intended to alert the user to
the presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
■Important Safety
Instructions
READ BEFORE OPERATING EQUIPMENT
This product was designed and manufactured to meet strict quality
and safety standards. There are, however, some installation and
operation precautions which you should be particularly aware of.
1. Read instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Clean only with dry cloth.
6. Do not use this apparatus near water.
7. To ventilate the unit, do not install it in a rack or bookshelf, and
note the following: Do not insert objects beneath the unit. Do not
block ventilation slots at the top of the unit. Do not place anything
about 1 meter above the top panel. Make a space of about 8“ (20
cm) around the unit.
8. Do not install near nay heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers) that
produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-
type plug. A polarized plug has two blades with one wider than
the other. A grounding type plug has two blades and a third
grounding prong. The wide blade or the third prong are provided
for your safety. If the provided plug does not fit into your outlet,
consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the point where
they exit from the apparatus.
11. Only use attachments/accessories specified by
the manufacturer.
12. Use only with the cart, stand, tripod, bracket,
or table specified by the manufacturer, or
sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for
long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way, such
as power-supply cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has
been dropped.
Additional Safety Information!
•Thisproductshouldnotbeplacedinabuilt-ininstallationsuch
as a bookcase or rack unless proper ventilation is provided or the
manufacturer’s instructions have been adhered to.
•Apparatusshallnotbeexposedtodrippingorsplashingandthat
no objects filled with liquids, such as vases, shall be placed on the
apparatus.
•WhentheswitchisintheOFFposition,theapparatusisn’t
completely switched-off from the MAINS.
WARNINGS
Do not expose the equipment to rain or moisture.
Do not remove the cover from the equipment.
No naked flame sources, such as lighted candles, should be placed on the
equipment.
Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
Set the unit up on an even surface away from direct sunlight, high
temperatures, high humidity, and excessive vibration.
Do not place heavy items on the unit.
Do not use high voltage power sources. This can overload the unit and cause a
fire.
Do not handle the plug with wet hands. This can cause electric shock.
Do not let metal objects fall inside the unit.
Do not let liquids get into the unit.
Do not spray insecticides onto or into the unit.
Do not attempt to repair this unit by yourself.
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE
BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
ATTENTION: POUR EVITER LES CHOC ELECTRIQUES, INTRODUIRE LA
LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE
DE LA PRISE ET POUSSER JUSQUíAU FOND.
CAUTION
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF
PROCEDURE OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT
IN HAZARDOUS EXPOSURE.
LASER SAFETY
This unit employs a laser. Only a qualified service person should
remove the cover or attempt to service this device, due to possible
eye injury.
NOTE TO CATV SYSTEM INSTALLER:
This reminder is provided to call the CATV (Cable-TV) system installer’s
attention to Section 820-40 of the NEC which provides guidelines for
proper grounding and, in particular, specifies that the cable ground
shall be connected to the grounding system of the building, as close to
the point of cable entry as practical.
NOTE: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television
reception, which can be determined by tuning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
•Reorientorrelocatethereceivingantenna.
•Increasetheseparationbetweentheequipmentandreceiver.
•Connecttheequipmentintoanoutletonacircuitdifferentfrom
that to which the receiver is connected.
•Consultthedealeroranexperiencedradio/TVtechnicianforhelp.
NOTE: Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate
the equipment.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numÈrique de la Classe B conforme à la norme NMB-003
du Canada.
SD Logo is a trademark. microSD Logo is a trademark.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION

Superscope PSD450mkII User Manual - iii -
For EU Countries

- iv - Superscope PSD450mkII User Manual
For EU Countries

Superscope PSD450mkII User Manual - v -
Contents
■Table of Contents
■Important Safety Instructions ................... ii
■Table of Contents ....................................... v
■Supplied Accessories .................................. 8

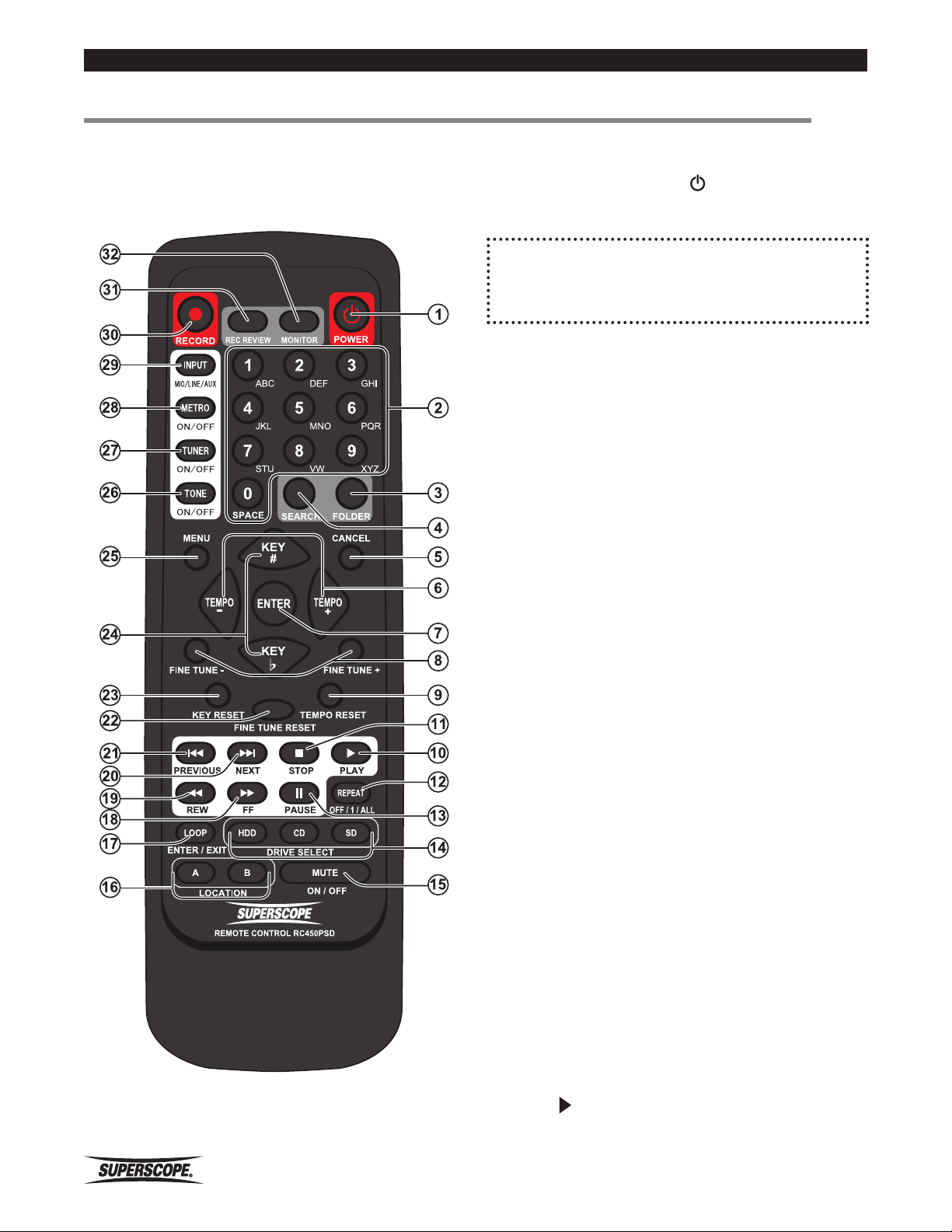

Infrared (IR) Remote ............................................... 8
AAA Batteries ........................................................ 8
AC Adapter............................................................ 8
USB Cable.............................................................. 8
AC Power Cord ...................................................... 8
RCA Patch Cables................................................... 8
■Introduction................................................ 9
General Features .................................................... 9
Recording Features................................................. 9
Music Practice Features .......................................... 9
Package Contents .................................................. 9
■Preparations Before Use ............................ 10
AC Adapter Connection ..................................... 10
AC Adapter Safety ............................................. 10
Using Batteries ................................................... 10
Safety Cautions When Handling Batteries....... 10
Remote Controller Notes ................................... 10
Remote Controller Battery Installation .................... 11

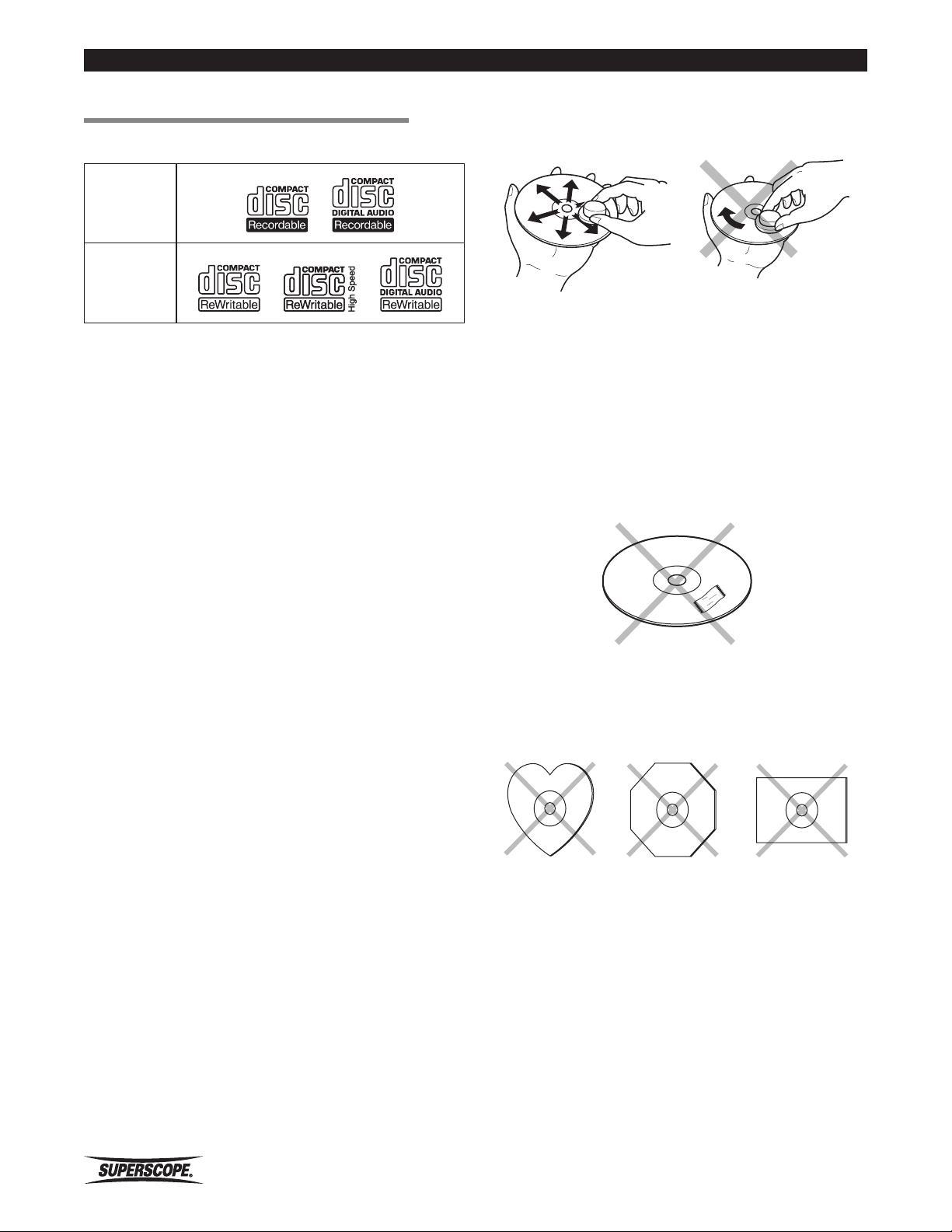

■About Discs................................................. 12
Playable discs ...................................................... 12
Disc Care................................................................ 12
■Top Panel..................................................... 13
POWER ................................................... 13
FUNCTION CONTROL Buttons.......................... 13
A. TRACK SELECT .................................................. 13
B. RECORD SETTINGS............................................. 13
C. A-B LOOP .......................................................... 14
D. MUSIC PRACTICE TOOLS................................... 14
Low Battery Indicator ....................................... 14
FUNCTION ADJUST Knobs................................ 14
JOG WHEEL / JOYSTICK / ENTER....................... 14
OVERDUB......................................................... 14
EZ GUIDE ......................................................... 14
CONTROL Buttons (Transport) .......................... 15
A. REC Button........................................................ 15
B. PREVIOUS & REC REVIEW Button....................... 15
C. PLAY/PAUSE Button ........................................... 15
D. STOP Button ...................................................... 15
E. NEXT.................................................................. 15
CONTROL Buttons (Top Right).......................... 15
A. MENU................................................................ 15
B. DELETE / CANCEL............................................... 15
C. EDIT................................................................... 15
D. MAKE CD .......................................................... 15
Internal Speaker ............................................... 15
- Internal Mic R & Internal Mic L.................. 15
LCD Color Display............................................. 15

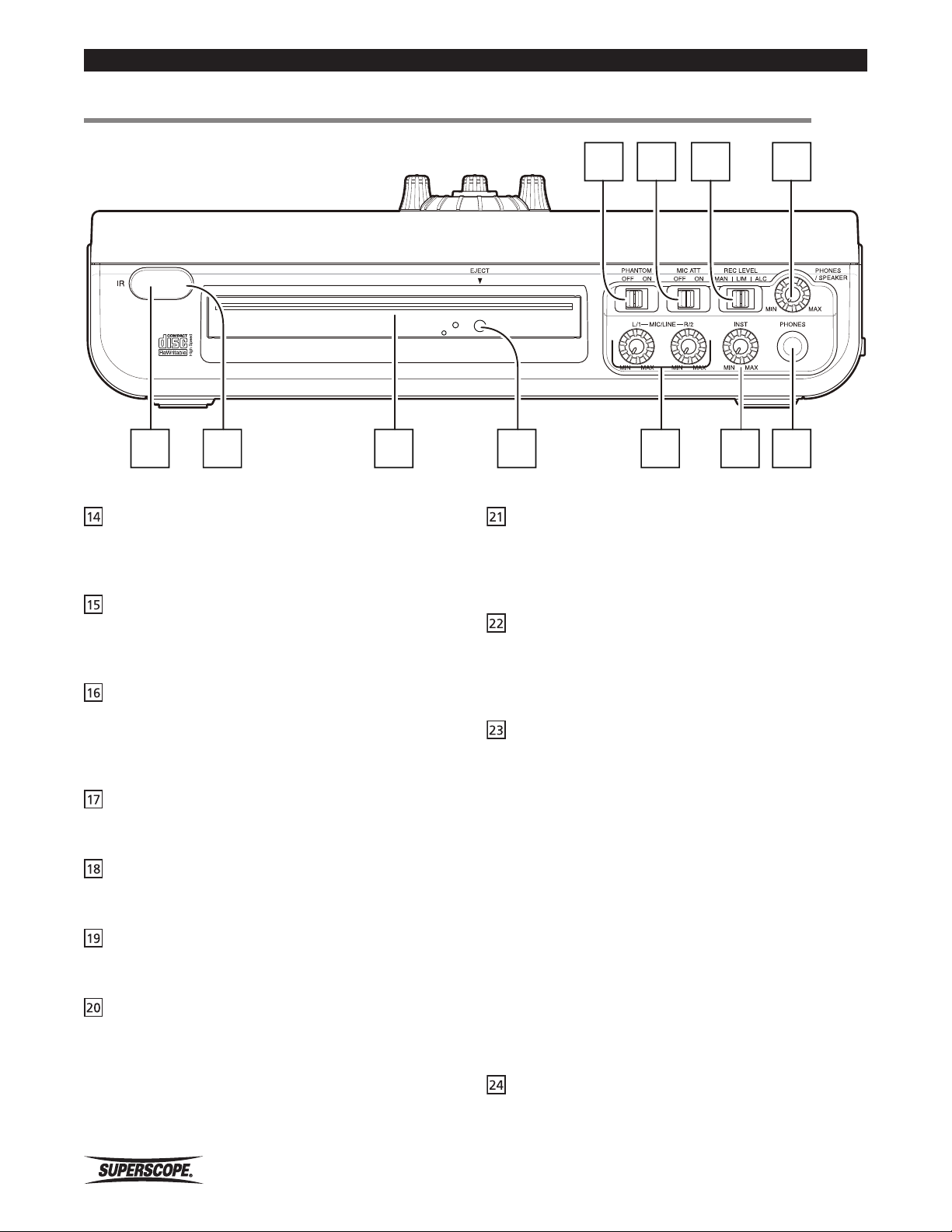

■Front Panel.................................................. 16
Infrared (IR) Receiver......................................... 16
IR Signal Indicator............................................. 16
CD-RW Drive.................................................... 16
EJECT Button ................................................... 16
MIC / LINE L & R Level Control.......................... 16
INST (Instrument) Level Control ........................ 16
PHONES Jack.................................................... 16
PHANTOM Power ON/OFF SWITCH.................. 16
MIC ATT ON/OFF ............................................. 16
RECORD LEVEL MAN / LIM / ALC...................... 16
MAN (Manual) ....................................................... 16
LIM (Limiter)........................................................... 16
ALC (Automatic Level Control) ............................... 16
PHONES / SPEAKER LEVEL................................ 16
■Right Side Panel.......................................... 17
Left / XLR / 1/4” Input Jack ............................... 17
Right / XLR / 1/4” Input Jack............................. 17
INST IN Jack ..................................................... 17
AUX LEVEL ....................................................... 17
AUX IN Jacks.................................................... 17
LINE OUT Jacks ................................................ 17

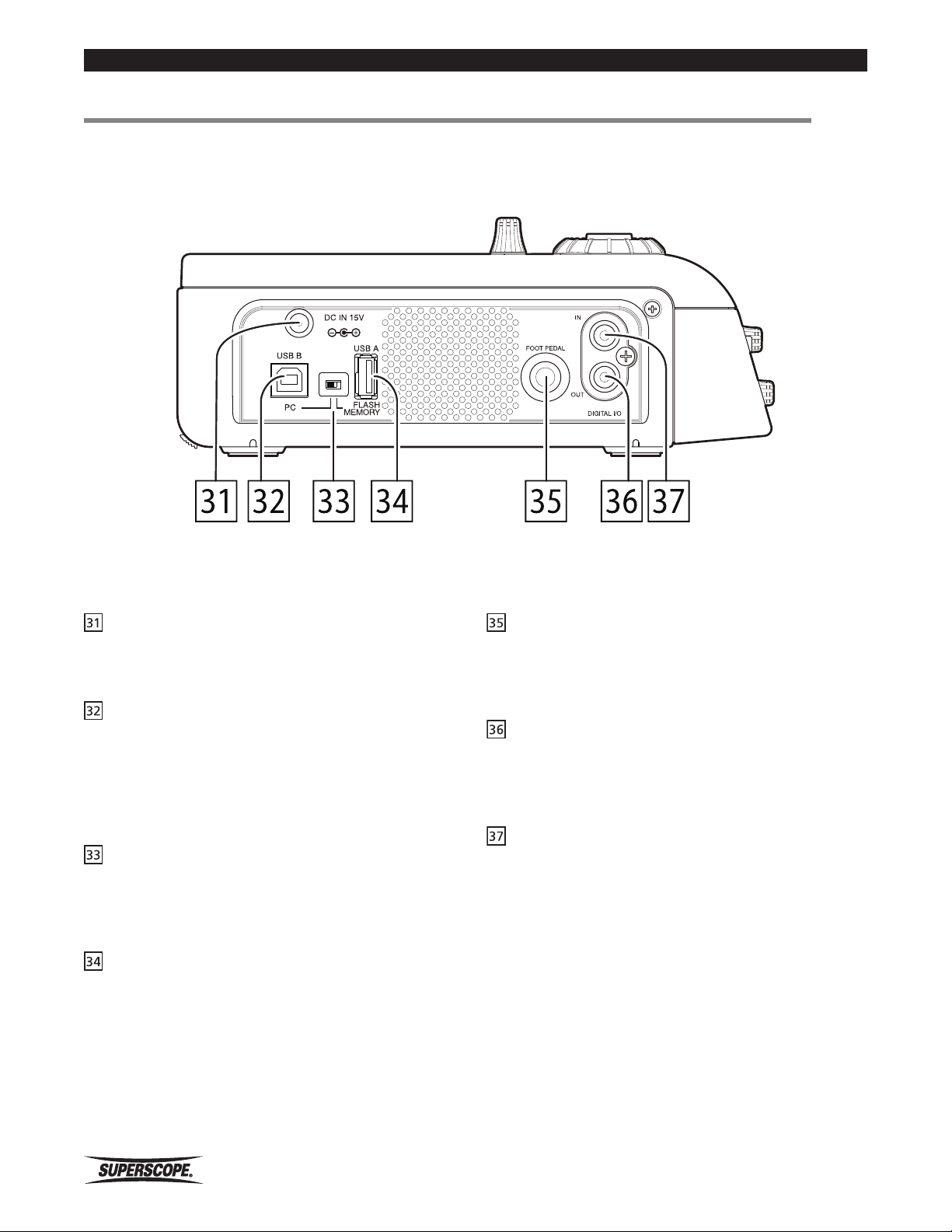

■Left Side Panel............................................ 18
DC Input Jack................................................... 18
USB Connector B.............................................. 18
USB PC / Flash Memory Switch......................... 18
USB Connector A ............................................. 18
FOOT PEDAL Jack ............................................. 18
DIGITAL OUT Jack ............................................ 18
DIGITAL IN Jack................................................ 18
■Back Panel ................................................... 19
Battery Compartment ...................................... 19
■Remote Control .......................................... 20
STANDBY / POWER ...................................... 20
w Alphanumeric Keypad........................................ 20
eFOLDER.............................................................. 20
rSEARCH ............................................................. 20
tCANCEL ............................................................. 20
yTEMPO............................................................... 20
uENTER ................................................................ 20
iFINE TUNE.......................................................... 20
oTEMPO RESET .................................................... 20
aPLAY .............................................................. 20
sSTOP .............................................................. 21
dREPEAT............................................................... 21
fPAUSE ............................................................. 21
gDRIVE SELECT .................................................... 21
hMUTE................................................................. 21

- vi - Superscope PSD450mkII User Manual
Contents
jLOCATION ......................................................... 21
k LOOP ENTER/EXIT.............................................. 21
 FF (Fast Forward)........................................... 21
 REW (Rewind)............................................... 21
 NEXT ............................................................ 21
 PREVIOUS .................................................... 21
 FINE TUNE RESET............................................... 21
 KEY RESET......................................................... 21
 KEY.................................................................... 21
 MENU ................................................................ 21
 TONE ON/OFF .................................................... 21
 TUNER ON/OFF.................................................. 21
 METRO ON/OFF................................................. 21
 INPUT MIC/LINE/AUX......................................... 21
 RECORD ............................................................. 21
 RECORD REVIEW................................................ 21
 MONITOR.......................................................... 21
■LCD Display ................................................. 22
PLAY / STOP Mode................................................. 22
ⒶIcons.................................................................. 22
①Status Icons....................................................... 22
②Silent Skip Icons ................................................ 22
③Repeat Icons...................................................... 22
④ CD, CD-R, CD-RW Icons ................................... 23
⑤ Voice Reduction Icons....................................... 23
⑥ Monitor Icons ................................................... 23
⑦ Mute Icons ....................................................... 23
⑧ AC/Battery Icons............................................... 23
ⒷFile Information ................................................. 23
ⒸPlayback Data.................................................... 24
ⒹLocation ............................................................ 24
ⒺTempo, key, Output Level .................................. 24
ⒻVU Meters ......................................................... 24
■Powering On............................................... 25
Using the AC Adapter ............................................ 25
Using Batteries ....................................................... 25
Battery Life............................................................. 26
AC Power and Battery Tips..................................... 26
Setting Date and Time............................................ 27
The Internal Memory.............................................. 28
Inserting a USB Memory......................................... 28
■Setting Up Speakers................................... 29
Using Headphones or the Built-In Speaker ...... 29
External Speakers............................................... 29
■Setting Up Microphones, Instruments and
Other Sound Sources..................................... 30
Microphones.......................................................... 30
Balanced Connections............................................ 30
Unbalanced Connections ....................................... 30
External Microphones ............................................ 30
Setting Levels ......................................................... 31
STEREO/PAN Mode ................................................ 32
Pan Setting – L/1 ................................................... 32
Pan Setting – R/2 ................................................... 32
Recording a Solo Performance................................ 33
Internal Built-in Microphones.................................. 34
Connecting Musical Instruments ............................ 35
Recording a Microphone and a Musical Instrument at
the Same Time ....................................................... 36
Line Level Sources .................................................. 38
AUX ....................................................................... 40
Digital Connection ................................................. 41
Computer Connection............................................ 42
■Working with Files and Folders................. 44
Searching Folders ................................................... 44
Search a USB Device, Internal Memory or CD ......... 44
Using the [Search] Feature...................................... 45
Text Input Method ................................................. 45
Create a Folder....................................................... 47
Rename.................................................................. 47
Create a Playlist...................................................... 48
Create a CD Playlist ................................................ 49
■CD Ripping .................................................. 51
Ripping an entire Audio CD.................................... 51
Ripping Selected Tracks from an Audio CD............. 52
■Music Practice ............................................. 54
Music Practice Tools ............................................... 54
Adjusting Tempo, Key, and Fine Tune Tempo.......... 54
Key ........................................................................ 54
Interval Indication................................................... 54
Fine Tune ............................................................... 55
Voice Reduction ..................................................... 55
How to Use the Tuner ............................................ 55
Using the Chromatic Tuner..................................... 55
Using the Tuning Tone............................................ 56
Using the Metronome ............................................ 57
Adjusting Accent Beat and Accent Beat Volume ..... 58
■Play .............................................................. 59
Playback Operation ................................................ 59
Playback Modes ..................................................... 60
Repeat Modes........................................................ 60
Equalizer Settings ................................................... 61
Playback Equalizer .................................................. 61
Frequency .............................................................. 61
Gain....................................................................... 61
Bandwidth ............................................................. 62
A-B Loop (Repeat Playback).................................... 62
Press the A-B LOOP button during playback........... 62
Press and hold the A-B LOOP button for 3 seconds or
longer. ................................................................... 62
Delete a Loop Point................................................ 63
■Editing ......................................................... 64
Export a File ........................................................... 64
Creating a File with a New Tempo or Key ............... 64
Changing File Format ............................................. 65
Naming the Exported File ....................................... 65
Move a Track.......................................................... 66
Copy a Track .......................................................... 67
Divide a Track......................................................... 69
Combine a Track .................................................... 70
Trim In / Out........................................................... 71
Edit Track Information ............................................ 72
Title/Artist/Album................................................... 73
Genre..................................................................... 73
24>16bit Convert ................................................... 74

Superscope PSD450mkII User Manual - vii -
Contents
■Delete/Cancel.............................................. 75
Delete .................................................................... 75
Cancel.................................................................... 76
■Recording .................................................... 77
Recording to the Internal Memory.......................... 77
Recording to a USB Memory .................................. 78
Recording Direct to CD........................................... 78
Track Increment...................................................... 79
Advanced Record Settings Menu............................ 79
Silent Skip Recording.............................................. 79
Pre-Roll Time/ Post-Roll Time.................................. 80
Fade In / Out .......................................................... 81
Auto Track Increment ............................................. 81
One Touch Recording............................................. 81
Count In................................................................. 81
Auto Convert ......................................................... 81
CD Pre-Gap Setting ............................................... 81
Int Memory + USB HDD ........................................ 81
■Input Effects ............................................... 82
Selecting an Input Signal........................................ 82
①Delay Time......................................................... 83
②Decay ................................................................ 83
Input Equalizer ....................................................... 83
Frequency .............................................................. 84
Gain....................................................................... 84
Bandwidth ............................................................. 84
Playback Balance and Level..................................... 84
■Overdub ...................................................... 86
Overdubbing for Composition (Layering sections of a
Track) ..................................................................... 86
Overdubbing for Practice (Recording over a Loop) .. 88
Monitor Source ...................................................... 89
OverDub Screen.................................................. 91
OverDub Screen and Audio Signal.................... 92
■CD Burning.................................................. 95
Creating an Audio CD ............................................ 95
Finalizing a CD ....................................................... 96
Creating a Data CD ................................................ 97
CD Duplication....................................................... 98
Erasing a CD-RW.................................................... 99
Unfinalize a CD-RW................................................ 99
Erase Last............................................................... 100
Finalized CD-RW Menu .......................................... 101
Unfinalized CD-RW Menu ...................................... 101
Erase All ................................................................. 101
Finalized CD-RW Menu .......................................... 102
Unfinalized CD-RW Menu ...................................... 102
■EZ Guide ...................................................... 103
Record ................................................................... 103
Record with a Track/File ......................................... 103
Play a Track/File...................................................... 104
Import CD .............................................................. 104
Duplicate CD.......................................................... 105
Modify and Save File .............................................. 105
Copy File to USB..................................................... 105
Create/REC Playlist ................................................. 105
■System Settings .......................................... 106
Auto Power Off...................................................... 106
Backlight Timer ...................................................... 106
Recording Dimmer ................................................. 106
Battery Type........................................................... 106
Foot Pedal.............................................................. 106
■Appendix..................................................... 108
Main Menu (1 of 2) ................................................ 108
Main Menu (2 of 2) ................................................ 110
Recording Settings Menu ....................................... 111
Edit Menu Options ................................................. 112
Music Practice Tools Menu ..................................... 113
Continuous Recording Time with Battery Operation114
Pop-Up Messages .................................................. 115
Pop-Up Messages (continued)................................ 116
■Specifications.............................................. 117
General.................................................................. 117
Audio..................................................................... 117
Input/Outputs ....................................................... 117
■Trademarks, Copyrights and Disclaimers.. 118
MPEG Layer-3 Licensing ......................................... 118
■One Year Limited Warranty ....................... 119

- 8 - Superscope PSD450mkII User Manual
Superscope PSD450mkII User Manual
■Supplied Accessories
The following items (not pictured) are also in the box:
• Instruction Manual on CD-ROM (PDF format)
• Quick Start Guide (printed)
Infrared (IR) Remote USB Cable RCA Patch Cables
AC Adapter
AC Power Cord
AAA Batteries

Superscope PSD450mkII User Manual - 9 -
Superscope PSD450mkII User Manual
■Introduction
Thank you for purchasing a Superscope PSD400 Series Recording System.
Were you looking for a high-quality, portable recorder? A music practice and transcription tool? If either factor is
important to you, we’re confident you’ll find your recorder to be an immensely powerful and versatile audio system.
Here are just a few features of the PSD400 recorder series:
General Features
• 3.5-inch liquid crystal color display for easy navigation of all features.
• Record up to 6 hours with eight nickel metal hydride AA batteries (or 3.6 hours with alkaline batteries).
• USB connection for transferring audio files to and from a computer.
• Stereo internal microphones.
• Stereo XLR combo microphone jacks.
• 48 V phantom power.
Recording Features
• Record live performances to the Internal Memory, external USB storage, or direct to Compact Disc.
• Record WAV or MP3 files to the Internal Memory or external USB storage.
• Burn Compact Discs from audio files on your Internal Memory or external USB storage.
• Layer audio with the Overdub feature.
• Edit file information or recorded audio (Trim, Divide, etc.).
Music Practice Features
• Change the key of a song without affecting tempo (+/- one octave in half steps or finer increments).
• Change the tempo of a song without affecting musical pitch (-75% to +50%).
• Create new versions of audio files in different keys and tempos.
• Seamlessly loop different sections of audio material for practice or transcription.
• Reduce lead vocals from stereo recordings.
• Rehearse with the built-in metronome.
• Tune your instrument with the 440 Hz tone or chromatic tuner.
Package Contents
• One Superscope PSD450mkII Recorder.
• One AC adapter (DA450PSD).
• One infrared wireless remote controller (RC450PSD).
• 2-AAA type batteries (for remote control).
• One USB cable.
• One RCA stereo audio system cable.
• One instruction manual on CD-ROM.
• One Quick Start Guide (printed).
Perchlorate Material - special handling may apply,
See www.dtsc.ca.gov/hazardouswaste/perchlorate.”

- 10 - Superscope PSD450mkII User Manual
Getting Started
■Preparations
Before Use
AC Adapter Connection
Connect the power output plug of the adapter to the DC
IN jack of the recorder. Connect the AC Power cord to
the household AC power receptacle.
AC Adapter Safety
Only use the AC adapter that is provided with the
recorder. Use of other adapters may result in damage to
the recorder and invalidate the warranty.
Using Batteries
The recorder is designed for use with 8 “AA” size
Alkaline or Nickel-Metal Hydride (Ni-MH) batteries.
The recorder DOES NOT allow for charging of
rechargeable batteries. If you use rechargeable batteries,
you must use an external battery charger (see battery
charger manufacturer instructions for operation and safe
use).
The battery capacity monitoring is different for alkaline
batteries and Ni-MH batteries. Please select the correct
battery type you are using from the System Settings
menu of the recorder.
To operate the recorder with battery power, install
batteries into the recorder as follows:
1. Remove the battery cover from the rear side of the
recorder.
2. Insert the batteries into the battery compartment,
making sure to align the positive ( + ) and negative
( - ) end of each battery according to the polarity
diagram shown inside the compartment.
3. Re-attach the battery cover to the rear side of the
recorder.
※Burning CDs with battery power is not
recommended. Please connect AC power
before burning a CD.
Safety Cautions When Handling
Batteries
To avoid leakage, overheating, fire and rupturing, always
follow the points below when using batteries with the
recorder.
• Electrolyte leakage or corrosion may occur if
batteries are kept inside the recorder for prolonged
periods of time. Remove batteries prior to prolonged
storage of the recorder.
• When installing batteries into the recorder, make
sure the batteries are installed with the proper
polarity shown inside the battery compartment of
the recorder.
• Do not attempt to recharge non-rechargeable
batteries.
• Do not install old/exhausted batteries into the
recorder. Dispose of old batteries properly.
• Do not mix the types (Alkaline or Ni-MH) or voltages
of batteries.
Remote Controller Notes
The remote controller may not work if the infrared
receiver is exposed to direct sunlight.
The remote controller will not work when there is an
obstacle between the wireless remote controller and the
infrared receiver.
Please be careful when using the remote controller near
other equipment that responds to infrared signals.
Please do not place objects on the remote controller. If
an object resting on the remote continuously depresses a
button, battery power will drain.
The remote controller will work within a range of
5 m and 60 degrees right or left of the IR receiver, as
indicated by the following image:

Superscope PSD450mkII User Manual - 11 -
Getting Started
Remote Controller Battery Installation
Place 2-AAA batteries (included) inside the wireless
remote controller before it is used. Replace batteries by
removing the battery cover as shown:
Always match the polarity of the 2-AAA batteries with
the polarity indication inside the battery compartment.
Close the battery cover as shown:
With improper battery use, batteries may rupture, leak,
and cause corrosion. Please read the following guidelines
carefully:
If the remote controller is not in use for a long period of
time (more than one month), remove the batteries.
Please do not mix old batteries and new batteries
together.
Please match the polarity of the battery (+/ -) with the
polarity indication on the remote controller.
Batteries may have the same shape, but different
voltages. Do not mix different battery types.
If a battery leaks, clean the liquid from the battery
compartment and dispose of the leaking battery
according to the guidelines of your local government.
Please dispose of all used batteries according to the
guidelines of your local government.

- 12 - Superscope PSD450mkII User Manual
Getting Started
■About Discs
Playable discs
CD-R
CD-RW
Finalized CD-R and CD-RW discs recorded in the CD-DA
format and MP3 format can be played with the unit.
• Finalize is the process to make a CD-R/CD-RW playable
for players (not recorders).
• Some discs may not be able to be played depending
on condition of the discs and recording software.
• Single CDs (8 cm) cannot be used.
Disc Care
The glossy side shining like a rainbow is the front side of
the disc, and the side on which the label is printed is the
back. Unlike conventional turntables for playing analog
discs, the unit reads the information recorded on the disc
from underneath without contacting it using a beam of
laser light. Therefore, the performance of a compact disc
will not degrade like conventional analog records.
Handle discs carefully so as not to damage or
scratch the front side.
To protect the disc, avoid placing it in the following
locations:
• In direct sunlight or near a source of heat like a heater.
• In a place which is damp or dirty.
• In a place which could be exposed to rain, such as
near a window.
Always keep the disc surface clean.
When cleaning the disc surface, always be sure to use a
special compact disc cleaner and wipe as shown below.
• Do not use conventional record cleaner for analog
records, as this will adversely affect the disc surface.
Store discs properly by placing them in their disc cases.
• Do not attach a piece of paper or sticker on the label
side of disc. When a disc has a piece of plastic tape or
rental CD label with paste protruded from the edge or
when a disc has a trace of such a sticky object, do not
attempt to play the disc. If such a disc is played on the
CD player, it may cause the disc drive to malfunction
or it may be impossible to remove the disc.
• Do not use a disc with a special shape.
Do not attempt to play a disc with a special shape such
as a heart-shaped disc or octagonal disc. Equipment
malfunction may result.

Superscope PSD450mkII User Manual - 13 -
Controls
■Top Panel
POWER
Slide the POWER switch to the right to turn power ON or
OFF.
FUNCTION CONTROL Buttons
ⒶTRACK SELECT ⒸA-B LOOP
ⒷRECORD SETTINGS ⒹMUSIC PRACTICE TOOLS
A. TRACK SELECT
Press to select a track for playback, Edit, or Overdub.
Also, use to select a record location. Press this button a
second time to return to the main screen.
B. RECORD SETTINGS
Press to set for recording as follows;
Input Source, Recording Folder, Record Format (WAV/
MP3), Stereo/Mono setting, Bit Number/Bit Rate. Press
this button a second time to return to the main screen.

- 14 - Superscope PSD450mkII User Manual
Controls
C. A-B LOOP
Press to set the A-B loop when a music file plays. Press
and hold for 3 seconds to display the A-B loop detail
screen.
D. MUSIC PRACTICE TOOLS
Press to display the setting screen as follows;
TEMPO/KEY/Fine Tune, Voice Reduction, Tuner, Tone,
Metronome.
Low Battery Indicator
LED flashes when the battery power is low.
FUNCTION ADJUST Knobs
Turn to adjust various parameters. In addition, pushing
the knobs resets certain settings to their default
values. Refer to indication on display for knob/function
relationship.
ⒶFUNCTION ADJUST #1 knob
ⒷFUNCTION ADJUST #2 knob
ⒸFUNCTION ADJUST #3 knob
JOG WHEEL / JOYSTICK / ENTER
ⒶJOYSTICK / ENTER
ⒷJOG WHEEL
A. Move the joystick up and down to select items, or in
certain modes, to change screens. Move the joystick
right and left to changes parameters, or in Play mode
to search through a track. In addition, push the
joystick to "ENTER" (select) items or settings.
B. Turn the jog wheel to select various items or
parameters.
OVERDUB
When an accompaniment track is selected, press this
button to enter Overdub mode. When overdubbing is
complete, press this button to return to the main screen.
EZ GUIDE
Press for assistance operating the most popular features.

Superscope PSD450mkII User Manual - 15 -
Controls
CONTROL Buttons (Transport)
Ⓐ REC
ⒷPREVIOUS & REC REVIEW
ⒸPLAY/PAUSE
ⒹSTOP
ⒺNEXT
A. REC Button
From Stop mode, press to enter Record Pause mode or
Record mode. The Record LED will flash during Record
Pause mode and remain lit during Record mode. From
Stop mode, press to enter Record Pause mode or Record
mode. The Record LED will flash during Record Pause
mode and remain lit during Record mode. From Record
mode, press to increment a track.
Note: The Record button cannot be used to increment
tracks when recording direct to CD.
B. PREVIOUS & REC REVIEW Button
During playback, press to return to the beginning of the
track. If playback is within one second of the start point,
press to return to the beginning of the previous track.
In Stop mode, press to return to the beginning of the
previous track. In Record Mode, press to stop recording
and automatically play back the recently recorded file
(Rec Review function).
C. PLAY/PAUSE Button
From Stop mode, press to start or pause playback.
From Record Pause mode, press to begin recording.
From Record mode, press to pause the recording and
increment a track.
D. STOP Button
Press to stop playback or recording.
E. NEXT
Press to advance to the next track.
CONTROL Buttons (Top Right)
A B C D
ⒶMENU
ⒷDELETE / CANCEL
ⒸEDIT
ⒹMAKE CD
A. MENU
Press to view menu options.
B. DELETE / CANCEL
Press to cancel settings and delete characters when
editing titles and file information, or delete the music
data.
C. EDIT
Press to view edit options.
D. MAKE CD
Press to:
• Burn a CD (audio or data)
• Finalize a CD
• Duplicate a CD
• Erase (CD-RW only)
Internal Speaker
All sounds can be heard through the built-in monitor
speaker.
- Internal Mic R & Internal Mic L
Use the Right and Left internal mics to record without
additional equipment.
LCD Color Display
High-resolution full-color liquid crystal display monitor.
Please refer to LCD Display for an explanation of display
icons.

- 16 - Superscope PSD450mkII User Manual
Controls
■Front Panel
Infrared (IR) Receiver
The infrared receiver detects signals from the wireless
remote controller.
IR Signal Indicator
This LED flashes red when a signal from the wireless
remote controller is received.
CD-RW Drive
Insert an audio CD for playback, accompaniment,
transfer to the Internal Memory or duplication. Insert a
CD-R/RW for burning audio or data discs.
EJECT Button
Press to eject a compact disc from the CD-RW drive.
MIC / LINE L & R Level Control
Turn these knobs to adjust the level of the MIC/LINE inputs.
INST (Instrument) Level Control
Turn this knob to adjust the level of the INST input.
PHONES Jack
Connect stereo headphones here. This input accepts ¼”
headphone plugs.
PHANTOM Power ON/OFF SWITCH
Switch on to supply 48 V phantom power to
microphones connected to the XLR inputs. Switch off
when a microphone does not need phantom power.
MIC ATT ON/OFF
If input level controls are turned low and microphone or
instrument levels are still too strong, switch on to add 15
dB of attenuation.
RECORD LEVEL MAN / LIM / ALC
This switch determines the method for setting record
levels.
MAN (Manual)
Input level is controlled by manual adjustment of the
Mic/Line, INST, or AUX level controls.
LIM (Limiter)
Input level is controlled by manual adjustment of the
Mic/Line, INST, or AUX level controls. A limiter circuit
protects against signal overload.
ALC (Automatic Level Control)
The Mic/Line, INST, or AUX level controls are bypassed
and input level is controlled automatically. A limiter circuit
protects against signal overload.
PHONES / SPEAKER LEVEL
Turn this knob to adjust the level for the built-in speaker
and headphones.
16 18 19 20
24232221
14 15 17

Superscope PSD450mkII User Manual - 17 -
Controls
25 26 27 28 29 30
■Right Side Panel
Left / XLR / 1/4” Input Jack
Connect microphones or line level equipment with XLR
or ¼” inch plugs here. Push the RECORD SETTINGS
button [2B] to select the input you wish to use.
Right / XLR / 1/4” Input Jack
Connect microphones or line level equipment with XLR
or ¼” inch plugs here. Push the RECORD SETTINGS
button [2B] to select the input you wish to use.
INST IN Jack
Connect an electric guitar, bass, or keyboard here.
VU Meter Overload If your keyboard or guitar/bass
signals routinely cause the VU meters to display “OVER,”
change INST Input Gain setting to Low.
AUX LEVEL
Turn this knob to adjust the input signal level of the AUX
IN.
AUX IN Jacks
Use these inputs when connecting line level equipment
with RCA outputs, such as CD players or mixing boards.
LINE OUT Jacks
Connect these outputs to the inputs of another audio
device, such as an amplifier, mixing board or alternate
recording device.

- 18 - Superscope PSD450mkII User Manual
Controls
DC Input Jack
Connect the DA450PSD AC to DC adapter here.
Do not use any adapter other than the DA450PSD.
USB Connector B
Connect a USB cable here to transfer data between a
computer and the Internal Memory. In USB mode, all
other features will be inactive. The recorder will not enter
USB mode during recording or when menu screens are
active.
USB PC / Flash Memory Switch
Slide to “PC” when connecting a PC, slide to “FLASH
MEMORY” when connecting a USB memory or other
USB device.
USB Connector A
Connect a USB memory or other USB device.
■Left Side Panel
FOOT PEDAL Jack
Connect an optional foot pedal here to provide Play/
Pause, or Record/Pause control. The Superscope FT200
foot pedal is available at our online store.
DIGITAL OUT Jack
Connect to the digital input terminal of another audio
product. The system outputs a signal with a 44.1 kHz
sample rate.
DIGITAL IN Jack
Connect the digital output of another audio product to
this terminal.

Superscope PSD450mkII User Manual - 19 -
Controls
■Back Panel
Battery Compartment
Insert a Ni-MH rechargeable battery or eight alkaline size
AA batteries here. Please refer to Using Batteries.

- 20 - Superscope PSD450mkII User Manual
Controls
STANDBY / POWER
Press to turn power ON or OFF.
※During battery operation, this button can only
be used to power the unit off. The AC adapter
must be connected to power the unit on with
the remote control.
w Alphanumeric Keypad
When editing folder names, playlist names, or file
information, use the alphanumeric keypad to enter text.
It is possible to select track number dulling CD play.
eFOLDER
Press to select a new folder.
The place that is deeper than the second hierarchy
cannot access it.
rSEARCH
Press to access the Search function.
tCANCEL
When editing folder names, playlist names, or file
information, use this button to delete a character. Also
used to undo changes to Menu settings.
yTEMPO
Press to increase or decrease playback speed without
affecting pitch.
uENTER
Press to enter selected menus or confirm setting
changes.
iFINE TUNE
Press to increase or decrease playback pitch without
affecting playback speed. Fine Tune control is adjustable
+/-50 cents (100 cents = 1 semitone).
oTEMPO RESET
Press to reset Tempo control to normal speed.
aPL AY
Press to play the currently selected track.
■Remote Control
