Sure Heat Four Seasons FS87PHLP User manual

USE AND CARE MANUAL
For Model FS87PHLP
Stop! Missing a part? DO
NOT RETURN PRODUCT
TO STORE
The store where you made the purchase does not stock
parts for this item. If you need parts, whether they are
missing or damaged, please call Customer Service at 1-800-229-5647
Call us between 8:00 AM and 5:00 PM Eastern time, Monday through Friday
or email us at [e-mail]
FOR YOUR SAFETY:
1. Read this Manual before
attempting to assemble or
operate your patio heater.
2. Follow safety instructions.
3. Check for leaks according
to the directions in this
Manual before operating
your patio heater, even if
purchasing an assembled
patio heater.
4. Keep this Manual for
future reference.
5. Contact 1-800-229-5647
should you need assembly
assistance or have any
questions.

General Safety Instructions...............................................................................
Components & Hardware..................................................................................
Additional Requirements..................................................................................
Assembly Process

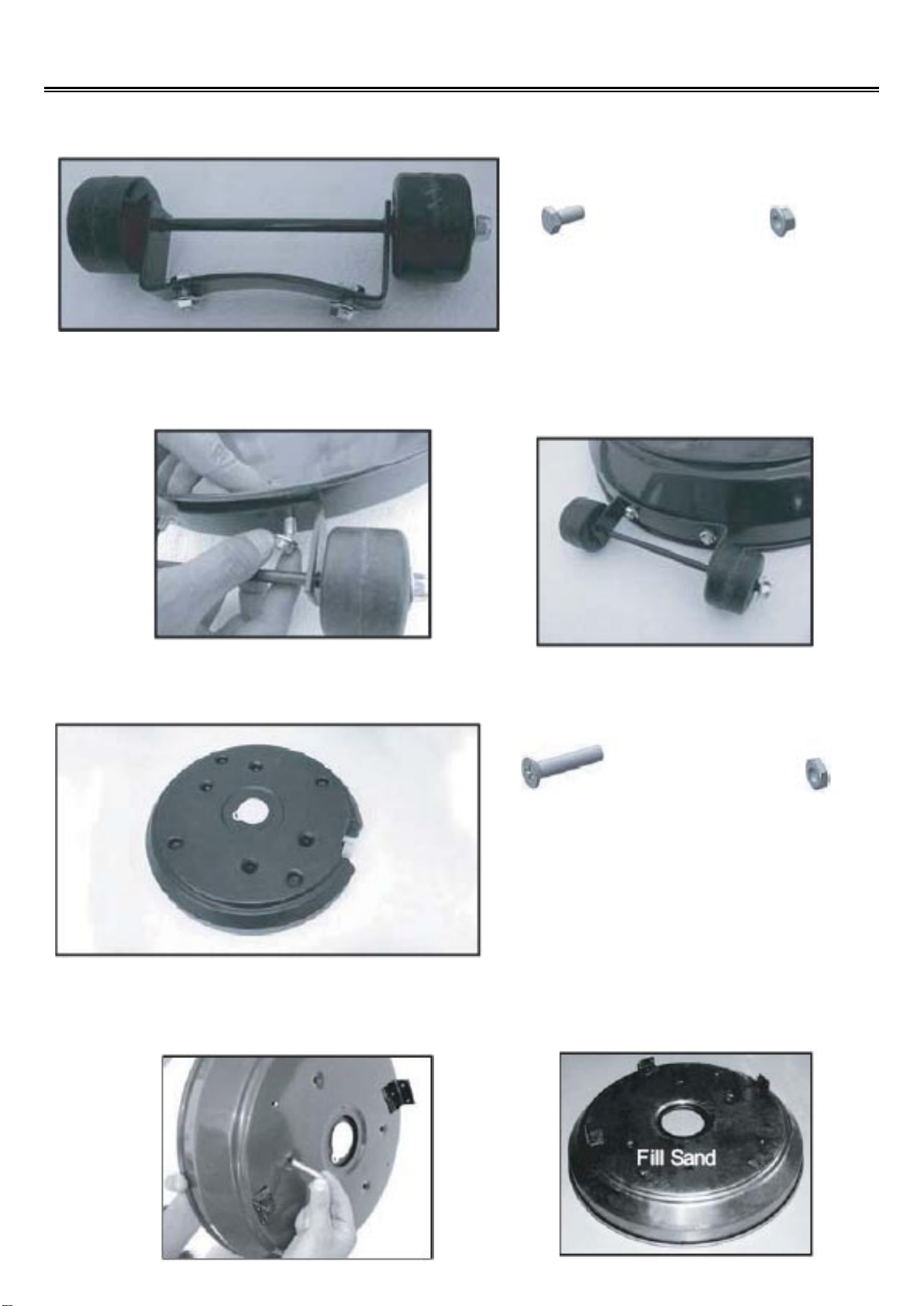

Step 1 – Attach Wheel Assembly to Base.........................................................
Step 2 – Attach Bucket to Base........................................................................

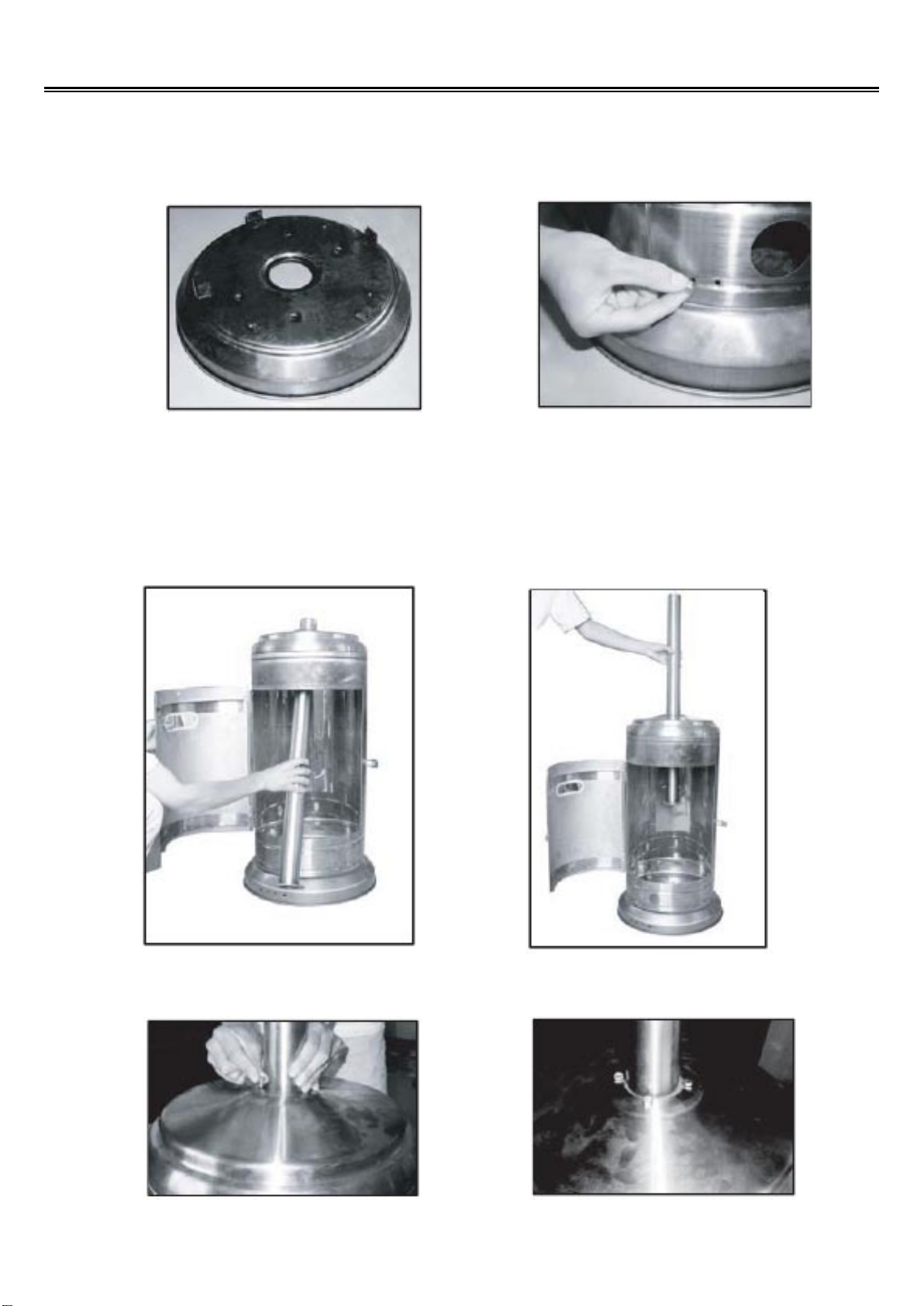

Step 3 – Attach Support Brackets to Base.......................................................
Step 4 – Attach Post to Support Brackets........................................................
Step 5 – Attach Reection Studs to Screen Cover...........................................

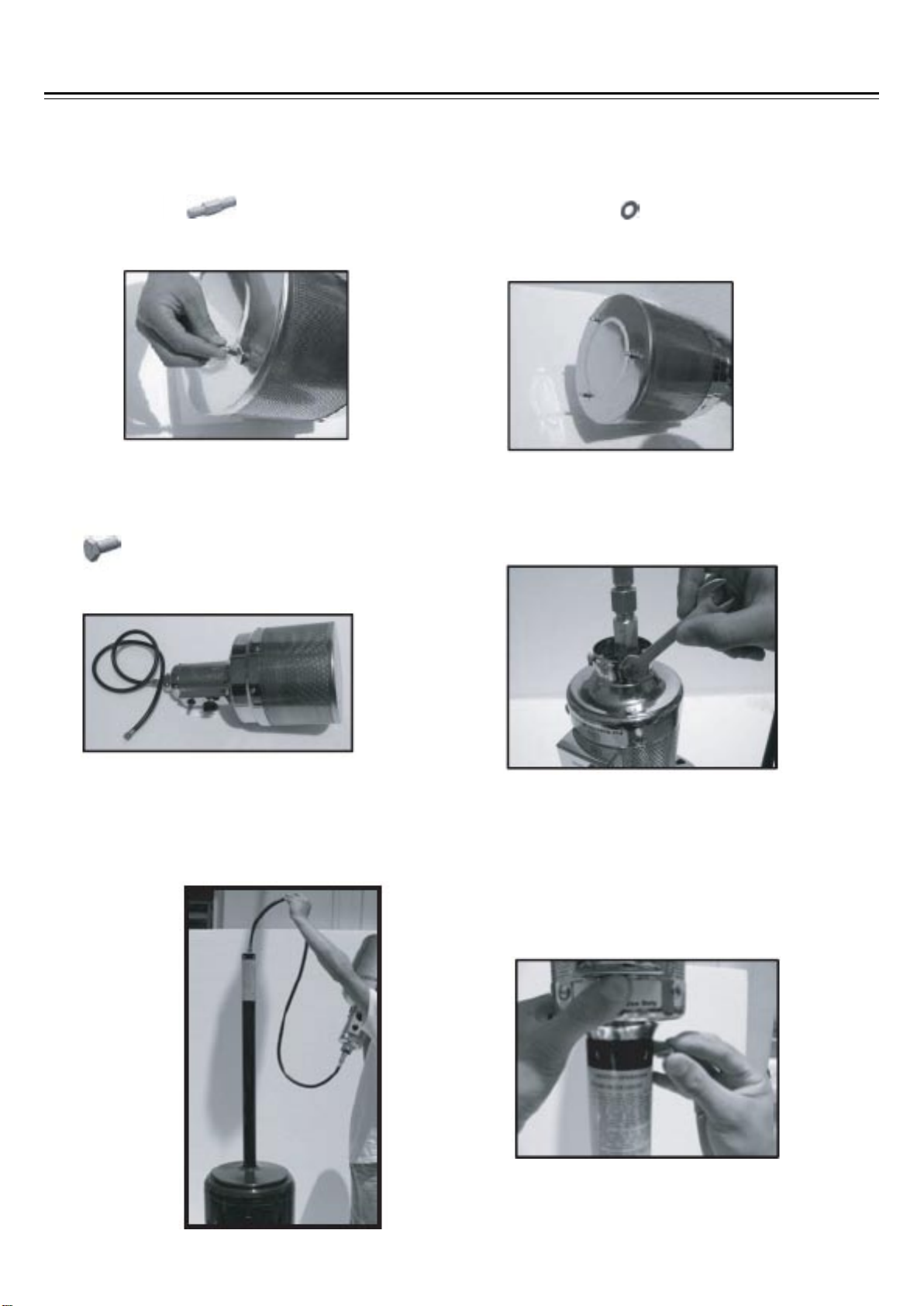

Step 6 – Attach Head Assembly to Post...........................................................

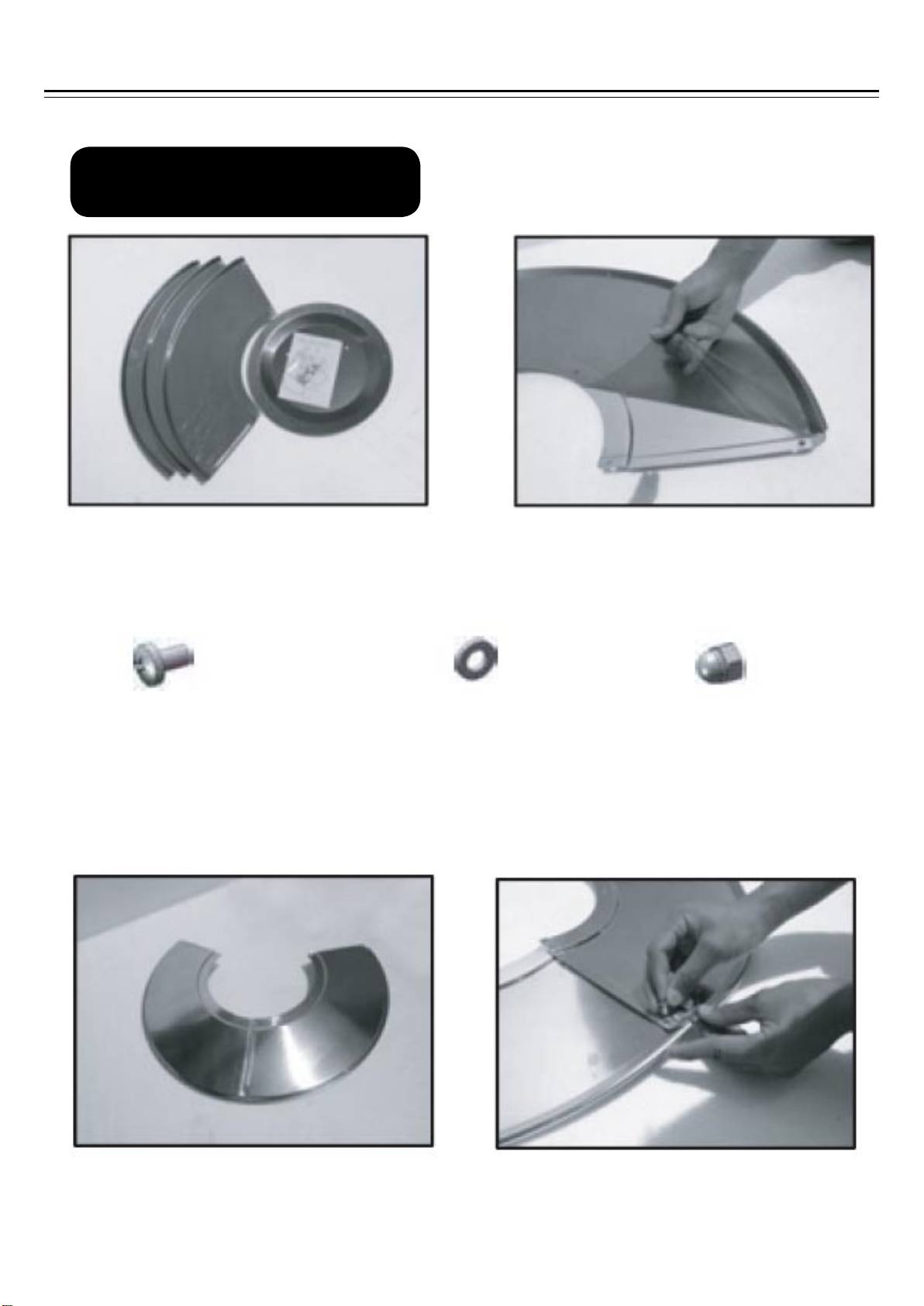

Step 7 – Install Reector...................................................................................
Step 8 – Attach Reector Assembly to Studs...................................................

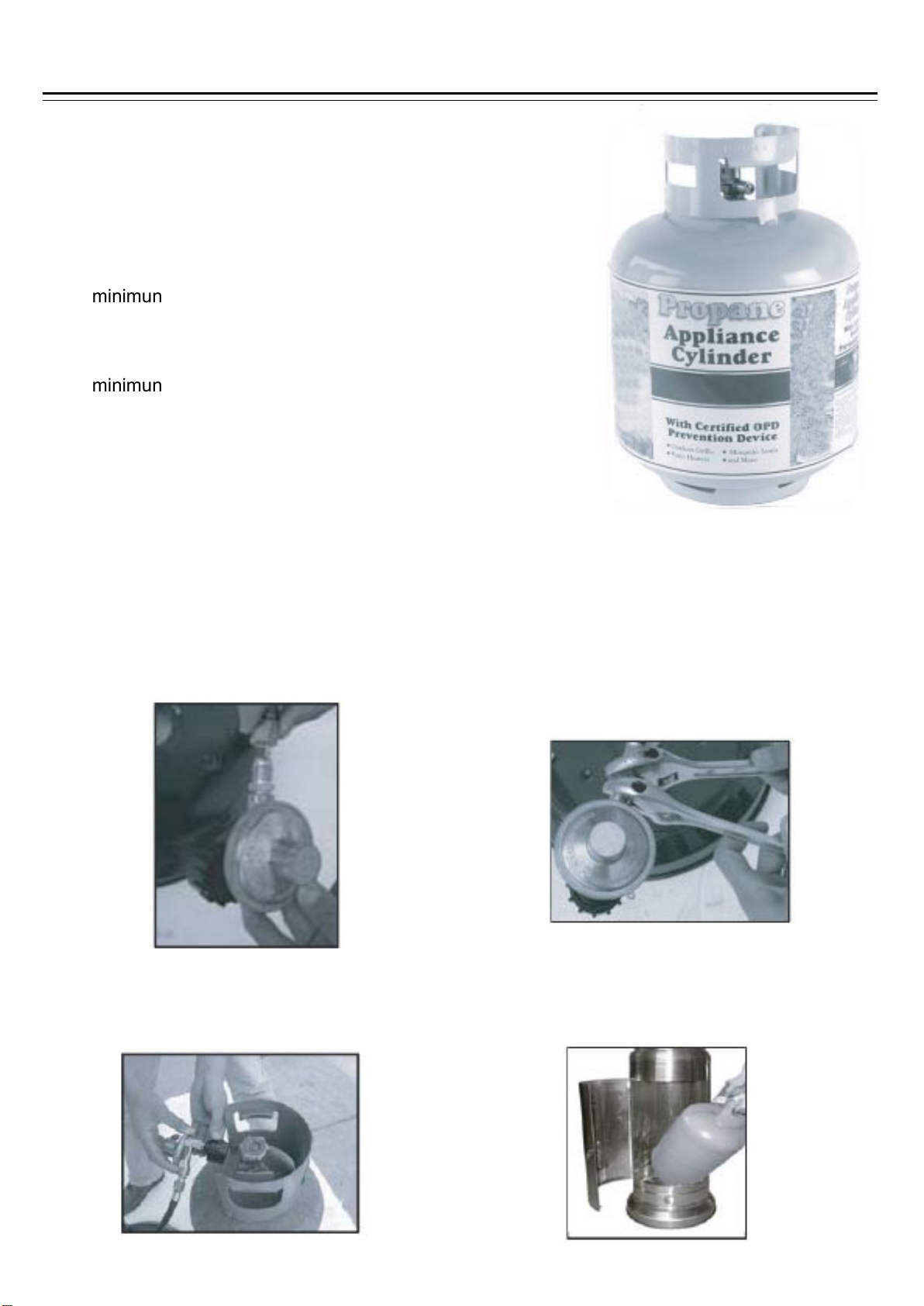

Step 9 – Connect hose & Regulator to Cylinder..............................................
Gas Requirement.............................................................................................
Pre-Operation Leak Testing..............................................................................
Operation..........................................................................................................
Care & Maintenance.........................................................................................
Troubleshooting................................................................................................
Warranty...........................................................................................................
Table of Contents
3-5
6-7
7
8
8
9
9
10
10
11-12
13
14
15
16
17-18
19
20
21
2

General Safety Instructions
IMPORTANT SAFETY INFORMATION
- This manual contains important information about the assembly, operation and maintenance
of this patio heater. General safety information is presented in these first few pages and is
also located throughout the manual.
- Keep this manual for future reference and to educate new users of this product. This
manual should be read in conjunction with the labeling on the product.
- Safety precautions are essential when any mechanical or propane fueled equipment is
involved. These precautions are necessary when using, storing, and servicing. Using this
equipment with the respect and caution demanded will reduce the possibilities of personal
injury or property damage.
- The following symbols shown below are used extensively throughout this manual. Always
heed these precautions, as they are essential when using any mechanical or fueled
equipment.
RECOGNIZE SAFETY SYMBOLS, WORDS AND LABELS
WARNING indicates a potentially hazardous situation which, if not avoided, could result in
death or serious injury.
NOTE indicates an important piece of information that needs to be observed to ensure the
proper operation of your heater.
▲
! DANGER
If you smell gas:
1. Shut off gas to the appliance
2. Extinguish any open flame
3. Open lid
4. If odor continues, keep away from the appliance and immediately call your gas supplier or
your fire department.
▲
! WARNING
1. Do not store or use gasoline or other flammable liquids or vapors in the vicinity of this or
any other appliance.
2. An LP cylinder not connected for use shall not be stored in the vicinity of this or any other
appliance.
INSTALLER: Please retain these instructions with the owner so
that they may maintain them for future reference.
3

General Safety Instructions
FOR YOUR SAFETY
DO NOT store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
An LP cylinder not connected for use shall not be
stored in the vicinity of this or any other appliance.
FOR OUTDOOR USE ONLY
4
▲
! WARNING
WARNING indicates you can be killed or seriously
injured if you don't follow instructions.
▲
! CAUTION
CAUTION indicates an imminently hazardous
situation which, if not avoided, may result in minor
or moderate personal injury, or property damage.
▲
! WARNING
Improper installation, adjustment, alteration,
service or maintenance can cause injury or
property damage. Read the instructions thoroughly
before installing or servicing this equipment.
▲
! DANGER
EXPLOSION - FIRE HAZARD
- Keep solid combustible materials, such as
building materials and paper or cardboard, a safe
distance away from the heater as recommended by
the instructions.
- Provide adequate clearances around air openings
into the combustion chamber.
- Never use the heater in spaces which may contain
volatile or airborne combustibles, or products such
as gasoline, solvents, paint thinner, dust particles
or unknown chemicals.
- During operation, this product can be a source
of ignition. Keep heater area clear and free from
combustible materials, such as gasoline, paint
thinner, cleaning solvents and other flammable
vapors and liquids. Do not use heater in areas with
high dust content. Minimum heater clearances
from combustible materials: three (3) feet from the
sides & two (2) feet from the top.
▲
! WARNING
- We cannot foresee every use which may be made
with our heaters.
- Check with your local fire safety authority if you
have questions about heater use.
Other standards govern the use of fuel gases and
heat producing products for specific uses.
- Your local authorities can advise you about these
standards.
- If no local codes exist, follow National Fuel
Gas Code, ANSI Z223.1. In Canada, installation
must conform to local codes. If no local codes
exist, follow the current National Standards of
CANADA CAN/CGA-B 149.2.
▲
! CAUTION
SERVICE SAFTY
- Keep all connections and fittings clean. Make
sure propane cylinder valve outlet is clean.
Inspect hose before use. Replace if there is
evidence of abrasion or wear.
- During set up, check all connections and fittings
for leaks using soapy water. Never use a flame.
- Use as a heating appliance only. Never alter in
any way or use with any device.
- Check entire hose at least annually.
▲
! DANGER
DANGER indicates you can be killed or
seriously injured if you don't immediately follow
instructions.

General Safety Instructions
▲
! DANGER
CARBON MONOXIDE HAZARD
- This heater is a combustion appliance. All
combustion appliances produce carbon monoxide
(CO) during the combustion process. This product
is designed to produce extremely minute, non-
hazardous amounts of CO if used and maintained
in accordance with all warnings and instructions.
Do not block air flow into or out of the heater.
Carbon monoxide (CO) poisoning produces flu-
like symptoms, watery eyes, headaches, dizziness,
fatigue and possibly death. You can't see it and
you can't smell it. It's an invisible killer. If these
symptoms are present during operation of this
product get fresh air immediately!
- For outdoor use only.
- Never use inside house, or other unventilated or
enclosed areas.
- This heater consumes air (oxygen). Do not
use in unventilated or enclosed areas to avoid
endangering your life.
▲
! WARNING
- This product is fueled by propane gas. Propane
gas is invisible, odorless, and flammable. An
odorant is normally added to help detect leaks
and can be described as a "rotten egg" smell. The
odorant can fade over time so leaking gas is not
always detectable by smell alone.
- Propane gas is heaver than air and leaking
propane will sink to the lowest level possible.
It can ignite from matches, lighters, sparks or
open flames of any kind many feet away from
the original leak. Use only propane gas set up for
vapor withdrawal.
- Propane gas should be stored or used in
compliance with local ordinances and codes or
with ANSI/NFPA 58. Turn off propane when not in
use.
▲
! DANGER
EXPLOSION - FIRE HAZARD
- Never store propane near high heat, open ames,
pilot lights, direct sunlight, other ignition souces or
where temperatures exceed 120 (49 ).
Propane vapors are heavier than air and can
accumulate in low places. If you smell gas, leave
the area immediately.
- Never install or remove propane cylinder while
heater is lit, if pilot light is lit, or ignition source
and heater are hot to the touch.
- This heater is red hot during use and can
ignite flammables too close to the burner. Keep
ammables at least 2 feet from sides & 3 feet from
top. Keep gasoline and other flammable liquids
and vapors well away from heater.
- The propane cylinder must always be stored
outdoors in a well ventilated space. Never store
propane cylinder in an enclosed area (House,
garage, etc.). If heater is to be stored indoors,
disconnect the propane cylinder for outdoor
storage.
5
FOR YOUR SAFETY
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish open ame.
3. If odor continues, immediately call your gas
supplier and local Fire Dept.
▲
! DANGER
Failure to comply with the precautions and
instructions provided with this heater can result
in death, serious bodily injury and property loss
or damage from hazards of fire, explosion, burn,
asphyxiation, and/or carbon monoxide poisoning.
Only persons who can understand and follow the
instructions should use or service this heater.
▲
! WARNING
BURN HAZARD
Never leave heater unattended when hot or in use,
Keep out of reach of children.
▲
! WARNING
California Proposition 65
Combustion by-products produced when
using this product contain chemicals known
to the State of California to cause cancer,
birth defects, and other reproductive harm.
