SVS Prime Pinnacle Series User manual

PINNACLE
OWNER’S MANUAL

Thank you, and congratulations on choosing the SVS
Prime Pinnacle speakers!
All it takes is one listen to Prime Pinnacle and you’ll understand the passion we have for
acoustic engineering and more importantly, thrilling and immersive audio experiences.
Leveraging design and technology from the reference SVS Ultra Series Speakers, Prime Pinnacle
features high-performance drivers and sophisticated crossover components typically found in
loudspeakers costing many times more. We’re proud to say that you won’t find better sound
quality, dynamic output or high-end loudspeaker design elements anywhere near the price.
If you ever have any questions about your SVS product, or need help setting them up, please
contact the SVS Sound Experts.
www.svsound.com • [email protected] • [phone]
Happy Listening!
owner’s manual | page 1version 1.4.10262018

PRIME PINNACLE
SPEAKER TABLE OF CONTENTS
page 2 | owner’s manual
Setting Up Your Prime Speakers.................................................................................................. 3
Foot Options........................................................................................................................... 3
Acoustics & Room Placement............................................................................................... 4
Room Placement.................................................................................................................... 5
Connecting Your Speakers.................................................................................................... 6
Caring for Your Prime Speakers................................................................................................... 7
Warranty & Support...................................................................................................................... 7
Share Your Thoughts.................................................................................................................... 7
Features & Specifications............................................................................................................. 8

PRIME PINNACLE
SPEAKER SETTING UP YOUR PRIME SPEAKERS
Foot Options
The Prime Pinnacle speakers come packaged with two sets of foot support options that allow
optimal placement on a variety of floor surfaces. The Elastomer Isolation feet that come pre-in-
stalled on the Prime Pinnacle speakers can be removed (unscrew to remove) and replaced with
the included Threaded Metal Spike Kit. Both sets of feet are threaded to allow easy leveling of the
Prime Pinnacles if they should stand on an uneven surface.
owner’s manual | page 3
Elastomer Isolation Feet
Threaded Metal Spikes
3

PRIME PINNACLE
SPEAKER SETTING UP YOUR PRIME SPEAKERS
Acoustics & Room Placement:
Proper placement of the front left/right speakers is essential to achieve the smoothest frequency
response, optimal stereo imaging and the most spacious, three-dimensional soundstage.
Stereo imaging and soundstage are affected by loudspeaker location and the listening position,
relative to each other and room boundaries. Moving the loudspeakers away from room boundar-
ies will tend to improve stereo imaging and spaciousness by attenuating and delaying boundary
reflections, thus optimizing direct sound and helping to preserve spatial information in the
recording.
The amount of exposed glass, drywall and bare floor in the room will increase the amount of
reflected sound and can influence the sound quality of any loudspeaker system. Furnishings like
carpeting, drapes and upholstered furniture will reduce the amount of reflected sound in the
room. Dedicated room treatments like absorbers, diffusers and bass traps can also improve the
sound quality of a listening environment and only serve to enhance the performance of a speaker
system, sometimes dramatically.
SVS recommends starting with the front loudspeakers located 30-degrees to the left and right (i.e.,
a 60-degree total window) of the listening position.
page 4 | owner’s manual
25-30˚

PRIME PINNACLE
SPEAKER SETTING UP YOUR PRIME SPEAKERS

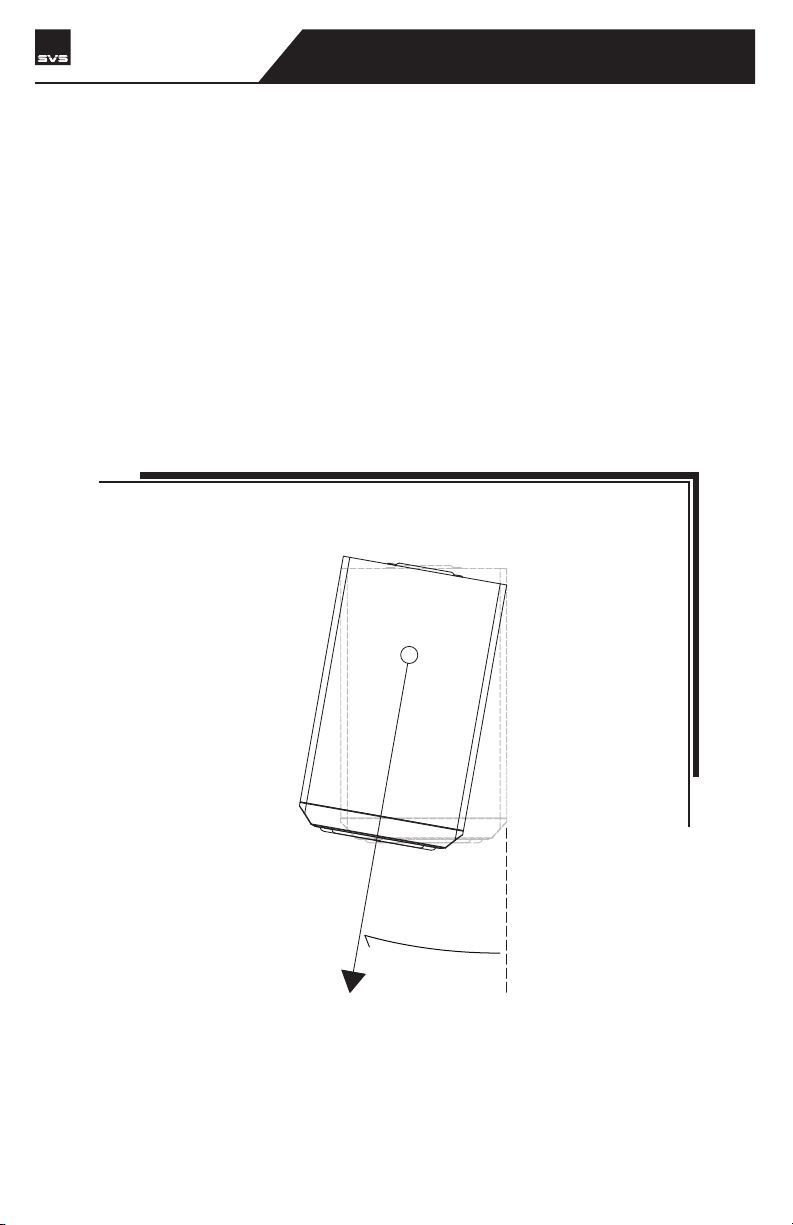

Room Placement:
Toeing-in the loudspeakers 5-10 degrees can often improve imaging, however this is also a
function of the distance from nearby boundaries and the ratio of direct-to-reflected sound, so
experimentation with toe-in is recommended to obtain optimal results.
The location of the front loudspeakers relative to nearby boundaries will excite various room
modes (a complex pattern of standing waves with associated peaks and nulls), which will affect
the bass response of the loudspeakers.
Generally, placing the loudspeakers closer to room boundaries (particularly corners) will increase
the bass response. Conversely, moving the loudspeakers away from boundaries and corners will
reduce the bass response. Due to the complex interaction of the loudspeakers with nearby
boundaries/corners and your listening position, significant changes to the bass response can
occur with very small changes in either loudspeaker location or listening position, so experimenta-
tion with both placement and listening position is recommended to obtain optimal results.
Please contact the SVS Sound Experts if you have any questions or concerns about placement of
your Prime Pinnacle speakers.
www.svsound.com • [email protected] • [phone]
owner’s manual | page 5
5-10˚

PRIME PINNACLE
SPEAKER SETTING UP YOUR PRIME SPEAKERS
Connecting Your Speakers:
Prime Pinnacle speakers include terminals with convenient gold-plated 5-way binding posts that
accept wires and cables terminated with banana plugs, speaker pins, spade connectors and bare
wire. Simply connect each loudspeaker to the appropriate amplifier channel of your receiver or
power amplifier.
To ensure proper performance of your speakers, always be sure to maintain proper +/- polarity
between the speaker and the amplifier or AV receiver.
page 6 | owner’s manual
POWER AMPLIFIER
TO
RIGHT
SPEAKER
SPEAKER LEVEL
OUTPUTS

PRIME PINNACLE
SPEAKER CARING FOR YOUR PRIME SPEAKERS
owner’s manual | page 7
WARRANTY & SUPPORT
Your Prime Speakers may be gently cleaned as follows:
5-YEAR UNCONDITIONAL WARRANTY
SVS offers the industry's most comprehensive warranty on all our products. SVS warrants these
Prime Pinnacle speakers and all of their products to be free from defects in the workmanship for
5 years from date of purchase.
This, and all of the SVS customer Bill of Rights can be viewed online at:
www.svsound.com/bill-of-rights.
SHARE YOUR THOUGHTS
Our SVS Sound Experts are standing by from Monday to Friday form 9AM-9PM ET, Saturday from
12PM-6PM, and Sunday from 12PM-4PM to assist you with speaker set-up and optimization, AV
Receiver settings and more. They can be reached by phone, email or chat via the options below.
www.svsound.com • [email protected] • [phone]
We also invite you to share a review on our website and to join our fun and active social media
community where we share reviews, featured systems, interesting audio articles and more.
• Use a dry microfiber duster to remove any loose surface dust.
• Use a water-damp microfiber cloth to remove fingerprints, smudges and other contami-
nants. Wipe in one direction only, with the grain if applicable.
• Follow any damp cleaning immediately with a dry microfiber cloth. Again dry wipe in one
direction only, with the grain if applicable.
Post at facebook.com/SVSound
Tweet @SVS_SoundFollow instagram.com/SVS_Sound
Watch at youtube.com/c/SVS_Sound

PRIME PINNACLE
SPEAKER FEATURES & SPECIFICATIONS
Specifications are subject to change. SVS is constantly working to improve our products and give you the best
listening experience possible.
PRIME PINNACLE
Frequency Response and Electro-Acoustic Data:
• Rated bandwidth: 29 Hz-25 kHz (+/-3 dB).
• Nominal impedance: 8 ohms.
• Sensitivity: 88 dB (2.83V @ 1 meter full-space, 300-3kHz).
• Recommended amplifier power: 20-300 watts.
Loudspeaker Physical Description:
• Premium Black Ash and Piano Gloss Black finish options.
• 5-way binding posts.
• Triple 2” wide-flared rear-firing ports.
• Cloth grille with pin/cup retention system.
• Cabinet Dimensions: 40.5" (H) X 8" (W) X 13.4" (D).
• Overall Dimensions: 41.1" (H) X 8" (W) X 13.9" (D) (includes grille, feet and binding posts).
• Weight Packaged: 66 lbs. (29.9 kg)
• Weight Unboxed: 57.1 lbs. (25.9 kg)
Driver Array and Technical Highlights:
• 1" tweeter features FEA-optimized diffuser and aluminum dome.
• 5.25" all new midrange driver features composite glass-fiber cone, aluminum shorting ring, cast
ABS-fiberglass composite basket and vented voice coil former.
• Triple 6.5" woofers feature long stroke motor and suspension, polypropylene cone, aluminum
shorting ring, cast ABS-fiberglass composite basket and vented voice coil former.
SoundMatch Crossover Network:
• 3-way crossover with premium-grade capacitors, air-core inductors and heavy-trace printed
circuit boards.
• 2-piece PCB design reduces component interference.
• Tweeter-to-Midrange crossover: 2.1kHz (12 dB/octave slopes).
• Midrange-to-Woofer crossover frequency: 300Hz (12 dB/octave slopes).
Cabinet Construction Technical Highlights:
• Separate sealed midrange enclosure with angled bracing diffuses and shifts standing waves
beyond the driver pass band, improving sound quality.
• Three separate woofer enclosures with optimized port tuning frequencies for smooth and
accurate bass response.
• Acoustically transparent and FEA optimized grilles minimize diffraction.
• Chamfered front baffle and flush-mounted drivers reduce edge diffraction and improved on-axis
high frequency response.
• FEA-optimized cabinet and angled bracing eliminates resonances and improves cabinet rigidity
for acoustically inert enclosure.
page 8 | owner’s manual

SVS
260 Victoria Rd.
Youngstown, Ohio 44515
United States
[phone]
www.svsound.com
