Swisher ACR-500, ACR-500S User manual

ACREAGE RAKE
1602 CORPORATE DRIVE PO BOX 67 WARRENSBURG, MISSOURI 64093
PH 660. 747. 1 3 FAX [phone]
swisherinc.com
MANUFACTURING QUALITY LAWN CARE EQUIPMENT SINCE 1945
Owner’s
Manual
IMPORTANT
Read and follow all
Safety Precautions
and Instructions
Before Operating this
Equipment.
Made In CHINA
ASSEMBLY
OPERATION
MAINTENANCE
11306 REV. 06-087
ACR-500
ACR-500S
ATV ACCESSORIES

LIMITED WARRANTY
The manufacturer’s warranty to the original consumer purchaser is: This product is free from
defects in materials and workmanship for a period of one 1) year from the date of purchase by
the original consumer purchaser. We will repair or replace, at our discretion, parts found to be
defective due to materials or workmanship. This warranty is subject to the following limitations
and exclusions:
1) Commercial Use
The warranty period for any product used for commercial or rental
is limited to ninety 90) days from the date of original purchase.
2) Limitations This warranty applies only to products which have been properly
assembled, adjusted, and operated in accordance with the
instructions contained within this manual. This warranty does not
apply to any product of Swisher Mower and Machine Co., Inc.,
that has been subject to alteration, misuse, abuse, improper
assembly or installation, or shipping damage.
3) Exclusions Excluded from this warranty are normal wear, normal
adjustments, and normal maintenance.
In the event you have a claim under this warranty, you must return the product to an authorized
service dealer. All transportation charges, damage, or loss incurred during transportation of
parts submitted for replacement or repair under this
warranty shall be borne by the purchaser.
Should you have any questions concerning this warranty, please contact us toll-free at 1-800-
222-
8183. The model number, serial number, date of purchase, and the name of the authorized
Swisher dealer from whom y
ou purchased the mower will be needed before any warranty claim
can be processed.
THIS WARRANTY DOES NOT APPLY TO ANY INCIDENTAL OR CONSEQUENTIAL
DAMAGES AND ANY IMPLIED WARRANTIES ARE LIMITED TO THE SAME TIME
PERIODS STATED HEREIN FOR ALL EXPRESSED WARRA
NTIES. Some states do not
allow the limitation of consequential damages or limitations on how long an implied warranty
may last, so the above limitations or exclusions may not apply to you. This warranty gives you
specific legal rights and you may have other rights, which vary from state-to-
state. This is a
limited warranty as defined by the Magnuson-Moss Act of 1975.

SAFETY PRECAUTIONS
Read this manual com letely. Failure to observe the following safety
instructions could result in serious injury or death.
This Safety Alert Symbol indicates im ortant messages in this
manual. When you see this symbol, carefully read the message that
follows and be alert to the ossibility of ersonal injury.
 Read the manual. Learn to operate this machine safely.
 Keep the operating speed LOW!!!!! Do not operate over 5 MPH 8KMH).
 Allow only responsible adults who are familiar with these instructions to operate this machine. Never
allow children to operate this machine.
 Be sure the area is clear of other people before operating. Children are often attracted to the machine
and the operating activity. Never assume that children will remain where you last saw them. Keep
children under the watchful care of another responsible adult.
 Follow tire inflation printed on tires. Never inflate tires higher than the MAX PSI printed on
tires.
 Do not operate the attachment if it has been dropped or damaged in any manner. Repair as necessary.
 Stop and inspect the equipment if you strike an object. Repair if necessary, before restarting.
 Dress properly. Do not operate when bare foot or wearing open sandals.
 Do not operate the machine while under the influence of alcohol or drugs.
 Never tamper with safety devices. Check their proper operation regularly.
 Operate attachments up and down slopes. There is a significant risk of overturns when operating across
slopes.
 Never make adjustments or re airs with the ATV engine running.
 When not in use, keep in a dry place.
 Oil moving parts from time to time with household lubricant.

PRE-ASSEMBLY:
Approximate assembly time of this product is ¾ of an hour.
Helpful Tip: Read all instructions before starting to assemble.
TOOLS REQUIRED FOR ASSEMBLY
1) Pliers
2) 14mm Wrenches
2) 19mm Wrenches
1) 24mm Wrench
REMOVE ALL PARTS FROM CARTONS
1. Remove the hardware packs and all parts from the cartons.
2. Layout and identify parts included in carton contents. see parts listing below)
3. Layout and identify parts included in the hardware pack. see parts listing below)
4. IF ANY PARTS ARE MISSING FROM PACKAGING
Contact Mfg. at 800) 222-8183 for missing hardware or instructions.

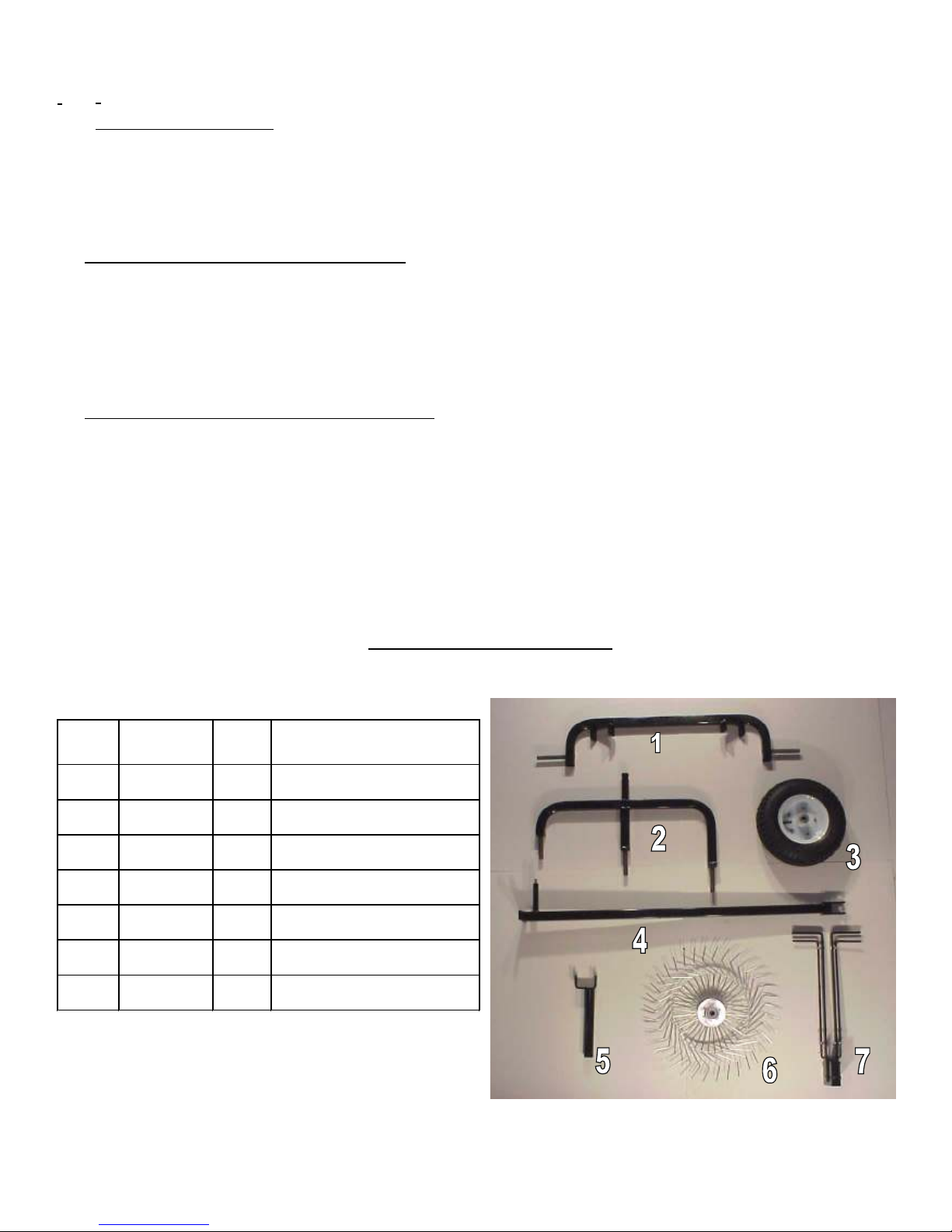

CARTON CONTENTS:
Ref # Part # Qty
Description
(metric size in mm)
1
11298 1 Axle Assembly
2
11299 2 Rake Wheel Arm
3
11300 2 Tire/Wheel Assembly
4
11301 1 Tongue Assembly
5
11302 2 Li t Arm
6
RRL-500 4 Rake Tine Wheels
7
11303 1 Li t Handle

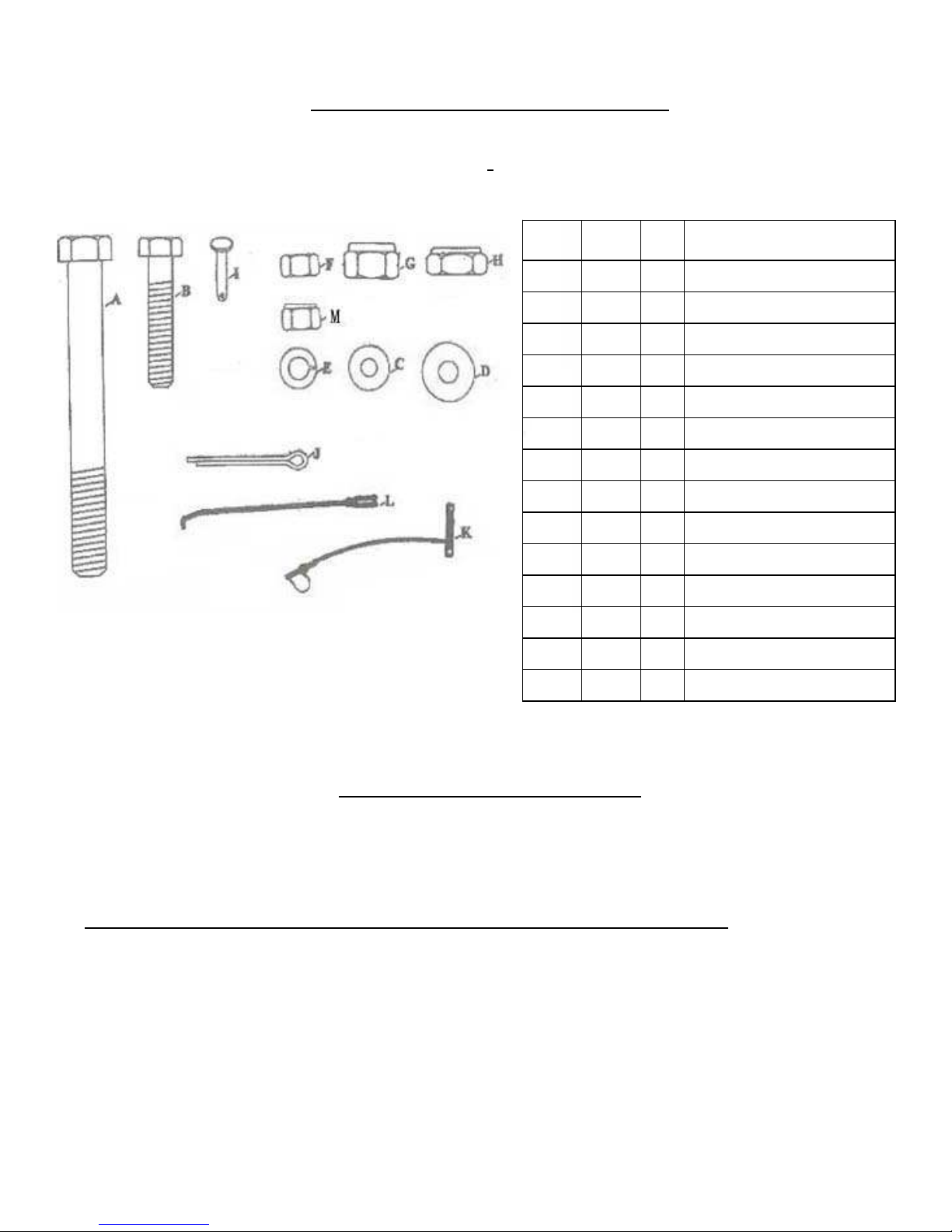

HARDWARE PACK CONTENTS:
Photo of Parts not Actual Size)
OPTIONAL ACCESSORIES:
Check with Retailer where you purchased this product for these optional attachments.
Or you may call the mfg at 800) 222-8183 for accessories and replacement parts.
Part/Item# Description
HTC-500 Sweeper Hitch Attachment for towing sweepers
Replacement Rake Tine Reel
Ref # Part # Qty
Description
(metric size in mm)
A NA* 2 Hex Bolt M12 X 110
B NA* 4 Hex Bolt M8 X 50
C NA* 2 Flat Washer diameter 6
D NA* 1 Te lon Washer diameter 8
E NA* 4 Lock-Washer, diameter 8
F NA* 4 Hex Nut M8
G NA* 2 Nylock Nut M12
H NA* 8 Nylock Nut M16
I NA* 2 Clevis Pin diameter 6 x 25
J NA* 4 Cotter Pin diameter 2 x 20
K 11304 2 Li t Cable Pivot Bar
L 11305 2 Li ting Rod
M NA* 1 Nylock Nut M8
N NA* 1 Hitch Pin with Clip (Not Shown)
*Standard hardware purchase locally

Figure 1
ASSEMBLY INSTRUCTIONS

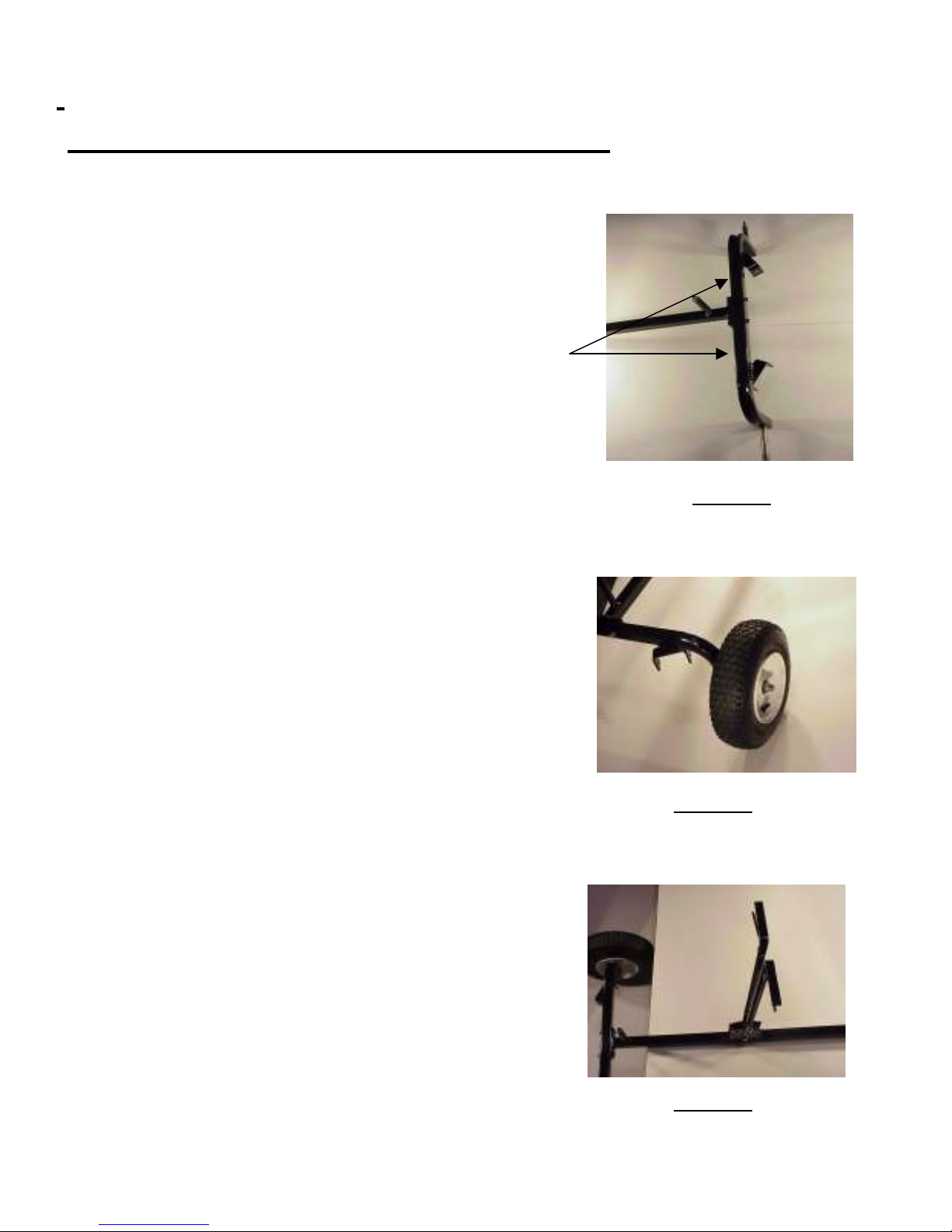

STEP 1: ATTACH TONGUE TO AXLE
Place tongue assembly #4) and axle assembly #1) on a
flat surface. Position the tongue so that the diameter of
19mm x length of 118mm shaft welded to the tongue is
straight up. Orientate the axle #1) so the lift arm hinges
welded to the axle face away from the tongue. See figure
1. Connect the tongue #4) to the axle #1) using two M8 x
50mm hex bolts B), two diameter 8mm lock washers E)
and two M8 hex nuts F). Fully tighten connections.
STEP 2: ATTACH WHEELS TO AXLE
Assemble the tire/wheel assembly #3) inflation valve
stem facing out) onto axle, securing the tire/wheel with
one M16 nylock nut H). See figure 2. Repeat on
opposite side of axle. CAUTION: DO NOT over tighten
the lock nut, this can result in damage to the bearings in
the wheel hub. When properly tightened, the wheel
should spin freely.
STEP 3: ATTACH LIFT HANDLE TO TONGUE -
Attach the lift handle #7) to the top of the tongue #4)
where two holes are located. See figure 3 for position of
lift handle on tongue. Secure using two M8 x 50mm B)
hex bolts, two diameter 8mm lock washers E) and two
M8 hex nuts F) .
Fully tighten connections.
ASSEMBLING THE ACREAGE RAKE
Figure 2
Figure 3

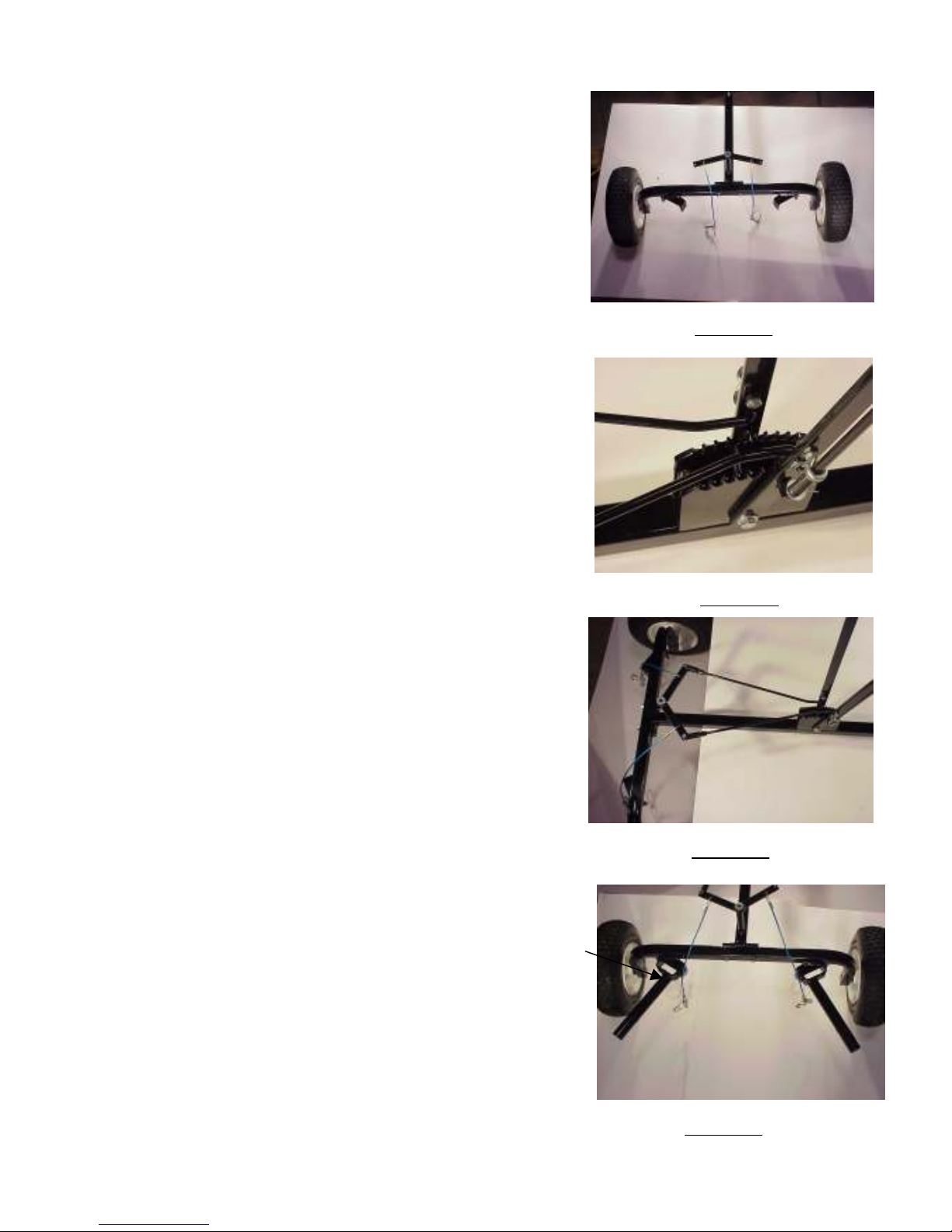

STEP 4: ATTACH CABLE PIVOT BAR
Attach the two lift cable pivot bars K) to the diameter of
19mm x length of 118mm shaft on the tongue assembly.
Install each pivot bar on top of shaft, use a diameter 8mm
Teflon washer D) between the two bars, then secure with a
M8 nylock nut M) . The cables and lock pins should be
positioned facing the rear of rake. See figure 4.
STEP 5: ATTACHING LIFT ROD
Attach the diameter 6mm round end of the lift rod L) to the
diameter 6mm hole on the inside of lifting handle. Secure
with diameter 6mm flat washer C), then cotter pin. See
figure 5.
STEP 6: ATTACH CLEVIS TO PIVOT BAR - Attach
the clevis pin I) on the end of lift rod opposite end of lift
handle). Then attach the clevis to the cable pivot bar from
STEP 4, secure with diameter 6mm x 25mm clevis pin I)
into diameter 6mm hole. See figure 6.
Do not insert cotter pin until adjustment procedure in
STEPS 11 to 13. Repeat STEPS 5 and 6 for second lifting
rod.
STEP 7: ATTACH LIFT ARMS TO AXLE
Attach the lift arm #5) to the wheel axle #1) using M12 x
110mm hex bolt A) and M12 nylock nut G). See figure 7.
Repeat on opposite side.
Usage Note: Note the lift arm offset in figure 7.
Assembling lift arms with the offset towards inside will
make a narrower space when raking. Narrow space is
recommended when using Sweeper attachment.
Figure 4
Figure 5
Figure 6
Figure 7

STEP 8: ATTACHING RAKE ARMS
Insert the rake wheel arm #2) into the lift
arm from in STEP 7. Secure rake wheel arm
to the lift arm using lock pin attached to end
of the lift cable. See figure 8 for rake arm
osition.
Repeat procedure for the rake arm on
opposite side.
STEP 9: ATTACH RAKING WHEELS
Attach three rake tine wheels #6) to rake
wheel axle arm #2) as shown in figure 9.
Secure with M16 nylock nut H). Make
certain that tines on all three wheels are
pointed in the same direction. Look at tips
of rake tines for direction.
CAUTION: Do not over tighten locknut as
it will cause bearing damage in the rake tine
wheel hub. Rake tine wheel should spin
freely. Assemble opposite side.
Make certain that the three rake tine
wheels on opposite side are positioned as
shown in figure 10. All rake tine tips
should rotate towards center in same
direction.
Figure 8
Figure 9
Figure 10

ADJUST THE OPERATING HEIGHT
of LIFT ARMS
NOTE: Adjustments may be needed based on the height
of the towing vehicle hitch.
Ste 10: Attach the Acreage Rake to the towing vehicle
hitch.
Follow Steps 11,12, and 13 for each lift arm.
These ste s are to make sure rake reel tines
will: (1) lift high enough for towing clearance,
and (2) rake tines will reach the ground
ro erly for raking or de-thatching.

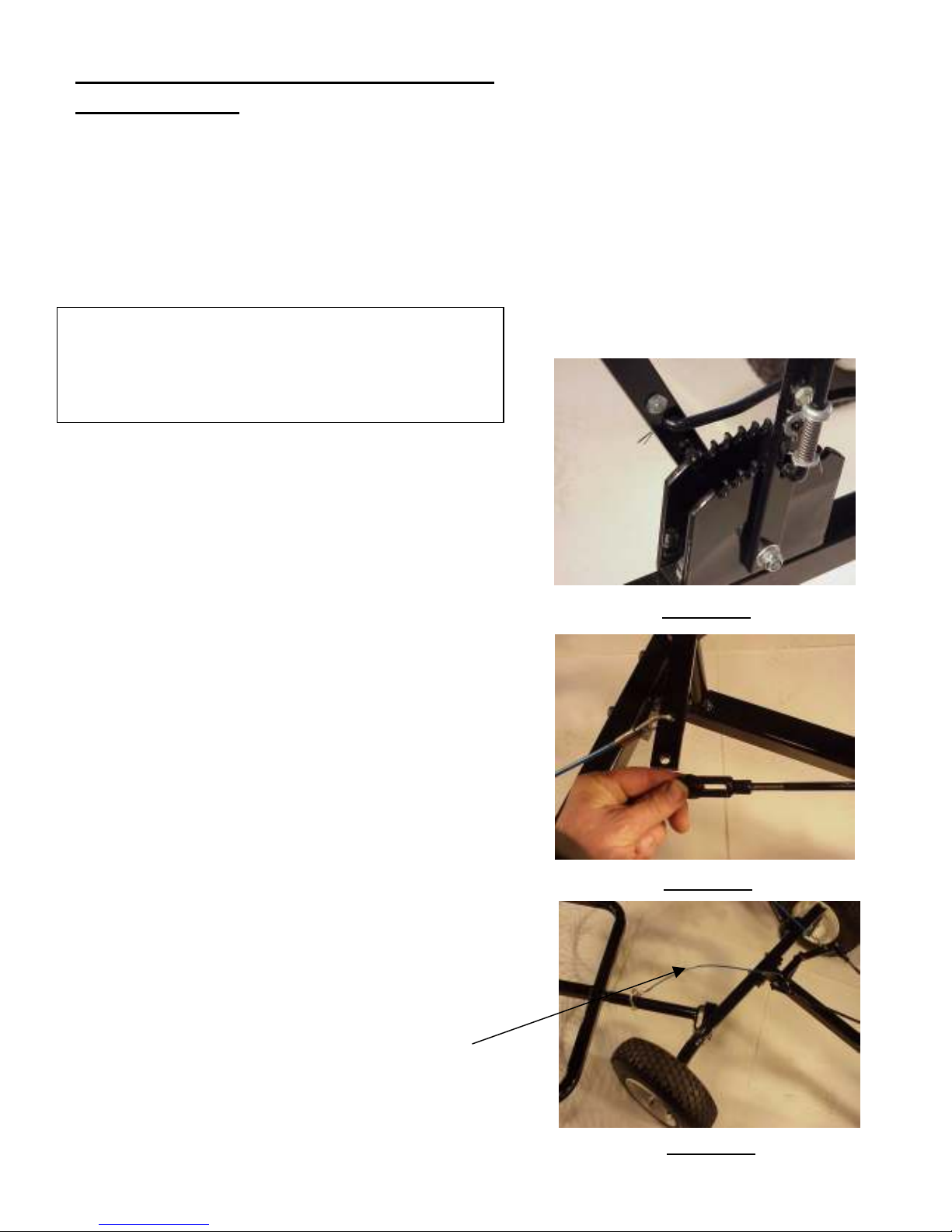

Ste 11: Position one lift handle fully forward. The
handle should position itself in the most forward notch on
the lift handle. See figure 11). Now check that the rake
tines are high enough off the ground for towing clearance
when rake assembly is not in use.
If handle is fully forward and the rake tines are not lifting
high enough off ground for clearance when towing, go to
next step for needed adjustment.
STEP 12: Remove diameter 6mm x 25mm clevis pin
from STEP 6) and rotate clevis in either direction to
achieve the desired stopping position or lifting height.
Reinstall Clevis Pins when finished. See figure 12.
Ste 13: Move lift handle to the rear position on lift
assembly. This is the operating/down position for the
rake tine wheels. The cable should have little slack in it
when in operating position. See figure 13. If cable does
not have slack when lift handle is in back notch of lift
assembly, adjustment is needed. Remove diameter 6mm
x 25mm clevis pin and rotate clevis until there is slack in
lifting cable. No adjustment needed after this step.
NOTE: This step allows the rake tine wheel assembly to
float when being used on uneven ground. It is ok if the
lift handle does not go all the way to most forward notch
after this step.
Figure 11
Figure 12
Figure 13

OPERATION AND MAINTENANCE
SETTTING RAKE TINE
WHEELS FOR THATCHING
VS. RAKING

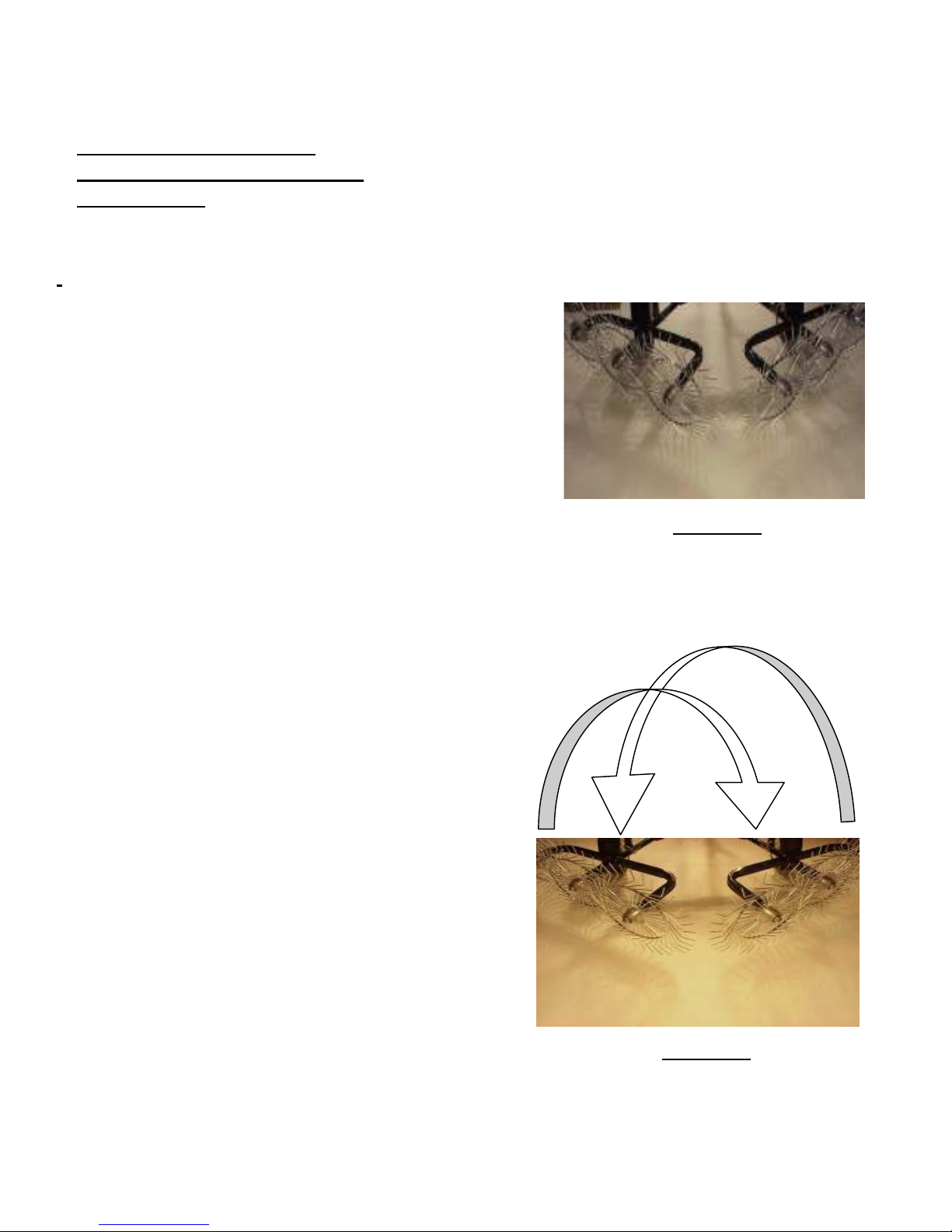

1. 1.. Acreage rake has been assembled for
raking. See figure 14. Note the direction of the
tine tips.
To position rake tine wheel assembly for
thatching, remove lock pin from both lift
arms and remove both rake tine wheel
assemblies from rake. Take the left rake tine
wheel assembly, flip it over rotate 180
degrees), and install on the right lift arm.
Take the right rake tine wheel assembly,
flip it over, and install on the left lift arm.
See figure 15. Note the position of the
tines. Make certain tips rotate in the same
direction – towards the center of the rake.
2.
Fli Each Arm 180 degrees
Figure 15
Figure 14

MAINTENANCE AN RECOMMEN ATIONS FOR
BEST RESULTS
O erating Ti :
Rake works for icking u Acorns or similar small articles other than grass/leaves
RAKE TINE WHEEL MAINTENANCE:
Following these recommendations will make the raking wheels last longer.
1. It is recommended to mow or cut grass to 3” or less before raking or de-thatching.
2. Rake Wheel Tine Recommendation:
When in operating position, try adjusting the height of rake tine wheels so raking
tines contact ground lightly. Keep the lifting cable almost tight when operating if
possible.
For deep raking or de-thatching, allow raking tines fully down on ground.
3. Rotate rake tine wheels from time to time:
Flip rake tines 180° as in step for raking vs. de-thatching.
Remove rake wheel and fully turn around, then replace rake wheel tine.
This will kee tines from bending in one direction.
Since all grasses are different, you may need to rotate rake wheels more often
when used in thicker grasses.

swisherinc.com
MANUFACTURING QUALITY LAWN CARE EQUIPMENT SINCE 1945
WHEN ORDERING PARTS, PLEASE HAVE THE
FOLLOWING INORMATION AVAILABLE:
* PRODUCT – ________________
* SERIAL NUMBER - _______________
* MODEL NUMBER - _______________
TYPE - _______________
* PART NUMBER WITH PAINT CODE
* PART DESCRIPTION
TELEPHONE - 1- 00-222- 1 3
FAX - 1-660-747- 650
SWISHER MOWER & MACHINE CO. INC.
SWISHER MOWER & MACHINE CO. INC.SWISHER MOWER & MACHINE CO. INC.
SWISHER MOWER & MACHINE CO. INC.
1602 CORPORATE DRIVE
P.O. BOX 67
WARRENSBURG, MO 64093
ATV ACCESSORIES
Owner’s
Manual
IMPORTANT
Read and follow all
Safety Precautions
and Instructions
Before Operating this
Equipment.
ACR-500
