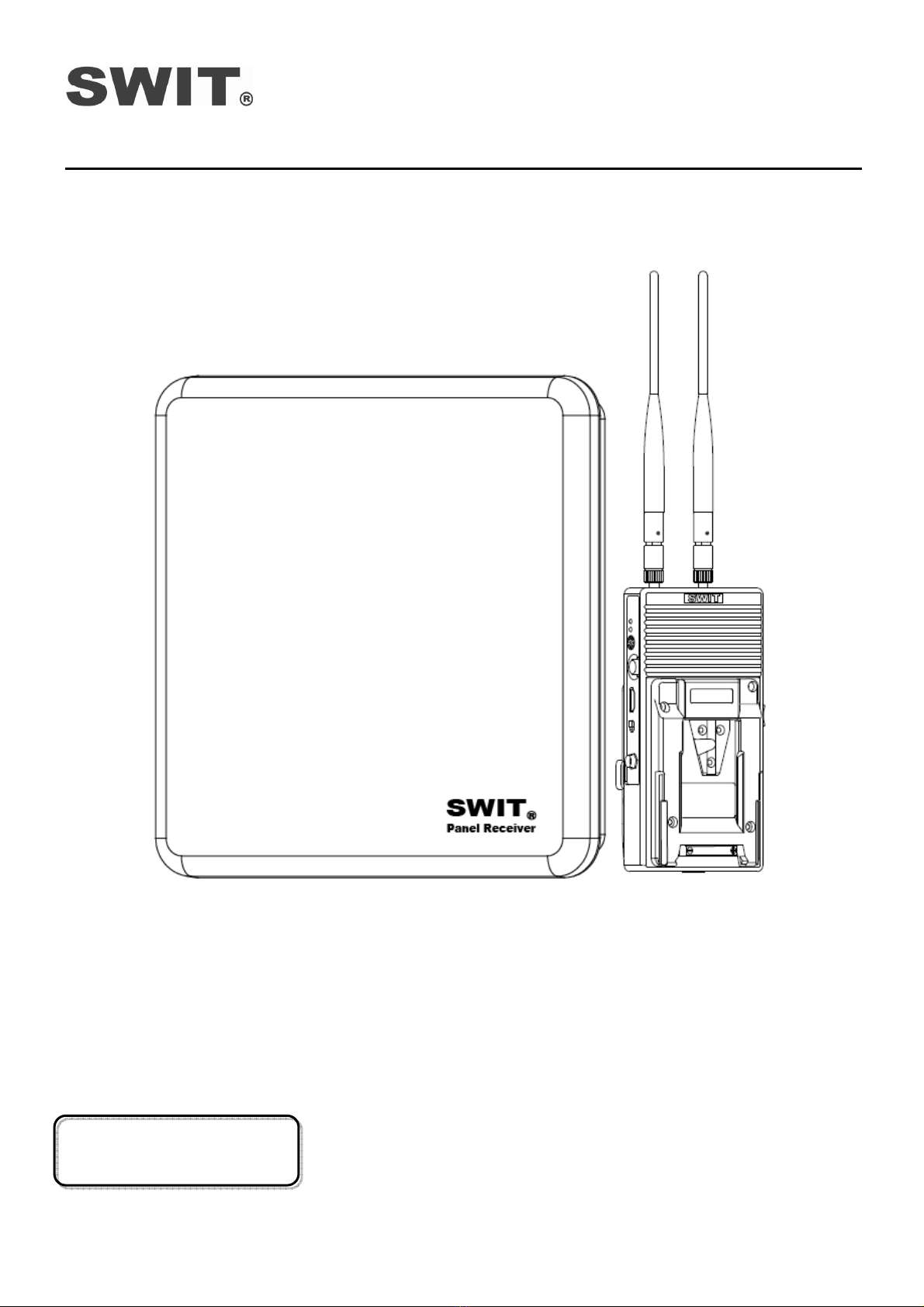

SWIT S-4904P User manual

Model: S-4904P
Wireless HD Transmission System （ with Panel Receiver）
User Manual
Ver:A
SWIT L CTRONICS CO., LTD
Please read this User Manual
throughout before using
CEV.FR

1
Preface
PrefacePreface
Preface
1 ． All internal technologies of this product are protected, including device, software and trademark.
Reproduction in whole or in part without written permission is prohibited.
2 ． All brands and trademarks of SWIT lectronics Co., Ltd. are protected and other relative trademarks in this
user manual are the property of their respective owners.
3 ． Due to constant effort of product development, SWIT reserves the right to make changes and
improvements to the product described in this manual without prior notice.
4 ． The warranty period of this product is 2 years, and does not cover the following:
(1) Physical damage to the products;
(2) Any damage or breakdown caused by use, maintenance, or storage not according to the user manual’s
instructions;
(3) The attenuation of signal quality resulting from being used in any special environments;
(4) Any damage caused by not powering the product by package supplied power adaptor.
(5) Any damage or breakdown not caused by the product’s design, workmanship, or manufacturing quality,
etc.
5 ． For any suggestions and requirements on this product, please contact us through phone, fax, mail, etc.
SWIT Electronics Co., Ltd.
Address: 10 Hengtong Road, Nanjing conomic and Technological Development Zone,
Nanjing 210038, P.R.China
Phone: [phone]
Fax: [phone]
mail: cont[email protected]
Website: http://www.swit.cc

2
For Your Safety
efore start, please follow the safety precautions below
Do not try the followings:
1. Unauthorized repairs or parts replacement or other operations.
2. Inappropriate placement including but not limited to lighting, fire, exposure to rain, water or gas.
3. Switch to the power not in the voltage allowable range.
Warning
 Do not get any liquid inside the product.
 Do not block the ventilation openings or get substances inside, in order to avoid short circuit, fire or electric
shock.
 Do not soak the product into water to avoid electric shock or fire.
 Make sure the protection work on the rainy day.
 Do not reverse the receiver to get the best transmission effect.
Danger
 Switch the power off before connecting other devices.
 Power socket: Make sure the power socket under the voltage range of the product to avoid short circuit,
electric shock and fire.
 Power cable: Make sure the power cable is not pressed or tightened by any items or weights.
 Power Load: Do not exceed the load on the wall outlet, extension cable or other porous receptacle to avoid
fire or electric shock.
 Lighting: Disconnect the power cable if it is lighting or not using in a lperiod of time.
Working environment
 Please don't lay the product on any unstable place to avoid fallen damage
 Please don’t use the product in a place overheating, undercooling or with lots of moisture, or near by strong
magnetic devices.
 Please don’t lay the product on metal shelf, in order to ensure the effective wireless transmission.

3
Contents
Preface .................................................................................................................................................... 1
Safety Precautions .................................................................................................................................. 2
Contents .................................................................................................................................................. 3
Packing list .............................................................................................................................................. 3
Product Introduction ................................................................................................................................ 4
Features .................................................................................................................................................. 4
Product Instruction .................................................................................................................................. 5
Transmitter S-4904T ............................................................................................................................ 5
Receiver S-4990 .................................................................................................................................. 6
Frenquency ............................................................................................................................................. 7
Build Connection ..................................................................................................................................... 8
Optional battery plate .............................................................................................................................. 8
Accessory ................................................................................................................................................ 9
Trouble shooting .................................................................................................................................... 10
Specification ....................................................................................................................................................... 10
Packing list
The wireless system offers three kinds of package for option, each includes:
Note: The system is equipped with two antennas, the other one is for spare.
Super Luxury package Luxury package Standard package
1 、 S-4904P 1 、 S-4904P 1 、 S-4990
2 、 S-7200 2 、 S-7200 2 、 S-7200
3 、 Antenna*3 3 、 Antenna*3 3 、 D-TAP to L MO cable
4 、 D-TAP to L MO cable 4 、 D-TAP to L MO cable 4 、 Carrying case
5 、 S-7104 5 、 S-7104 5 、 Warranty card
6 、 Articulating arm trestle 6 、 Articulating arm trestle
7 、 Carbon fiber monopod 7 、 Carrying case
8 、 Flat screwdriver 8 、 Flat screwdriver
9 、 Monopod installation
module 9
、 Warranty card
10 、 Carrying case
11 、 Warranty card

4
Product introduction
This broadcast industry wireless system includes S-4904T transmitter and S-4990 receiver, adopts WHDI
(OFDM) technology, supports uncompressed 3G/HD/SD-SDI and HDMI wirelessly transmitted in 1000 meters
scale, and with less than 1ms latency, which is widely used in on-site shooting and director monitoring.
Features
◆ Uncompressed 3G/HD/SD-SDI and HDMI transmission
Support up to 1080p 50/60 uncompressed SDI & HDMI wireless transmission
◆ 1000 meters transmission distance
In open outdoor area, the effective transmission distance is approx 1000 meters.
◆ Less than 1ms latency
There’s no discernible video delay and you can use it as real time on-location monitoring.
◆ License free operation frequency
The wireless frequency is 5.1-5.9GHz, license free operated.
◆ Frequency channel selection
Adopt buttons to select frequency channel and digital tube to display, easier to operate.
◆ Multicast support
Support one transmitter to multi receivers. User can set frequency to pair the transmitter and receivers.
◆ attery plate optional
User can choose Gold mount or V-mount battery plates for S-4904T transmitter.
◆ All-Metal Shell
Both the transmitter and receiver adopt metal shell which is durable and solid.
◆ Simple connection
The wireless system is plug-and-play designed, without any software connection and configuration.
Remark:
1. The transmission distance may be different, and depend on surroundings, radio wave conditions, buildings,
etc., the 1000 meters transmission distance may be not guaranteed.
2. The wireless transmission might be interrupt if there’re many other devices of 5GHz wireless bandwidth
operated in the in the same location.
3. Signal reception may be affected by the position, height and angle of devices. If reception video is not stable,
please physically adjust placement for the optimized signal.
4. Open the antennas at various angles and set receiver higher will enhance the transmission efficiency.
5. The product offers the A S 128-bit encryption to protect the wireless transmission. Anyway, please be ware
of the intentional capture from third person.

5
Product instruction
Transmitter S-4904T
Front view Rear view
⑴、⑵ LED status indicators:
Including Video Signal and Power indicators
⑶ Wireless frequency dial switch
Set frequency range from 0 ～ 9, in total 10 channels
⑷ SDI in ： 3G/HD/SD-SDI input (BNC connector)
⑸ HDMI in ： HDMI input (HDMI-A type connector)
⑹ On/Off ： Switch the power on/off
⑺ DC in ： Support DC 6.5-17V voltage input, 5.5mm/2.1mm. Outside: negative, Inside: positive
⑻ Power installer: To be installed on Gold mount or V-mount cameras
⑼ Antenna
⑽ attery Plate: Gold mount or V-mount battery plate optional. See details in “Optional Battery Plate”
⑾ Installation thread ：
1/4”-20 thread. Use the package supplied articulating arm trestle to install the device to the camera.
The description of LED status indicator
Device Indicators Status Description
S-4904T
transmitter
Power Constant On Power connected and switched on
Off Power disconnected or switched off
Video
Constant On Network is connected, and there is recognizable
video signal input
Off Network connection failed and there is no
recognizable video signal input

6
Receiver S-4990
Rear view
⑴ Handle
⑵ VESA bracket
⑶ Control area:
① RSSI ： Receiving signal L D indicator
② STATUS ： Video signal and power status indicator
③ CHANN L ： Digital display frequency channel
④ Button ： CH button: Selecting “ 0-9 ” 10 channels ；
OK button: Confirming selected channel
The description of LED status indicator
Device Indicators Status Description
S-4990
receiver
Power Constant On Power connected and switched on
Off Power disconnected or switched off
Video
Constant On Network connected, and there is recognizable video
signal output
Off Network connection failed and there is no
recognizable video signal output
RSSI
0
～ 1 L Ds light
The wireless network connection is weak, and the
video noise is visible
2 ～ 3 L Ds light
The wireless network connection is general, and the
video quality is good
4 ～ 5 L Ds light
The wireless network connection is strong, and the
video quality is very good

7
ottom view
⑴ On/Off ： Switch the power On/Off
⑵ DC in ： Support DC 7-36V voltage input, 4-pin lockable L MO connector
⑶ SDI Out ： SDI output (BNC connector)
Frequency Dial Switch
1. Using ONE set of devices under the same environment
Dial the frequency switch of both transmitter and receiver to the same channel (transmitter dial number same
to receiver digital display number), the default channel number is “0”:
S-4904T S-4990
2. Using TWO sets of devices under the same environment
It is suggested that set the dial switch of the first set to channel”0” and the second set to channel “5”
S-4904T #1 S-4990 #1 S-4904T #2 S-4990 #2
3. Using THREE sets of devices under the same environment
It is suggested that set the dial switch of the first set to channel”0”, the second set to channel “4” and the third
set to channel “7”:
S-4904T #1 S-4990 #1 S-4904T #2 S-4990 #2 S-4904T #3 S-4990 # 3
Note: 1. Please don’t use more than 3 sets of devices under the same environment to avoid interference.
2. To use multicast, just set several receivers at the same frequency channel as the one transmitter.
The description of frequency channel
Frequency
channel
“ 0 ” “ 1 ” “ 2 ” “ 3 ” “ 4 ” “ 5 ” “ 6 ” “ 7 ” “ 8 ” “ 9 ”
Real frequency
（ MHz ） 5550 5590 5630 5670 5150 5190 5230 5270 5310 5510
Note: If the on using frequency channel has been interfered, please select other frequency channels according
to the above table to avoid interference.

8
uild connection
⑴ Connect the SDI or HDMI video source with the “SDI IN” / “HDMI IN”
port of S-4904T transmitter.
⑵ Connect the “SDI OUT” / “HDMI OUT” port of S-4990 receiver with
monitor or other receiving devices.
⑶ Dial the S-4904T and S-4900 to the same frequancy channel.
⑷ Power S-4904T and S-4990, they will automatically search the network,
the S-4990 output video signal OSD displayed as Fig1.
⑸ The network will be built after 10-20 seconds, the ”RSSI” of receiver
indicates the wireless network connection status.
⑹ When S-4990 detect the recognizable video signal, ”Video”indicator will light and OSD will dispappear
Remark: S-4904T support SDI input and HDMI input, and it will automatically detect the connected signal input.
If both SDI and HDMI are connected, S-4914T will give priority to transmit SDI signal.

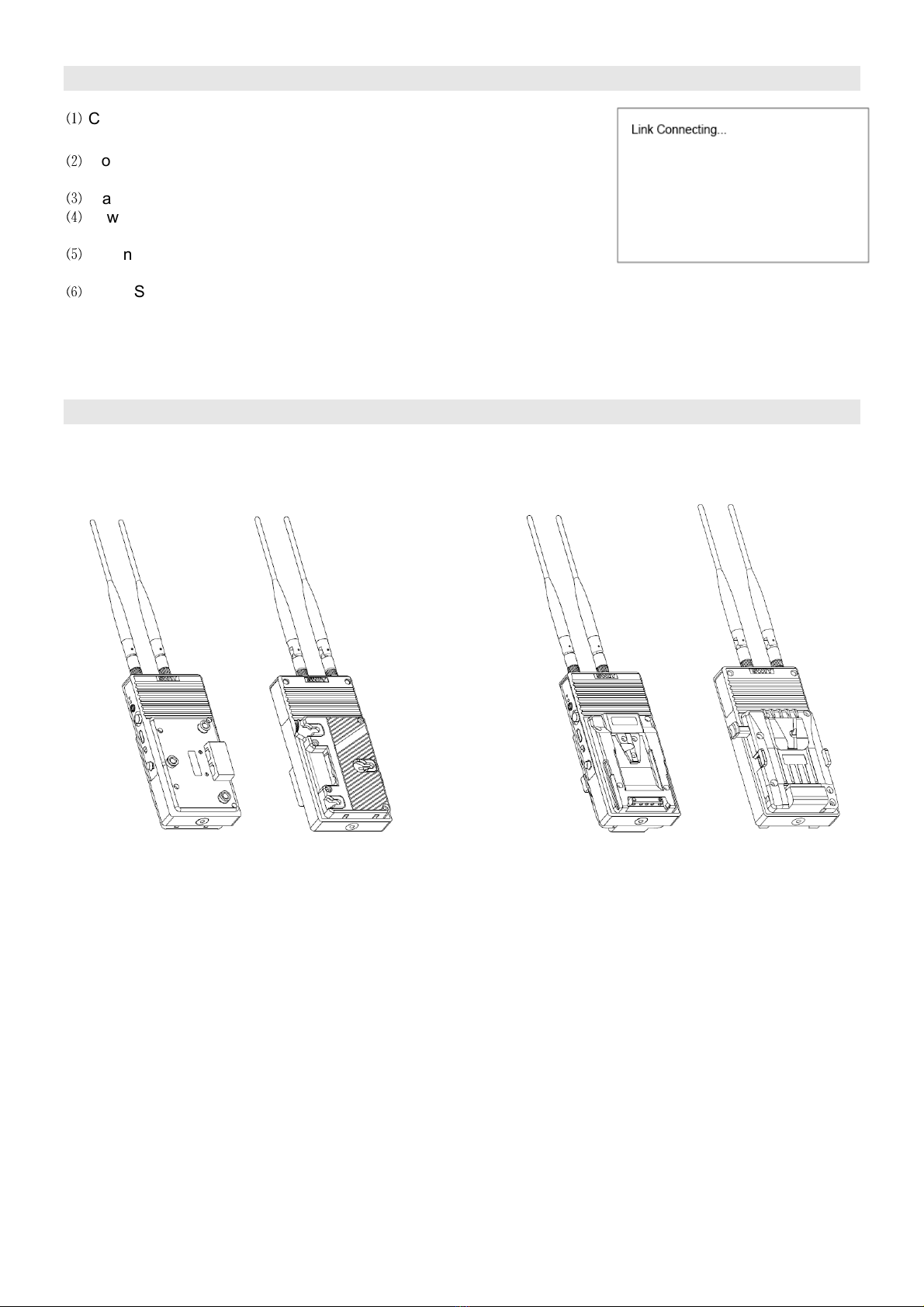

Optional battery plate
S-4904T battery plate choice
S-4904T provides V-mount or Gold mount two-sided plates for installing between camera and battery, so
that the battery can power the camera and S-4904T simultaneously.
Gold mount V-mount
Note: The battery plates are fixed on S-4904T at factory, please specify the suitable plate type before
purchase.
Fig1

9

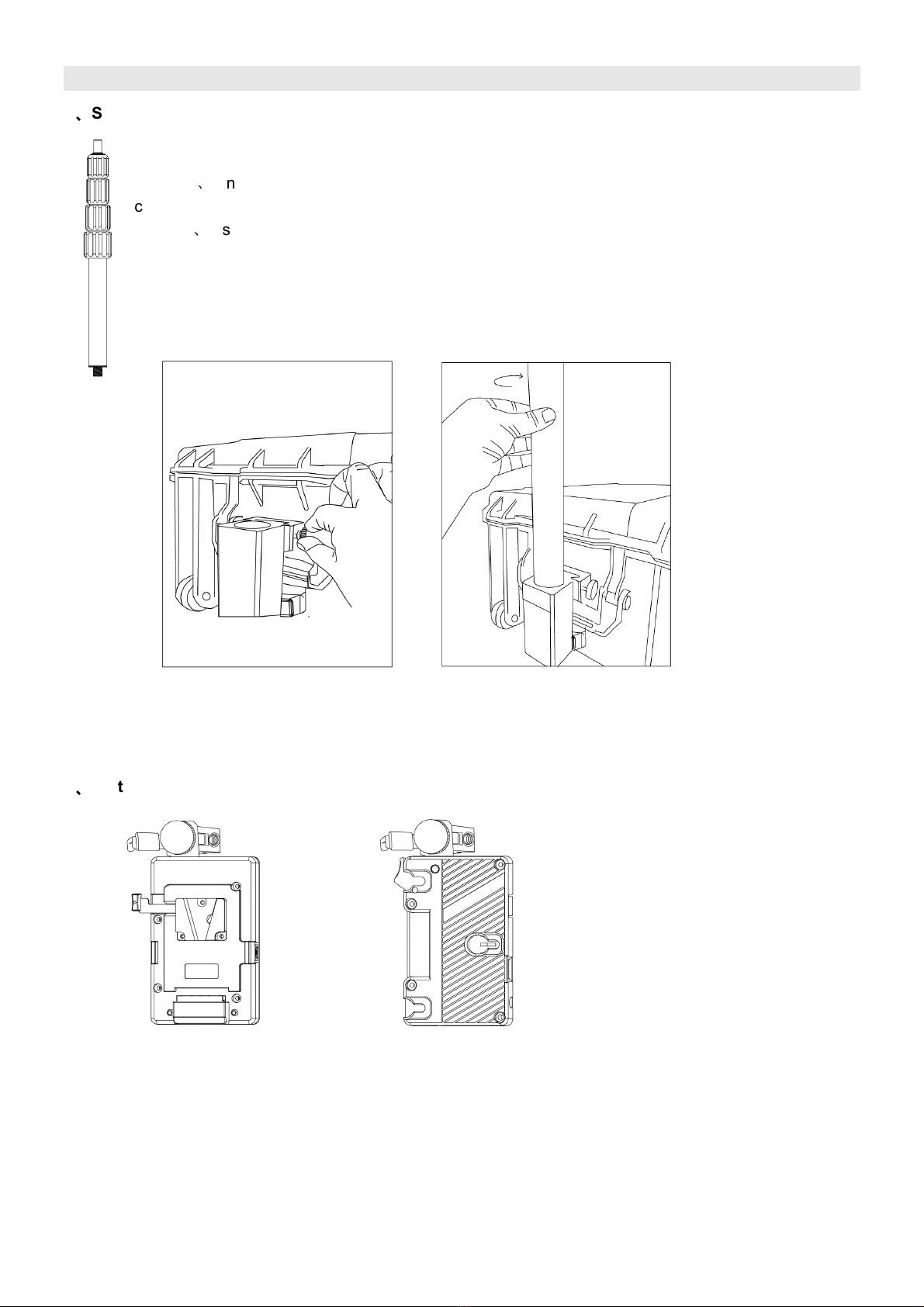

Accessory
1 、 Supporting carbon fiber monopod
Installation instruction
1 、
Snap the monopod installing module on the carrying case mounting block, and
screw tightly, see Fig 1.
2 、 Insert the monopod into the installing module, and clockwise screw tightly, see Fig 2..
Fig 1 Fig 2
Note: The above accessory only included in luxury package.
2 、 attery plate with Clamp installation
S-7200S S-7200A

10
Trouble shooting
If the receiver failed to output video correctly, the possible causes are as below, please find the solution from
following chart:
The
receiving
video
Possible causes Solution
No display
No power Check power connection and switch on the
transmitter and receiver
The antennas are not installed properly and
screwed tightly
Install the antennas properly and screw tightly
of both transmitter and receiver
Bad connection of video cable Check video cable connection of both
transmitter and receiver
Video format is not supported
Check the format of video source.
(See the supported video formats at
Specifications.)
Video
quality is
poor
Bad connection of video cable Check video cable connection and if possible,
change to better quality cables
The wireless transmission is disturbed by
environment, such as other electronic devices
in the same location.
Wait for one minute or reboot both the
transmitter and receiver
The transmission distance is out of effective
range or being interfered by obstacles.
Try the wireless transmission at a closer
distance or clean out the obstacles
Specification
Model Transmitter （ S-4904T ） Receiver (S-4990)
Input 3G/HD/SD-SDI × 1 、 HDMI × 1 /
Output / 3G/HD/SD-SDI × 1
SDI Format
SMPT -425M 1080p （ 60 ∕ 59.94 ∕ 50 ）
SMPT -RP211 1080psf （ 30 ∕ 29.97 ∕ 25 ∕ 24 ∕ 23.98 ）
SMPT -274M 1080p
（ 30 ∕ 29.97 ∕ 25 ∕ 24 ∕ 23.98 ）
1080i （ 60 ∕ 59.94 ∕ 50 ）
SMPT -296M 720p （ 60 ∕ 59.94 ∕ 50 ）
SMPT -125M 480i （ 59.94 ）
ITU-R BT.656 576i （ 50 ）
HDMI Format
480i
∕
576i
∕
1080i
（
60
∕
59.94
∕
50
）
∕
720p （ 60 ∕ 59.94 ∕ 50) ∕ 1080p （ 60 ∕ 59.94
∕
50
∕
30
∕
29.97
∕
25
∕
24
∕
23.98
）
/
Wireless
frequency
5.1 ～ 5.9GHz
Radio module OFDM 16QAM
Max transmission
distance
Approx 1000m （ Line of sight ）
Latency ≤ 1 millisecond
Power
consumption
≤ 6.5W ≤ 7W
Radio power Max 63mW ∕
Input voltage DC ⁄ Battery ： 6.5-17V DC ⁄ Battery ： 7-36V
Working
environment
Temperature ： 0 ℃ ~+40 ℃
Dimension 93*188*66 （ mm ）（ exclude antenna ） 305*305*58.5 （ mm ）（ exclude V SA bracket ）
Net weight 572g （ include antenna ） 2.38Kg （ include V SA bracket ）
