SY SY-HDBT-SLIM-100S User manual

SY-HDBT-SLIM-100S EXTENDERS
SY Electronics Ltd, Unit 7, Worrall Street, Salford, Greater Manchester, M5 4TH, United Kingdom
Tel: [phone] –Fax: [phone] –www.sy.co.uk
Installation Guide
SY-HDBT-SLIM-100S
Extender Set
with
HDMI, Ethernet, IR, RS232 and Power
over 100m of cat6 Cable
HDBaseT HDMI Extenders

SY-HDBT-SLIM-100S EXTENDERS
www.sy.co.uk 2 V1.0
The SY-HDBT-SLIM-100ST and SY-HDBT-SLIM-100SR HDBT transmitter / receiver pair will
transmit up to 4k HDMI, two-way IR control, bi-directional RS232 data, Ethernet data and
power over a single cat6 cable with perfect quality. The maximum distance is dependent on
the resolution and the full 100m can be achieved with 1080p HDMI signals. This maximum
distance reduces to 70m for 4k HDMI signals. These extenders will suit a wide range of
applications in the AV industry, digital signage and at home.
Features
Extends 1080p HDMI and data up to 100m with HDCP support and HDMI 2.0
compatibility
Extends 4k HDMI and data up to 70m with HDCP support and HDMI 2.0
compatibility
Provides transmission of IR and RS232 control signals over the same cable in
both directions
Status indicators for Link, HDMI and HDCP
Supports all HDMI resolutions up to 4K x 2K (including: 1080p, 1080i, …, 480p
and 480i)
Two-port Ethernet hub on both the transmitter and the receiver
Supports 3D and CEC
Only one 48V DC power supply required (at the Transmitter or Receiver)

SY-HDBT SLIM-100S EXTENDERS
V1.0 3 www.sy.co.uk

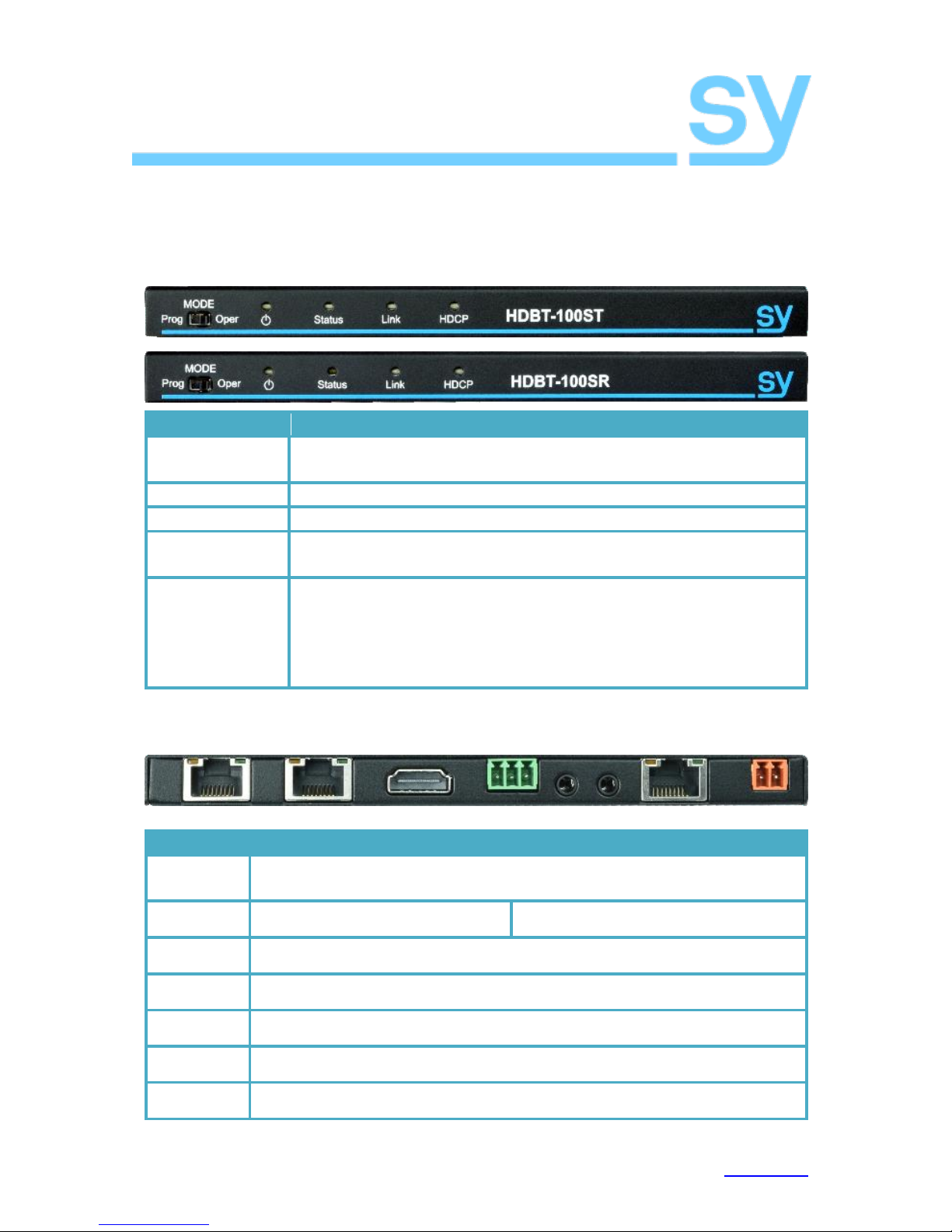

Connectors and Controls
Front
Name
Transmitter
Receiver
MODE SWITCH
Set to Oper to use normal RS232 communications
Set to Prog to perform field upgrades
POWER LED
Red when unit is powered
STATUS LED
Blue STATUS LED indicating that the unit is operating
LINK LED
Blue LINK LED indicating the cable link status between the transmitter
and receiver units
HDCP LED
Blue HDCP LED indicating both the presence of an HDMI signal and its
HDCP Status
Off: No HDMI signal
Flashing: HDMI signal with no HDCP
On: HDMI signal with HDCP
Rear
Name
Transmitter
Receiver
Ethernet 1
Ethernet 2
Two-port Ethernet hub for sending IP data between the units
HDMI
HDMI input from HDMI source
HDMI output to HDMI display
RS232
RS232 Tx and Rx for sending RS232 data between the units
IR OUT
IR output to an IR emitter
IR IN
IR input from an IR detector (IR-Eye)
HDBaseT
RJ45 Connector for HDBaseT data between the two units
48V DC IN
48V DC PSU input

SY-HDBT-SLIM-100S EXTENDERS
www.sy.co.uk 4 V1.0
Using the HDBT HDMI Extenders
HDMI Extender
Connect a HDMI source to the HDMI IN socket on the HDBT-100ST and connect a HDMI
display to the HDMI OUT socket on the HDBT-100SR. Connect a Cat6 UTP cable to the
HDBaseT sockets of both the transmitter and receiver units. Connect the 48V Power supply
to either the Transmitter or the Receiver unit.
Status LEDs
The POWER LED indicates that the unit is powered up.
The STATUS LED indicates that the unit is operating.
The LINK LED indicates the link status of the transmitter and receiver units, solid ON for a
successful link and off when a link cannot be established.
The HDCP LED on the transmitter indicates that HDMI data is being received from the HDMI
source for the transmitter or to the HDMI display device for the receiver. The HDCP LED also
indicates the HDCP status of the HDMI signal, it will flash on both units whenever HDCP is
not present and will remain ON whenever HDCP is present.
The HDCP LED will remain OFF for any of the following conditions:
1. The HDMI source is not outputting data, the HDMI cable is either not connected
or it is faulty.
2. The HDMI display is not connected or powered up, or the HDMI cable is faulty.
3. The HDMI display is not set to use its HDMI input.
IR –Dual Bidirectional
To use the IR Extender option, point your IR remote control device at the IR detector
connected to the IR IN socket of either the SY-HDBT-100SR or the SY-HDBT-100ST as
required. An IR emitter must also be connected to the corresponding transmitter or receiver
IR OUT socket. Locate the IR emitter close to the device you wish to control. All IR control
functions are now possible from the remote location.
The following diagrams show the IR IN and IR OUT wiring, please note that the IR signal for
the SY-HDBT-100S Extender set must have the IR carrier present at the IR IN connector to
ensure that the correct carrier frequency is presented to the output connector at the other
end of the Cat6 link.

SY-HDBT SLIM-100S EXTENDERS
V1.0 5 www.sy.co.uk
Figure 1 - IR In Wiring
Figure 2 - IR Out Wiring
RS232 - Bidirectional
To use the RS232 Extender option, connect the RS232 equipment to the RS232 terminal
blocks with the cables provided and ensure that any RS232 handshake modes are set to
none. The MODE switch on both the extender units must the set to Oper to permit RS232
control between them. The SY-HDBT-100S Extender set supports all standard RS232 baud
rates up to 115.2 K baud without setting any switches or special configuration options.
When connecting to other RS232 equipment, be sure that the Tx and Rx connections are
wired correctly. In most situations the Tx of one RS232 port should connect to the Rx of the
other RS232 port, and the RS232 ground connection is always required.
Ethernet –Bidirectional
The Slim 100 Extender set also support transfer of IP data between the two units as they
both feature a two-port Ethernet hub the permits the two-way transfer of IP data between
the two units.
PoC
The Slim 100 Extender set has a Power over Cable (PoC) capability, allowing both the
Transmitter and Receiver units to be powered using only one PSU. The set can be powered
from either the Transmitter side or the Receiver side.
For best results, use only solid copper cat6 cables for the cabling between the Transmitter
and the Receiver units.
Mode Switch
The MODE switch should be set to Oper to permit transmission of RS232 signals between
the two extenders. The Prog setting is only used should the SY-HDBT-SLIM-100ST or the SY-
HDBT-SLIM-100ST require a field upgrade.

SY-HDBT-SLIM-100S EXTENDERS
www.sy.co.uk 6 V1.0
Figure 3 - Configuration Example
Specifications
General
HDMI Resolutions
480i, 480p, 720i, 720p, 1080i, 1080p, 1920 x 1200, 4K x 2K
HDMI Standard
HDMI 2.0 supported
HDMI Link Mode
HDBT, synchronous switching
Link Transmission
Distance
Up to 100 metres @ 1080p or 70m @ 4K with Power over
Cable (PoC)
IR Control
Any control protocol, IR carrier signal must be present at IR
IN connector.
RS232
Supports Tx and Rx only –any RS232 baud rate up to 115.2
Kb
Power Supply
48V DC @ 0.5A
Power Consumption
SY-HDBT-SLIM-100S Set: 7.5 W max
Environmental
Operating Temperature
0 –40 °C
Operating Humidity
5 –90% RH (non-condensing)

SY-HDBT SLIM-100S EXTENDERS
V1.0 7 www.sy.co.uk
Physical
Dimensions (W x H x D)
158 x 12 x 87 mm
Weight
SY-HDBT-100ST: 320 g
SY-HDBT-100SR: 330 g
Supported 4K Resolution Settings
Colour Depth
(bits)
Chroma
Subsampling
Frames / Second
Gb/s
8
4:4:4
24
7.13
8
4:4:4
25
7.43
8
4:4:4
30
8.91
8
4:2:0
50
7.43
8
4:2:0
60
8.91
10
4:4:4
24
8.91
10
4:4:4
25
9.28
10
4:2:0
50
9.28
12
4:2:2
24
7.13
12
4:2:2
25
7.43
12
4:2:2
50
8.91
RJ-45 Wiring
Both connectors must be wired identically.
HDBaseT signals will not pass through any Ethernet device, the HDBaseT port on the SY-
HDBT-100ST must be connected directly to the HDBaseT port on the SY-HDBT-100SR.
Always ensure that the Cat6 cable uses 4 pairs of 23AWG solid copper wires. Do not use
inferior copper clad cables as these exhibit higher resistances.

SY-HDBT-SLIM-100S EXTENDERS
www.sy.co.uk 8 V1.0
Safety Instructions
To ensure reliable operation of these products as well as protecting the safety of any person
using or handling these devices while powered, please observe the following instructions.
1. Use the power supplies provided. If an alternate supply is required, check
Voltage, polarity and that it has sufficient power to supply the device it is
connected to.
2. Do not operate either of these products outside the specified temperature
and humidity range given in the above specifications.
3. Ensure there is adequate ventilation, as these products generate heat while
operating.
4. Repair of the equipment should only be carried out by qualified professionals
as these products contain sensitive devices that may be damaged by any
mistreatment.
5. Only use these products in a dry environment. Do not allow any liquids or
harmful chemicals to come into contact with these products.
After Sales Service
1. Should you experience any problems while using these products, firstly refer
to the Troubleshooting section in this manual before contacting SY Technical
Support.
2. When calling SY Technical Support, the following information should be
provided:
Product name and model number
Product serial number
Details of the fault and any conditions under which the fault occurs.
3. These products have a two year standard warranty, beginning from the date
of purchase as stated on the sales invoice. Online registration of these
products is required to activate the full three year extended warranty. For full
details please refer to our Terms and Conditions.
4. SY Product warranty is automatically void under any of the following
conditions:
The product is already outside of its warranty period
Damage to the product due to incorrect usage or storage
Damage caused by unauthorised repairs
Damage caused by mistreatment of the product
5. Please direct any questions or problems you may have to your local dealer
before contacting SY Electronics.
