Sylvania SMP1050 User manual

Your Pocket Guide
Digital Audio Player
SMP1050
m
ic
PLAY
REC
Get Connected
Transfer Music
Plug Your Ears & Enjoy

SMP1050

1
2
3
4 - 6
7
8 - 9
10
11
12
13
14 - 15
16
17
What’s in the box?
System Requirement
Synchronize songs to the player
Transfer
Know Your Player Well
Music Playback
Edit Lyrics
Repeat Mode & EQ Mode
Record & Voice Playback
Settings
Technical Data
Trouble Shooting

2
What’s in the box?
Digital Audio Player
Earphone
Your Pocket Guide
USB Cable
What’s in the box?
CD-ROM containing:
Media player driver for
Windows® 98
1 x AAA 1.5V Battery
ALKALINE BATTERY
m
i
c
PLAY
REC
Your Pocket Guide
Digital Audio Player
SMP1050
mic
PLAY
REC
Get Connected
Transfer Music
Plug Your Ears & Enjoy

/ / /
Windows® 98 2000 XP Vista
Pentium Class or faster Processor
CD-ROM Drive
64MB RAM
30MB free hard disk space
USB Port
3
You’ll need a computer with:
System Requirement
For Windows® 98 users, please install the driver in the CD-ROM before downloading any files to your player.

Synchronize songs to the player
You can use Windows Media Player 10 on Windows® XP SP2
to synchronize music which are downloaded from Internet legally and validly with license to the player.
If the song is downloaded illegally without license, it cannot be synchronized.
4
Step 2:
A dialog box will appear, choose
,
and click to proceed.
Plug the player to the USB port of your PC.
Synchronize media
files to this device using Windows Media Player
OK
Step 1: Set the Online Device of the player as Media Device
before plugging it to your PC.
Push the MODE button leftwards / rightwards to select
on the main menu, then press the MODE button to enter
its sub-menu.
Push the MODE button rightwards to select ,
and press the MODE button to enter its options list.
Then push the MODE button leftwards / rightwards to select
, and press the MODE button to confirm.
SYS
Online Device
Media Device
MSC RPLREC SYS

Synchronize songs to the player
Step 3: Windows Media Player will find device automatically.
And after a while, a dialog box of will appear,
choose and click .
Device Setup
Manual Finish
Step 4: Windows Media Player will be operating.
Drag and drop your downloaded songs into its Sync List,
and press . Then the songs will be
synchronized to the player.
Start Sync
5

Synchronize songs to the player
Synchronize songs to the player
Step 5: The synchronized music can be found in the player.
Click into on the desktop, and you can see
an Audio Device named as ,
click into it to view your synchronized songs.
Step 6: If you want to remove the MTP device, you can
just unplug the player from your PC. Then you will
see disappear.
When you successfully synchronize music to the player,
the current time shown on your PC will be synchronized to
the player, too.
You can select to go into
(on the sub-menu of ) to check it.
My Computer
Actions Mtp Device 000001
Actions Mtp Device 000001
DRM Time
SYS
6

Get Your Player Connected & Transfer
Transfer
Step 1:
Then plug this player to the USB port of your PC.
Once the connection is successfully made,
the window would pop up.
Try re-connecting the player if it doesn't
appear.
Set the Online Device of the player as USB Disk
(Refer to Page 4).
Removable Disk
Step 2:
Drag and drop your audio files into the
removable disk.
You can create any folder or directory in
the removable disk.
Close the removable disk window and
disconnect the player from your PC after
the data transfer.
7

8
Right View
Left View
Vol+ button
Vol- button
HOLD
MODE button
HOLD switch
Back ViewFront View
m
ic
PLAY
REC
Play/Pause
button
Earphone jack
Microphone
USB port
Battery
compartment
REC button

Buttons Operation
9
General
Music
To Press
Turn On/Off
Scroll through lists
Select Option
Return to Main Menu
Play/Pause songs
Jump to next song
Fast Forward
Move back to previous song
Fast Backward
Display lyrics
Stop lyrics display
Volume up
Volume down
Have the device hold / unhold
Hold the Play/Pause button
Hold the MODE button
Hold the MODE button for 2 seconds
Hold the MODE button rightwards
Hold the MODE button leftwards
Switch the HOLD switch
Push the MODE button leftwards / rightwards
MODE
Play/Pause
Start recording REC
Push the MODE button rightwards
Push the MODE button leftwards
MODE
Vol+
Vol-
Have the player hold / unhold:
If you want to have your player locked while enjoying music,
you can slide the HOLD switch, then all operations on buttons will be invalid.
And you can unlock your player by switching it back.

Music Playback
Music Playback
Display Lyrics
While enjoying music, you can press the Play/Pause
button to pause or continue the music; Push the
MODE button leftwards / rightwards to move back
to the previous song or jump to the next song;
Hold the MODE button leftwards / rightwards to
move your song forward or rewind it. If you want to
adjust the volume, please press Vol- / Vol+ buttons .
Select on the main menu and
press the MODE button to enter the
music mode, then you can select different
songs by pushing the MODE button
leftwards / rightwards, and press
the Play/Pause button to start playing
the song you select.
MSC
The edited lyrics will be displayed synchronously if you
press the MODE button for 2 seconds while playing music.
And you can press the MODE button to quit the lyrics display screen.
Many roads are ahead
of us
REC RPL SYSMSC
Wi nter in July
001
002 00:00
04:32
WMA
160
T
NOR
10

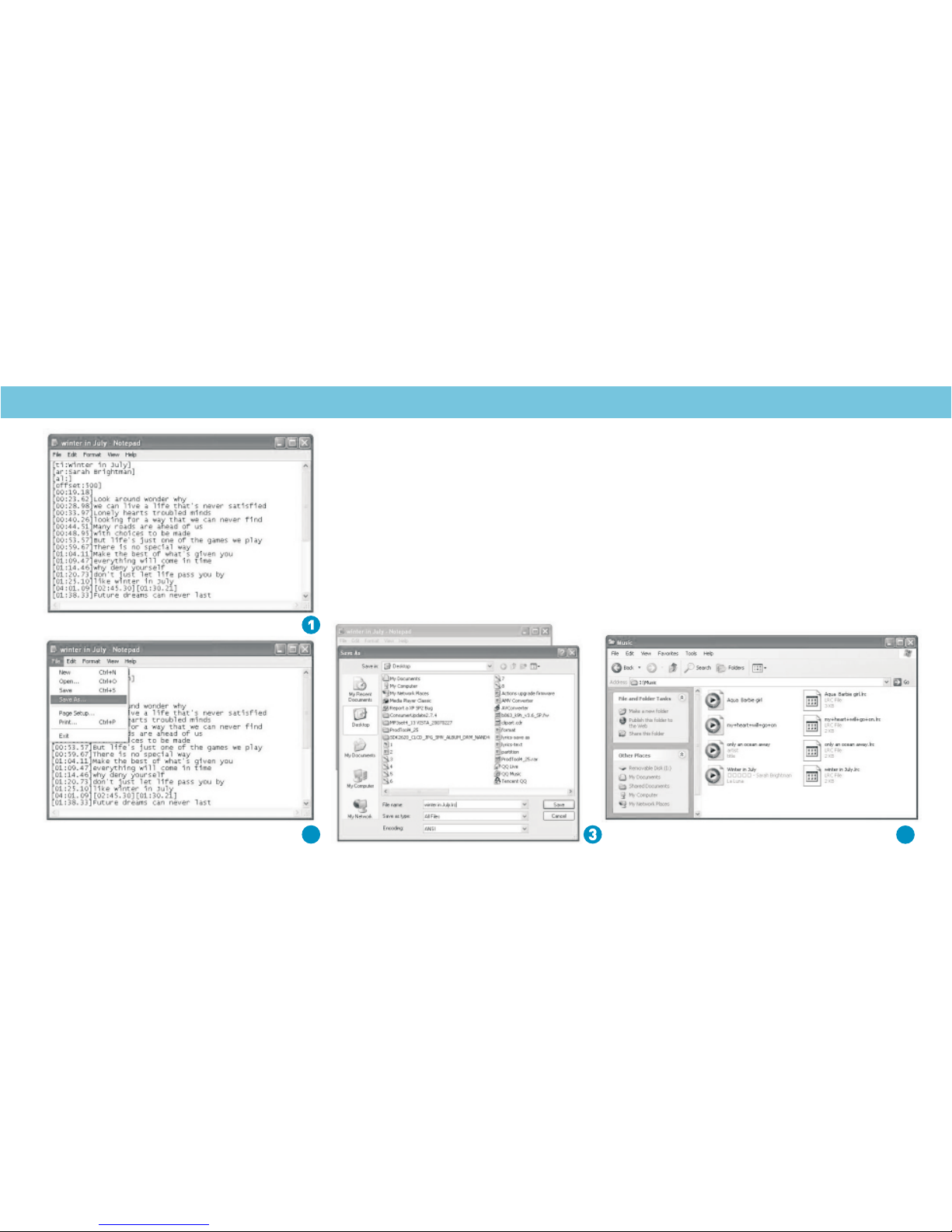

Edit Lyrics
Edit Lyrics
You can copy the synchronous lyrics from
internet, and create a new
on your PC, paste them, and then select to
save this document in the extension of
shown as below.
Text Document
.LRC
Then put both .LRC and .MP3 (or .WMA)
files of the same song into the same folder
in the removable disk. Your lyrics would be
shown when you play that song.
4
11
2

Repeat Mode
Repeat Mode & EQ Mode
7 Repeat Modes are available:
Normal, Repeat One, Folder, Repeat Folder, Repeat All, Random, Intro.
Normal
All music files will be played one by one and stopped at the last music
until you disable this function.
Repeat One
The currently played song will be played repeatedly until this function
is disabled.
Folder
All music in the selected folder would be played once until this function
is disabled.
Repeat Folder
All music in the selected folder would be played from the beginning
to the last one repeatedly until this function is disabled.
Repeat All
All music would be played from the beginning to the last one repeatedly
until this function is disabled.
Random
All music would be played randomly until this function is disabled.
Intro
All music would be played for 10 seconds from the beginning
until this function is disabled.
Procedure:
while playing music, press the MODE button to enter
the selection menu screen. Choose and press the
MODE button again to enter the menu screen.
You can push the MODE button leftwards / rightwards to
select your desired repeat mode, and press the MODE button
to confirm your setting.
Repeat
Repeat
7 EQ Modes are available: Natural, Rock, Pop, Classic, Soft, Jazz, DBB.
EQ Mode
Procedure:
while playing music, press the MODE button to enter
the selection menu screen. Push the MODE button rightwards
to select , and press the MODE button to
enter the menu screen.
You can push the MODE button leftwards / rightwards
to select your desired EQ mode, and press the MODE
button to confirm your setting.
Equalizer
Equalizer
12

Record & Voice Playback
Push the MODE button leftwards / rightwards to
select on the Main Menu. Then press the
MODE button to enter the voice recording mode.
You can press the Play/Pause button to start recording,
and save the recorded voice by holding the MODE button.
You can have a quick access to the Voice Recording Mode:
In the STOP mode, press the REC button to enter the
Voice Recording Mode and start recording.
REC
Voice Recording
MSC RPL SYSREC
MSC SYSREC RPL
on the Main Menu.
Press the MODE button to enter the Voice Playback Mode.
You can push the MODE button leftwards / rightwards to select
a recorded voice file, and then press the Play/Pause button to
start voice playing.
If you want to delete the selected voice file, you can press
the MODE button to enter the sub-menu. Push the MODE button
rightwards to select , and press the MODE button to confirm.
Then a dialog box of “ ” will be shown.
Push the MODE button leftwards / rightwards to choose ,
and press the MODE button to confirm.
Push the MODE button leftwards / rightwards to select RPL
Delete
Delete file
YES
Voice Playback
13

MSC RPLREC SYS
Step 1:
Push the MODE button leftwards / rightwards
to select on the Main Menu, then press
the MODE button to enter its sub-menu.
Step 2:
Push the MODE button rightwards to select ,
then press the MODE button to confirm.
Step 3:
You can select your preferred language by pushing
the MODE button leftwards / rightwards, and then
press the MODE button to confirm your setting.
SYS
Language
After finishing system settings, push the MODE button rightwards
to looking for on the sub-menu of , and then press
the MODE button to quit the SYS screen.
Exit SYS
Setting Clock
Step 1: Select on the sub-menu of , and press the
MODE button to enter the clock setting screen.
Step 2: You can press Vol- / Vol+ buttons to move among
Year : Month : Day : Hour : Minute : Second.
And push the MODE button leftwards / rightwards to adjust them.
Step 3: At last, press the MODE button to confirm your setting.
Clock SYS
Setting Language
Settings
12 languages are available:
Simple Chinese
English
Trad Chinese
Japanese
Korean
French
German
Italian
Dutch
Portuguese
Spanish
Polish
14

Settings
Checking Memory Status
Auto-Power Off Setup
60
21%943M
Push the MODE button rightwards to select on
the sub-menu of , and press the MODE button to enter
its sub-menu.
Select , and press the MODE button to confirm.
Step 2:
You can adjust the off time by pushing the MODE button
leftwards / rightwards, and then press the MODE button
to confirm your setting.
In the IDLE mode (no button is pressed), the player will be
turned off automatically based on the duration you set.
You may set it as “0” to disable this function.
Step 1:
Power off
SYS
Off time
on the sub-menu of , and press the MODE button to
confirm.
Then the used memory status can be shown.
Push the MODE button rightwards to select Memory info
SYS
15

Power Supply
Dimensions
Weight
Display
Capacity
Operating System
Interface
1 x AAA 1.5V Battery
32mm x 93mm x 24mm
20g
128 x 32 28PIN
128MB/256MB/512MB/1GB/2GB
internal flash memory
Windows® 98/2000/XP/Vista
USB HOST 2.0
.M P3 (32kbps ~ 320kbps)
.WMA (32kbps ~ 192kbps)
General Information
Technical Data
Operating Voltage 1.5V
Audio Playback
Compression Formats
>50dB
S/N ratio 85dB
Earphone Output Power 8mWx, 32ohm
THD+N <0.6
.ACT and .WAV files
Crosstalk
Supported File Types
Voice Recording
16

Trouble Shooting
What should I do if…
Q: I cannot put any file into the removable disk for the first usage, it prompts that
the disk is full.
A: You can format the disk at first, then put files into it again.
Q: I’ve put the audio files into the player, but when I select to play music,
it still prompts “Empty Disk”.
A: Maybe the battery is of low power. You may replace it with a new battery,
and try playing music again.
Q: I cannot enter the MUSIC mode after using the player for a period of time.
A: You should format the memory of the player under connection to PC.
(Be sure you remember to backup the data in your player before performing the above action.)
17

More
Disposal of your old product
Electrical and electronic equipment (EEE) contains materials, parts and
substances which can be dangerous to the environment and harmful to
human health if wastes of electrical and electronic equipment (WEEE) are
not disposed correctly.
Equipments which are marked with the WEEE logo (as shown on the right),
should not be thrown away with your household waste. Contact your
local Authority Waste Disposal Department as they will be able to provide
details of the recycling options available in your area.
