Synapse TDT IZ2 User manual

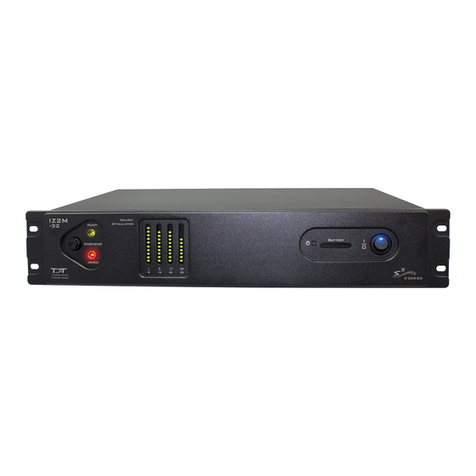

IZ2/IZ2H Stimulator
Fast Facts
Status Light
solid red not properly connected to
base station or cannot sync
solid green connected to RZ and operating
in current mode
solid green, slow red flash
connected to RZ and operating
in voltage mode
Stim Lights
lit green indicated channel in use as a
stimulus output
lit red indicated channel is clipping
(beyond +/- 10 V)
Battery Indicator Lights
VA Positive Battery Pole
VB Negative Battery Pole
VC Logic Battery Level
Battery Status Lights
8 green fully charged
1 green, 7 unlit low voltage
1 flashing red low voltage - charge now!
8 green flashing charging in progress
This fast facts sheet provides basic reference
information for the IZ2/IZ2H Stimulator and related
devices. See the System 3 Manual for more detailed
information.
The IZ2 Stimulator is available with 32(IZ2-32), 64(IZ2-64), or
128(IZ2-128) channels. Power for stimulation is supplied by 200
and 400 Wh battery life (LZ48-200 and LZ48-400) Li-Poly battery
packs, both capable of producing the same output voltage/current
characteristics. The number of channels needed for stimulation
determines power requirements. The IZ2H is a high current range
version of the IZ2 and is available with sixteen stimulus channels.
Output
Stimulus Output Voltage +/- 12 V
IZ2 Stimulus Output Current+/- 300 µA up to 50 kOhm load
IZ2H Stimulus Output Current +/- 3 mA up to 5 kOhm load
Power
IZ2-128 should only be used with the LZ48-400
IZ2-64 can be used with LZ48-200 or LZ48-400
IZ2-32 can be used with LZ48-200 or LZ48-400
IZ2H-16 should only be used with the LZ48-400
Synapse Rig Configuration. The first time the IZ2 is used,
it must be configured in the rig. When the specialized DSPI
card mounted in the RZ device is detected, an IZ2 will be
added to the rig hardware tree. Click the check box to the
left of the IZ2 icon to enable the device. In the options area,
select the model and number of channels.
Synapse IZ2 Options. Click the IZ2 in the Processing Tree
to display hardware option. Select Current or Voltage mode
and any other options as needed.
WITH

[email protected]
www.tdt.com
Functional Design of the MicroStimulator System
System Set-up. To connect the stimulator system hardware:
Mini-DB26 Connector Stim Out Pinouts Pin Channel Pin Channel
1 1 14 Digital Strobe
2 2 15 GND
3 3 16 GND
4 4 17 Digital Data
5 Digital Clock 18 HSD
6 HSD 19 HSD
7 5 20 6
8 7 21 8
9 9 22 10
10 11 23 12
11 13 24 14
12 15 25 16
13 +20 V 26 -20 V
Note: Do not attempt to make any custom
connections to pins 6, 18, or 19. These pins are
intended for TDT use only. Pins 9-12, 22-25 not
used on the IZ2H.
RZ Base Station
Real-time DSP generates
digital stimulation and
control waveforms
IZ2/IZ2H
Stimulator generates
analog current or
voltage waveforms
Optional
Headstage
Stimulating
Electrodes
PC
High Speed Interface
Software control and
data transfer
Fiber Optic Connection
Transfers control information and digital signals for
stimulation to IZ2/IZ2H, returns actual stimulation voltage to
RZ for monitoring
Input from sensors
(RA8GA) or recording
electrodes (PZ2/
RA16PA)
Current or voltage
output to headstage
LZ48-200/400
Battery Pack
Optional
PreAmp
Important! Make
sure pins align
with connector.
1. Setup and configure the rest of your system.
2. Connect the battery pack cable to the back panel of
the stimulator via the connector labeled Battery, as
shown in the diagram below.
Warning!: Shorting the battery connection pins can
cause damage to the device and injury to the user.
Always use caution when handling or connecting the
devices.
3. Connect the stimulator to the base station using the
provided fiber optic cable.
4. Connect the fiber optic cable from the IZ2/IZ2H
fiber optic port labeled Fiber to the fiber optic port
labeled To IZ2 on the back side of the RZ. Be sure to
note the difference in the two sides of the fiber optic
cable connectors and ensure they are inserted with the
correct side up.
5. Connect the DB26 output connectors on the
stimulator to the stimulating electrodes.
