Synology DiskStation DS3612xs
Quick Installation Guide

2
Table of Contents
Chapter 1: Before You Start
Package Contents............................................................................................................................................... 3
Synology DiskStation at a Glance ....................................................................................................................... 4
Safety Instructions............................................................................................................................................... 6
Chapter 2: Hardware Setup
Tools and Parts for Hard Disk Installation ........................................................................................................... 7
Install Hard Disks ................................................................................................................................................ 7
Start Up Your DiskStation ................................................................................................................................. 10
Add a RAM Module on DiskStation................................................................................................................... 11
Add a Network Interface Card on DiskStation................................................................................................... 13
Chapter 3: Install DSM on DiskStation
Install from Windows ......................................................................................................................................... 15
Install from Mac OS X ....................................................................................................................................... 17
Install from Linux ............................................................................................................................................... 17
Learn More........................................................................................................................................................ 19
Appendix A: Specifications
Appendix B: LED Indication Table

3
Chapter
1
Chapter 1: Before You Start
Before you start setting up DiskStation, please check the package contents to verify that you have received the
items below. Please also read the safety instructions carefully before use to prevent your DiskStation from any
damages.
Package Contents
Main Unit x 1 AC power cord x 1
2M RJ-45 LAN cable x 4
Installation disc x 1
Screws for 3.5" hard drives x 52 Screws for 2.5" hard drives x 52 Hard drive tray key x 2

4 Chapter 1: Before You Start

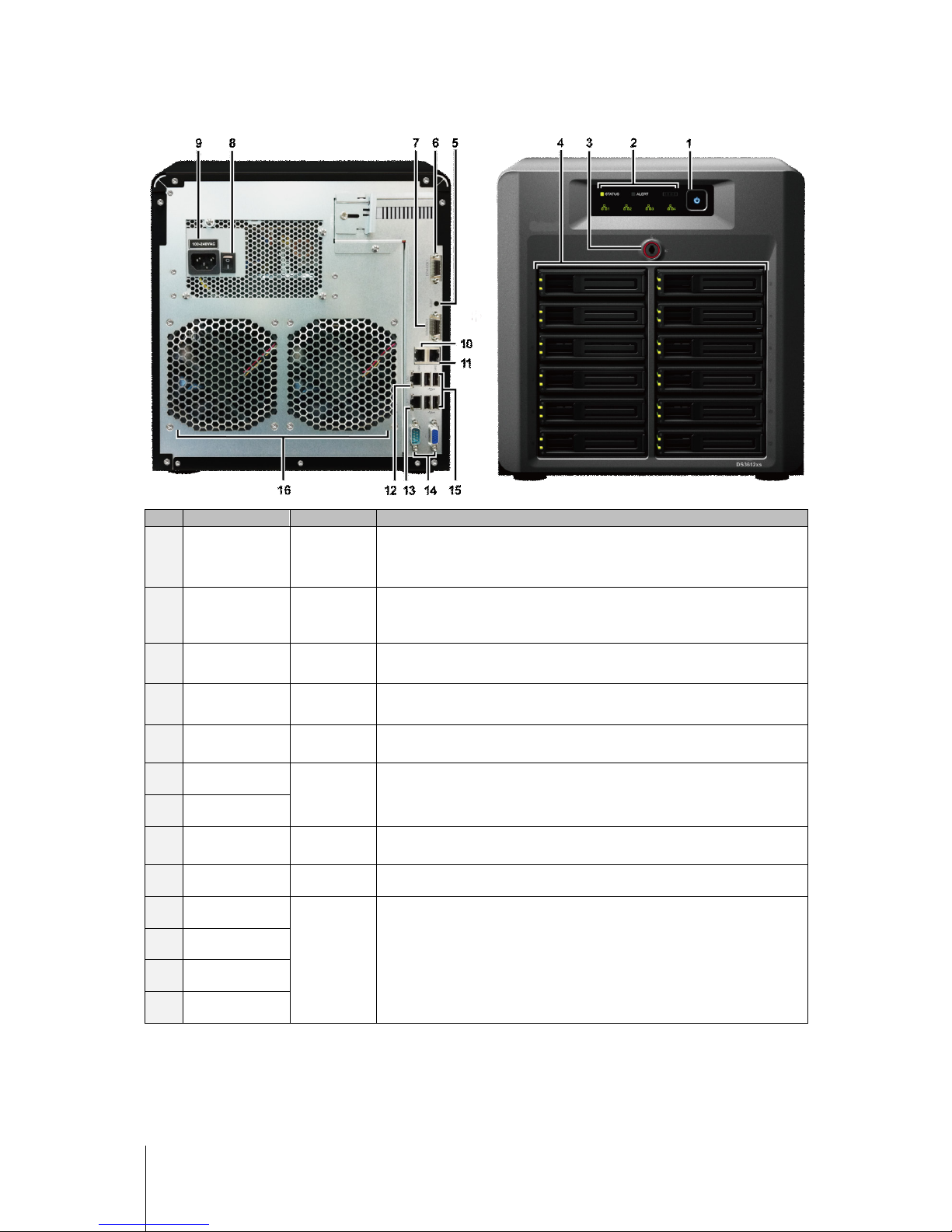

Synology DiskStation at a Glance
No. Name Location Description
1) Power Button Front Panel
The power button is used to turn Synology DiskStation on or off.
To turn off Synology DiskStation, press the power button and hold it until you
hear a beep sound and the Power LED starts blinking.
2) LED Indicators Front Panel
The LED indicator is used to display the status of the internal disk and the
system. For more information, see "Appendix B: LED Indication Table" on Page
21.
3) Hard Drive Tray
Lock Front Panel The hard drive tray lock is designed for locking/unlocking the trays to the DiskStation.
4) Hard Drive Tray Front Panel The hard drive tray is designed for loading the hard drives used in
Synology DiskStation.
5) RESET Button Back Panel 1.To restore IP, DNS, passwords for the admin account to default value.
2.To reinstall the Synology DiskStation.
6) Expansion 1
Back Panel The Expansion port is used to connect Synology Expansion Unit1
7)
to Synology
DiskStation.
Expansion 2
8) Power Supply
On/Off Switch Back Panel The power supply on/off switch is used to turn on/off the power supply.
9) Power Port Back Panel The power port is where you connect the power cord to Synology DiskStation.
10) LAN 1
Back Panel The LAN port is where you connect RJ-45 cable to Synology DiskStation.
11) LAN 2
12) LAN 3
13) LAN 4
---------
1For more information about Synology Expansion Unit supported by your DiskStation, please visit www.synology.com.

5 Chapter 1: Before You Start
No.
Name
Location
Description
14) Console Port &
VGA Port Back Panel This port is used for manufacturing use only.
15) USB Port Back Panel The Synology DiskStation offers USB ports for adding additional external hard
drives, USB printers, or other USB devices.
16) Fan Back Panel
The fan is built to exhaust waste heat out of Synology DiskStation. It will start
automatically when the server starts. If the fan is malfunctioning, system will
play beep sounds.

6 Chapter 1: Before You Start
Safety Instructions
Keep away from direct sunlight and away from chemicals. Make sure the environment does not
experience abrupt changes in temperature or humidity.
Keep Synology product upright. Do not lay it down horizontally.
Do not place the Synology product close to any liquid.
Before cleaning, unplug the power cord first. Wipe Synology product with damp paper towels. Do
not use chemical or aerosol cleaners to clean it.
Do not place the Synology product on a cart, table, or desk, which is not st
able to avoid the
product from falling over.
The power cord must plug in to the right supply voltage. Make sure that the supplied AC voltage
is correct and stable.
To remove all electrical current from the device, ensure that all power cords are disconnected
from the power source.

7
Chapter
2
Chapter 2: Hardware Setup
Tools and Parts for Hard Disk Installation
A screwdriver
At least one 3.5” or 2.5” SATA hard disk
(Please visit www.synology.com for compatible hard disk models.)
Warning: If you install a hard disk that contains data, system will format the hard disk and erase all data. If you still
need the data, please back it up before installation.
Install Hard Disks

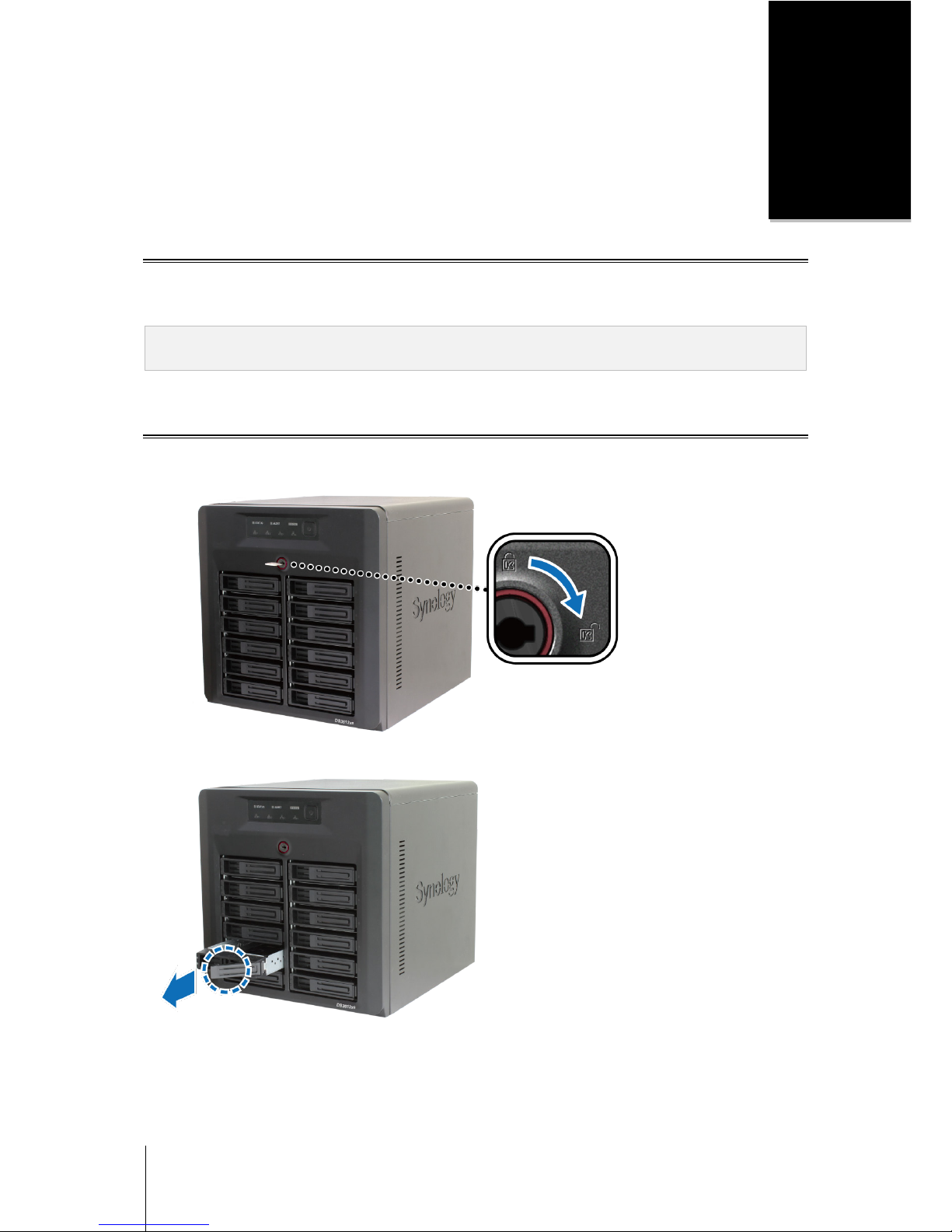

1 Insert the hard drive tray key into the hard drive tray lock, and turn the key 90˚clockwise (to the Unlock
position) to unlock the handles of the hard drive trays.
2 Pull the hard drive tray handle in the direction as indicated below to remove the hard drive tray.

8 Chapter 2: Hardware Setup
3 Load the hard disk in the hard drive tray.
For 3.5” Hard Disk: Place the hard disk in the hard drive tray, turn the tray upside down, and then tighten
the screws to secure the hard disk.
For 2.5” Hard Disk: Place the hard disk in the blue area (shown below) of the hard drive tray, turn the tray
upside down, and then tighten the screws to secure the hard disk.
4 Insert the loaded hard drive tray into the empty hard drive bay.
Important: Make sure the tray is pushed in all the way. Otherwise, the hard disk might not be able to function
properly.
5 Push the hard drive tray handle to secure the hard drive tray.

9 Chapter 2: Hardware Setup

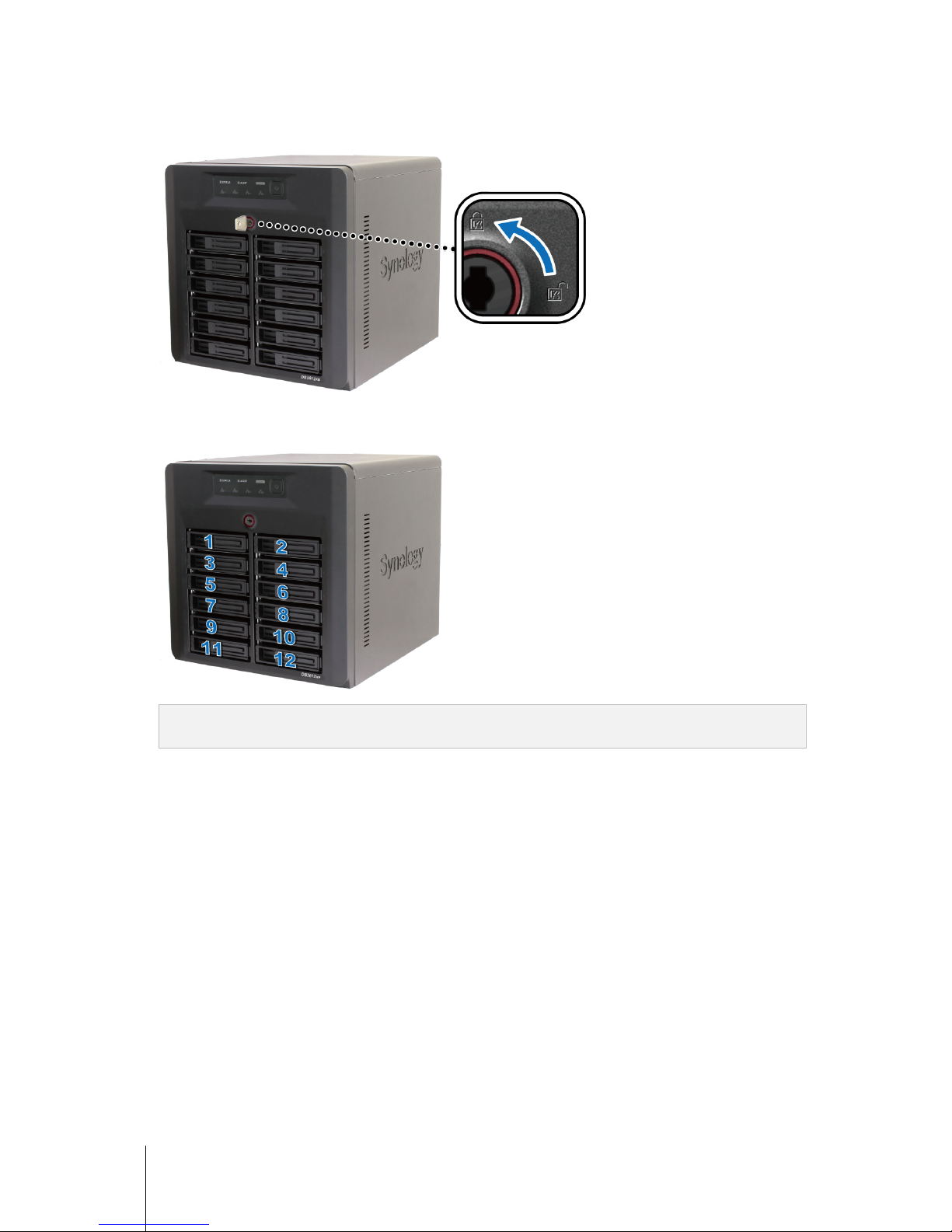

6 Turn the hard drive tray key 90˚counter-clockwise (to the Lock position) to lock the handles of the hard drive
trays.
7 Repeat the steps above to assemble all hard disks you have prepared.
8 The disks’ positions are numbered as shown below.
Note: If you want to set up a RAID set, it is recommended that all installed hard disks are of the same size to make
the best use of hard disk capacity.

10 Chapter 2: Hardware Setup
Start Up Your DiskStation
1 Connect one end of the power cord to the power port of DiskStation, and the other to the power outlet. Make
sure the power supply on/off switch is switched to "-".
2 Use the LAN cable to connect DiskStation to your switch/router/hub.
3 Press and hold the power button to turn on your DiskStation.
Your DiskStation is now online and detectable from a network computer.

11 Chapter 2: Hardware Setup
Add a RAM Module on DiskStation
Synology RAM module 1GB/2GB is designed for DiskStation memory expansion, and is optional for your choice.
Follow the steps below to install, check, or remove your RAM module.
Install the RAM Module
1 Press and hold the power button until you hear a beep sound to shut down your DiskStation. Disconnect all
cables connected to your DiskStation to prevent any possible damages.
2 Remove the screws on the back of DiskStation, and then pull the top and side cover.
Important: When you pull out the cover, you expose sensitive internal components. Avoid touching anything other
than the memory assembly when you remove or add memory.
3 Remove the 6 screws on the inner panel, and pull it a little to see the cables connected to the motherboard on
the inner side of the inner panel. Disconnect the 5 cables carefully and remove the inner panel from your
DiskStation.

12 Chapter 2: Hardware Setup

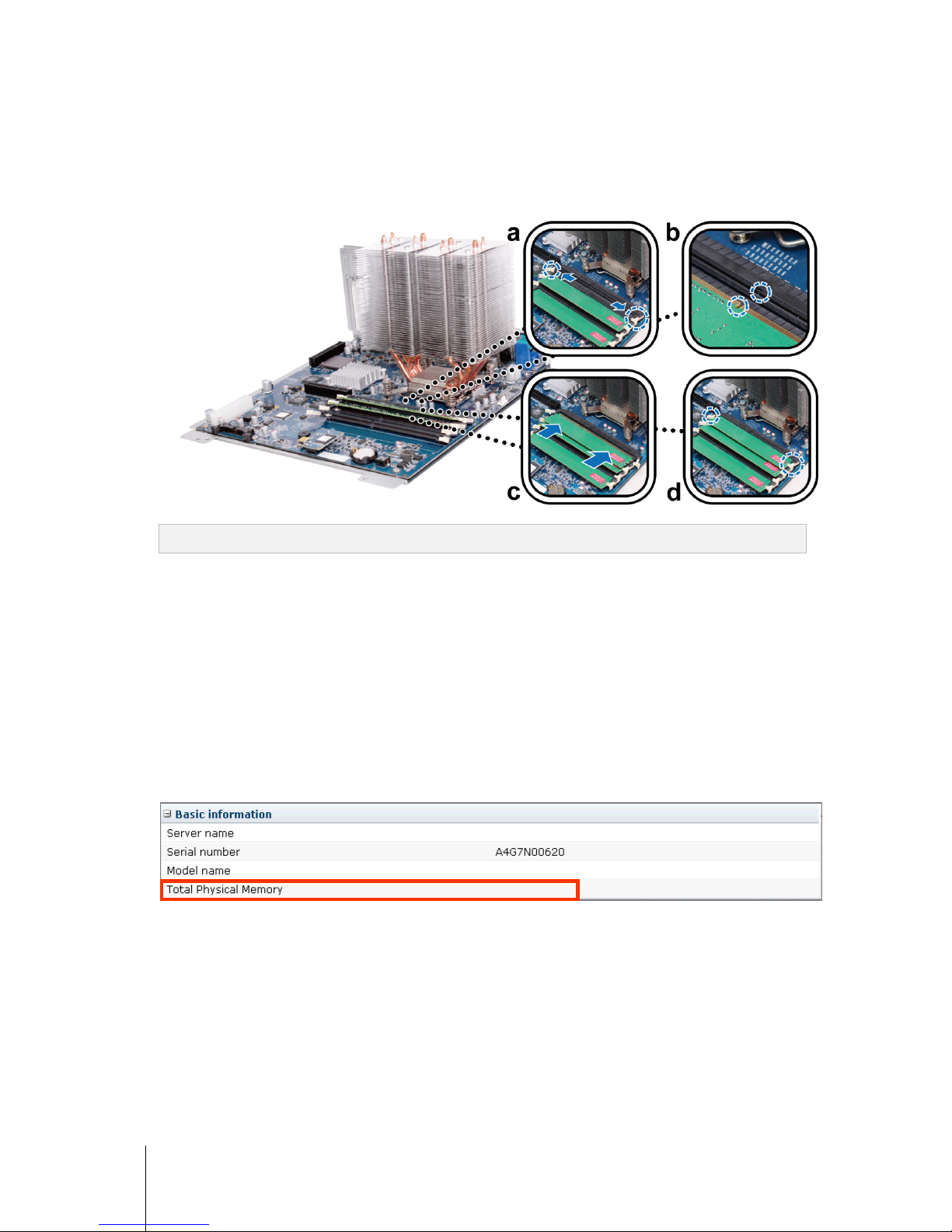

4 Insert the new memory module in the memory slot on the motherboard:
a Open the ejectors on the memory slot and push them out to the sides.
b Align the notch on the gold edge of the module with the notch in the memory slot.
c Use two fingers with firm, even pressure to push down on the memory module.
d When the memory is inserted correctly, the ejectors will snap into place.
Important: Hold the memory module by its edges, and do not touch the gold connectors.
5 Connect the 5 cables you disconnected in step 3, replace the inner panel, and tighten the 6 screws to secure it.
6 Replace the top and side cover, and tighten the screws you removed in step 2.
Make Sure DiskStation Recognizes the New Memory Capacity
After installing the memory module on DiskStation, it’s recommended that you check whether the server
recognizes the new memory.
To check the memory of your DiskStation:
1 Start up your DiskStation. (See “Start Up Your DiskStation” on Page 10 for more information.)
2 Install DSM. (See “Chapter 3: Install DSM on DiskStation” on Page 15 for more information.)
3 Log in to Synology DiskStation Manager (DSM).
4 Check Total Physical Memory in Main Menu > System Information.
If your DiskStation doesn’t recognize the memory or doesn’t start up correctly, check out if the memory is
installed correctly.
DS3612xs
4096 MB
DiskStation

13 Chapter 2: Hardware Setup

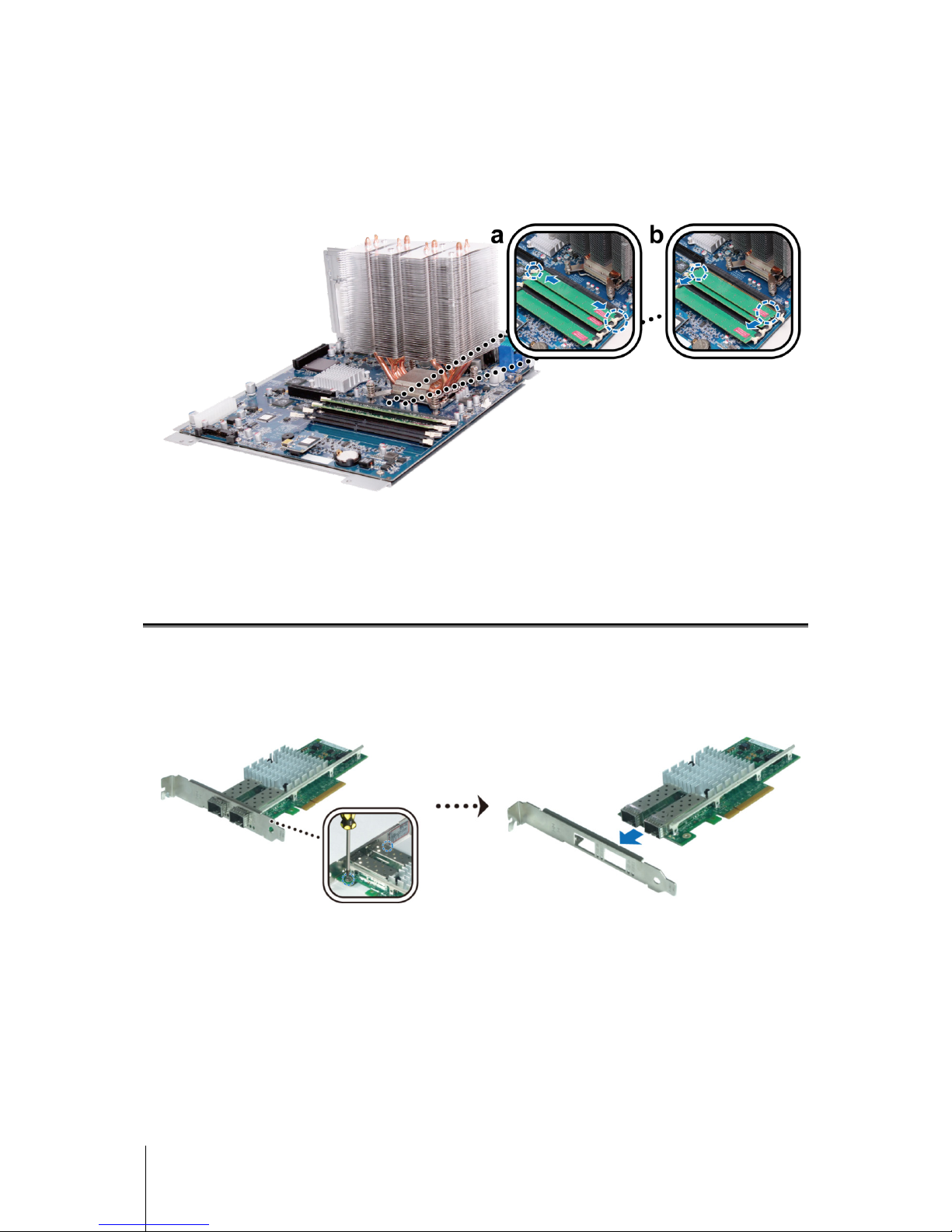

Remove the RAM Module from DiskStation
1 Follow step 1 to 3 of the “Install the RAM Module” section to reveal the motherboard of your DiskStation.
2 Remove the RAM module.
a Open the ejectors on the memory slot and push them out to the sides.
b Hold the memory module by its notches and remove it from the slot.
3 Follow step 5 to 6 of the “Install the RAM Module” section to replace the inner panel and the covers of your
DiskStation.
Add a Network Interface Card on DiskStation
Your DiskStation has a PCI Express expansion slot which allows you to install 10G/E or Gigabit network interface
card for LAN port expansion.1
To replace the long bracket with the short one:
You need to replace the long bracket (suited for PC) in your network interface card
with the short bracket before installing the card on your DiskStation.
1 Unscrew the 2 screws in the long bracket on your network interface card, and then remove the bracket.
---------
1For more information about supported 10G/E or Gigabit network interface cards, visit www.synology.com.

14 Chapter 2: Hardware Setup
2 Replace the long bracket with the short one, and tighten the 2 screws to secure the short bracket.
To install the network interface card:
1 Press and hold the power button until you hear a beep sound to shut down your DiskStation. Disconnect all
cables connected to your DiskStation to prevent any possible damages.
2 Remove the screws on the back of DiskStation, and then pull the top cover.
3 Install the network interface card.
a Unscrew the 2 screws in the port access bracket, and then remove the bracket and port access cover.
b Align the card’s connector with the expansion slot.
c Insert the card into the slot.
Important: Make sure the connector is fully inserted. Otherwise, the network interface card might not be able to
function properly.
d Replace the port access bracket, and tighten the 2 screws to secure the network interface card.
4 Replace the top cover, and tighten the screws you removed in step 2.

15
Chapter
3
Chapter 3: Install DSM on DiskStation
On a network computer, follow the steps in this chapter to install DSM on your DiskStation. After DSM is installed,
you can manage all features of your DiskStation by logging in to DSM with a web browser.
Install from Windows

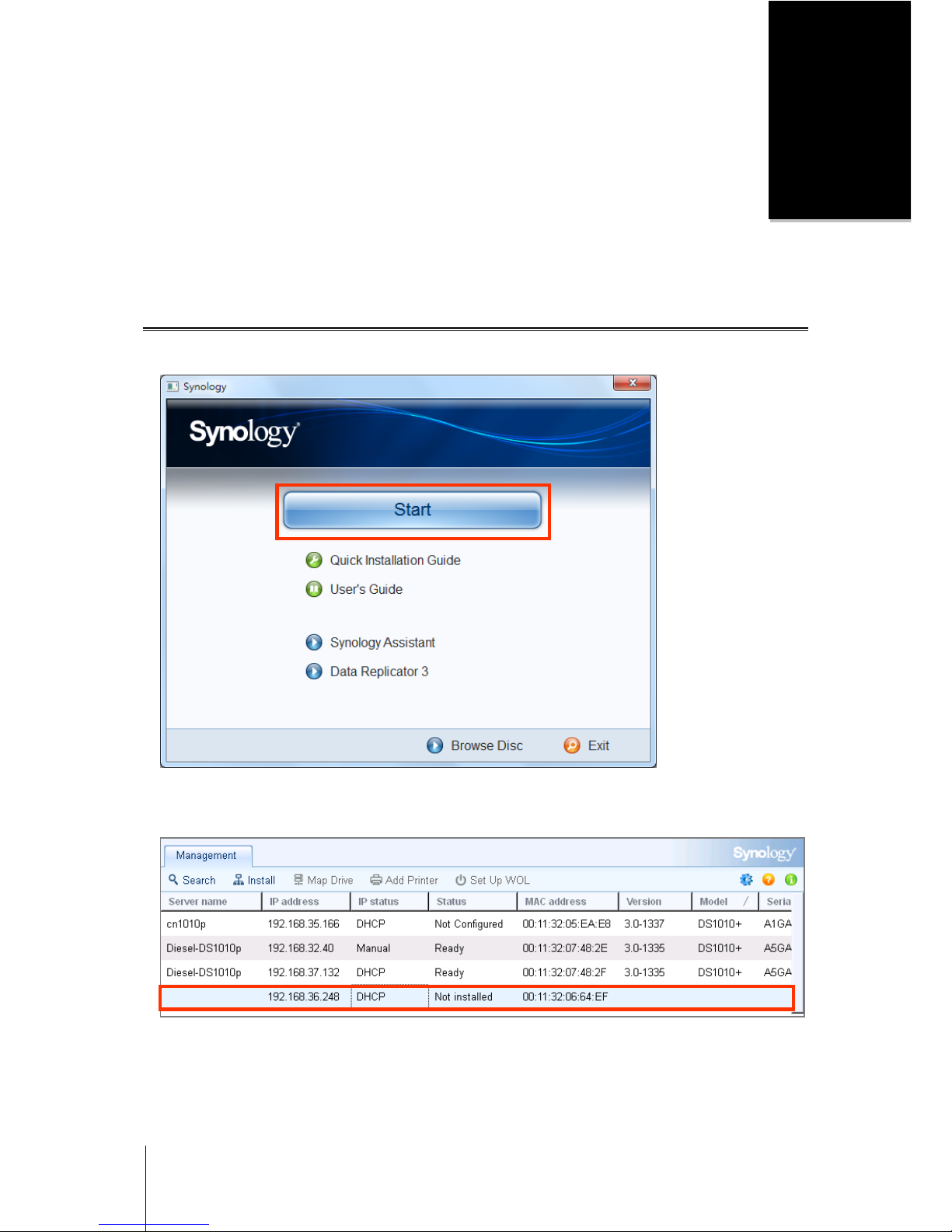

1 Insert the installation disc into your computer, and click Start. Follow the onscreen instructions to complete the
setup process.
2 Synology Assistant will be installed and launched on your computer. It will search and find your DiskStation
within LAN, and the status of your DiskStation should be Not Installed. Double-click your DiskStation to start
the setup process.
3.1-1605 DS4113.1-1605 DS411
3.2-1955 DS3612xs A5GA
DiskStation

16 Chapter 3: Install DSM on DiskStation
3 Click Browse to locate the DSM_[model name]_[number].pat installation file in the DSM folder of your
installation disc. You can also download the latest version of DSM from Synology Download Center.
4 Follow the onscreen instructions to complete the setup process.
Note: If you choose Quick Setup, the default admin password for your DiskStation Manager will be blank.
After the installation process is finished, you can manage your DiskStation with Synology DiskStation Manager
(DSM). For more information about managing your DiskStation with DSM, refer to Synology DiskStation User’s
Guide available at Synology Download Center.
D:\DSM\DSM_DS3612xs_3.2-1955.pat

17 Chapter 3: Install DSM on DiskStation

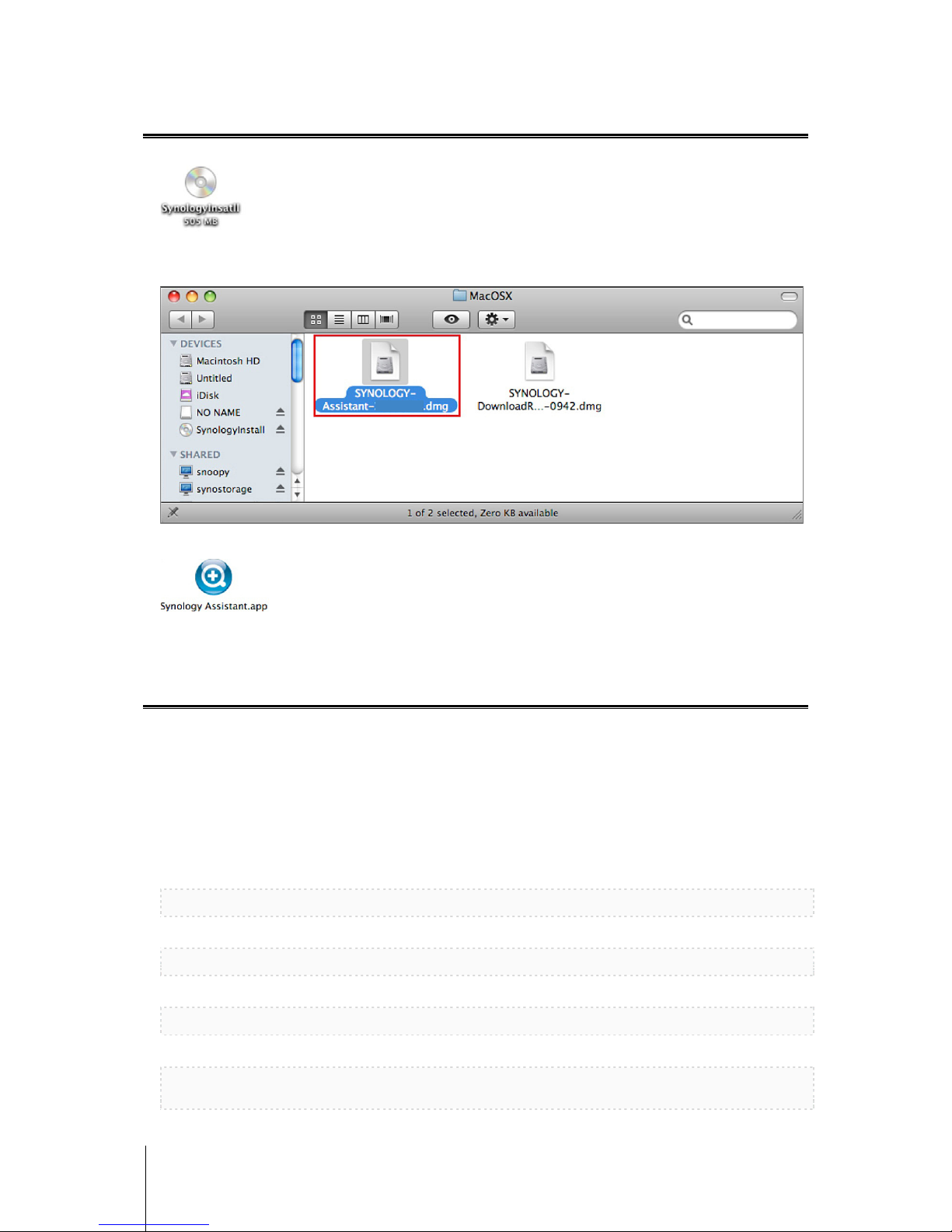

Install from Mac OS X
1 Insert the installation disc into your computer, and then double-click the SynologyInstall icon on the desktop.
2 In the window that appears, double-click the MacOSX folder, and then double-click Synology Assistant-
[number].dmg.
3 Double-click the Synology Assistant.app in the window that appears.
4 Follow step 2 to 4 of the “Install from Windows” section to finish setup.

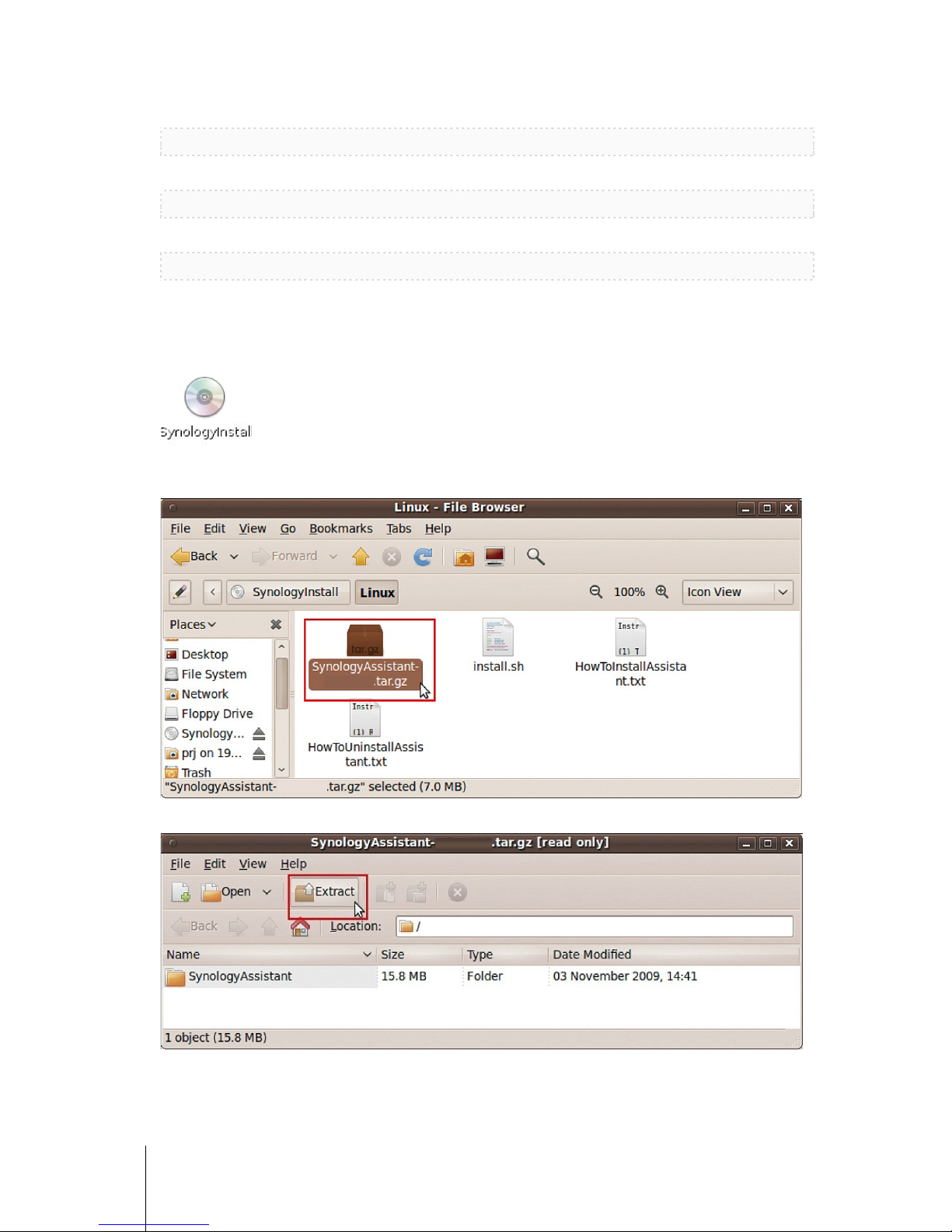

Install from Linux
The Linux version is optimized for Ubuntu distribution version 8 and 9. You can still try installation on other Linux
distributions (for evaluation purpose only).
Install and Run Synology Assistant
You can install and run Synology Assistant using the command lines or the GUI.
If you want to install using the command lines:
Run the script install.sh in the Linux folder of the installation disc, which will guide you through the steps below.
1 Remove the beta version of Synology Assistant (if any).
sudo rm -rf /usr/local/Synology /usr/local/bin/SynologyAssistant
2 Extract SynologyAssistant-[number].tar.gz to the directory you want, such as “/usr/local” or “.”
tar -C ./ -zxvf SynologyAssistant-[number].tar.gz
3 If you are using 64bit Ubuntu, install the 32bit libraries.
sudo apt-get install ia32-libs
4 Create the shortcut to /usr/local/bin.
sudo ln -sf /path/install/SynologyAssistant/SynologyAssistant \
/usr/local/bin/SynologyAssistant
3.2-1955

18 Chapter 3: Install DSM on DiskStation
5 To run Synology Assistant, you can either use the following command:
/path/install/SynologyAssistant/SynologyAssistant
Or run the shortcut:
/usr/local/bin/SynologyAssistant
If /usr/local/bin exists in your environment variable $PATH, just type:
SynologyAssistant
If you want to install using the GUI:
1 Go to /usr/local and /usr/local/bin and delete the following folders (if any):
Synology, SynologyAssistant
2 Insert the installation disc into your computer, and then double-click the SynologyInstall icon on the desktop.
3 In the File Browser window that appears, double-click the Linux folder, and then double-click Synology
Assistant-[number].tar.gz.
4 Click Extract, and then extract the SynologyAssistant directory to /usr/local or any other path.
3.2-1955
3.1-1605
3.2-1955
3.2-1955

19 Chapter 3: Install DSM on DiskStation
Important: If you are using 64bit Ubuntu, you have to install the 32bit libraries before proceeding. To install, type
the following command in Terminal:
sudo apt-get install ia32-libs
5 Go to /usr/local/SynologyAssistant (or [the path you just specified]/SynologyAssistant), double-click
SynologyAssistant, and then select Run in Terminal in the dialog box that appears.
Install DSM on DiskStation
When you have activated Synology Assistant, follow step 2 to 4 of the “Install from Windows” section to finish
setup.
Learn More
Congratulations! Your DiskStation is set up now. Refer to the User’s Guide in the installation disc for advanced
settings and management. For more information or online resources about your DiskStation, please visit
www.synology.com.

20
Appendix
A
AppendixA:Specifications
Item DS3612xs
Internal HDD 3.5” or 2.5” SATA (II) x 12
Max. Capacity
‧36TB (12 x 3TB hard drives)
‧100TB with DX1211 (expansion unit)
Hot Swappable HDD Yes
External HDD Interface
‧USB 2.0 x 4
‧Expansion port x 2 (Infiniband)
LAN Port Gigabit x4 (optional 10 GbE X2 add-on card is supported)
Copy Button No
Size (HxWxD) (mm) 310 X 300 X 340
Weight (Kg) 10.53
Supported Clients
‧Windows XP onward
‧Mac OS X 10.5 onward
‧Ubuntu 9.04 onward
Max. User Accounts 4096
Max. Group Accounts 512
Max. Shared Folders 512
Max. Concurrent Connections 1024
Max. Supported IP Cameras 50
File System ‧EXT4
‧EXT3‧FAT‧NTFS (External Disk, Read/Write)
Volume Type
‧Basic ‧JBOD ‧RAID 0 ‧RAID 1
‧RAID 5 ‧RAID 5+Spare ‧RAID 6‧RAID 10
‧Synology Hybrid RAID
Agency Certifications ‧FCC Class B ‧CE Class B ‧BSMI Class B
HDD Hibernation Yes
Deep Sleep for Expansion Unit Yes
Scheduled Power On/Off Yes
Wake on LAN Yes
Language Localization
‧English ‧Deutsch ‧Français ‧Italiano ‧Español ‧Dansk ‧Norsk ‧Svensk
‧Nederlands ‧Русский ‧Polski ‧Magyar ‧Português do Brasil
‧Português Europeu ‧Türkçe ‧Český ‧日本語‧한국어‧繁體中文‧简体中文
Power Consumption And
Environment Requirements
‧Line voltage: 100V to 240V AC
‧Frequency: 50/60Hz
‧Operating Temperature: 40 to 95˚F (5 to 35˚C)
‧Storage Temperature: 15 to 155˚F (-10 to 70˚C)
‧Relative Humidity: 5% to 95% RH
‧Maximum Operating Altitude: 10000 feet (3048m)
