Sysgration SBT-30 User manual

1
Bluetooth Low Energy
Tire Pressure Monitoring System
User Manual
Model: BSI-03

2
Table of Contents
1. PRODUCT INTRODUCTION.....................................................................................................3
2. NOTICE..........................................................................................................................................3
3. BLE TPMS SPECIFICATION.....................................................................................................5
4. BLE TPMS PACKAGE.................................................................................................................6
5. BLE TPMS SENSOR INSTALLATION.....................................................................................6
6. APP DOWNLOAD AND INSTALLATION...............................................................................8
7. SETTING & ADD DEVICE .......................................................................................................10
8. ALARMS AND WARNINGS.....................................................................................................18
9. SYSTEM SETTING ....................................................................................................................19
10. EXCHANGE SETTING............................................................................................................20
11. VOICE DONGLE SETTING ...................................................................................................22
12. ABOUT .......................................................................................................................................24
13. FREQUENTLY ASKED QUESTIONS...................................................................................25
14. WARRANTY POLICY.............................................................................................................25

3
1. Product Introduction
With the new technology product: Bluetooth Low Energy Tire Pressure Monitoring System
Retrofit Kit (hereinafter referred to as BLE TPMS), the driver could get the accurate tire pressure
and temperature at any time through smart phone by using this kit while driving. When the system
detects abnormal status, it will alarm the driver actively, and show the abnormal data and its tire
location on the BLE TPMS APP (hereinafter referred to as APP).
2. Notice
Product Warning
2.1.1 Do not operate the APP while driving. The company is exempt from all responsibilities
that result from driver’s carelessness and improper operation.
2.1.2 The system adopts the wireless transmission of signals. In some special environments,
frequency interference, faulty operation or faulty installation may result in weaker signals or
inability to receive signals. If the insulation adhesive sticker of the windshield contains metallic
material, it will affect the signal reception. When the alarm sounds and shows abnormal data, please
drive the vehicle away from the current location (there may be signal interference in the
surroundings) or drive the vehicle to a tire shop to be checked.
2.1.3 If the TPMS sensor is low on battery(if abnormal conditions exist continuously, the battery
may make the TPMS sensors continuously emit signals to warn the driver, so the battery life will be
shorter than expected), please go as soon as possible to a specified service station to confirm
whether the TPMS sensor needs to be replaced. You will take all the risks and responsibilities if you
do not change the sensor when the low battery sensor warning is displayed.
2.1.4 Temporary resealing or re-inflation of product injected through the valve hole may adversely
affect the operation of the sensor. The company is exempt from all responsibilities. Furthermore, do
not place the TPMS sensor in contact with any chemicals. They might damage the sensor and
prevent it from functioning properly.
2.1.5 Please close any other APPs or web pages which are not in use when using the BLE APP.
Data receiving status of the APP may be affected by the system load of the smart phone.

4
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Caution:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.

5
3. BLE TPMS Specification
BLE Sensor Specification
Operating Voltage 3V
Operating Humidity 95 % MAX
Operating Current ＜15 mA at DC 3V
Storage Temperature -40℃to 85 ℃
Operating Temperature -20℃to 85 ℃
Monitored Pressure Range Passenger: 0 to 92 psi (0 to 640 kPa)
Truck: 0 to 185 psi (0 to 1280 kPa)
Monitored Temperature Range -20 ℃to 85 ℃
Operating Frequency 2.4GHz
Transmission Power 4 dBm MAX
Battery Life 3 years (under normal operating condition)
Battery Capacity 540 mAh
Weight 45 ± 3 g (including valve)
Voice Dongle Specification
Operating Voltage 5V
Operating Humidity 95 % MAX
Operating Current ＜900 mA at DC 5V
Storage Temperature -40℃to 85 ℃
Operating Temperature -20℃to 85 ℃
Sound Pressure (min.) 80dB@30cm
Operating Frequency 2.4GHz
Transmission Power 4 dBm MAX
Weight 10 ± 1 g

6
4. BLE TPMS Package
5. BLE TPMS Sensor Installation
5.1 BLE TPMS Sensor Accessories
1. Screw 2.TPMS sensor 3.Valve and rubber washer 4.Washer 5.Nut 6.Valve Cap
Part Name Quantity
BLE TPMS Sensor 4 pcs
Valve 4 pcs
Screw 4 pcs
User Manual 1 pcs
Voice Dongle 1 pcs

7
5.2 Installation Steps
(Fig. 1)
Loosen the tire: fix both sides of the tire, press
and make it bulge.
(Fig. 2)
Remove the tire: the valve faces the mounting
arm in the one o’clock direction when removing
the tire.
(Fig. 3)
Install the sensor and valve: insert the valve
through the rim hole, fix the screw to secure the
valve and sensor by 2 Nm in torque, attach the
sensor body to the inner surface of the rim by
adjusting the angle of the sensor body.
(Fig. 4)
Install valve to the rim hole: guide the washer
into the valve, and fix the nut by 4 Nm in torque,
then tighten the cap.
(Fig. 5)
Mount the tire: grip the rim edge and the valve is
opposite to the mounting arm, avoid hitting the
sensor during arm operation.
After installation, please download the APP to
your smart phone, and proceed with all settings.

8
Note 1: After installation, recalibrate the rim set on the balance machine to avoid shaking
during driving.
Note 2: The “sensor valve” and “screw” are not included in product warranty. When
replacing the sensor, it is suggested to use a new sensor valve and screw.
6. APP Download and Installation
6.1 Operation System Required
TPMS system supports both smartphone for Android & iOS operation system. (Bluetooth 4.0)。
APP Download Operation System Compatible Smartphone
APPLEAPP Store iOS 7.1.2 or later iPhone 4S, 5, 5S, 6, 6 Plus or
later
Android Google Play Store Standard Android 4.3 or later Android Smart Phone
6.2 How to Download
Search in the Google Play Store or APPLEAPP Store by keyword “BLE” or ”TPMS” , in order to
find the free APP.( SYSGRATION BLE TPMS APP )

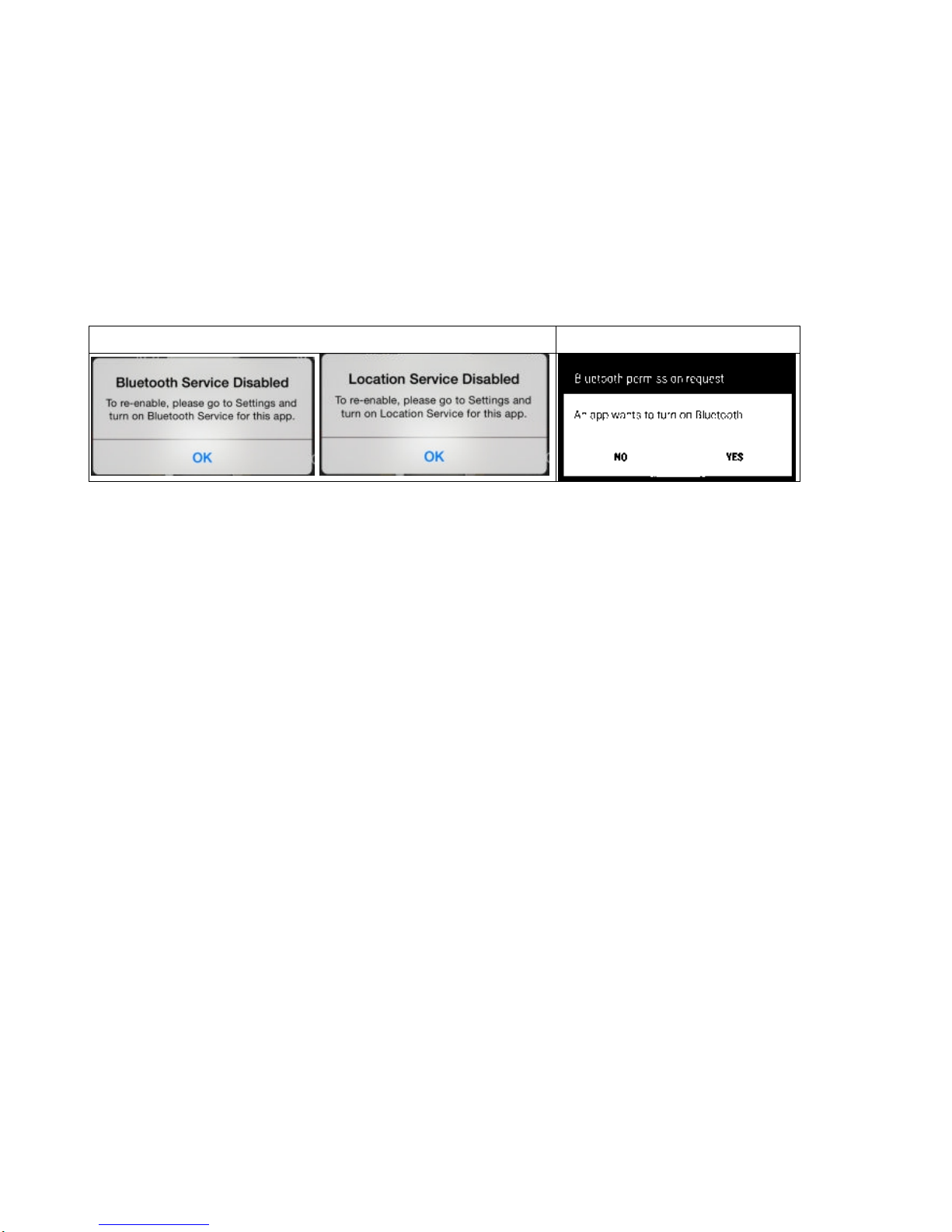

After you install the APP, please reboot and make sure Bluetooth is enabled. Open the APP after
installation is completed. A statement from the operation system will pop up, displaying “Bluetooth
Service Disabled” and/or “Location Services Disabled”. Please choose “ok” to turn on the
“Bluetooth” & “Location Services” function.

9
In case “Location Services” is not turned on properly, please turn it on in “Settings” (only for iOS
system).
iOS version Android version

10
7. Setting & Add Device
7.1 Introduction of Contents
Please make sure the “Bluetooth” & “Location Service” Setting functions are enabled when you
start to use the APP.
iOS version Android version
Start-up Page of the APP

11
iOS version Android version Main Menu:
Driving: Displays the
pressure, temperature and
voice warning of the four
tires. (Note 1)
Setting: System settings.
Add Device Setting: Enter
the learning setting when
using for the first time.
(p.11).
Exchange: Tire exchange
setting.
Voice Dongle: Dongle
setting. (Note 2)
About: Disclaimer &
Company Information.
Note 1: iOS version: enter the system Settings-> BLE TPMSAPP->Notifications->
Enable notification and support background execution.
Note 2: Voice Dongle and TPMS Sensor have been paired. If adjustments are made
in “System Setting” and “Exchange”, please change the settings in “Dongle”.

12
7.2 New Device Setting
iOS version Android version
Pic 1 Pic 1
New Device Setting
Manual Learning:
1. Select Manual Learning.
(Pic 1)
Pic 2 Pic 2

13
iOS version Android version
Pic 3 Pic 3
2. Choose tire 1 and key in
the five-character sensor ID
(Please refer to last page: ID
sticker), which might
include “0-9”, “A-F”, or ”a-
f”, when a blank space pops
up. (Pic 3)
Pic 4 Pic 4
3. Manual Learning
completed. (Pic 4) Using the
same method, set up the ID
learning for tire 2(RF), tire
3(RR) and tire 4(LR) in
sequence.

14
7.3 Rapid Deflation Setting
iOS version Android version
Pic 1 Pic 1
Rapid Deflation Setting :
1.
Select Rapid Deflation Setting.
(Pic 1)
Pic 2 Pic 2
2. Choose tire 1 (LF) and deflate
the tire pressure. The APP will look
for the deflation signal, showing
new ID number on the dialogue
display. You can press “OK’to
finish this step or press "Cancel". It
takes 120 seconds to perform this
step. (Please
ask a qualified tire shop to install
the product) (Pic 2)

15
iOS version Android version
Pic 3 Pic 3
3. Rapid Deflation completed. (Pic
3) Using the same method, set up
the ID learning for tire 2(RF), tire
3(RR) and tire 4(LR) in sequence.

16
7.4 QR Code Setting
iOS version Android version
Pic 1 Pic 1
QR Code Setting :
1.
Select QR Code Setting. (Pic 1)
Pic 2 Pic 2
2.
Choose tire 1 (LF)
The APP will scan qr code,
showing new ID number on the
dialogue display. You can press
“Clear ID” or “Stop scan” or
“Save ”button. (Please ask a
qualified tire shop to install the
product) (Pic 2)

17
iOS version Android version
Pic 3 Pic 3
3. QR Code completed. (Pic 3)
Using the same method, set up the
ID learning for tire 2(RF), tire
3(RR) and tire 4(LR) in sequence.

18
8. Alarms and Warnings
iOS version Android version System Warning：
When abnormal tire system
status occurs, the value of the
corresponding tire turns red, and it
alarms with a sound and warning
symbol. The warning symbols on
each tire display, from the left to
the right, are: tire pressure
warning, rapid deflation, no signal,
tire temperature warning and low
battery power of sensor. If you do
not want to hear the sound from
the voice dongle and the APP,
please exit the APP and mute the
voice dongle.
1. Warning of high tire pressure or low tire pressure
Tire pressure is higher than maximum tire pressure value or lower than minimum tire pressure
value on the APP.
2. Warning of rapid deflation of tire pressure
Any tire pressure that decreases rapidly.
3. No signal
The phone can not receive any signal: red symbolizes
4. Warning of high tire temperature
Tire temperature is higher than temperature maximum value on the APP.
5. Low battery power warning of TPMS sensor
Battery power of TPMS sensor is low.

19
9. System Setting
iOS version Android version System Setting:
Unlock the system setting by clicking on
the “lock” icon on the upper-right side of
the main display.
Change settings on “front wheel” and “rear
wheel” then press the “Save” button to
save the settings. You can press “Default
Value” to reset all settings. (Note 1)
Pressure Unit: Bar, kPa, psi; 3 different
pressure units.
Temperature Unit: ℃,℉; 2 different
temperature units.
WarningAudio Setting: Default, piano 1,
piano 2, piano 3, bird, fantasy, impromptu
Mail TPMS Data: Send log data. (Note 2)
Click the lock icon again to complete the
setting.
Note 1: For the standard tire pressure value, please refer to the placard located at the
side of the driver’s seat.
Default Value: Maximum tire pressure: psi= 43; kPa= 300; Bar= 3.0
Minimum Tire pressure: psi= 26; kPa：180; Bar= 1.8
Maximum Temperature: ℃= 80; ℉= 176
Note 2: Mail TPMS data:
iOS version: iPhone Setting->BLE TPMS App->GROUP FOR MAIL>Record
Data Enabled
iOS version supports only the system E-mail and does not support other
downloaded E-mail Apps. (eg: Gmail)
Android version: Select Info Setting to fill in e-mail address.

20
10. Exchange Setting
iOS version Android version
Pic 1 Pic 1
Tire Exchange Setting:
1.Unlock the system setting by
clicking on the “lock” icon on upper-
right side of the main display.
Pic 2 Pic 2
2.Tire positions are displayed in
sequence (1, 2, 3, and 4), meaning
left-front, right-front, right-rear and
left-rear with ID.
