System air prioAir 150E2 User manual

Document in original language | · 006
Circular duct fan
prioAir, prioAir Silent
Installation and Operating Instructions GB

| 006
© Copyright Systemair AB
All rights reserved
E&OE
Systemair AB reserves the rights to alter their products without notice.
This also applies to products already ordered, as long as it does not affect the previously agreed specifications.

| 006
Contents
1 General information.........................................1
1.1 Notice symbols......................................1
1.1.1 Instruction symbols.....................1
2 Important safety information .............................1
2.1 Personnel .............................................1
2.2 Personal protective equipment..................2
2.3 5 rules of electrical safety ........................2
3 Warranty.......................................................2
4 Delivery, transport, storage ...............................2
4.1 Safety information..................................2
4.2 Delivery ...............................................2
4.3 Transport..............................................3
4.3.1 Safety information......................3
4.4 Storage................................................3
5 Description ....................................................4
5.1 Fan data...............................................5
5.2 Intended use .........................................5
5.3 Incorrect use ........................................5
6 Name plate and type key ..................................6
7 Accessories....................................................7
8 Installation.....................................................8
8.1 Safety information..................................8
8.2 Preconditions ........................................8
8.3 Installation variations ..............................9
9 Electrical connection ........................................9
9.1 Safety information..................................9
9.2 Preconditions ........................................9
9.3 Connection ...........................................9
9.3.1 Wiring diagram prioAir
E2.........................................10
9.4 Protective grounding wire ...................... 10
9.5 Residual current circuit breaker................ 11
9.6 Protecting the motor............................. 11
10 Commissioning ............................................. 11
10.1 Safety information................................ 11
10.2 Preconditions ...................................... 11
10.3 Tests ................................................. 12
11 Operation .................................................... 12
11.1 Safety information................................ 12
11.2 Preconditions ...................................... 12
12 Troubleshooting/maintenance/repair ................ 12
12.1 Safety information................................ 12
12.2 Troubleshooting................................... 13
12.3 Maintenance....................................... 14
12.4 Spare parts ......................................... 14
13 Cleaning......................................................14
13.1 Safety information................................ 14
13.2 Procedure........................................... 15
14 Deinstallation/dismantling............................... 15
15 Disposal......................................................15
16 Commissioning Report.................................... 16
17 EU Declaration of conformity............................ 17

General information | 1
1 General information
1.1 Notice symbols
Danger
Direct hazard
Failure to comply with this warning will lead
directly to death or to serious injury.
Caution
Hazard with a low risk
Failure to comply with this warning may lead to
moderate injuries.
Warning
Potential hazard
Failure to comply with this warning may lead to
death or serious injury.
Important
Hazard with risk of damage to objects
Failure to comply with this warning will lead to
damage to objects.
Note:
Useful information and instructions
1.1.1 Instruction symbols
Instruction Instruction with xed sequence
♦Carry out this action 1. Carry out this action 3. (if applicable, further actions)
♦(if applicable, further actions) 2. Carry out this action
2 Important safety information
Planners, plant builders and operators are responsible for the proper assembly and intended use.
♦Read the operating instructions completely and carefully.
♦Keep the operating instructions and other valid documents, such as the circuit diagram or motor instructions, with
the fan. They must always be available at the place of use.
♦Observe and respect local conditions, regulations and laws.
♦Only use the fan in a awless condition.
♦Provide generally prescribed electrical and mechanical protective devices.
♦During installation, electrical connection, commissioning, troubleshooting, and maintenance, secure the location and
premises against unauthorised access.
♦Do not circumvent any safety components or put them out of action.
♦Keep all the warning signs on the fan complete and in a legible condition.
♦The device is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given supervision or instruction.
♦Do not allow children to play with the device.
2.1 Personnel
The fan may only be used by qualified, instructed and trained personnel. The persons must know the relevant safety di-
rectives in order to recognise and to avoid risks. The individual activities and qualifications can be found in Table 1 Qual-
ifications, page 1.
Table 1 Qualifications
Activities Qualifications
Storage, operation, transport, cleaning, disposal Trained personnel (see following note)
Electrical connection, commissioning, electrical
disconnection Electrical expert or matching qualification
| 006

2|Warranty
Qualifications cont'd
Installation, disassembly Fitter or matching qualification
Maintenance Electrical expert or matching
qualification
Fitter or matching
qualification
Repair
Electrical expert or matching
qualification
Fitter or matching
qualification
Smoke extraction fans and EX fans only by agreement with
Systemair.
Note:
The operator is responsible for ensuring that personnel are instructed and have understood the contents of
the operating instructions. If something is unclear, please contact Systemair or its representative.
2.2 Personal protective equipment
Wear protective equipment during all work in the vicinity of the fan.
• protective working clothes
• protective working shoes
• protective working gloves
• helmet
• goggles
• hearing protection
2.3 5 rules of electrical safety
1. Disconnect (disconnection of
the electrical system from
live components at all
terminals)
2. Prevent reactivation
3. Test absence of voltage
4. Ground and short-circuit
5. Cover or restrict adjacent live parts
3 Warranty
For the assertion of warranty claims, the products must be correctly connected and operated, and used in accordance
with the data sheets. Further prerequisites are a completed maintenance plan with no gaps and a commissioning re-
port. Systemair will require these in the case of a warranty claim. The commissioning report is a component of this
document. The maintenance plan must be created by the operator, see section 12.3 Maintenance, page 14.
4 Delivery, transport, storage
4.1 Safety information
Warning: Risk from rotating fan blades
♦Prevent access by unauthorised persons by safety personnel or access protection.
Warning: Suspended loads
♦Wear protective equipment during all work in the vicinity of the fan, details see 2.2 Personal protective equipment,
page 2.
♦Do not walk under suspended loads.
♦Make sure that there is nobody under a suspended load.
4.2 Delivery
Each fan leaves our plant in an electrically and mechanically proper condition. We recommend transporting the fan to
the installation site in the original packaging.
Checking delivery
♦Check the packaging and the fan for transport damage. Any findings should be noted on the cargo manifest.
♦Check completeness of the delivery.
Unpacking
| 006

Delivery, transport, storage | 3
Warning
When opening the transport packaging, there is a risk of damage from sharp edges, nails, staples,
splinters etc.
♦Unpack the fan carefully.
♦Check the fan for obvious transport damage.
♦Only remove the packaging shortly before assembly.
♦Wear protective equipment during all work in the vicinity of the fan, details see 2.2 Personal protective
equipment, page 2.
4.3 Transport
4.3.1 Safety information
Warning: Electrical or mechanical hazards due to fire, moisture, short circuit or malfunction.
♦Never transport the fan by the connecting wire, terminal box, impeller, protection grille, inlet cone or silencer.
♦In open transport, please make sure that no water can penetrate into the motor or other sensitive parts.
♦We recommend transporting the fan to the installation site in the original packaging.
Caution: If transported without care during loading and unloading, the fan may be damaged.
♦Load and unload the fan carefully.
♦Use hoisting equipment that is suitable for the weight to be hoisted.
♦Observe the transportation arrows on the packaging.
♦Use the fan packaging exclusively as transport protection and not as a lifting aid.
4.4 Storage
♦Store the fan in the original packaging in a dry, dust-free location protected against weather.
♦Avoid the effects of extreme heat or cold.
Important
Hazard due to loss of function of the motor bearing
♦Avoid storing for too long (recommendation: max. 1 year).
♦Check that the motor bearing functions properly before installation.
| 006

4|Description
5 Description
prioAir equipped with an EC motor
The fans are driven by EC motors. These motors are delivered with a pre-wired potentiometer (0–10 V) that allows you
to easily find the required working point of the fan. All motors are suitable for 50/60 Hz. The input voltage for single-
phase units can vary between 200 and 277 V. All models have one potential-free terminal for error message.
prioAir equipped with an AC motor
For information on speed regulation options, see 6 Name plate and type key, page 6.
Table 2 Dimensions prioAir
[mm] A B C D E
A
ØD
C
ØB
E
E
ØB
prioAir 150E2
prioAir 150EC 412 149 211 187 40
prioAir 160E2
prioAir 160EC 220 159 211 187 25
prioAir 200E2
prioAir 200EC 245 199 249 227 25
prioAir 250E2
prioAir 250EC 300 249 303 284 30
prioAir 250E2–L
prioAir 250EC-L 300 249 303 284 30
Table 3 Dimensions prioAir Silent
C
D
EE
A
B
B
F
G
[mm] A B C D E F G
prioAir Silent 150E2
prioAir Silent 150EC 708 150 234.5 229 74 140 10.5
prioAir Silent 160E2
prioAir Silent 160EC 716 160 234.5 229 78 140 10.5
prioAir Silent 200E2
prioAir Silent 200EC 720 200 266.5 255 80 140 10.5
prioAir Silent 250E2
prioAir Silent 250EC 704 250 325.2 320 72 140 10.5
prioAir Silent 250E2–L
prioAir Silent 250EC-L 704 250 325.2 320 72 140 10.5
prioAir Silent 315E2–L
prioAir Silent 315EC-L 704 315 -357 72 150 10,5
| 006

Description |5
5.1 Fan data
• Max. temperature of transported air, max. ambient temperature, sound pressure –> see data sheet, available in our
online catalogue.
• Voltage, current, enclosure class, weight –> see name plate
5.2 Intended use
• The fans are intended for installation in ventilation systems. They can be installed both in duct systems and also with
free suction via a suction-side contact protection grille. Free discharge via a contact protection grille is also possible.
• The fan is suitable for conveying clean air, with a density of 1.3 kg/m3 and a max. air humidity of 95%.
• The maximum permissible operating data on the name plate apply for an air density of 1.2 kg/m³ (sea level) and a
max. air humidity of 80%.
5.3 Incorrect use
Incorrect use refers mainly to using the fan in another way to that described. The following uses are incorrect and
hazardous:
• Conveying of explosive and combustible media
• Conveying of aggressive media
• Operation in an explosive atmosphere
• Operation without duct system or protection grille
• Operation with the air connections closed
• Installation outside without weather protection
| 006

6| Name plate and type key
6 Name plate and type key
1
2
3
4
1Type designation 3Input power/fan impeller speed
2Voltage/frequency/current 4Certifications
Table 4 Type key
prio 200 EC -L
-Normal motor version
-L Large motor version
Motor type
EC Electronically commutated/1 phased
E2 2 poled/voltage controllable/1 phased
Size
Fan type
prioAir Circular duct fan
prioAir Silent Circular duct fan with Silencer
| 006

Accessories |7
7 Accessories

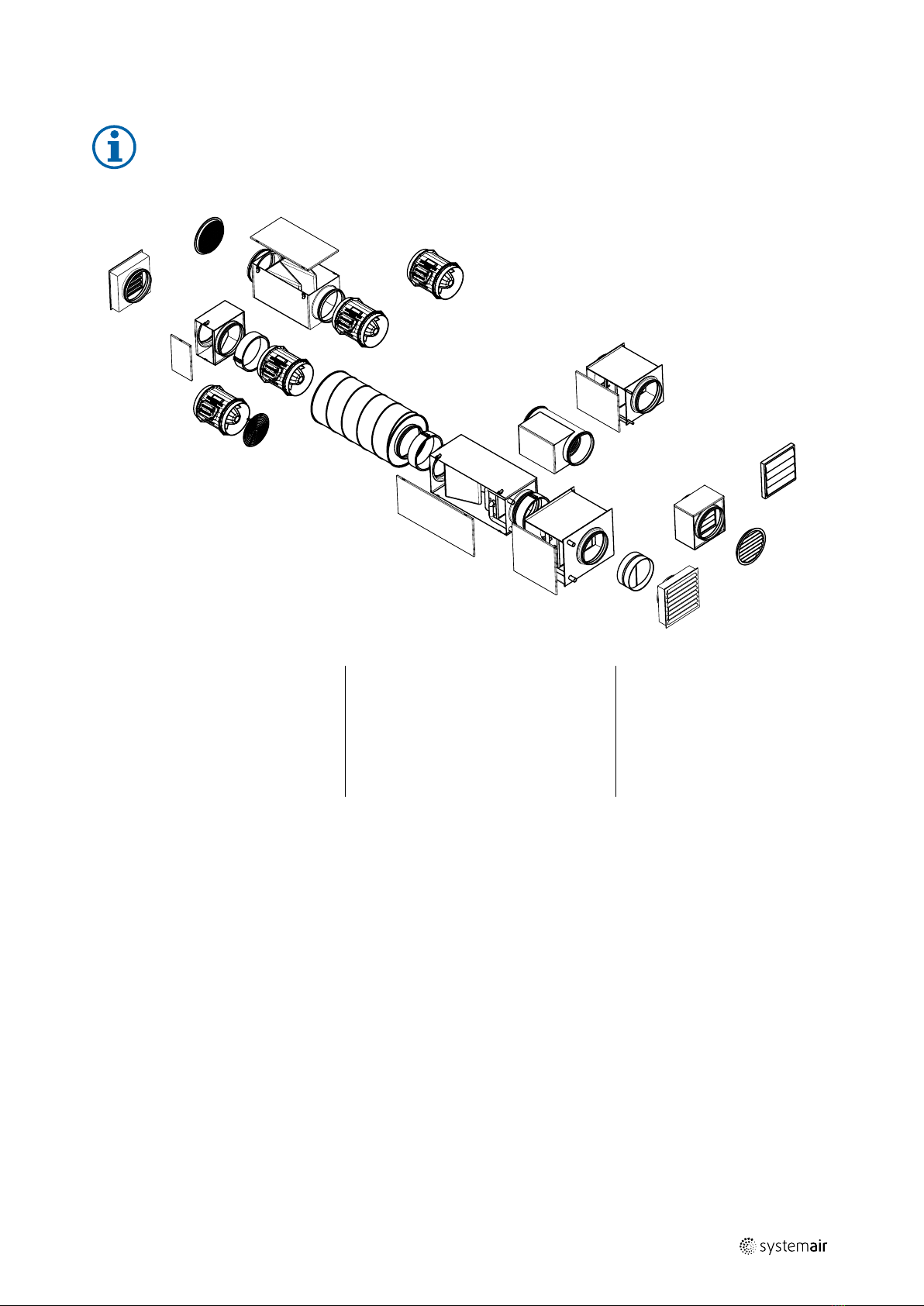

Note:
For details of the accessories, please check our online catalog or contact Systemair.
IGC
PrioAir
IGK
FGR
FFR
SG
LDC
VBF
CB
VBC
CWK
RSK
IGK
IGC
VKK
VK
FK
FK
FK
prioAir fan LDC Silencer VKK Back draft damper
IGC Round protection grille VBF Water heating battery VK Louvre Shutter
IGK Wall grid CWK Duct cooling battery FK Fast clamp
FGR Filter cassette CB Duct heater RSK Back draft damper
FFR Filter cassette VBC Water heating battery SG Protection guard
| 006

8| Installation
8 Installation
8.1 Safety information
General safety information
♦Installation may only be carried out by adequately qualified persons, details see Table 1 Qualifications, page 1.
♦Wear protective equipment during all work in the vicinity of the fan, details see 2.2 Personal protective equipment,
page 2.
♦Abide by the system-related conditions and requirements of the system manufacturer or plant constructor.
♦Do not dismantle or circumvent safety elements, or put them out of function.
♦Provide contact and intake protection and ensure safety distances according to DIN EN ISO13857 and DIN 24167-1.
♦Prevent the possibility of foreign bodies being drawn in.
♦To reduce transmission of vibration to the duct system, we recommend fast clamps from our accessory range, see
chapter Accessories.
8.2 Preconditions
♦Ensure that the fan and all its components are
undamaged.
♦Ensure that there is enough space to install the fan.
♦Protect against dust and moisture when installing.
♦Ensure that the information on the name plates (fan
and motor) matches up with the operating conditions.
♦Fit the fans in such a way that there is sufficient
access for troubleshooting, maintenance and repair.
Warning: “Unintended” start-up of the unprotected impeller!
If the unit is plugged in and the fan has been removed from the duct system or the protective grille is
not mounted on the fan, the impeller may start, resulting in injury.
♦Unplug the unit immediately.
Important
Damage to the bearings or other parts of the fan can occur.
♦Do not place a duct bend directly before or after the fan!
♦Ensure a smooth and constant air flow to the device. Ensure a free exhaust. See Fig. 1 Straight ducts,
page 8.
• Rectangular duct system: D= Hydraulic diameter • Round duct system: D= Nominal diameter
Ø D
min.
2,5x Ø D
min.
2,5x Ø D
Fig. 1 Straight ducts
| 006

Electrical connection | 9
8.3 Installation variations
The installation is possible in any mounting position.
Installation with
mounting bracket
Note:
The mounting
bracket is
available in our
accessory range.

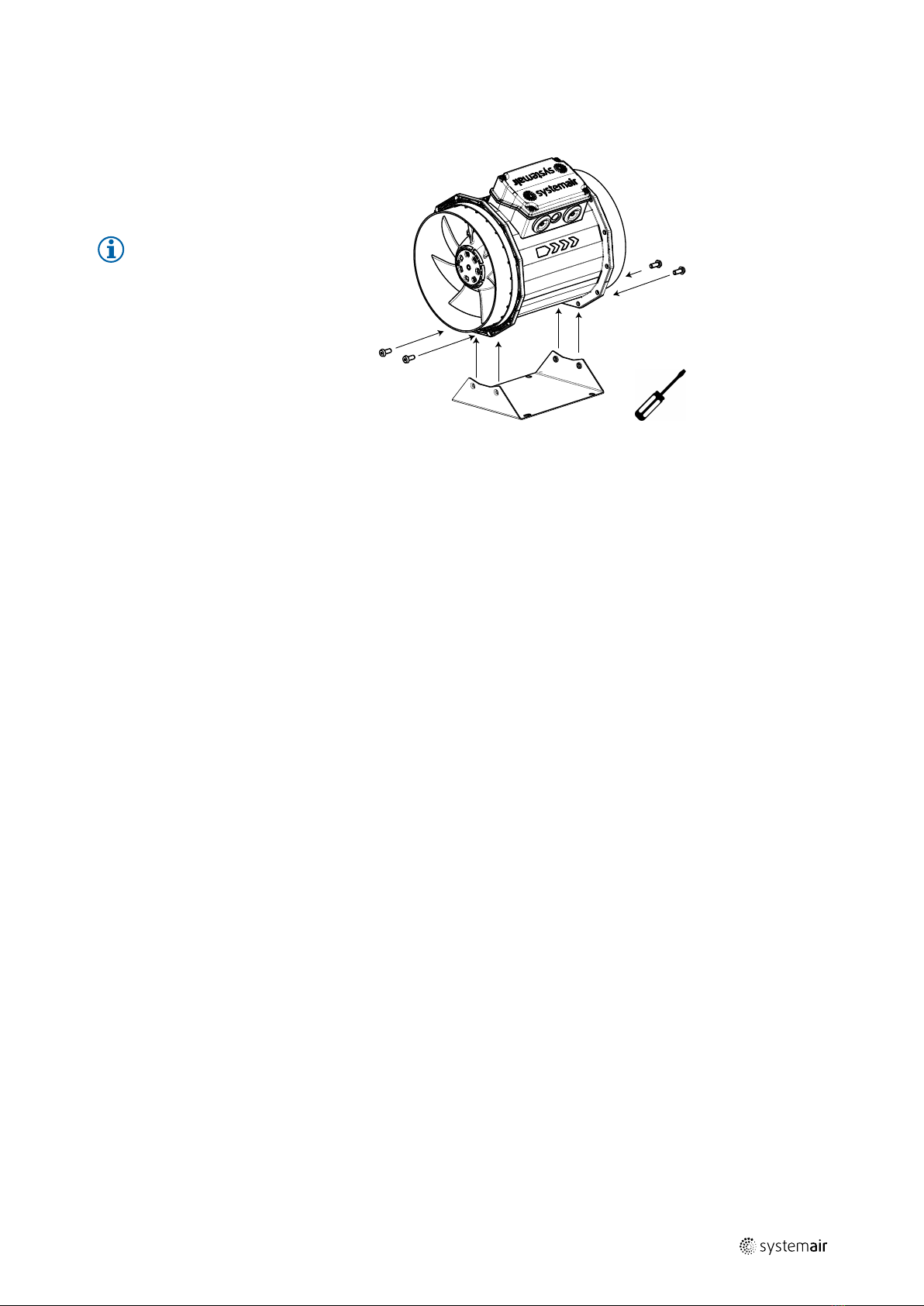

♦Mount the mounting
bracket on the fan,
see adjacent image.
9 Electrical connection
9.1 Safety information
Warning: Danger from electrical voltage!
♦Observe the 5 rules of electrical safety, see 2.3 5 rules of electrical safety, page 2.
♦Prevent the ingress of water into the connection box.
♦Electrical connection may only be carried out by adequately qualified persons, details see Table 1 Qualifications, page
1.
♦Observe and respect local conditions, regulations and laws.
♦Wear protective equipment during all work in the vicinity of the fan, details see 2.2 Personal protective equipment,
page 2.
Warning: Danger due to electrostatic influence on medical implants (e.g. cardiac pacemaker)!
♦Persons with medical implants (e.g. cardiac pacemaker) should keep enough distance to the fan.
9.2 Preconditions
♦Abide by the system-related conditions and requirements of the system manufacturer or plant constructor.
♦Safety elements may not be dismantled, circumvented or deactivated.
♦Install a circuit breaker in the permanent electrical installation, with a contact opening of at least 3 mm at each pole.
9.3 Connection
♦Check if the data on the nameplate matches the
connection data.
♦Complete the electrical connection according to the
circuit diagram.
♦Lay the connection cables in the terminal box in such
a way that allows the cover of the terminal box to be
closed without resistance.
♦Use all of the locking screws.
♦Insert the screws by hand to avoid damaging the
thread.
♦Tighten all glands well in order to guarantee
protection class IP.
♦Screw the lid of the terminal box/inspection switch
evenly tight.
♦Connect the cable end in a dry environment.
| 006

10 | Electrical connection
9.3.1 Wiring diagram prioAir E2
Color Function/pin assignment
Black LPower supply 230 V AC, 50...60 Hz
Blue NNeutral conductor
Green/Yellow PE Protective conductor
9.3.1.1 Wiring diagram prioAir EC
The fans are delivered with a pre-wired potentiometer (0–10 V)
Client side
Max. speed Adjustable speed
10V –> n = max
1V –> n = min
<1V –> 0
Adjustable speed through PWM
1...10 KHz
100 % PWM –> n = max
10 % PWM –> n = min
< 10 % –> 0
Factory setting
Adjustable speed through potentiometer
Wire no. Connection Color Function/assignment
CON10 L black or brown Power supply 230 V AC, 50...60 Hz, see name plate for
voltage range
CON11 N blue Neutral conductor
CON12 PE green/yellow Protective conductor
1 GND blue GND-connection of the controller interface
2 0...10 V PWM yellow Controller input 0...10 V or PWM
3 10 V red
Voltage output 10 V / Short-circuit-proof power supply for
external devices (e.g. poti)
prioAir 150EC, prioAir 160EC –> I max=1.1mA
prioAir 200ECprioAir 250EC –> I max=10mA
4Tacho white Speed output: Open Collector, 1 impulse per revolution,
electrically isolated, Isink_max = 10 mA
9.4 Protective grounding wire
The protective grounding must have a cross-section equal to or greater than that of the phase conductor.
| 006

Commissioning |11
9.5 Residual current circuit breaker
All-current-sensitive residual current circuit breakers are required for use in alternating-current systems with 50/60 Hz,
in combination with electronic devices such as EC motors, frequency converters or uninterruptible power supplies
(UPS).
9.6 Protecting the motor
Note:
In fans equipped with an EC motor, there is no additional motor protection needed. The motor protection is
integrated in the electronics of the motor.
Important
Damage to motor due to overcurrent, overload or short circiut.
♦Lead-out temperature monitors must be integrated in the control circuit in such a way that, if a fault
occurs, the motor cannot switch on again automatically after it has cooled down.
♦Motor lines and temperature monitor lines should be laid separately on principle.
♦Without thermal protection: Use a motor protection switch!
10 Commissioning
Warranty claims can only be made if commissioning work is carried out correctly and written evidence thereof is
provided.
It is recommended to fill out the commissioning report 16 Commissioning Report, page 16.
10.1 Safety information
♦Commissioning may only be carried out by adequately qualified persons, details see Table 1 Qualifications, page 1.
♦Wear protective equipment during all work in the vicinity of the fan, details see 2.2 Personal protective equipment,
page 2.
10.2 Preconditions
♦Installation and electrical connection have been
correctly performed.
♦Residual material from installation and foreign objects
have been removed from the fan and ducts.
♦Inlet and outlet are free.
♦Safety devices have been fitted.
♦Ground cable is connected.
♦Cable glands are tight.
♦Nominal current (from the name plate) is not
exceeded.
♦Data on the name plate corresponds with the
connection data.
| 006

12 |Operation
10.3 Tests
♦Before switching the fan on, check for externally visible damage and ensure that the protective equipment functions
properly.
AC motor EC motor
1. Switch the fan on.
2. Checks:
♦Direction of rotation/conveyance. The direction of
rotation always applies looking at the impeller.
• The direction of rotation is best observed just
before the fan stops.
♦Smooth running (any vibrations and noise)
♦Current consumption
♦Compare the current consumption with the
nominal consumption on the name plate.
♦Tightness of all connections
3. Switch the fan off.
When the mains are switched on, the motor starts an
initialization (a few seconds). After the initialization the
control input is active.
1. Switch the fan on via the control input.
2. Checks:
♦Direction of rotation/conveyance. The direction of
rotation always applies looking at the impeller.
• The direction of rotation is best observed just
before the fan stops.
♦Smooth running (any vibrations and noise)
♦Current consumption
♦Compare the current consumption with the
nominal consumption on the name plate.
♦Tightness of all connections
3. Switch the fan off via the control input.
11 Operation
11.1 Safety information
Warning: Hazard from electrical voltage or moving components.
♦The device may only be operated by adequately qualified persons, details see Table 1 Qualifications, page 1.
♦Abide by the system-related conditions and requirements of the system manufacturer or plant constructor.
11.2 Preconditions
♦Ensure access only to persons who can safely handle the device.
♦Only use the fan in accordance with the operating instructions and the operating instructions for the motor.
♦Do not dismantle or circumvent safety elements, or put them out of function.
12 Troubleshooting/maintenance/repair
12.1 Safety information
♦Troubleshooting/maintenance/repair may only be carried out by adequately qualified persons, details see Table 1
Qualifications, page 1.
♦Wear protective equipment during all work in the vicinity of the fan, details see 2.2 Personal protective equipment,
page 2.
♦Observe the 5 rules of electrical safety, see 2.3 5 rules of electrical safety, page 2.
♦Abide by the system-related conditions and requirements of the system manufacturer or plant constructor.
♦The impeller must be at a standstill.
| 006

Troubleshooting/maintenance/repair | 13
12.2 Troubleshooting
Table 5 Troubleshooting
Problem Possible causes Remedy
Fan does not run
smoothly
Soiling on the impeller Clean carefully
Material decomposition on the impeller due
to aggressive material conveyed. Contact Systemair
Impeller rotates in wrong direction. Contact Systemair
Deformation of impeller due to excessive
temperature.
Ensure that the temperature does not exceed
the certified value/Install new fan
Vibrations, oscillations Check the installation of the fan/check the
duct system, see 8 Installation, page 8
Air output of fan too
low
Impeller rotates in wrong direction. Contact Systemair
Wrong wiring configuration Check and possibly correct the wiring
configuration
Pressure losses too high Optimize the line routing.
Flow regulators not or only partly open Check opening position on site.
Intake or pressure ducts are blocked Remove the blockage.
Grinding sounds
when starting or
operating the fan
Check if the duct connections of the fan are
strained Loosen the duct connections and realign it.
Thermal contacts/
resistors have
triggered
Impeller rotates in wrong direction. Contact Systemair
Motor overheated Contact Systemair
Capacitor (if used) not or not correctly
connected. Connect the capacitor correctly.
Motor blocked Contact Systemair
Fan does not reach
nominal speed
Defective motor winding Contact Systemair
Control units (if used) such as frequency
converter or transformer are set incorrectly. Correct the settings of the control units.
Mechanical blockage Remove the blockage.
Motor does not
rotate
Faulty supply voltage Check the supply voltage, re-establish the
voltage supply.
Faulty connection Disconnect from the power supply, correct
the connection, see circuit diagram.
Temperature monitor has responded Allow the motor to cool down, find and
resolve the cause of the fault.
Electronics/motor
overheated
Insufficient cooling Improve cooling.
Overloaded motor Check if the correct fan is used for your
application.
Ambient temperature too high Check if the correct fan is used for your
application.
Note:
For all other damage/defects, please contact Systemair. Defective safety-relevant fans (for Ex and smoke
extraction applications) must be replaced completely.
| 006

14 | Cleaning
12.3 Maintenance
Warranty claims can only be made if maintenance work is carried out correctly and written evidence thereof is
provided.
We recommend regular maintenance intervals to ensure continuous fan operation. These maintenance intervals are
specified in the “Activities” table below. In addition, the operator must carry out follow-up activities such as cleaning,
replacing defective components or other corrective measures. For traceability reasons, a maintenance plan must be
created which documents the work carried out. This must be created by the operator. If the operating conditions are
"extreme", the maintenance intervals must be reduced so that maintenance is carried out more frequently. Examples
of extreme operating conditions:
• Ambient temperature > 40 ºC or < 0 ºC, or temperature fluctuations > 20 K
Table 6 Activities
Normal operating
conditions
Extreme operating
conditions
Activity Every six
months
Annually Quarterly Every six
months
Check the fan and its components for visible damage,
corrosion and contamination. X X
Check the impeller for damage and imbalance. X X
Clean the fan/ventilation system (see 13 Cleaning, page
14). X X
Check the screwed connections for damages/defects and
check that they are firmly seated. XSee normal operating
conditions
Check the fan intake is free from contamination. X X
Check that the fan and its components are being used
correctly. XSee normal operating
conditions
Check the current consumption and compare this with the
rated data. X X
Check the electrical and mechanical protective equipment
is working correctly. XSee normal operating
conditions
Check the fan’s rating plate is legible. X X
Check the connection clamps and screwed cable
connections for damage/defects, and check that they are
firmly seated. XSee normal operating
conditions
Note:
For all other damage/defects, please contact Systemair. Defective safety-relevant fans (for Ex and smoke
extraction applications) must be replaced completely.
12.4 Spare parts
♦Use original spare parts from Systemair only.
♦When ordering spare parts, please specify the serial number of the fan. This can be found on the name plate.
13 Cleaning
13.1 Safety information
♦Cleaning may only be carried out by adequately qualified persons, details see Table 1 Qualifications, page 1.
♦Wear protective equipment during all work in the vicinity of the fan, details see 2.2 Personal protective equipment,
page 2.
♦Observe the 5 rules of electrical safety, see 2.3 5 rules of electrical safety, page 2.
♦The impeller must be at a standstill.
| 006

Deinstallation/dismantling | 15
13.2 Procedure
Important
Keeping the fan clean extends its service life.
♦Install a filter monitor.
♦Do not use steel brushes or sharp-edged objects.
♦Do not use a high-pressure cleaner (steam jet cleaner) under any circumstances.
♦Do not bend the fan blades when cleaning.
♦When cleaning the impeller, pay attention to balance weights that have been positioned
♦Keep the airways of the fan clear and clean them if necessary with a brush.
14 Deinstallation/dismantling
Deinstall and dismantle the fan in reverse order of installation and electrical connection.
15 Disposal
♦Ensure material is recycled. Observe national regulations.
♦The device and the transport packaging are predominantly made from recyclable raw materials.
♦Disassemble the fan into its components.
♦Separate the parts according to:
• reusable material
• material groups to be disposed of (metal, plastics, electrical parts, etc.)
| 006

16 |Commissioning Report
16 Commissioning Report
Warranty claims can only be made if commissioning work is carried out correctly and written evidence thereof is
provided.
Fan
Description:
Article no.: Manufacturing order no.:
Installer
Company: Contact person:
Company address:
Tel. no.: Email:
Operator (Place of installation)
Company: Contact person:
Company address:
Tel. no.: Email:
Type of connection Yes No
Directly to mains □ □
0-10 V signal (EC motor) □ □
via contactor control □ □
Transformer □ □
Frequency converter □ □
Sinus filter □ □
Shielded cables □ □
Motor protection Yes No
Motor protection switch or motor protection relay □ □
PTC resistor □ □
Resistance value [Ω]:
Thermal contact □ □
Electrical motor protection □ □
Others:
Functional check Yes No
Impeller easily rotatable (by hand) □ □
Rotation direction acc. to directional arrow □ □
Nominal data - Fan (name plate on fan housing)
Voltage [V]: Current [A]:
Frequency [Hz]: Power [kW]:
Fan impeller speed [rpm]:
Measured data at commissioning
Voltage [V]: Temp. of transported air [°C]:
Current L1 [A]*: Fan impeller speed [rpm]:
| 006
