System air VTR 100/B LITE User manual

Document in original language | 212961 · 01
VTR 100/B LITE
User Manual GB

212961 | 01
© Copyright Systemair AB
All rights reserved
E&OE
Systemair AB reserves the rights to alter their products without notice.
This also applies to products already ordered, as long as it does not affect the previously agreed specifications.

212961 | 01
Contents
1 Overview ......................................................1
1.1 General Description ................................1
1.2 Warranty..............................................1
1.3 Type label.............................................1
1.4 Important Safety Information ........... ....... ..1
1.4.1 Intended Use.............................1
1.4.2 Admonitions .............................2
1.4.3 Declaration of Conformity ............3
2 Configuration .................................................4
2.1 Control panel.........................................4
2.1.1 Display symbols .........................5
2.2 Setting the temperature...........................5
2.3 Manual setting of airflow .........................6
2.4 Programming the Week schedule ..............6
2.5 Manual and automatic summer
mode ..................................................7
3 Maintenance .. .......... ....... ........... ........... ....... ..7
3.1 Maintenance Schedule ............................7
3.2 Remove/mount the front cover .. ......... ......8
3.3 Change Filters........................................8
3.3.1 Resetting the filter time ...............9
3.4 Check and Clean a Heat Exchanger .............9
3.5 Cleaning the fans ................................. 10
3.6 Duct System Maintenance...................... 10
3.6.1 Cleaning extract louvres and
supply air diffusers ................... 10
3.6.2 Checking the outdoor air
intake .... ....... ........... ....... ....... 10
3.6.3 Checking the roof cowl (if
fitted).................................... 10
3.6.4 Checking and cleaning the
duct system ............................ 11
4 Trouble shooting ........................................... 11
4.1 Alarm list............................................ 11

Overview |1
1 Overview
1.1 General Description
This manual describes basic information how to operate and perform maintenance on the unit and the system it is con-
nected to.
Read the instructions carefully and in its entirety.
For description of advanced settings and installation of accessories see Service and Accessories Installation manual.
All documents can be found in our online catalogue at .
1.2 Warranty
For the assertion of warranty claims, the products must be correctly connected and operated, and used in accordance
with the data sheets. Further prerequisites are a completed maintenance plan with no gaps and a commissioning re-
port. will require these in the case of a warranty claim.
1.3 Type label
Before calling your service representative, make a note of the specification and production number from the type label,
which can be found next to the external connections and inside of the unit.
Fig. 1 Type label
Position Description
1Product code (product specification)
2Product item number
3Production order number
4Serial number
5Production date (YY.MM.DD)
6QR code for manufacturing order (MO) number and software version
7QR code for the spare parts list and documentation
1.4 Important Safety Information
• Observe and respect local conditions, regulations and laws.
• Safety elements may not be dismantled, circumvented or deactivated.
• Wear protective equipment during all work in the vicinity of the unit.
• Do not allow children to play with the device.
1.4.1 Intended Use
• Abide by the system-related conditions and requirements of the system manufacturer or plant constructor.
• Keep all the warning signs on the device and in a legible condition.
212961 | 01

2|Overview
• The device is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given supervision or instruction.
• The system should operate continuously, and only be stopped for maintenance/service.
• Do not connect tumble dryers to the ventilation system.
• Make sure that filters are mounted before starting the unit.
1.4.2 Admonitions
Danger
• Make sure that the mains supply to the unit is disconnected before performing any maintenance or
electrical work!
• All electrical connections and maintenance work must be carried out by an authorized installer and in
accordance with local rules and regulations.
Warning
• This product must only be operated by a person who has suitable knowledge or training within this field
or carried out with the supervision of a suitably qualified person.
• Beware of sharp edges during mounting and maintenance. Use protective gloves.
Warning
• Risk of injury due to rotating parts that have not come to a complete standstill after mains supply to the
unit have been disconnected.
212961 | 01

Overview |3
1.4.3 Declaration of Conformity
Manufacturer
Systemair UAB
Linų st. 101
LT–20174 Ukmergė, LITHUANIA
Office: [phone] Fax: [phone]
www.systemair.com
hereby confirms that the following product:
Heat recovery ventilation unit: VTR 100/B LITE
(The declaration applies only to product in the condition it was delivered in and installed in the facility in accordance
with the included installation instructions. The insurance does not cover components that are added or actions carried
out subsequently on the product).
Comply with all applicable requirements in the following directives:
• Machinery Directive 2006/42/EC
• Low Voltage Directive 2014/35/EU
• EMC Directive 2014/30/EU
• Ecodesign Directive 2009/125/EC
• RoHS Directive 2011/65/EU
The following regulations are applied in applicable parts:
1253/2014 Requirements for ventilation units
1254/2014 Energy labelling of residential ventilation units
327/2011 Requirements for fans above 125 W
The following harmonized standards are applied in applicable parts:
EN ISO 12100:2010 Safety of machinery - General principles for design - Risk assessment and risk reduction
EN 13857 Safety of machinery – Safety distances to prevent hazard zones being reached by upper or
lower limbs
EN 60 335-1 Household and similar electrical appliances – Safety Part 1: General requirements
EN 60 335-2-40 Safety of household and similar electrical appliances – Part 2-40: Particular requirements
for electrical heat pumps, air-conditioners and dehumidifiers
EN 62233 Measurement methods for electromagnetic fields of household appliances and similar
apparatus with regard to human exposure
EN 50 106:2007 Safety of household and similar appliances – Particular rules for routine tests referring to
appliances under the scope of EN 60 335-1 and EN 60967
EN 61000-6-2 Electromagnetic compatibility (EMC) – Part 6-2: Generic standards – Immunity for industrial
environments
EN 61000-6-3 Electromagnetic compatibility (EMC) – Part 6-3: Generic standards – Emission standards for
residential, commercial and light-industrial environments
Skinnskatteberg, 29-10-2015
Mats Sándor
Technical Director
212961 | 01

4| Configuration
2 Configuration
2.1 Control panel
Connect the unit electrically to the mains with the enclosed plug and check that it starts up correctly.
The control panel is used to make the necessary adjustments.
An external control panel can be connected on the top of the unit.

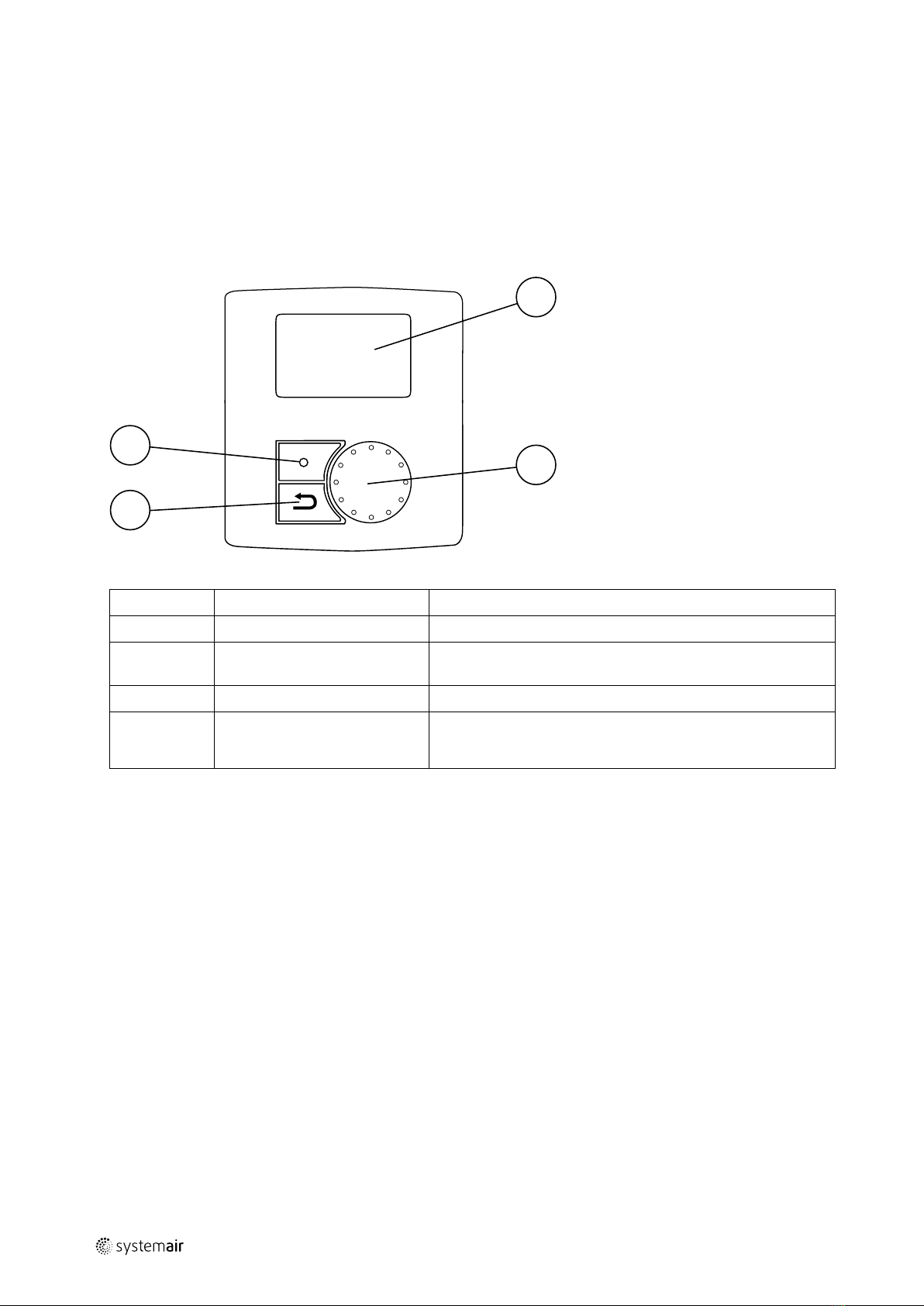

The illustration below shows the control panel with a short description.
1
2
3
4
Fig. 2 Control panel
Position Description Explanation
1Display Shows symbols, menus and settings
2SELECTION knob Move through the menu lists or change settings and values by
turning the knob left or right
3ENTER button ENTER menu choices or settings by pressing the button
4RETURN button Step RETURN in the menu levels and to abort an initiated
parameter change and restore the original value by pressing the
button
212961 | 01

Configuration | 5
2.1.1 Display symbols
Symbol Description Explanation
Temp19 °C
Temp Illustrates the current set-point for supply air temperature
(from completely empty to filled symbol).
Turn the SELECTION knob to choose temperature.
Press ENTER to save the setting.
Airflow
Airflow Illustrates the current airflow. The airflow can be set manually
in 5 steps: Off, Low, Nom, High and Auto.
Turn the SELECTION knob to choose airflow.
Press ENTER to save the setting.
A. Ventilation off.1
B. Low ventilation: Can be used when leaving the building for a
longer period
C. Nominal ventilation: Will give required air change under
normal conditions.
D. Maximum ventilation: To increase the airflow if necessary.
E. Auto ventilation: Will regulate after the pre-setting for the
demand control settings.
Service
Service Press ENTER to access the service menu.
Alarm
Alarm Press ENTER to access the alarm list.
1The fan can be set to OFF by activating manual fan stop. See service menu description under functions.
Important
It is not recommended to activate manual fan stop (set fan to OFF) in standard households.If manual fan
stop is activated, the unit should be provided with dampers in exhaust and fresh air ducts to avoid cold
draught and risk of condensation when the unit has been stopped.
2.2 Setting the temperature
The supply air temperature is set manually in steps of 1 K in the main menu display by choosing the temperature
symbol.
If an electrical re-heater is installed the temperature setpoints are:
12-22 °C. For installed water re-heater the setpoints are: 12-40 °C.
If the re-heater is deactivated, the temperature steps are:
15-19 °C. Default value: 15.0 °C.
Each temperature step is illustrated by increasing the filling of the temperature symbol and the temperature is shown in
the display
212961 | 01

6| Configuration
Temp19 °C
An unfilled temperature symbol will activate manual summer mode. See chapter 2.5
2.3 Manual setting of airflow
It is possible, at any time, to manually set the airflow in the main menu display. By choosing the fan symbol and con-
firming, it is possible to increase or decrease the airflow in 5 steps: Off, Low, Nom, High and Auto.
By doing so, you override the programmed week schedule for the unit until the end of the present time period in the
week program (chapter 2.4).
Airflow
Warning
It is not recommended to activate manual fan stop (set fan to OFF) in standard households.If manual fan
stop is activated, the unit should be provided with dampers in exhaust and fresh air ducts to avoid cold
draught and risk of condensation when the unit has been stopped.
The fan can be set to OFF by activating manual fan stop. See the Installation and Service manual, chapter
Service menu overview: Manual fan stop.
2.4 Programming the Week schedule
Set the week schedule according to below procedure:
1. Go to the service menu by using the SELECTION knob.
Service
2. Enter the service level by typing the password, default
1111. Use the SELECTION knob for each digit and confirm
with the ENTER button after each set digit and choose
"NO" for the system not be locked.
Password
Password XXXX
Locked YES/NO
3. Go to: Week program Service
Week program
4. Choose Week program again. Week program
Airflow
5. Set week day and time you want the unit to be in ON
level. Two periods per day can be programmed. The rest
of the time the unit will be in OFF level.
Week program
Day: MON
Per 1: 07:00 16:00
Per 2: 00:00 00:00
6. Go back to the previous dialogue frame with the
RETURN button and go down to Airflow.
Week program
Airflow
212961 | 01

Maintenance |7
7. Set which airflow the fan is supposed to be running in
the ON level, choose between Low, Nom, High or Auto.
Set which airflow the fan is supposed to be running in
the OFF level, choose between OFF, Low, Nom or High.
Note:
If an electrical re-heater battery is installed and
active and the unit is shut down from the control
panel, for example by choosing OFF. When the
unit is in OFF level in the week program, the fans
will continue to run for 3 minutes, to prevent the
heater from triggering the over heat protection
sensor, before they stop.
Airflow
On level: low/nom/high/auto
Off level: off/low/nom/high
8. Step back with the RETURN button until you reach the
main menu display
2.5 Manual and automatic summer mode
Manual summer mode occurs if no temperature step is selected. The temperature symbol on the main menu is then
completely empty.
Tempoff
If the electrical re-heater is activated, it will switch off during manual summer mode. Manual summer mode goes auto-
matically to step 1 (setpoint 12 °C) after two minutes if the supply air temperature is +5 °C or below.
If a water heater battery is installed and activated, the manual summer mode goes automatically to step 1 (setpoint 12
°C) if the outdoor air or supply air temperature is +5 °C or below.
The unit will automatically alternate between winter operation with heat recovery and summer operation without heat
recovery.
3 Maintenance
Danger
• Make sure that the mains supply to the unit is disconnected before performing any maintenance or
electrical work!
Warning
• Beware of sharp edges during mounting and maintenance. Use protective gloves.
Warning
• Risk of injury due to rotating parts that have not come to a complete standstill after mains supply to the
unit have been disconnected.
Warranty claims can only be made if maintenance work is carried out correctly and written evidence thereof is
provided.
3.1 Maintenance Schedule
Task 6 months 1 year 3 years When necessary
General inspection X
Filter change X X
Fan cleaning X
212961 | 01

8|Maintenance
Task 6 months 1 year 3 years When necessary
Heat exchanger cleaning X X
Belt replacement X
Checking and cleaning louvres/
diffusers
X
Checking and cleaning outdoor air
intake
X
Checking and cleaning roof cowl (if
fitted)
X
Cleaning of duct system X1
1. It is recommended to do this every 5 years and is normally carried out by authorized companies specialized in this area.
• Use original spare parts from only.
• Scan QR code on the type label to find a spare part list.

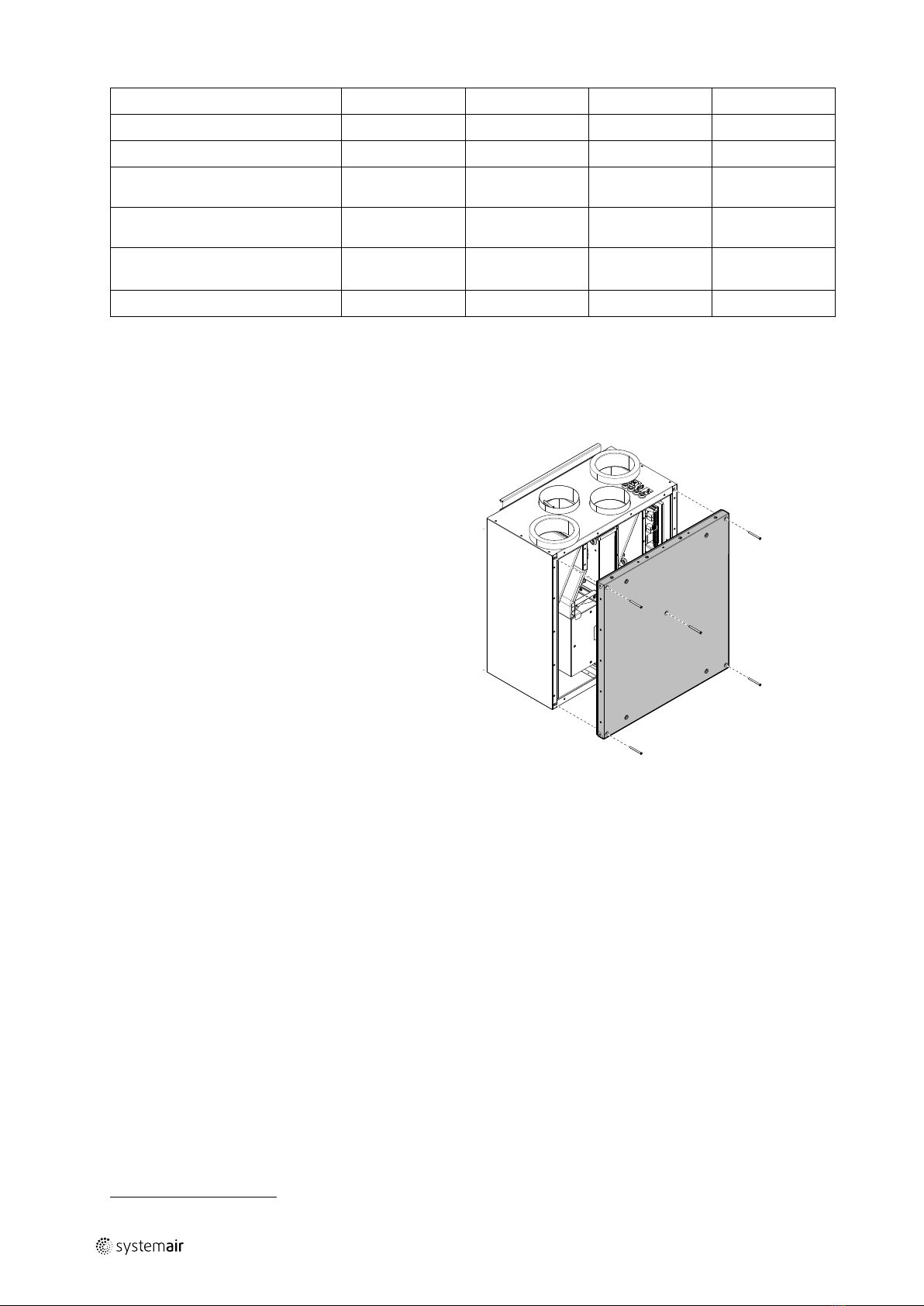

3.2 Remove/mount the front cover
Fig. 3 Remove/mount the inner front
The front cover is mounted with 5 screws. Loosen the
screws and take off the cover.
3.3 Change Filters
The filters cannot be cleaned and must be changed as necessary. This is normally done 1–2 times per year depending
on the air pollution at the installation site.
It is very important to change filters regularly for performance and energy efficiency of the unit.
A sticker with filter kit identification number can be found on the unit. Provide this number when ordering new filters.
212961 | 01
1

Maintenance |9
When it’s time to change the filters an alarm is shown on
the control panel display. When this occurs do the
following:
1. Stop the unit by disconnecting the mains.
2. Open the front hatch. See chapter 3.2.
3. Remove old filters and insert new ones. Make sure fil-
ters are not mixed up during the replacement process.
Supply and extract air filters may be different.
4. Close and lock the front hatch and connect the unit to
mains.
5. Reset the filter time as described below (chapter
3.3.1). Depending on the condition of the filter, you
might need to change the operation time for the filter.
3.3.1 Resetting the filter time
1. Go to the service menu by using the selection knob.
Service
2. Enter the service level by typing the password.
Use the SELECTION knob for each digit and confirm with
the ENTER button after each set digit and choose "NO"
for the system not be locked.
Service
—>Password
Locked YES/NO
3. Go to: Filter period, press ENTER.
Choose: Reset: YES with the SELECTION knob and then
ENTER.
Change, if necessary, Time to replace X month, to
the time of your choice with the SELECTION knob and
then press ENTER.
Press the RETURN button until you reach the main menu.
Filter period
Time to replace: 6/9/12/15 month
Reset NO/YES
3.4 Check and Clean a Heat Exchanger
Danger
• Make sure that the Mains supply to the unit is disconnected before performing any maintenance or
electrical work!
Warning
• Beware of sharp edges during mounting and maintenance. Use protective gloves.
Even if the required maintenance is carried out, dust will build up in the exchanger block. It is therefore of vital impor-
tance for the upkeep of a high efficiency that the exchanger block is removed from the unit and cleaned periodically as
illustrated below. Clean the heat exchanger at least every 3 years or when required.
212961 | 01

10 |Maintenance

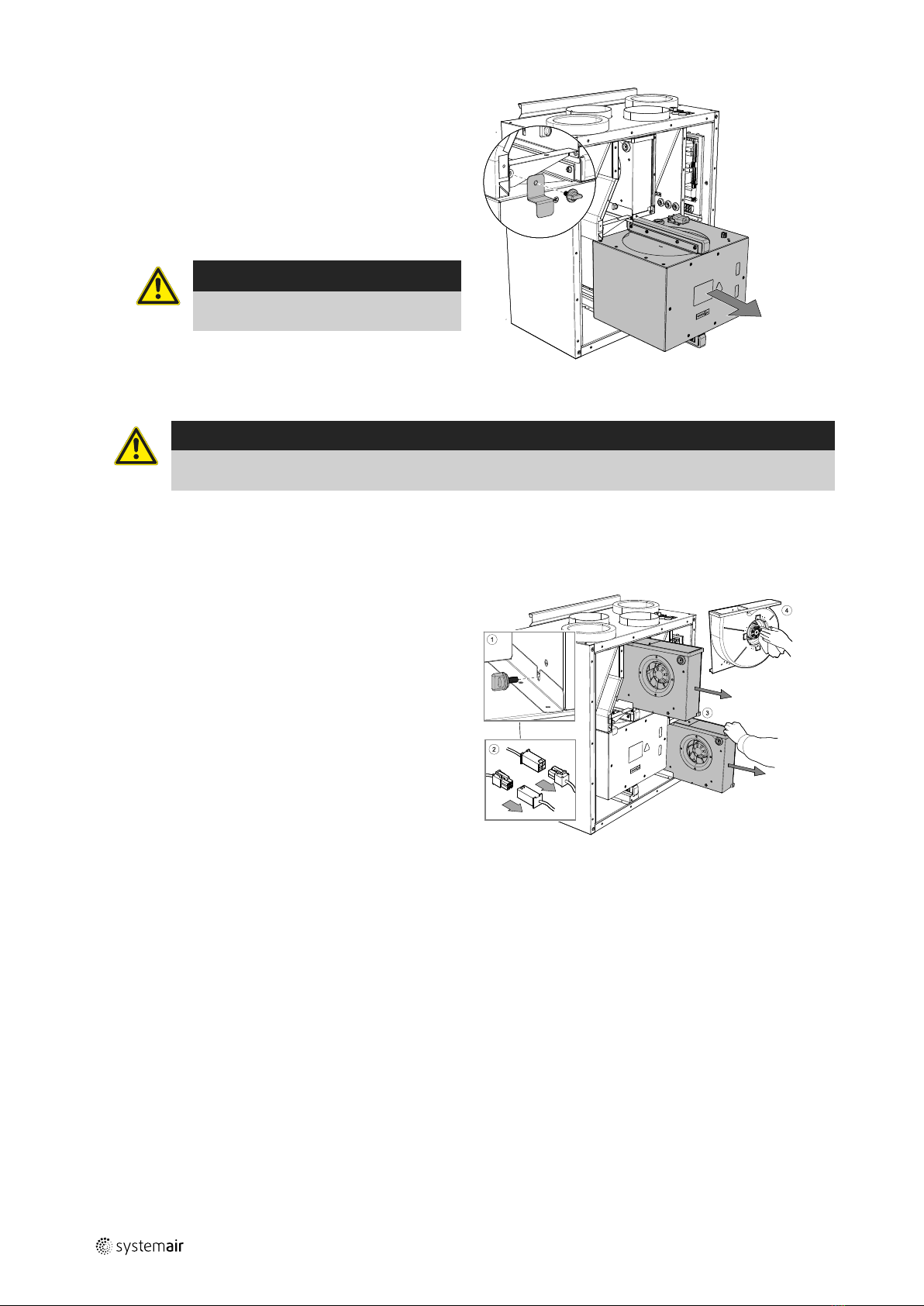

1 Disconnect the rotor power supply and the rotor sen-
sor. The cables are found beside the rotor at the back.
2 Pull out the rotor towards you. Some force may be
needed.
3 Clean the rotor.
Wash in hot soapy water. Do not use detergent con-
taining ammonia. Rinse using, for instance, a shower
handle.
Warning
Ensure the rotor motor is not exposed to
moisture
3.5 Cleaning the fans
Danger
• Make sure that the Mains supply to the unit is disconnected before performing any maintenance or
electrical work!
The motor bearings are life time lubricated and maintenance free.
Even if the required maintenance, such as changing of filters is carried out, dust and grease may slowly build up inside
the fans. This will reduce the efficiency.
1 Disconnect the fan power cables. The cables are found
beside the fan at the back.
2 Remove knob at the lower part of each fan.
3 Pull out the fans towards you. Some force may be
needed.
4 Clean the fans with a cloth or a soft brush. Do not use
water. White spirit can be used to remove obstinate
deposits.
Allow the fans to dry properly before remounting.
5 Remount the fans. Don’t forget to reconnect the fan
power cables.
3.6 Duct System Maintenance
3.6.1 Cleaning extract louvres and supply air diffusers
The system supplies fresh air to your home and extracts the used indoor air via the duct system and diffusers/louvres.
Diffusers and louvres are mounted in ceilings/walls in bedrooms, living room, wet rooms, WC etc. Remove diffusers
and louvres and wash in hot soapy water as required (diffusers/louvres must not be exchanged). Cleaning of diffusers/
louvres can be done as necessary.
3.6.2 Checking the outdoor air intake
Leaves and pollution could plug up the air intake grille and reduce the capacity. Check the air intake grille, and clean as
necessary. It is recommended to do this at least twice a year.
3.6.3 Checking the roof cowl (if fitted)
The roof cowl (if fitted) connected to the exhaust air duct needs to be checked at least twice a year and cleaned if
necessary.
212961 | 01

Trouble shooting | 11
3.6.4 Checking and cleaning the duct system
Dust and grease deposits may build up in the duct system, even if required maintenance such as changing of filters is
being carried out. This will reduce the efficiency of the installation.
The duct runs should therefore be cleaned/changed when necessary. Steel ducts can be cleaned by pulling a brush
soaked in hot soapy water through the duct via diffuser/louvre openings or special inspection hatches in the duct sys-
tem (if fitted).
It is recommended to do this every 5 years and is normally carried out by authorized companies specialized in this area.
4 Trouble shooting
A warning triangle with text in the display indicates an alarm. Turn menu selector to the warning triangle and press con-
firm twice to view the alarm.
4.1 Alarm list
Alarm Explanation Do the following
Fan Indicates error on either supply or
extract air fan.
The alarm is displayed in the control panel.
Check that quick connectors are connected for the both fans.
Contact your installation company or place of purchase.
EMT/Frost Indicates triggered frost protection (in
case of installed water heating
battery) or triggered overheat
protection (in case of installed electric
re-heater battery).
A triggered frost protection alarm results in the following:
• Both fans stop.
• Outdoor and exhaust air dampers closed.
• Water valve opens completely (10 V signal goes out to
the actuator).
The unit will restart once the water temperature reaches +5°
C above the set frost protection temperature.
A triggered over heat protection (EMT) gives an alarm in the
control panel.
Reset by pushing the reset button. See chapter .
If the problem continues contact your installation company
or place of purchase.
Rot Indicates a rotor malfunction. The alarm is displayed in the control panel.
• If the rotating heat exchanger has stopped. Check the
rotor belt. See chapter
• If the heat exchanger is still rotating, check that the quick
connector for the sensor is connected and that there is an
air gap of 5-10mm between the sensor and the magnet.
Adjust the gap if necessary.
If the alarm persists, the rotor sensor may be faulty.
Contact your installation company or place of purchase.
Pb Fail Error in connection with relay card for
the electrical re-heater (if installed
and activated).
The overheat protection sensor,
automatic reset (ET2) may be
triggered due to high temperature.
The alarm is displayed in the control panel.
The heater will not be activated.
For triggered ET2, wait 10–15 min. If the error remains,
contact your installation company or place of purchase.
Temp Malfunction in one or more of the
temperature sensors.
The alarm is displayed in the control panel.
Contact your installation company or place of purchase.
Filter Time for filter change. The alarm is displayed in the control panel.
Change filter according to the instructions in the User
Manual.
212961 | 01

12 | Trouble shooting
Alarm Explanation Do the following
Low SS Indicates low supply air temperature The alarm is displayed in the control panel.
If water reheater is configured and frost protection have
failed, then an extra security function is triggered when
supply air temperature is lower than 5 °C and outdoor air
temperature is below 0 °C.
RH Indicates malfunction of internal
relative humidity sensor.
The alarm is displayed in the control panel.
212961 | 01

212961 | 01

VTR 100/B LITE · User Manual · 212961 · en_GB · 190924 · 01
Systemair UAB
Linų st. 101
LT–20174 Ukmergė, LITHUANIA
Phone [phone]
Fax [phone]
www.systemair.com
