System Sensor CO1224T User manual

Agency Listings
CO1224T
Carbon Monoxide
Detector
with RealTest™ Technology

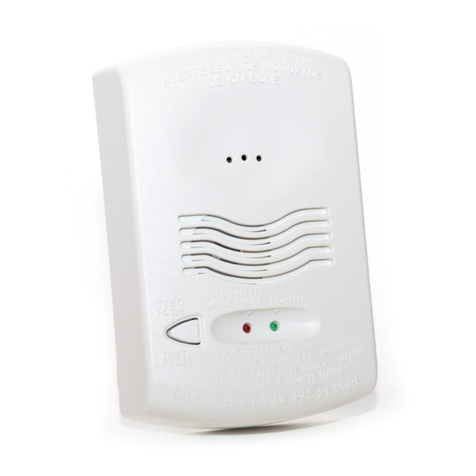

The System Sensor CO1224T CO detector provides early
warning by using electrochemical sensing technology
to measure carbon monoxide levels in the air.
Features
RealTest• ™technologyallowsinstallertotestdetectorwithCOgas
FullcompliancewithUL2075•
Acoderequiredtroublerelay•
WiringsupervisionwithSEMSterminals•
Asixyearend-of-lifetimer•
12/24VDC•
Acurrentdrawof20mAinstandbyand40mAinalarm•
Versatilemountingforwallandceiling•
Electrochemicalsensingtechnology•
With RealTest™technology, theCOgassensingcellofthe
CO1224TCOdetectorcanbetestedusingacarbonmonoxidegas
agent.Simplyholdthetestbuttonfortwoseconds.Afterthealarm
cycle(temp4)thegreenLEDwillashaboutoncepersecond,
indicatingthatthedetectorisreadytoacceptCOfortesting.
SprayasmallamountofCOintothedetectorpertheinstallation
instructions,andwithinsecondsthedetectorwillalarm,indicating
successfulgasentry.
Ifdangerousamountsofcarbonmonoxideisdetected,theCO1224T
detectorwillalertresidentsbysoundingandashingatemp-4signal
alarm.Protectionisguaranteed24/7byacentralstation,regardless
ofwhetherresidentsareawayfromhome,sleepingoralready
sueringfromtheeectsofCO.
Thisspecicdeviceisdesignedforsystemoperation.Thedetectoris
fullylistedtoUL2075.Itoersacoderequiredtroublerelaytosend
asensorfailureorend-of-lifesignaltothecontrolpanelandthe
centralstation.ItalsousesSEMS-typeterminalPhilipsheadscrews
toprovideaquickerandmorepositivewiringconnectionandcode
requiredwiringsupervision.TheCO1224Tdetectoroersalow
currentdraw,allowingmoredevicestobeconnectedtothepanel
withouthavingtopurchaseamoreexpensivepaneloranextra
powersupply.
TheCO1224Tmodelwilloperateonmostindustrysecurityandre
alarmcontrolpanelsbecauseitisisa12/24VDCdetector.
2075
BR Alarmseg Equipamentos Eletrônicos
Fone/Fax: [phone]
home page: www.bralarmseg.com.br
email: [email protected]

Ordering Information
Part No. Description
CO1224T 12/24volt,4-wiresystem-monitoredcarbonmonoxidedetectorwithRealTest™Technology
CO1224T Carbon Monoxide Detector Specifications
Architectural/Engineering Specications
CarbonmonoxidedetectorshallbeaSystemSensormodelnumberCO1224T,listedtoUnderwritersLaboratoriesUL2075forGasandVaporDetectorsand
Sensors.Thedetectorshallbeequippedwithasounderandatroublerelay.Thedetector’sbaseshallbeabletomounttoasingle-gangelectricalboxordirect
(surface)mounttothewallorceiling.WiringconnectionsshallbemadebymeansofSEMSscrews.ThedetectorshallprovidedualcolorLEDindication,which
blinkstoindicatenormalstandby,alarm,orend-of-life.Whenthesensorsupervisionisinatroublecondition,thedetectorshallsendatroublesignaltothe
panel.Whenthedetectorgivesatroubleorend-of-lifesignal,thedetectorshallbereplaced.ThedetectorshallprovideameanstotestCOgasentryintotheCO
sensingcell.ThedetectorshallprovidethiswithatestmodethatacceptsCOgasfromatestagentandalarmsimmediatelyuponsensingCOentry.
Electrical Specications
Operating Voltage 12/24VDC
Audible Signal 85dBinalarm
Standby Current 20mA
Alarm Current 40mA(75mAtest)
Alarm Contact Ratings 0.5A@30VDC
Trouble Contact Ratings 0.5A@30VDC
Physical Specications
Size Length:5.1in,Width:3.3in,Height:1.3in
Approximate Weight 7oz
Operating Temperature Range 32°Fto104°F(0°Cto40°C)
Operating Humidity Range 22to90%RH
Input Terminals 14to22AWG
Mounting Single-gangbackbox;surfacemounttowallorceiling
Operation Modes
Operation Mode Green LED Red LED Sounder
Normal(standby) Blink1perminute — —
Alarm —Blinkintemp4pattern Soundintemp4pattern
RealTest™Feature: TheSystemSensorCO1224TcarbonmonoxidedetectorwithRealTest™canevaluatethefunctionalityoftheCOsensingcellusing
cannedtestagent.
NOTE:CheckwithlocalcodesandtheAHJtodeterminewhetherornotafunctionalgastestisdesiredforaninstallation.
HushFeature: PushingtheTest/Hushbuttonwillsilencethesounderfor5minutes(exceptinRealTestmode).
TroubleFeature: Whenthedetectorisinatroublecondition,itwillsendatroublesignaltothepanel.
End-of-lifeTimer: Afterthedetector’sinternalsensorhasreachedtheendofitslife,atroublesignalwillbesenttothepanel.Thiswillindicatethatitis
timetoreplacethedetector.Anelectrochemicalcarbonmonoxidedetectorlifespanisapproximatelysixyears,andthedetectormust
bereplacedbythedatemarkedontheinsideoftheproduct.
1. 2. 3.
PushandholdtheTest/Hushbuttonfor
twosecondstoenterRealTestmode.The
greenLEDwillashonceeverysecondto
indicateRealTestmodehasstarted.
SpraycannedCOagentintothedetector. VerifyCOsensingatthecontrolpanel.The
detectorwillautomaticallyexitRealTest
alarmmodeafterabout20-60seconds.
