SystemBase SerieslGate SG-1010/232 User manual

SerialGate
User Guide
Version: 2.1b
2013.03.25
ECHIPAMENTE PENTRU AUTOMATIZĂRI
Electric Film S.R.L. — Aleea Scarisoara 3, Apt.42 ▪ Cluj Napoca, Cluj ▪ 400445 ▪ www.electricfilm.eu
VÂNZĂRI ▪ 0364 710319 ▪ [e-mail] ▪ SUPORT TEHNIC ▪ 0788 250583
cele mai sensibile
1/110

SerialGate User Guide
2
Revision History
Revision Date
Document
Version
Pages
Description
Apr. 10. 2012
2.0
All
Initial release
Jun. 26. 2012
2.1
All
New Firmware release
Sep. 10. 2012
2.1a
All
New Case of SG-1020(W)/ALL
release
Mar. 25. 2013
2.1b
ALL
SG-1010W/ALL Revision
Copyright 2009-2011 SystemBase Co., Ltd. All rights reserved.
Website http://www.sysbas.com/
Tel [phone]
Fax [phone]
16F Daerung Post Tower-1, 212-8, Guro-dong, Seoul, Korea
For any inquiries or comments, contact to [e-mail]
ECHIPAMENTE PENTRU AUTOMATIZĂRI
Electric Film S.R.L. — Aleea Scarisoara 3, Apt.42 ▪ Cluj Napoca, Cluj ▪ 400445 ▪ www.electricfilm.eu
VÂNZĂRI ▪ 0364 710319 ▪ [e-mail] ▪ SUPORT TEHNIC ▪ 0788 250583
cele mai sensibile
2/110

SerialGate User Guide
3
Contents
Ch1 Introduction.......................................................................................... 6
About this document 6
Who should read this document? 6
Manual Contents 7
SerialGate Documents 8
Technical Support 9
Ch2 Getting Started................................................................................... 10
Overview 10
Features 10
Package Component 11
Application 12
Ch3 Hardware Description........................................................................ 14
SG-1010/232, Combo Exterior 14
SG-1010/232, Combo LED / RESET 15
SG-1010/ALL Exterior 17
SG-1010/ALL LED / RESET 18
SG-1010W/ALL Exterior 20
SG-1010W/ALL LED / RESET 21
SG-1020/232, Combo Exterior 23
SG-1020/232, Combo LED / RESET 24
SG-1020/ALL & SG-1020W/ALL Exterior 25
SG-1020/ALL & SG-1020W/ALL LED / RESET 26
SG-1040/1080 Exterior 28
SG-1040/1080 LED / RESET 30
SG-1160/ALL Exterior 31
SG-1160/ALL LED / RESET 32
Pin Specification (SG-1010/1020/1040/1080 Series) 33
Pin Specification (SG-1010(W)/ALL, SG-020(W)/ALL) 34
ECHIPAMENTE PENTRU AUTOMATIZĂRI
Electric Film S.R.L. — Aleea Scarisoara 3, Apt.42 ▪ Cluj Napoca, Cluj ▪ 400445 ▪ www.electricfilm.eu
VÂNZĂRI ▪ 0364 710319 ▪ [e-mail] ▪ SUPORT TEHNIC ▪ 0788 250583
cele mai sensibile
3/110

SerialGate User Guide
4
Pin Specification (SG-1160/ALL) 35
Ch4 Hardware Description........................................................................ 36
Connection Guide 36
First-Time Power On 36
Connecting to SerialGate 37
Ch5 Configuration via Web....................................................................... 39
Connection (210MHz Model Only) 39
Setup Menu (210MHz Model Only) 40
Network Settings (210MHz Model Only) 41
Serial Settings (210MHz Model Only) 44
SNMP Settings (210MHz Model Only) 50
Change Password (210MHz Model Only) 52
Update Firmware (210MHz Model Only) 53
Factory Default (210MHz Model Only) 54
Save & Reboot (210MHz Model Only) 55
Connection (400MHz Model) 56
Setup Menu (400MHz Model) 57
Network Settings (400MHz Model) 59
Serial Settings (400MHz Model) 63
Wireless Settings (400MHz Model) 68
SNMP Settings (400MHz Model) 72
Change Password (400MHz Model) 74
Update Firmware (400MHz Model) 75
Factory Default (400MHz Model) 76
Reboot (400MHz Model) 77
System Log (400MHz Model) 78
Ch6 Configuration via Telnet .................................................................... 79
Connection 79
View Commands 80
Network Commands 80
ECHIPAMENTE PENTRU AUTOMATIZĂRI
Electric Film S.R.L. — Aleea Scarisoara 3, Apt.42 ▪ Cluj Napoca, Cluj ▪ 400445 ▪ www.electricfilm.eu
VÂNZĂRI ▪ 0364 710319 ▪ [e-mail] ▪ SUPORT TEHNIC ▪ 0788 250583
cele mai sensibile
4/110

SerialGate User Guide
5
Serial Commands 82
Username/Password Commands 85
System Commands 85
Ch7 Configuration via LCD ....................................................................... 86
LCD and Key Operation 86
Main Menu 87
Network Setup 88
Port Setup 89
Status 90
System 91
Verification 93
Ch8 Application.......................................................................................... 97
Com Port Redirector 97
TCP_Server (TCP/IP connection from PC to SerialGate) 99
TCP_Client (TCP/IP Connection: SerialGate PC) 100
Pair (Serial Line To Serial Line) 101
Ch9 Appendix........................................................................................... 103
Troubleshooting 103
Firmware Update using FTP 105
Product Specification 107
ECHIPAMENTE PENTRU AUTOMATIZĂRI
Electric Film S.R.L. — Aleea Scarisoara 3, Apt.42 ▪ Cluj Napoca, Cluj ▪ 400445 ▪ www.electricfilm.eu
VÂNZĂRI ▪ 0364 710319 ▪ [e-mail] ▪ SUPORT TEHNIC ▪ 0788 250583
cele mai sensibile
5/110

SerialGate User Guide
6
Ch1 Introduction
This chapter is an introduction to SystemBase device server SerialGate series.
About this document
This guide is designed for users of SerialGate, for setting SerialGate’s configurations, status
monitoring, firmware update, and other administration work.
Who should read this document?
This guide is designed for SerialGate users and administrators. It is strongly recommended that
anyone trying to apply, use, and maintain SerialGate read this document. This guide deals with
the hardware-level integration issues and software-level configuration tips. It will be a great
starting point for any administrators who want to easily monitor and control SerialGate and its
connected devices.
ECHIPAMENTE PENTRU AUTOMATIZĂRI
Electric Film S.R.L. — Aleea Scarisoara 3, Apt.42 ▪ Cluj Napoca, Cluj ▪ 400445 ▪ www.electricfilm.eu
VÂNZĂRI ▪ 0364 710319 ▪ [e-mail] ▪ SUPORT TEHNIC ▪ 0788 250583
cele mai sensibile
6/110

SerialGate User Guide
7
Manual Contents
Introduction (Chapter 1) is a preface with general information and introductory notices.
Getting Started (Chapter 2) gives a brief introduction of SerialGate series, including features
and applications.
Hardware Descriptions (Chapter 3) explains the layout and pin specifications with block
diagram and drawings.
Installation (Chapter 4) helps you to connect SerialGate to serial and network environment. It
ends up with first time boot-up and status check.
Configuration via Web (Chapter 5) provides menu-by-menu guide for setting up the operation
environment for SerialGate via web browser.
Configuration via Telnet (Chapter 6) provides a list of commands for setting up the operation
environment for SerialGate via Telnet.
Configuration via LCD (Chapter 7) explains how to monitor status and working environment of
device server.
Application (Chapter 8) provides a variety of application examples widely used in industries.
Appendix (Chapter 9) provides firmware update guides and technical specifications for detailed
information.
ECHIPAMENTE PENTRU AUTOMATIZĂRI
Electric Film S.R.L. — Aleea Scarisoara 3, Apt.42 ▪ Cluj Napoca, Cluj ▪ 400445 ▪ www.electricfilm.eu
VÂNZĂRI ▪ 0364 710319 ▪ [e-mail] ▪ SUPORT TEHNIC ▪ 0788 250583
cele mai sensibile
7/110

SerialGate User Guide
8
SerialGate Documents
The following table summarizes documents included in the SerialGate document set.
Document Name
Description
User Guide
Integration, configuration, and management tasks are
explained for the administrator
Portview User Manual
Guide for SystemBase device server management
application Portview
COM Port Redirector User
Manual
Guide for SystemBase COM Port Redirector
TestView User Manual
User Manual for testing Com port Redirector , TCP
Server/Client , UDP Server/Client
If you need brief information on SerialGate or device servers in general, please visit our
company website at http://www.sysbas.com/. You can view and/or download documents related
to SerialGate as well as latest software and firmware updates. Available resources are as
follows:
Document Name
Description
SerialGate Spec Sheet
Specifications for SerialGate products
SerialGate White Paper
An easy reading for anyone new to device server.
Deals with background and technology Past, present,
and future of device servers along with the overview
of market environment
All documents are updated promptly, so check for the recent document update. The contents in
these documents are subject to change without any notice in advance.
ECHIPAMENTE PENTRU AUTOMATIZĂRI
Electric Film S.R.L. — Aleea Scarisoara 3, Apt.42 ▪ Cluj Napoca, Cluj ▪ 400445 ▪ www.electricfilm.eu
VÂNZĂRI ▪ 0364 710319 ▪ [e-mail] ▪ SUPORT TEHNIC ▪ 0788 250583
cele mai sensibile
8/110

SerialGate User Guide
9
Technical Support
There are three ways you can get a technical support from SystemBase.
First, visit our website http://www.sysbas.com/ or http://www.solvlinr.com/ and go to ‘Technical
Support’ menu. There you can read FAQ and ask your own question as well.
Second, you can e-mail our technical support team. The mail address is [e-mail]. Any
kind of inquiries, requests, and comments are welcome.
Lastly, you can call us at the customer center for immediate support. Our technical support team
will kindly help you get over with the problem. The number to call is 82-2-855-0501 (Extension
number 129). Do not forget to dial the extension number after getting a welcome message.
ECHIPAMENTE PENTRU AUTOMATIZĂRI
Electric Film S.R.L. — Aleea Scarisoara 3, Apt.42 ▪ Cluj Napoca, Cluj ▪ 400445 ▪ www.electricfilm.eu
VÂNZĂRI ▪ 0364 710319 ▪ [e-mail] ▪ SUPORT TEHNIC ▪ 0788 250583
cele mai sensibile
9/110

SerialGate User Guide
10
Ch2 Getting Started
This chapter includes SerialGate overview, main and distinctive features, package contents for
each product, and application fields.
Overview
SerialGate provides network connectivity to various serial devices (security devices,
communication peripherals, modems, data printing devices, industrial metering devices, etc.).
SerialGate supports RS-232, RS-422, and RS-485 serial communication standards under
various communication speed, meanwhile auto-sensing 100baseTX Fast Ethernet and 10baseT
Ethernet connection.
Features
Various features of SerialGate make it a universal yet distinctive device server solution. Here we
present main features of SerialGate. Others will explicitly appear throughout this guide.
-Max 921.6Kbps serial speed
-RS-232, Combo(RS-422/485) or All version (RS-232/422/485)
-10/100Mbps Ethernet port
-COM Port Redirector for better adaptability
-Extensive configuration and monitoring with Portview
-Firmware update via Web and FTP
-Configuration using Web, Telnet, SNMP, and Portview
-SDK package which enables customizing program development provided
ECHIPAMENTE PENTRU AUTOMATIZĂRI
Electric Film S.R.L. — Aleea Scarisoara 3, Apt.42 ▪ Cluj Napoca, Cluj ▪ 400445 ▪ www.electricfilm.eu
VÂNZĂRI ▪ 0364 710319 ▪ [e-mail] ▪ SUPORT TEHNIC ▪ 0788 250583
cele mai sensibile
10/110

SerialGate User Guide
11
Package Component
SerialGate package is composed of the following components. Make sure every component is
included in your package. All packages include a module and a CD with utilities and documents.
SerialGate device 1pc (RS232 model or Combo (RS-422/485) model)
Direct LAN Cable 1pc
Power adapter 1pc (for SG-1010, SG-1010/ALL, SG-1020, SG-1020/ALL, SG-1040-DC, SG-
1080-DC Series)
Power Cable 1pc (for SG-1040, SG-1080 Series, SG-1160/ALL)
CD (Manual and utilities)
A-Class Device
This device is registered only for office use, and both the seller and the user must be
aware of this. If not correctly sold or purchased, please exchange with home use device.
ECHIPAMENTE PENTRU AUTOMATIZĂRI
Electric Film S.R.L. — Aleea Scarisoara 3, Apt.42 ▪ Cluj Napoca, Cluj ▪ 400445 ▪ www.electricfilm.eu
VÂNZĂRI ▪ 0364 710319 ▪ [e-mail] ▪ SUPORT TEHNIC ▪ 0788 250583
cele mai sensibile
11/110

SerialGate User Guide
12
Application
SerialGate can be used in many practical applications in various fields. Here we present some
of them.

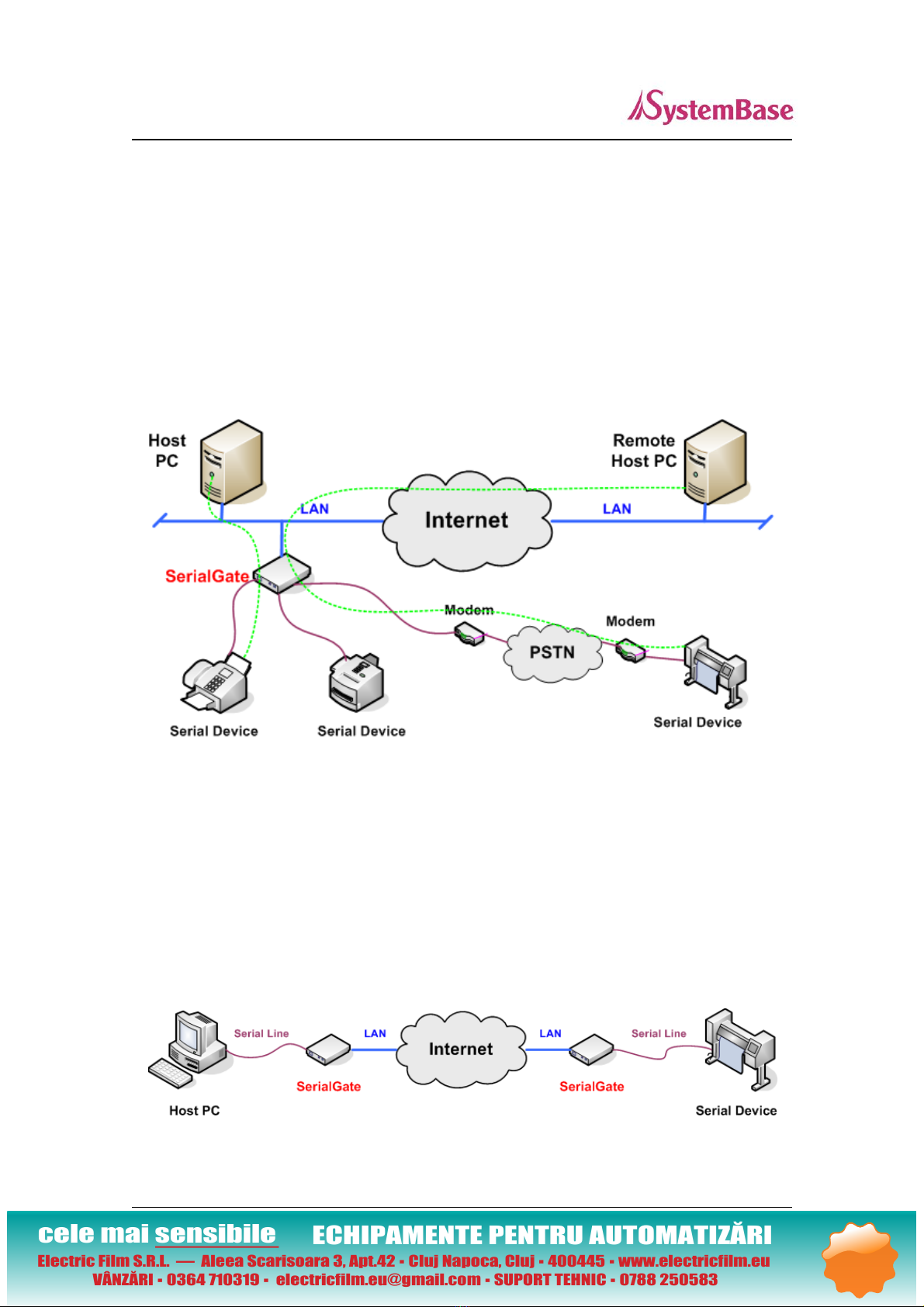

Network Serial Communication
PC and SerialGate are connected to the network, and a user gets an access to a device
connected to SerialGate on PC.
Serial Communication Tunneling
SerialGate enables a connection not restricted to distance between PC and serial device. To
enable this feature, a user should change its setting to TCP Server –TCP Client mode or UDP
Server –UDP Client mode referring to Chapter 5 of this manual. In this case, only data can be
transmitted while both data and control signal can be transmitted in Pair_Master and Pair_Slave
mode.
ECHIPAMENTE PENTRU AUTOMATIZĂRI
Electric Film S.R.L. — Aleea Scarisoara 3, Apt.42 ▪ Cluj Napoca, Cluj ▪ 400445 ▪ www.electricfilm.eu
VÂNZĂRI ▪ 0364 710319 ▪ [e-mail] ▪ SUPORT TEHNIC ▪ 0788 250583
cele mai sensibile
12/110

SerialGate User Guide
13
COM Port Redirection
With COM Port Redirection, a user can use serial port connected to SerialGate on the network
as if it is a serial port on PC.
Factory / Industrial Automation
PLC, Robot arms, Human-Machine Interface, Warehouse rails
Medical instruments, Inspection equipment controllers
Alarming units
Home Appliances / Electronic Devices
Power controller, Gaming machines
Scales, Gas detection units, Water & pollution metering devices
Data collection and distribution units
Financial / Building Automation
Card readers, Barcode scanners, Kiosks, Point-Of-Sale related devices
Serial printers, Cash registers, Credit card authorization terminals
Biometric detection units, Security devices
ECHIPAMENTE PENTRU AUTOMATIZĂRI
Electric Film S.R.L. — Aleea Scarisoara 3, Apt.42 ▪ Cluj Napoca, Cluj ▪ 400445 ▪ www.electricfilm.eu
VÂNZĂRI ▪ 0364 710319 ▪ [e-mail] ▪ SUPORT TEHNIC ▪ 0788 250583
cele mai sensibile
13/110

SerialGate User Guide
14
Ch3 Hardware Description
This chapter provides SerialGate's hardware information including block diagram, layout, pin
specification, dimensions and other hardware-related issues.
SG-1010/232, Combo Exterior
SG-1010/232, Combo
SG-1010/232
SG-1010/Combo
ECHIPAMENTE PENTRU AUTOMATIZĂRI
Electric Film S.R.L. — Aleea Scarisoara 3, Apt.42 ▪ Cluj Napoca, Cluj ▪ 400445 ▪ www.electricfilm.eu
VÂNZĂRI ▪ 0364 710319 ▪ [e-mail] ▪ SUPORT TEHNIC ▪ 0788 250583
cele mai sensibile
14/110

SerialGate User Guide
15
Serial Port: RJ-45 socket for serial ports (RS-232 or Combo(RS-422/485))
Power connector: for connection of DC9~30V adapter cable
Terminal Block and DC Adapter Jack connect different power at the sa
me time power is applied at the same time as it may cause irreparabl
e damage to the product, if you do not!
Terminal block power connector: for connection of terminal block power cable
Reset button: SerialGate reboots if this button is pressed for less than 3 seconds. If
pressed for longer than 3 seconds, SerialGate will restore its factory default settings.
LED: Operation status of SerialGate. Next section describes the meaning of each LED
display status.
LAN port: 8-pin RJ45 jack connects SerialGate to networking devices such as Ethernet
card, hub, and router.
SG-1010/232, Combo LED / RESET
LED
Status
Meaning
PWR
(Red)
On
Power supplied to the device
Off
No power supplied to the device
LAN
(Green)
Off
No active network connection
On
Network activated
RDY
(Red)
Blink
Normal operation
On
System Booting
Off
System Error
RS-422
On
Serial port set to RS-422 mode (Combo model)
RS-485
On
Serial port set to RS-485 mode (Combo model)
Serial
Tx/Rx
Green Blink
Serial data transmitted
Orange Blink
Serial data received
LAN Port
(Right Orange)
On
Network connected
Off
Network disconnected
Blink
LAN data being transmitted
ECHIPAMENTE PENTRU AUTOMATIZĂRI
Electric Film S.R.L. — Aleea Scarisoara 3, Apt.42 ▪ Cluj Napoca, Cluj ▪ 400445 ▪ www.electricfilm.eu
VÂNZĂRI ▪ 0364 710319 ▪ [e-mail] ▪ SUPORT TEHNIC ▪ 0788 250583
cele mai sensibile
15/110

SerialGate User Guide
16
LAN Port
(Left Green)
On
100baseT connection detected & LAN data transferred
Off
10baseT connection detected & LAN data transferred
< Reset button features >
Operation
Result
Pressed for less than 3 seconds
Restart SerialGate
Pressed for more than 3 seconds
Restore factory default settings of SerialGate,
and the device will automatically reboot.
ECHIPAMENTE PENTRU AUTOMATIZĂRI
Electric Film S.R.L. — Aleea Scarisoara 3, Apt.42 ▪ Cluj Napoca, Cluj ▪ 400445 ▪ www.electricfilm.eu
VÂNZĂRI ▪ 0364 710319 ▪ [e-mail] ▪ SUPORT TEHNIC ▪ 0788 250583
cele mai sensibile
16/110

SerialGate User Guide
17
SG-1010/ALL Exterior
SG-1010/ALL (Rear)
SG-1010/ALL (Front)
SG-1010/ALL
LED: Operation status of SerialGate. Next section describes the meaning of each
LED display status.
LAN port: 8-pin RJ45 jack which is used when connecting SerialGate to networking
devices such as Ethernet card, hub, and router.
Terminal block power connector: for connection of terminal block power cable
Power connector: for connection of DC 12V adapter cable
Terminal Block and DC Adapter Jack connect different power at the sa
me time power is applied at the same time as it may cause irreparabl
e damage to the product, if you do not!
Serial: DB9 for RS-232 and 5P Terminal Block for RS-422/485
Termination Resistor Switch: Selection switch for termination resistor of RS-422/485
Reset: SerialGate reboots if this button is pressed for less than 3 seconds. If pressed
for longer than 3 seconds, SerialGate will restore factory default settings.
SG-1010(W)/ALL (Left Side)
Reset Button
ECHIPAMENTE PENTRU AUTOMATIZĂRI
Electric Film S.R.L. — Aleea Scarisoara 3, Apt.42 ▪ Cluj Napoca, Cluj ▪ 400445 ▪ www.electricfilm.eu
VÂNZĂRI ▪ 0364 710319 ▪ [e-mail] ▪ SUPORT TEHNIC ▪ 0788 250583
cele mai sensibile
17/110

SerialGate User Guide
18
SG-1010/ALL LED / RESET
LED
Status
Meaning
RDY
(GREEN)
Blink(1s)
Normal Operation
Blink(0.2s)
Ready for restore factory default settings
On
During the Booting
Off
System Error
SRL
(Red)
Blink
Serial data being transmitted
LAN
(Right Orange)
On
Network connected
Off
Network disconnected
Blink
LAN data being transmitted
LAN
(Left Green)
On
100baseT connection detected & LAN data transferred
Off
10baseT connection detected & LAN data transferred
< Reset button features >
Operation
Result
Pressed for less than 3 seconds
Restart SerialGate
Pressed for more than 3 seconds
Restore factory default settings of SerialGate, and th
e device will automatically reboot.
ECHIPAMENTE PENTRU AUTOMATIZĂRI
Electric Film S.R.L. — Aleea Scarisoara 3, Apt.42 ▪ Cluj Napoca, Cluj ▪ 400445 ▪ www.electricfilm.eu
VÂNZĂRI ▪ 0364 710319 ▪ [e-mail] ▪ SUPORT TEHNIC ▪ 0788 250583
cele mai sensibile
18/110

SerialGate User Guide
19

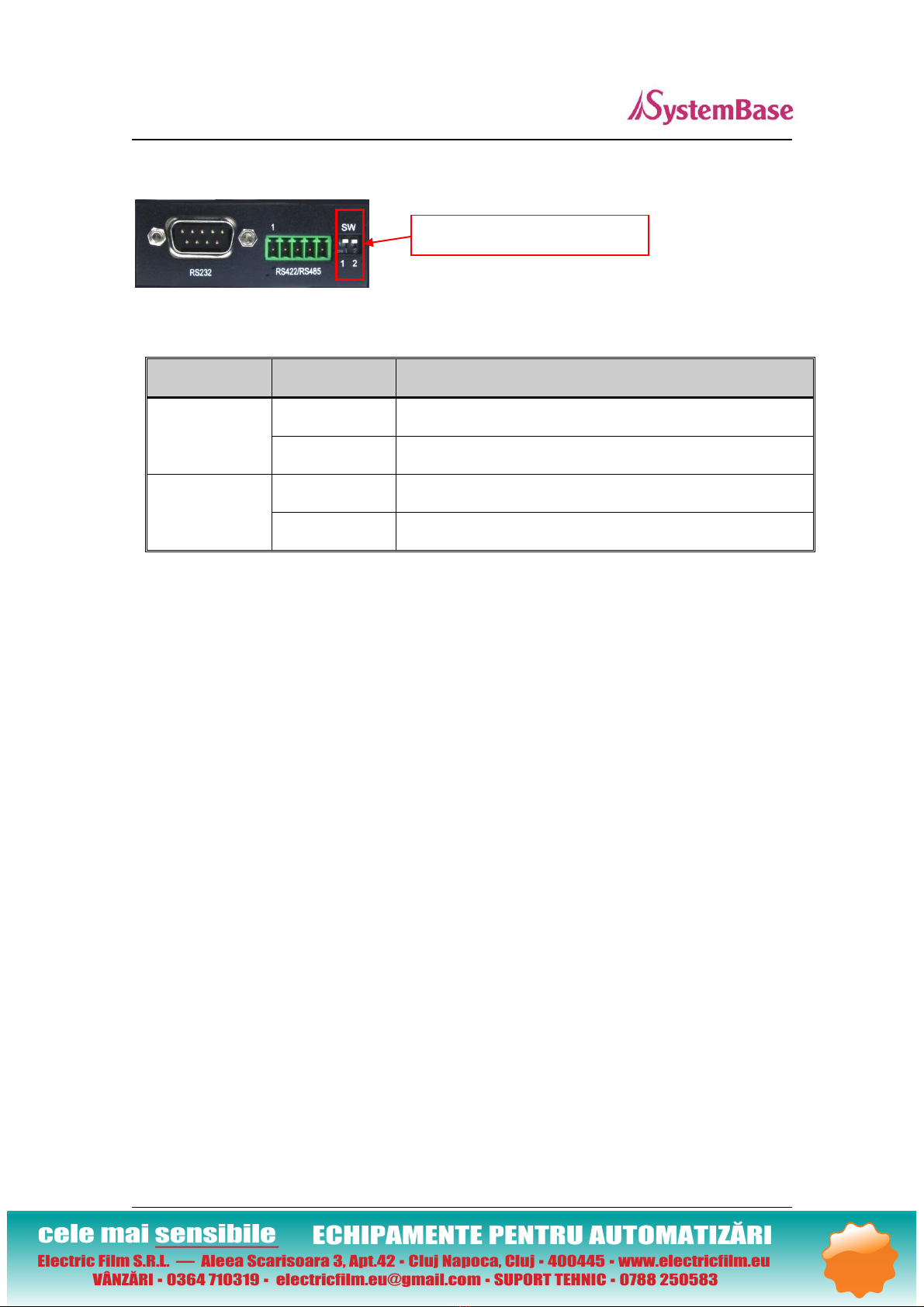

<RS-422/485 Termination Resistor Setting>
SG-1010/ALL (Rear)
SW
Status
Meaning
1
On
Activate TX / TRXD Resistor
Off
Deactivate TX / TRXD Resistor
2
On
Activate RX Resistor (RS-422 Only)
Off
Deactivate RX Resistor (RS-422 Only)
Termination Resistor SW
ECHIPAMENTE PENTRU AUTOMATIZĂRI
Electric Film S.R.L. — Aleea Scarisoara 3, Apt.42 ▪ Cluj Napoca, Cluj ▪ 400445 ▪ www.electricfilm.eu
VÂNZĂRI ▪ 0364 710319 ▪ [e-mail] ▪ SUPORT TEHNIC ▪ 0788 250583
cele mai sensibile
19/110

SerialGate User Guide
20

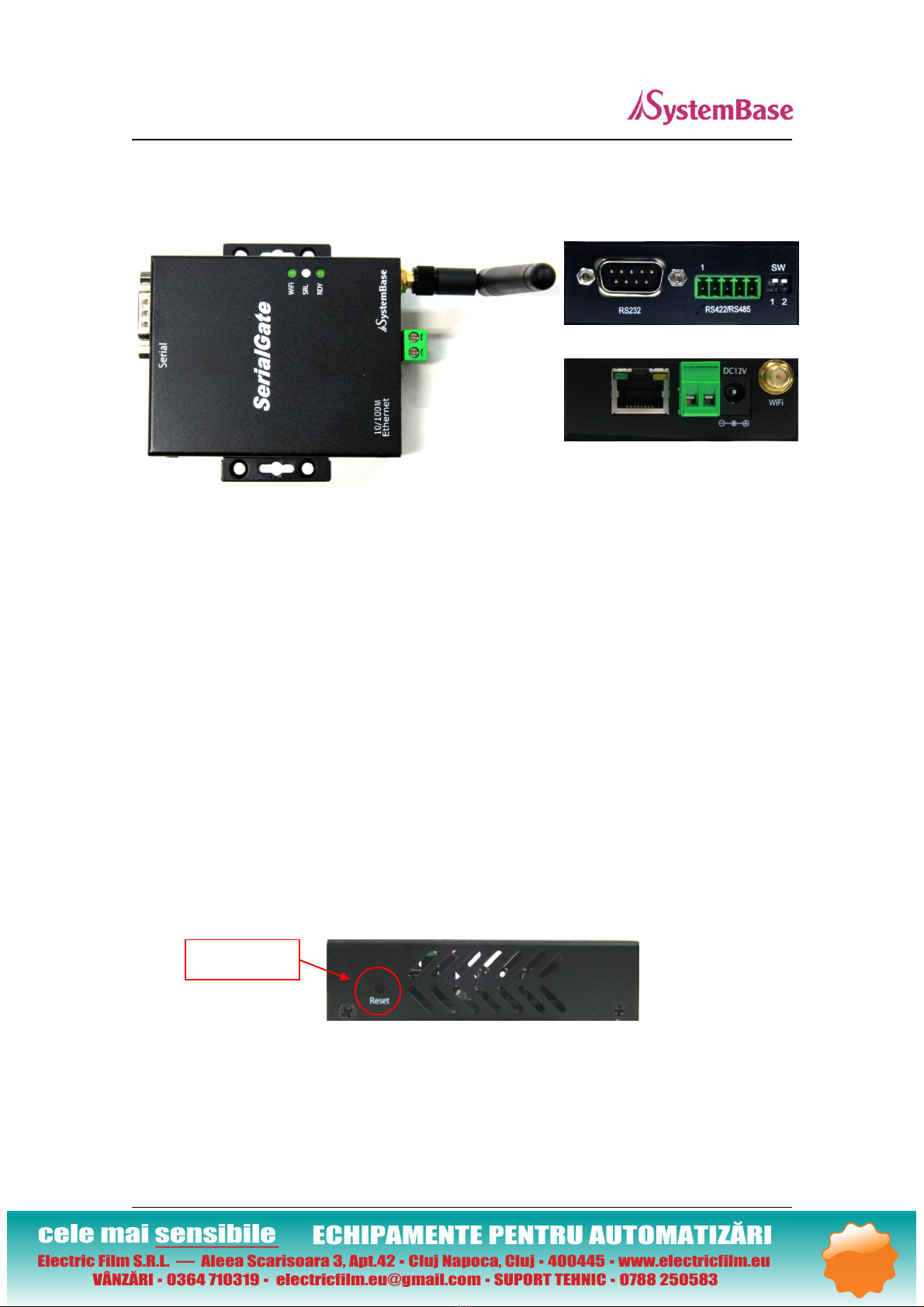

SG-1010W/ALL Exterior
SG-1010W/ALL (Rear)
SG-1010W/ALL (Front)
SG-1010W/ALL
LED: Operation status of SerialGate. Next section describes the meaning of each
LED display status.
LAN port: 8-pin RJ45 jack which is used when connecting SerialGate to networking
devices such as Ethernet card, hub, and router.
Terminal block power connector: for connection of terminal block power cable
Power connector: for connection of DC 12V adapter cable
Terminal Block and DC Adapter Jack connect different power at the sa
me time power is applied at the same time as it may cause irreparabl
e damage to the product, if you do not!
Serial: DB9 for RS-232 and 5P Terminal Block for RS-422/485
Termination Resistor Switch: Selection switch for termination resistor of RS-422/485
Reset: SerialGate reboots if this button is pressed for less than 3 seconds. If pressed
for longer than 3 seconds, SerialGate will restore factory default settings.
SG-1010W/ALL (Left Side)
Reset 버튼
ECHIPAMENTE PENTRU AUTOMATIZĂRI
Electric Film S.R.L. — Aleea Scarisoara 3, Apt.42 ▪ Cluj Napoca, Cluj ▪ 400445 ▪ www.electricfilm.eu
VÂNZĂRI ▪ 0364 710319 ▪ [e-mail] ▪ SUPORT TEHNIC ▪ 0788 250583
cele mai sensibile
20/110
