SystemBase TALUS User manual

WCS-232_v6.0_Use
rManual_Eng_v1.0 (번역중).docx
User Manual
TALUS
www.sysbas.com
Version 3.0.1 2020/10/08

TALUS v2.0 Manual
2
TALUS User Manual
Document Version 3.0.1
Firmware Version 3.0.X
Printed in Korea
Copyright
Copyright ⓒ 2020 SystemBase Co., Ltd. All rights reserved.
This manual is a document protected by Copyright law.
Unauthorized copying, duplicating, publishing of some or all of contents without prior consent from SystemBase is
against Copyright Law.
Registered Trademark
TALUS™ is a trademark of SystemBase Co., Ltd.
Windows® is a registered trademark of Microsoft Corporation.
Ethernet® is a registered trademark of XEROX Corporation.
Notice to Users
For applications that system failure might cause serious consequences, it is necessary to use a backup system or
safety device to protect people and property from serious consequences. It is the user’s responsibility to protect the
consequences of system failure.
Safety Precaution
Electricity
The provided AC adapter must be used. Unauthorized power adapter is not recommended as it may cause electrical
failure. Do not twist, fold, or place heavy objects on the power cable as fire may damage it. Do not touch the power
plug and the adapter with wet hands. If wet, smoky, or smelly, turn off the product immediately and remove the AC
adapter. Misuse can cause fire.
Product
Improper use may damage the customer's device. Do not drop the product and do not use it in humid or dusty
environment. Do not press buttons or disassemble the product with excessive force, and do not place heavy objects
on the product.

TALUS v2.0 Manual
3
Revision History
Revision Date
Document Ver.
Pages Revised
Revised/Added/Removed
Details of Revision
2009-09-01
1.0.0
All
-
New
2011-05-30
2.0.0
Revised
2014-07-23
3.0.0
Revised/Added
2020-10-08
3.0.1
Revised

TALUS v2.0 Manual
4
Contents
1. Introduction 5
1.1 Overview......................................................................................................................................5
1.2 Package.......................................................................................................................................9
1.2.1 Components ......................................................................................................................9
1.3 Specification ..............................................................................................................................10
2. Get Started 7
2.1 Installing Bluetooth Software .......................................................................................................8
3. Using Bluetooth Adapter 12
3.1 Starting Bluetooth Adapter ........................................................................................................12
3.2 Searching for Bluetooth Devices ...............................................................................................13
3.3 Using Bluetooth Serial Port .......................................................................................................14
3.4 Using Dial-Up Network(DUN) ....................................................................................................14
3.5 Using Bluetooth Stereo Headset ...............................................................................................21
3.6 Using Other Bluetooth Services ................................................................................................24
4. Certification 25
4.1. FCC ..........................................................................................................................................25
4.2. CE.............................................................................................................................................25
4.3. MIC(TELEC) .............................................................................................................................25
4.4. KC.............................................................................................................................................25
Appendix A: TALUS Dimension 26
A.1. Dimension ................................................................................................................................26
Appendix B: AT Commands 27
B.1. Warranty Policy ........................................................................................................................27

TALUS v2.0 Manual
5
1. Introduction
1.1 Overview
TALUS adds a Bluetooth communication to a laptop or a PC. It is Class 1 device and supports Bluetooth v4.0 + EDR.
Users can use it to communicate or manage the devices in a large factory.
Enhanced Communication Distance
The Bluetooth is an industry standard for short-range wireless communication for personal use. At the time when it
was first developed, the distance was approximately 10m. However, using the Bluetooth connection to a variety of
devices based on the communication range is classified into three kinds of class. The Class 1 is to have the
communication distance of up to 100m, Class 2 is 30m, Class 3 supports the communication distance up to 10m. In
will operate in a factories and the communication is possible without the constraints of distance.
Bluetooth v4.0 + EDR
‘EDR’ stands for ‘Enhanced Data Rate’. THE EDR allows fast data transfer technology in Bluetooth communication.
Bluetooth is initially developed to support the communication speed up to 1Mbps, but when EDR function is used,
the maximum communication speed is increased up to 3Mbps. Thus TALUS allows more rapid communication.
Variety Profiles Supported
For each purpose, Bluetooth can use specific profiles for its required field. The TALUS supports SPP (Serial Port
Profile), HID (Human Interface Device), A2DP (Advanced Audio Distribution Profile), and many more. Therefore, the
users can use TALUS to connect to numbers of devices.
*Note: Bluetooth 4.0 supports the AFH function. AFH is a technology that mitigates interference between WiFi and
Bluetooth, and automatically avoids communication channels used by WiFi.
However, AFH does not provide complete noninterference between WiFi and Bluetooth, depending on the operating
environment, such as the number of device used and the distance between them.

TALUS v2.0 Manual
6
1.2 Package
1.2.1 Components
TALUS
- TALUS
- Stub Antenna
- CD(Installation & Documentation)

TALUS v2.0 Manual
7
1.3 Specification
Bluetooth
Standards
Bluetooth 4.0 Class 1
Frequency Range
2.402 ~ 2.480GHz
Transmit Output Power
+19dBm (+6dBm EDR) E.I.R.P
Receive Sensitivity
Basic 1Mbps: -90 dBm
EDR 2Mbps: -88 dBm
EDR 3Mbps: -86 dBm
Antenna Connector
RP-SMA
Antenna Gain
Stub Antenna: 1 dBi
Working Distance
(In Open Field)
Stub antenna – Stub antenna: 300 m
※ working distance can vary depending on install environment
Bluetooth Stack
BlueSoleil
Bluetooth Profiles
DUN, FAX, SPP, HID, FTP, OPP, A2DP, AVRCP, HSP, HFP,
PAN, BPP
OS Support
Windows XP/Vista/7/8/8.1 (32/64bit)
Linux (3rd party driver is required)
MAC OS X (MAC OS X driver is required)
Hardware
Bus Interface
USB 2.0 (Full Speed)
Connector Type
USB Type A (Male)
Dimension
(L x W x H)
100.7 x 22.0 x 11.0mm (3.97 x 0.87 x 0.4inch)
Weight
22g (0.78oz)
Operating Temperature
-20 ~ 70℃ (-4 ~ 158℉)
Humidity
90% Non-condensing
Certification
FCC, CE, MIC(TELEC), KC
Warranty
Five Year Warranty
*Note: Bluetooth 4.0 supports the AFH function. AFH is a technology that mitigates interference between WiFi and
Bluetooth, and automatically avoids communication channels used by WiFi.
However, AFH does not provide complete noninterference between WiFi and Bluetooth, depending on the operating
environment, such as the number of device used and the distance between them.

TALUS v2.0 Manual
8
2. Get Started
This chapter describes how to install the Bluetooth software(driver) to operate TALUS.
2.1 Installing Bluetooth Software
*Note: Bluetooth software must be installed before connecting TALUS to a PC. In addition, if Widcomm BTW or
Bluetooth driver provided by Toshiba is already installed on the PC, they must be uninstalled before installing TALUS
driver.
a. Insert Bluetooth software CD-ROM.
b. Click Install Bluetooth Utility/Driver.

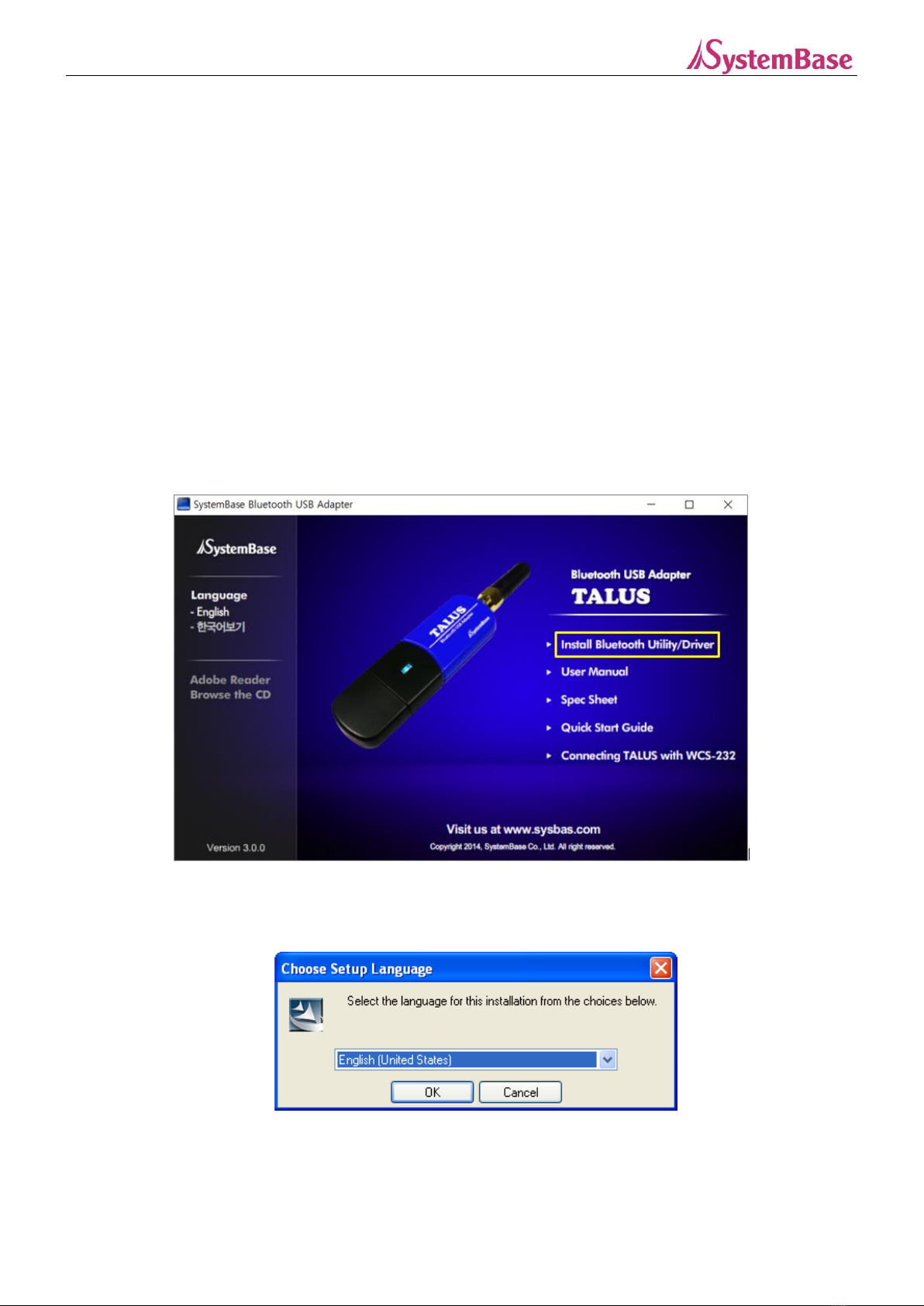

Figure 2.1 TALUS CD-ROM
c. When the Setup Language window appears, select a language and press OK button.
Figure 2.2 Setup Language
d. Once InstallSheld Wizard starts, press Next button.

TALUS v2.0 Manual
9
Figure 2.3 InstallShield Wizard
e. Read the license agreement and click I accept the terms in the license agreement and press Next button.
Figure 2.4 License Agreement
f. Click Next button. If you want to change the destination folder, click Change button and select the folder.

TALUS v2.0 Manual
10

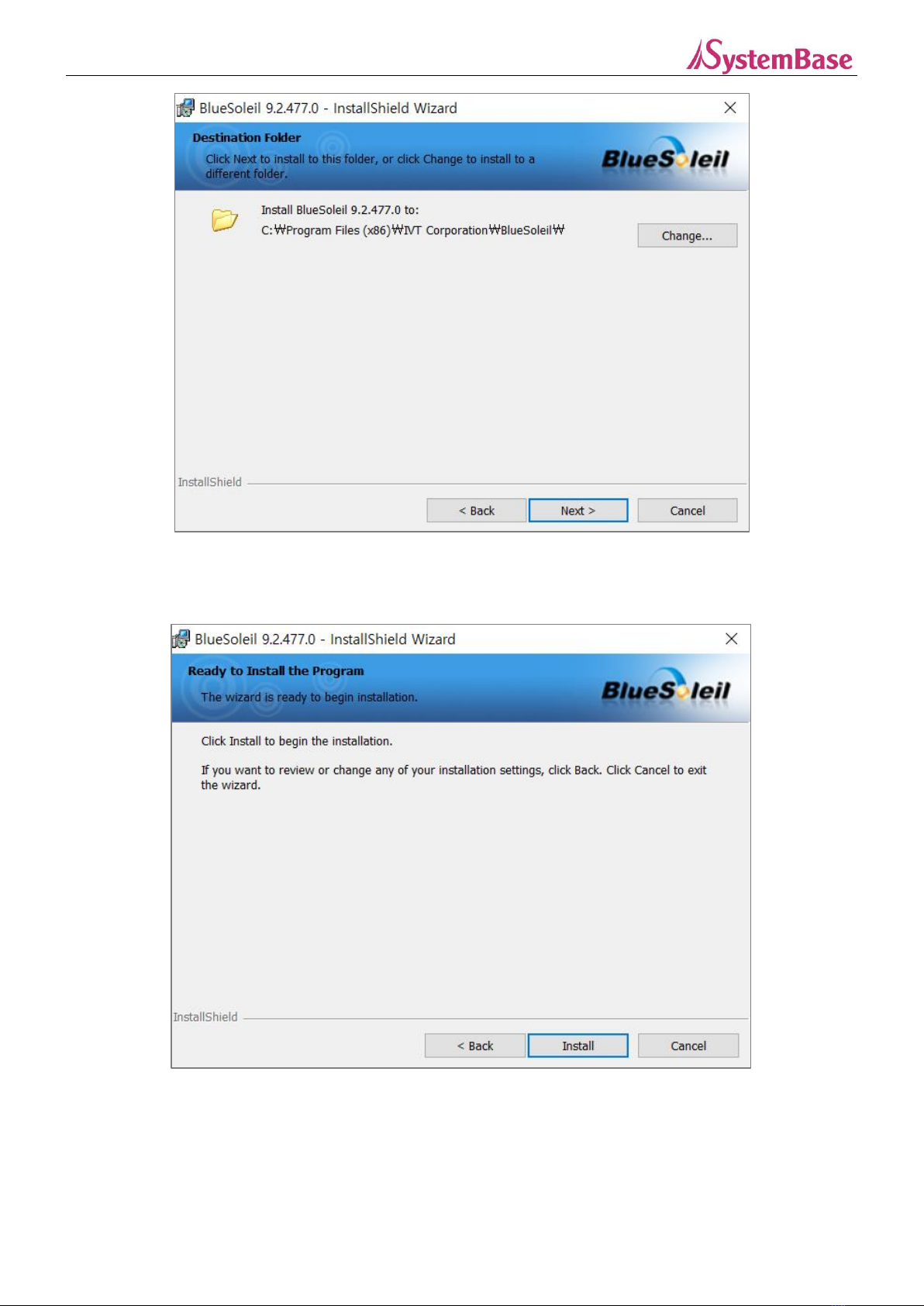

Figure 2.5 Destination Folder
g. Click Install button to start the installation.
Figure 2.6 Installation
h. When the installation is complete, click Finish button.

TALUS v2.0 Manual
11
Figure 2.7 Installation Completed
i. Press Yes button to reboot the PC.
Figure 2.8 Rebooting
*Note: You can download the latest BlueSoleil driver from SystemBase Website
https://www.sysbas.com/en/downloads/talus/

TALUS v2.0 Manual
12
3. Using Bluetooth Adapter
This chapter describes how to use SPP, DUN, stereo headset and other Bluetooth services using TALUS.
3.1 Starting Bluetooth Adapter
a. Plug the TALUS into the PC’s USB port.
b. Right-click on the Bluetooth icon on the tray and select Turn on Bluetooth.

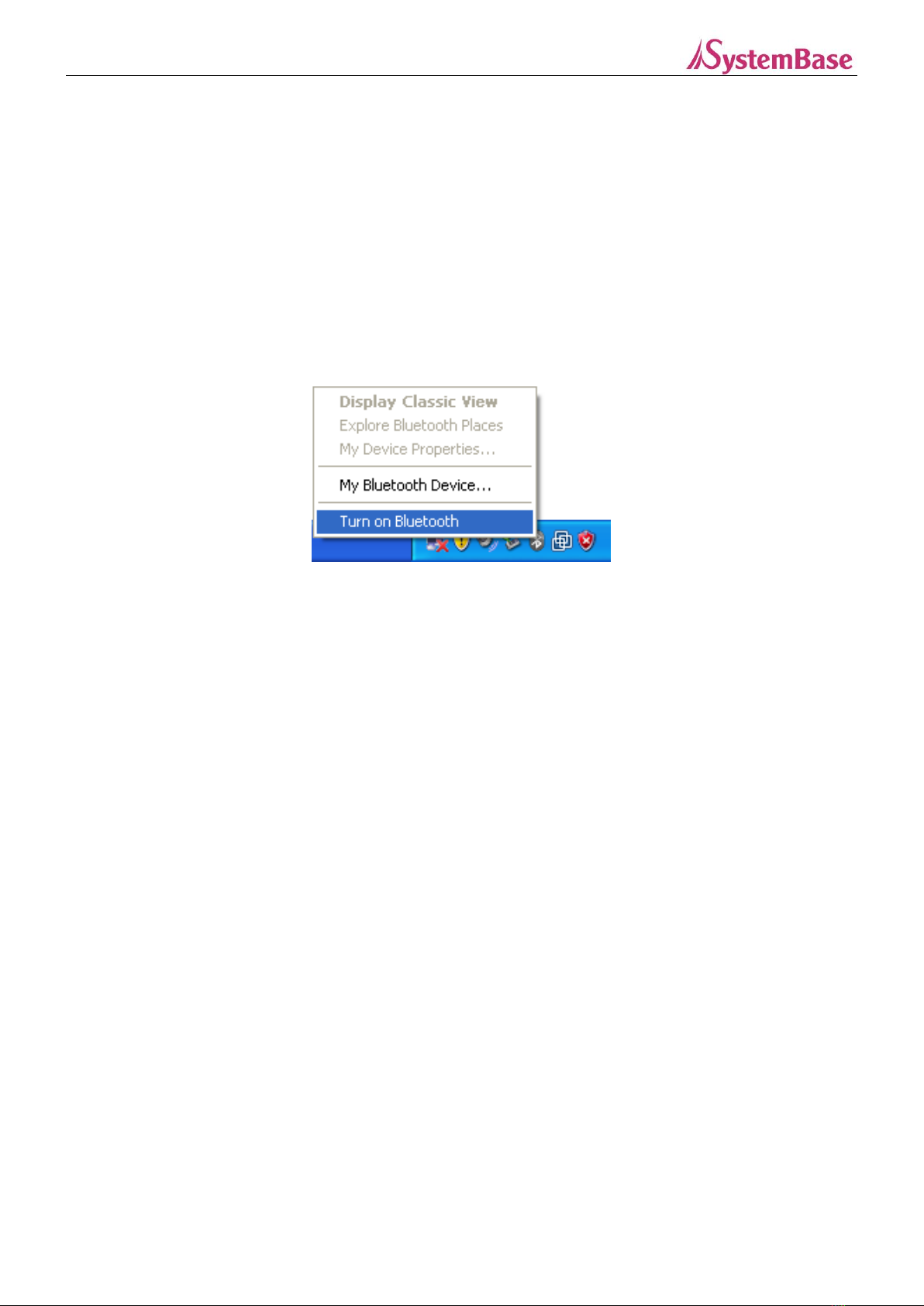

Figure 3.1 Turn on Bluetooth

TALUS v2.0 Manual
13
3.2 Searching for Bluetooth Devices
To establish Bluetooth connection, Bluetooth device must be searched for.
a. Make the target device discoverable.
b. Double-click on the Bluetooth icon on the tray and the BlueSoleil window will pop up.
Figure 3.2 BlueSoleil Window
c. Double-click the My Device icon(orange ball icon) in the center of the window.
d. After a while, the discovered Bluetooth device will be displayed
Figure 3.3 Device Search Result

TALUS v2.0 Manual
14
3.3 Using Bluetooth Serial Port
SPP profiles enable you to create and use virtual serial ports using Bluetooth. Softwares using standard serial ports
can read and write virtual serial ports using SPP just like standard serial ports. A Bluetooth password(PIN code) is
required for SPP connections. Please check the PIN code of the Bluetooth target device which you are going to
connect to.
a. Double-click the My Device icon (center orange ball) to discover the appropriate Bluetooth device in the
BlueSoleil window.

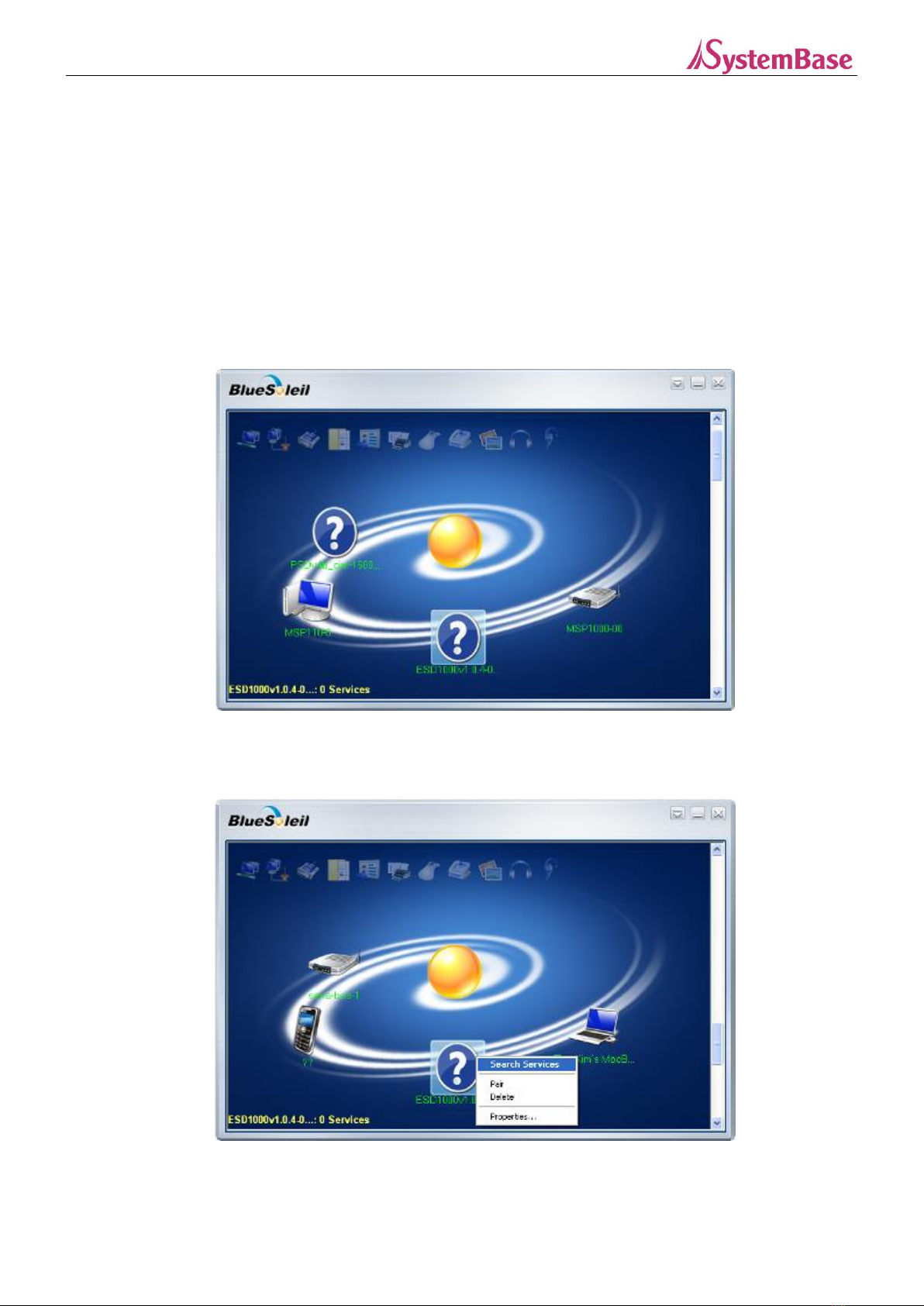

Figure 3.4: Device discovery
b. Right-click on the discovered device icon to select Search Services.
Figure 3.5 Search Services

TALUS v2.0 Manual
15
c. Right-click on the discovered device icon to select Connect Bluetooth serial port.

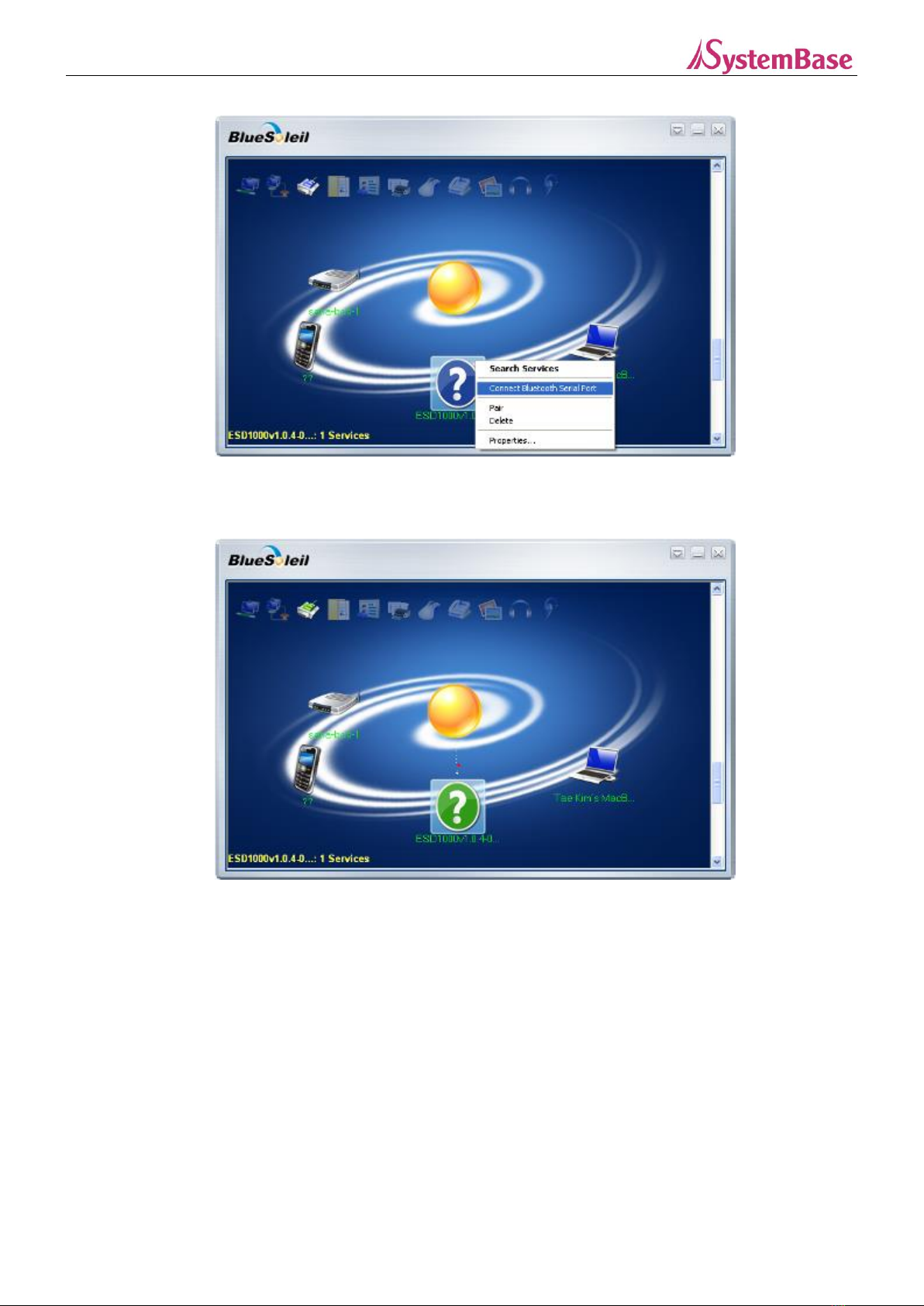

Figure 3.6 Connect Bluetooth Serial Port
d. Once the connection is complete, the Bluetooth serial port can be used.
Figure 3.7 Connection Complete
e. To disconnect, right-click on the device icon and select Disconnect Bluetooth Serial Port.

TALUS v2.0 Manual
16
Figure 3.8 Disconnect Bluetooth Serial Port

TALUS v2.0 Manual
17
3.4 Using Dial-Up Network(DUN)
This chapter explains how to use a DUN profile to connect to the Internet using a mobile phone.
In order to use DUN, you must have a user name and password assigned from the wireless service provider to
connect. Please check your user ID, password, and the phone number for your wireless service provider before the
setting.
A Bluetooth password(PIN code) is also required. Please check the Bluetooth password of the phone you are trying
to connect to in advance.
a. Double-click the My Device icon(center orange ball) to discover the appropriate Bluetooth device in the BlueSoleil
window.
Figure 3.9 Device Discovery
b. Right-click on the discovered device icon to select Search Services.

TALUS v2.0 Manual
18

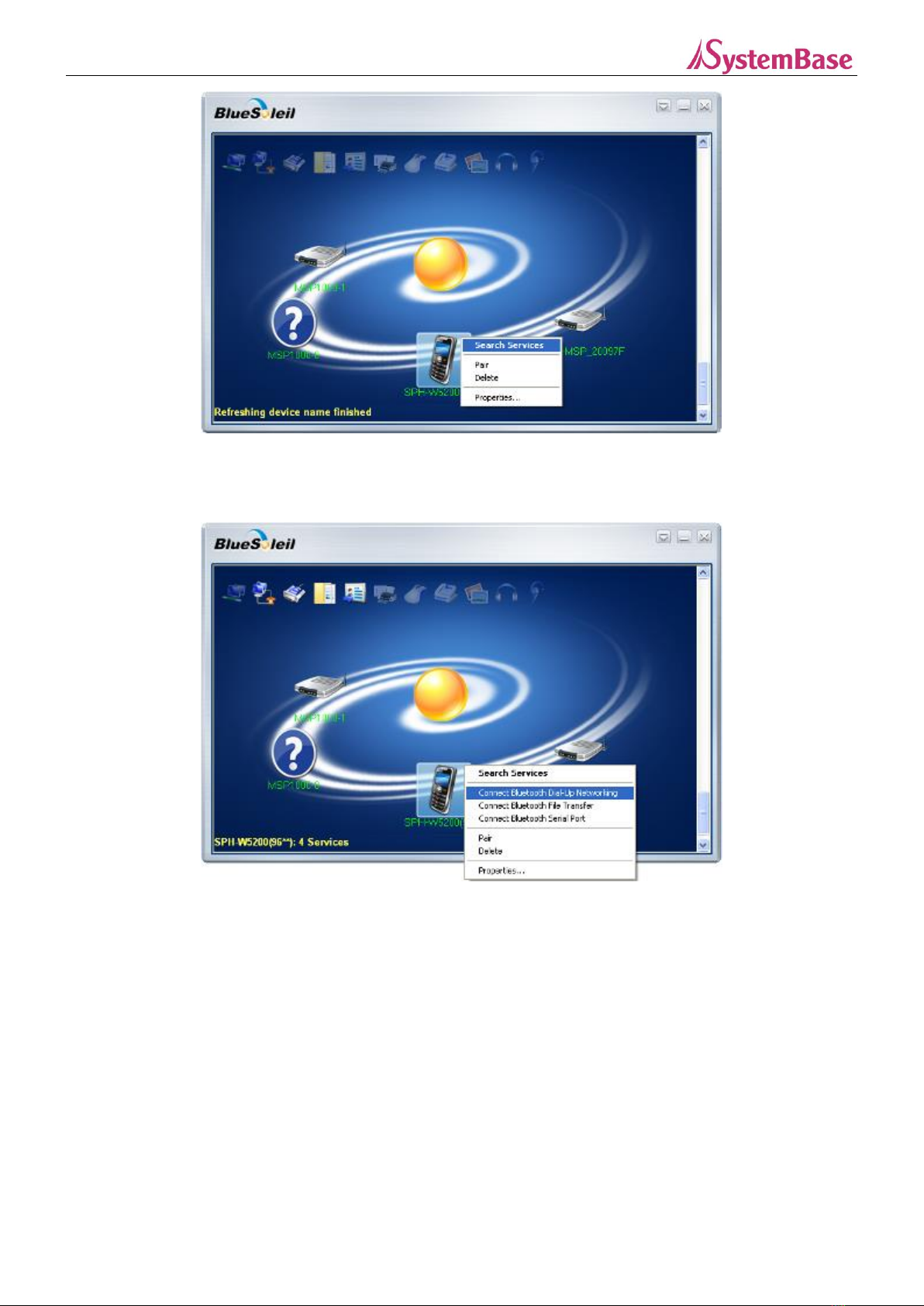

Figure 3.10 Search Services
c. Right-click on the discovered device icon to select Connect Bluetooth Dial-Up Networking.
Figure 3.11 Connect Bluetooth Dial-Up Networking
d. Enter Bluetooth password(PIN code) and click OK button.

TALUS v2.0 Manual
19
Figure 3.12 Entering Bluetooth Passkey
e. Click Dial-Up Connection icon in the task bar
Figure 3.13 Dial-Up Connection Icon
f. Enter the user name and password granted by the service provider and click Dial button.
Figure 3.14 Entering Username and Password
g. Once the connection is complete, Bluetooth dial-up networking is available

TALUS v2.0 Manual
20
Figure 3.15 Dial-Up Networking Connection
h. To disconnect, right-click on the device icon to select Disconnect Bluetooth Dial-Up Networking.
Figure 3.16 Disconnect Bluetooth Dial-Up Networking
