Tack life TKDP01A User manual

User Manual
5SpeedDrillPress
Model:TKDP01A
ID:DP0813W

TABLE OF CONTENTS
Specifications 02
Introduction 02
General Safety Rules 03
Specific Safety Rules for the Wood Lathe 04
Electrical Information 05
Know Your Wood Lathe 07
Assembly & Adjustments 08
Operation 14
Maintenance 14
Troubleshooting Guide 16
Exploded View & Parts List 17
- 01 -

SPECIFICATIONS
Model Number
TKDP01A
Motor
120V, 60 Hz, 2.5A
Chuck Capacity
Ø 1/2 in. max (1.5 mm - 13 mm)
Spindle Stroke
2 in. (50 mm)
Spindle Taper
MT2
Chuck Taper
B16
Speeds
740, 1100, 1470, 2090, 3100 RPM
Swing
8 in.
Table Size
6.5 in. x 6.7 in. x .79 in.
Table Bevel
± 45°
Base Size
12.4 in. x 7.9 in. x 1.65 in.
Column Diameter
1.8 in
Total Height
24 in.
Weight
37.26 lbs
INTRODUCTION
Thanks for purchasing the TACKLIFE Drill Press. We know you are excited to put your tool to work,
but first, please take a moment to read through the manual. Safe operation of this tool requires that
you read you read and understand this operator’s manual and all the labels affixed to the tool. This
manual provides information regarding potential safety concerns, as well as helpful assembly and
operating instruc- tions for your tool.
SAFETY ALERT SYMBOL: Indicates danger, warning, or caution. The safety symbols and the
explanations with them deserve your careful attention and understanding. Always follow the safety
precautions to reduce the risk of fire, electric shock and personal injury. However, please note that
these instructions and warnings are not substitutes for proper accident preventionmeasures.
NOTE: The following safety information is not meant to cover all possible conditions and situations
that may occur. TACKLIFE reserves the right to change this product and specifications at any time
without prior notice.
Keep this manual available to all users during the entire life of the tool and review it frequently
to maximize safety for both yourself and others.
- 02 -

GENERAL SAFETY RULES
Safety is a combination of common sense, staying alert and knowing how your item works.
SAVE THESE SAFETY INSTRUCTIONS.
WORK AREA SAFETY
1. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
2. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liq-
uids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
3. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the
risk of electric shock.
4. Keep children and bystanders away while operating a power tool. Distractions can cause you to
lose control.
ELECTRICAL SAFETY
1. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter
plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk
of electric shock.
2. Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrig-
erators. There is an increased risk of electric shock if your body is earthed or grounded.
3. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep
cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the
risk of electric shock.
4. If operating a power tool in a damp location is unavoidable, use a ground fault circuit interrupter
(GFCI) protected supply. Use of a GFCI reduces the risk of electric shock.
PERSONAL SAFETY
1. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not
use a power tool while you are tired or under the influence of drugs, alcohol or medication. A mo-
ment of inattention while operating power tools may result in serious personal injury.
2. Use personal protective equipment. Always wear eye protection. Protective equipment such as a
dust mask, non-skid safety shoes and hearing protection used for appropriate conditions will reduce
the risk of personal injury.
3. Dress properly. Do not wear loose clothing or jewelry. Keep your hair and clothing away from mov-
ing parts. Loose clothes, jewelry or long hair can be caught in moving parts.
4. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power
source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on
the switch or energizing power tools that have the switch on invites accidents.
5. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left at-
tached to a rotating part of the power tool may result in personal injury.
6. Do not overreach. Keep proper footing and balance at all times. This enables better control of the
power tool in unexpected situations.
7. If devices are provided for the connection of dust extraction and collection facilities, ensure these
are connected and properly used. Use of dust collection can reduce dust-relatedhazards.
POWER TOOL USE AND CARE
1. Do not force the power tool. Use the correct power tool for your application. The correct power tool
will do the job better and safer at the rate for which it was designed.
2. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
3. Disconnect the plug from the power source and/or the battery pack from the power tool before
making any adjustments, changing accessories, or storing power tools. Such preventive safety
mea- sures reduce the risk of starting the power tool accidentally.
4. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the
power tool or these instructions to operate the power tool. Power tools are dangerous in the hands
- 03 -

of untrained users.
5.Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any
other condition that may affect the power tool’s operation. If damaged, have the power tool re-
paired before use. Many accidents are caused by poorly maintained power tools.
6.Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into
account the working conditions and the work to be performed. Use of the power tool for operations
different from those intended could result in a hazardous situation.
SERVICE
Have your power tool serviced by a qualified repair person using only identical replacement parts.
This will ensure that the safety of the power tool is maintained.
SPECIFIC RULES FOR THE DRILL PRESS
WARNING: Do not let comfort or familiarity with the product replace strict adherence to product
safety rules. Failure to follow the safety instructions may result in serious personal injury.
1. TOOL PURPOSE. This drill press is designed for drilling metal, wood, plastic, and tiles. Drilling
other materials could result in fire, injury, or damage to the workpiece. Bits with a straight shank of
a diam- eter between 1.5 - 13 mm (1/16 - 1/2 inch) can be used. Using the machine for any other
purpose for which it is not designed may result in serious injuries, machine damage and voiding of
the warranty.
2. MACHINE MOUNTING. For the operator's safety, the drill must be securely mounted onto a flat and
stable surface or stand.
3. PERSONAL SAFETY.
● Always wear ANSI Z87.1-approved glasses with side shields, hearing protection, and a dust mask.
● DO NOT wear loose clothing or jewelry, as they might get drawn in by the tool. Tie back long hair.
● DO NOT wear gloves while operating this machine.
4. ELECTRIC CORDS. Keep cords away from heat, oil, sharp edges, and moving parts of the tool.
Have an electrician replace or repair damaged or worn cords immediately.
5. TOOL & ACCESSORIES INSPECTION. Before operation, check the tool and accessories for any
dam- age or missing parts. Do not use the tool if any part is missing or damaged. Make sure all
adjustments are correct and all connections are tight. Keep all guards in place.
6. DRILL PRESS ACCESSORIES.
● Do not use drill bits or any accessories that are damaged or worn.
● Make sure all drill bits are sharp enough for the task at hand before using them.
● Make sure the drill bit is securely locked in the chuck.
● Use clamps or a vise to secure a workpiece to the table; this will prevent the workpiece from rotating
with the drill bit.
● Always turn off and unplug the unit before doing any cleaning or maintenance. Use a brush or com-
pressed air to remove chips or debris. Never use your hands to remove excess material and debris.
7. WORKPIECE REQUIREMENTS. Check the workpiece carefully for splits, knots, nails, or other ob-
structions. These types of blemishes may cause a safety risk during operation.
8. DO NOT drill materials without a flat surface unless a suitable support is used (a clamp or vise).
9. SELECT THE APPROPRIATE SPEED for the task at hand. Start at a low speed and allow the drill
bit to ramp up to the operating speed before drilling into your workpiece.
10. DO NOT operate this tool until it is completely assembled and installed according to the instruc-
tions.
11. Make sure the table lock is tightened before starting the drill press.
12. NEVER start the drill press with the drill bit pressed against the workpiece.
13. PREVENTING ACCIDENTAL STARTING. Make sure the power switch is in the OFF position prior
to plugging in the machine. Always make sure the power switch is in the OFF position and the
machine is unplugged when doing any cleaning, assembly, setup operations, or when not inuse.
14. Remove scrap pieces and other objects from the table and work area before turning the machine
ON.
- 04 -

15. Make sure the chuck key is removed from the chuck before turning the machine ON.
16. Adjust the table or depth stop to avoid drilling into the table.
17. DO NOT TOUCH MOVING PIECES. Keep hands away from the drill bit.
18. NEVER perform layout, assembly or set-up work on the table while the drill press is operating.
19. ALWAYS turn off and unplug the machine before removing scrap pieces from the table, cleaning,
making adjustments or changing attachments. Accidental start-ups may occur if the tool is plugged
in during an accessory change or adjustment.
20. CLEANING. Never use solvents to clean plastic parts. Solvents could dissolve or otherwise dam-
age the material. Use only a soft damp cloth to clean plastic parts.
21. REPLACEMENTS. Should any component of your drill press be missing/damaged or fail in any
way, shut off the switch and remove the plug from power supply outlet. Replace the missing, dam-
aged, or failed parts using only identical replacement parts before resumingoperation.
22. Before leaving the machine, shut the power OFF, remove the drill bit, and clean the table.
CALIFORNIA PROPOSITION 65 WARNING
Some dust created by power sanding, sawing, grinding, drilling, and other construction activities
may contain chemicals, including lead, known to the State of California to cause cancer, birth defects,
or other reproductive harm. Wash hands after handling. Some examples of these chemicals are:
●Lead from lead-based paints.
●Crystalline silica from bricks, cement, and other masonry products.
●Arsenic and chromium from chemically treated lumber.
Your risk from these exposures varies depending on how often you do this type of work. To reduce
your exposure to these chemicals, work in a well-ventilated area with approved safety equipment
such as dust masks specially designed to filter out microscopic particles.
These safety instructions can’t possibly warn of every scenario that may arise with this tool, always
make sure to stay alert and use common sense during operation.
ELECTRICAL INFORMATION
GROUNDING INSTRUCTIONS
IN THE EVENT OF A MALFUNCTION OR BREAKDOWN, grounding provides the path of least
resistance for an electric current and reduces the risk of electric shock. This tool is equipped with an
electric cord that has an equipment grounding conductor and a grounding plug. The plug MUST be
plugged into a matching outlet that is properly installed and grounded in accordance with ALL local
codes and ordi- nances.
DO NOT MODIFY THE PLUG PROVIDED. If it will not fit the outlet, have the proper outlet installed
by a licensed electrician.
IMPROPER CONNECTION of the equipment grounding conductor can result in electric shock. The
conductor with the green insulation (with or without yellow stripes) is the equipment grounding con-
ductor. If repair or replacement of the electric cord or plug is necessary, DO NOT connect the equip-
ment grounding conductor to a live terminal.
CHECK with a licensed electrician or service personnel if you do
not completely understand the grounding instructions or whether
the tool is properly grounded.
USE ONLY THREE-WIRE EXTENSION CORDS that have
three-pronged plugs and outlets that accept the tool’s plug (Fig. 1).
Repair or replace a damaged or worn cord immediately.
CAUTION: In all cases, make certain the outlet in question is proper-
ly grounded. If you are not sure, have a licensed electrician check
the outlet.
- 05 -
Fig. 1

GUIDELINES AND RECOMMENDATIONS FOR EXTENSION CORDS
When using an extension cord, be sure to use one heavy enough to carry the current your product will
draw. An undersized cord will cause a drop in line voltage resulting in loss of power and over- heating.
The table below shows the correct size to be used according to cord length and ampere rat- ing.
When in doubt, use a heavier cord. The smaller the gauge number, the heavier thecord.
AMPERAGE
REQUIRED GAUGE FOR EXTENSION CORDS
25 ft.
50 ft.
100 ft.
150 ft.
2.5A
18 gauge
16 gauge
16 gauge
14 gauge
1. EXAMINE EXTENSION CORD BEFORE USE. Make sure your extension cord is properly wired
and in good condition. Always replace a damaged extension cord or have it repaired by a qualified
person before using it.
2. DO NOT ABUSE EXTENSION CORD. Do not pull on cord to disconnect from receptacle; always
disconnect by pulling on plug. Disconnect the extension cord from the receptacle before discon-
nect- ing the product from the extension cord. Protect your extension cords from sharp objects,
excessive heat and damp/wet areas.
3. USE A SEPARATE ELECTRICAL CIRCUIT FOR YOUR TOOL. This circuit must not be less than
a 12-gauge wire and should be protected with a 15A time-delayed fuse. Before connecting the
motor to the power line, make sure the switch is in the OFF position and the electric current is rated
the same as the current stamped on the motor nameplate. Running at a lower voltage will damage
the motor.
- 06 -

M
KNOW YOUR WOOD LATHE
TOOL PURPOSE
Drill presses allow you to drill, enlarge and finish holes in workpieces. Refer to the diagram below to
become familiarized with the parts and controls of your drill press.
P
CQ
O
R
D
EN
BF
A
S
G
T
H
L
KU
I
V
W
J
X
A.
Belt Tension Lever
I.
Base
Q.
Drive (Motor) Pulley
B.
Motor
J.
Table Bevel Guide
R.
Belt
C.
Belt Cover
K.
Spindle
S.
Chuck Key Holder
D.
Safety ON/OFF Switch
L.
Depth Guide Ring
T.
Belt Tension Knob
E.
Spindle Return Spring
M.
Depth Locking Knob
U.
Feed Handle
F.
Chuck
N.
Belt Cover Knob
V.
Column
G.
Table
O.
Front (Spindle) Pulley
W.
Table Locking Handle
H.
Bevel Lock Bolt
P.
Speed Chart
X.
Column Mount
- 07 -

ASSEMBLY & ADJUSTMENTS
UNPACKING
With the help of a friend or trustworthy foe, carefully remove the drill press from the packaging. Make
sure to take out all contents and accessories. Do not discard the packaging until the drill press is com-
pletely assembled.
Before using the drill press, you must assemble the unit using the instructions in this section. Check
your packing list against the diagram below. If any part is damaged or missing, please contact our
customer service, email us at [e-mail].
PACKING LIST
A. Head/Motor Assembly (1)
B. Base (1)
C. Table Assembly (1)
D. Column Assembly (1)
E. Hex Head Bolts (3)
F.Hex Wrench (2)
G. Chuck (1)
H. Belt Tension Lever (1)
I.Chuck Key (1)
J.Feed Handles (3)
The tools listed below are not included but are required for either assembly or adjustment.
● Adjustable wrench
● Hammer and block of wood, or rubber mallet, or dead-blow hammer
A B C
D
G H I J
WARNING: Do not plug in or turn on the tool until it is fully assembled according to the instruc-
tions. Failure to follow the safety instructions may result in serious personal injury.
WARNING: Do not plug in or turn on the tool until it is fully assembled according on the instruc-
tions. Failure to follow the safety instructions may result in serious personal injury.
REMOVING THE ANTI-RUST GREASE
To protect the drill press from moisture, a protective coating has been applied to the machine’s sur-
faces. Follow the directions below to remove the coating.
1. Remove the excess oil and grease by wiping it off with a clean cloth.
2. Remove any residue from the exposed surfaces with a rag moistened with acetone, kerosene, or
other removal agent. Wear gloves to protect your skin. Do not use gasoline, or cellulose-based sol-
vents such as paint thinner or lacquer thinner, as these will damage the paintedsurfaces.
3. Apply a light coat of good-quality paste wax to the table and column to guard against rust and cor-
rosion.
- 08 -
F
E

ATTACHING THE COLUMN ASSEMBLY TO THE BASE
1. Place the column on the base, aligning the column flange
holes to the base holes.
2. Install a hex bolt in each column support hole and tighten
bolts using an adjustable wrench (not included). See Fig. 2.
ATTACHING THE TABLE TO THE COLUMN
1. Loosen the table locking handle (Fig. 3 - 1) so that the table
collar can slide onto the column.
2. Slide the table assembly down directly onto the column,
with the silver side of the table facing up. See Fig. 3.
3. Position the table directly over the base, and tighten the
table locking handle (Fig. 3 - 1) to secure table assembly.
CAUTION: The drill press head is heavy. To avoid injury,
two people should lift it into position.
ATTACHING THE HEAD TO THE COLUMN
1. Carefully lift the drill press head assembly and position it
over the column. See Fig. 4.
2. Place the mounting opening on the drill press head over
the top of the column. Make sure the drill press head is
seated prop- erly on the column.
3. Align the direction of the drill press head with the direction
of the base and the table.
4. Tighten the set screw (Fig. 4 - 1) using a hex wrench.
ATTACHING THE FEED HANDLES
1. Insert the three feed handles (Fig. 5 -1) into the threaded
openings on the feed hub (Fig. 5 - 2).
2. Manually tighten the handles into the openings. If desired,
use the adjustable wrench to grip the flats of the feed
handles and fully tighten them into the feed hub.
NOTE: If an unusually-shaped workpiece interferes with
han- dle rotation, you can remove one or two of the feed
handles to allow for easier rotation.
MOUNTING THE DRILL PRESS
The drill press must be securely fastened through the mount-
ing holes to a stand or workbench with heavy-duty fasteners
(not included). This will prevent the drill press from tipping
over, sliding, or waking during operation. See Fig. 6.
IMPORTANT: If the stand or workbench has a tendency to
move during operation, fasten the workbench securely to the
floor.
Fig. 2
1
Fig. 3
2
1
Fig. 4
1
Fig. 6
2
Fig. 5
- 09 -

INSTALLING THE CHUCK
1. Unplug your drill press before you begin installing the chuck. Lower the drill press table and place
a cloth on it to protect the chuck if it is dropped.
2. Wipe the chuck and spindle with a clean rag. Do not use solvents yet, these will be used when you
are ready to set it into place.
3. Completely remove any burrs found on the inner mating surface of the chuck with a diamond
coated tool or a fine file. Use a grade 000 steel wool pad to lightly go over the chuck and spindle.
This removes oxidation and dirt that you cannot see.
NOTE: Do steps 1-3 even if your chuck is new. New
chucks can still have burrs, oxidation, and dirt.
WARNING: Before any assembly of the chuck to the drill
press spindle, clean all mating surfaces with a non-petro-
leum based product, such as acetone or lacquer thinner.
Any oil or grease used in the packing of these parts must
be removed; otherwise the chuck may come loose during
operation.
4. Use lacquer thinner or acetone on a lint free rag to clean the chuck. Do not touch these surfaces
with your hands after cleaning. Rubbing alcohol does not work well, as it contains oil. Let the chuck
dry before continuing.
5. Retract the jaws of the chuck all the way into the body. Slide the chuck’s socket onto the spindle.
See Fig. 7.
CAUTION: To avoid damaging the chuck, make sure the jaws are completely recessed into its
body and only tap the chuck one time, with a firm tap. Do not use excessive force. Do not use a metal
hammer to drive the chuck into the spindle.
6. Using hand force, firmly push the chuck up onto the spindle. Using a rubber mallet or dead blow
hammer, tap the chuck upwards once to lock the tapers together. You can also use a piece of wood
between the chuck and a standard hammer. Test the fit by gently pulling downward on the chuck. If
the chuck pulls off, go back to step one and try again, making sure to thoroughly clean the mating
sur- faces. Your chuck is now set into your drill press and should stay in place until you need to
remove it.
REMOVING THE CHUCK
1.Turn the feed handles to lower the chuck to the lowest position, making it close to the table.
2.Place a ball joint separator above the chuck and tap it lightly with a hammer to cause the chuck to
drop from the spindle. You should hold the chuck and be ready to catch it when it is released.
Alternate Method:
Place the chuck key into the opening on the side of the chuck. Open the drill press cover and hold the
spindle pulley stationary. Using the chuck key for leverage, rotate the entire chuck clockwise while
gently pulling downwards. Remove the chuck from the spindle.
- 10 -
Fig. 7

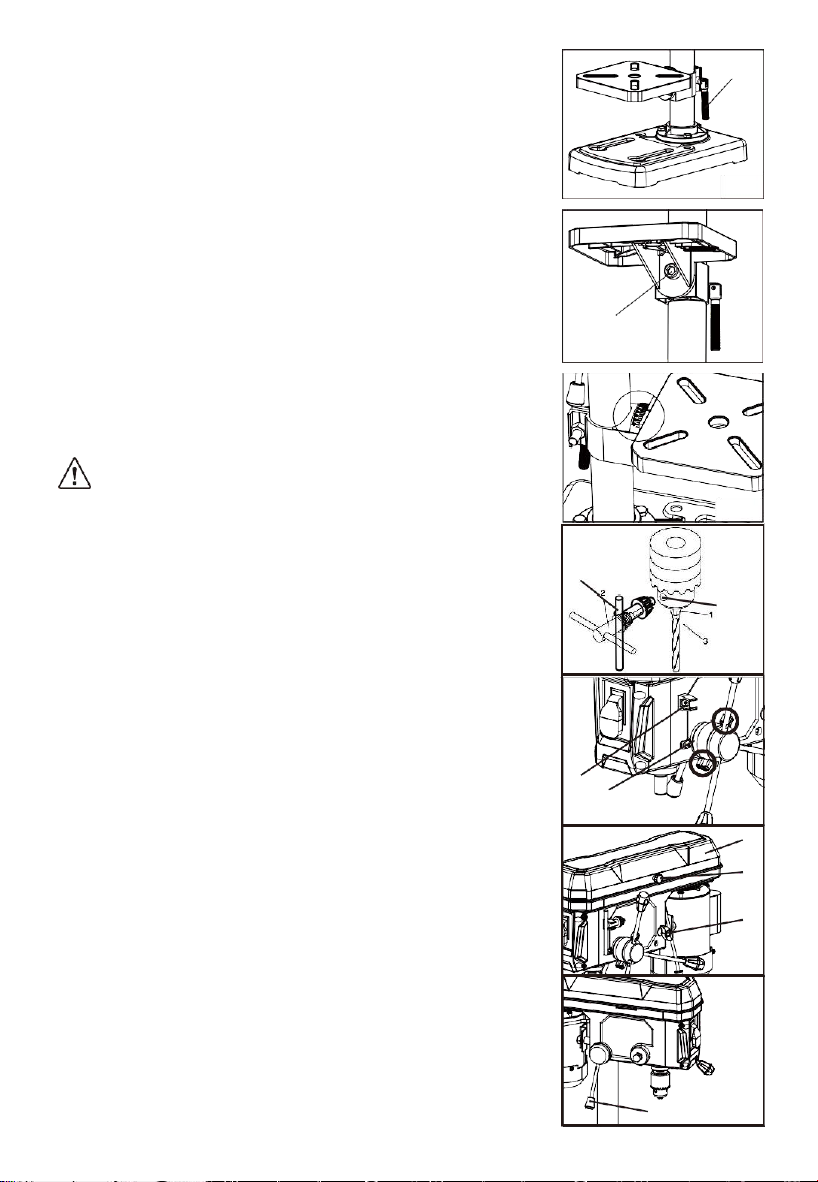

RAISING OR LOWERING THE TABLE
1. Loosen the table locking handle (Fig. 8 - 1) so that you can slide the
table to the desired height.
2. Once the table is at the desired height, securely tighten the table
locking handle.
ROTATING THE TABLE
1. Loosen the table locking handle (Fig. 8 - 1) so that you can rotate the
table around the column.
2. Once the table is at the desired position, securely tighten the table
locking handle.
TILTING THE TABLE
1.Loosen the bevel lock bolt (Fig. 9 - 1) with the included M10 hex wrench.
2.Tilt the table to the desired angle, using the table bevel guide (Fig.
10). A level can be used for more precision. Securely re- tighten the
bevel lock bolt.
NOTE: To return the table to its original horizontal position, loosen the
bevel lock bolt and realign the table to the 0° set- ting on the table bevel
guide. A level can be used for moreprecision.
WARNING: To avoid injury, make sure the chuck key is removed
from the chuck before starting any drilling operation.
INSTALLING A DRILL BIT
1.Place the chuck key (Fig. 11 - 1) into the side keyhole
(Fig. 11 - 2) of the chuck, meshing the key with the gear teeth.
2.Turn the chuck key counterclockwise to open the chuck jaws.
3. Insert a drill bit into the chuck so the chuck jaws grip as much of the
bit’s shank as possible.
4.Centerthe drillbitinthe chuckjawsbeforethefinaltighteningof thechuck.
5.Tighten the chuck jaws using the chuck key to ensure that the drill bit
will not slip while drilling. Tighten the jaws using all three keyholes of
the chuck.
6.Remove the chuck key. Store the key in the rubber key holder,
mounted above the feed handle hub (Fig. 12 - 1).
ADJUSTING THE FEED DEPTH
1. Loosen the depth locking knobs (Fig. 12, circled).
2. Turn the depth guide ring (Fig. 12 - 2) to the desired depth.
3. Lock the depth guide ring in place by tightening the depth locking
knobs.
ADJUSTING THE SPEED
1.To change to another one of the five available speeds, open the belt
housing cover (Fig. 13 - 1) by turning the belt cover knob (Fig 13 - 2)
two rotations counter-clockwise and flipping the belt housing cover up.
2.Loosen the belt tension knob (Fig. 13 - 3).
3. Use the speed chart (Fig. 15, p. 16) to select a suitable speed for
your specific project. The speed chart can be found on the inner side of
the belt cover (Fig. 19 - 2, p. 17).
4. Using the belt tension lever (Fig. 14 - 1), pull the motor to- wards the
front of the press and tighten the belt tension locking knob.
Directions continue on the next page.
- 11 -
1
Fig. 9
1
Fig. 8
Fig. 10
1
2
Fig. 11
1
2
Fig. 12
1
2
3
Fig. 13
1Fig. 14

RECOMMENDED SPEED
BASED ON MATERIAL & DRILL BIT SIZE
SPINDLE SPEEDS IN RPM
740
1470
2090
3100
Fig. 15
1-5/8" (41.4 mm)
3/4" (19.0 mm)
1/2" (2.4 mm)
740
1-1/4" (31.75 mm)
11/16" (17.5 mm)
3/8" (4.0 mm)
1100
7/8" (22.0 mm)
15/32" (12.0 mm)
1/4" (6.4 mm)
1470
5/8" (16.0 mm)
11/32" (8.75 mm)
5/32" (9.5 mm)
2090
3/8" (9.5 mm)
7/32" (5.6 mm)
3/32" (12.5 mm)
3100
4. Loosen the belt tension locking knob and use the belt ten- sion lever to push the motor towards the
rear of the drill press, ensuring that the belt is under tension. Tighten the belt tension locking knob.
Close the belt housing cover. If desired, tighten the cover knob to prevent it from rattling during opera-
tion.
NOTE: Ensure that the belt runs on the same setting of each pul- ley (e.g. if the belt is on the third
setting of the motor pulley, it should be on the third setting of the spindle pulley as well).
SPINDLE RETURN SPRING
The spindle is equipped with an auto-return mechanism. The main components are a spring and a
notched housing. The spring was properly adjusted at the factory and should not be readjusted unless
absolutely necessary.
1. Unplug the drill press.
2.Using an adjustable wrench (not included), loosen the two
nuts (Fig. 16 - 1) approximately 1/4” (6 mm). Do not remove
the nuts from the threaded shaft. Do not allow the spring or
spring housing to slip out of control.
3.While firmly holding the spring housing (Fig. 16 - 3),
carefully pull the spring housing out until it clears the raised
notch (Fig. 16 - 2).
4.Turn the housing so that the next notch is engaged with the
raised notch (Fig. 16 - 2).
●To increase the spindle return tension, turn the spring
housing counter-clockwise.
●To decrease the tension, turn the spring housing clockwise.
5.Tighten the two housing nuts. Do not overtighten the two
nuts. If the nuts are tightened too much, the movement of the
spindle and feed handles will become sluggish.
WARNING: To avoid injury, make sure the chuck key is
removed from the chuck before starting any drilling opera-
tion.
REPLACING THE BELT
1. To replace the belt, open the belt housing cover (Fig. 17 -
1) by turning the belt cover knob (Fig 17 - 2) two rotations
counter- clockwise and flipping the belt housing cover up.
2. Loosen the belt tension knob (Fig. 17 - 3) and use the belt
tension lever (Fig. 18 - 1) to pull the motor forward and
relieve belt tension. Tighten the belt tension knob.
- 12 -
1
3
2
Fig. 16
1
2
3
Fig. 17

Fig. 21
3. If the belt is broken, remove it from the housing cover. If the belt is not broken, but is too stretched
to operate correctly, work the belt off the drive (motor) pulley (Fig. 19 - 3). Then remove the belt
from the front (spindle) pulley (Fig. 19 - 1).
4. Replace the old belt with a new belt. Install the new belt over the pulleys at the desired speed.
Using the belt tension handle, move the motor back to make the belt taut. Once the desired tension
has been achieved, tighten the belt tension locking knob (Fig. 17 - 3).
1
Fig. 18
1
2
3
Fig. 19
TURNING THE POWER ON/OFF
1.To turn the drill press ON, insert the yellow safety key
(Fig. 20 - 1) into the switch housing (Fig. 20 - 2). As a safety
feature, the switch cannot be turned ON without the safety key.
2.Flip the switch upward to the ON position.
3. To turn the drill press OFF, flip the switch downward.
4. To lock the switch in the OFF position, remove the safetykey
from the switch. Store the safety key in a safe place.
POSITIONING THE TABLE AND WORKPIECE
Always place a piece of scrap material (wood, plywood, etc.)
on the table underneath the workpiece. This will prevent splin-
tering on the underside of the workpiece as the drill bit breaks
through. To keep the material from spinning out of control,
it must contact the left side of the column (Fig. 21), or be
clamped (not included) to the table.
NOTE: For small workpieces that cannot be clamped to the
table, use a drill press vise (not included). The vise must be
clamped or bolted to the table to avoid injury. .
GENERAL DRILLING GUIDELINES - DRILLING A HOLE
WARNING: To prevent the workpiece and the scrap material from slipping from your hand while
drilling, position the workpiece and scrap material to the left side of the column. If the workpiece and
the scrap material are not long enough to reach the column, clamp the workpiece and scrap material
to the table. Failure to do this could result in personal injury.
1. Mark where you want to drill in workpiece by using a center punch or a sharp nail.
2. Before turning the drill press ON, turn the feed handles to bring the drill bit down. Line the drill bit
tip up with the mark. Clamp the workpiece in place.
3. Turn ON the drill press and pull down on the feed handles with the appropriate force needed to al-
low the drill bit to drill through the material.
- 13 -
1
2
Fig. 20

NOTE: Feeding too slowly might cause the drill bit to turn in the chuck. Feeding too rapidly might stop
the motor, cause the belt to slip, force the workpiece loose, or break the drill bit. Practice with scrap
material to get the feel of the machine before attempting to do any drilling operation.
OPERATION
DRILLING SPEEDS
There are a few important factors to keep in mind when determining the best drilling speed:
● Material type
● Hole size
● Drill bit or cutter type
● Quality desired
Smaller drill bits require greater speed than larger drill bits. Softer materials require greater speed
than harder materials. See Fig. 15 on p. 16 or look at the speed chart on your drill press that can be
found on the inner side of the belt cover.
DRILLING WOOD
● Brad point bits are preferred. Metal-piercing twist bits may be used on wood.
● Do not use auger bits. Auger bits turn so rapidly that they can lift the workpiece off of the table and
whirl it around.
● Always protect the drill bit by positioning the table so that the drill bit will enter the center hole when
drilling through the workpiece.
● To prevent splintering, feed the drill bit slowly right as the bit is about to cut through to the back- side
of the workpiece.
● To reduce splintering and protect the point of the bit, use scrap wood as a backing or a base block
under the workpiece.
FEEDING THE DRILL BIT
● Pull down on the feed handles with only enough force to allow the drill bit to cut.
● Feeding too rapidly might stall the motor, cause the belt to slip, damage the workpiece, or break the
drill bit.
● Feeding too slowly will cause the drill bit to heat up and burn the workpiece.
MAINTENANCE
WARNING: To avoid accidents, turn OFF and unplug the tool from the electrical outlet before
cleaning, adjusting, or performing any maintenance or lubrication work.
WARNING: Any attempt to repair or replace electrical parts on this tool may be hazardous.
Servicing of the tool must be performed by a qualified technician. When servicing, use only identical
replacement parts. Use of other parts may be hazardous or induce product failure.
ROUTINE INSPECTION
Before each use, inspect the general condition of the tool. If any of the following conditions exist, do
not use until parts are replaced or the drill press is properly repaired.
Check for:
● Loose hardware or improper mounting,
● Misalignment or binding of moving parts,
● Damaged cord/electrical wiring,
● Cracks, cuts, and general wear on the drive belt,
● Cracked or broken parts, and
● Any other condition that may affect its safe operation
- 14 -

CLEANING & STORAGE
1. After every operation, use a vacuum to remove dust and chips from the tool surfaces, motor hous-
ing and work area. Keep the ventilation openings free from dust and debris to prevent the motor
from overheating.
2. Wipe the tool surfaces clean with a soft cloth or brush. Make sure water does not get into thetool.
3. The drill press is made from steel. All non-painted surfaces will rust if not protected. Using a soft
cloth, wipe off the anti-rust coating that came on the lathe and apply a light coat of good-quality
paste wax.
4. The ball bearings in the spindle and the V-belt pulley assembly are greased and permanently
sealed. Pull the spindle down and oil the quill moderately every three months.
5. Lubricate the table bracket and locking knobs if they become difficult to use.
WARNING: Stop using the tool immediately if any of the problems on the next page occur.
Repairs and replacements should only be performed by an authorized technician.
- 15 -

TROUBLESHOOTING GUIDE
PROBLEM
CAUSE
SOLUTION
Noisy operation
Incorrect belt tension
Adjust the belt tension (See p. 17).
Dry spindle
Lubricate the spindle.
Loose spindle pulley
Tighten the set screws on the side of the spindle
pulley.
Loose motor pulley
Tighten the set screws on the side of the motor
pulley.
The drill bit burns
or smokes
Drilling at the incorrect speed
Change the speed (See Fig. 15 on p. 16).
The wood chips are not coming
out of the hole
Retract the drill bit frequently to clear the chips.
Dull drill bit
Resharpen or replace the drill bit.
Feeding the workpiece too slowly
Feed fast enough to cut the workpiece
Not lubricated
Lubricate the drill bit with cutting oil or motor oil.
Excessive drill run
out or wobble;
drilled hole is not
round
Bent drill bit
Replace the drill bit.
Bit improperly installed in the
chuck
Reinstall the drill bit (p. 15).
Worn spindle bearings
Bearings may need replacement.
Lengths of cutting flutes or angles
not appropriate for the hardness
of the wood grain
Resharpen the drill bit correctly or replace with the
appropriate type.
Chuck not properly installed
Reinstall the chuck (p. 13).
Drill bit binds in the
workpiece
The workpiece is pinching the bit
Support or clamp the workpiece (p. 18).
Excessive feed pressure
Feed more slowly.
Spindle returns
too slowly or too
quickly
Coil spring has improper tension
Adjust the coil spring tension.
Chuck falls off
spindle
Dirt, grease, or oil on the tapered
surface on the spindle or in the
chuck
Clean the tapered surface of both the chuck and
spindle with acetone or lacquer thinner.
Motor will not run
Defective or broken switch
email us at [e-mail]
Defective or damaged power cord
Open circuit, loose connections,
or burned out motor
Low voltage
Check the power line for the proper voltage. Use
another circuit or have a qualified electrician up -
grade the service.
Motor stalls
Short circuit in motor
Email us at [e-mail]
Incorrect fuses or circuit breakers
Replace with correct fuse or circuit breaker for the
circuit.
Overloaded circuit
Turn off other machines and retry.
Low voltage
Check the power line for the proper voltage. Use
another circuit or have a qualified electrician up -
grade the service.
- 16 -

EXPLODED VIEW & PARTS LIST
- 17 -

No.
Description
Qty.
1
Belt Cover
1
2
Self Locking Nut,
M5
1
3
Square Nut, M5
1
4
Belt Cover Knob,
M5 x 18
1
5
Drive (Motor)
Pulley
1
6
Belt
1
7
Screw, M6 x 10
2
8
Front (Spindle)
Pulley
1
9
Flat Washer, Ø22
1
10
Drive Axle
1
11
Phillips-Head
Screw, M5 x 10
4
12
Cover Plate
1
13
C-Ring, Ø40
2
14
Bearing 6203
2
15
Shaft Ring, Ø17
1
16
Phillips-Head
Screw, M4 x 12
2
17
Power Cord Clip
1
18
Bracket
1
19
Housing
1
20
Belt Tension Knob,
M8 x 16
1
21
Chuck Key Holder
1
22
Phillips-Head
Screw, M5 x 8
1
23
Cord Ring
1
24
Power Cord
Assembly
1
25
Motor Mount 1
1
26
Motor Mount 2
1
27
Cord Sheath
1
28
Motor
1
28.1
Capacitor
1
28.2
Capacitor Cover
1
No.
Description
Qty.
28.3
Capacitor Screws,
M4 x 6
2
28.4
Fan
1
28.5
Fan Screw, M4 x 8
4
29
Flat Washer, Ø10
2
30
SpringWasher,Ø10
2
31
Hex Nut, M10
2
32
Socket Head Screw,
M12 x 20
1
33
Flat Washer, Ø12
1
34
Aluminum Table
1
35
Hex Nut, M10
1
36
Hex Nut, M12
1
37
Table Bevel Guide
1
38
Table Clamp
1
39
Table Locking Handle
1
40
Drill Chuck Key
1
41
Column
1
42
Hex Bolt, M8 x20
3
43
Column Flange
1
44
Base
1
45
Feed Handle
3
46
Feed Handle Lever
3
47
Feed Hub
1
48
Depth Guide
1
49
Depth Adjustment
Lock Knob
2
50
Coupling, M12 x 25
1
51
Phillips-Head Screw,
M5 x 8
1
52
Depth Pointer
1
53
O Ring,Ø15
1
54
Bearing 6002
2
55
Rubber Ring
1
56
Spindle
1
57
Quill
1
58
Chuck, B16, 1.5-13
mm
1
- 18 -

No.
Description
Qty.
59
Coupling
1
60
Hex Nut, M8
1
61
Cable Plate
1
62
Phillips-Head Screw,
M5 x 8
2
63
Toothed Locking
Washer, Ø5
2
64
Grounding Terminal,
Ø5
2
65
Spring Washer, Ø5
2
66
Phillips-Head Screw,
M5 x 6
2
67
Front Cover
1
68
Phillips-Head Screw,
M5 x 14
4
69
Safety ON/OFF
Switch
1
70
Belt Tension Lever
Cover
1
No.
Description
Qty.
71
Belt Tension Lever
1
72
Tensioning
Handwheel
1
73
Phillips-Head Screw,
M4 x 12
2
74
Tensioning Washer
1
75
Set Screw, M5 x 10
1
76
Tensioning Gear
1
77
Phillips-Head Screw,
M5 x12
1
78
Cord Plate
1
79
Cap Nut, M10
1
80
Hex Nut, M10
1
81
Spring Assembly
1
82
Phillips-Head Screw,
M4 x 8
4
83
Hinge
2
84
Self-Tapping Screw,
ST3.5 x 14
4
85
Drive Pulley Cover
1
- 19 -
