ri-thermo® tymPRO
ri-thermo® tymPRO+
Tympanic Thermometer / Trommelfellthermometer
Thermomètre tympanique / Termómetro timpánico
Termometro auricolare / Ушной термометр
Operation Instructions / Bedienungsanleitung /
Mode d'emploi / Instrucciones de uso /
Istruzioni per l'uso / Инструкция по эксплуатации

EN-1
English
TABLE OF CONTENTS
INTRODUCTION 2
INTENDED USE 2
HOW DOES IT WORK 2
CONTENTS 2
IMPORTANT SAFETY INSTRUCTIONS 3
CAUTIONS AND WARNINGS 4
APPEARANCE AND KEY FUNCTIONS 5
HINTS ON TAKING TEMPERATURES 5
DISPLAY SCREEN 6
REPLACING THE BATTERY 7
CHANGING UNIT OF MEASUREMENT 7
RESTRICTIONS OF USE 8
USING THE DEVICE 8
RECALLING PAST READINGS 10
BLUETOOTH PAIRING (ri-thermo®tymPRO+ ONLY) 11
ABOUT NORMAL BODY TEMPERATURE & FEVER 12
MAINTENANCE 13
TROUBLESHOOTING 14

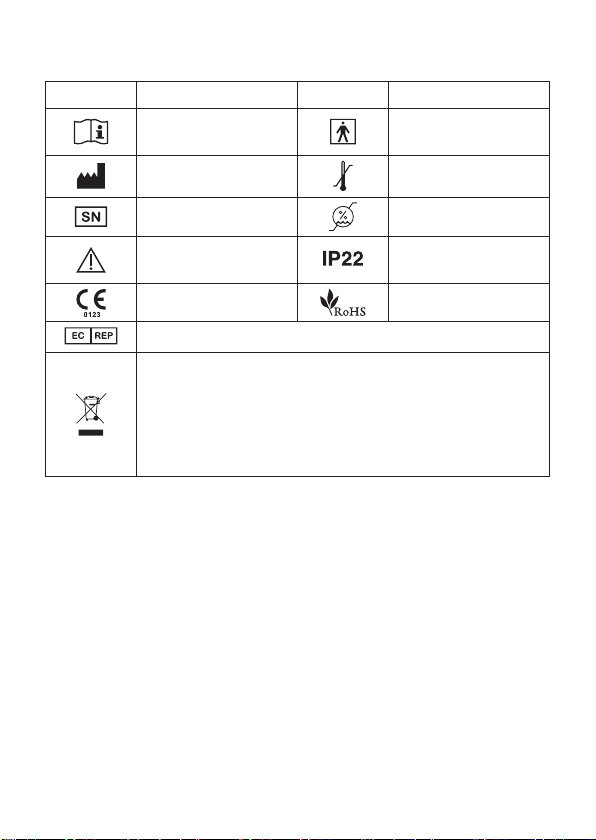

SYMBOL INFORMATION 15
SPECIFICATIONS 15
REFERENCE STANDARDS 16

EN-2
INTRODUCTION
Thank you for choosing ri-thermo®tymPRO / ri-thermo®tymPRO+
tympanic thermometer.
Please read this instruction manual rst, so you can use this
thermometer safely and correctly. Please keep this instruction manual
for future reference. This innovative medical device uses advanced
infrared (IR) technology to measure temperature instantly and
accurately.
Before using this product, please read the following contents thoroughly
and carefully.
INTENDED USE
ri-thermo®tymPRO / ri-thermo®tymPRO+ tympanic thermometer is
intended for the intermittent measurement and monitoring of human
body temperature from the ear canal. The device is intended for use of
all ages for professional use by one with a good understanding of the
operation instruction.
HOW DOES IT WORK
The thermometer measures the infrared heat generated by the eardrum
and its surrounding tissue.
The thermometer then converts it into a temperature value shown on
LCD.
NOTE:
The thermometer does not emit any infrared signal.
CONTENTS
• Meter
• Operation Instructions
• Batteries
• Cradle
• 10 probe covers x 2

EN-3
IMPORTANT SAFETY INSTRUCTIONS
READ THIS BEFORE USING AND KEEP THESE INSTRUCTIONS
The following basic safety precautions should always be taken.
1. Close supervision is necessary when the thermometer is used by,
on, or near children, or handicapped persons.
2. Use the thermometer only for the intended use described in this
manual.
3. Do not use the thermometer if it is not working properly, or if it has
su󰀨ered any damage.
4. Keep the sensor end clean and free of debris. See Maintenance
section for instructions.
5. Do not use ethylene oxide gas, heat, autoclave, or any other harsh
methods to sterilize the device.
6. If coming from an environment of warmer or cooler temperature
or after a period of exertion, allow the user and the thermometer
to acclimate to room temperature for 20 minutes prior to taking a
measurement.
7. As the body site for measurement may be a󰀨ected by sweat, oil
and the surrounding temperature, the reading shall be taken as a
reference only.
8. Do not use in presence of ammable anesthetic mixtures.
9. Do not use accessories which are not supplied or recommended
by the manufacturer. Do not try to modify the device to prevent any
dangers.
10. Proper maintenance is essential to the longevity of your device.
This thermometer has been calibrated at the factory. If you follow
the instructions, you don't need to adjust it regularly. However, if
you are concerned about the accuracy of measurement, please
contact the local customer service or place of purchase for help.
11. Always contact the manufacturer or the manufacturer’s
representative to report unexpected operation or event. Do not try
to x it by yourself.
12. When using the thermometer, stay away from electromagnetic
radiation, such as the mobile in use.

EN-4
13. Do not expose the device to strong electrostatic elds or strong
magnetic elds to avoid a󰀨ecting the measurement accuracy.
14. Use of this device adjacent to or stacked with other device should
be avoided because it could result in improper operation.
15. Keep probe covers out of reach of children. The small parts
detached from the device may result children choking from inhaling
or swallowing.
16. Do not try to maintain the device while it is in use.
CAUTIONS AND WARNINGS
• Always operate the thermometer in an operating temperature range
10°C to 40°C (50°F to 104°F), and relative humidity between 30% to
85%.
• Always store the thermometer in a cool and dry place: temperature
between -20°C to 60°C (-4°F to 140°F) and relative humidity between
30% to 85%.
• Avoid direct sunlight.
• This thermometer is not intended to substitute for a consultation with
your physician.
• Use only supplied or recommended probe covers by the manufacture.
• For proper hygiene, do not re-use probe cover. Damaged probe cover
may result in error display.
• Keep probe covers out of reach of children.
• Temperature measurements may di󰀨er from left to right ear. Always
take the temperature in the same ear.

EN-5

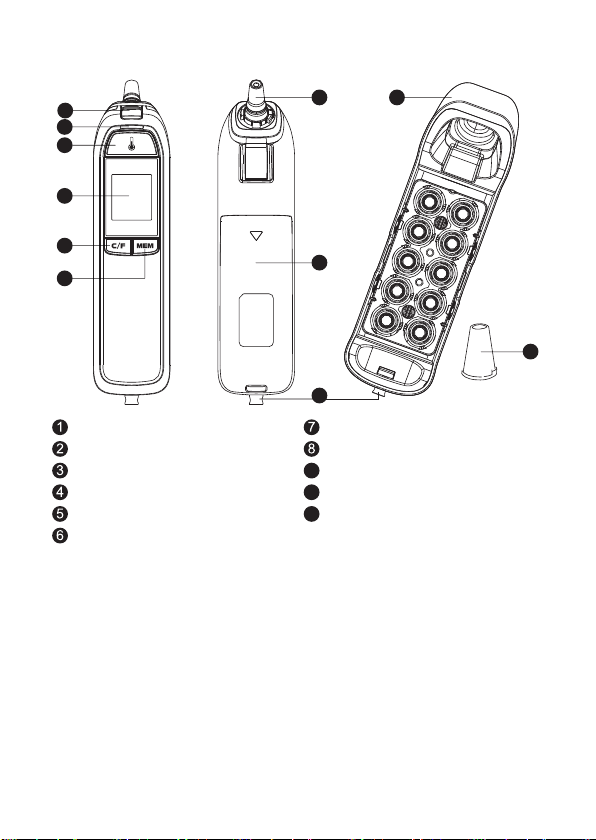

APPEARANCE AND KEY FUNCTIONS
11
7
8
9
10
1
2
4
3
5
6
Probe cover ejection button Probe lens
Measurement indicator Battery cover
Scan button 9Lug
Display screen 10 Cradle and probe cover
°C / °F button 11 Probe cover
Memory button
HINTS ON TAKING TEMPERATURES
1. As with other thermometers, you may observe slight variations in
consecutive measurements. It is recommended that you take 3
temperature readings and use the highest one for the following
situations:
• Infants younger than 3 months old.
• Children younger than 3 years old and who have a compromised
immune system and the presence / absence of fever is critical.
• When you are learning to use the thermometer.

EN-6
2. Do not take a reading while the patient is moving and / or talking.
Wait 30 minutes after any of the following situations before taking a
measurement:
• When the body site for measurement has been covered.
• After the patient has been exercising, swimming, or taking a bath.
• When the patient has been exposed to extreme temperature.
3. To take accurate readings, the ear must be free from excess earwax
build-up.

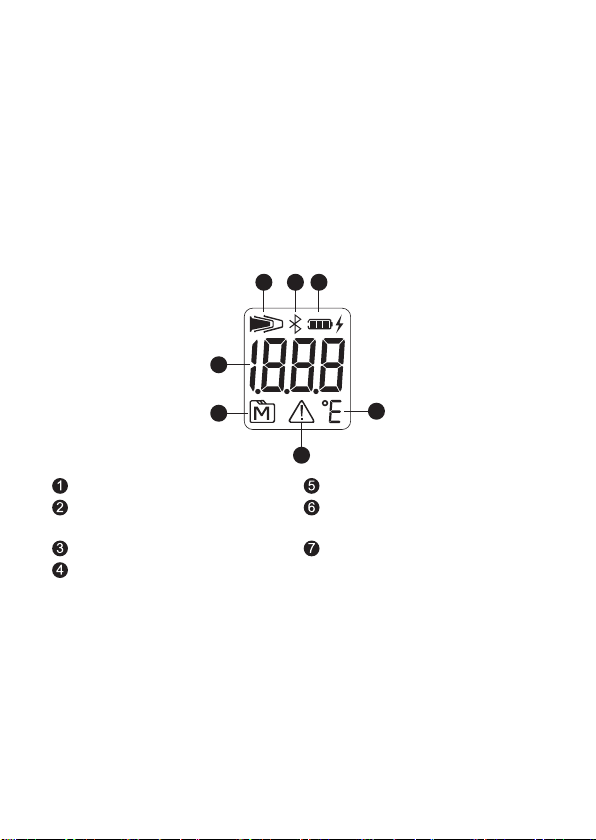

DISPLAY SCREEN
6 57
3
2
1
4
Temperature reading Battery indicator
Memory mode Bluetooth symbol (ri-thermo®
tymPRO+ only)
Error message Probe cover indicator
Temperature unit

EN-7
REPLACING THE BATTERY
The thermometer comes with two 1.5 V AA alkaline batteries. The meter
will display ” ” to alert you when the meter power is getting low.
Please follow the steps below to replace new batteries immediately.
1. Remove the battery cover. (Figure 1)
2. Remove the old batteries and replace with two 1.5V AA size alkaline
batteries. (Figure 2)
3. Reattach the battery cover. Make sure the battery cover is properly
closed and secured.
(Figure 1) (Figure 2)
NOTE:
• Although the thermometer works when “ ” appears, we still
recommend that you change the batteries to obtain an accurate result.
• Remove the batteries if stored for a long period of time.
• The batteries should be kept away out of child’s reach. If they are
swallowed, promptly see a doctor for help.
CHANGING UNIT OF MEASUREMENT
This meter provides two measurement units used for indicating the
body temperature, °C or °F, for your preferred selection.

EN-8
STEP 1. Press the button to turn on the thermometer rst.
STEP 2. Press the °C / °F button to select. Press the button to
begin the measurement or keep the meter in idle for 60 seconds to
automatically turn it o󰀨.
RESTRICTIONS OF USE
This thermometer is clinically proven to produce accurate temperature
measurements. However, please be advised if the patient has the
following situations:
• The accuracy cannot be ensured for a person who has deformity in
the ear such that the thermometer probe cannot be properly inserted
into the ear canal.
• The accuracy cannot be ensured when blood or drainage is found in
the ear canal.
• If ear drops or medications have been placed in an ear, take
measurements from the other ear.
• For a person who wears ear plug or hearing aid, remove the device
and wait for 15 minutes before taking temperature.
NOTE:
Never try to clean inside the ears. You may accidentally damage the
eardrum or its surrounding tissues. Remove excess earwax only when
you can reach it with a clean cloth.
USING THE DEVICE

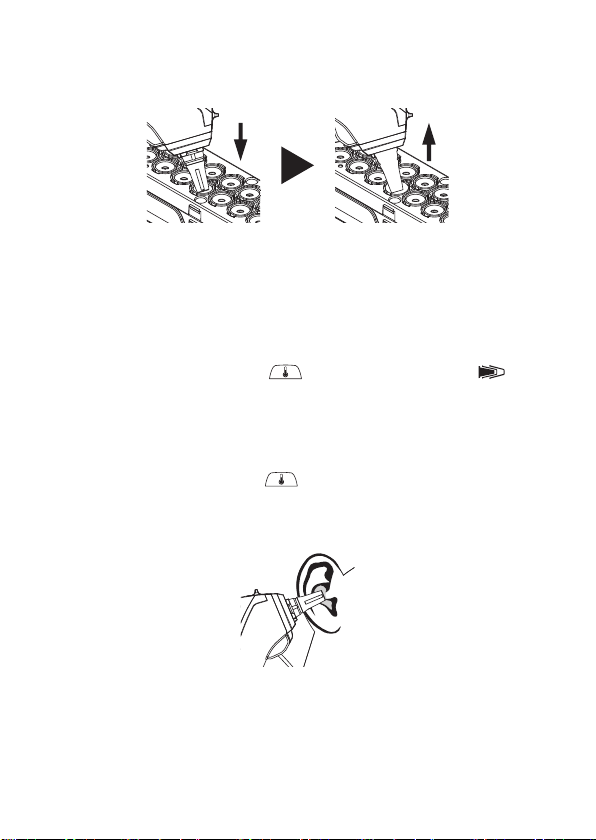

Replacing Probe Cover
STEP 1. Firmly insert the thermometer probe into new probe cover in
the probe cover cassette.

EN-9
STEP 2. Lift the probe out of the cassette with a clean probe cover
attached. Do not touch the cover. Now, you can measure the
temperature.
NOTE:
• The used probe cover should be removed after each measurement to
ensure accuracy reading.
• To ensure proper hygiene, attach a new probe cover each time and
do not touch its tip.
Measuring Temperature
STEP 1. Press and release the button. With a ashing “ ”,
attach a probe cover; or, attach a probe cover to turn on the
thermometer. When ready, the thermometer displays the last
measurement.
STEP 2. Gently t the probe with clean probe cover into the ear canal.
STEP3. Press and release the button. You will hear a beep to
indicate measurement is complete and thermometer may be removed.
The indicator blinks during the measurement and turns solid blue when
the measurement is completed.

EN-10

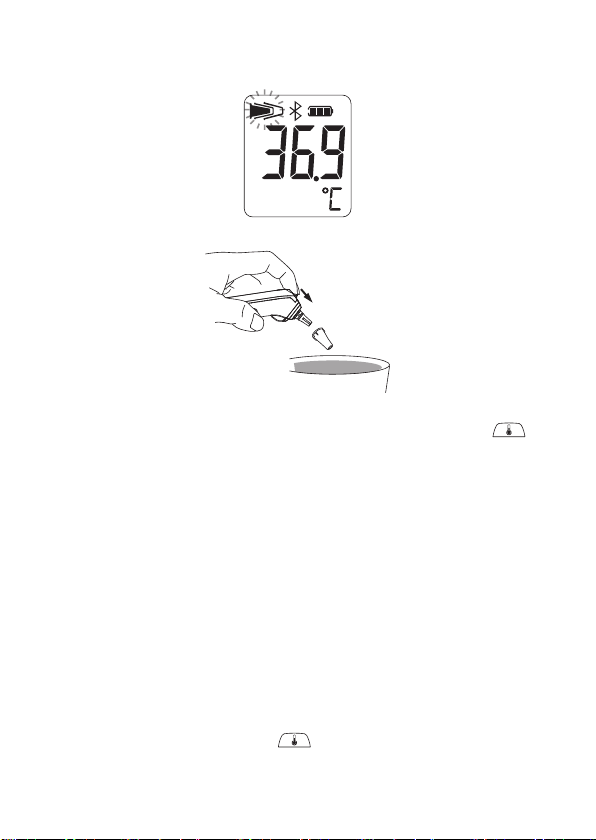

STEP 4. Read the result. The Bluetooth symbol is for ri-thermo®
tymPRO+ only.
STEP 5. Press ejection button to discard used probe cover into trash.
NOTE:
• You can turn o󰀨 the thermometer by pressing and holding the
button. Or, it will automatically turn o󰀨 when left idle for 1 minute.
• If the reading is ≤ 31.9°C (89.5°F ), the display will show “Lo” with red
backlight.
• If the reading is ≥ 32°C (89.6°F) and < 37.9°C (100.3°F), the display
will show the reading with green backlight.
• If the reading is ≥ 38°C (100.4°F) and < 43°C (109.4°F), the display
will show the reading with red backlight.
• If the reading is ≥ 43.1°C (109.5°F), the display will show “Hi” with red
backlight.
RECALLING PAST READINGS
Your thermometer stores 8 (ri-thermo®tymPRO+) / 10 (ri-thermo®
tymPRO) most recent readings.
STEP 1. Press and release the button to turn on the
thermometer.

EN-11
STEP 2. Press the button, a result will be displayed after a
number shown from 01 to 08 (ri-thermo®tymPRO+) / 10 (ri-thermo®
tymPRO) in order of dates (latest result shows rst), together with
blinking " ".When the memory is full, the oldest result is deleted
as the new one added. When the last record is displayed in the LCD,
press button again to return to the rst record.
STEP 3. Exit the memory.
Press the button to exit the memory mode. You can turn o󰀨
the thermometer by pressing and holding the button. Or, it will
automatically turn o󰀨 when left idle for 1 minute.
BLUETOOTH PAIRING (ri-thermo®tymPRO+
ONLY)
You can transmit your data from the meter to your compatible devices
(e.g. RVS-100 with USB BT Dongle) via Bluetooth. Please note that
you must complete the pairing between the meter and Bluetooth
receiver before transmitting data.
Pairing with your device
1. Turn on the Bluetooth function on your device.
2. Two methods are provided to activate the Bluetooth function on the
device:
• After nishing each measurement, the Bluetooth symbol will appear
(Do not eject probe cover during pairing/transfer process).
• Turn on the meter, press and hold the Scan and buttons
simultaneously until “CLr” appears on the display. It means that the
Bluetooth of the meter is turned on automatically.
3. Follow the instruction on your device to pair the meter (e.g. search
for the meter and then connect it).

EN-12
4. After successfully pairing the meter with your device, the Bluetooth
function of the meter will be activated automatically after each
measurement. The meter is ready for transmitting the data to your
device.
NOTE:
• While the meter is in transmission mode, it will be unable to perform a
test.
• Make sure your device supports Bluetooth Smart Technology. Also
make sure the Bluetooth setting on your device is turned on and the
meter is within the receiving range before transmitting the data.
ABOUT NORMAL BODY TEMPERATURE &
FEVER
Body temperature can vary from one individual / person to next. It
also varies by location on the body and time of day. Below shows the
statistical normal ranges from di󰀨erent sites. Please keep in mind that
temperatures measured from di󰀨erent sites, even at the same time,
should not be directly compared.
Fever indicates that the body temperature is higher than normal. This
symptom may be caused by infection, overdressing or immunization.
Some people may not experience fever even when they are ill. These
include, but are not limited to, infants younger than 3 months old,
persons with compromised immune systems, persons taking antibiotics,
steroids or antipyretics (aspirin, ibuprofen, acetaminophen), or persons
with certain chronic illnesses.
Body Site Normal Temperature Range*1
Oral normal oral temperature is 37°C (98.6°F)
Rectal / Ear 0.3°C to 0.6°C (0.5°F to 1°F) higher than oral
temperature
Axillary /
Forehead
0.3°C to 0.6°C (0.5°F to 1°F) lower than oral
temperature
*1. https://wa.kaiserpermanente.org/kbase/topic.jhtml?docId=tw9223

EN-13
MAINTENANCE
• The probe is not waterproof. Please wipe with a clean and dry cotton
swab to clean the probe on the inside.
• Do not attach new probe cover for 30 minutes. The cleaning process
cools the probe and can a󰀨ect accuracy.
• The body of the thermometer is not water-resistant. Never put the
thermometer under a running tap or submerge it into water. Use a soft
and dry cloth to clean it. Do not use abrasive cleaners.
• Store the thermometer in a cool and dry location. Free from dust and
away from direct sunlight.

EN-14
TROUBLESHOOTING
The table below shows problems you may encounter. All error
messages below would be shown together with backlight. Please follow
“what to do” to resolve problems. If the problem still exists, please call
your local dealer for help.
MESSAGE WHAT IT MEANS WHAT TO DO
Appear when
environmental
temperature is below /
above system operation
range.
Put the thermometer under
operating temperature
range of 10°C to 40°C
(50°F to 104°F).
Problem with the
thermometer.
Read the operation
instruction and start a
new measurement. If the
problem persists, contact
the customer service.
Battery is low. Please replace batteries
as soon as possible.
Problems with
the temperature
measurement for the
object.
Review the instructions
and re-start the
measurement procedure.
The temperature reading
is below 32°C (89.6°F).
Please follow this
instruction to take a
measurement again.
The temperature reading
is above 43°C (109.4°F).

EN-15
SYMBOL INFORMATION
SYMBOL REFERENT SYMBOL REFERENT
Consult instructions
for use Type BF applied part
Manufacturer Temperature limit
Serial number Humidity limitation
Caution Resistant to liquid
ingress
CE mark RoHS compliance
Authorized representative in the European Community
This device does not belong to household waste and
must be returned to a collection point for recycling
electric and electronic devices according to local laws.
If it contains batteries, the batteries should be removed
and disposed in accordance with locations for separate
collection of spent batteries.
SPECIFICATIONS
Model No.: TD-1107
Dimension: 149.56mm (L) x 41.7mm (W) x 56.15mm (H)
Weight (exclude batteries): 80.4 (tymPRO+) / 79.6g (tymPRO)
Battery: 2 x 1.5 V AA alkaline batteries
Battery Life: 3000 times
Displayed Temperature Range: 32°C to 43°C (89.6°F to 109.4°F)
Display Resolution: 0.1°C / 0.1°F

EN-16
Accuracy: Meet the accuracy requirement specied in ASTM E1965-98
• ±0.2°C (±0.4°F) for the range of 35°C to 42°C (95°F to
107.6°F)
• ±0.3°C (±0.5°F) for the range of <35.0°C (95°F) or
>42.0°C(107.6°F).
Temperature Unit: °C (Default) or °F
System Operating Conditions: 10°C to 40°C (50°F to 104°F), 30% to
85% RH (non-condensing), 700 hPa to 1060 hPa
Storage / Transport Conditions: -20°C to 60°C (-4°F to 140°F), 30% to
85% RH (non-condensing)
Memory Capacity: 8 (tymPRO+) / 10 (tymPRO) measurements
External Output (ri-thermo® tymPRO+ only): Bluetooth (Frequency:
2.45GHz; Bandwidth: 170MHZ; Modulation: GFSK; ERP: 5.46 dBi)
Expected Service Life: 3 years
IP Classication: IP22
The specications may be changed without prior notice.
REFERENCE STANDARDS
Device Standard:
Device Corresponds to the requirements of the standard for infrared
thermometers. ASTM E1965-98, EN ISO 80601-2-56:2017, EN 60601-
1-2:2015, EN 60601-1:2006+A12:2014, EN 60601-1-6:2010.
Electromagnetic Compatibility:
Device fullls the stipulations of the standard EN 60601-1-2.
The stipulations of EU-Directive 93/42/EEC for Medical Devices Class
lla have been fullled.

EN-17
Manufacturer’s declaration-electromagnetic emissions
The device is intended for use in the electromagnetic environment specified below.
The customer or the user of the device should assure that it is used in such an environment.
Emission test Compliance Electromagnetic environment-guidance
RF emissions CISPR 11 Group 1
The device uses RF energy only for its internal function. Therefore, its
RF emissions are very low and are not likely to cause any interference
in nearby electronic equipment.
RF emissions CISPR 11 Class B
The device is suitable for use in all establishments, including domestic
establishments and those directly connected to the public low-voltage
power supply network that supplies buildings used for domestic
purposes.
Harmonic emissions
IEC 61000-3-2 Not applicable
Voltage fluctuations / flicker emissions
IEC 61000-3-3 Not applicable
Manufacturer’s declaration-electromagnetic immunity
The device is intended for use in the electromagnetic environment specified below.
The customer or the user of the device should assure that it is used in such an environment
Immunity test IEC 60601 test level Compliance level Electromagnetic environment-guidance
Electrostatic
discharge(ESD) IEC
61000-4-2
Contact:±8 kV
Air±2 kV,±4 kV,±8 kV,±15
kV
Contact:±8 kV
Air±2 kV,±4 kV,±8 kV,±15
kV
Floors should be wood, concrete or ceramic tile.
If floors are covered with synthetic material, the
relative humidity should be at least 30%
Electrical fast transient/
burst IEC 61000-4-4
± 2kV for power supply
lines
± 1kV for input/output lines
Not applicable
Not applicable
Mains power quality should be that of a typical
home and professional environment.
Surge IEC 61000-4-5
± 0.5kV, ±1kV line(s) to
line(s)
± 0.5kV, ±1kV,±2kV line(s)
to earth
Not applicable
Not applicable
Mains power quality should be that of a typical
home and professional environment.
Voltage Dips, short
interruptions and voltage
variations on power supply
input lines IEC 61000-4-11
Voltage dips:
0 % UT; 0,5 cycle
0 % UT; 1 cycle
70 % UT; 25/30 cycles
Voltage interruptions:
0 % UT; 250/300 cycle
Voltage dips:
Not applicable
Not applicable
Not applicable
Voltage interruptions:
Not applicable
Mains power quality should be that of a typical
home and professional environment. If the user
of the device requires continued operation during
power mains interruptions, it is recommended that
the device be powered from an uninterruptible
power supply or a battery.
Power frequency(50, 60
Hz) magnetic field IEC
61000-4-8 U
30 A/m
50 Hz or 60 Hz
30 A/m
50 Hz and 60 Hz
The device power frequency magnetic fields
should be at levels characteristic of a typical
location in a typical home and professional
healthcare environment.
NOTE UT is the a.c. mains voltage prior to application of the test level.

EN-18
Manufacturer’s declaration-electromagnetic immunity
The device is intended for use in the electromagnetic environment specified below.
The customer or the user of the device should assure that it is used in such and environment.
Immunity test IEC 60601 test level Compliance level Electromagnetic environment-guidance
Conducted RF
IEC 61000-4-6
Radiated RF
IEC 61000-4-3
3 Vrms:
0,15 MHz – 80 MHz
6 Vrms:
in ISM and amateur
radio bands between
0,15 MHz and 80 MHz
80 % AM at 1 kHz
10 V/m
80 MHz – 2,7 GHz
80 % AM at 1 kHz
Not applicable
Not applicable
10 V/m
80 MHz – 2,7 GHz
80 % AM at 1 kHz
Portable and mobile RF communications
equipment should be used no closer to any part of
the device including cables, than the recommended
separation distance calculated from the equation
applicable to the frequency of the transmitter.
Recommended separation distance:
d = 1,2 √P
d = 1,2 √P 80MHz to 800 MHz
d = 2,3 √P 800MHz to 2,7 GHz
Where P is the maximum output power rating of the
transmitter in watts (W) according to the transmitter
manufacturer and d is the recommended separation
distance in metres (m).
Interference may occur in the vicinity of equipment
marked with the following symbol:
NOTE1 At 80 MHz and 800 MHz, the higher frequency range applies.
NOTE2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from
structures, objects and people.
a Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur
radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic
environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the
location in which the device is used exceeds the applicable RF compliance level above, the device should be observed to verify normal
operation. If abnormal performance is observed, additional measures may be necessary, such as re-orienting or relocating the device.
b Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m.
Recommended separation distance between
portable and mobile RF communications equipment and the device
The device is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or
the user of the device can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile
RF communications equipment (transmitters) and the device as recommended below, according to the maximum output power of the
communications equipment.
Rated maximum output power
of transmitter
W
Separation distance according to frequency of transmitter
m
150 kHz to 80 MHz
d =1,2 √P
150 kHz to 80 MHz
d =1,2 √P
150 kHz to 80 MHz
d =1,2 √P
0,01 N/A N/A N/A
0,1 N/A N/A N/A
1 N/A N/A N/A
10 N/A N/A N/A
100 N/A N/A N/A
For transmitters rated at a maximum output power not listed above, the recommended separation distance d in meters (m) can be estimated
using the equation applicable to the frequency of the transmitter, where p is the maximum output power rating of the transmitter in watts (W)
according to the transmitter manufacturer.
NOTE1 At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies.
NOTE2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from
structures, objects and people.
