Taiji HOTCABI HC-11UV Pro User manual

INSTRUCTION
MANUAL
Thank you very much for purchasing our“HOTCABI.”
CAUTION : Read the instructions before using the machine.
HOTCABI
(2009D)
－1－
Product Specifications
Model
ＨＣ-1１ＵＶＰｒｏ
ＨＣ-２１ＵＶＰｒｏ
Contents
■ P ro d u c t S p e c i f i c at i o n s････････････････････････1
■S afet y P re c a u t i o n s･･････････････････････････2- 5
■ P u r p o s e o f U s e･････････････････････････････････6
■ O p e r at i o n a l M e c h a n i s m･･････････････････････6
■ D e s i g n at i o n of P a r t s･･･････････････････････6-7
■Safety Device････････････････････････････････････7
■Checking Prior to Use and Setting･･･････8

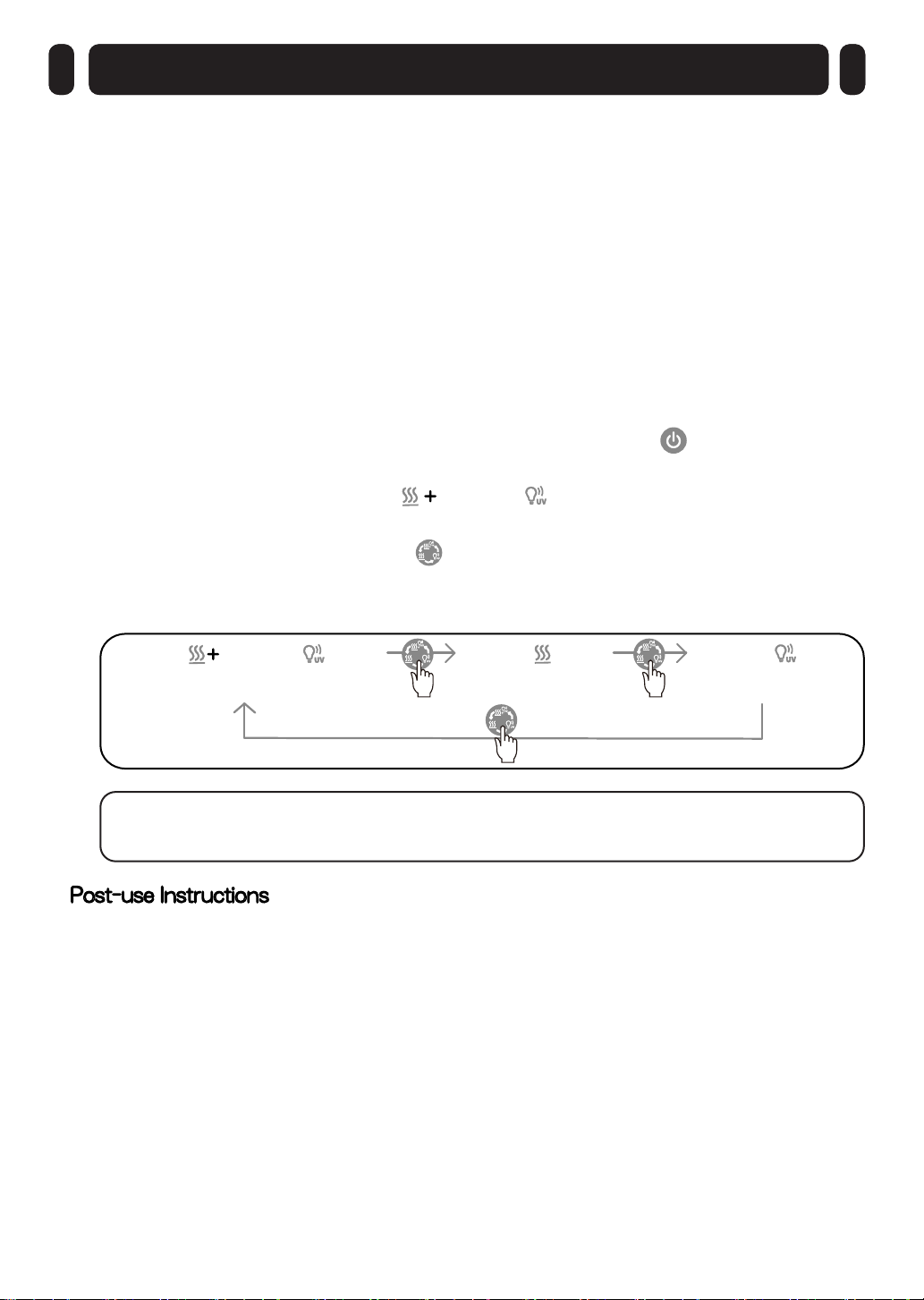

■Sequence of Usage････････････････････････････9
■Troubleshooting･･･････････････････････････････10
■After-Purchase Servicing･･････････････････11

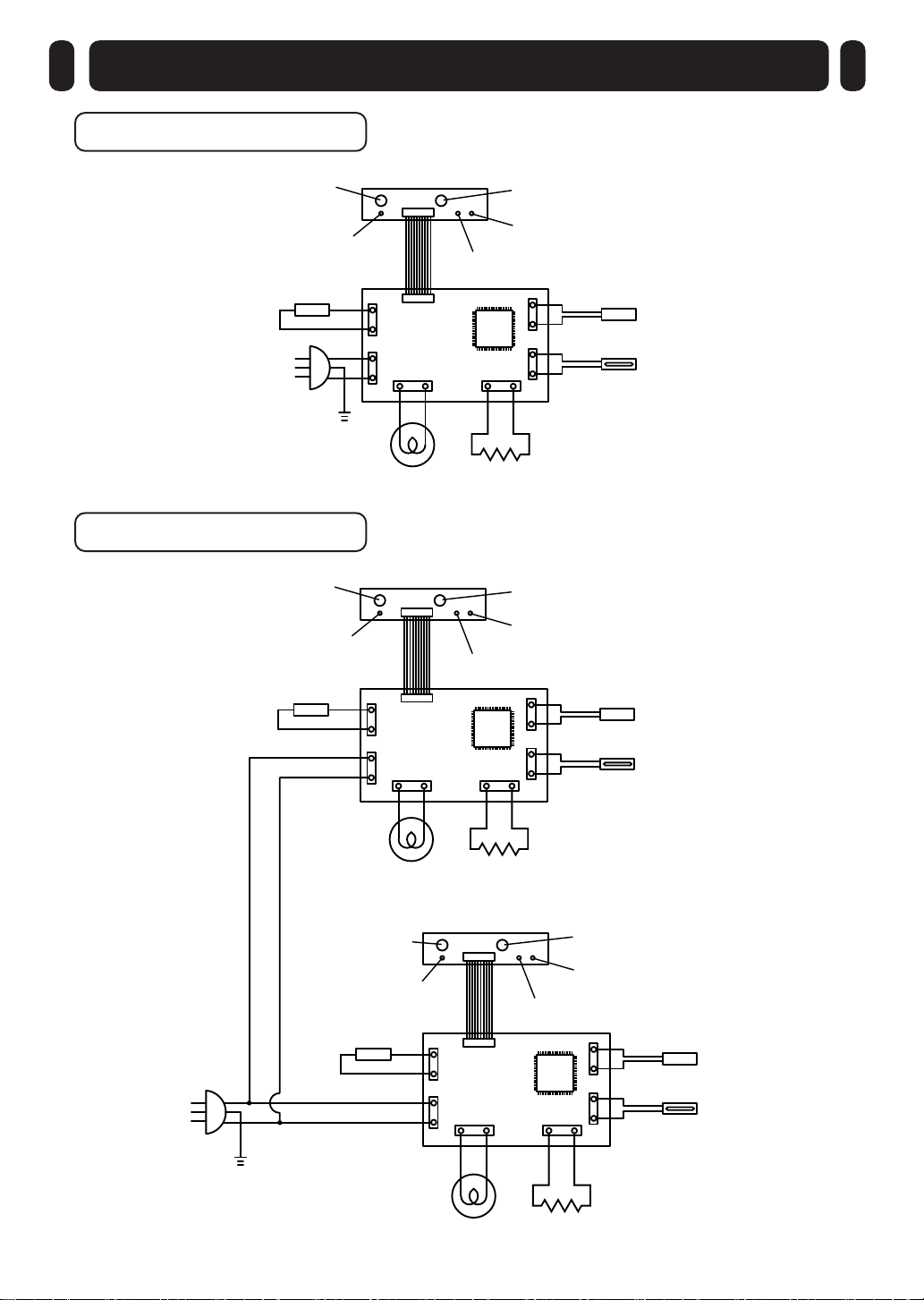

■Circuit Diagram･････････････････････････････････12
HC-11UV Pro
Single-phase 220 - 240V 50 - 60Hz
175 - 190W
Ｗ450 ｍｍ×Ｄ363ｍｍ×H322ｍｍ
7.5 kg
1×basket, 1×drain tray
The specifications or appearance are subject to change without notice.
HC-21UV Pro
350 - 380W
Ｗ450 ｍｍ×Ｄ363ｍｍ×H562ｍｍ
GTL-2 (2W) Two sets of GTL-2 (2W)
Ｗ348ｍｍ×Ｄ207ｍｍ×H152ｍｍ Two sets of Ｗ348ｍｍ×Ｄ207ｍｍ×H152ｍｍ
11.5 kg
2×baskets, 1×drain tray
11Ｌ (approx. 55 hand towels) 22Ｌ (approx. 110 hand towels)
Rated voltage
Power consumption
Model
Temperature
Cabinet dimensions
Inner box dimensions
Cabinet capacity
Weight
Accessories
Manufacturer
Country of manufacture
TAIJI & CO., LTD.
Japan
Temperature control Microcomputer control
Safety device Thermal fuse
Ｈot ： 70 - 80℃ (when ambient temperature is under 30℃)
UV lamp
Original Instructions

－2－
Safety Precautions
■ What precautionary measures should be abided by are expressed by certain marks
and explained as follows:
(2) Absolutely should not be disassembled, repaired, or modified
by anyone other than a repair technician. Could result in
ignition or abnormal performance.
Disassembling
forbidden
WARNING
(3) Do not immerse in or douse with water. Such could result in
electric shock or short-circuit.
Dousing
with water
forbidden
(1) To be set upon a stable and flat location and not to be
moved while plug is connected to power source. Could
result in abnormal performance.
Attention
required
for setting
(4) Periodically confirm that the plug contacts are kept clean
and that they are firmly inserted in the power outlet.
Dust accumulation or imperfect contact could be the cause
of an electric shock or fire.
Inspect
and clean
WARNING
CAUTION
What is assumed to possibly result in death or serious injury.
What is assumed to possibly result only in bodily injury or physical damage.
■ Please peruse these “Safety Precautions” carefully so that you can use your
product in the proper way.
■ Please keep these “Safety Precautions” handy for future reference after being read.
■ Precautionary measures referred to herein are matters which should be abided by for
safe use and to prevent harm and/or damage being inflicted on yourself or others.
Furthermore, the particulars of the precautionary measures have been classified into
“Warning” and “Caution” to express the degree or extent of conceivable harm
and damage which can be assumed to occur from mishandling. They are both of
importance as far as safety is concerned and should be strictly abided by.
△ indicates “Warning and caution is urged.”
(The one on the left indicates beware of electrical shock.)
indicates “Forbidden.”
(The one on the left indicates disassembling forbidden.)
● indicates “Instructions” which should be followed by all means.
(The one on the left indicates grounding is a requirement.)

－3－
(9) Do not touch or manipulate electrical parts such as the plug,
power source switch, etc. with wet hands. It could be the
cause of an electric shock.
Wet hands
forbidden
WARNING
Outdoors
forbidden
(10) Do not use outdoors. Using the product where there is
rainfall could cause electric leakage and/or electric shock.
Grounding
connection
(13) Ensure grounding is connected.
Imperfect grounding could lead to electric shock.
Discarding
forbidden
(11) Discarding of this product should be requested of
specialized contractor, public agency, or the distributor from
where the product was purchased. (A disposal fee is usually
charged.) Discarding it at random could result in third party
remodeling, using it for purposes other than as designed,
which could result in an unexpected accident.
Many loads
on one
electrical
outlet
forbidden
(6) Ensure power source is from dedicated outlet of at least 15A.
Using branch sockets could be the cause of abnormal heat,
fire, etc.
Forbidden
(7) Do not intentionally bend plug contacts to prevent the plug
from dropping out of the electric outlet. Imperfect contact
could be the cause of fire.
Attention
required
for using
(12) This appliance can be used by children aged from 16 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved.
- Children shall not play with the appliance.
- Cleaning and user maintenance shall not be made by
children without supervision.
(8) In the event of abnormal odor or sound, emission of smoke,
or in case water or a foreign substance should enter the
cabinet, switch off the unit immediately and remove the plug
from the electric outlet. Such could possibly lead to an
electric shock and outbreak of fire.
Removing
plug
→
(5) Handle the power cord with care.
In case the power cord is processed, pulled, bundled, or a
heavy item is placed upon or squeezes it, the cord is apt to
be damaged and could cause an electric shock or fire.
The power cord should not come into contact with a heat
source.
Forbidden

－4－
CAUTION
(5) Switch off and remove the plug from electric outlet when
not in use. If you do not, it could be the cause of an electric
shock, electric leakage fire, etc.
When not
in use
→
(6) Do not use when the power cord or plug is damaged or
when the electric outlet is loose. Using under such
conditions could cause an electric shock, short-circuit,
ignition, etc.
Forbidden
(7) Do not place heavy items or water containers on top of this
product. Such could cause damage, injury, short-circuit,
electric shock, corrosion, failure, etc.
Forbidden
(8) Do not place heavy items on this product or place one’s
weight on it with its door open. Such could be the cause of
damage or toppling.
Forbidden
(9) To avoid burns, do not touch the surface of the inner
cabinet when the machine is switched on. Use caution
when taking out or placing towels in the inner box then.
Caution!
High
temperatures
(1) Hold the plug and not the cord when removing the plug
from the electric outlet. Not doing so could result in an
electric shock or ignition.
Hold plug
to remove
→
(2) Do not drop this product or inflict severe shock to it.
It could result in failure or fire.
Caution
(3) Discard immediately the polyethylene bag the product was
packed inside. Keep it out of children’s reach to prevent
incidents of suffocation.
Caution
(4)
Remove the plug from the electric outlet as soon as thunder
is heard. In the event of a nearby lightning strike, abnormal
current/abnormal voltage could infiltrate through the power
source line, etc. and possibly damage the product.
Removing
plug
→
WARNING
(14) The appliance shall be disconnected from its power source
during service and when replacing parts.
The removal of the plug has to be such that an operator
can check from any of the points to which he has access
that the plug remains removed.
Removing
plug
→

－5－
CAUTION
(12) Do not leave a towel within the inner box for more than one
day. It could be the cause of discoloration and bad odor.
Forbidden
(10) Use heat resisting (at least 120℃) polyethylene wrapper.
When polyethylene wrappers with a low heat resisting
property are used, they may at times melt making towels
useless, dry or cause discoloration.
Use heat
resisting
polyethylene
wrapper
(11) Always place towels on the basket and then store in this
appliance. If not, wrapper could melt and make towels
useless or cause discoloration.
Use basket
In case the plastic part of this product is touched with oily hands or the
unit is placed where oil is used in large quantities, make it a rule to wipe
plastic parts daily with a soft cloth soaked in neutral detergent solution
diluted with hot water and dry off with a soft cloth.
＊Plastic parts could at times become deformed or crack under the influence of oils, etc.
Eliminating
moisture
(13) Wipe off moisture within the inner box as well as the body
after use and remove any foreign substances. Leaving
moisture or any substances inside will cause the
discoloration and bad odor of towels. It will also lead to
malfunctioning when used thereafter.

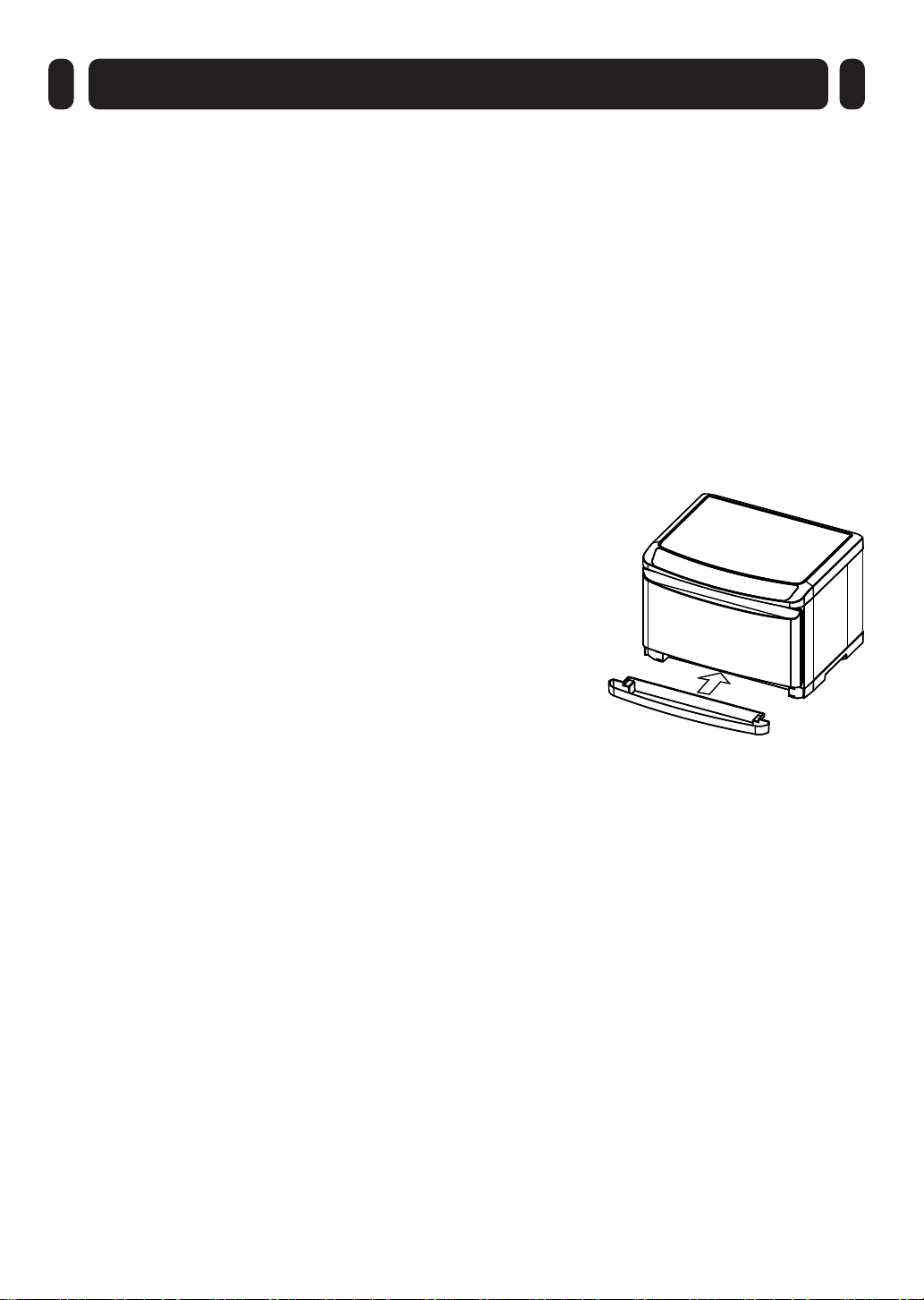

(14) Empty drain tray frequently. Accumulation of water could
lead to overflowing and cause bad odor.
(15) Use towels which come in polyethylene wrapper. Towels
sometimes get dry or discolor if not polyethylene pouched.
When using towels from home (as opposed to those
provided by special suppliers), wring them out rather tightly
(to some two and a half times the dry weight), place them in
a polyethylene wrapper and seal the wrapped towels for use.
However, despite being wrapped, towels left inside the inner
box for longer periods may become towels dry or discolor.
Use
individually
wrapped
towels
Do not dispose of the device in normal domestic waste.

(inside the machine)
－6－

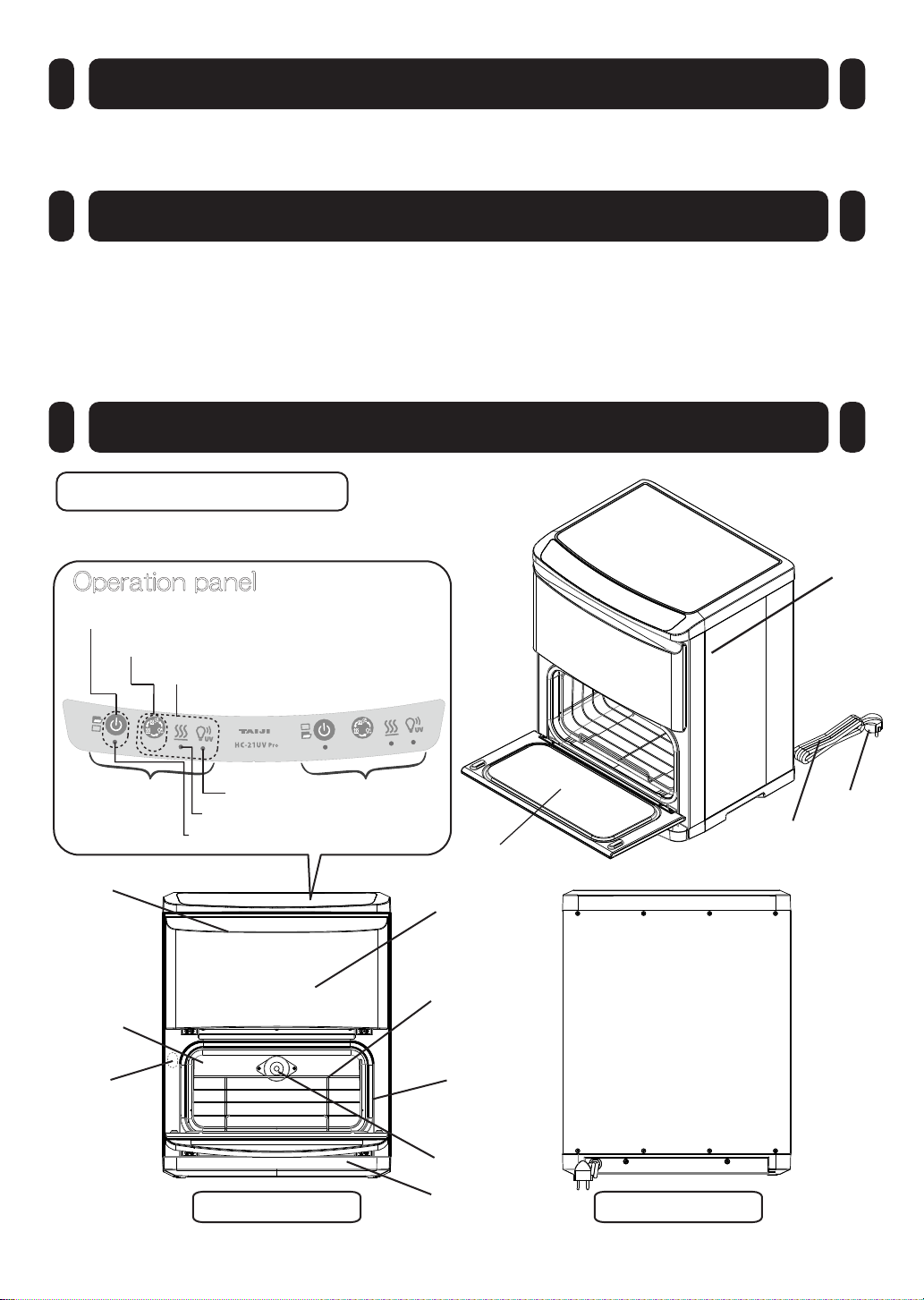

ＨＣ-２１ＵＶＰｒｏ
Designation of Parts
This product is an electric towel warmer for exclusive use indoors and is fabricated to
warm wet towels.
This product is equipped with a heating element to keep towels within the cabinet
warm. By thermostat, the temperature within the cabinet will be maintained at
70℃– 80℃.
(The above indicates the temperature at the center of the inner cabinet when room
temperature is 25℃)
Purpose of Use
Operational Mechanism
Power switch
Mode change switch
Operation panel
Mode indication
For upper box For lower box
LED(green)
LED(orange)
LED(blue)
Power cord
Plug
Door back
Body
Inner box
Basket
Door
Handle
Rear viewFront view
Gasket
Drain tray
UV lamp
UV lamp
sensor

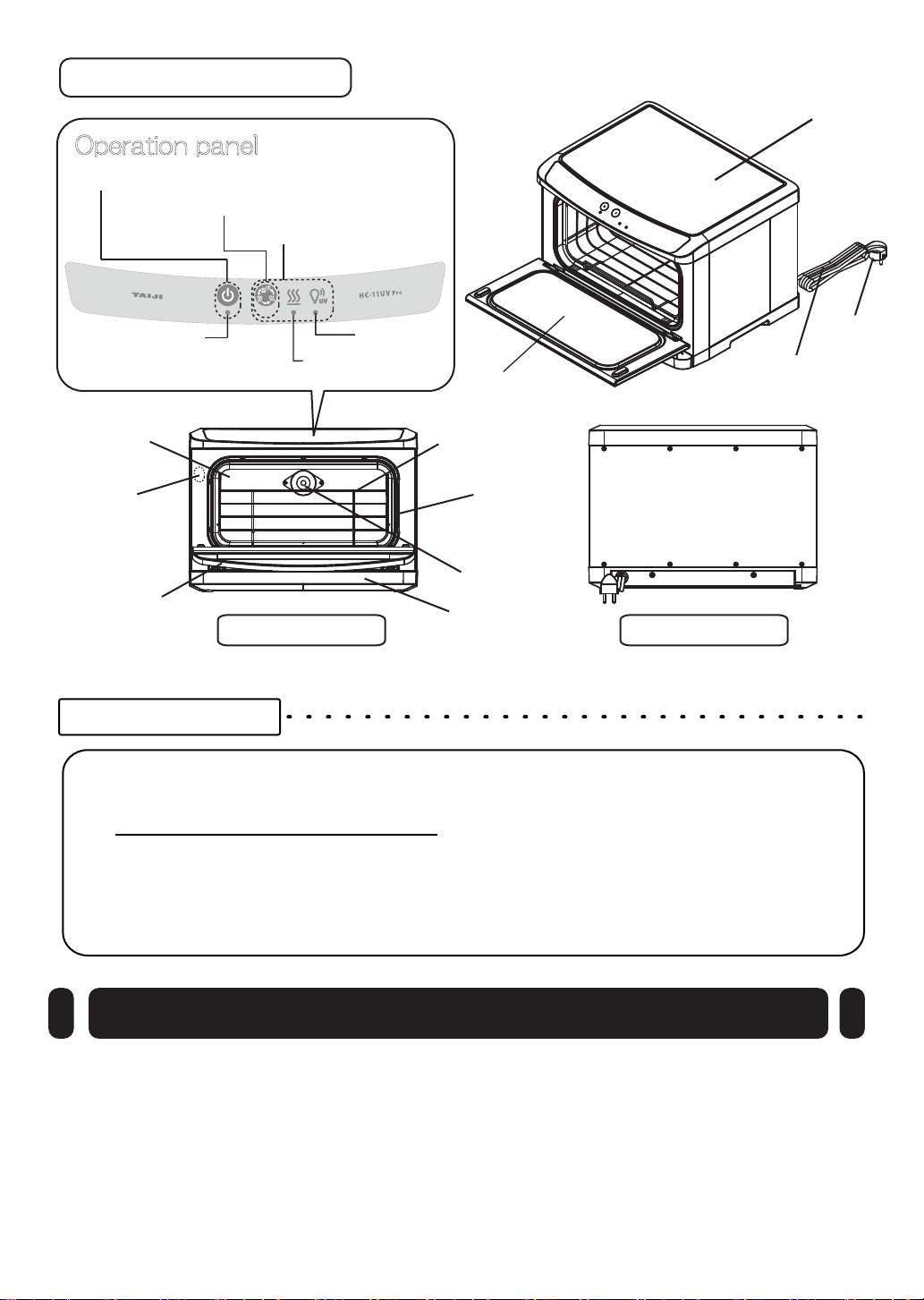

ＨＣ-１１ＵＶＰｒｏ
Safety Device
－7－
Power switch
Mode change switch
Operation panel
Mode indication
LED(green)
LED(orange)
LED(blue)
Body
Power cord
Plug
Door back
Rear view
Handle
Front view
Inner box Basket
Gasket
Drain tray
UV lamp
(inside the machine)
UV lamp
sensor
UV lamp is lit when heating + UV mode or UV mode is selected and the door is closed.
● Checking UV lamp performance
＊Do not stare at the light source directly.
To check if the UV lamp is lit or not, light the UV lamp while putting the magnet close to
the UV lamp sensor. At this time, look at the end of the inner box, but do not stare at the
light source. If the light does not work even after trying this operation several times, it can
be assumed that the UV lamp has burned out. In this case, consult to TAIJI sales
representative or TAIJI & CO., LTD.
When the temperature of the product inside exceeds the upper limits abnormally
by any means, the thermal fuse blows out the electric circuit.
When it works turn off and take off the power plug from the power outlet and
consult to TAIJI sales representative or TAIJI & CO., LTD.
About the UV lamp

－8－
1． Remove the product from packing carton and make sure that Instruction
Manual and Accessories are included.
2． Set the product as follows:
● At a place where it is flat and stable.
● At a place where it is not affected by heat and avoid places where there
is direct sunlight, and near stoves, microwave ovens, etc. (To be set
away from such units by at least 50cm.)
● Away from moist places or where it is susceptible to being splashed with
water.
● At a place where there is space all around the unit to allow ventilation.
3． Grounding
Ensure correct grounding is secured to protect against electric shock.
Consult with your dealer for details.
4． Affixing drain tray
● Hold both sides of drain tray horizontally and
push in until firmly inserted.
● When water accumulates in the tray, remove
and empty carefully.
Reinsert drain tray after being emptied.
Checking Prior to Use and Setting

－9－
ご使用手順
Heating UV lamp mode Heating mode UV lamp mode
(Orange) and (Blue)LEDs light (Orange)LED lights (Blue)LED lights
Sequence of Usage
1.If moisture or dirt remains in the body or inner box, remove them with a dry
towel etc.
2.Insert basket in the inner box and place wet rolled towels on the basket.
＊ In the event the amount of towels put into the box is low, place them on the
basket as flat and as far apart as possible.
＊ The interior of the cabinet becomes heated from the surface. Place towels inside
the cabinet so that they do not come into contact with such surfaces.
＊When warm towels are needed in a hurry, please use towels that have been
rolled after having been immersed in warm water.
＊Put towels in heat resisting polyethylene wrap. If used without such wrapper,
towels are apt to drying up quickly or becoming discolored.
3. Close the door tightly.
4. Insert the power plug, and then press the power switch .
＊The LEDs of the power switch and the mode indication will light up.
＊The product is set to heating UV lamp mode primarily.
＊When you change the mode, the changed mode will be memorized.
5. Press the mode change switch to select your desired mode.
＊The mode indication LED to be lit is changed every time you press the mode
change switch.
1. Switch off and remove plug from electric outlet.
2. Take out remaining towels, etc. and wipe inner box clean to remove residual
moisture.
3. Empty water accumulated in the drain tray. Wash clean when considerably
stained.
4. Stains on the body should be wiped clean with a dry cloth or a tightly wrung
wet cloth.
＊Use a neutral detergent when stains are severe. Do not use cleansers containing
abrasives or solvents such as paint thinners.
＊The appliance shall not be cleaned with a water jet.
5. Leave the door of the cabinet open for a while for moisture to dry as a means
to prevent odors.
Post-use Instructions
WARNING:
This appliance contains a UV emitter. Do not stare at the light source.

－10－
● Is the power plug disconnected?
● Have you wiped off dirt and moisture attached to
the inside of the inner box regularly?
● Have you emptied water accumulated in the drain
tray regularly?
There is an
abnormal smell.
● Is the power plug disconnected?
● Are there any abnormal indications?
＊Check "If an indication below appears" above.
● Is the product installed in a stable and flat location?
● Noises are heard from the fan that cools the
components.
● Small noises can be heard during use or immediately
after use owing to expansion or contraction in the
surface inside the inner box, but it is not a failure.
An error in the temperature sensor.
An error in the temperature control.
It can be assumed that heat has been generated and
the temperature has risen exceeding the normal range.
● Check the installation condition.
→ Install the product by following the instructions
on page 8.
Remove the power plug once, and then switch on the power again.
If normal status cannot be recovered even after doing that, confirm the error
details and request repair.
If an indication below appears
Indication Details/Countermeasures
Situation Details/Countermeasures
LED (green) blinks
LED (orange) blinks
The LED of the power
switch does not light up.
Noises are heard
during use.
It does not become
heated even after
waiting for a while.
Troubleshooting

For after sales service, contact the store where you have purchased your towel
warmer, or nearest TAIJI sales representative or TAIJI & CO., LTD. in Japan.
If the supply cord is damage, it must be replaced by its service agent or similarly
qualified persons in order to avoid a hazard.
TAIJI & CO., LTD.
8-2, Okawa-cho, Kawasaki-ku, Kawasaki-shi, Kanagawa, 210-0858 Japan
TEL : [phone], FAX : [phone]
E-mail : [email protected]
URL : http://www.taiji.co.jp/e
－11－
After-Purchase Servicing

－12－
Operation panel
Operation panel
Operation panel
Control board
Control board
Control board
Mode change switch
UV lamp mode LED
Heating mode LED
Mode change switch
UV lamp mode LED
Heating mode LED
Mode change switch
UV lamp mode LED
Heating mode LED
Micro-
computer
Micro-
computer
Micro-
computer
Thermistor
Lead switch
Thermistor
Lead switch
Thermistor
Lead switch
Thermal fuse
Thermal fuse
Thermal fuse
UV lamp
Power cord
Power cord
Heating element
UV lamp
UV lamp
Heating element
Heating element
Power switch LED
Power switch
Power switch LED
Power switch
Power switch LED
Power switch
ＨＣ-２１ＵＶＰｒｏ
ＨＣ-１１ＵＶＰｒｏ
Circuit Diagram
