TAKE-A-LABEL TAL-450-18 User manual

Operating
Instructions
General Specications, Model 450
General Specications,
Model 450
Size (Approx.):
14.58W x 12.38H x 18.50D
Shipping Weight:
24 lbs (10.9 KG)
Electrical:
110/120VAC, 50/60HZ,
4 AMP FUSE
take-a-label.com • [email protected] • 16900 Power Dr., Nunica, MI 49448 • 616.837.9300
Note: e TAKE-A-LABEL dispenser is shipped
mounted to a base to prevent shiing in the container.
1. Remove the machine from the base.
**Always load the TAKE-A-LABEL dispenser with
the On-O Switch in the (OFF) position.**
2. To load a roll of labels on the TAKE-A-LABEL,
loosen the unwind hub screw (57) on the unwind
collar (56) and remove the collar, unwind washer,
unwind spring, and disc from the unwind sha.
3. Place the roll of labels on the unwind sha between
the two unwind discs. Place the roll with the begin-
ning of the roll on the bottom with the web dispens-
ing to your right as you face the side of the machine.
4. Replace the unwind disc, unwind spring, and collar
onto unwind sha. If using labels on a 3” diameter
core, the hub on each disc will t inside the core
and support the roll of labels. If the labels are on a
1” core, simply slide the disc up snugly against the
roll of labels. When the disc is in place, tighten the
unwind hub screw against unwind sha.
5. read the loose end of labels under and up the
front of the peel plate.
6. Pull the labels over top of peel plate far enough to
reach the waste take-up roll.
7. Remove the waste wind clip, thread label backing
paper under clip, and reinsert clip over loose paper.
8. Position the Photo Eye or Micro Switch Assembly by
loosening wing nuts and moving assembly to right
or le so that the sensor is at or near the center of
the labels. e Photo Eye or Micro Switch Asembly
can be tilted forward or backward by loosening the
mounting bracket vertical adjustment wing nut.
9. Turn on On-O switch. e waste wind sha will
turn, winding up backing paper and dispensing a
label at the top of the peel plate. When the Photo Eye
or Micro Switch senses the dispensed portion of the
label, the motor will stop. As each label is removed,
the machine will operate until the next label is in
position to be removed. (CAUTION:) Turn o
switch before removing wound up waste.
10. If labels tend to follow backing paper over the top
of the peel plate instead of peeling o, then there
is insucient tension on the web of the labels. e
sha adjustment collar should be moved in to put
more tension on the web.
11. If the motor stalls it may be necessary to move
the sha collar out to reduce the amount of
unwind tension.
Operating Instructions for the TAKE-A-LABEL Model TAL-450-18

1 45125, Unwind sha 1
2 25201, 250, 450, 750 Main frame 1
3 25120, Switch support bracket Micro Switch-Style Label Sensor 1
6 45307, Micro Switch Micro Switch-Style Label Sensor 1
8 45308, Trip Wire Micro Switch-Style Label Sensor 1
Not Shown 45409, Micro Switch Assembly Complete Assembly 2018 and Newer 1
10 4-40 Hex Nut Micro Switch-Style Label Sensor 2
11 4-40x0.875 BHCS Micro Switch-Style Label Sensor 2
12 45182, Washer, nylon 5
13 45181, Carriage Bolt 2
14 45180, Wing Nut 5
16 30653, 1/2-13x.75 BHCS 1
17 72618, Felt Washer 1
18 45136, Unwind Disc 2
19 10-32x0.5 BHCS 5
20 10-32x0.375 BHCS 10
21 25202, 250, 450, 750 Motor housing 1
22 25203, 250, 450, 750 Rear and side cover 1
23 40007, Power On/O switch 1
26 81912, Small cord grip 1
27 76800, Gear Motor 1
28 45133, Name Plate Label 1
30 10-32 Hex Nut 8
31 45100, PCB - 250, 450, 750 DV 1
32 6-32x0.25 BHCS 5
33 45102, Control Board - 450, 750 CS Optional: Used with Special DC Photoeyes 1
34 30202, Label Counter Optional: Label Counter 1
35 25211, IEC Outlet, 701wx204 1
Not Shown 25212, IEC Line cord, US Not Shown 1
37 25213, Photoeye Photo Eye Label Sensor 1
38 81904, Photo eye Ring Nut Photo Eye Label Sensor 2
39 25204, Photo eye bracket Photo Eye Label Sensor 1
40 45186, P-clip 1
46 11006, Brush support bar Optional: Fan Fold Adapter 1
47 37004, Brush with holder Optional: Fan Fold Adapter 1
49 10-32x0.75 BHCS Optional: Fan Fold Adapter 1
50 75834, Heavy Duty Fan Optional: Heavy Duty Fan 1
51 75835, Fan Guard Optional: Heavy Duty Fan 1
56 26001, Sha Collar 1
57 26002, Knob 1
58 25112, Washer 1
59 45124, Peel plate 1
60 45129, TAL-450 Waste Rewind 1
61 45131, Waste Wind Clip 1
62 25113, Unwind Spring 1
COMMON PARTS FOR PRIOR MODEL YEARS
Not Shown 45208, Trip Wire 2014 and Older Models 1
Not Shown 45309, Switch Assembly 2016 and Older Models 1
Not Shown 81905, Photo Eye 2016 and Older Models 1
Not Shown 81906, Relay 2016 and Older Models 1
Not Shown 81907, Relay Socket 2016 and Older Models 1
Not Shown 25119, Lighted On/O Switch 2007 and Older Models 1
Not Shown 45217, Power Cord 2016 and Older Models 1
Not Shown 45153, Power Cord Clamp 2016 and Older Models 1
Not Shown 45155, Fuse Holder 2016 and Older Models 1
Not Shown 45157, Fuse 2016 and Older Models 1

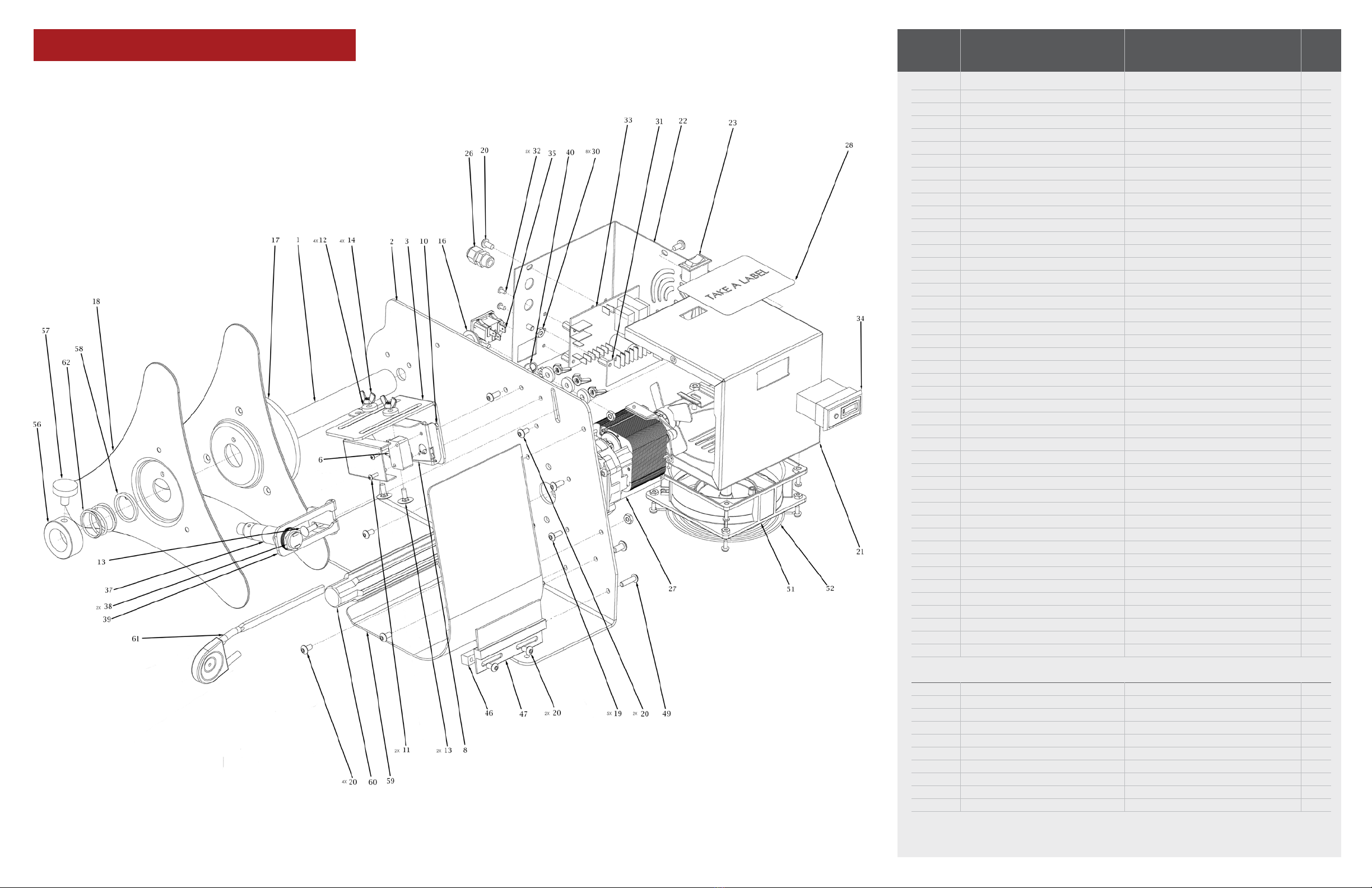

TAL 450 Label Dispenser Exploded View ITEM# PART NUMBER NOTES QTY.
AND DESCRIPTION
