TAKE-A-LABEL TAL-750HD-18 User manual

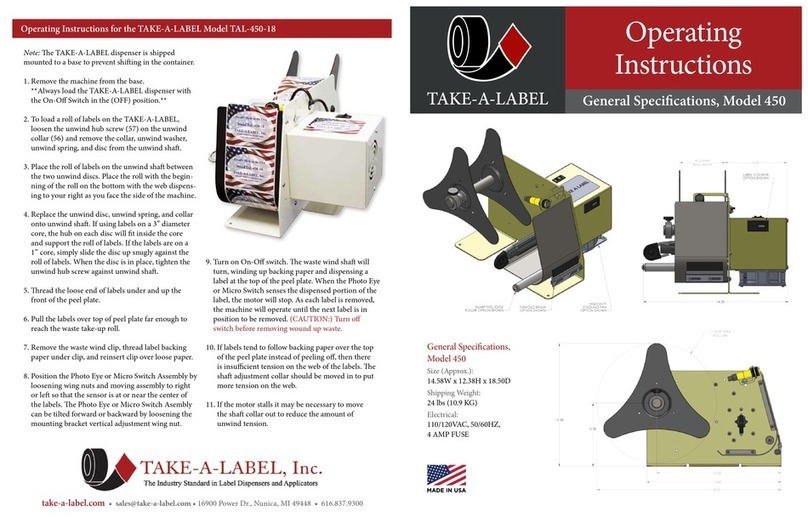

Operating
Instructions
General Specications, Model 750
General Specications,
Model 750
Size (Approx.):
17.12W x 12.38H x 18.50D
Shipping Weight:
26 lbs (12 KG)
Electrical:
110/120VAC, 50/60HZ,
4 AMP FUSE
take-a-label.com • [email protected] • 16900 Power Dr., Nunica, MI 49448 • 616.837.9300
Note: e TAKE-A-LABEL dispenser is shipped
mounted to a base to prevent shiing in the container.
1. Remove the machine from the base.
**Always load the TAKE-A-LABEL dispenser with
the On-O switch in the (OFF) position.**
2. To load a roll of labels on the TAKE-A-LABEL, using
the Unwind Blade to grip the inside of the core.
3. It may be necessary to raise or lower the height of
the Unwind Blade to cut into the 3” core.
4. read the loose end of the labels under and up the
front of the peel plate.
5. Pull the labels over the top of the peel plate far
enough to reach the waste take-up roll.
6. Remove the waste wind clip, thread the label
backing paper under the clip, and reinsert clip
over loose paper.
7. Position the Photo Eye or Micro Switch Assembly by
loosening the wing nuts and moving assembly to the
right or le, so the sensor is at or near the center of
the labels. e Photo Eye or Micro Switch Assembly
can be tilted forward or backward by loosening the
mounting bracket’s vertical adjustment wing nut.
8. Turn on the On-O switch. e waste wind sha
will turn, winding up the backing paper and dis-
pensing a label at the top of the peel plate. When
the Photo Eye or Micro Switch senses the dispensed
portion of the label, the motor will stop. As each
label is removed, the machine will operate until the
next label is in position to be removed. (CAUTION:)
Turn o switch before removing wound up waste.
9. If the labels tend to follow the backing paper over
the top of the peel plate instead of peeling o, then
there is insucient tension on the web of the labels.
Loosen the Nylon Tipped Set Screw and unscrew the
Unwind Tension Knob to desired tension.
10. If the motor stalls there may be to much tension
and it may be necessary to unscrew the Unwind
Tension Knob most of the way.
Operating Instructions for the TAKE-A-LABEL Model TAL-750HD-18
TAL-450 Model Shown
1 30653, 0.5-13x0.75 BHCS 1
2 25201, 250, 450, 750 Main frame 1
3 72618, Felt Washer 1
4 45136, Unwind Disk 2
Not Shown 75801, Heavy Duty Unwind Assembly Complete Heavy Duty Assembly 1
5 75805, Spindle core lock blade 1
6 75816, Backing Plt. Lock Pin 1
7 75811, Raw Spindle 1
8 75805, Unwind Blade 1
9 45175, 10-32x.375 BHCS 2
10 75803, Unwind Knob 1
11 75817, Nylon Washer 1
12 75812, Unwind Spring 1
13 75817, Nylon Washer 1
14 75802, Unwind sha 1
15 75812, Nylon Tipped Set Screw 1
16 72610, 750 Waste Wind Clip 1
17 72613, Waste Wind Sha 1
18 30652, Set Screw 1
19 25213, Photo Eye Photo Eye Label Sensor 1
20 25213, Photo Eye Ring Nut Photo Eye Label Sensor 2
21 25204, Photo Eye bracket Photo Eye Label Sensor 1
22 0.19-32x0.5 BHCS 1
23 72612, Peel plate 1
24 70011, Fan Fold Brush Assembly Optional: Fan Fold Adapter 1
25 45175, 10-32x.375 BHCS 2
26 45175, 10-32x.375 BHCS 4
27 25127, 10-32x.75 BHCS 4
28 40007, Power switch 1
29 45120, Label, thermal protection 1
30 76800, Merkle-Kor S-3815 1
31 75835, Heavy Duty Cooling Fan Guard Optional: Heavy Duty Cooling Fan 1
32 30202, Cub 7 counter, DIN size Optional: Label Counter 1
33 75834, Heavy Duty Cooling Fan Optional: Heavy Duty Cooling Fan 1
34 25202, 250, 450, 750 Motor Housing 1
35 Label, Company logo 1
36 40007, On/O switch 1
37 25203, 250, 450, 750
Motor Housing Cover 1
38 45102, PCB - 450, 750 CS 1
39 45100, PCB - 250, 450, 750 DV Optional: Used with Special DC Photo Eyes 1
40 6-32x.375 BHCS 2
41 45120, Label, thermal protection 1
42 45175, 10-32x.375 BHCS 1
43 81912, Small cord grip 2
44 25211, IEC Outlet 1
Not Shown 25212, IEC Line cord, US 1
45 45186, P-clip 1
46 45182, Washer, nylon 1
47 45180, Wing Nut 1
50 45183, 10-32x.500 BHCS 1
51 25120, Switch support bracket Micro Switch-Style Label Sensor 1
52 45307, Micro Switch Micro Switch-Style Label Sensor 1
53 45308, Trip Wire Micro Switch-Style Label Sensor 1
Not Shown 45409, Micro Switch Assembly Complete Assembly 2018 and Newer 1
54 45178, 0.19-32x0.75 BHCS Micro Switch-Style Label Sensor 2
55 45179, 4-40 Hex Nut Micro Switch-Style Label Sensor 2
56 45181, Carriage Bolt 3
TAL 750 Label Dispenser Exploded View ITEM# PART NUMBER NOTES QTY.
AND DESCRIPTION
ITEM# PART NUMBER AND DESCRIPTION NOTES QTY.
COMMON PARTS FOR PRIOR MODEL YEARS
Not Shown 45208, Trip Wire 2014 and Older Models 1
Not Shown 45309, Switch Assembly 2016 and Older Models 1
Not Shown 81905, Photo Eye 2016 and Older Models 1
Not Shown 81906, Relay 2016 and Older Models 1
Not Shown 81907, Relay Socket 2016 and Older Models 1
Not Shown 25119, Lighted On/O Switch 2007 and Older Models 1
Not Shown 45217, Power Cord 2016 and Older Models 1
Not Shown 45153, Power Cord Clamp 2016 and Older Models 1
Not Shown 45155, Fuse Holder 2016 and Older Models 1
Not Shown 45157, Fuse 2016 and Older Models 1
