Talex Mini Mini 1,35 Z 079 User manual

TALEX Spółka z ograniczoną odpowiedzialnością
Spółka komandytowa
ul. Dworcowa 9c
77-141 Borzytuchom
tel. [phone]
e-mail. [email protected]
www.talex-sj.pl
1
INSTRUCTION MANUAL
WARRANTY
CATALOGUE OF SPARE PARTS
Rotary mower Mini Mini
Borzytuchom 2019

TALEX Spółka z ograniczoną odpowiedzialnością
Spółka komandytowa
ul. Dworcowa 9c
77-141 Borzytuchom
tel. [phone]
e-mail. [email protected]
www.talex-sj.pl
2
WARNING!
This instruction manual should be read before use
and the safety rules contained in it must be observed.
The instruction manual is the basic equipment of the machine!
Keep the instruction in a safe place, where it should be available to the user and service
technician through the entire life cycle of the machine.
In the event of loss or destruction a new copy must be purchased by ordering it at the point
of machine sale or the manufacturer.
In the event of a sale or granting access to the machine to other user the instruction manual
must be attached with declaration of conformity for the machine.
The manufacturer reserves all rights to the instructions for use.
Copying, processing of the instruction and its parts without permission of the manufacturer
is prohibited.
WARNING!

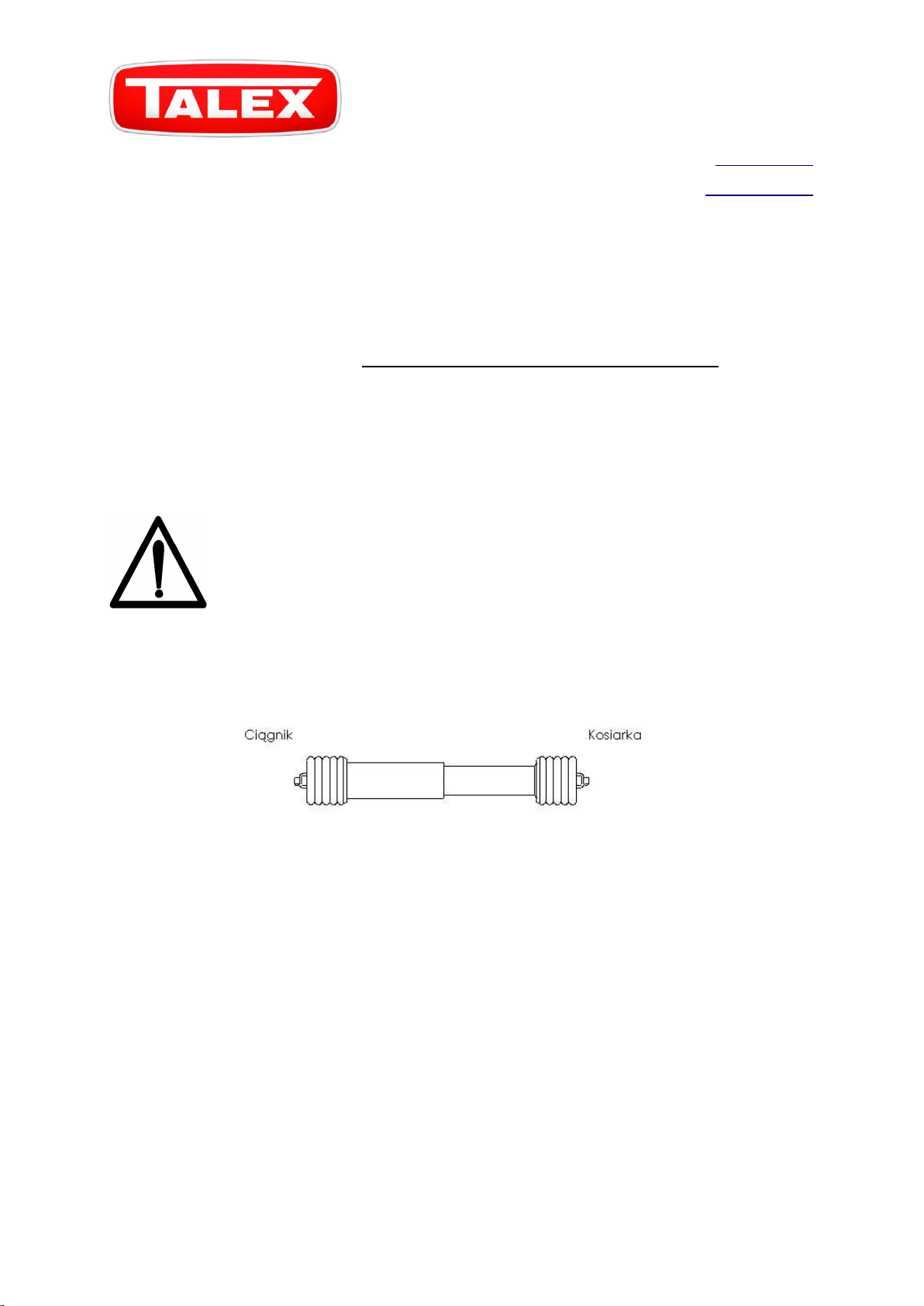

The manufacturer prohibits the use of other jointed telescopic shaft than the one indicated
in the specification. Using the shaft without unidirectional clutch may damage the machine.
Failure to follow the manufacturer's instructions may cause immediate loss of warranty.

TALEX Spółka z ograniczoną odpowiedzialnością
Spółka komandytowa
ul. Dworcowa 9c
77-141 Borzytuchom
tel. [phone]
e-mail. [email protected]
www.talex-sj.pl
3
Table of contents
1. Identification of the machine .......................................................................................................... 4
2. Introduction ..................................................................................................................................... 5
3. Intended use of the machine .......................................................................................................... 6
4. Rules of safe operation .................................................................................................................... 6
5. Risks by operation of the mower .................................................................................................. 10

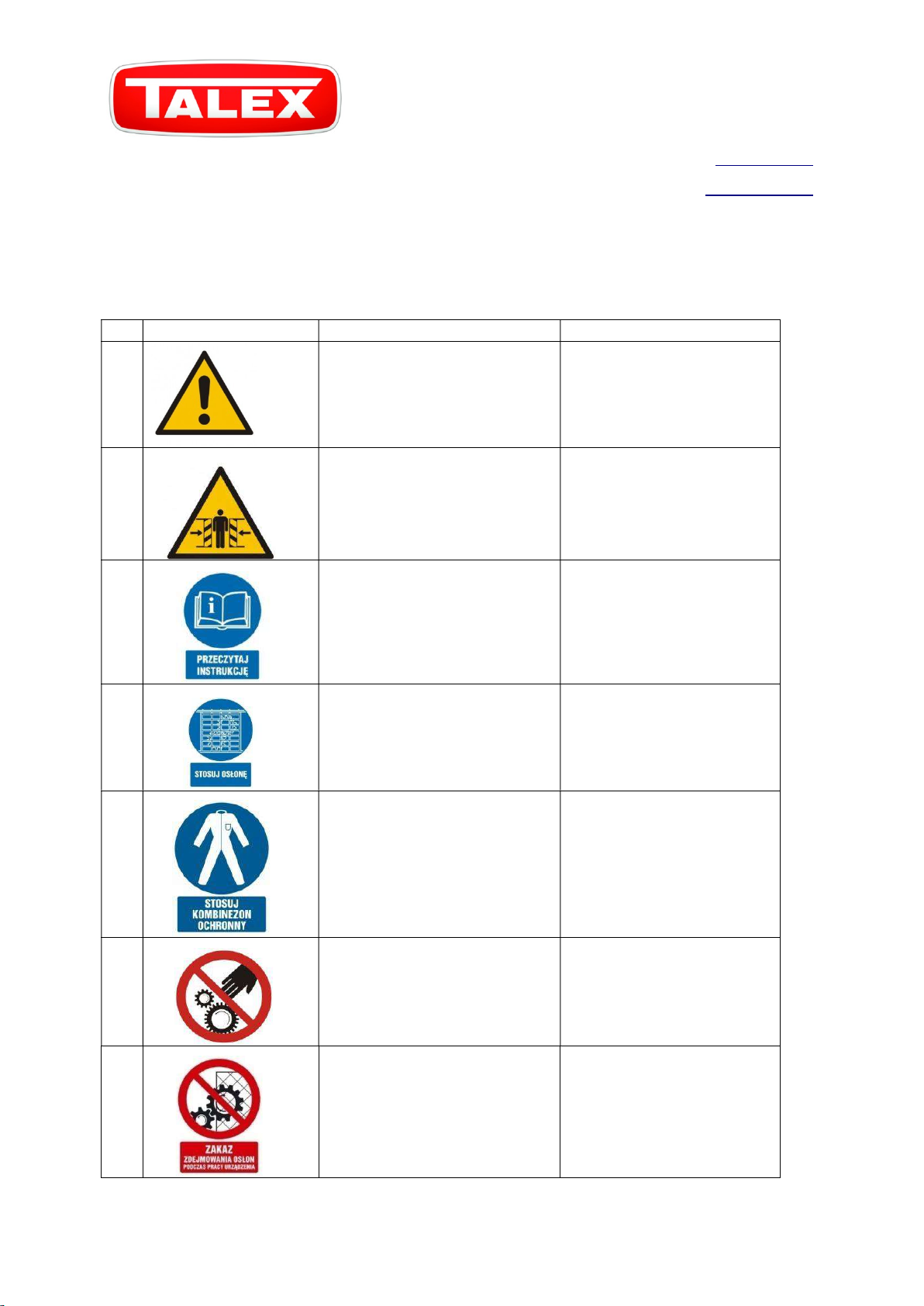

6. Safety signs on the machine .......................................................................................................... 12
7. General Information ...................................................................................................................... 13
7.1. Sales information ................................................................................................................... 13
7.2. Spare parts and accessories .................................................................................................. 14

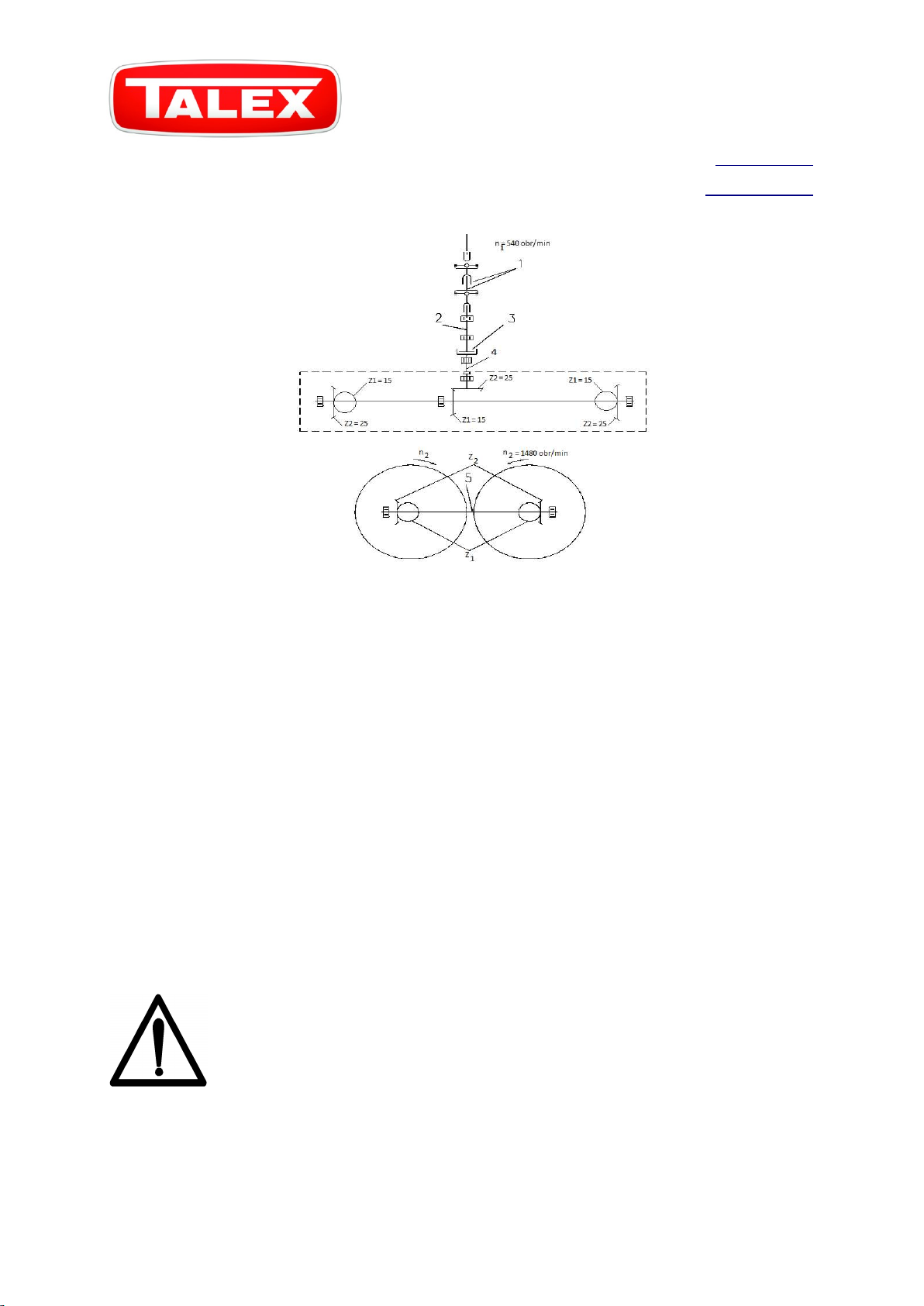

7.3. Construction and operation .................................................................................................. 14
8. Maintenance service ..................................................................................................................... 16
8.1. Connecting tractor with the mower ...................................................................................... 17
8.2. Mounting the PTO shaft ........................................................................................................ 18
8.3. Installation of the mower ...................................................................................................... 19
8.4. Setting the mower in working position ................................................................................. 20
8.5. Operation of the mower - mowing ....................................................................................... 22
9. Technical service of the mower..................................................................................................... 23
9.1. Replacement of the blades .................................................................................................... 23
9.2. Daily maintenance ................................................................................................................. 25
9.3. Post-season maintenance ..................................................................................................... 25
9.4. Lubrication instructions ......................................................................................................... 26
10. Storage ...................................................................................................................................... 26
10.1. Transport warning signs .................................................................................................... 27
11. Technical characteristics ........................................................................................................... 28
12. Dismantling, scrapping and environmental protection............................................................. 28
13. Possible faults and how to remove them .................................................................................. 29
14. Spare parts catalogue ................................................................................................................ 29
15. Warranty.................................................................................................................................... 38

TALEX Spółka z ograniczoną odpowiedzialnością
Spółka komandytowa
ul. Dworcowa 9c
77-141 Borzytuchom
tel. [phone]
e-mail. [email protected]
www.talex-sj.pl
4
1. Identification of the machine

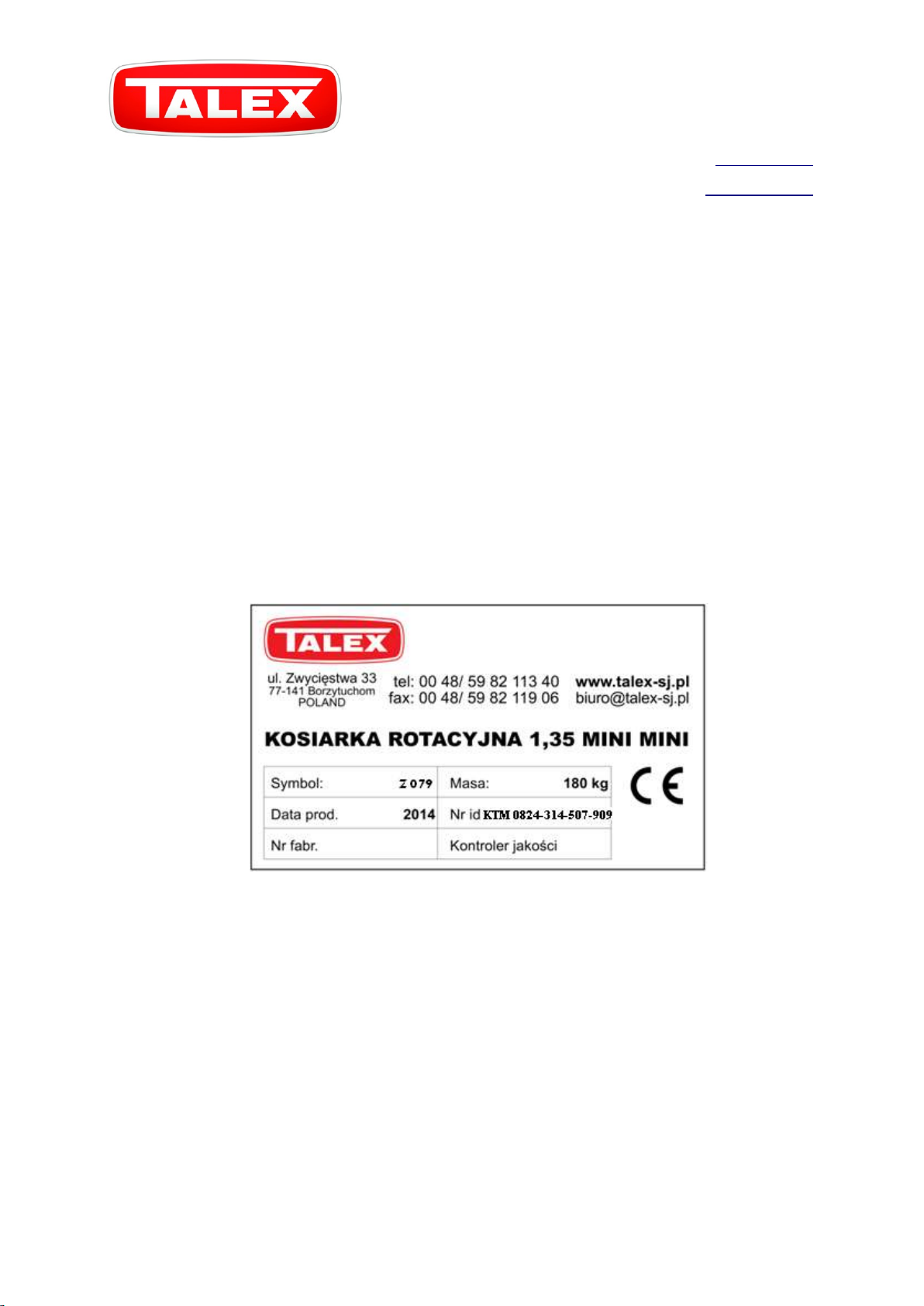

Each rotational mower Mini Mini is equipped with a rating plate, which contains the most important
identification data. This label is located on the machine in a position easy to find and read. The data
contained in the rating plate confirm compliance of the mower with the applicable safety
regulations. For this reason, the plate cannot be reused or removed.
The rating plate contains:
- full name of the manufacturer,
- weight,
- number of the mower,
- quality control sign,
- mower symbol,
- CE marking means that the mower is in line with Directive 98/37/EC and harmonized standards,
- manufacturing date.

TALEX Spółka z ograniczoną odpowiedzialnością
Spółka komandytowa
ul. Dworcowa 9c
77-141 Borzytuchom
tel. [phone]
e-mail. [email protected]
www.talex-sj.pl
5
The data on the manufacturer's rating plate are required for consideration of complaint or by
ordering spare parts.
2. Introduction
Before commencing first activities related to use of the mower it is essential to read and understand
this instruction manual and follow all recommendations contained therein.
This instruction manual contains a description of the hazards that can occur in case of non-
compliance with safety rules during operation and maintenance of the mower. In the
instruction manual listed are precautionary measures to be taken to minimize or avoid risks.
This manual also contains principles of correct use of the mower and explains what
maintenance operations are to be performed at the same time.
If the information contained in the instructions manual is unclear, please ask for explanation
directly to the manufacturer.
WARNING!
Read the instruction manual before use.
WARNING!
The symbol warns about the threat.
This warning symbol indicates important information regarding the threat
that was given in the instructions.
Please read the given information, follow the instructions and take special
care.

TALEX Spółka z ograniczoną odpowiedzialnością
Spółka komandytowa
ul. Dworcowa 9c
77-141 Borzytuchom
tel. [phone]
e-mail. [email protected]
www.talex-sj.pl
6
3. Intended use of the machine
Rotational mower is designed to work in agriculture, mowing low-stem greens (alfalfa grass, etc.) in
crop fields and meadows with levelled surface.
To work with the mower 1,35 m Mini Mini a tractor should be used, class 3 with the pulling force of
4 kN. Mowers are adjusted to the three-point linkage (linkage) cat. I.
Using the machine in other circumstances will be construed as inconsistent with the intended use.
Strict compliance with the requirements for the use of the machine and operation and maintenance
as recommended by the manufacturer is a prerequisite for use as intended.
The machine should be operated, serviced and repaired by people familiar with its specific
characteristics and acquainted with the rules of conduct in terms of occupational safety.
Accident prevention regulations and all basic rules of safety and hygiene, as well as traffic regulations
must always be observed.
Unauthorised changes in design of the machine without permission of the manufacturer waive
manufacturer's liability arising due to any resulting damage or injury.
4. Rules of safe operation
The mower may only be operated by adults who are familiar with its operation
and the contents of this instruction manual and have appropriate qualifications. The mower should
be handled with all necessary precautions, in particular:
 Observe, in addition to this instruction manual, also general rules of safety and health at
work.
 Observe warning symbols placed on the machine.
 It is prohibited to operate the machine by people who are under the influence of alcohol or
other drugs.
 Never allow the vehicle towing the mower to be operated by a person other than its
operator, and in any case do not allow other people to remain in the vehicle or by the
machine while in operation.

TALEX Spółka z ograniczoną odpowiedzialnością
Spółka komandytowa
ul. Dworcowa 9c
77-141 Borzytuchom
tel. [phone]
e-mail. [email protected]
www.talex-sj.pl
7
 The mower may be operated by a person with the licence to drive
the vehicle to which it is mounted, according to the manufacturer's instructions.
 Workstation of the operator during operation of the mower is the cabin of the vehicle, which
the machine was attached to.
 Please note that on the mower there are many places that could cause injury (sharp edges,
protruding structural elements, etc.). During the operation an increased caution should be
kept when moving near the said critical places and the following personal protective
equipment must be used:
- protective clothing,
- protective gloves,
- safety shoes.
 It is forbidden to carry persons or objects on the machine.
 It is forbidden to use the machine by third parties not familiarised with instructions manual.
 It is forbidden to operate the machine on the edge of public squares (parks, schools, etc.) or
on rocky terrain, in order to avoid the danger coming from recoil of stones and other items.
 Employee operating the mower should be provided with first-aid kit, containing measures for
first aid, along with instructions for their use.
 When moving the vehicle with a mower mounted but not working, ensure a safe transport
height ~ 0.3 m.
 Take special care during travel on public roads, and adapt to the existing traffic regulations.
 On the machine or on the rear of the vehicle a triangular plate must be fitted, distinguishing
low-speed vehicles. Care should be taken about clarity and visibility of the reflective lighting
and warning signs located on the structural elements of the machine.
 Transport speed must be adopted to the condition of the road surface, it should not exceed
20 km/h.
 Do not leave the vehicle with the mower on slopes or other inclines without securing the
vehicle against accidental rolling away. The mower must be lowered to the ground. Put
wedges under wheels of the vehicle.

TALEX Spółka z ograniczoną odpowiedzialnością
Spółka komandytowa
ul. Dworcowa 9c
77-141 Borzytuchom
tel. [phone]
e-mail. [email protected]
www.talex-sj.pl
8
 Working on slopes exceeding 10⁰ is unacceptable.
 The mower should be adjusted to work during assembly to the vehicle. During you work
correction of settings, which is possible from the cabin, is allowed without leaving the cabin
by the vehicle operator.
 Activities related to preparation, assembly, disassembly or adjustment can be performed
after switching off the drive, stopping the engine, immobilizing the vehicle and waiting until
all moving parts in the machine stop.
 After the first hour of operation, check all disjoint connections, i.a. screw connections.
 Store the mower on a flat, levelled, paved surface out of the reach of unauthorized persons
and animals.
 During the assembly and disassembly of the mower be careful, pay special attention to the
structural elements responsible for mounting to the vehicle.
 Before use, check the technical condition of the mower and the cooperating vehicle. The
team, vehicle and mower must be in good technical condition. Worn or damaged parts must
be immediately replaced.
 The mower must be equipped with all safety guards against access to moving parts, which
the manufacturer has provided). Guards must be complete and fully functional.
 Prior to working with the mower, please read the instructions manual and safety precautions
at work and recommendations regarding the use and regulation.
 Weight of the mower suspended on the vehicle may affect the controllability. In this
situation, particular caution should be exercised.
 Instructions manual should be placed on the machine. By lending the machine, pass it
technically operational with instructions manual.
 It is forbidden to attach additional transport means to the mower.
 By first start, check operation of the machine, and make the initial adjustment without load.

TALEX Spółka z ograniczoną odpowiedzialnością
Spółka komandytowa
ul. Dworcowa 9c
77-141 Borzytuchom
tel. [phone]
e-mail. [email protected]
www.talex-sj.pl
9
 Securing the linkage assembly (three-point linkage) pins of the mower should be made only
by means of conventional collateral in the form of pins. Work with other security is
prohibited!
 Due to the natural wear and tear the state and completeness of cutting machine tools should
be controlled, using the recommendations described in the chapter.
Operations and maintenance:
 Upon receipt and transport of the mower check whether the machine has not been damaged
by checking its technical condition.
 Presence of people under the raised mower is forbidden, they could be crushed by structural
elements.
 By adjusting do not put your fingers and limbs between components of the machine.
 During operation and regulation operator of the vehicle, which is cooperating with the
mower must take care that no one approaches the machine and stays at a distance of less
than 50 m from a working mower.
 When turning or reversing, manoeuvring the machine, adequate visibility should be secured
or help of suitably trained person should be used.
 It is forbidden to stay, service between the vehicle and the mower when the engine is
running.
 Take special care when working on slopes.
 When making turns and returns turn off the PTO (power take-off shaft).
 During operation, do not allow the PTO speed to exceed 540 rev/min. and the driving speed
must be adapted to the required work.
 Using a damaged or incomplete jointed telescopic shaft is prohibited. In particular, it is
prohibited to work without guards of moving parts.
 Never leave the vehicle with the engine running. Before leaving the driver's seat (the cab)
lower the machine to the ground, switch off the engine of the vehicle, remove the ignition
key, engage the parking brake.

TALEX Spółka z ograniczoną odpowiedzialnością
Spółka komandytowa
ul. Dworcowa 9c
77-141 Borzytuchom
tel. [phone]
e-mail. [email protected]
www.talex-sj.pl
10
 Do not use unbuttoned, hanging pieces of clothing during the operation, assembly,
disassembly, adjustment. Keep them away from components that can catch them.
 After work it is recommended to clean and wash the mower in the wash fitted with a sewage
treatment plant or settler to neutralize the resulting waste water.
 Storage, warehousing of the machine should be carried out in places protected from
outsiders and animals by eliminating the risk of accidental injury, on a flat, paved surface,
under a roof.
 In case of failure, immediately turn off the drive transmitted from the vehicle.
5. Risks by operation of the mower
No.
Hazard
Hazard source (cause)
Protective provisions relating
to
hazards
1.
Overloading the
movement
system (physical
load)
Working in a standing position,
inclined-forced, walking, moving
Familiarise with the instruction
manual, workplace training taking
into account the standards for lifting
by performing manual handling,
proper techniques for lifting and
lifting weights, using the help of
another person, devices facilitating
movement e.g. jack, winch
2.
Fall on same
Uneven ground, mess
-
objects
Suitable footwear, levelled surface,
Failure to follow these rules may pose a risk to the operator
and
bystanders and can damage the mower.
The user is responsible for damages resulting from non-compliance with
the above rules.

TALEX Spółka z ograniczoną odpowiedzialnością
Spółka komandytowa
ul. Dworcowa 9c
77-141 Borzytuchom
tel. [phone]
e-mail. [email protected]
www.talex-sj.pl
11
level
(stumble, slip,
etc.)
lying and standing, wires lying
on the communication roads,
slippery surfaces
maintaining caution, maintaining
order, familiarising with the
instructions manual
3.
Hitting
protruding parts
of the machine
The machine and its
surroundings
Proper setting of th
e machine, safe
space for movement, organization of
work, maintaining caution, reading
the instruction manual
4.
Struck by
moving objects
Crushed plants, incidental part
of the turf, stones thrown out
by the machine
Maintaining caution, marking the
danger zone, ban on movement
around the working machine, ban on
being at a distance of less than 50 m
from a working machine, use of
personal protective equipment -
helmet, safety glasses, familiarising
with the instruction manual
5.
Dangerous
sharp edges
Protr
uding structure elements
of the machine, use of hand
tools
Personal protective equipment
-
gloves, buttoned work clothes,
maintaining caution
6.
Gears
Moving gears, rotating jointed
telescopic shaft, no guards of
moving parts
Ban of moving, approaching
and
making adjustments on the running
machine, exercising caution, using
shields of moving parts, reading the
instruction manual
7.
Weight of the
suspended
standing
machine
Improper installation,
aggregation, incorrect setting of
the machine, bad service,
leaving suspended machine on
the tractor
Maintaining particular care, use of
personal protective equipment -
safety footwear, protective gloves,
safe setting of the machine, using
help of a second person, using jacks,
davits, familiarising with the
instructions manual
8.
Micro climate
-
changing
weather
conditions
Work carried out in different
weather conditions
Appropriate clothing, drinks,
sunscreen, relax, familiarising with
the instruction manual
9.
Noise
Too high revolution of the
machine, damaged, loose
vibrating parts
Working with efficient machine,
current machine maintenance,
relevant revolutions of the machine,
familiarising with the instruction
manual

TALEX Spółka z ograniczoną odpowiedzialnością
Spółka komandytowa
ul. Dworcowa 9c
77-141 Borzytuchom
tel. [phone]
e-mail. [email protected]
www.talex-sj.pl
12
6. Safety signs on the machine
Table No. 1
Sign
Description
Location
1.
Note!
The general warning sign,
a warning - safety risk
Cover of the machine
Instructions manual
2.
Warning against side crushing
Cover of the machine
3.
Read the instructions manual
Instructions manual
4.
Use cover
Cover of the machine
5.
Use protective
suit
Cover of the machine
6.
Moving of the parts
Cover of the machine
7.
The ban on taking off covers
during operation
Cover of the machine

TALEX Spółka z ograniczoną odpowiedzialnością
Spółka komandytowa
ul. Dworcowa 9c
77-141 Borzytuchom
tel. [phone]
e-mail. [email protected]
www.talex-sj.pl
13
8.
Prohibition of bystanders
standing within the machine
operation range
Cover of the machine
9.
Prohibition of passenger
transport of transport
equipment
Cover of the machine
10.
Prohibition of repairing
a moving device
Cover of the machine
11.
Prohibition of lubricating
a moving device
Cover of the machine
7. General Information
7.1. Sales information
At the time of purchase, check the technical condition and equipment of the mower from the seller,
a detailed filling of the warranty card and complaint coupons should be required. No date of sale or
stamps of the point of sale, expose the user to non-recognition of any complaints. The manufacturer
supplies a complete mower, but with unmounted cover of the cutting assembly, mounting the cover
of the cutting assembly is performed by the buyer of the mower on their own.

TALEX Spółka z ograniczoną odpowiedzialnością
Spółka komandytowa
ul. Dworcowa 9c
77-141 Borzytuchom
tel. [phone]
e-mail. [email protected]
www.talex-sj.pl
14
7.2. Spare parts and accessories
Mower is accompanied by the following basic equipment:
1. Instructions manual with catalogue of parts and warranty card. 1 piece (KMM_WP.01)
2. Special wrench. 1 piece (KMM_WP.02)
3. Blades (in package). 16 pieces (KMM_01.08)
4. Wrench spanner RWTg-10. 1 piece (KMM_WP.03)
5. Jointed telescopic shaft with uni-directional clutch. (KMM_04.00)
At the special request of the purchaser and for a fee the following elements can be purchased from
the manufacturer:
Triangular distinguishing plate (KMM_WD.01)
7.3. Construction and operation
Construction of the mower:
1. Main frame
2. Working drum
3. Cover
4. Protective apron
5. Sliding plate
6. Working plate

TALEX Spółka z ograniczoną odpowiedzialnością
Spółka komandytowa
ul. Dworcowa 9c
77-141 Borzytuchom
tel. [phone]
e-mail. [email protected]
www.talex-sj.pl
15

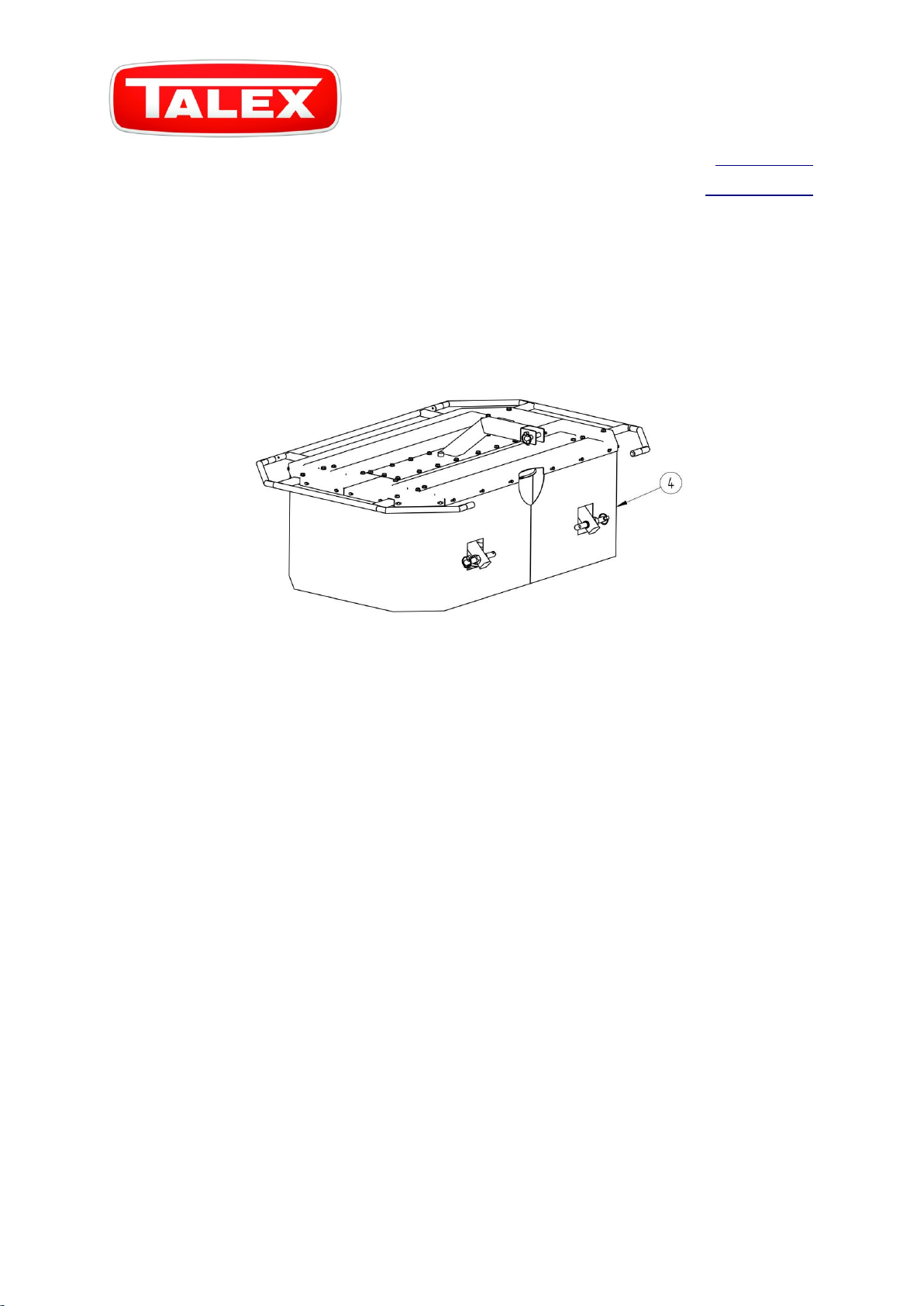

Figure 1. Basic components of the machine.
Frame of the suspension system (Fig.1 item 1) is used to connect the mower to the tractor. The
cutting unit consists of two working drums and discs (Fig.1 items 2 and 6) with blades rotationally
embedded in their lower part. In the working position working drums and discs rest on the sliding
discs (Fig.1 item 5) that allow copying the ground irregularities.
Covers (Figure 1 item 3) and protective apron (Fig.1 item 4) protect the machine operator and
bystanders against hard objects that can be thrown at a high speed by working drums and discs (Fig.1
items 2 and 6).
Working drums and discs are driven by the PTO of the tractor, together with the blades rotating in
opposite directions, causing shearing of plants and moulding of the green in the form of remains.
Uni-directional clutch allows free rotation of the working drums and discs after the engine is turned
off and protects the drive components from damage.

TALEX Spółka z ograniczoną odpowiedzialnością
Spółka komandytowa
ul. Dworcowa 9c
77-141 Borzytuchom
tel. [phone]
e-mail. [email protected]
www.talex-sj.pl
16
Figure 2. Diagram of the mower drive. 1 - jointed telescopic shaft, 2 - roller drive head, 3 uni-directional clutch,
4 - drive shaft of the main frame, 5 - driven shaft of the main frame.
8. Maintenance service
To work associated with the use of the mower can be commenced only after carefully reading the
instructions manual.
Prior to joining the rotational mower with the prescribed tractors they must be properly prepared:
Check the technical condition of the machine and perform daily maintenance according to the tractor
instructions manual.
Fold or remove the connecting elements and the hitch of the tractor, which may hamper co-
operation or cause a collision with the jointed telescopic shaft (JTS).
WARNING!
Disassembly of the above-mentioned components protects against possible
damage to the jointed telescopic shaft by lowering the suspension system
when to the lower end position.
• Mount the power-take-off (PTO) of the tractor.
• Recommended tractors must be equipped with standard weights of the
front axle.
CAUTION!
Using tractor other than recommended to work with the mower (e.g. with
a lower thrust) or without the required weights of the front axle may lead
to loss of control of the front wheels of the tractor.

TALEX Spółka z ograniczoną odpowiedzialnością
Spółka komandytowa
ul. Dworcowa 9c
77-141 Borzytuchom
tel. [phone]
e-mail. [email protected]
www.talex-sj.pl
17
8.1. Connecting tractor with the mower
The mower should be connected to the tractor via three-point linkage (TPL).
Figure 3 Frame of the mower suspension.
1. Lower pin of the suspension frame.
2. Holes in the suspension yoke. 3. Plug.
Be careful when connecting the machine to the tractor.
In order to connect the mower to the tractor:
1. On the plugs (Fig. 3 item 1) of the suspension frame put lower links of the tractor (first left then
the right) and secure with cotters (Fig. 3 item 3).
It is unacceptable to:
• allow people staying between the tractor and the machine when reversing
the machine.
• connect the machine with the running tractor engine and key not removed
from the ignition.
• use components other than those recommended by the manufacturer of
the machine and tractor to secure the connection.

TALEX Spółka z ograniczoną odpowiedzialnością
Spółka komandytowa
ul. Dworcowa 9c
77-141 Borzytuchom
tel. [phone]
e-mail. [email protected]
www.talex-sj.pl
18
2. Place the end of the top link between the yoke plate using the holes, and then connect with the
pin and secure with a cotter. (Figure 3 item 2).
8.2. Mounting the PTO shaft
To drive a rotational mower use a jointed telescopic shaft with uni-directional clutch efficient and
equipped with a cover, holding a safety sign or CE mark and technical parameters that comply with
those specified in the technical characteristics.
When using a shaft with a half-covered guard additional guards are required from the tractor PTO
and the machine JTS. Machine JTS cover is installed by the manufacturer of the mower.
When mounting the jointed telescopic shaft remember to place the outer cover of the tube was on
the tractor side.
Figure 4 Jointed telescopic shaft.
In order to mount the shaft:
 Lower the mower on the ground, switch off the engine and remove the key from the ignition.
 Slide the tip of the shaft yokes on the machine JTS and tractor PTO and secure against
slipping by means of clips.
 Check whether the latches secure ends of the shaft from slipping out during operation.
The use of jointed telescopic shaft with parameters other than those
recommended by the manufacturer of the machine can lead to overload,
damage or tweak of its two parts during raising the machine and pose
a threat to the operators and the environment.

TALEX Spółka z ograniczoną odpowiedzialnością
Spółka komandytowa
ul. Dworcowa 9c
77-141 Borzytuchom
tel. [phone]
e-mail. [email protected]
www.talex-sj.pl
19
 Attach chains of the shaft guards, one to the tractor PTO cover and the other to the cover of
mower JTS.
8.3. Installation of the mower
The manufacturer delivers the mower with an unmounted cover of the cutting unit.
The assembly of covers must be installed by the purchaser of the mower.
The cover must be installed as follows:
 Tighten the screws M10x25 (Fig. 10 item 1) to the main frame.
 Screw the canvas with screws M6x16 to the cover of the cutting unit (Fig. 10 item 2).
WARNING!
The use of damaged jointed telescopic shaft, without cover or with damaged
cover and without additional shielding from the tractor PTO and the machine
JTS poses an immediate risk of accidents.
Working with mower without the assembled cover of the cutting assembly
or with a damaged cover or raised apron poses a threat to the operators
and the environment.

TALEX Spółka z ograniczoną odpowiedzialnością
Spółka komandytowa
ul. Dworcowa 9c
77-141 Borzytuchom
tel. [phone]
e-mail. [email protected]
www.talex-sj.pl
20
Figure 10. Assembling the covers.
8.4. Setting the mower in working position
Before starting work:
 Set the mower levelled to the ground
 At the time of lowering the mower in horizontal position maintain particular caution.
 Pay attention to the free space to perform the operations.
 Lower the mower so that it is based on sliding plates.
Jointed telescopic shaft may be connected to the tractor only when the mower is used, for transport
(to the field and back) as well as by the maintenance the shaft must be removed.
Correct placement of the mower in working position provides a secure,
high quality and efficient work.
