Tanco AUTOWRAP I70 Service manual

Innovation in Agricultural Machinery
OPERATOR’S
handbook
I70 - Bale Shear
I70/V.04-11-ENG

1
Tanco Autowrap - I70 Bale Shear
Operator’s Manual
Chapter Contents Page
1 Warning Signs / Stickers 2
2 Introduction 3
3 Technical Specications 5
4 Safety Precautions 6
5 Operating Instructions 9
6 Maintenance 13
7 Guarantee 14
8 Declaration of Conformity 16
Table of Contents
Section1

Tanco Autowrap - I70 Bale Shear
Operator’s Manual
2
Read Operators Manual
Prior to using machine
Danger from oil splashes
Danger keep hands
clear of sharp blades
Danger stay at a safe distance
whilst machine is in operation
Ensure all nuts & bolts have
been tightened prior to
operating the machine
1. Warning Signs / Stickers
Danger stand clear

3
Tanco Autowrap - I70 Bale Shear
Operator’s Manual

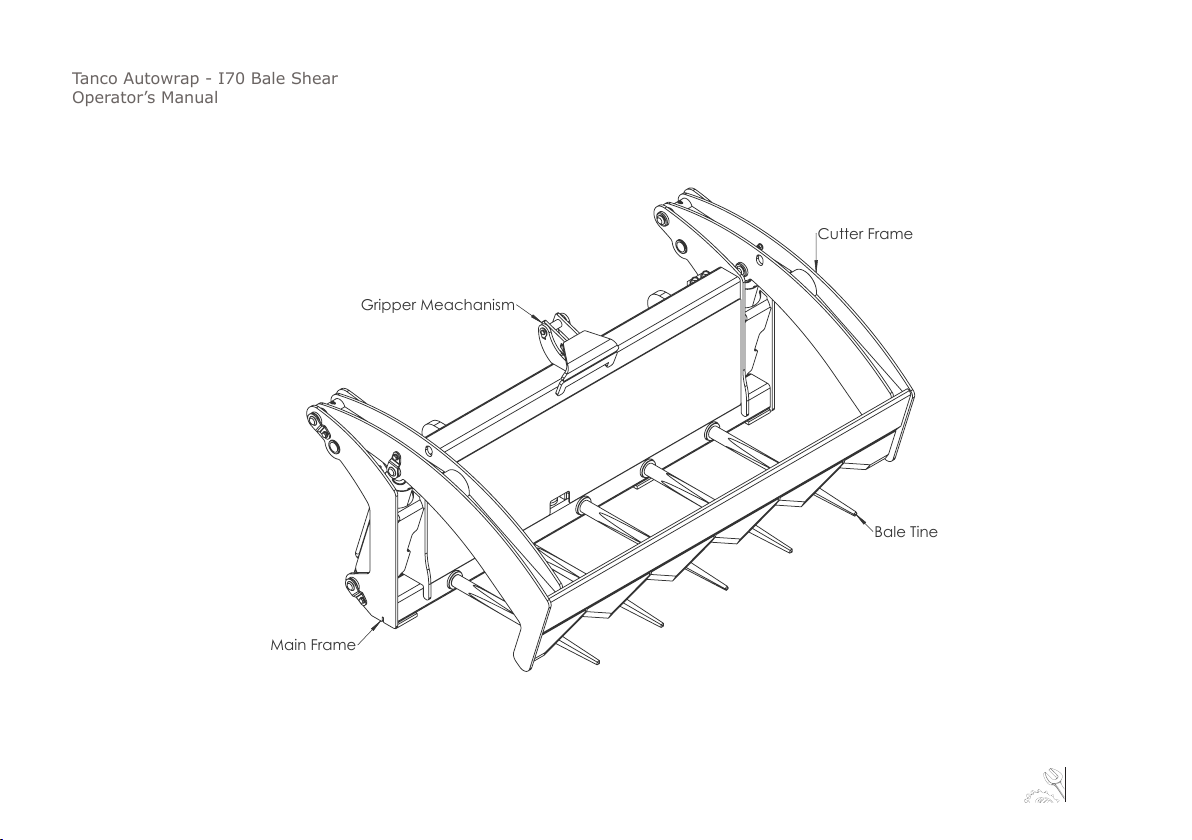

2. Introduction
Main Frame
Cutter Frame
Gripper Meachanism
Bale Tine

Tanco Autowrap - I70 Bale Shear
Operator’s Manual
4
2. Introduction
Tanco Autowrap Ltd congratulates you on your choice of the TANCO AUTOWRAP I70 Bale Shear. We are
certain you will be satised with the machine, and that you will have the pleasure of your investment for
many years.
The I70 Bale Shear system changes the way round bales are fed, making feeding this way ecient and
economical. The I70 Bale Shear uses a Patented system for gripping the plastic wrap whilst splitting the
bale in half making it ideal for feeding round bales along feed passages and into diet feeders.
The fact that no knives are required to strip the plastic wrap o silage bales, has huge safety advantages,
especially when getting o the tractor. It can slice hay, straw or silage bales with consummate ease.
The unique system of automatic plastic grab and bale split, using just one standard hydraulic coupling,
makes it ideal for front loader use. Chopping the bale in half when loading a diet/feeder-wagon, makes for
more ecient mixing and less wear and tear on the feeder.
Read carefully through this manual, and especially the safety instructions, before starting the machine.
Follow the instructions thoroughly, if problems should occur, check the troubleshooting guide to try
to establish the problem. Ask your dealer for advice before you attempt anything that may make the
problem worse.

5
Tanco Autowrap - I70 Bale Shear
Operator’s Manual
Technical Specications I70 Bale Shear
Height (Closed) 0.8m
Height (Open) 1.62m
Width 1.82
Length 1.12m
Weight 450kgs
Maximum Bale Length 1.3m
Maximum Bale Diameter 1.35m
Maximum Bale Weight 1400kgs
Hydraulic Connection Double acting service
Oil Pressure (Max / Min.) 210 bar / 150 bar
Oil Amount (Max / Min.) 50 lts / 20 lts
Maximum Counter Pressure 15 bar
NB: Tanco Autowrap Ltd. reserves the right to modify the con-
struction and/or technical specications without warning and
without rights to changes on already delivered products
3. Technical Specications

Tanco Autowrap - I70 Bale Shear
Operator’s Manual
6
4. Safety Precautions
Tanco Autowrap Ltd does not take responsibility for damages that may occur to machine, persons or
other equipment, because of the machine NOT being used as described in this manual, or because of the
safety precautions NOT being followed.
IMPORTANT!
Always make sure nobody is in the hazard area of the Bale Shear when the machine is in-use.
The machine must not be operated by persons who do not know enough about how to safely operate the
machine, or by persons under the age of 16 years.
Dangerous Areas
Tanco Autowrap Ltd. has given the safety to the operator the highest priority, but it is still impossible to
secure oneself of every danger area on the machine. Therefore we have highlighted below some of the
dangers that can occur when using the I70 Bale Shear.
Hydraulic Fluid
Never use your hands to search for hydraulic uid leaks, use a piece of paper or cardboard for this
purpose. Remember that escaping uids under high pressure can be invisible, but can easily penetrate
the skin and cause serious and sometimes permanent injury.
Machine Operation.
Always stop the tractor, lower the attachment to ground level and shut o the engine when leaving the
machine.
Never keep the tractor running whilst installing or servicing the Bale Shear.

7
Tanco Autowrap - I70 Bale Shear
Operator’s Manual
4. Safety Precautions
Safety Shutdown Procedure.
Work of any type on farm machinery is always more dangerous when the tractor is running.
Therefore before cleaning, lubricating, or servicing this unit, the following Safety Shutdown Procedure
should always be followed:
1. Move the Tractors drive control and the hydraulic control valve to their neutral positions and idle the
engine down.
2. Position the Bale Shear so that it is completely resting on the ground.
3. Engage the tractors parking brake.
4. Move the tractors throttle to slow idle, shut the engine o and remove the ignition key.
It is the responsibility of the operator to ensure that all steps of the I70 Bale Shear operating procedures
are followed. Failure to do so may result in the I70 Bale Shear being inadvertently closed or opened due to
incorrect installation/operation.

Tanco Autowrap - I70 Bale Shear
Operator’s Manual
8
4. Safety Precautions
Safety Principles
The blades on the Bale Shear are very sharp. You must always take care to keep any risk of an accident
down to a minimum. Please adopt the following safety principles when operating the I70 Bale Shear.
DO NOT Leave the Bale Shear open when not in use.
DO NOT Allow people or animals near any moving parts of the machine.
DO NOT Leave the Bale Shear open if leaving the machine unattended for any length of time, however
short it is.
DO NOT Restrict the movement of any moving part of the machine.
DO NOT Drive on the road with the Bale Shear in open position.
Always, as far as possible, make sure there are no foreign objects in the bales which could damage the
blades.
Always check the height of the loader boom when entering or leaving a building, or when passing under
overhead cables.

9
Tanco Autowrap - I70 Bale Shear
Operator’s Manual
5. Operating Instructions

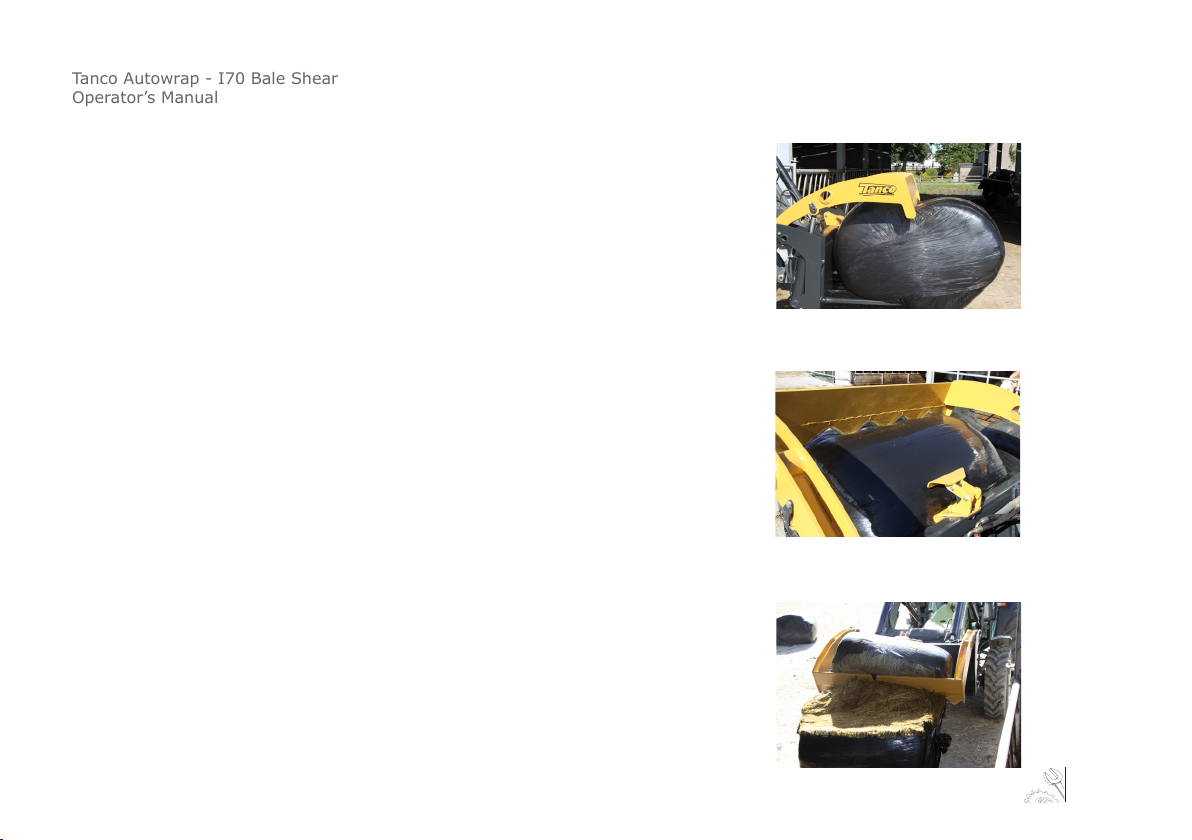

Operating the Bale Shear for Round Bales
1. With the Bale Shear fully open and with the tines resting on
the ground, approach the bale and move the tractor forward until
the bale is pressed tightly against the Shear Grabs’ main frame.
2. Move the hydraulic control lever to close the shear frame down
onto the bale, whilst at the same time the gripper closes and
grips the plastic.
3. Transport the bale to where it is to be split and operate the
hydraulic control lever to close the Bale Shear so that it pierces the
plastic wrap and slices the bale down the centre.

Tanco Autowrap - I70 Bale Shear
Operator’s Manual
10
4. Operate the control levers so they are almost fully open the Bale shear, whilst raising
the loader to eectively spill the two halves of the bale either onto the
feed passage or onto the feeder wagon.
5. Continue raising the loader to strip the plastic wrap, which is still
held by the gripper jaws, away from the bale.
6. Dump the plastic wrap in a convenient place where it can be
collected for recycling by fully opening the Bale Shear.
5. Operating Instructions

11
Tanco Autowrap - I70 Bale Shear
Operator’s Manual
5. Operating Instructions

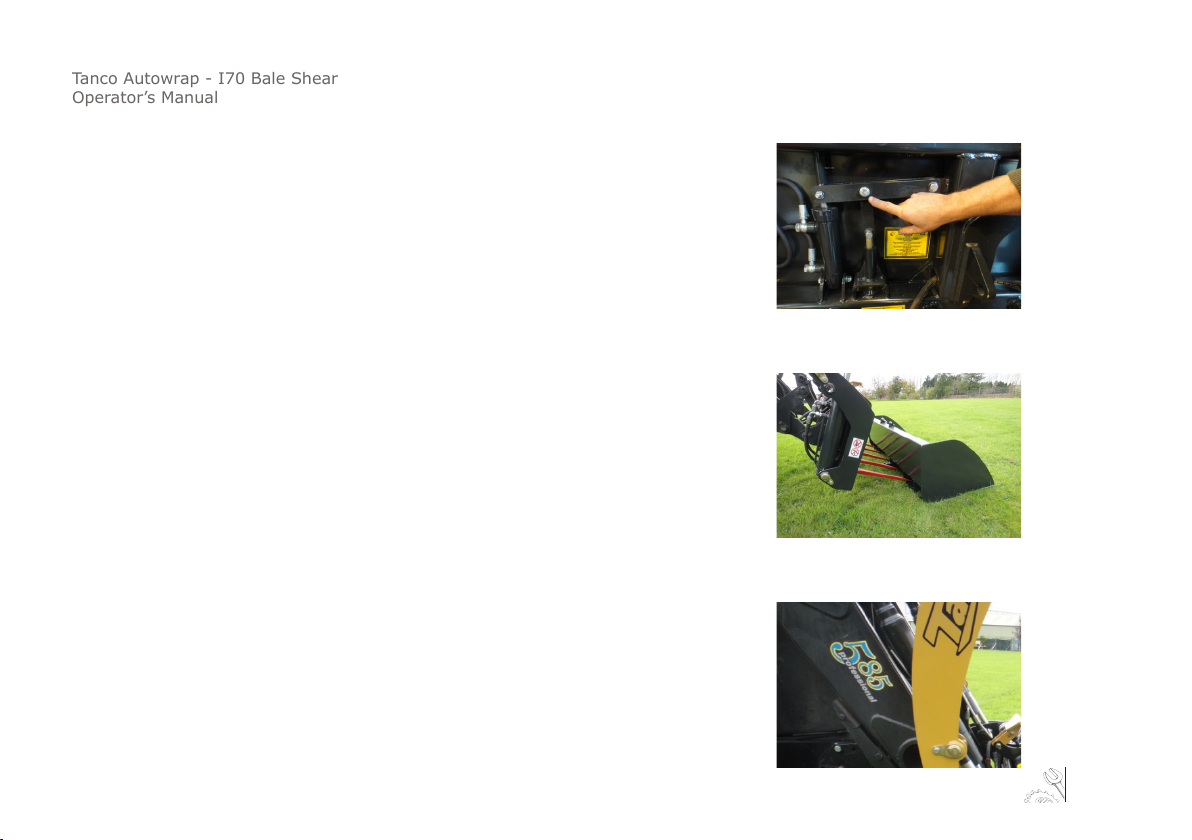

Fitting the Bale Shear Bucket
To use the Bale Shear Bucket the attachment kit items must rst be
tted. The kit items consist of a plunger pin and linkage which is
operated by the lm gripper hydraulic cylinder.
1. Fully open the Bale Shear and tilt slightly forward. Approach the bucket
with the outer tines in line sockets on the back of the bucket.
2. Level the Bale Shear and drive forward. Then tilt fully back to get the
bucket to slide on to the tines.

Tanco Autowrap - I70 Bale Shear
Operator’s Manual
12
5. Operating Instructions

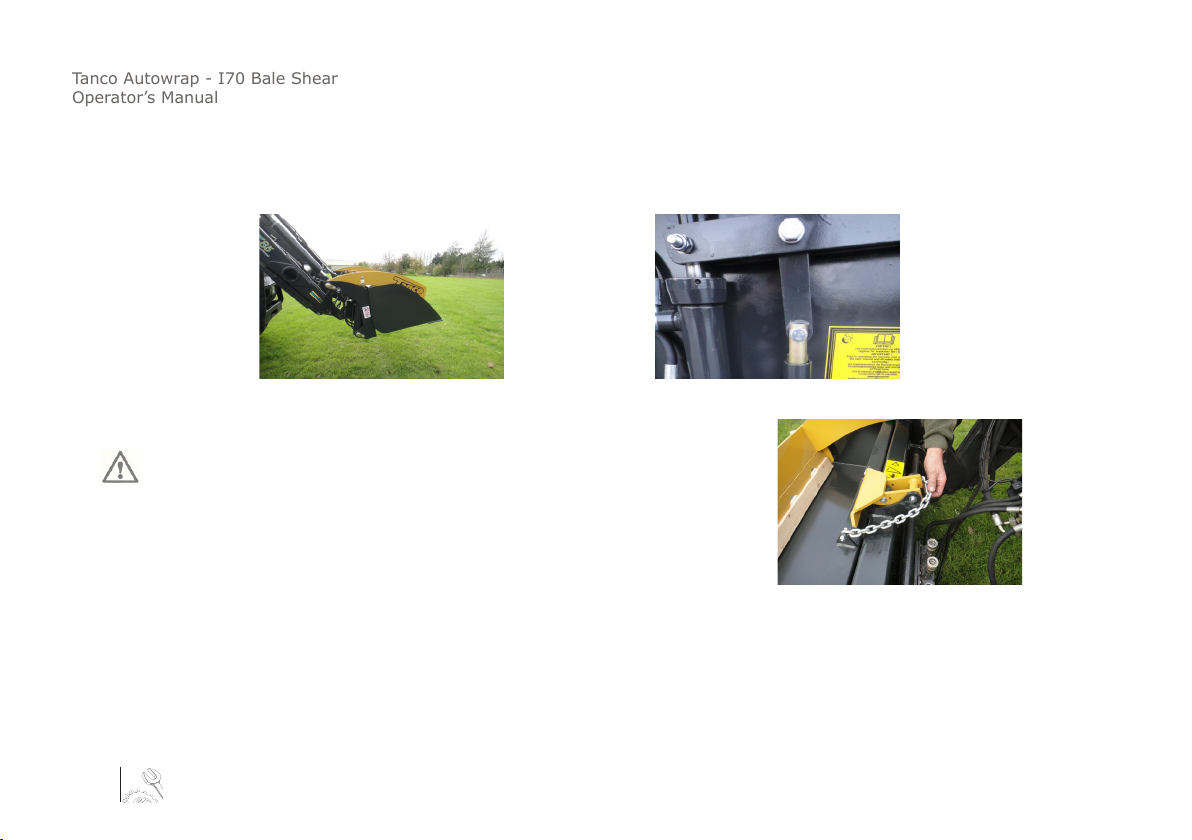

3. Close the shear frame, this also closes the lm gripper hydraulic cylinder which engages the plunger pin
in the tab on the back of the bucket.
4. IMPORTANT
Put the safety chain around the lm gripper mounnting. This is a very
important safety feature as it will ensure that the bucket does not fall
o even if the plunger pin is accidently opened.
5. Open up the shear frame to a height that allows the bucket to be used.
Do not fully open it as this will activate the valve to open the lm gripper and also release the bucket.
When operating with the bucket ensure that the lm gripper is closed at all times.
6. To remove the bucket, rst release the safety chain then full open the shear frame to open the plunger.
Tilt the Bale shear forward to allow the bucket top side o the tines.

13
Tanco Autowrap - I70 Bale Shear
Operator’s Manual
6. Maintenance
When not using the Bale Shear, always make sure that it is left fully closed. Pivot points should be greased
at regular intervals via the grease nipples.
Always disconnect all hydraulic lines and close the Bale Shear fully before carrying out any maintenance.
The Bale Shear blades must be kept sharp. Always wear protective clothing, and always use heavy gloves
when working on the blades. In normal operation, the blades should only require sharpening if they are
damaged. Re-sharpening must only be done with a le. Do not use a portable grinding machine as this
will overheat the blades and reduce their sharpness. If damage to the blades is severe, seek advice from
your Tanco dealer.
The Bale Shear should be regularly checked for any signs of corrosion or leakage or other damage. This
check should include all moving parts, hydraulic components, and the tightness of all ttings, particularly
the tines in the main structure.
Before using the Bale Shear, always check that it is clean and that all moving parts are free from
obstruction.

Tanco Autowrap - I70 Bale Shear
Operator’s Manual
14
GUARANTEE
Subject to hereunder provided, the sellers undertake to correct either by repair or at their election by
replacement any defect of material or workmanship which occurs in any of its goods within twelve months
after delivery of such goods to rst user, with the exception of contractors or commercial users when
warranty period is six months.
In respect of ‘Bale Shears’the warranty period is for 12 months on non-wearing parts.
The term goods when used in this document means the article or articles described in invoices as sold by
the sellers but does not include equipment or proprietary parts or accessories not manufactured by the
sellers. The sellers, however, undertake to pass on so far as they legally can to the rst user the benet of
any warranty given to the sellers by the suppliers of such equipment, parts or accessories.
This understanding shall not apply to:-
(a) Any goods that have been sold by the rst user.
(b) Any goods which have been injured by unfair wear and tear, neglect or improper use.
(c) Any goods the identication marks of which have been altered or removed.
(d) Any goods that have not received the basic normal maintenance such as tightening of bolts, nuts,
tines, hose connections and ttings and normal lubrication with the recommended lubricant.
(e) The use of any product on tractors exceeding the recommended horsepower.
(f) Any goods that have been altered or repaired other that on instruction or with the written
approval of the seller or to which any part not manufactured or having written approval by the sellers have
been xed.
(g) Any second-hand goods or parts thereof.
7. Guarantee

15
Tanco Autowrap - I70 Bale Shear
Operator’s Manual
Any allegedly defective part or parts returned to the seller must be sent carriage paid. No claim for repair
or replacement will be entertained unless upon discovery of the alleged defect written notication is sent
to the Sellers giving, at the same time, the name of the Buyer from whom the goods were purchased and
the date of purchase, together with the full details of the alleged defect and the circumstances involved,
also the serial number of the machine etc.
The sellers shall be under no liability to their Buyers and rst or subsequent users of their goods or to any
other person or persons for loss or damage howsoever arising in respect of either personal injuries or for
arising out of, or in any other way connected with or arising from the manufactures sale, handling, repair,
maintenance, replacement or use of its goods or the failure or malfunction of any of its goods.
Representation and/or warranties made by any persons (including Buyers and employees and other rep-
resentatives of the Seller) which are inconsistent or conicting with these conditions are not binding upon
the sellers unless given in writing and signed by a director of sales.
CLAIMS
If you wish to make a claim under the guarantee:
1: Immediately, stop using the machine.
2: Consult with your Tanco dealer (supplier). He/She can download a warranty claim form on-line. This
should be lled out and e-mailed to distributor and forwarded to relevant contact person in Tanco. Please
ensure all relevant information is included on this form
3: Consult with your Tanco dealer (supplier) and have them forward your claim and the damaged item to
Tanco.
7. Guarantee

Tanco Autowrap - I70 Bale Shear
Operator’s Manual
16
EC DECLARATION OF CONFORMITY
ACCORDING TO DIRECTIVES 2006/42/EC
Manufacturer:
Tanco Autowrap Ltd
Bagenalstown
Co. Carlow
IRELAND
CERTIFIES THAT THE FOLLOWING PRODUCT:
TANCO AUTOWRAP
MODEL: I70 Bale Shear
SERIAL NO:
To which this declaration relates, corresponds to the essential requirements of the Directive 2006/42/EC.
To conform to these essential health and safety requirements, the provisions of the following harmonized
standards were particularly considered:
ISO 12100, EN 294, prEN 703, EN ISO 13857, EN ISO 4254 - 1, prEN 982.
DATE: 01/11/2011
Signed:
Con Hourihane, Technical Manager
8. Declaration of Conformity

Tanco Autowrap - I70 Shear
Spare Parts Manual
1
I70 Spare Parts List
We recommend that when you require spare parts you use only original parts.
When ordering spare parts please follow the following steps;
1. Identify the part you require using the detailed drawings.
2. Once you have identied the part you require reference the item number relating to the part on the
item list where you will nd the part number and description of the part you require. You will be require
to give the complete part no and decription when ordering your part(s).
3. When ordering you must give the Serial Number and Model Number of the machine.
4. All orders must go through your local Tanco Dealer, and must be either faxed or e-mailed to Tanco
Autowrap.

Tanco Autowrap - I70 Bale Shear
Spare Parts Manual
2
Spare Parts Manual
Section 2
Chapter Contents Page
1 Cutter Frame Assembly 3
2 Gripper Assembly 5
3 Hydraulic Components Assembly 7
4 Bucket Attachement * 9
* Option

Tanco Autowrap - I70 Shear
Spare Parts Manual
3
1
2
2A
2B
2C
3
4
3A
3B
3C
4A
4B
4C
1A
1B

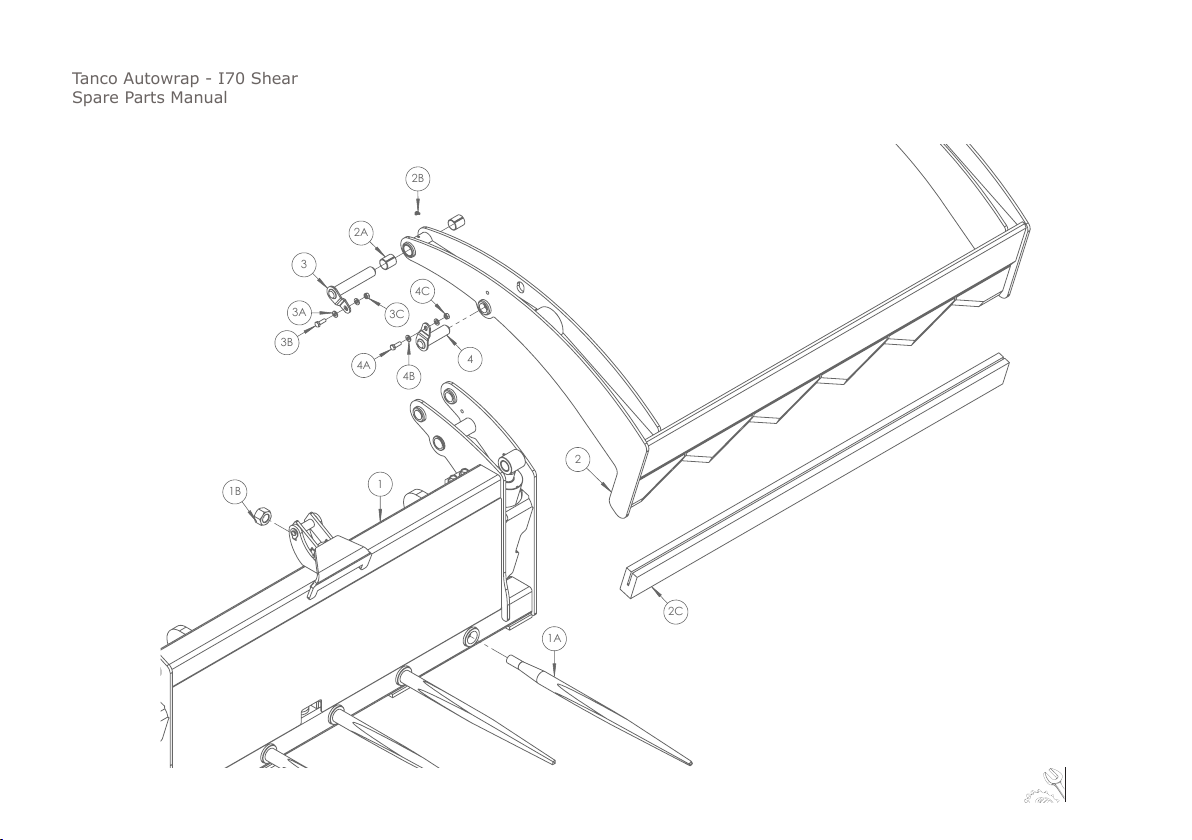

1. Cutter Assembly
