Tanita BD-815U User manual

Thank you for purchasing the TANITA digital baby scale.
For optimum performance and safety, please read this
manual carefully, and keep it handy for future reference.
Professional Baby Scale
BD-815U
INSTRUCTION MANUAL
GB

GB GB
32
Contents
Before Use
Safety Notes •••••••••••••••••••••••••••••••••••••••••••••••4
Caution Symbols •••••••••••••••••••••••••••••••••••••••••4
Warning•••••••••••••••••••••••••••••••••••••••••••••••••••••4
Caution •••••••••••••••••••••••••••••••••••••••••••••••••••••5
Maintenance••••••••••••••••••••••••••••••••••••••••••••••••5
Instructions for Measurement ••••••••••••••••••••••••••••••6
<Usage Conditions>•••••••••••••••••••••••••••••••••••••••••••6
<Storage Conditions> •••••••••••••••••••••••••••••••••••••••••6
<Power Source>•••••••••••••••••••••••••••••••••••••••••••••••6
<To measure correctly> •••••••••••••••••••••••••••••••••••••••6
<Explanation of terminology>•••••••••••••••••••••••••••••••••7
Baby Basket Attachment & Removal••••••••••••••••8
Part Names & Accessories•••••••••••••••••••••••••••10
Names and Functions of Display Panel and Operation Keys
•••••11
How to Use
Power supply ••••••••••••••••••••••••••••••••••••••••••••12
How to Set Up Correctly ••••••••••••••••••••••••••••••13
How to Use the Scale
•When tare is not specified••••••••••••••••••••••••••••••••••14
•Tare weighing function •••••••••••••••••••••••••••••••••••••16
•Canceling the tare function•••••••••••••••••••••••••••••••••17
Memory Function for Measured Values
•Memory Function •••••••••••••••••••••••••••••••••••••••••••18
•Memory Value “Recall” Method •••••••••••••••••••••••••••19
•Display Weight Gain••••••••••••••••••••••••••••••••••••••••19
Various Setting Methods
•Display Hold Time ••••••••••••••••••••••••••••••••••••••••••20
•Auto Power Off Time••••••••••••••••••••••••••••••••••••••••21
Output Data Format ••••••••••••••••••••••••••••••••••••22
When necessary
Troubleshooting•••••••••••••••••••••••••••••••••••••••••26
Specifications •••••••••••••••••••••••••••••••••••••••••••27

GB GB
54
Safety Notes
Do not lean the product against the wall where people and objects pass by.
Someone may touch the product and it may fall down
Caution Symbols
Thank you for purchasing this precision crafted Tanita product. For optimum per-
formance and safety, please familiarize yourself with the Caution Symbols below.
These symbols are designed to alert the user to potential hazards when using this
equipment. Ignoring these Caution Symbols may result in serious injury, or damage
to the product.
Please be sure to review before proceeding with the INSTRUCTION MANUAL.
•Inserting and Removing the AC adapter
To reduce the risk of electric shock or product damage, never insert or
remove the AC adapter with wet hands.
•Do not under any circumstances dismantle or alter the device, as this
could result in electric shock or injury as well as adversely affect the preci-
sion of measurements.
•To prevent fire hazard
Use only a correctly wired (120V AC) outlet, and do not use a multiple
outlet extension cable.
•Do not sit on the edge of the scale, jump on it, or bounce on the baby bas-
ket, as any resultant fall or slip may cause serious injury.
•The baby basket is not designed to accommodate individuals weighing
more than 33lb(15kg).
•As a safety precaution, infants must not be left unattended on the baby
basket.
This symbol indicates the possibility of serious
injury if the product is mishandled or instruc-
tions are ignored.
This symbol indicates the possibility of physi-
cal injury or equipment damage if instructions
are ignored.
This symbol indicates general precautions that
should be taken when using this product.
Warning
Caution
Warning
•Please make sure you place the scale on a level and stable surface. If the equipment is
used when the scale is unstable because not all feet are on the surface, there may be a
risk of stumbling or inaccurate measurement.
Never jump on the scale, there may be a risk of stumbling and malfunction of the equip-
ment.
•For the BD-815U; Ensure you use the original AC Adapter (MODEL: AD-0920M). Using
an AC Adapter other than the original one may cause malfunction.
Do not insert or remove the plug by the cable.
•Do not place a finger into the gap or hole of this equipment.
You may get injured.
Caution
This is a precision manufactured and accurately calibrated product. Please
observe the following instructions.
•Never disassemble or adjust the equipment, as this may cause malfunctions. The equip-
ment should only be inspected in accordance with the regulations in each country.
•When not in use for a long time, unplug the AC Adapter from the wall socket.
•Do not wipe the equipment with corrosive chemicals (benzine, cleaner, etc.). Please use
a neutral detergent to clean the equipment.
•Avoid subjecting the equipment to excessive shocks or vibrations.
•When disposing of this unit, please do so in accordance with the prevailing regulations
in each country.
•If an unauthorised person attempts to disassemble or repair any of the part, the warran-
ty will become invalid. When the unit malfunctions, please consult your nearest Tanita
sales office or agent.
•Do not wash any part of the scale other than the basket with water.
Maintenance

GB GB
76
Safety Notes (continued)
To measure correctly
•Do not use cellular phones or microwave therapy equipment near this equipment.
It may not measure correctly due to equipment malfunction.
Do not measure at a place where the temperature fluctuates
greatly.
Errors may be observed in the measured value. In the case to move to a
place with a temperature difference of 36˚F (20˚C) or more, leave it
before use for 2 hours or more after moving.
Please observe the following instructions for accurate measurement.
•Measurement may not be possible on a surface that is strongly vibrating. In such cases
transfer the equipment to a stable surface with little or no vibration.
•In the case to move to a place with a temperature difference of 36˚F (20˚C) or more, leave
it before use for 2 hours or more after moving.
•While taking measurements, please keep any persons using transmitters, such as a
cellular phone, away from the unit to avoid causing margin errors.
<Usage Conditions>
Temperature Range for Use : 41˚F - 95˚F (5˚C - 35˚C)
Relative Humidity : 30% - 80% (without condensation)
<Storage Conditions>
Temperature Range of Environment : 14˚F - 122˚F (-10˚C - +50˚C)
Range of Relative Humidity : 10% - 90% (without condensation)
To avoid malfunctions, avoid storing the equipment where there is direct sunlight,
significant temperature changes, the risk of dampness, a large amount of dust, in
the vicinity of fires, or where there is the risk of receiving vibrations or shocks.
Instructions for Measurement Explanation of terminology
•Capacity
This shows the maximum weight that can be measured by the scale.
[Example]
In the case of Maximum capacity 33lb (15kg), it can measure up to 33lb (15kg).
*One exceeding the weighing capacity cannot be measured.
•d
This shows the amount of one scale mark. In the case of a digital display, this shows the inter-
val of the numeric value to change.
[Example]
In the case of Minimum Graduation 0.1oz (0 - 12lb) 0.2oz (12 - 33lb) or 2g (0 - 6kg) 5g (6 - 15kg)
the display increases and decreases.
•Extend Minimum Graduation
Enables changing precision of measurements.
•Tare
The container, towel, blanket, etc., used when measuring weight is called “tare”.
To measure the net-weight after subtracting the weight of the tare is called "tare weighing."
<AC Adapter>
Model AD-0920M
Input 120 VAC 60Hz
Output 9 VDC 200mA

GB GB
Baby Basket Attachment & Removal
B.Removal
The baby basket can be removed and washed.
2
3
Once the basket is removed, take care not to
insert a finger or drop anything into the gap.
A.Attachment
Align the far edge of the basket
with the stickered line.
2
3
4
98
Pull out the lever.
Line
1
Slide the basket over the plat-
form until it stops.
Make sure the basket is firmly
secured and then fix it to the
platform by pushing in the lever.
Caution Make sure the basket can't drop.
Pull out the lever.
1
While gently pushing down the
lever, slide out the basket in the
displayed direction.
It is ready to remove the basket
once its far edge is aligned with
the stickered line.
Caution
The baby basket is not attached to the main unit when unpacked.

GB GB
Part Names & Accessories
Baby basket (for infant)
Display panel
Confirmation of accessories
Instruction manual (this book) AC adapter (9V)
AA-size batteries(4)
Battery cover
Battery housing
Operation keys
Refer to page 11
AC adapter inlet
Level gauge
Lever
Adjusters (4)
RS-232C connector
Names and Functions of Display Panel and Operation Keys
*The pointers (black triangles) indicate active items.
*The backlight is on only when the AC adapter is used.
*Thesmark appears in the digital display next to each of the
following operations, indicating which are in effect.
Measurement is
stabilized.
Tare is specified.
Memorized value is
recalled and displayed.
Weight gain is displayed
for 5 seconds after pressing
the Weight Gain key.
Weight is memorized.
Display is on
hold.
MEMORY
*Memory of
current weight.
*Sets display
hold time.
WEIGHT GAIN
*Indicate the weight dif-
ference between memo-
ry weight and current
weight.
*Set auto power off time.
RECALL
Indicates the memory weight
when it has memory weight.
WEIGHT LOCK OFF
Sets the weight lock off.
ON/TARE
Turns the power on
or sets the tare.
ZERO
Scale resets to
zero.
OFF
Turns power
off.
EXTEND
Provides greater
precision.
g/lb•oz
Selects grams or
pounds and ounces
for weighing unit.
*Available key make a “beep” sound when pressed.
10 11
Front
Back
Display Panel
Operation Keys

GB GB
1312
Power Supply
(1) Turn the scale upside-down,
and turn the finger screw on
the battery cover counter-
clockwise (as indicated) to
release the screw.
How to Set Up Correctly
Use the scale in a firm, flat and stable location.
•Do not position it anywhere that is subject to direct
sunlight, near heating equipment, or directly in the
path of an air conditioner outlet.
•Do not use it anywhere that is subject to significant
temperature change.
•Do not position it anywhere that is either damp or
subject to high humidity.
•After positioning the scale, pick up the baby basket
from both sides to confirm that the basket is not easily
removed before use.
•Ensure that the lever is pushed in.
Using batteries
Level gauge Check
<View from above>
Red
Air bubble
•Place the scale on a flat surface to ensure
accurate measurement.
•Turn the four adjusters such that the air bub-
ble in the level guide is positioned exactly in
the center. Confirm that all four adjusters
are in contact with the surface. Level gauge
Adjusters (4)
Using the AC adapter
(1) Insert the AC adapter jack into the AC
adapter inlet on the right side of the main
unit.
(2) Plug the AC adapter into the power outlet.
This equipment must be used
with the included AC adapter.
Caution
(2) Lift off the battery cover. (3) Insert new batteries.
•When the batteries start to run low, appears
on the display panel as a warning.
All (four) batteries should be immediately
replaced with new ones at the same time.
Note) Do not use a combination of alkaline and
manganese batteries, as such an arrangement
may result in equipment failure.
Note) Rechargeable batteries are NOT recom-
mended.
•A set of standard batteries should last about
one year (assuming four readings a day).
*Insert the batteries
such that the negative
terminals of the batter-
ies are pushed up
against the coils within
the battery housing.

GB
15
取り扱い上のご注意
GB
14

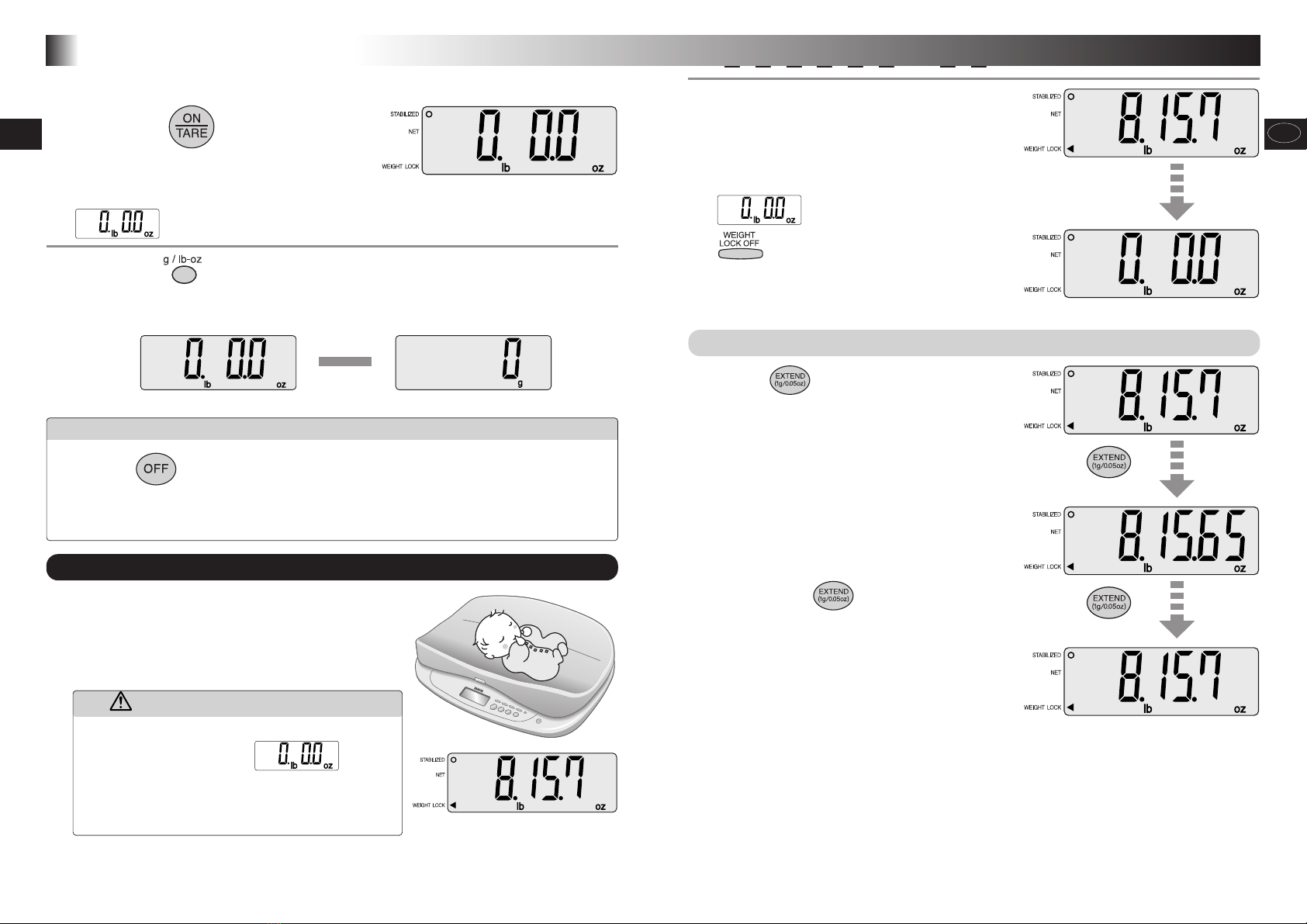

How to Use the Scale
Extended Display Function
When the key is pressed while the
display is on hold, the weight is displayed
0.05oz (1g) units for as long as the key
remains pressed.
*The extended display function cannot be used if
“Hold Time” is canceled, or if the “Recall” or
“Weight Gain” is displayed.
Keep pressing
By releasing the key simultaneously
return to the previous display.
2After measurement, remove the
baby from the baby basket.
If the display hold time has been set, the
measurement remains on display for the
set time. The display can be reset to
at any time by pressing the
key.
When tare is not specified
Note
•Press the key to cancel measurements or turn off the display.
•The extended display function cannot be used if “Hold Time” is canceled, or if
the “Recall” or “Weight Gain” is displayed.
Press the key to turn on
the power.
After flashing the display.
is displayed.
1
< Example of the lb • oz display >
Press the key to select the unit.
The display alternates between the two units by pressing the key.
*Unit selection can be made valid only when “0” is displayed.
2
st
lb • oz unit g unit
General measurement
1Place the baby on the baby basket.
Once the scale stabilizes and the weight is con-
firmed, stabilized (")and weight lock (t) will
appear. (Beep sound)
Measurement instructions
•A warning sound beeps if a baby is placed
on the basket before is dis-
played.
If it happens, remove the baby from the bas-
ket.
Release

GB GB
1716
How to Use the Scale (continued)
Canceling the tare function
1Remove the tare item(s) from
the basket.
2Press the key with noth-
ing on the basket.
(Beep sound)
The tare function is canceled and
is displayed.

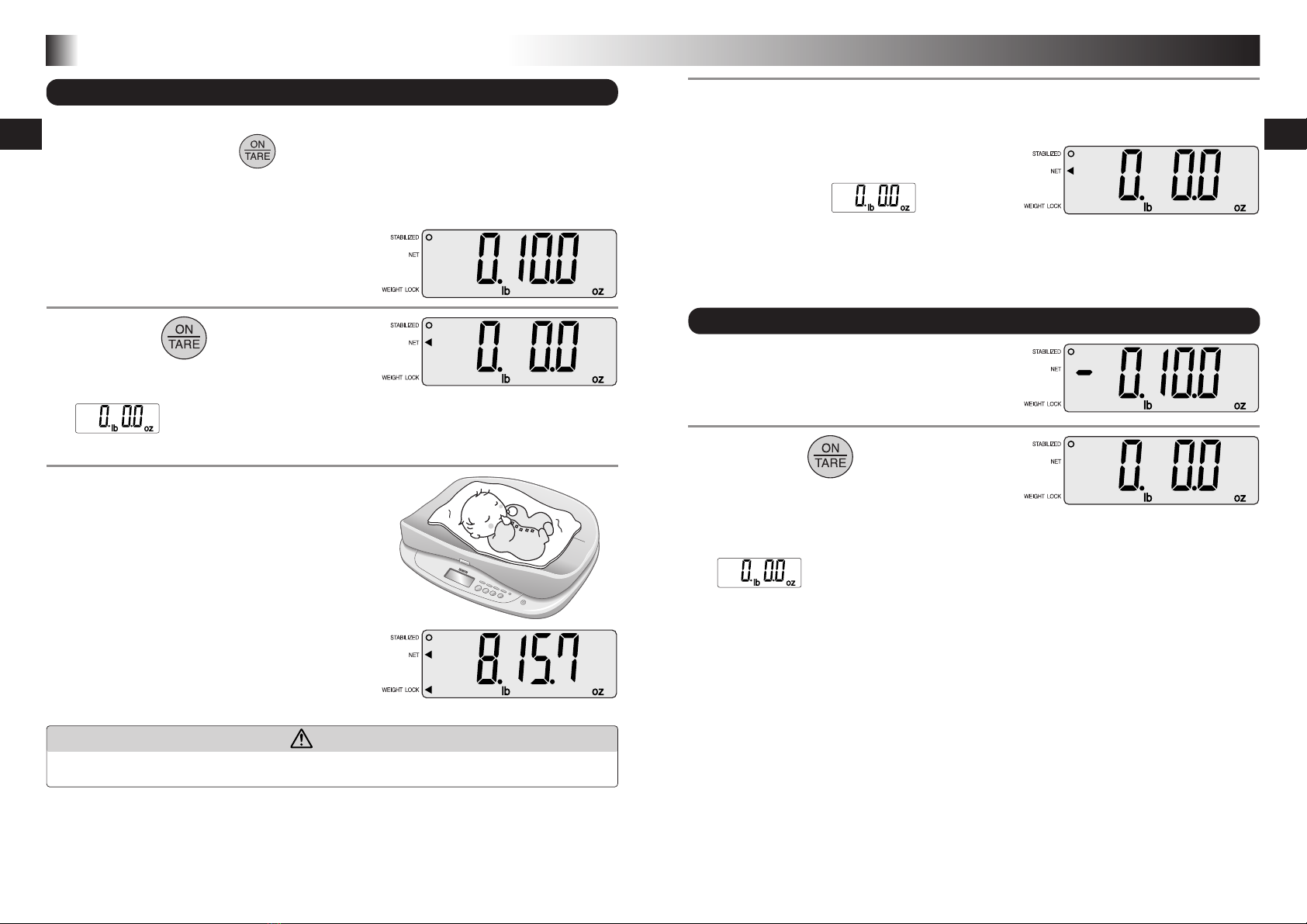

Tare weighing function
After turning on the power, the bath towel, diaper, blanket etc. is
deducted by pressing key. Then, the baby’s actual (i.e. net)
weight (excluding the weight of the towel, diaper, etc.) can be meas-
ured.
1
2Press the key.
(Beep sound)
is displayed, and the pointer
beside NET is shown. (Beep sound)
3Place the baby on the baby bas-
ket.
The net weight of the baby (excluding the
weight of the bath towel, etc.) is dis-
played. (Beep sound)
4End of measurement.
Remove the baby from the baby basket.
When Hold Time is set, the measurement
is retained for the set time, after which the
display resets to .
Place the bath towel or blanket
on the scale.
The weight of the bath towel is displayed.
Caution
•Tare weighing is possible only within the maximum tare weight 4lb (2kg).

GB GB
1918
Memory Function for Measured Values
Press the key.
(Beep sound)
*When the previous reading is memorized, the
“Memory” pointer is shown.
Pressing the key overwrites the
existing record with the currently dis-
played value as the new memorized value
while the display is on hold.
Memory Function
When the key is pressed while the display is on hold, the dis-
played value is memorized.
1
Press the key while
is displayed.
The memorized value is deleted, and the
“Memory” pointer disappears.
1
Memory Value “Recall” Method
This function is used to check the value memorized previously.
Press the key.
(Beep sound)
The value memorized previously is shown
for 5 seconds.
*This key is valid only when this scale has a mem-
orized weight.
1
Display Weight Gain
Place the baby on the baby basket.
(Beep sound)
1
“Memorize” the weight before breastfeeding, and then take another
measurement after breastfeeding. The increase is calculated automati-
cally, by pressing weight gain.
2
5 seconds
Caution
•When checking the weight gain for another baby, be sure to memorize his/her
weight before measuring the weight gain. Each baby’s weight must be record-
ed before and after breastfeeding for accurate measurement of the breastfeed-
ing amount.
< Display is on hold >
Memory cancellation
Press the key. (Beep sound)
“The currently displayed value – memorized
value” is displayed as the weight gain
(breastfeeding amount) for 5 seconds.
*If the new reading (after breastfeeding) is less than the memorized value (before breast-
feeding), a minus sign (–) is displayed.

GB GB
21
Various Setting Methods
20
Press key.
(Beep sound)
1
Three types of setting, namely “Display Hold Time” and “Auto Power
Off Time” can be used on this scale.
3
Press key while the screen is
flashing. (Beep sound)
2
Display Hold Time
Press key.
(Beep sound)
The hold time is shown (the default is 10 seconds), and the display changed by
pressing this key.
*The hold times that can be set are 10 seconds, 20 seconds, 30 seconds, or -- (None).
-- (None) means the hold function is deactivated.
3
To complete to set the hold time,
press again.
(Beep sound)
4
Auto Power Off Time
To complete to set the auto power
off time, press again.
(Beep sound)
To save and complete that setting.
4
You can set certain seconds to keep the measurement on the display after remov-
ing the baby.
The “Auto Power Off Time” setting automatically turns off the power
when the scale is unused for the specified length of time.
ss
ss
tt
t
t
s
Press key.
(Beep sound)
The auto power off time is shown (the default is 15 minutes), and changed by,
pressing this key.
*The auto power off times can be set are 15 minutes, 30 minutes, 45 minutes, 60 minutes, or
-- (None).
--(None) means that the auto power off function is deactivated.

GB GB
2322
{0
Transmission data is output immediately after measurement regard-
less of the status of the reception side (e.g. PC). Therefore, the recep-
tion side must always be ready to receive data before any measure-
ments are taken.
Grams (g) mode (transmission data)
Item Header Output data (ASCII code)
Control data Fixed at 16
•Commas (,) are used to separate data.
•Terminator (end of data) is CR (ASCII code: 0DH), LF (ASCII code: 0AH).
Note
A. When the display is held
Details
~0
Control data Fixed at 1
MO
Model No. "XXXXXX" 8-byte fixed length (“BD-815”)
Wg
Body weight XXXXX 3~5 bytes variable length (unit: g)
B. When the Weight Gain key is pressed
Gg
Item Header Output data (ASCII code)
Weight gain XXXXXX 1~6 bytes variable length (unit: g)
Details
Rg
Memorized weight XXXXX 3~5 bytes variable length (unit: g)
C. When the Recall key is pressed
Rg
Item Header Output data (ASCII code)
Memorized weight XXXXX 3~5 bytes variable length (unit: g)
Details
12345678910111213141516
LFLFCRCR668822,,ggRR,,002211,,55ggGG
1234567 8 9
LFLFCRCR88668833,,ggRR
123456789101112131415161718192021222324252627
28 29 30 31 32
LFLFCRCR227799
33,,ggWW,,""551188--DDBB"",,OOMM,,11,,00
˜˜
,,6611,,00
{{
Output Data Format
This explanation is for the interface to output the readings from the
Digital Baby-Scale BD-815U to external equipment (e.g. PC) as a RS-
232C-compliant signal.
Specifications
Communication standard EIA RS-232C
Communication method Asynchronous
Signal speed 9,600bps
Data bit length 8bit
Parity NONE
Stop bit 1bit
Terminator CR+LF
Flow control None
Signal line name and connection method
Terminal no. Signal name
1
2TXD
3
Explanation for RS-232C-compliant output
Connection example
BD-815U PC, etc.
4
5GND
6
7
8
9

GB GB
24
Transmission data is output immediately after measurement regard-
less of the status at the reception side (e.g. PC). Therefore, the recep-
tion side must always be ready to receive data before any measure-
ments are taken.
Pounds/ounces (lb•oz) mode (transmission data)
25
Output Data Format (continued)
123456789101112131415161718192021222324252627
28 29 30 31 32 33
LFLFCRCR33..33..
99,,ooWW,,""551188--DDBB"",,OOMM,,11,,00
˜˜
,,6611,,00
{{
1234567891011121314151617181920
LFLFCRCR77..5511..88,,ooRR,,55..33..00,,ooGG
1234567891011
LFLFCRCR77..5511..88,,ooRR
{0
Item Header Output data (ASCII code)
Control data Fixed at 16
•Commas (,) are used to separate data.
•Terminator (end of data) is CR (ASCII code: 0DH), LF (ASCII code: 0AH).
Note
A. When the display is held
Details
~0
Control data Fixed at 1
MO
Model No. "XXXXXX" 8-byte fixed length (“BD-815”)
Wo
Body weight XX.XX.X 5~7 bytes variable length (unit: lb•oz)
B. When the Weight Gain key is pressed
Go
Item Header Output data (ASCII code)
Weight gain XXX.XX.X 5~8 bytes variable length (unit: lb•oz)
Details
Ro
Memorized weight XX.XX.X 5~7 bytes variable length (unit: lb•oz)
C. When the Recall key is pressed
Ro
Item Header Output data (ASCII code)
Memorized weight XX.XX.X 5~7 bytes variable length (unit: lb•oz)
Details

GB GB
2726
Troubleshooting
Page Check pointsProblem
If you are concerned that the scale may not be functioning correctly,
please check the following points before requesting repairs.
•Have the batteries been removed, or has the AC
adapter been unplugged?
•Are the batteries running low?
•Is anything stuck to the terminals of the batter-
ies?
sP.12
Nothing is displayed
when the key is
pressed.
•The batteries are running out. Please replace
them immediately or use the AC adapter.
sP.12
is displayed.
•Is any pressure being applied to the baby basket
when the power is turned on?
•Has basket been removed?
sP.14
After the power is
turned on,
is displayed, and an
alarm sounds.
•The maximum measurable weight capacity for
the scale (33lb / 15 kg) is exceeded.
sP.7
is shown
during measure-
ment.
Specifications
Power supply
Model BD-815U
Capacity 33 lb (15000g)
d (division) 0.1oz(0-12lb) 0.2oz(12-33lb)
2g (0-6000g) 5g (6000-15000g)
Maximum tare 4lb (2000g)
Extended calibration (uncertified) 0.05oz (1g)
Display panel Backlit LCD
(Backlight is on only when the AC adapter is used)
External interface RS-232C (D-sub 9-pin female connector),
unidirectional output
Input: AC 120 V (60 Hz) Output: DC 9 V / 200mA
Power consumption 0.12 W or less (using the batteries)
0.35 W or less (using the AC adapter)
Operating temperature 41˚F - 95˚F (5˚C - 35˚C)
Overall dimensions D16.1 W23.6 H6.2in (D409 W600 H157mm)
Main unit mass Approx. 10.1lb(4.6kg)
Main material ABS resin
Made in Japan
Regular voltage DC 6 V (using the batteries)
DC 9 V (using the AC adapter)
Consumption current 20mA (using the batteries)
38mA (using the AC adapter)
Storage temperature 14˚F - 122˚F (-10˚C - 50˚C)

GB
© 2007 TANITA Corporation. All Rights Reserved. BD8157001
