Tarptent Double Rainbow Manual

Tarptent Double Rainbow Setup
Setup is very easy. It will take 2 to 3 minutes once you get the hang of it. To
watch the setup video visit: http://www.tarptent.com/videos/
Your Double Rainbow order includes: stuff sack, tent body, six blue stakes +
bag, a foldable top strut pole and an arch pole.
I. Layout and Positioning
1. Once you have found a place to pitch your Double Rainbow, spread out the
tent body with the black bathtub oor facing the ground. If using a ground
sheet, lay it down rst.
2. Remove six stakes from the stake bag and have them ready to place in the
guyline loops (2 stakes in front, 2 in back, 2 for the vestibule doors).
3. Check to make sure that the oor corners are clipped above the
corresponding y line tightener. (Image 1).
4. Assemble 24in/ 61cm top strut pole and insert
into grommets at top of canopy as shown.
5. Insert assembled arch pole into the yellow arch pole sleeve. Point the pole
tip downwards as you slide it through the sleeve--there should be almost
no resistance from the fabric. Do NOT use force when inserting the arch
pole as the pole may break or fabric may tear.
6. Place pole tips into the black end pockets. Once the pole is inserted, tighten
the pockets so the arch pole is well secured in the sleeve.
II. Pitching the Double Rainbow
1. After you have the arch pole secured, stake out the adjacent tent corners by
placing the stakes through the guyline loops. Stake out the corners as far as
possible from the center of the tent (Image 2).
2. Walk to the other end of the tent and ensure that the arch pole is centered
before staking out the corners as you did previously (Image 2).
3. Pull out the vestibule doors and stake for vestibule space (Image 2).
4. Bathtub end walls can be lifted from the interior using the clip above the
head and foot ends of the shelter.
III. Free Standing Set Up
1. You can use trekking poles OR vertical support poles ordered from Tarptent
to make the Double Rainbow free standing.
2. Adjust the poles to a minimum height of 55 in (140 cm).
3. Open the closed velcro loop at the end of the arch sleeve and resecure the
velcro snuggly around the middle of your trekking pole (Image 3C).

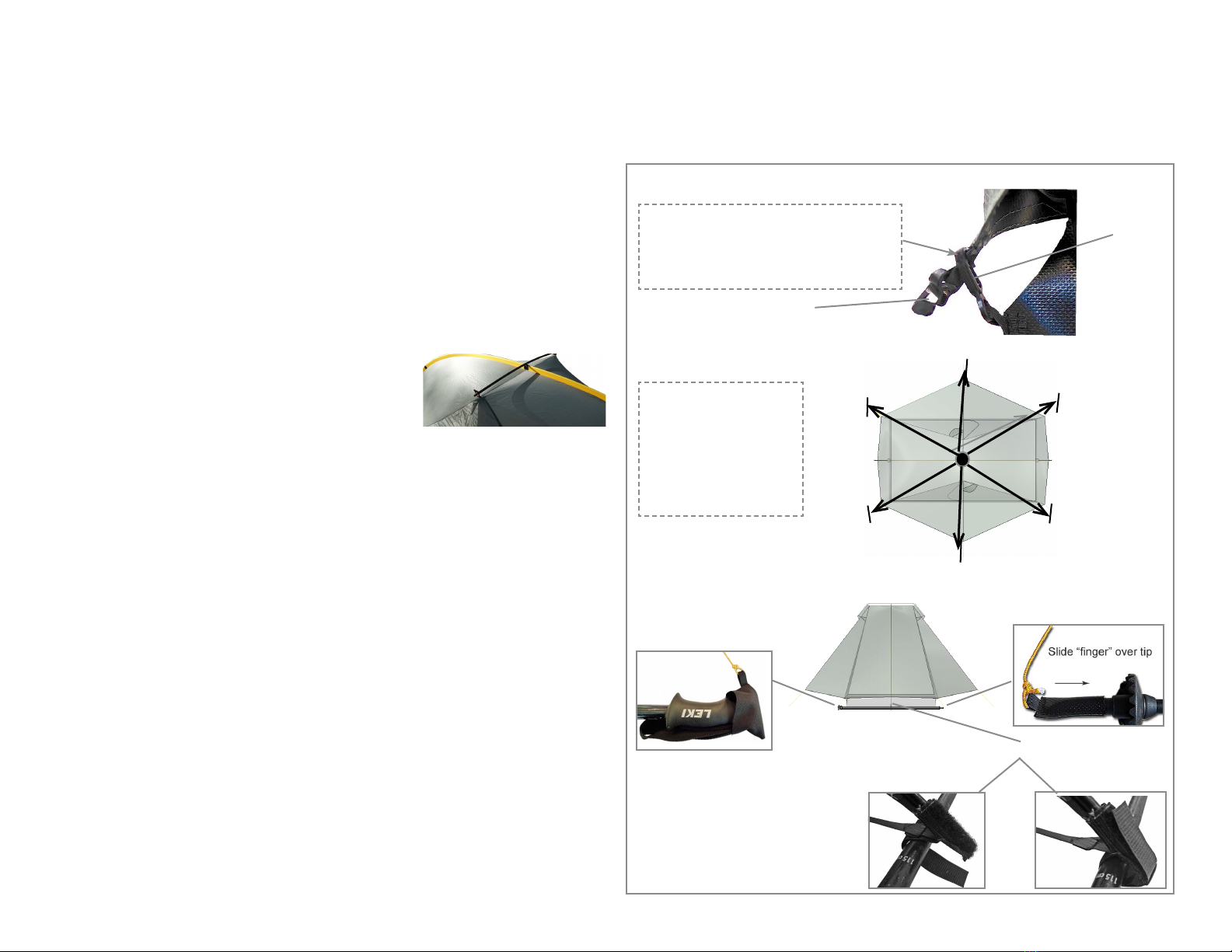

Image 2: Stake placement and tensioning
Stake out each corner
as if you were pulling
as far as possible from
the “center” of the
tent. This ensures even
tensioning
Place pole
handle inside
“pocket”
place pole tip
inside “nger”
velcro strap for center of pole
Image 3: Free standing set-up
(B)
(A)
(C)
velcro strap open velcro strap closed
pole 55in/140cm
Image 1: Clipping oor to y
clip oor corners to the corresponding
y corner, directly above the line tight-
ener, to ensure bathtub oor is correctly
tensioned
oor corner clip
y corner line tightener
4. The tent corners will have either a pocket for the handle of your pole
(Image 3A) or a “nger” that will hold the tip of your pole (Image 3B).
Place the handle into the “pocket” and the pole tip in the “nger”.
5. Repeat above steps for the other end of the tent. Tension vestibule doors
with guylines as needed. The shelter should now be free standing.
≥
tent center
stake

Tarptent Double Rainbow Setup
IV. Rain Porch Set Up
1. As you unzip the vestibule door, you will nd a piece of connecting fabric
attached near the top of the zipper. Unroll the fabric and attach to the other
side of the vestibule door.
2. Angle your trekking poles so that the tip of each pole is approximately 40
in/102 cm off the ground. Place the tip of each trekking pole on each side
of the extended vestibule door. Use extra guyline to stake down the raised
vestibule doors, thereby creating an extended entrance for rain protection
and ventilation (Image 4).
V. Additional Ventilation
1. Partially unzip the vestibule door and
secure the edge using the velcro tab.
2. Relax the exterior arch pole tension
strap. Lift the interior sleeve edge and
slide it up. Secure the elastic loop to the
clip higher up the sleeve.
Condensation and Sag
• Ventilation and fabric warmth are your best defenses against condensation.
• Keep the doors open if at all possible and try to set up where it’s breezy. Try
to keep the beaks open (or at least partially rolled up). Camp under trees
where its warmer and set up ABOVE river valleys or lake basins to avoid
cool/damp microclimates.
• Nylon stretches (and sags) when the humidity goes up. This happens as
night is falling and/or when it starts to rain. Use the line tighteners to
tighten the fabric and re-tension the shelter.
Key points to consider
• Push, rather than pull, the poles through the sleeves to prevent pole section
separation.
• The tent is made of strong, lightweight, and ammable fabric. Treat it
accordingly.
Seam-sealing
**IMPORTANT**You will need to seam-seal your Double Rainbow with
SILICONE before using it in the eld!
Please refer to the seam-sealing instructional video on our website:
http://www.tarptent.com/videos/
Here’s how to seam-seal your Tarptent Double Rainbow
1. Set up the shelter in a cool, dry, well ventilated area.
2. In a well ventilated location, prepare sealant by squirting
approximately 3 tablespoons of silicone into a tuna can (or a similar
disposable receptacle) and mix with approximately 6 tablespoons
mineral spirits (paint thinner) or Coleman fuel/white gas. Mix until
the solution dillutes into the consistency of a thick olive oil.
3. Using a small foam brush or rolled up paper towel, from the outside
of the shelter paint the solution onto the seams. Wipe a paper towel
across the seams after applying the silicone to help push the solution
into the seams.
4. We recommend painting several thick lines of silicone onto the
interior oor of the shelter to form an anti-skid mat.
Thank you for your purchase. We sincerely hope that you enjoy your
Tarptent. Questions and feedback are always welcome.
